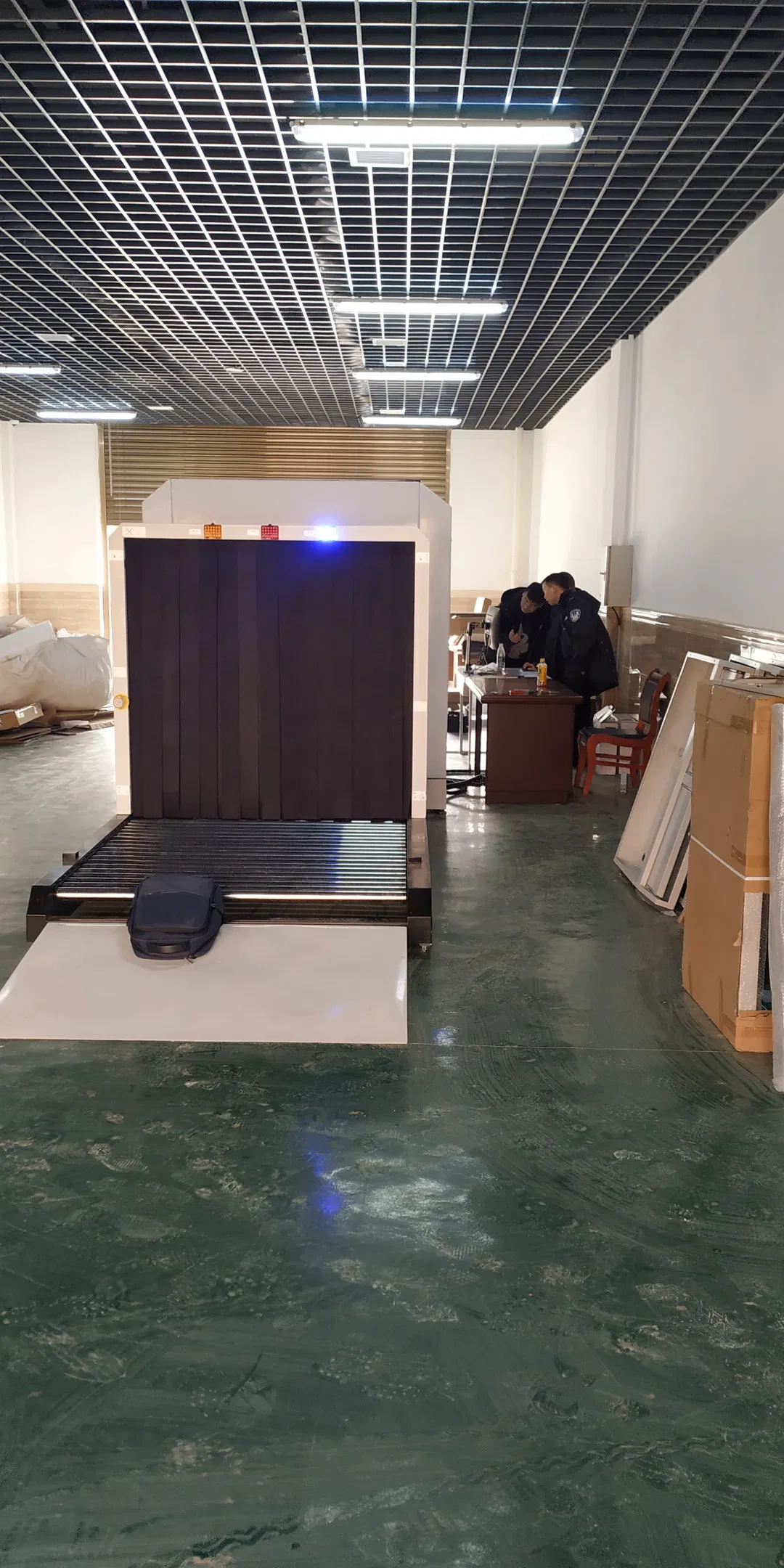

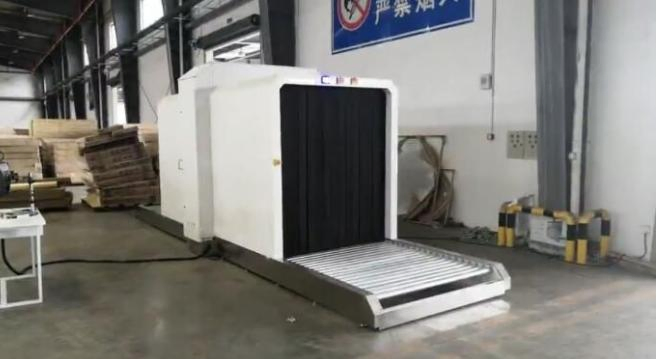

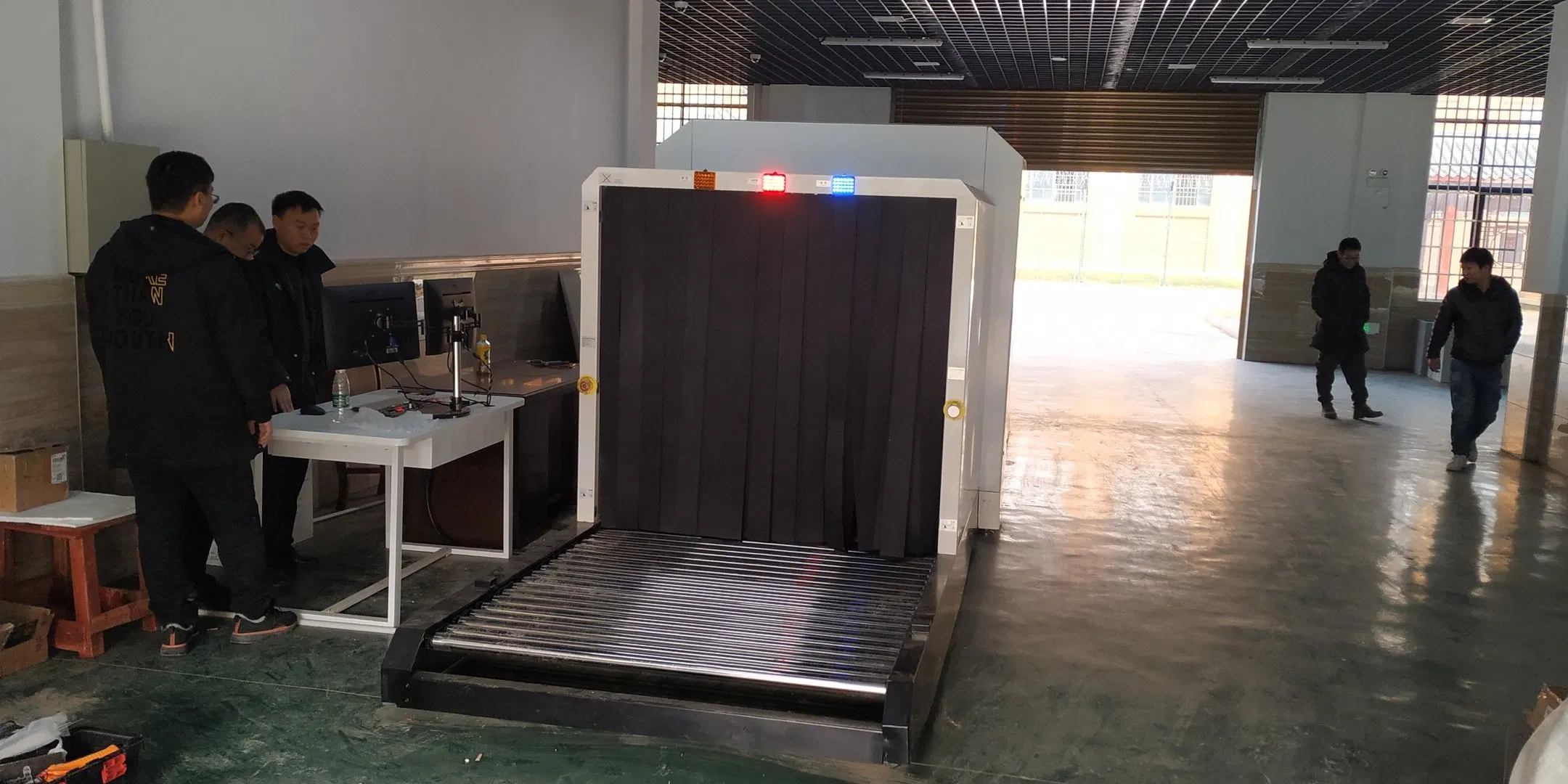

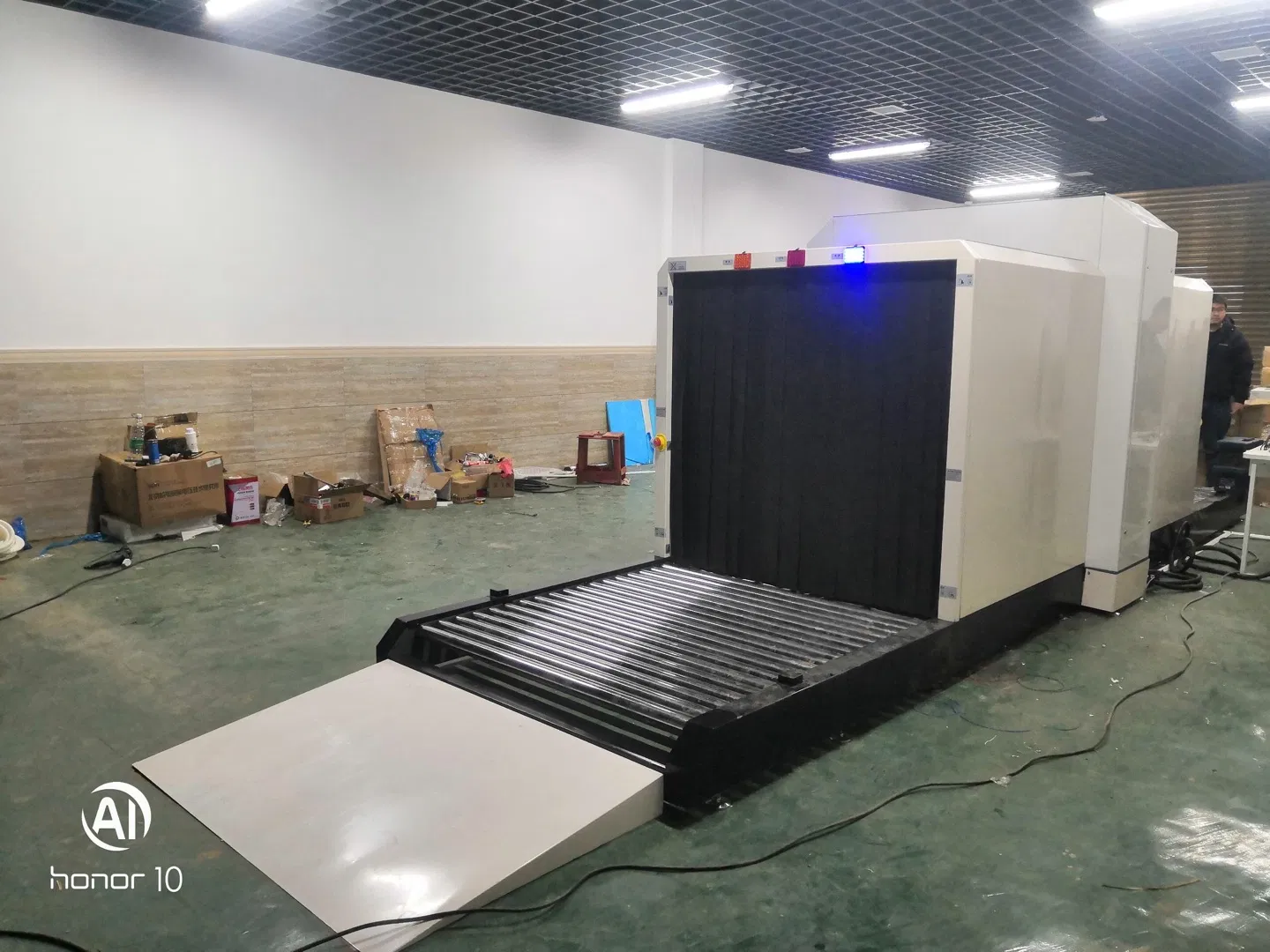

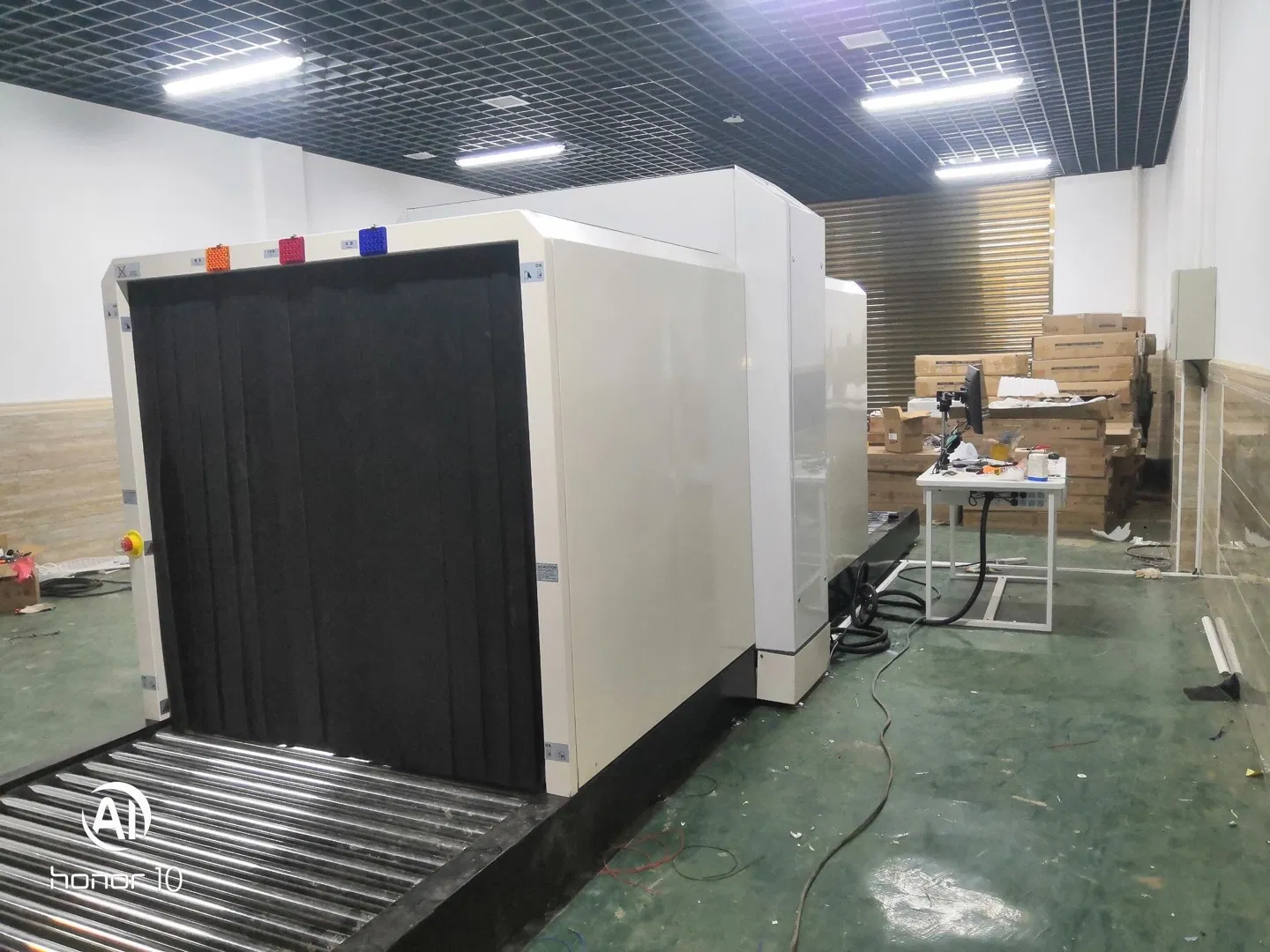

X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
1 / 5
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission
X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission

X-ray Security Inspection System Roller Conveyor Is Equipped Function of Real-Time Image Recognition and Automatic Transmission

Customization: Available
After-sales Service: Telephone and Video Guidance, Door-to-Door Guidanc
Warranty: 1year
Send Inquiry

Product Description

Basic Information
Model NO.
Iwildt-An150180
Certification
CE, ISO
Form
Flatbed
Application
Security Check
Type
Industrial High-Definition X-ray Detector
Penetration
60mm Steel Plate
Tube Voltage
180 Kv (Adjustable)
Tube Current
0.8 ~ 1.8mA (Adjustable)
Production Capacity
2000 pieces/Year
Trademark
IWILDT
Product Description

The IWILDT™-AN 150180 X-ray security inspection system of roller conveyor is a high-performance, line array X-ray low dose scanning safety inspection equipment. Featuring large channel size and high load capacity, it offers strong X-ray penetration and a wide energy resolution data range. This system incorporates international leading X-ray detector technology, computer intelligent control, and advanced image scanning, meeting high-level aviation safety standards.

Equipped with a 24-inch IPS 20000:1 high-definition frameless wide screen and a 360-degree multi-angle bracket, the system provides real-time, large-area X-ray image display. This design significantly improves operational efficiency by allowing security personnel to hide menu toolbars and maximize visual area.

★Key Applications
Suitable for non-unpacking X-ray security inspection of bulk goods in:
  • Airport freight stations and Customs freight yards
  • Port terminals and Logistics parks
  • Border ports and Large storage facilities
It efficiently detects dangerous chemicals, gunpowder, toxic substances, weapons of mass destruction (WMDs), guns, knives, detonators, and fireworks hidden in large cargo boxes.
Technical Parameters
X-ray Source
  • Penetration: 60mm steel plate
  • Tube Voltage: 180 kV (adjustable)
  • Tube Current: 0.8 ~ 1.8 mA (adjustable)
  • Beam Divergence Angle: 80 degrees
  • Heat Dissipation: Oil immersed
  • Radiation Protection: 6mm thick lead plate
Detection & Image System
  • Detection Crystal: GSI with CMOS photoelectric conversion
  • Pixel Arrangement: L-shaped line array
  • Software Functions: Edge enhancement, image inversion, histogram equalization, organic/inorganic matter removal, and real-time zooming
  • Image Recognition: Supports CNN convolutional neural network image recognition (optional GPU box)
  • Networking: 1920x1080 real-time image H.264 encoding
Equipment Performance
  • Channel Size: 1500 (W) x 1800 (H) mm
  • Conveying Speed: 0.22m/s
  • Maximum Load: 550kg
  • Line Resolution: 0.0787mm single solid copper wire
  • Machine Size: 5800 (L) * 2000 (W) * 2200 (H) mm
  • Leakage Dose: < 0.09μGy/h
Product Visuals
X-ray Security Inspection System View 1
X-ray Security Inspection System View 2
X-ray Security Inspection System View 3
X-ray Security Inspection System View 4
Frequently Asked Questions
1. What is the maximum penetration power of the Iwildt-An150180?
The system features a high-power X-ray source that can penetrate up to a 60mm thick steel plate, allowing for clear imaging of contents inside heavy cargo.
2. Can this system handle heavy pallets and bulk cargo?
Yes, the roller conveyor is designed for high-load capacity, supporting a maximum weight of 550kg and featuring a large channel size of 1500mm wide by 1800mm high.
3. Does the system support automatic threat recognition?
The system supports optional CNN convolutional neural network image recognition via a GPU cloud box, enabling real-time identification of prohibited items.
4. What are the environmental and safety standards?
The equipment uses a double-layer lead curtain coated with protective film to prevent lead pollution and ensures a leakage dose of less than 0.09μGy/h, complying with ISO 9001 and ISO 1600 standards.
5. Is there an energy-saving mode available?
Yes, the intelligent detection system automatically starts the conveyor when goods are detected and enters standby mode after 30 seconds of inactivity to save power.
6. What kind of image processing features are included?
The software includes edge enhancement, sharpening, image inversion, organic and inorganic matter removal, brightening/darkening, and local magnification for detailed inspection.
