X-ray Penetration Force X-ray Security Inspection System for Roller Conveyor Body Scanner Detector Factory

Customization:	Available
After-sales Service:	Telephone and Video Guidance, Door-to-Door Guidanc
Warranty:	1year

Send Inquiry

Product Description

Basic Specifications

Model NO.:Iwildt-An150180

Certification:CE, ISO

Form:Flatbed

Application:Security Check

Type:Industrial High-Definition X-ray Detector

Penetration:60mm Steel Plate

Tube Voltage:180 Kv (Adjustable)

Tube Current:0.8 ~ 1.8mA (Adjustable)

Radiation Protection:6mm Thick Lead Plate

Package Size:1100cm * 500cm * 410cm

Product Description

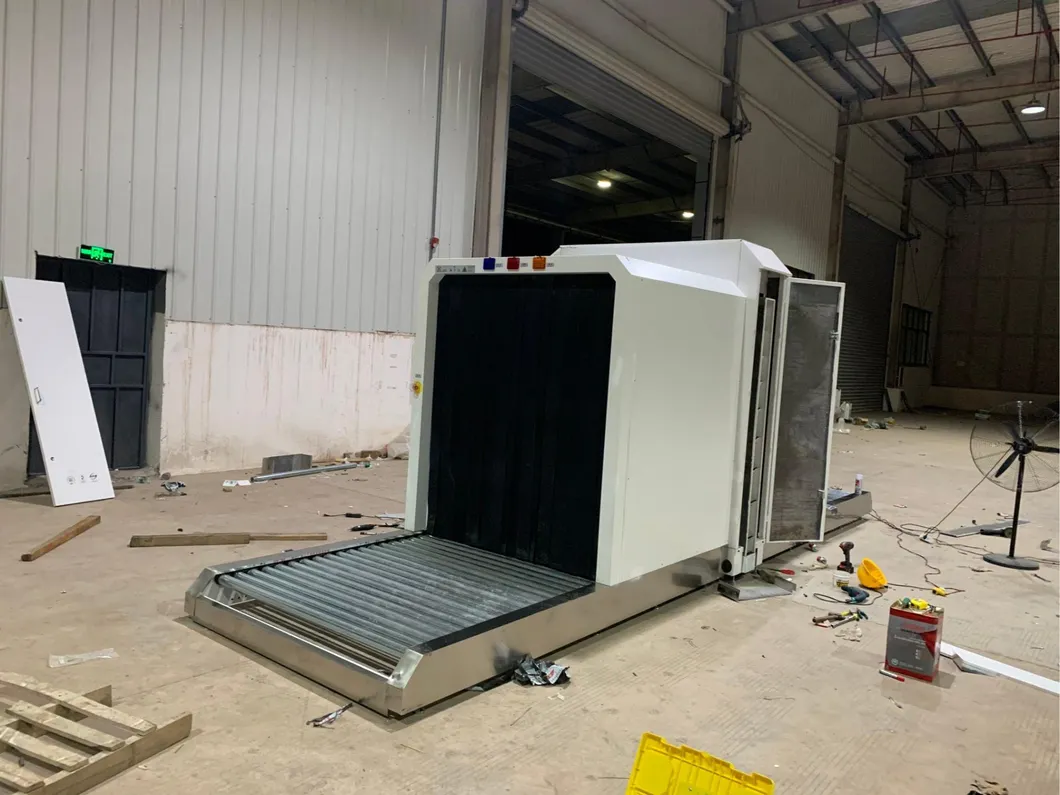

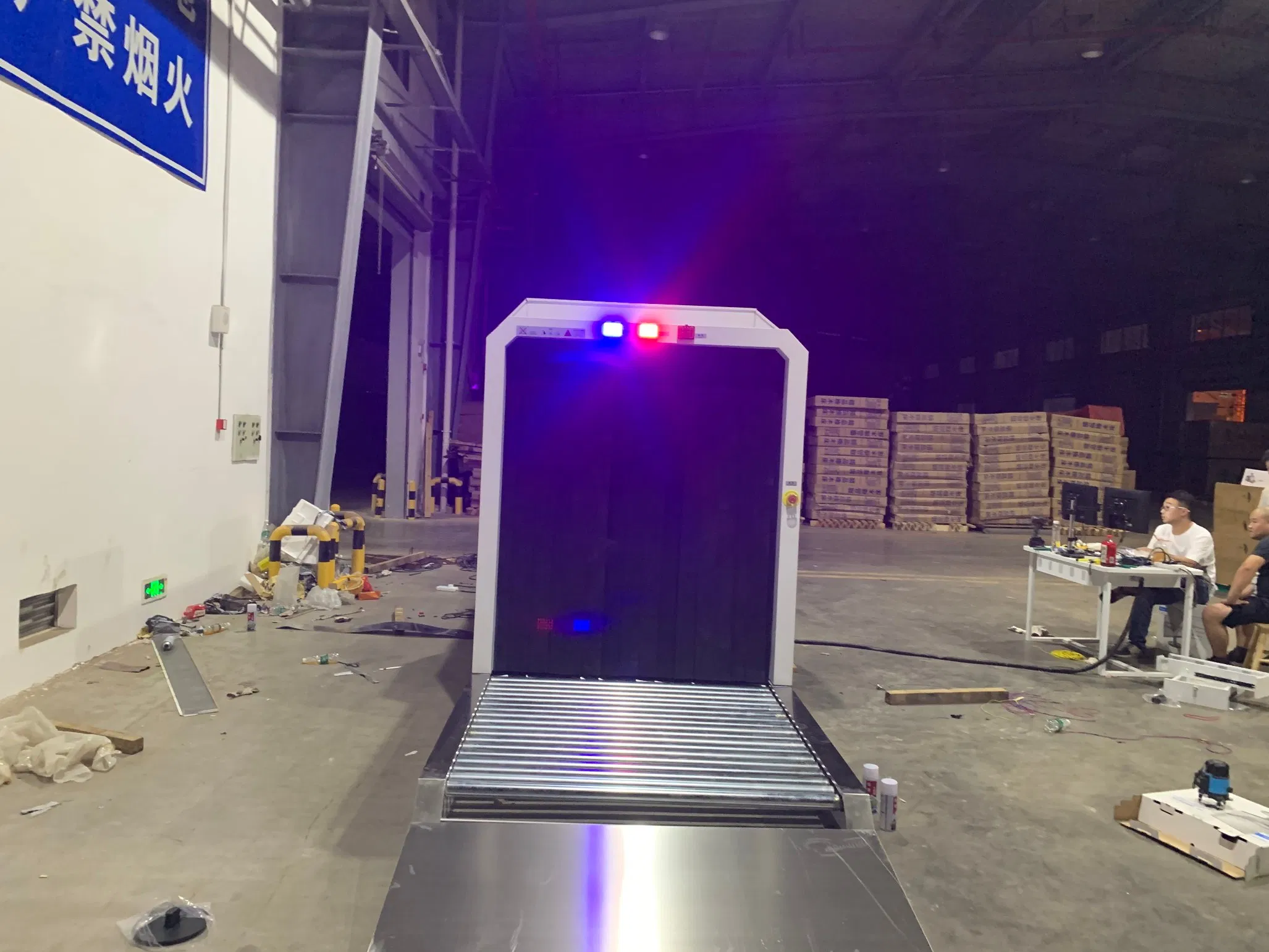

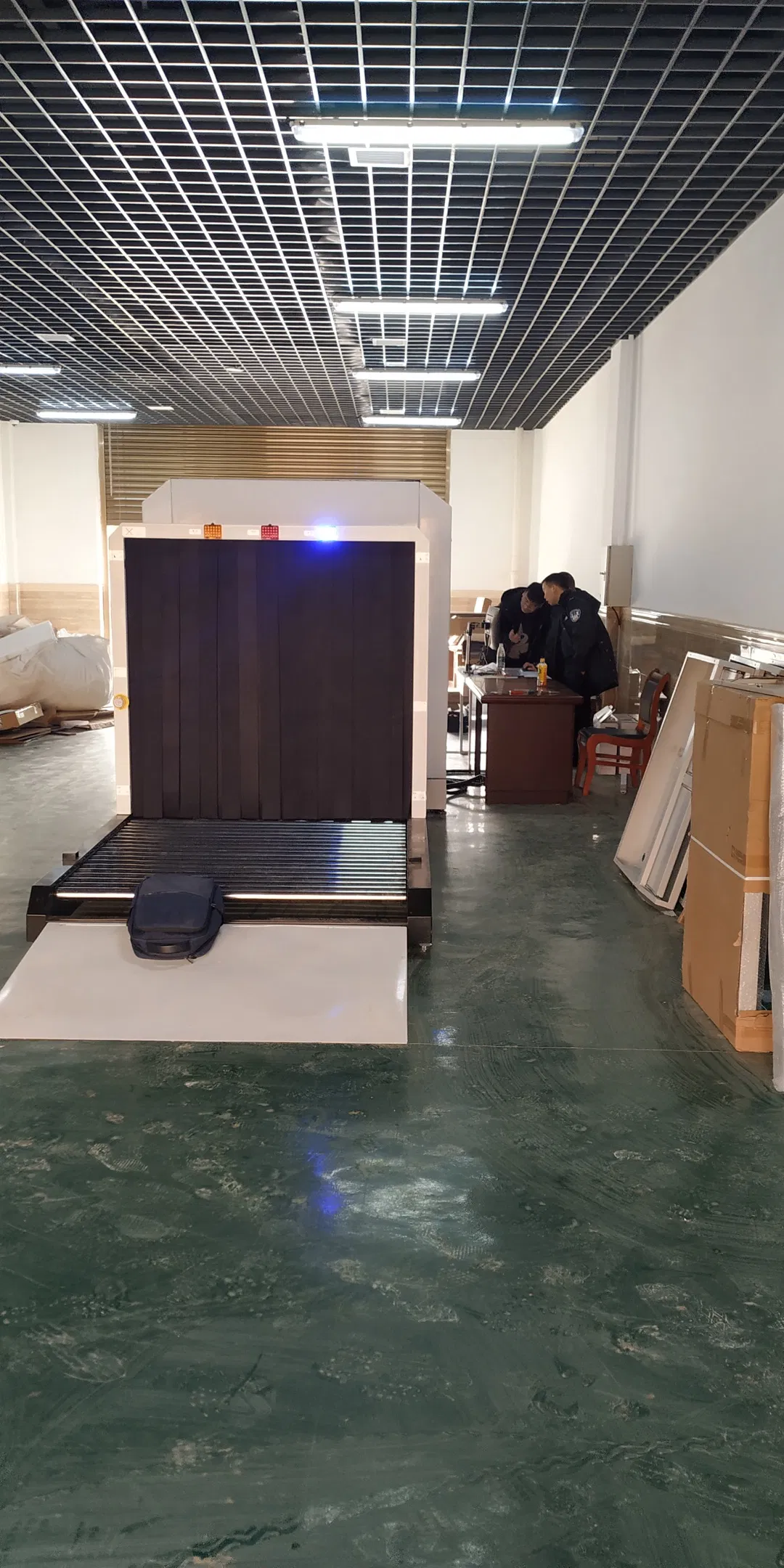

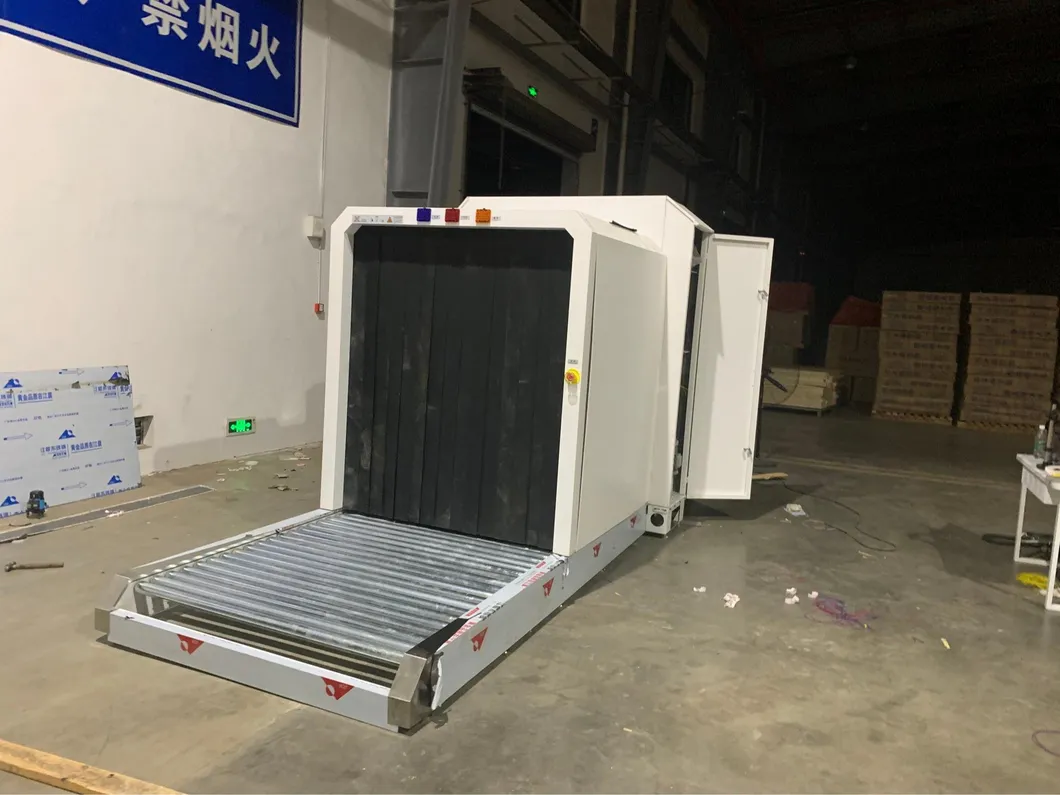

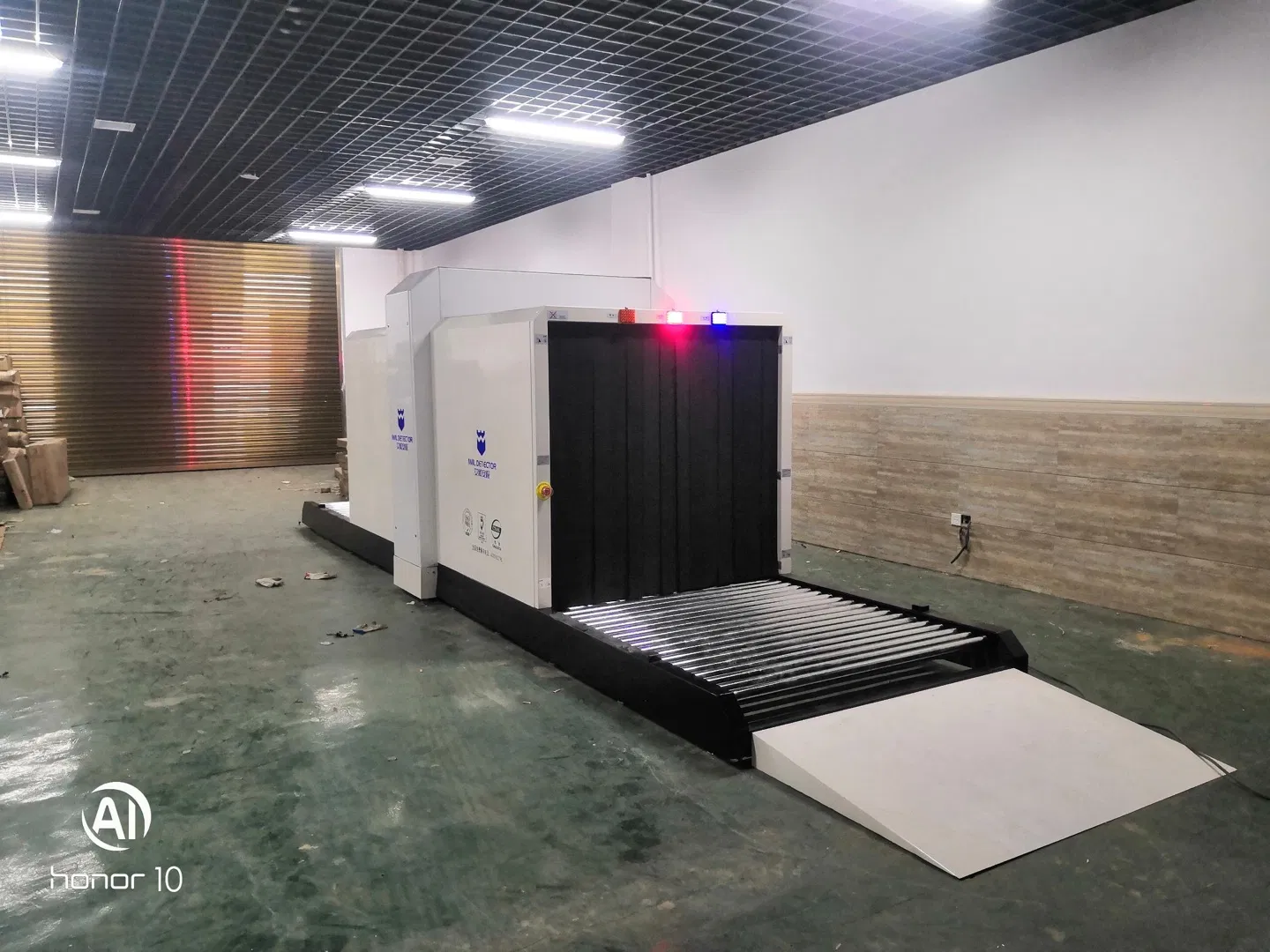

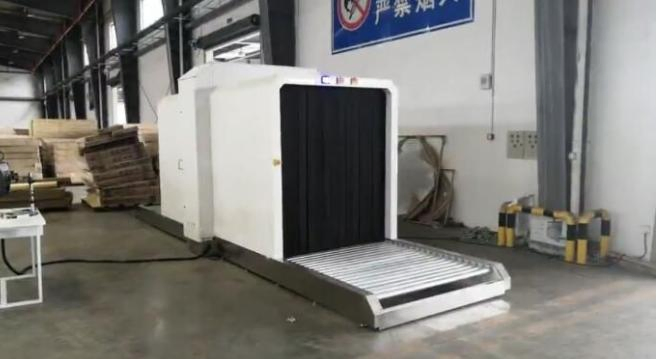

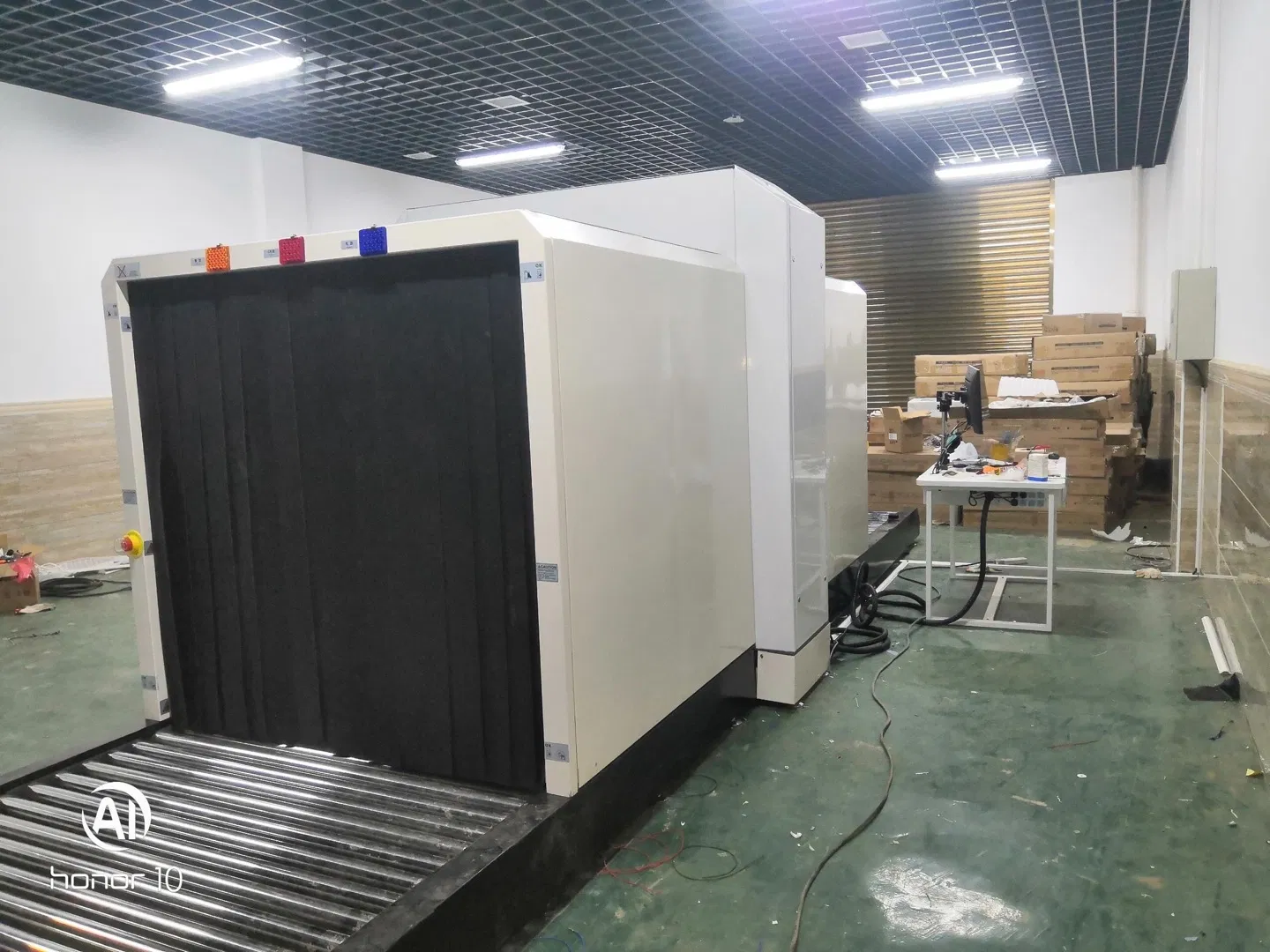

IWILDT™-AN 150180 X-ray security inspection system of roller conveyor is a line array X-ray low dose scanning safety inspection equipment with large channel size, high load, strong X-ray penetration, and wide energy resolution data range. It adopts international leading X-ray detectors combined with computer intelligent control and image scanning technology. The system meets high-level aviation safety inspection requirements.

The system features a 24-inch IPS high-definition frameless wide screen display with a 360-degree multi-angle bracket. It supports full-screen real-time display of X-ray images, significantly improving the efficiency of security operators. It is specifically designed for non-unpacking inspection of bulk goods in airport freight stations, customs yards, port terminals, and logistics parks.

Technical Parameters

X-ray Source & Detection

Penetration Force: 60mm thick steel plate.
Detection Crystal: GSI with CMOS Photoelectric conversion.
Pixel Arrangement: L-shaped line array.
Communication: RJ45 communication mode and RS232 full duplex control.
Collimator: Ultra-narrow slit beam output.

Image Processing Software

Functions: Edge enhancement, sharpening, image inversion, histogram equalization, and organic/inorganic matter removal.
AI Recognition: Optional CNN convolutional neural network image recognition.
Retrieval: Search images by scanning time or saving mode.
Storage: JPG image format named by scanning time.

Equipment Performance

Channel Size: 1500 (W) * 1800 (H) mm.
Conveying Speed: 0.22m/s with a maximum load of 550kg.
Line Resolution: Single solid copper wire (0.0787mm).
Safety Standards: ISO 9001, ISO 14001, ISO 1600 film safety.
Eco-Design: Double layer lead curtain with protective film to prevent lead pollution.

Frequently Asked Questions

Q1: Are you a professional manufacturer of security equipment? A: Yes, we are a leading professional manufacturer specializing in high-tech security inspection equipment with extensive industry experience.

Q2: What is the Minimum Order Quantity (MOQ)? A: Our standard MOQ is 1 piece, and pricing is negotiable for larger quantity orders.

Q3: What is the average lead time for equipment delivery? A: The typical lead time is 3-7 working days after payment is confirmed.

Q4: How do you ensure product quality and safety? A: We strictly control every production process in accordance with ISO9001, ISO14001, and CE certifications, as well as international radiation safety standards.

Q5: What after-sales technical support is provided? A: We provide comprehensive support including installation, debugging, video training, and remote software technical assistance.

Q6: Is the system capable of detecting dangerous substances automatically? A: Yes, the system features real-time image recognition and can be equipped with AI convolutional neural network modules for automated threat detection.
