Basic Information
Material Feature:
Oil Resistant, Heat Resistant, Fire Resistant
Application:
Oil and Gas, Refinery Facilities, Offshore & Shipbu
Conveying Speed:
2-20m/Min
Applicable Industries:
Oil & Gas, Refinery Facilities, Offshore & Shipbuilding
After-Sales Service:
Engineers Available to Service Machinery Overseas
Transport Package:
Packed in Container
Specification:
ISO9001: 2008
Production Capacity:
200 Sets/Year
Pipe Fabrication Production Lines Conveyor System
- Matched with pipe spool fabrication system
- Transports pipes and fittings to different stations and areas
- Easy and convenient operation
- Conveying speed: 2-20m/min

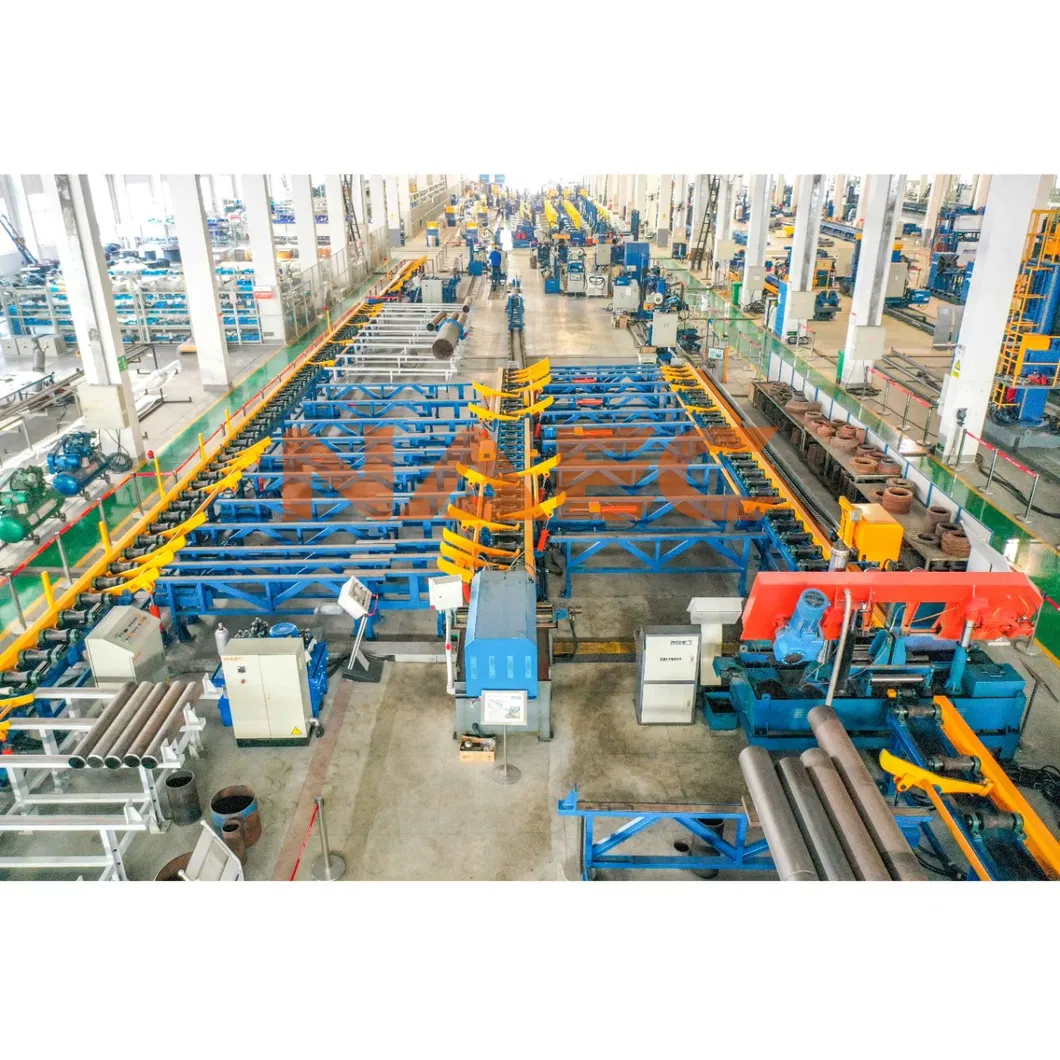

This system is widely utilized in oil and gas, refinery, petro-chemical, shipbuilding, offshore, power plant, and nuclear plant industries. It is designed to perfectly match individual machines to form a complete production line, optimizing space and maximizing productivity. It includes storage/buffer racks, kicking-in/out devices, and a motorized handling conveyor system, significantly improving machine efficiency and reducing labor costs.
The system can transfer pipes (1m to 12m) to fitting-up stations with a capacity of 750 kg/m or 8 tons/12m.
Pipe Spool Fabrication Machines

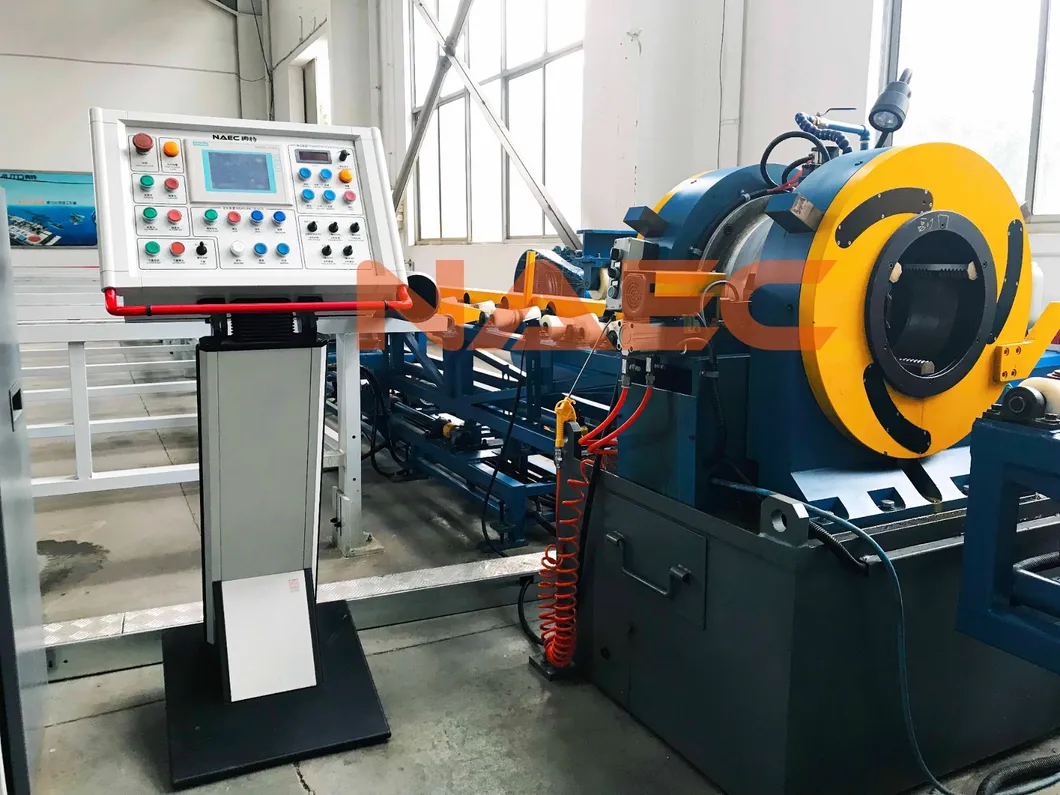

1. Pipe Cutting & Beveling Machine
Suitable for pipes ≤ 8", max thickness: 20mm. Efficiency: 100 times/8hrs. Features PLC control with automatic measuring.

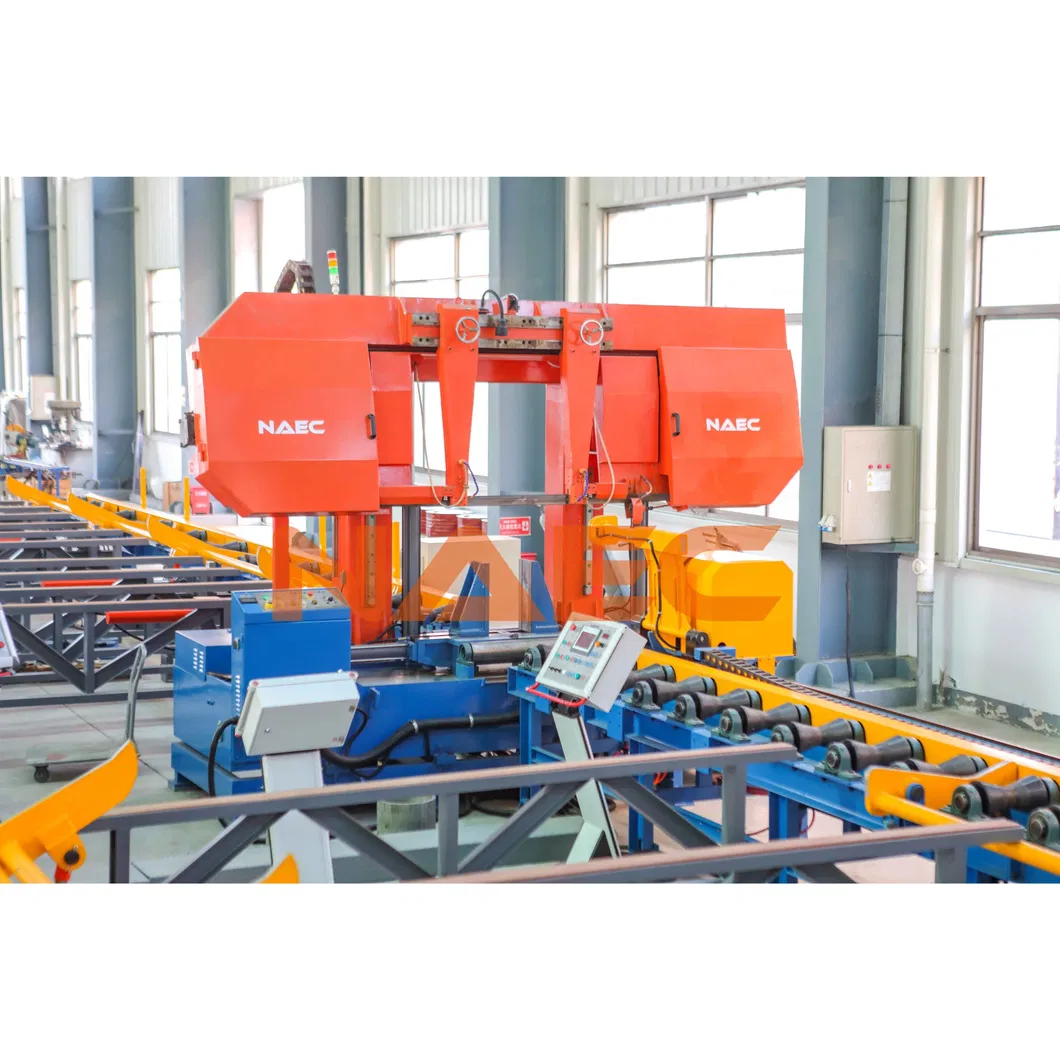

2. High Speed Band-saw Machine
Available in 16", 24", and 48" models. Features ±0.5mm precision and hydraulic self-centering chuck. Cuts 24" pipe (25mm thick) in 6 mins.

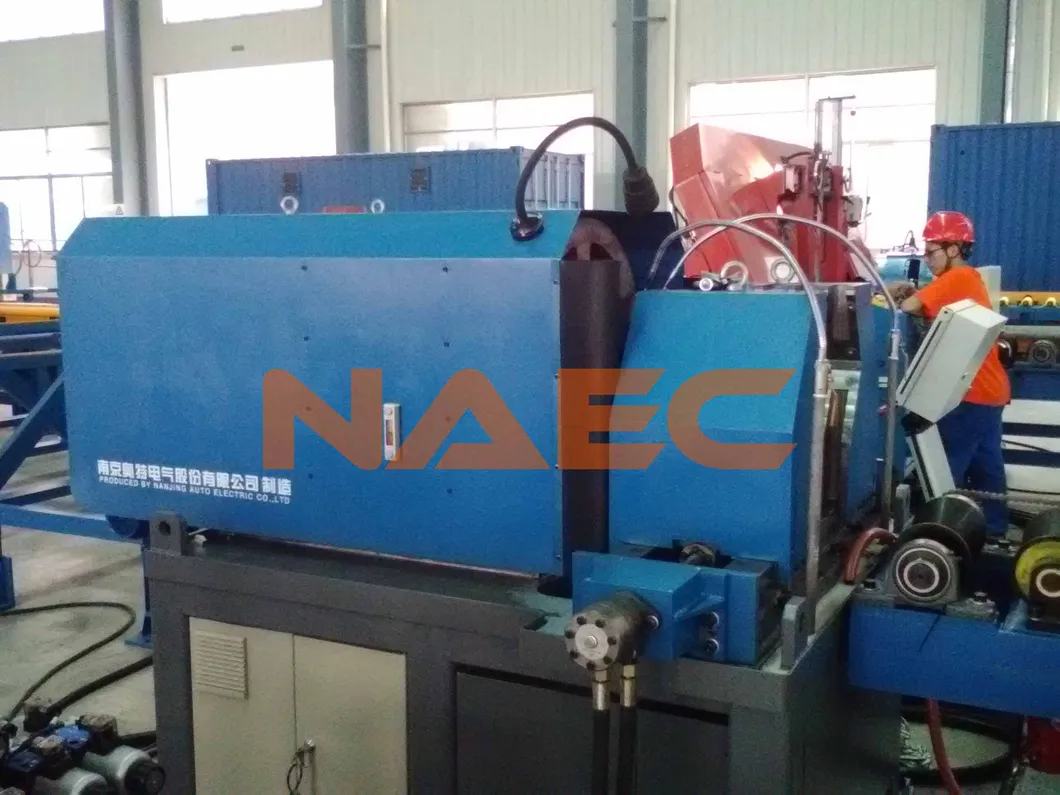

3. CNC Pipe End Beveling Machine
Supports Single V, Double V, and U type bevels. High-speed operation: 2.5 mins for 610mm diameter S.S pipe end.

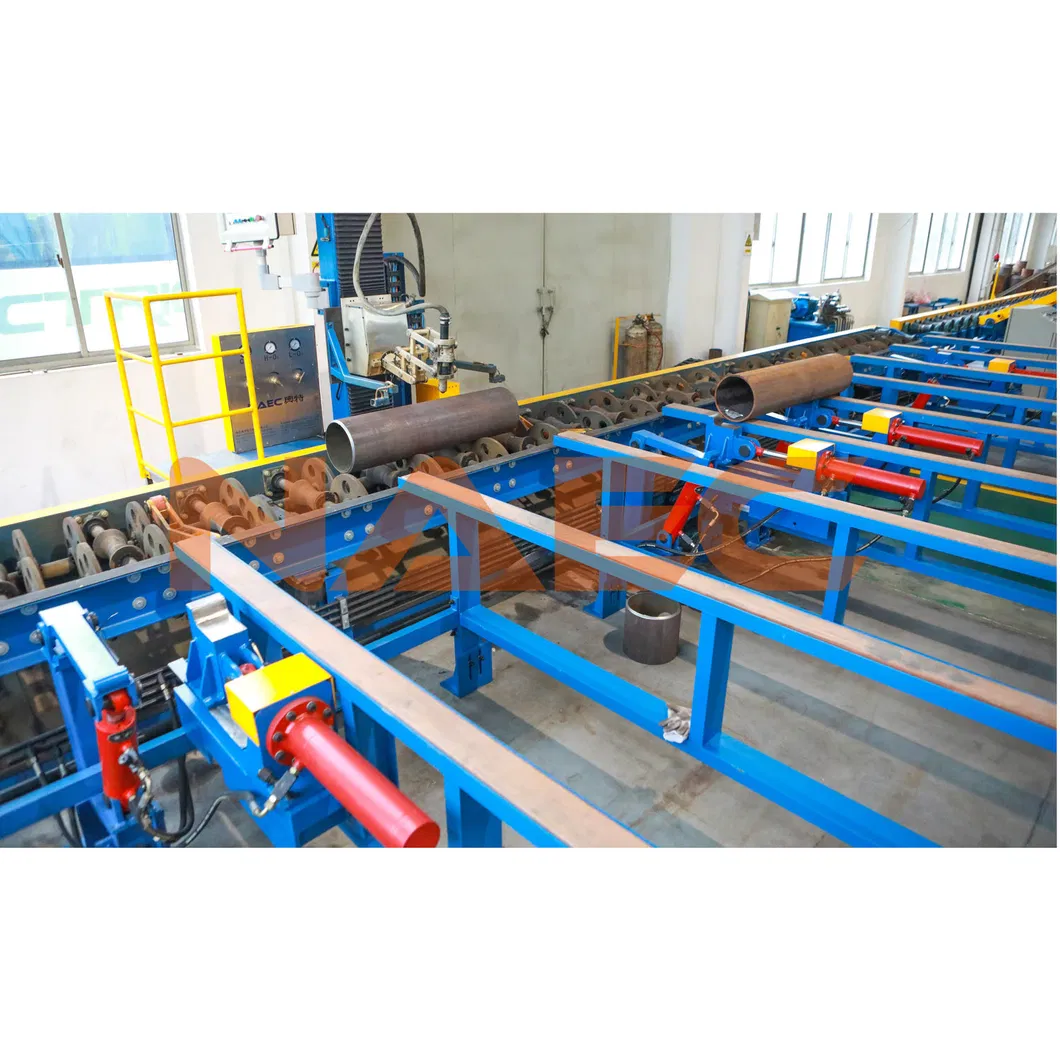

4. CNC Flame/Plasma Cutting Machine
Efficient cutting with automatic measuring, intersection line profiling for main and branch pipes. Suitable for pipes up to 24''.

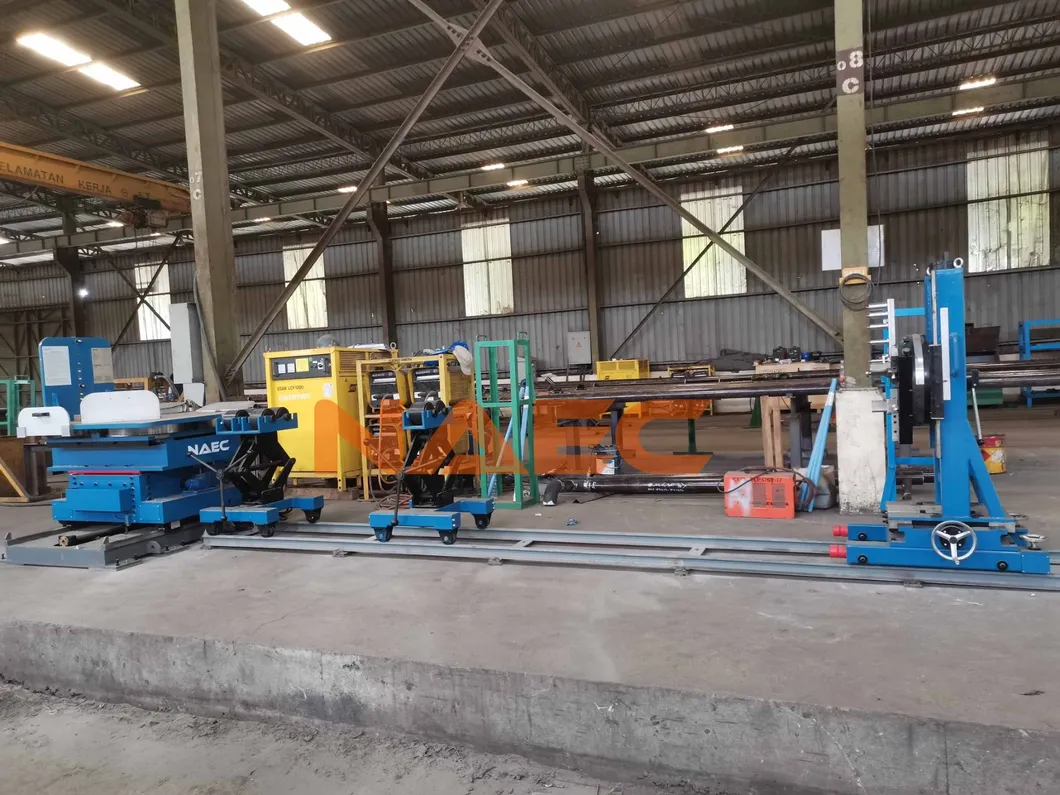

5. Pipe Fitting-up Station
Suitable for flanges, elbows, tees, and reducers. Available in manual and motorized types, ranging from 8" to 60".

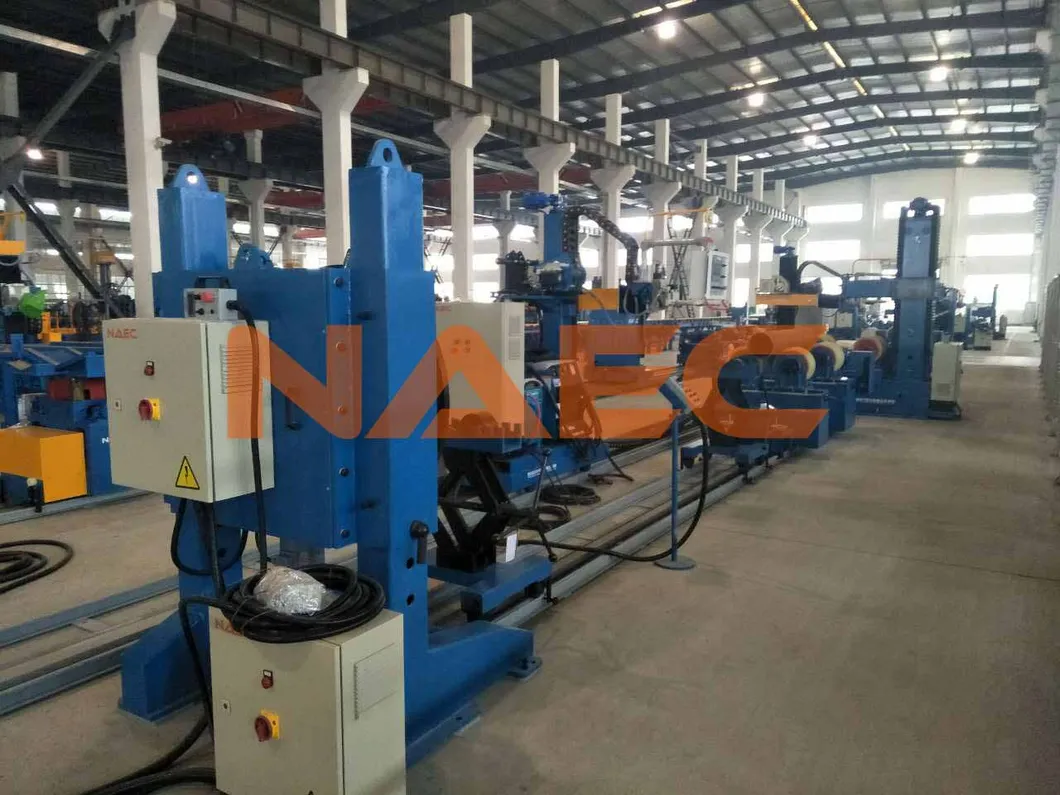

6. Automatic Pipe Welding Station
Equipped with two welding heads. Supports TIG/MIG/SAW technologies. PLC controlled with programmed WPS.

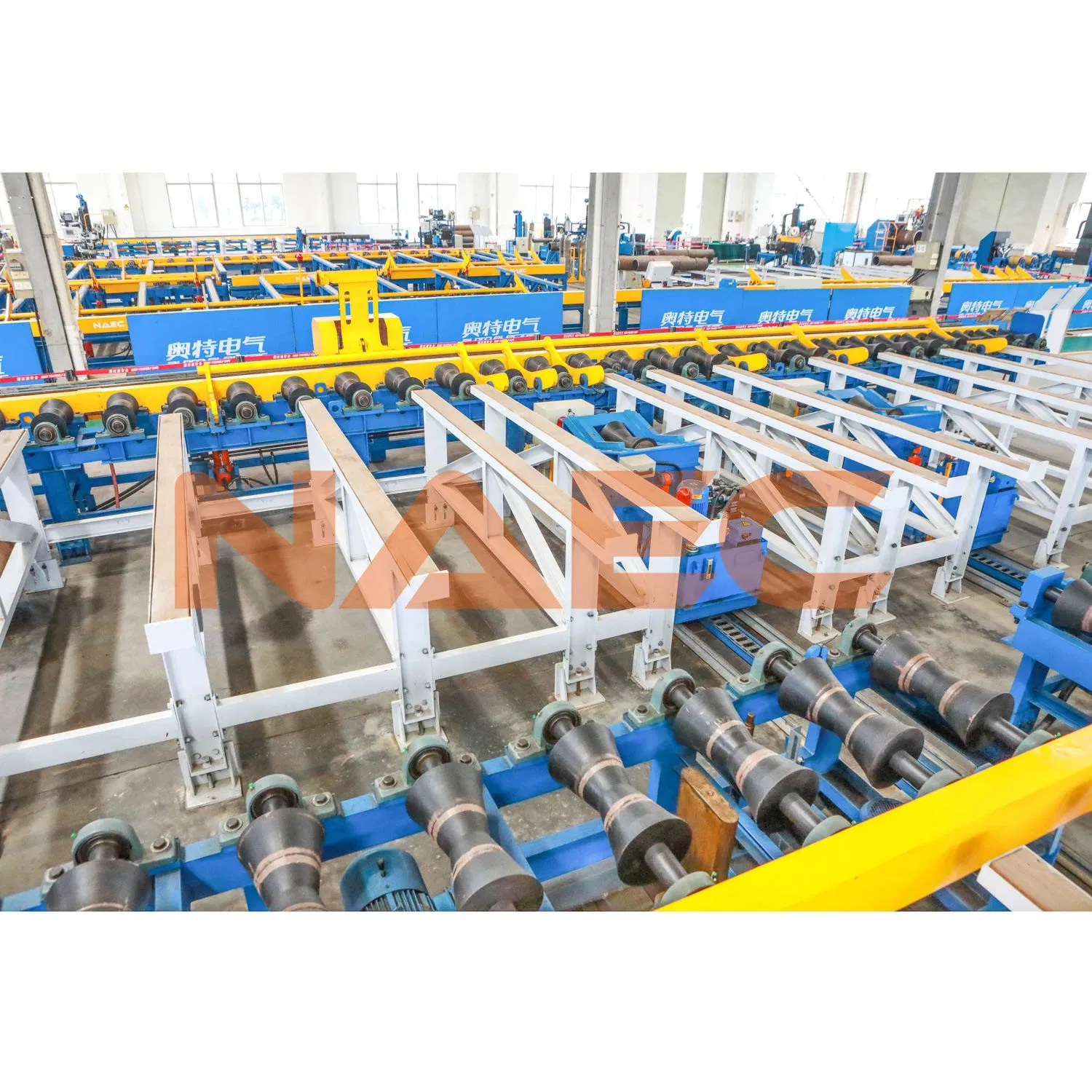

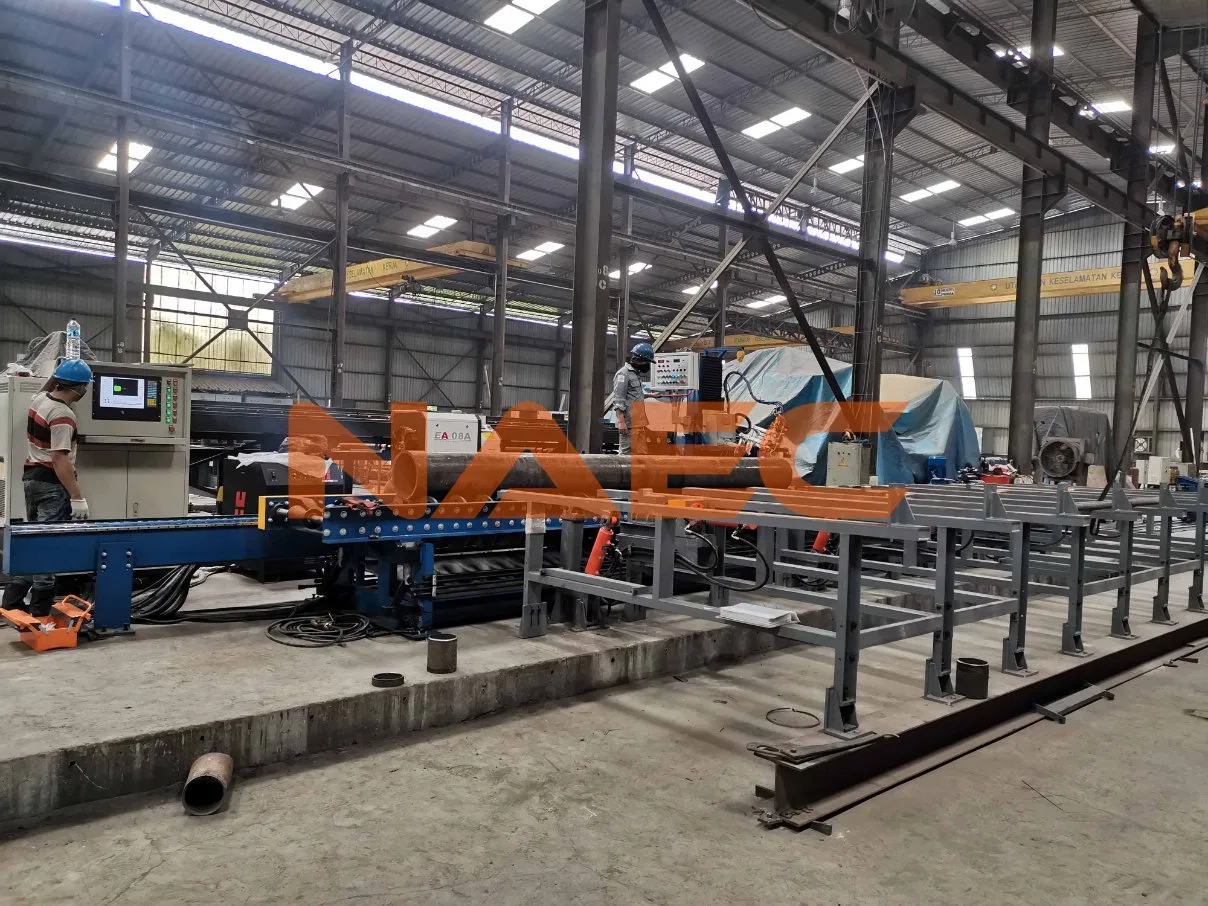

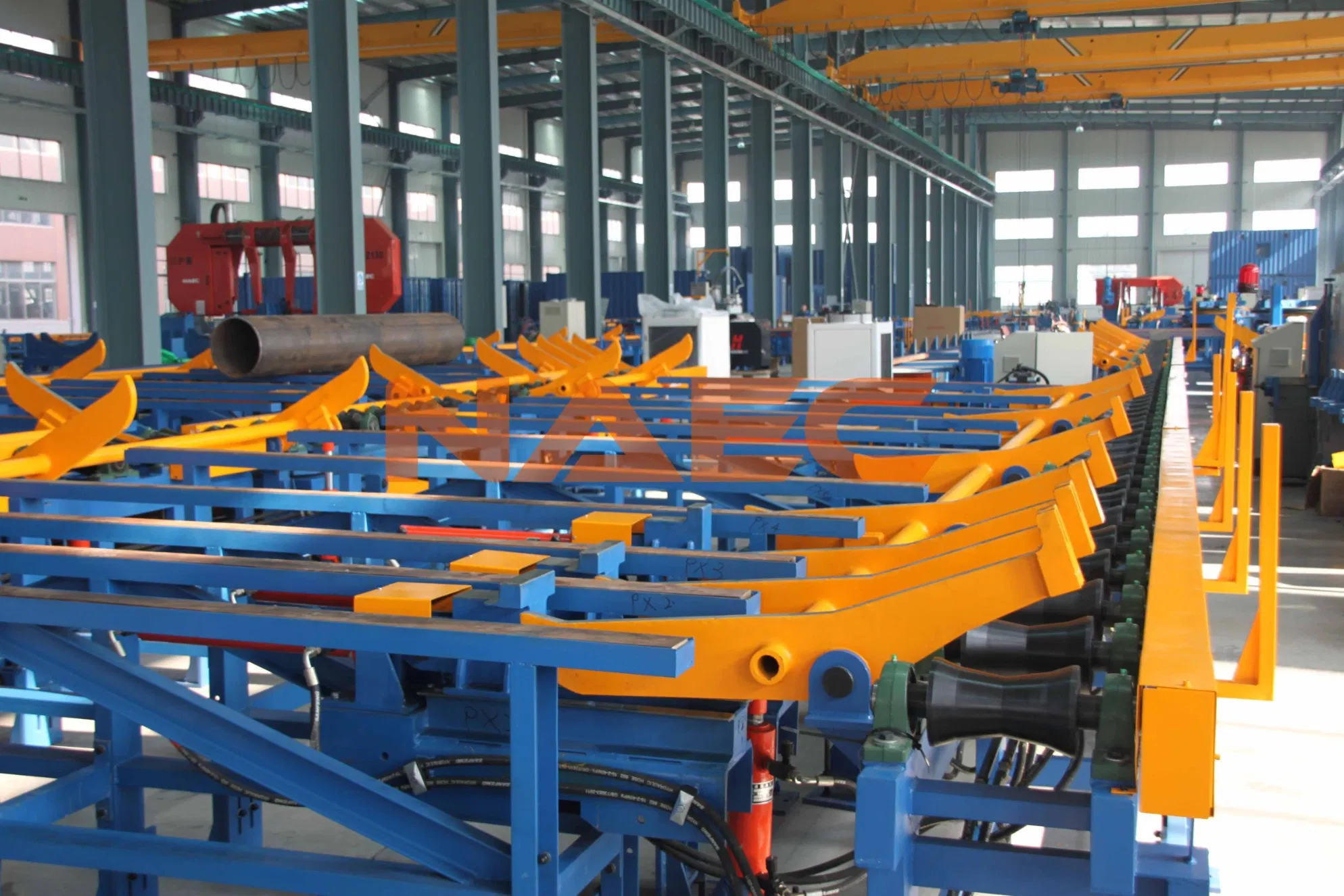

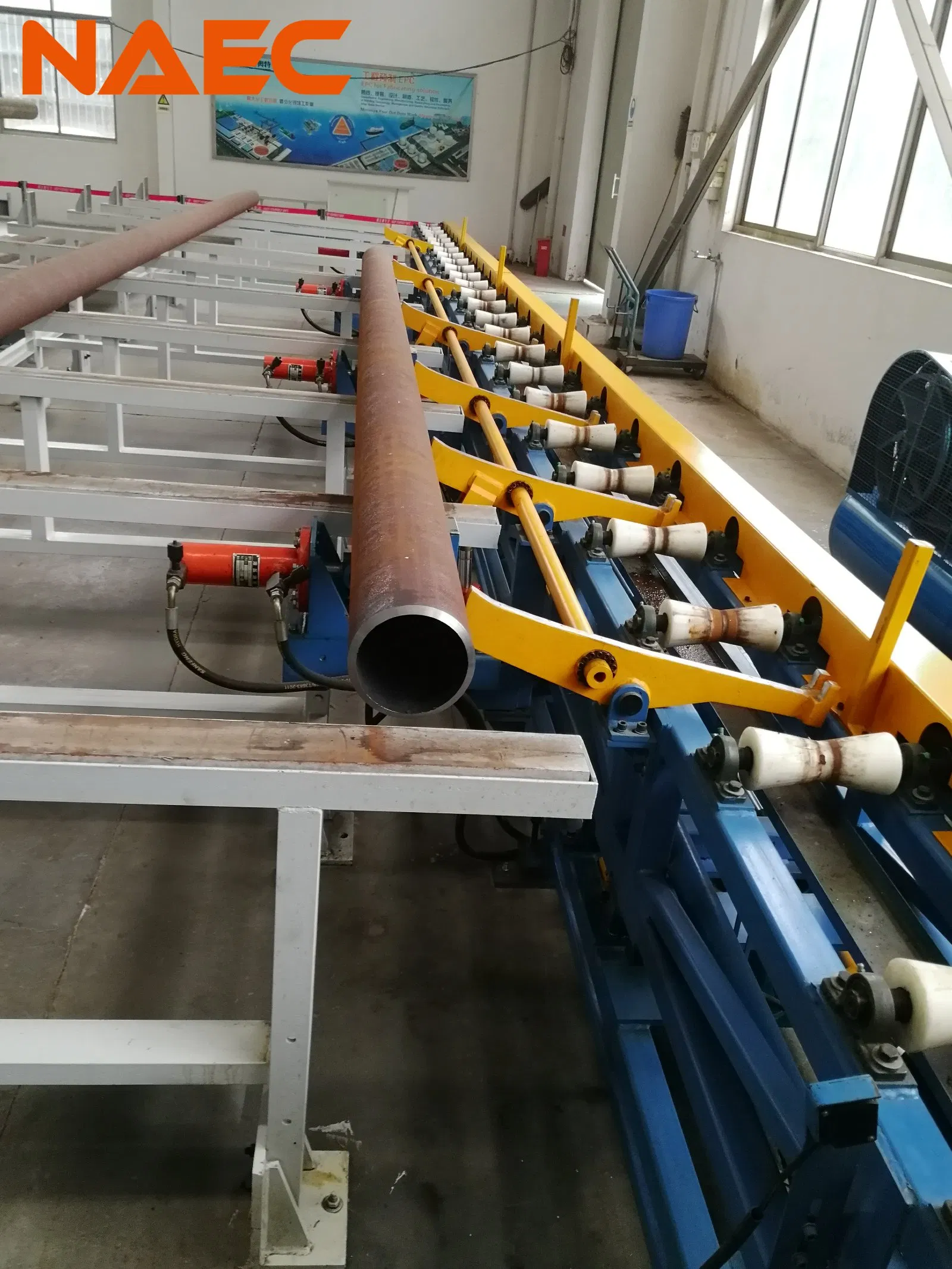

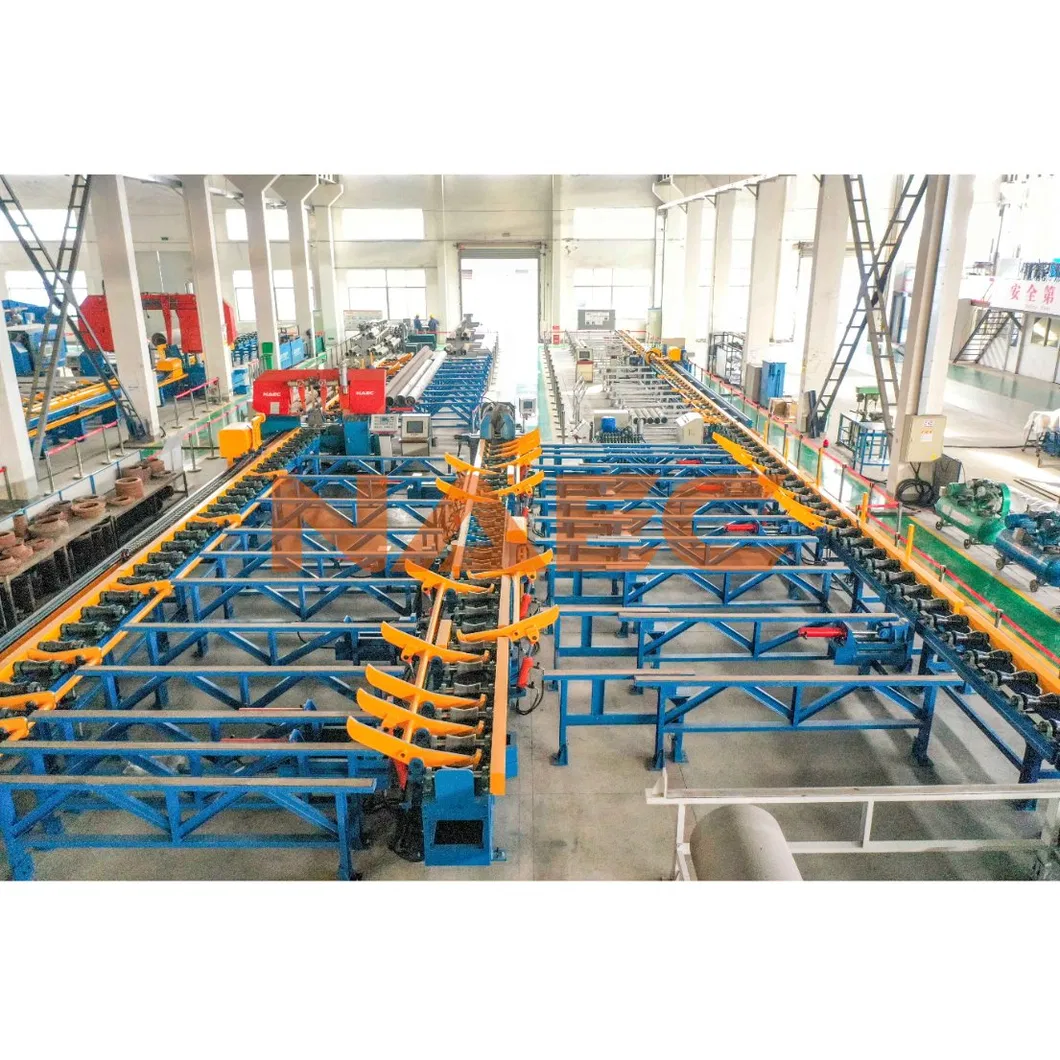

7. Conveyor Handling System
Provides convenient transportation during pipe spool fabrication with adjustable speeds from 2m to 20m/min.
Frequently Asked Questions
What is the conveying speed of the pipe fabrication system?
The conveying speed is adjustable between 2m/min and 20m/min to suit different production requirements.
Which industries can use this conveyor logistics system?
It is widely used in Oil and Gas, Refineries, Petro-chemical plants, Shipbuilding, Offshore facilities, Power plants, and Nuclear plants.
What is the maximum capacity for pipe handling?
The system supports a handling capacity of 750 kg/m and up to 8 tons for a 12-meter pipe section.
What pipe sizes can the conveyor system transfer?
The system is designed to handle pipes ranging from 1 meter to 12 meters in length.
What control technology is integrated into the machines?
The machines utilize PLC (Programmable Logic Controller) systems for automatic measuring and precise control.
Does the system support different welding technologies?
Yes, the automatic pipe welding stations can be equipped with TIG, MIG, or SAW welding technologies as per client requirements.
