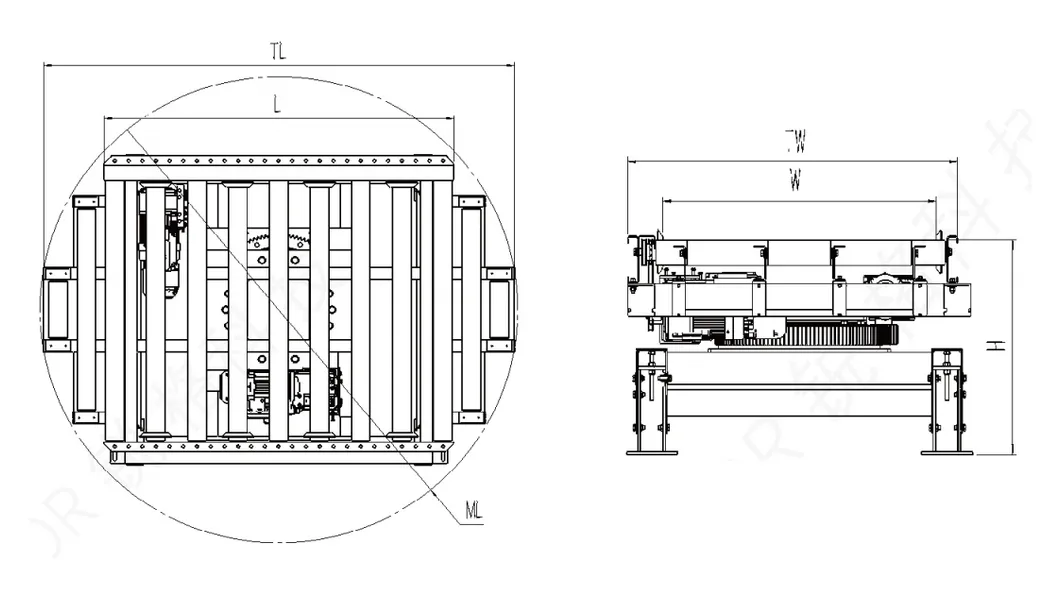

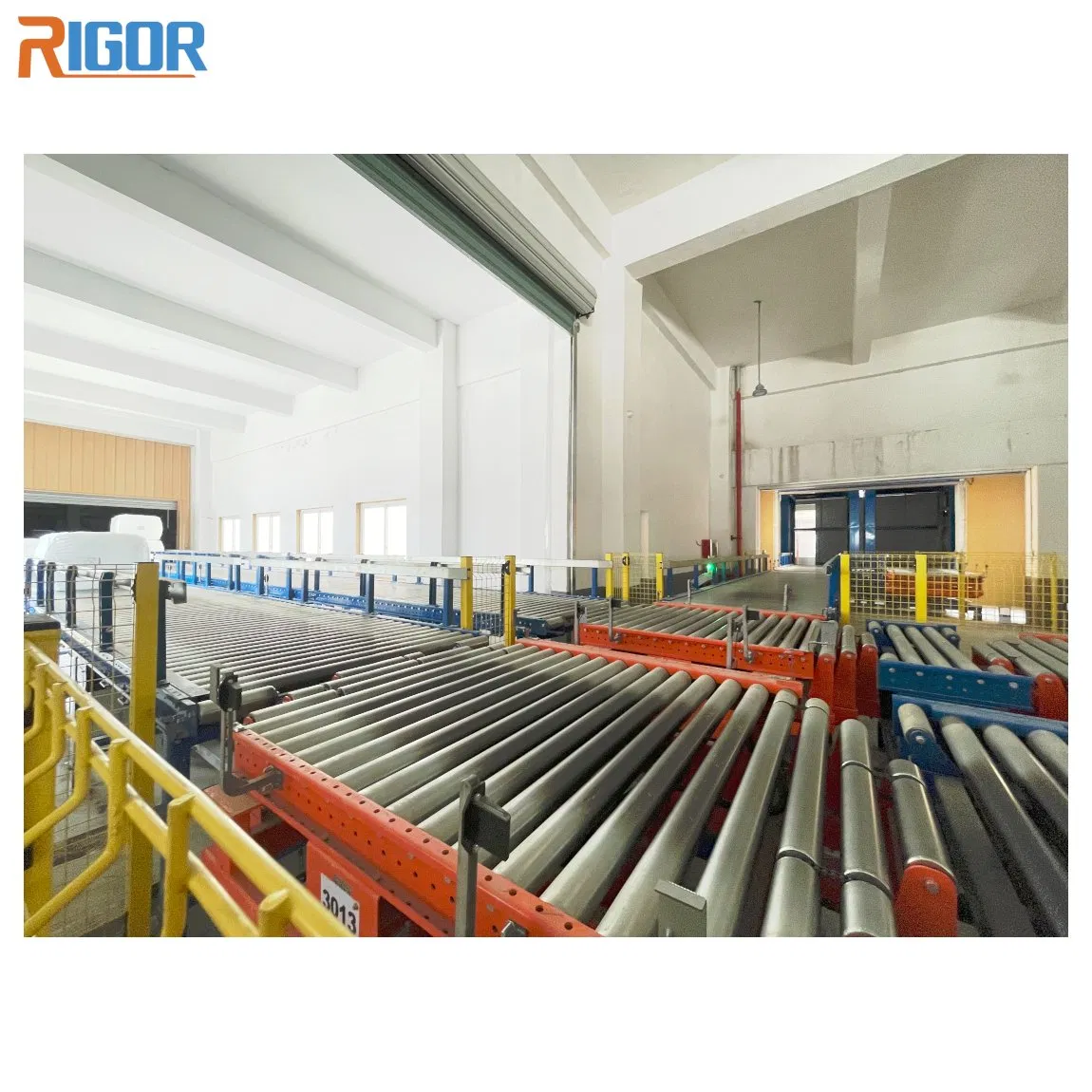

2PZG Stable Performance Conveyors Roller Long Lifespan Turntable Rotation Conveyor System
The 2PZG roller type turntable is specifically designed to change direction or rotate full and empty trays within a range of 0° to 360°. It provides a stable and efficient solution for complex production line layouts. For environments with uneven flooring, the system features adjustable legs to ensure perfect leveling and smooth operation.
| Max Payload (kg) | 1500 |
| Conveying Motor Power (kW) | 0.37, 0.55 (Default/Specified) |
| Rotating Motor Power (kW) | 0.37, 0.55 (Default/Specified) |
| Roller Diameter (mm) | φ76 |
| Line Speed (m/min) | 13, 16, 18 |
| Rotation Speed | 6s / 90° |
| Roller Tube Material | Galvanized, SUS201, SUS304 |
| Environment Temperature (ºC) | -5 to +40 |
| Surface Treatment | Powder coating with RAL color |
| Outer Cover | Available (Yes/No) |
*Note: The combination of maximum values is not always achievable simultaneously.
