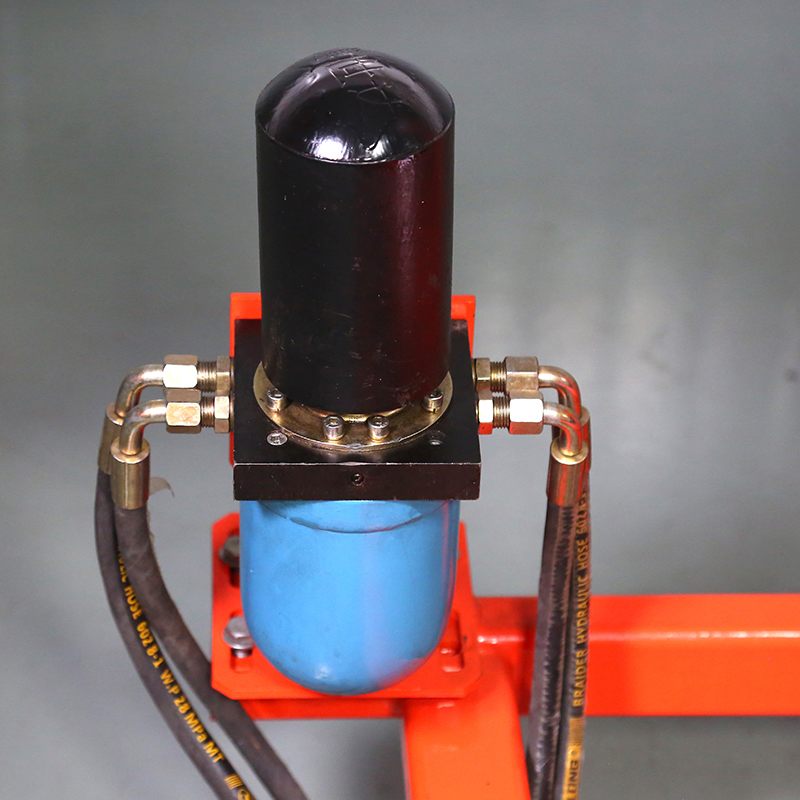

Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
1 / 5
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Hydraulic Automatic Roller Conveyor Belt Alignment Correction System

Hydraulic Automatic Roller Conveyor Belt Alignment Correction System

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.
YJPS/X
Color
Available
Package
Standard Export Package
Specification
B650~1800
Origin
China
Capacity
5000 Pieces Per Year

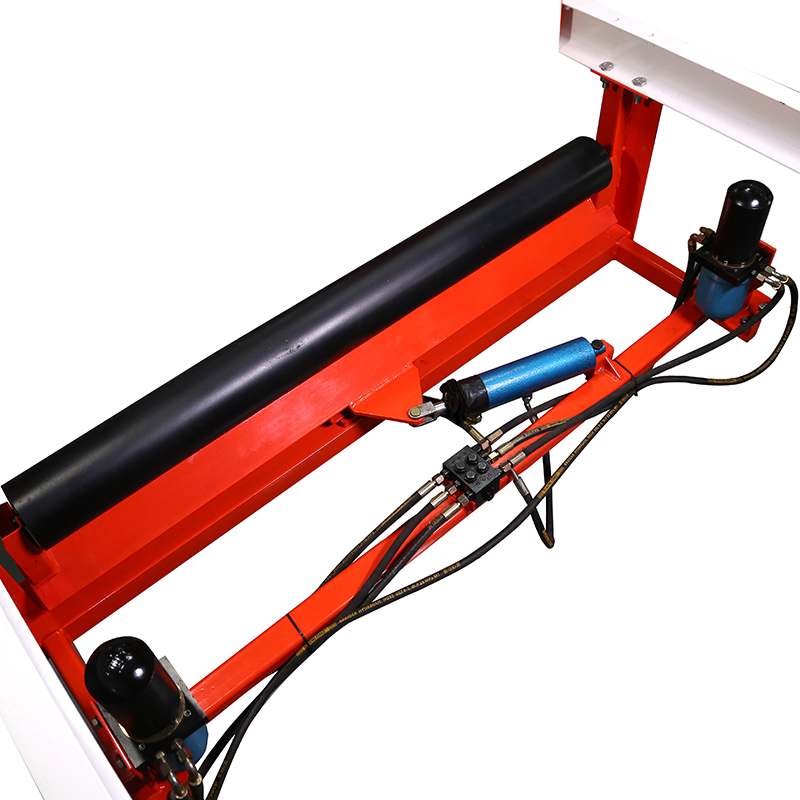

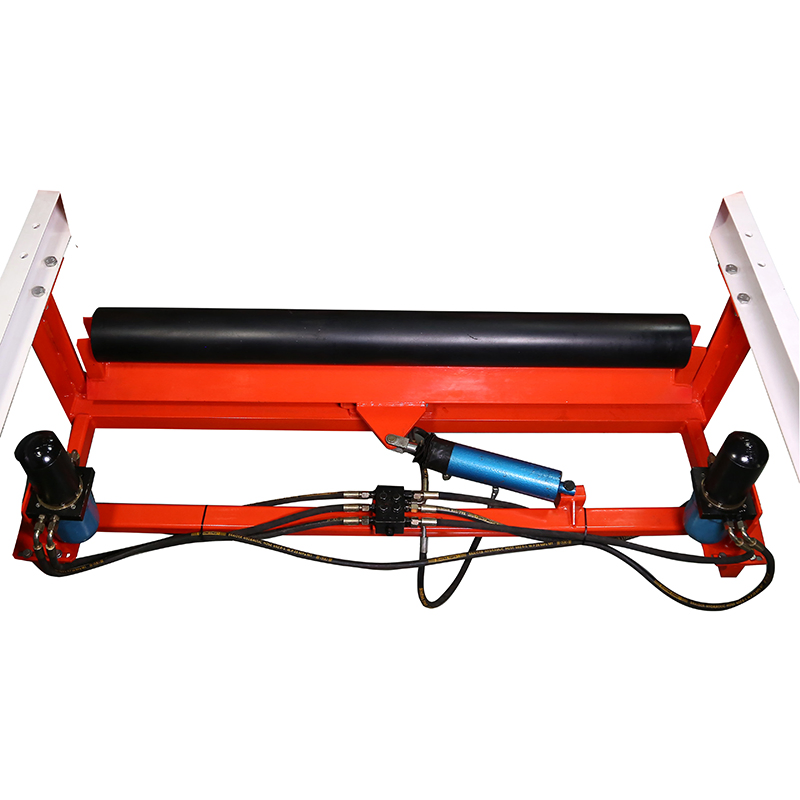

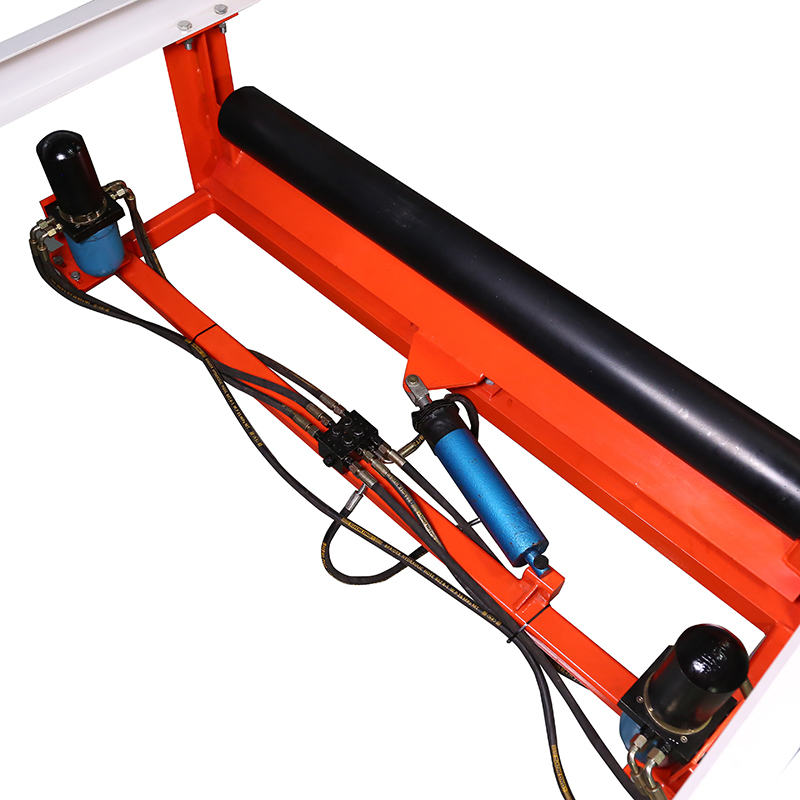

Hydraulic Automatic Roller Conveyor Belt Alignment Correction System
Performance Features
1
This deviation correction device does not require a power source, has a simple structure, reliable performance, and is easy to maintain.
2

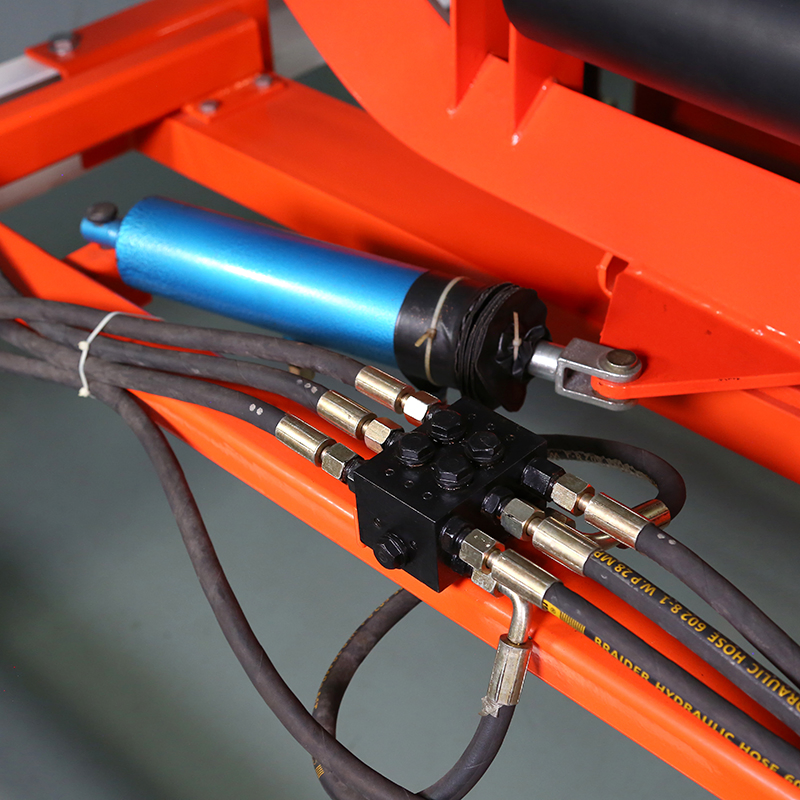

Replace the driving roller with a driving vertical roller. When the conveyor belt deviates and drives the vertical roller to rotate, the kinetic energy of the vertical roller is greater, allowing for more efficient energy transmission to the oil pump.
3
A set of passive hydraulic deviation adjustment roller groups is installed every 6-10 groups of ordinary form roller groups to ensure timely correction across the entire conveyor line.
Product Specifications

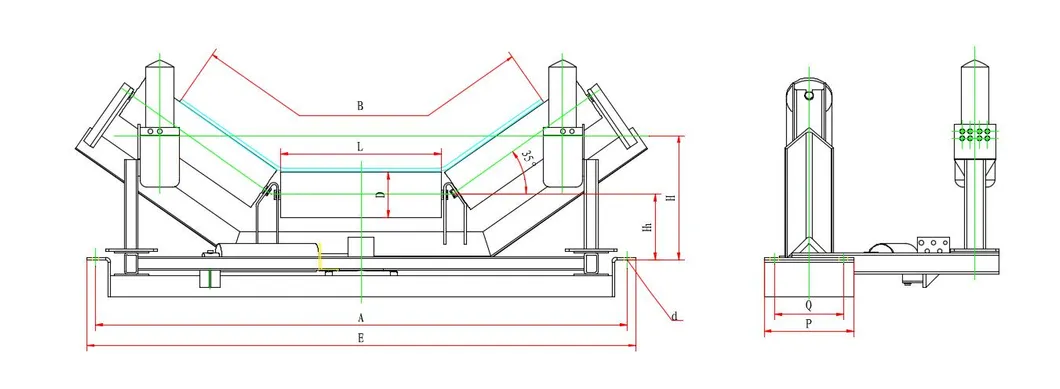

Specifications Diagram
B (mm) D (mm) L (mm) A (mm) E (mm) H (mm) H1 (mm) Q (mm) d (mm)
65089250890950235135.5130M12
80010831510901150270146130M12
100013338012901350325173.5170M16
120013346515401600360190.5200M16
140013353017401800380198.5220M16
160015960019902060460220240M16
180015967021902260485230240M16

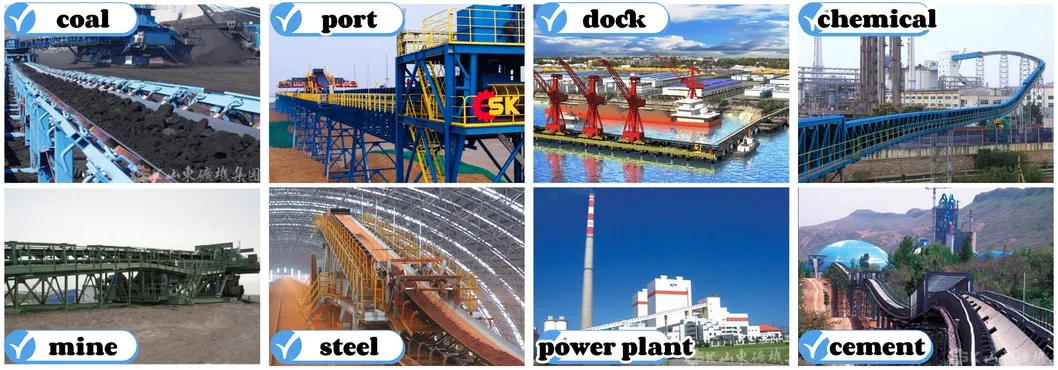

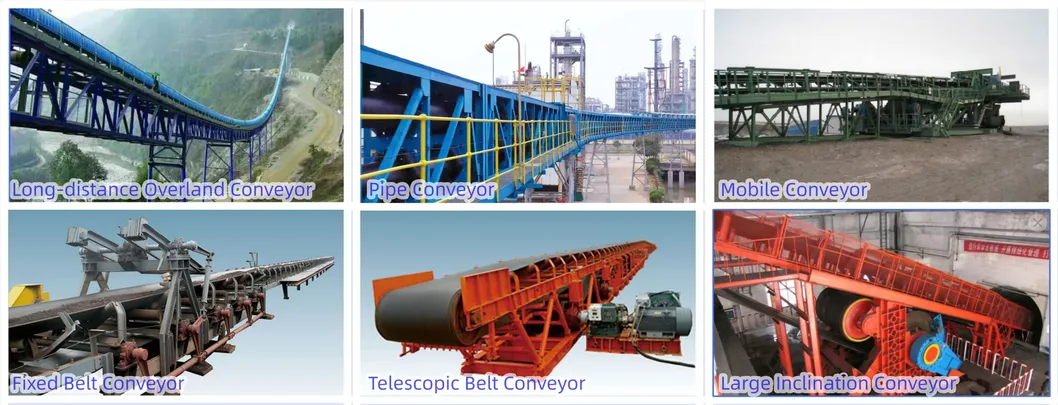

Application Industries
EPC/BOT Contracting Capability

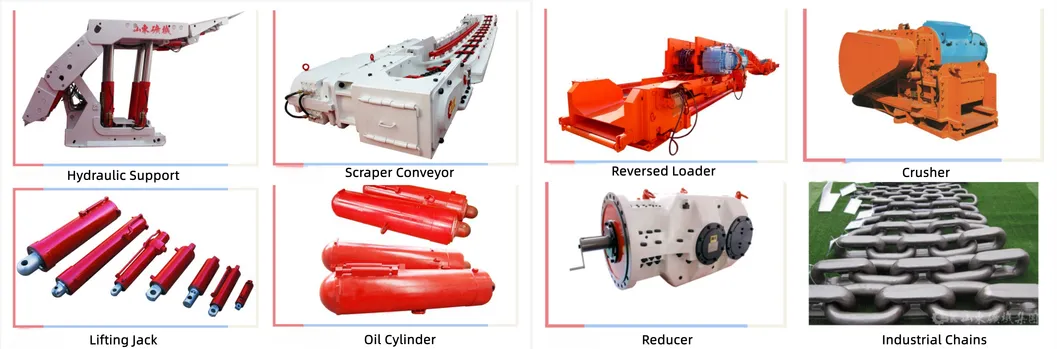

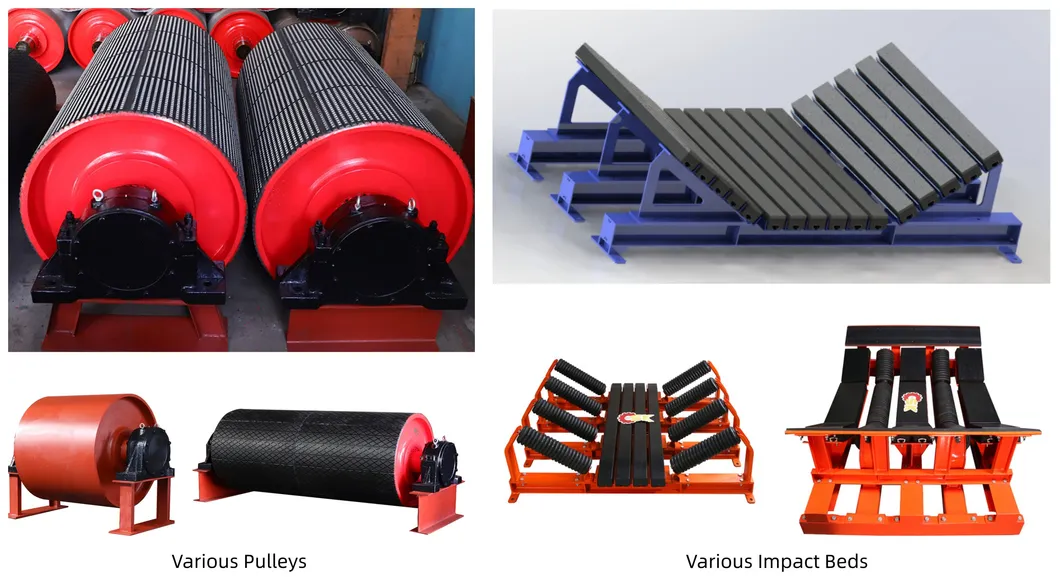

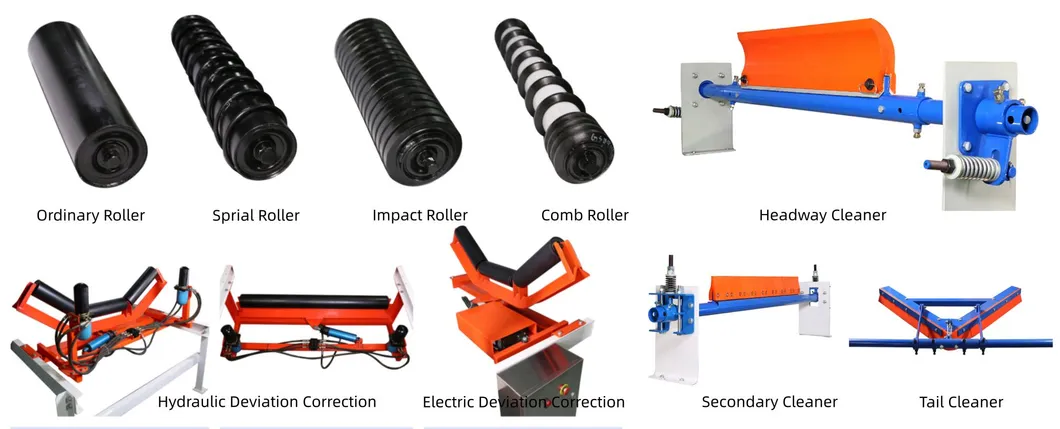

VARIOUS CONVEYOR SPARE PARTS SUPPLY
COAL MINING MACHINERY AND FACTORY VIEW

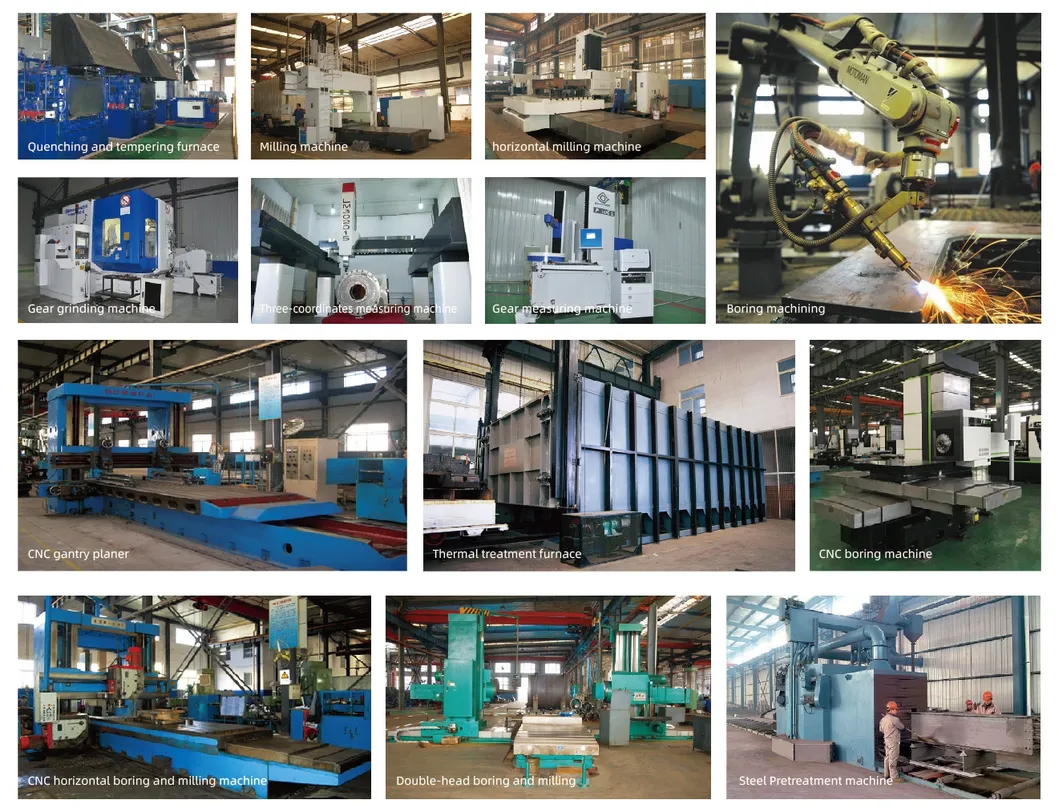

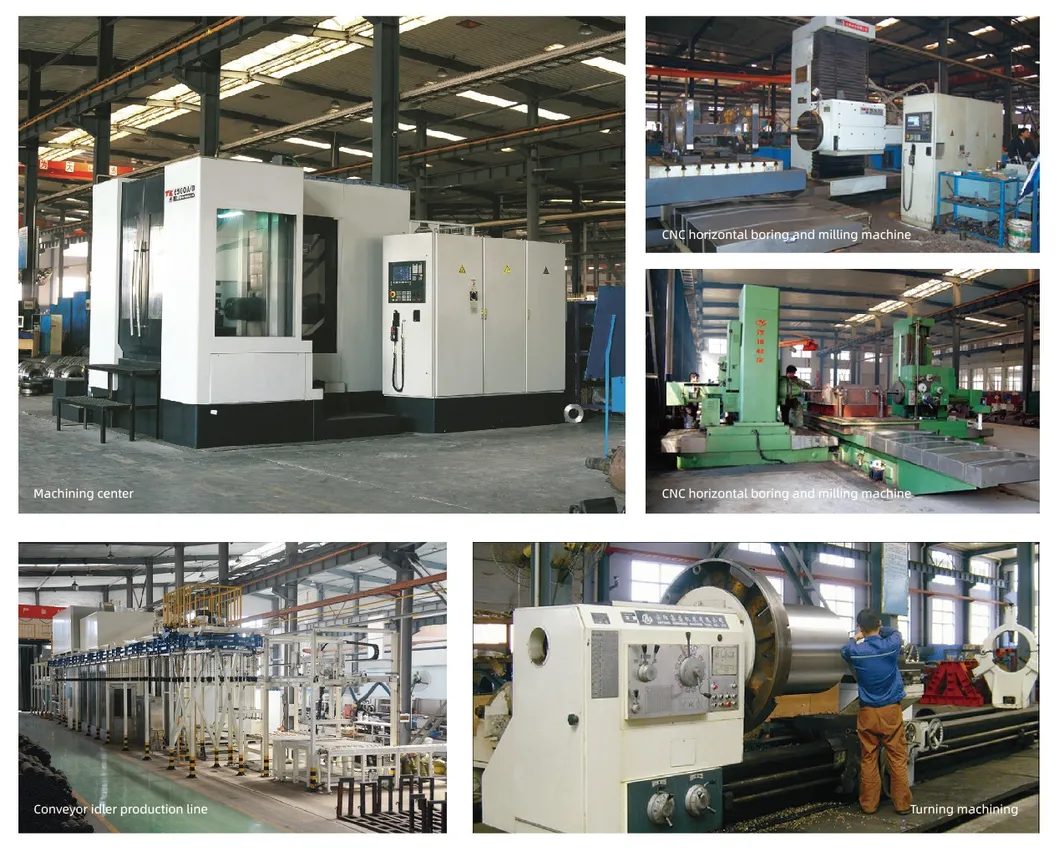

Intelligent Production & Testing
Global Network & Team
Frequently Asked Questions
Does this correction system require an external power supply?
No, the hydraulic automatic roller conveyor belt alignment correction system is a passive device that does not require an external power source.
How does the system detect and correct belt deviation?
The system uses driving vertical rollers. When the belt deviates, it rotates these rollers, generating kinetic energy to drive an oil pump for hydraulic adjustment.
What is the recommended installation frequency for these rollers?
For optimal performance, it is recommended to install one set of passive hydraulic adjustment rollers every 6-10 sets of ordinary rollers.
What conveyor belt widths are compatible with the YJPS/X model?
The system supports a wide range of belt widths from 650mm up to 1800mm (B650~B1800).
Is the maintenance of this equipment complicated?
The system features a simple structure and reliable performance, making it very easy to maintain without specialized tools.
What is the annual production capacity for this system?
Our manufacturing facility has a production capacity of approximately 5000 pieces per year.
