| Model NO. | URTC-1600 |
|---|---|
| Structure | Turntable Conveyor |
| Material | Carbon Steel |
| Material Feature | Rust Resistant |
| Application | Chemical Industry, Power Plant |
| Effective Width (EW) | 1600 mm |
| Rotating Diameter (D) | 2400 mm |
| Load Capacity | 1500 Kg |
| Voltage | 380 VAC 3 pH 50/60 Hz |

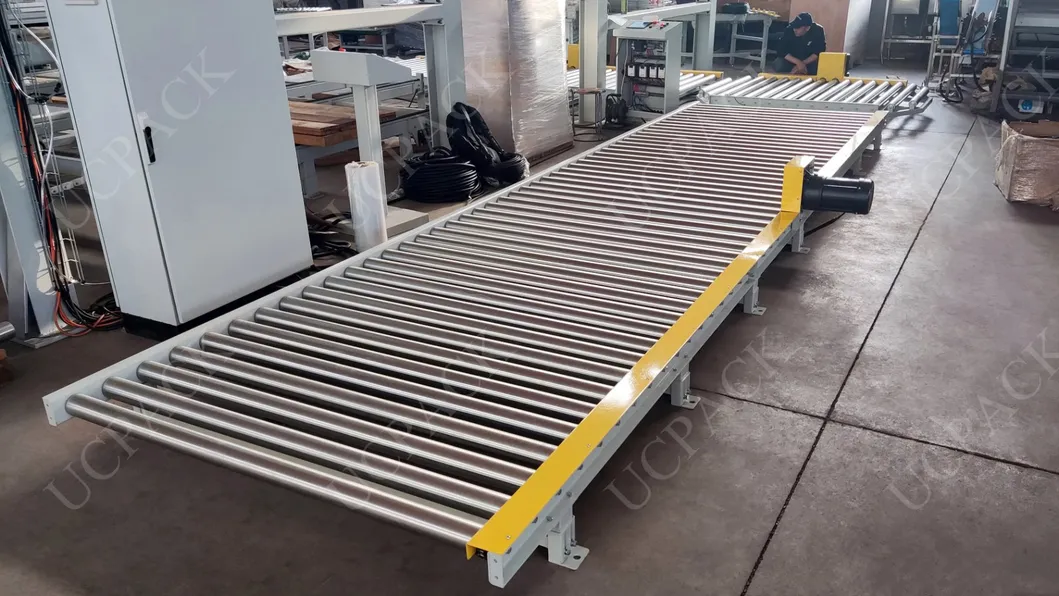

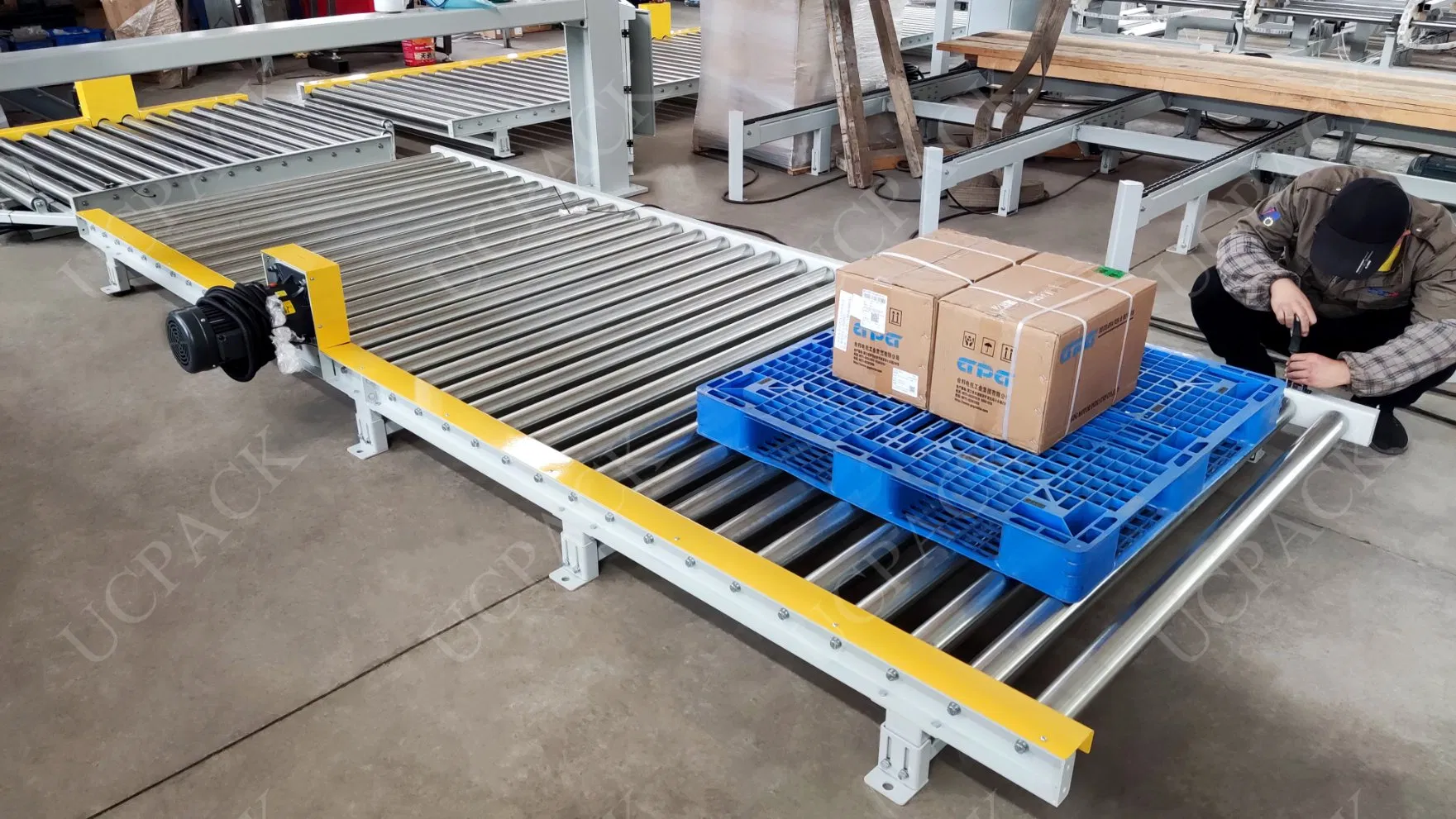

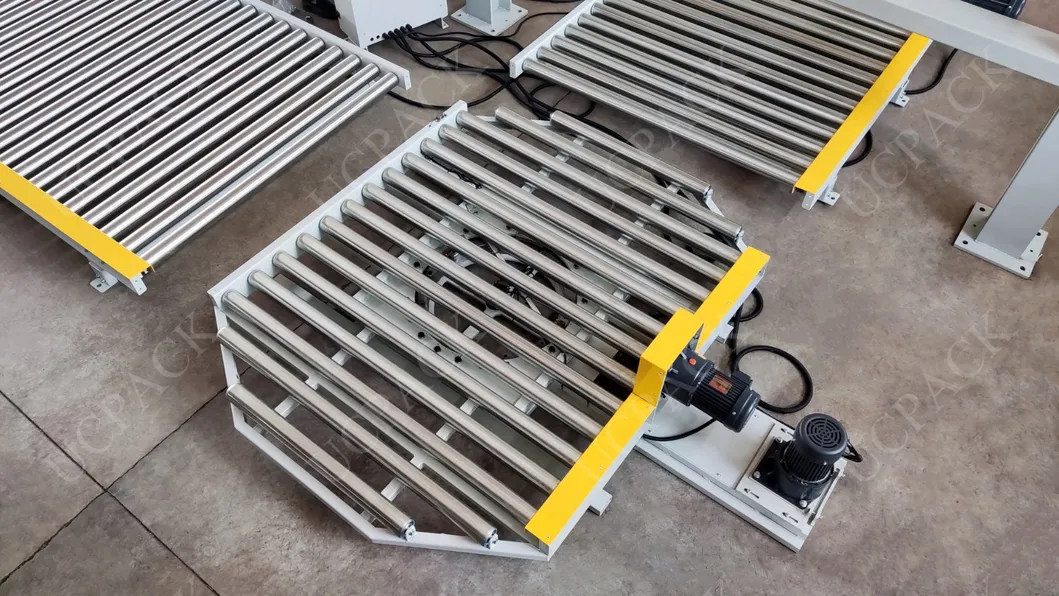

This Low Profile System consists of an infeed CDLR, a turntable conveyor, and an outfeed CDLR to transport pallets. The ground level line height is engineered down to 250 mm.

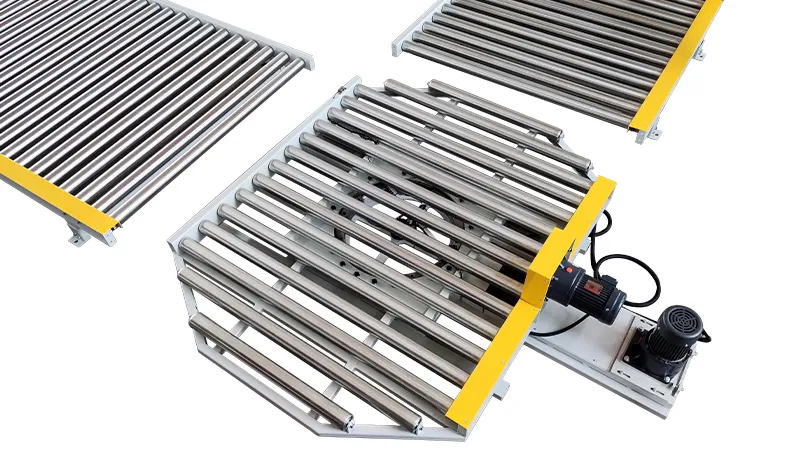

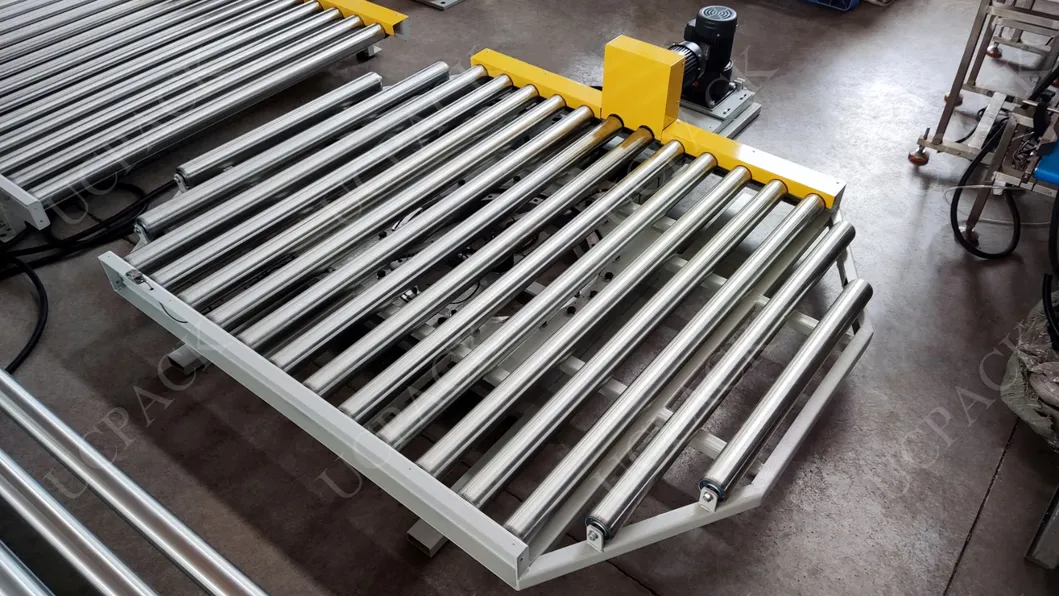

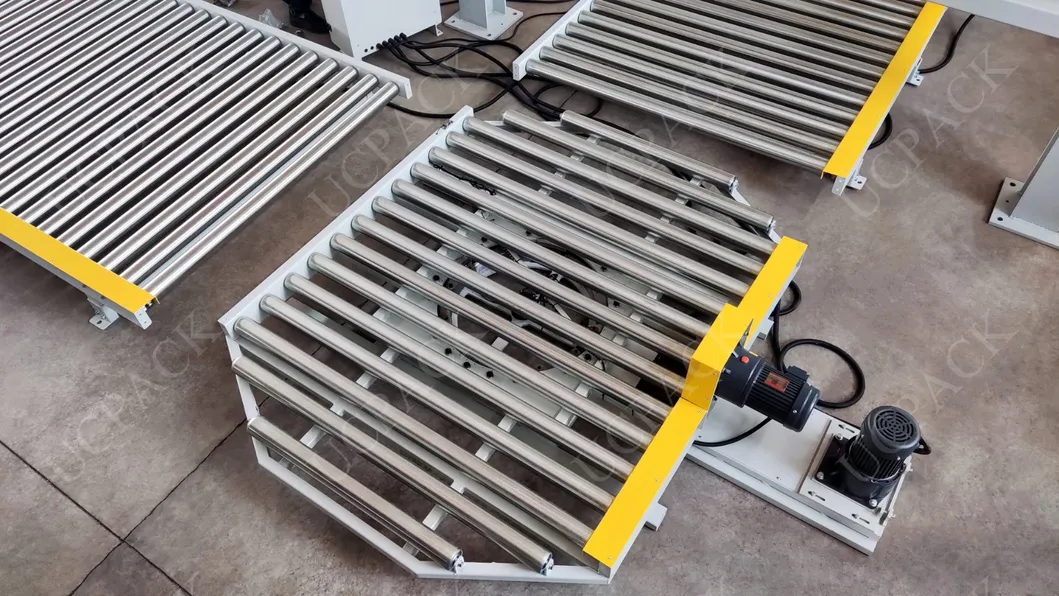

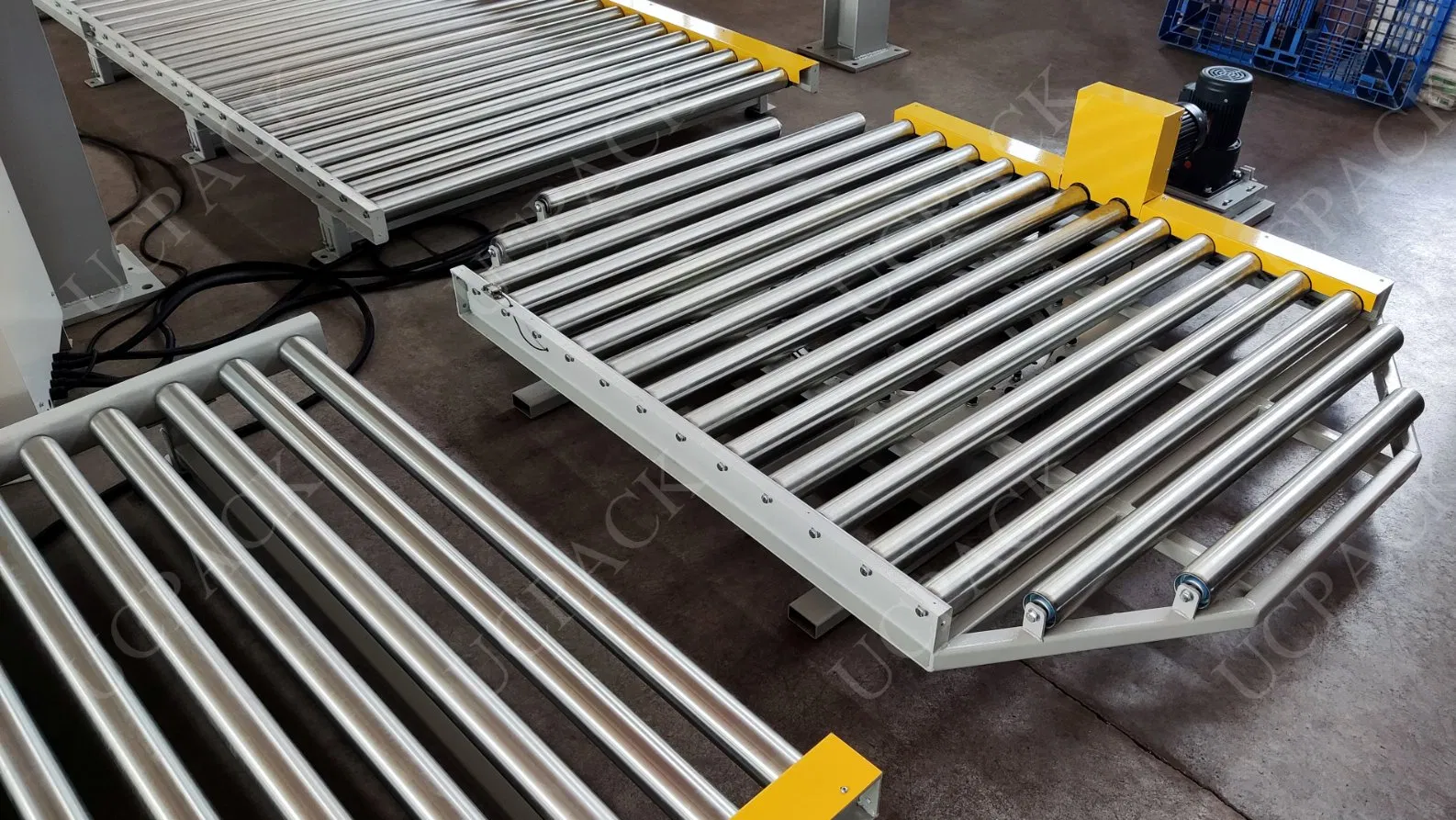

The turntable provides a method of changing pallet travel direction by rotating the pallet through any angle from 90° up to 180° when pallet handling lines intersect or change directions. Unlike chain transfers, turntables maintain pallet orientation through an intersection. It can also be used to reverse the orientation of a pallet or allow a pass-through.
| Rotating Angle | Std. 90 Degree |
|---|---|

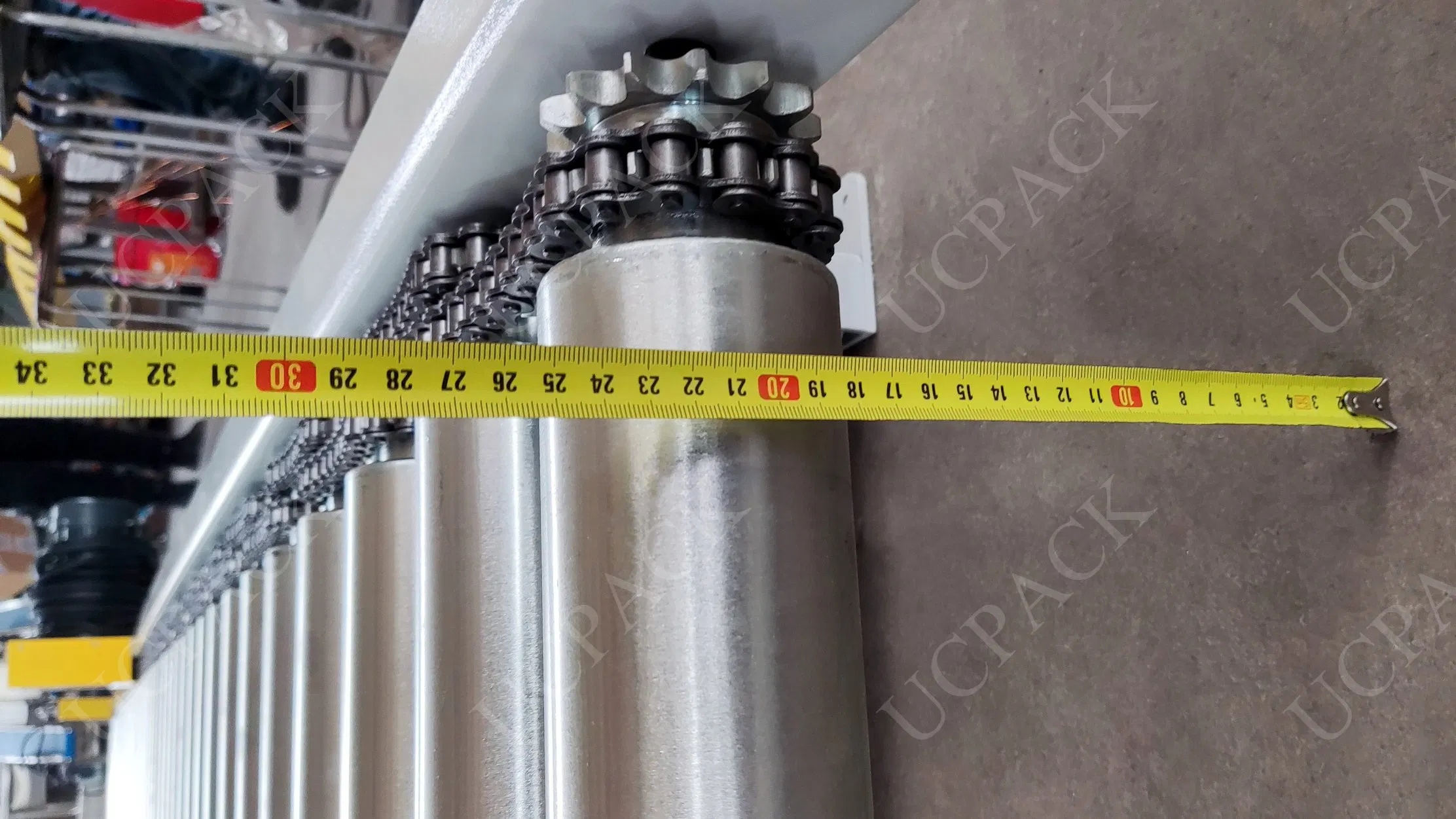

| Roller Diameter | Ø 76 mm (3 mm Wall Thickness) |
| Tube Material | Galvanized Steel |
| Roller Centers | 119 mm |
| Rotating Speed | 3 - 5 rpm (Soft Start/Stop by Inverter) |
| Conveying Speed | 10 m/min, Constant |

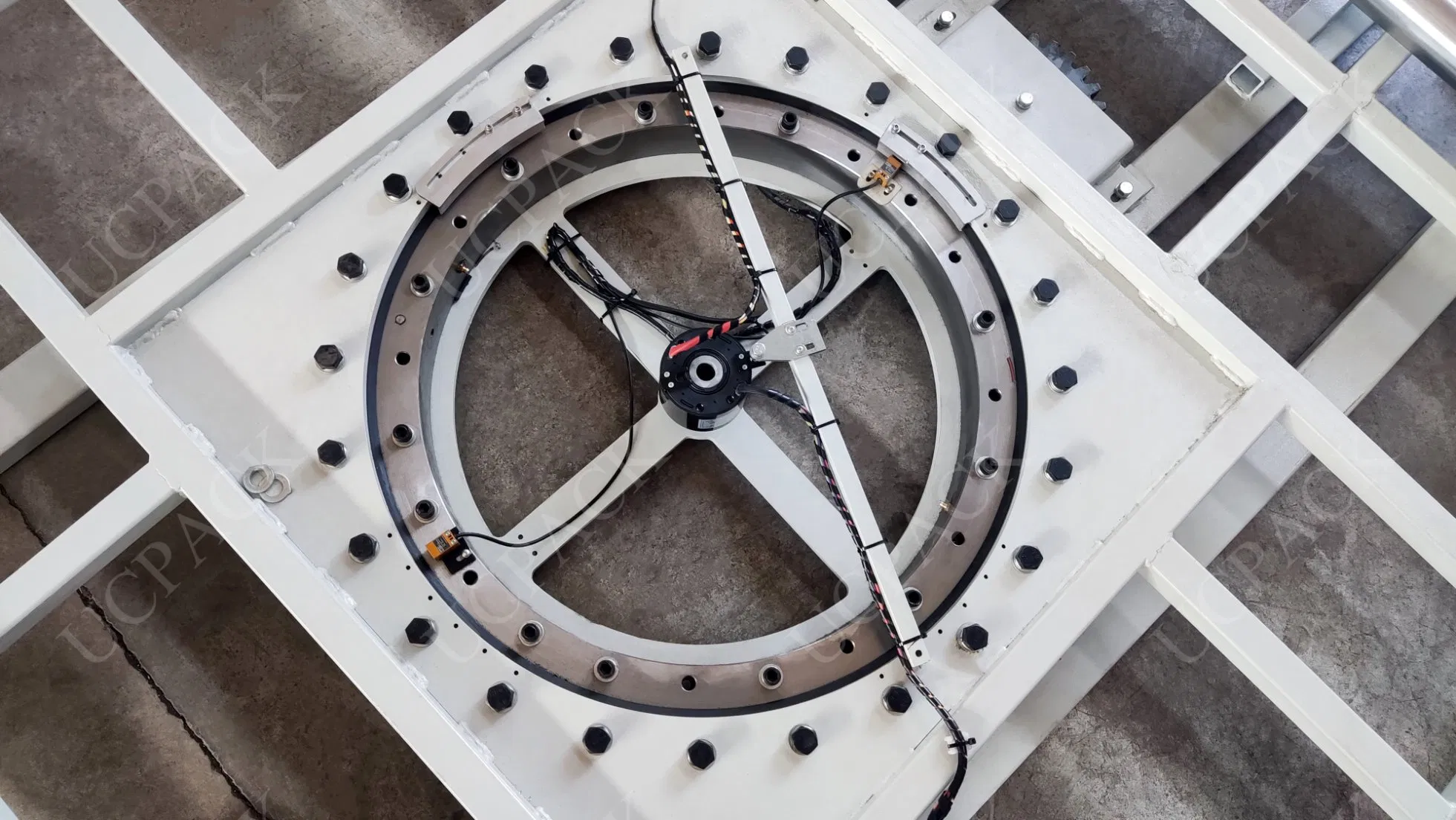

| Driven Type | Slewing Bearing; Roll to Roll by 10A Roller Chain |
| Motor Info | 0.55 kw Braked Gear Motor (Rotating); 0.75 kw Motor (Conveying) |
| Frame Finish | Powder Coated (Std. RAL 7035) |
