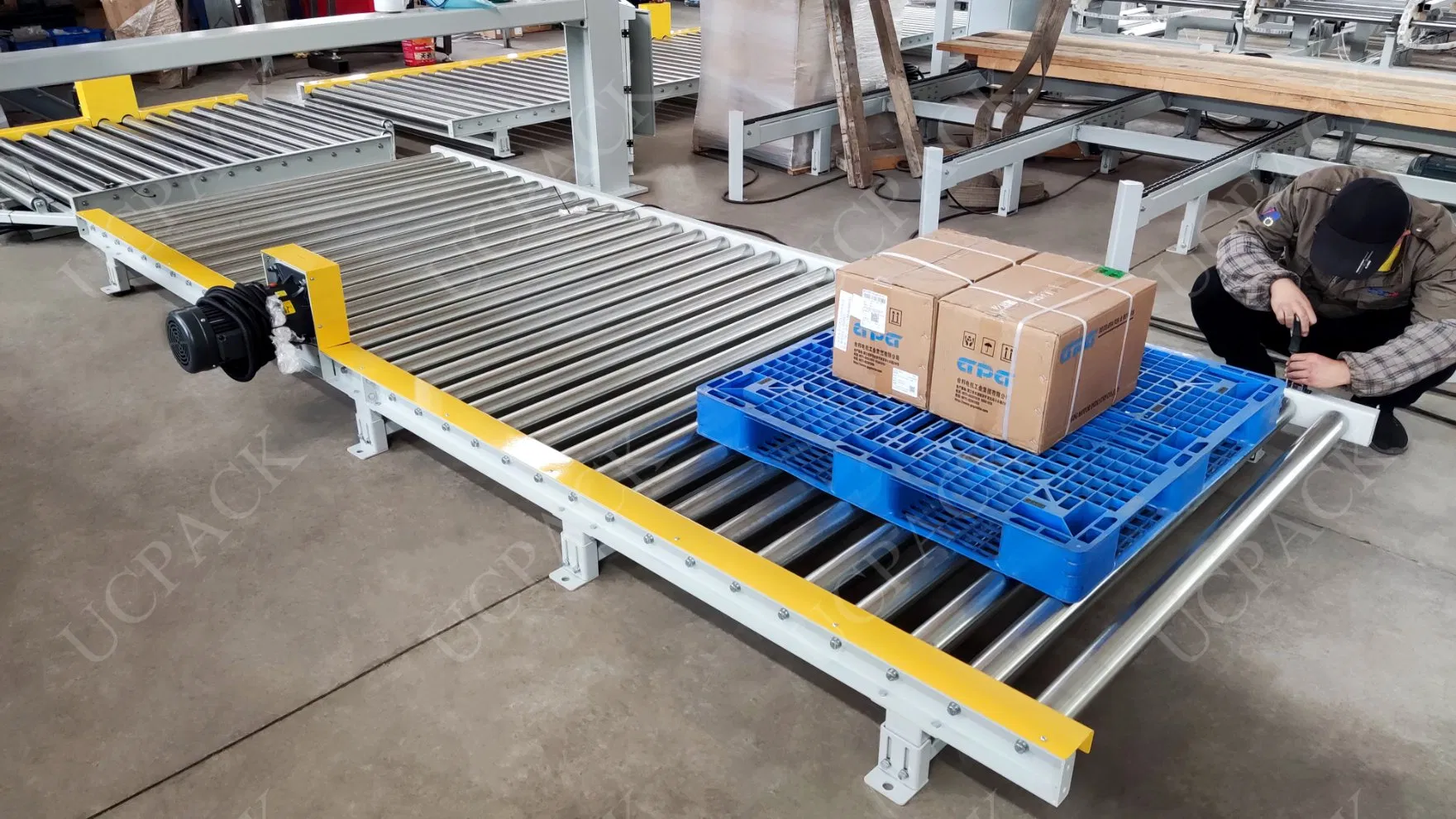

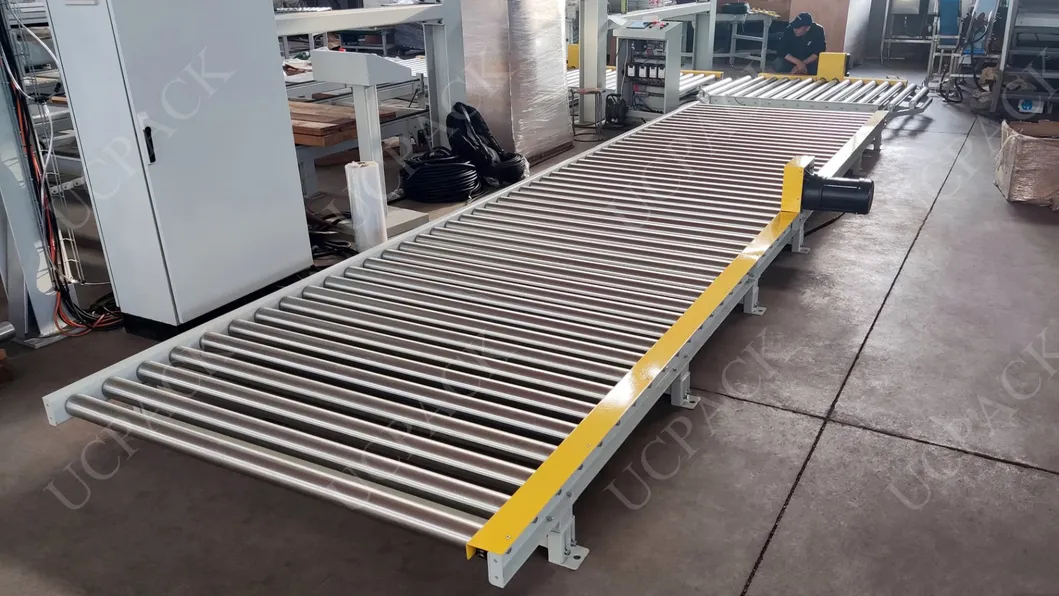

Customized Low Profile CDLR Rotary Turntable Conveyor

This Low Profile System consists of an Infeed CDLR, a Turntable Conveyor, and an Outfeed CDLR to transport pallets efficiently. Designed for ground-level operations, the line height is reduced down to 250 mm.

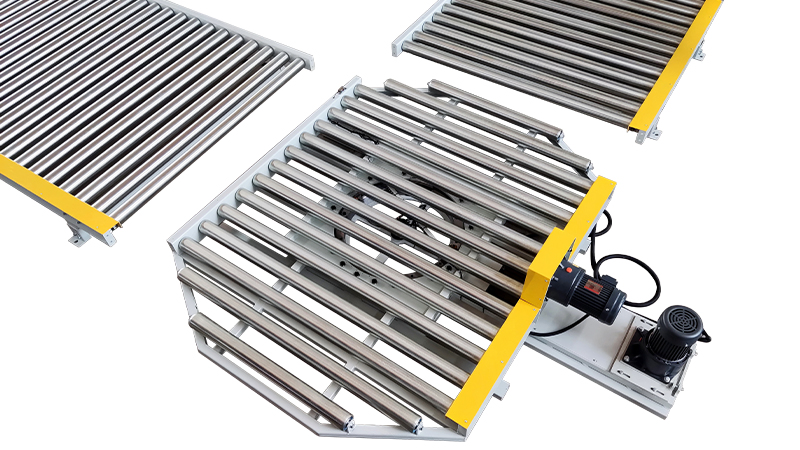

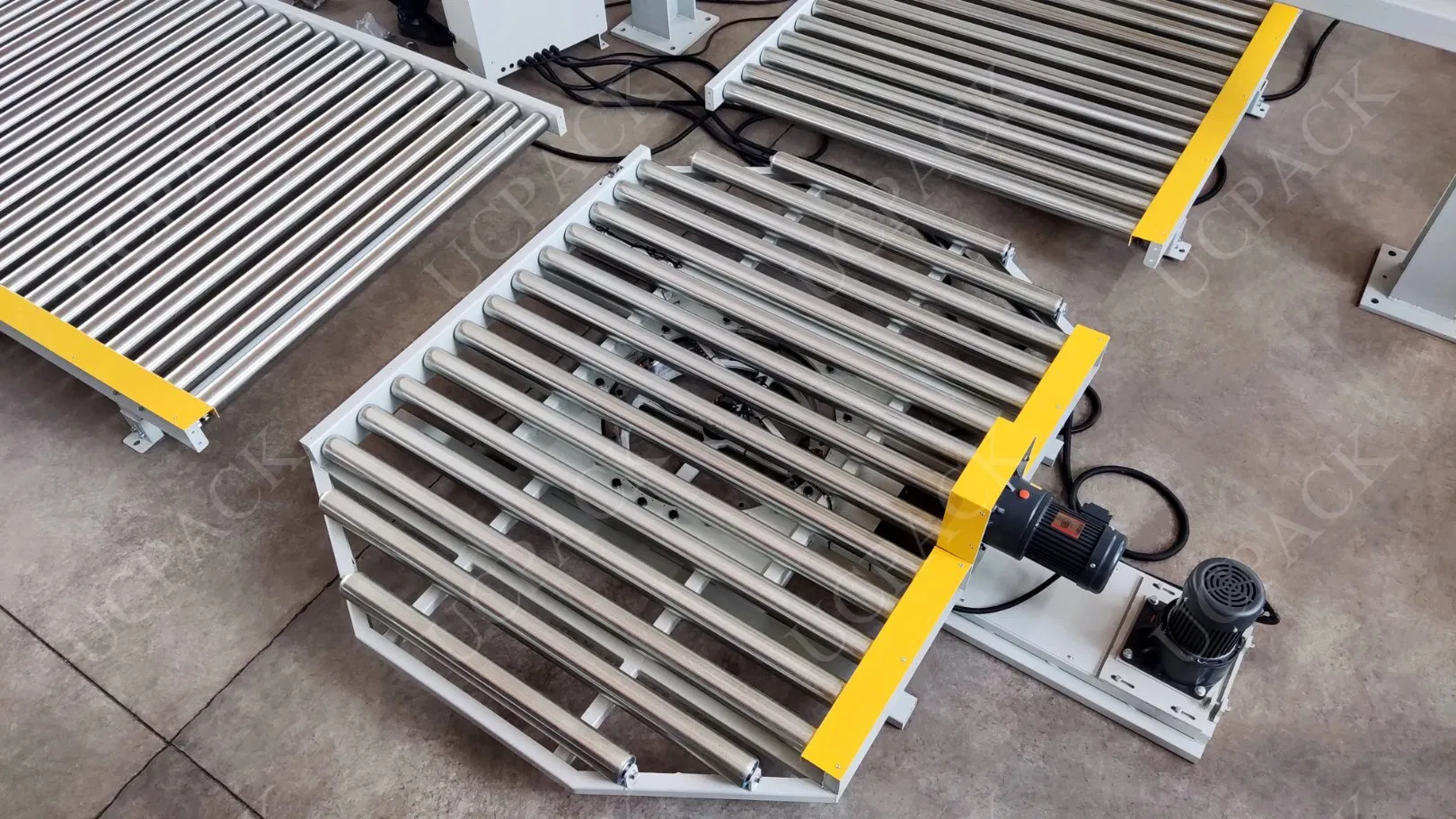

Turntable Conveyor
Turntables provide a method of changing pallet travel direction by rotating the pallet through any angle from 90° up to 180° when handling lines intersect. Unlike chain transfers, turntables maintain pallet orientation throughout the intersection and can reverse orientation or allow pass-through.
Technical Specifications
Rotating Diameter (D) 2400 mm
Effective Width (EW) 1600 mm
Height (H) 250 mm
Rotating Angle Std. 90 Degree (Up to 180°)
Roller Diameter Ø 76 mm (3mm Wall Thickness)
Tube Material Galvanized Steel
Axle Retention Female Thread Retained (M12 Bolts)
Rotating Speed 3 - 5 rpm (Soft Start/Stop by Inverter)
Conveying Speed 10 m/min (Constant)
Driven Type Slewing Bearing; 10A Roller Chain
Load Capacity 1500 kg (Standard)
Finish Powder Coated (Std. RAL 7035)

Key Features

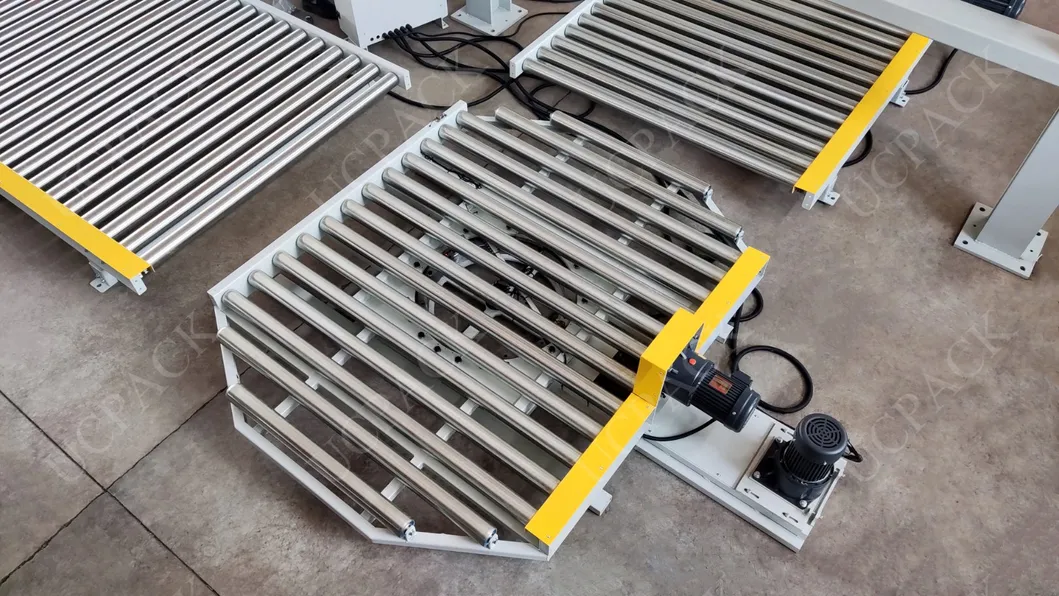

CDLR Rotary Turntable

CDLR Rotary Turntable: Designed for L 1500 mm x W 1500 mm pallets; transitions 90 degrees seamlessly.

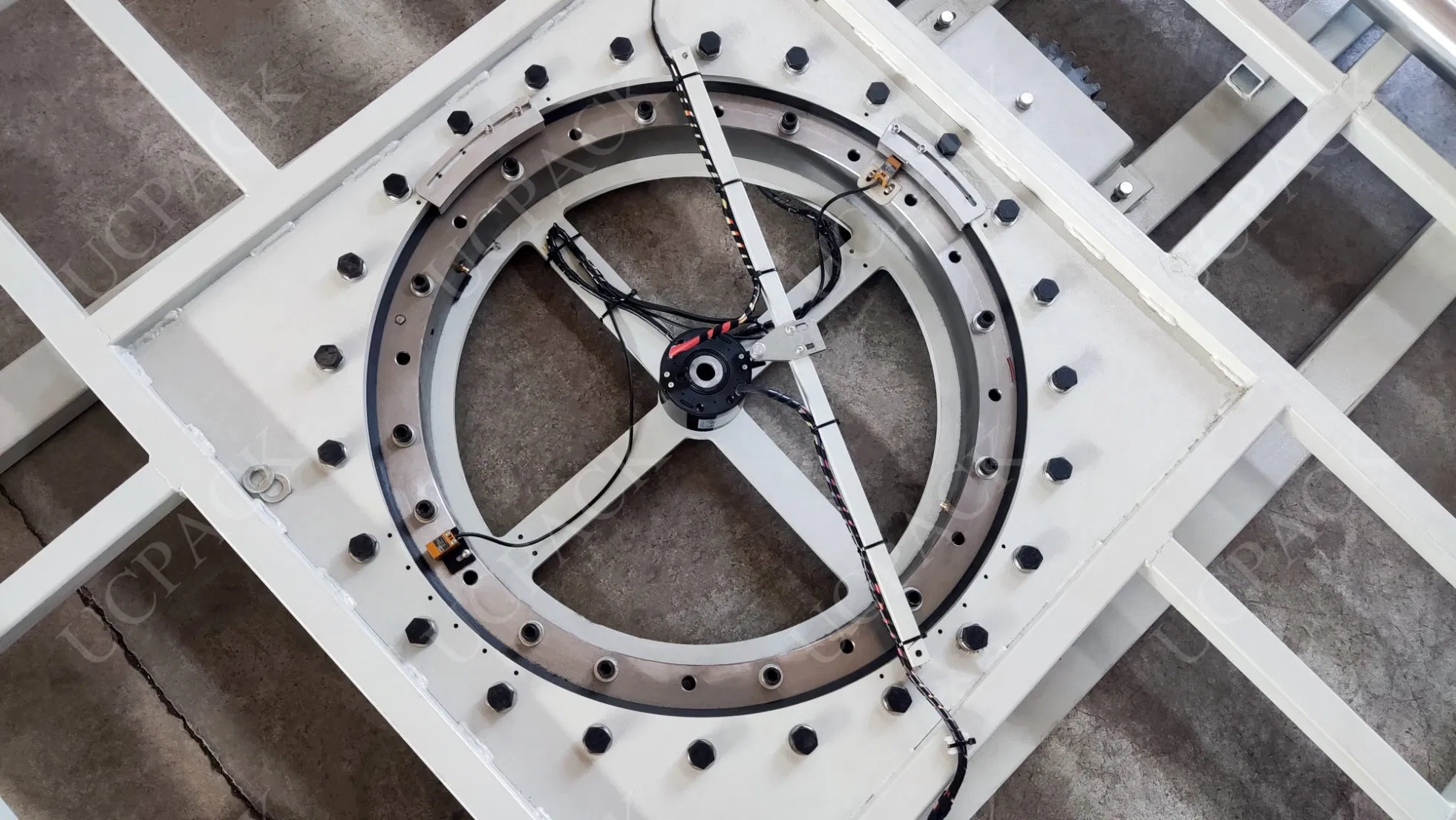

Slewing Bearing Drive

Slewing Bearing Drive: High precision rotation with braked motor for secure positioning and 1500kg capacity.

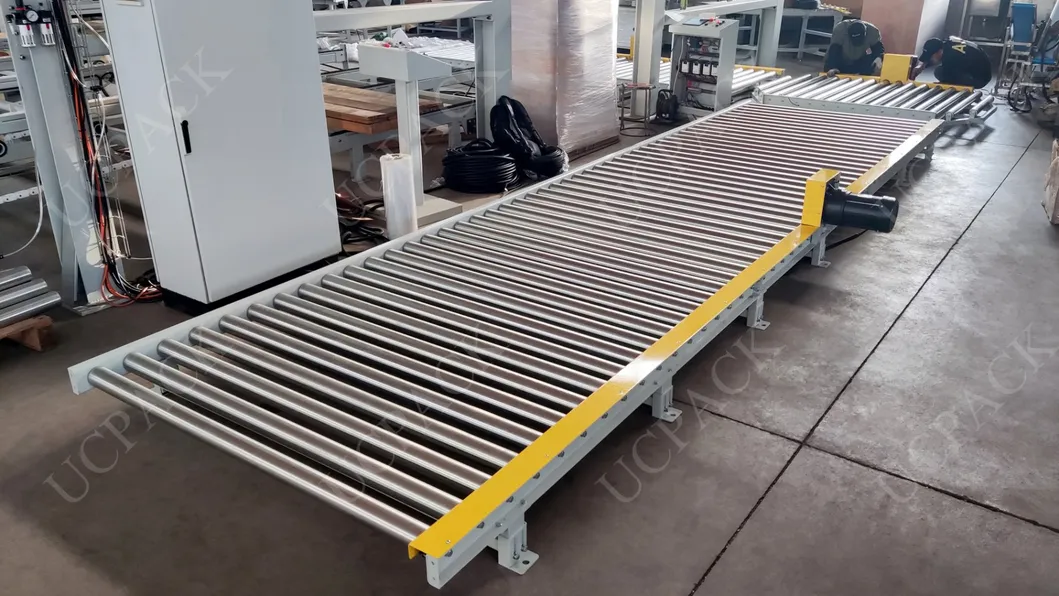

Chain Driven Rollers

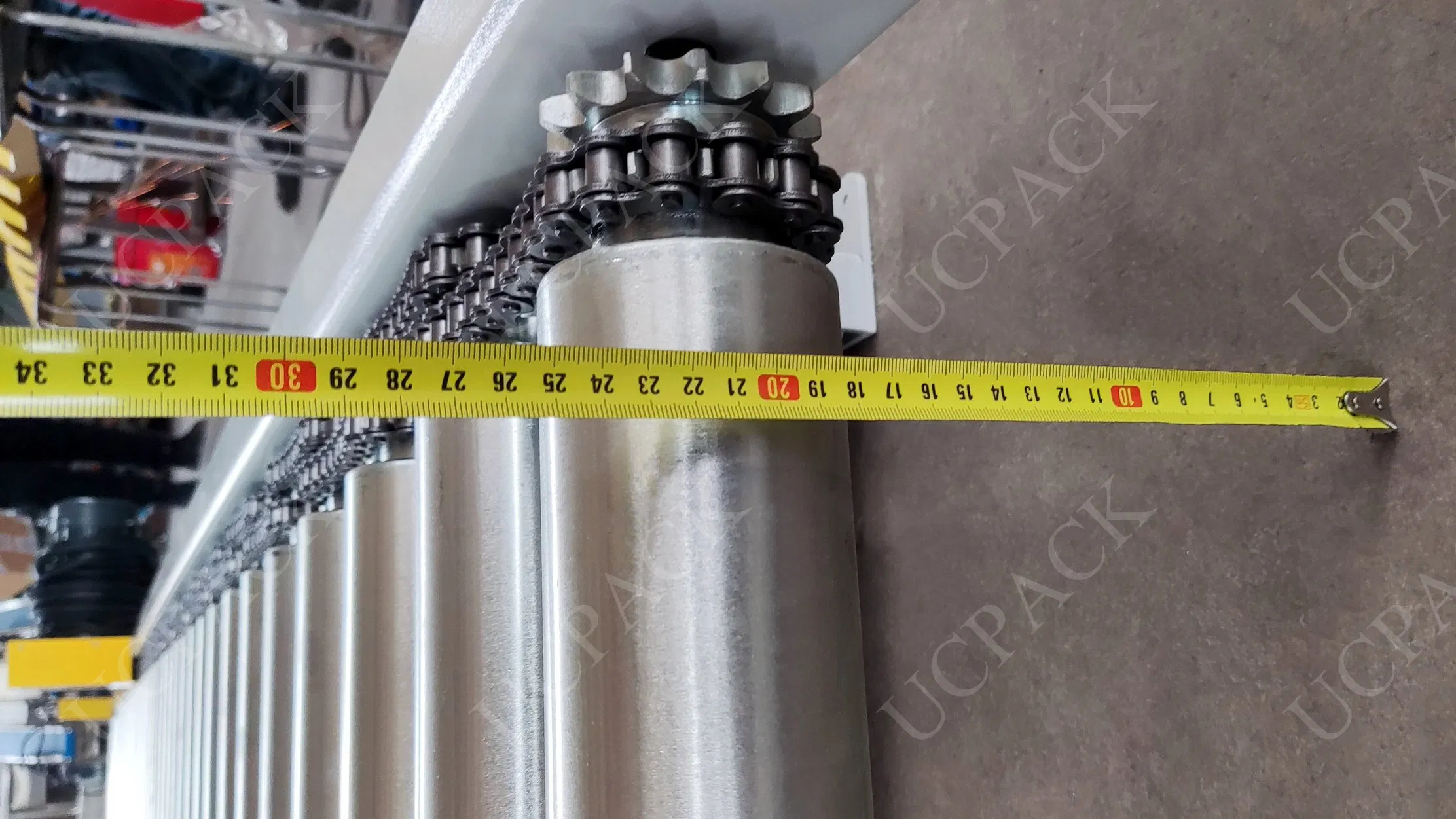

Chain Driven Rollers: Roll-to-roll drive using 15.875 mm pitch chain for heavy duty reliability.

Available Options
  • Customizable Rotating Diameter and Effective Width based on pallet size.
  • Variable Line Height (Minimum 250 mm).
  • Higher Load Capacities up to 3000 kg.
  • Adjustable Conveying Speeds (12, 15, 18, 20 m/min).
  • Stainless Steel Construction (SUS304 or SUS316) for frame and rollers.
  • Turntable Cover and Roller Flange (Welded or Split Type).

Product Gallery

Gallery Image 1
Gallery Image 2
Gallery Image 3

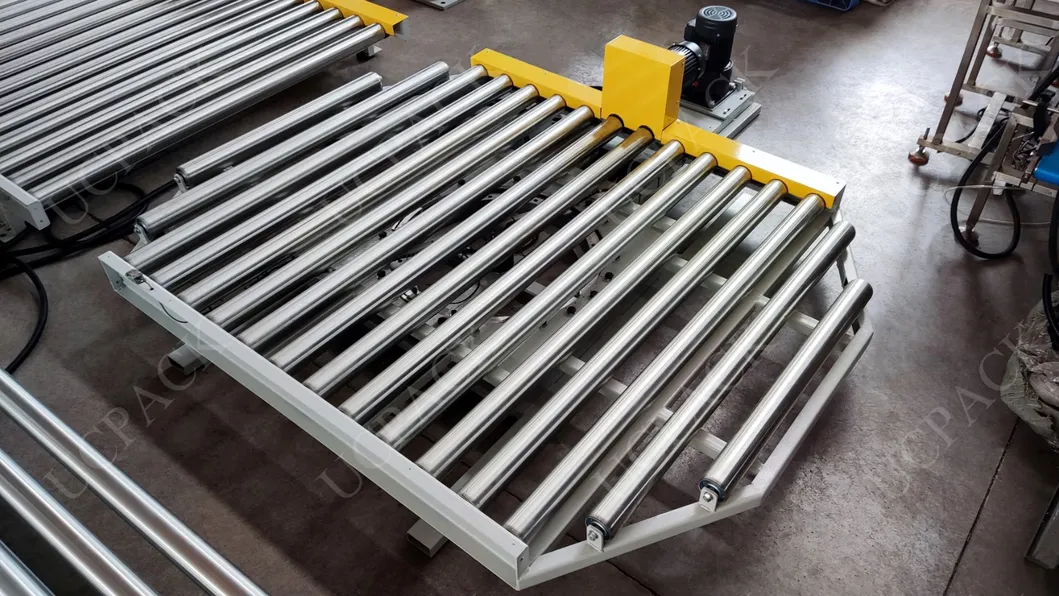

Gallery Image 4
Gallery Image 5

Quality Assurance

Our equipment is designed with precision engineering, meeting international standards for safety and efficiency. Systems have passed CE certification and utilize advanced patented technologies in shrink wrapping and conveyor systems.
Certification Manufacturing
We specialize in providing customized overall solutions for pallet handling, timber handling, and automated packaging across global markets including North America, Europe, and Australia.

Frequently Asked Questions

What is the minimum installation height for this turntable?
This is a low-profile system specifically designed for ground-level operation, with a minimum line height of 250 mm.
What is the standard load capacity of the conveyor?
The standard model handles up to 1500 kg, but we offer heavy-duty options that can support up to 3000 kg.
Can the rotation angle be customized beyond 90 degrees?
Yes, while 90 degrees is the standard configuration, the turntable can be programmed for any rotation angle up to 180 degrees.
How is the rotation controlled for safety?
The rotation is driven by a slewing bearing with a braked motor and an inverter, allowing for soft start and soft stop to prevent pallet shifting.
Are there different roller material options?
Standard rollers are galvanized steel. However, we also provide SUS304 or SUS316 stainless steel options for corrosive or food-grade environments.
Is the conveying speed adjustable?
Yes, while the standard speed is 10 m/min, it can be customized or made variable (e.g., 12, 15, or 20 m/min) depending on your production requirements.
