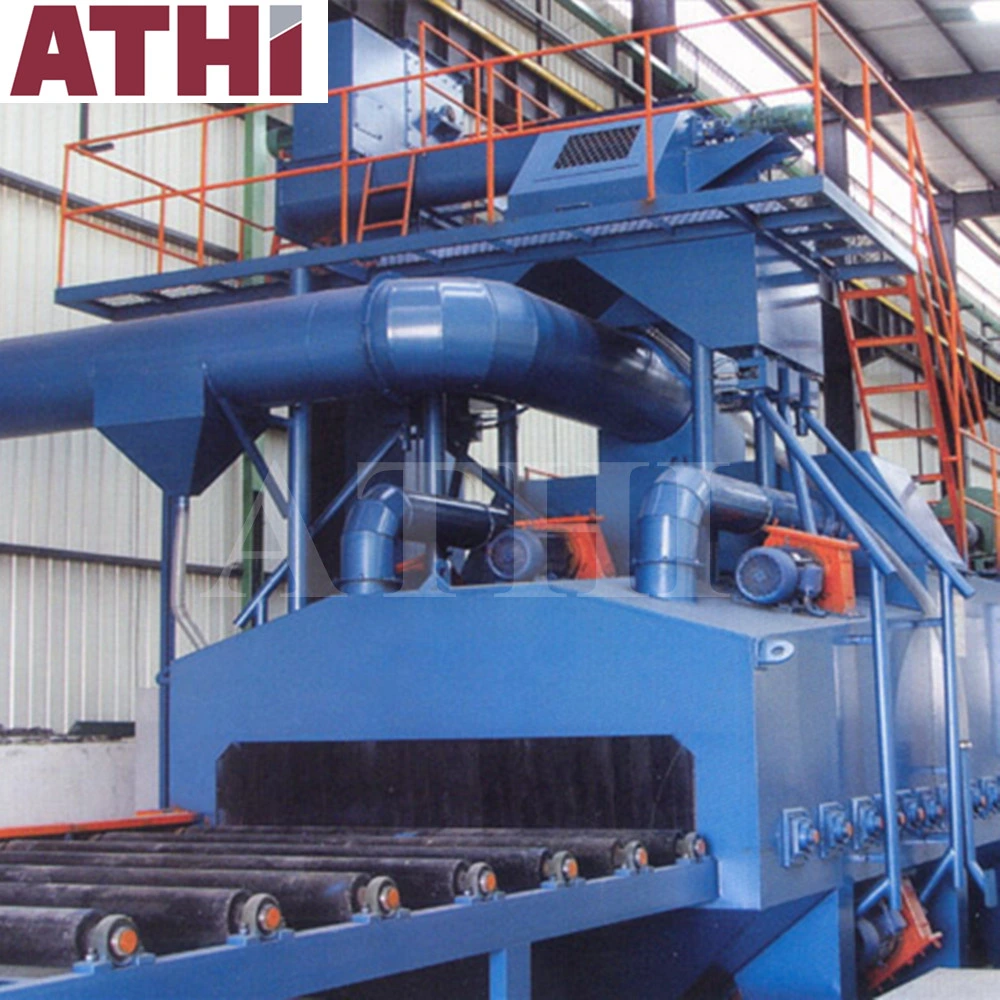

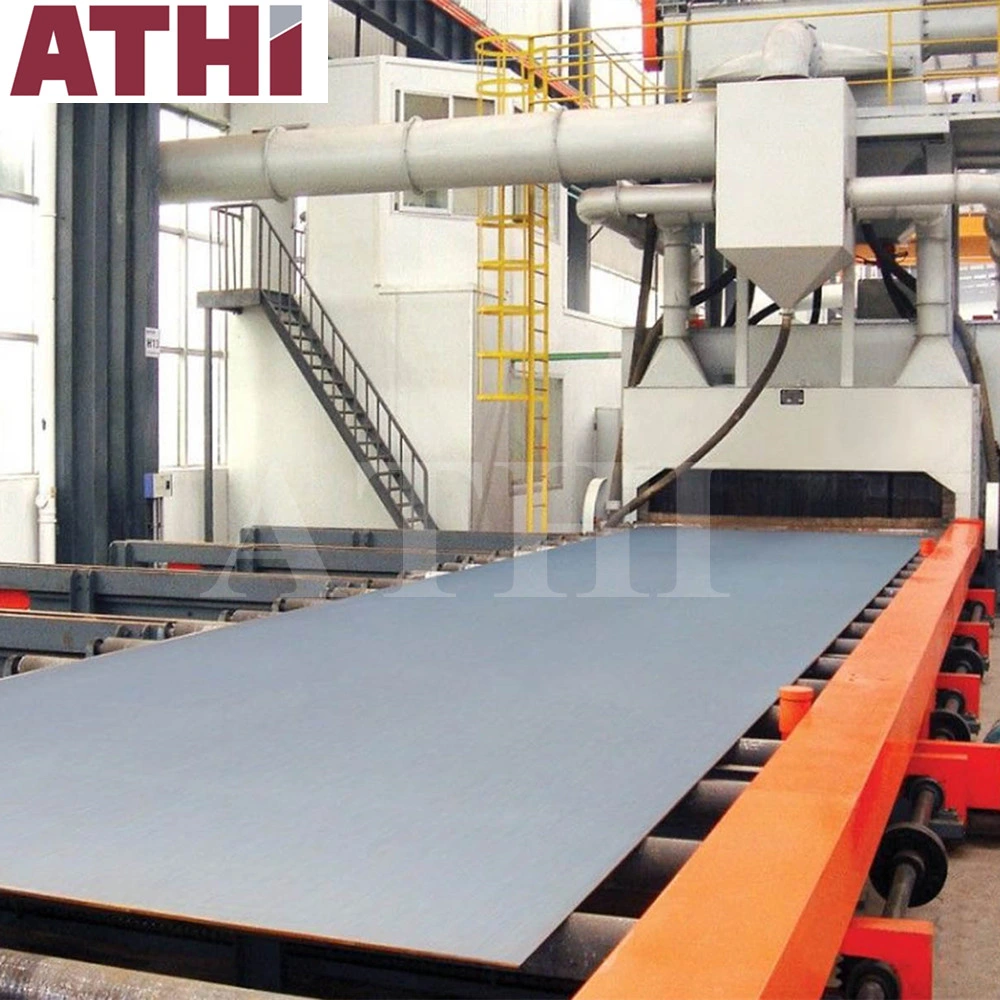

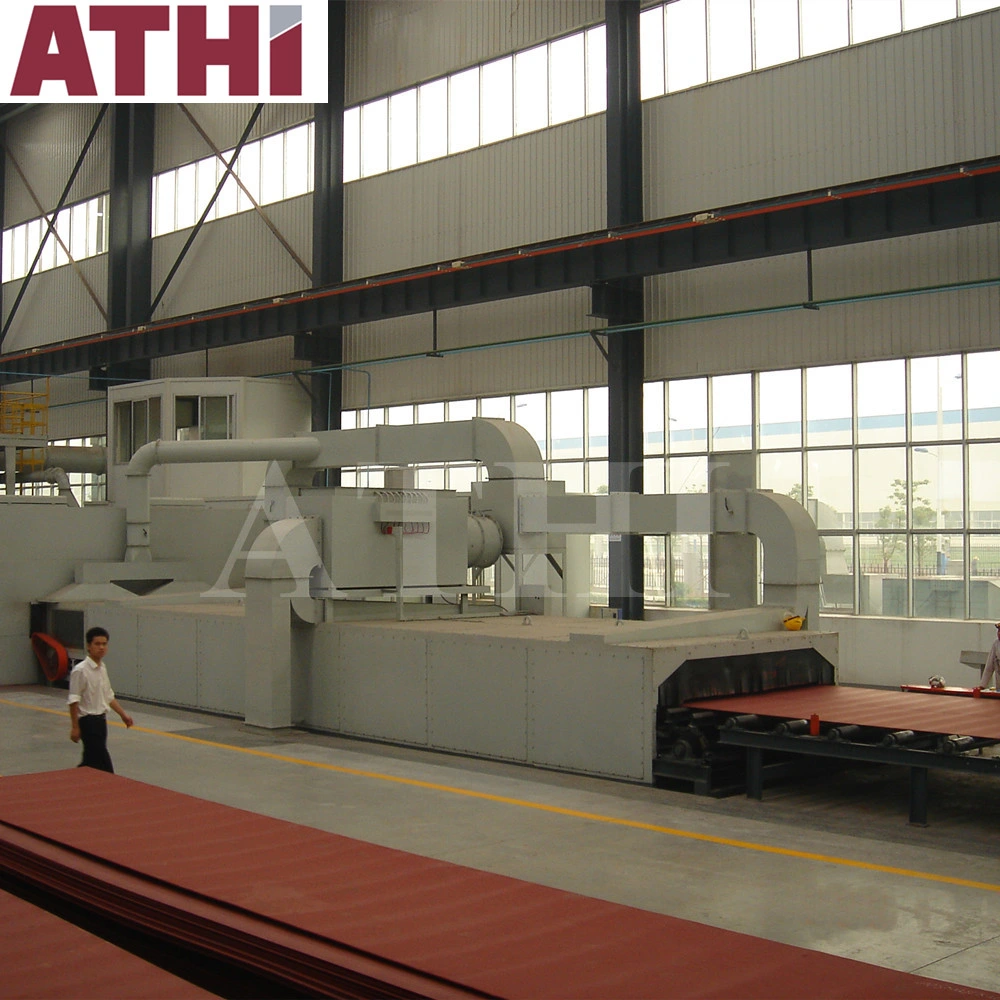

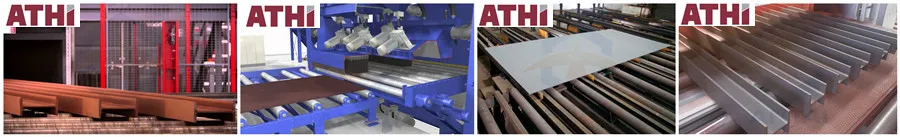

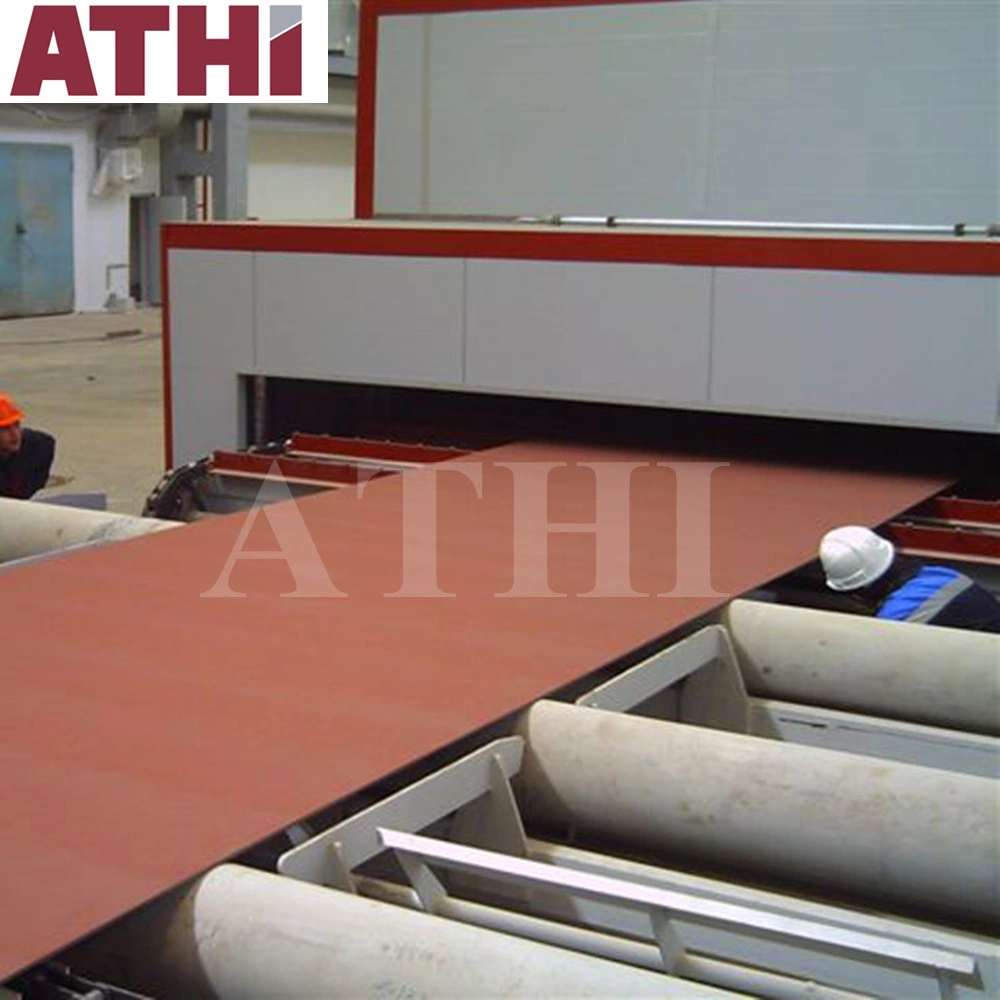

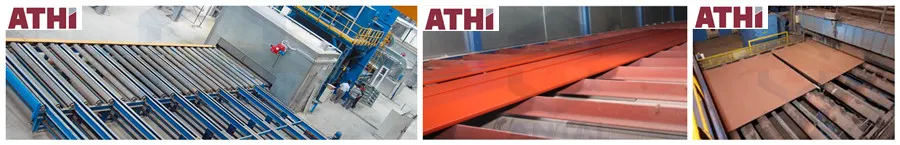

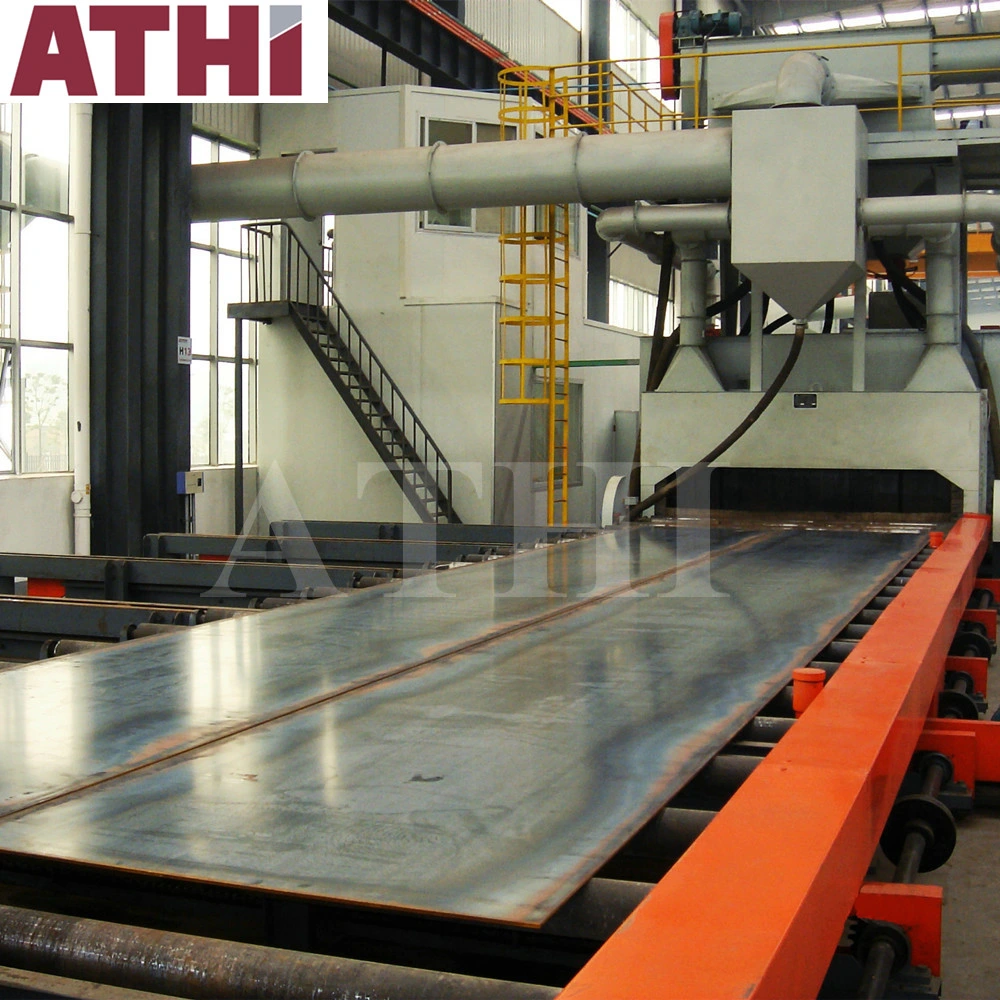

Steel sheet/plate shot blasting machine and painting preservation line is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts. This machine is widely used in Shipyard, ship building industry, machinery industry, etc.
| Item | QXY1000 | QXY1600 | QXY2000 | QXY2500 | QXY3000 | QXY3500 | QXY4000 | QXY5000 | |
|---|---|---|---|---|---|---|---|---|---|
| Size of steel | Length (mm) | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 | ≤12000 |
| Width (mm) | ≤1000 | ≤1600 | ≤2000 | ≤2500 | ≤3000 | ≤3500 | ≤4000 | ≤5000 | |
| Thickness (mm) | 2-20 | 2-20 | 2-20 | 2-30 | 2-30 | 2-35 | 2-40 | 2-60 | |
| Processing speed (m/s) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | |
| Shot blasting rate (kg/min) | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 6*360 | 8*360 | 8*490 | |
| Thickness of paint (um) | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | 15-25 | |
We can design and manufacture different sizes of steel plate pretreatment lines according to specific requirements. Please contact us for a detailed inquiry.

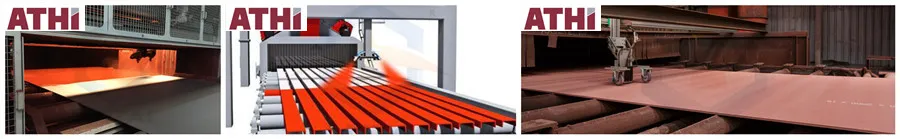

This type of steel plate auto blasting and coating machine adopts high-efficient blast wheels and full shutter type shot sand separators. The sweeping machine utilizes specially made high-strength nylon rolling brushes and high-pressure ventilators. The preheating and drying parts may adopt various heating methods, while the paint spraying part uses high-pressure airless spraying methods.
