Maith Conveyor
1 / 5

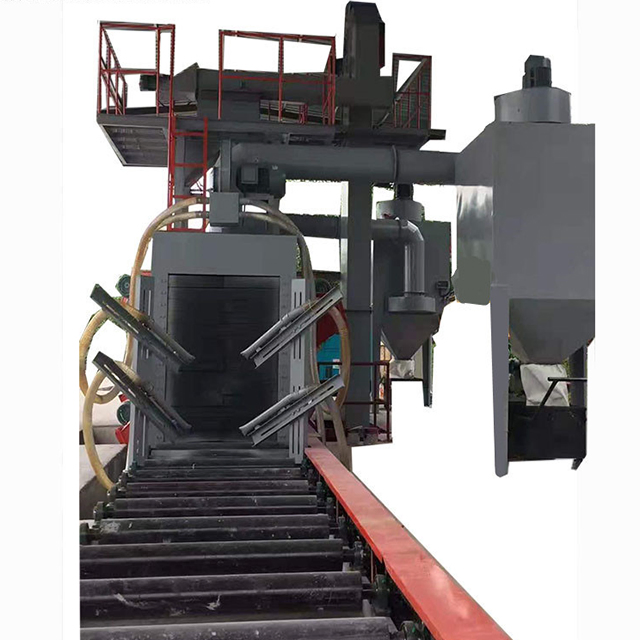

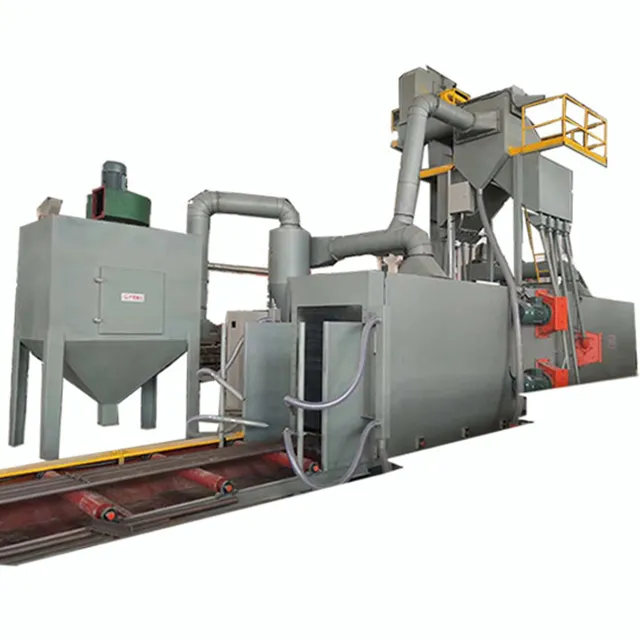

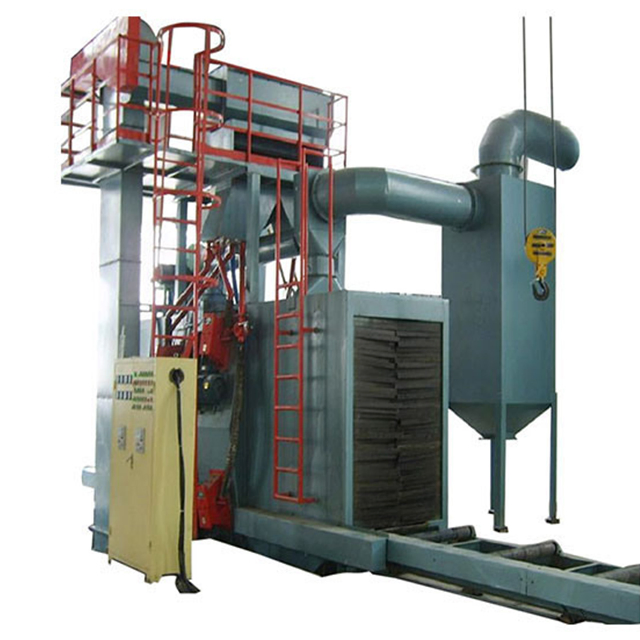

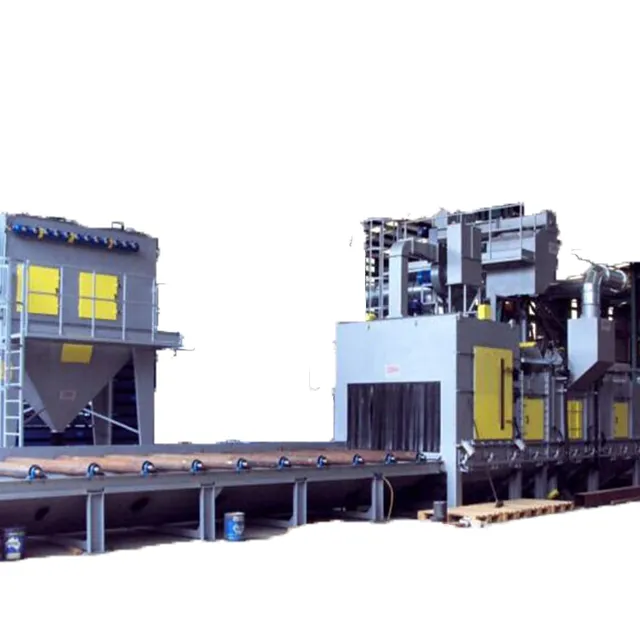

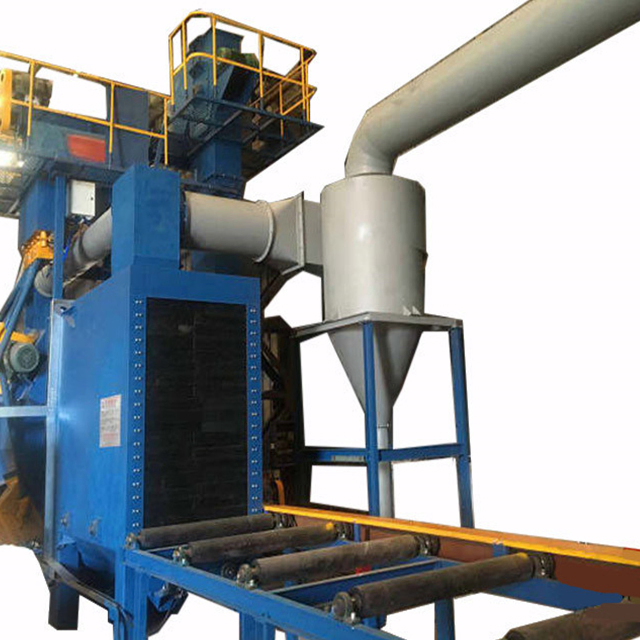

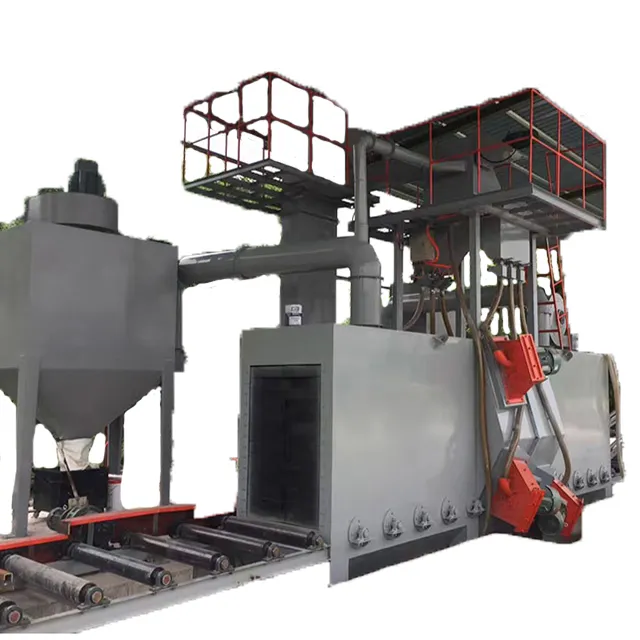

Roller conveyors are predominantly used to clean metal plates and profiles in a continuous through-feed process. A variety of roller conveyors are offered for different uses and work speeds. These systems are mainly designed for the treatment of metal plates or profiles in the steel construction or steel preparation industries. The machines can be delivered as standalone units or integrated into automatic transportation lines.
| Parameter | Unit | Model A | Model B | Model C | Model D | Model E |
|---|---|---|---|---|---|---|
| Effective cleaning width | mm | 800 | 1000 | 1200 | 1500 | 2000 |
| Room feed-in size | mm | 1000x1750 | 1200x2000 | 1400x2200 | 1700x2200 | 2200x2200 |
| Workpiece length | mm | 3000-15000 | 3000-15000 | 3000-15000 | 3000-15000 | 3000-15000 |
| Conveyor speed | m/min | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Steel thickness | mm | 5-60 | 5-60 | 5-60 | 5-60 | 5-60 |

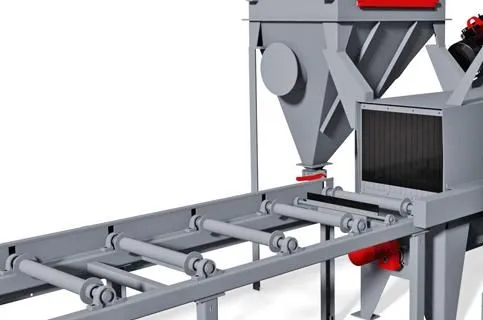

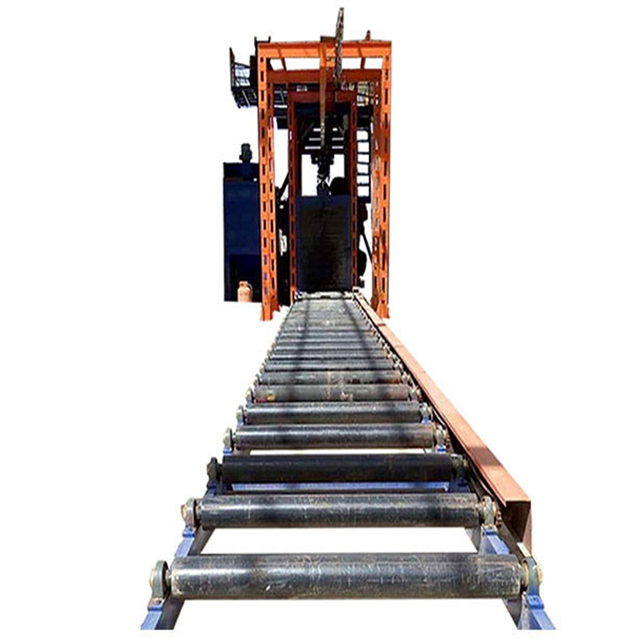

Composition: Feeding rollers, middle rollers, out-feeding rollers.
Loading capacity: 2 tons per meter.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer. Rollers in the blasting cabinet are protected by special alloy jacket with lifetime over 4,000 hours.

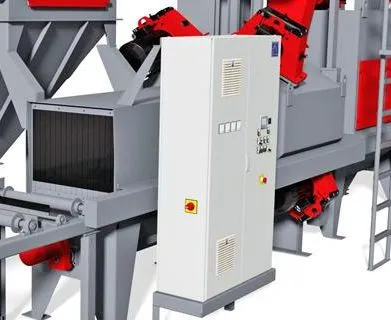

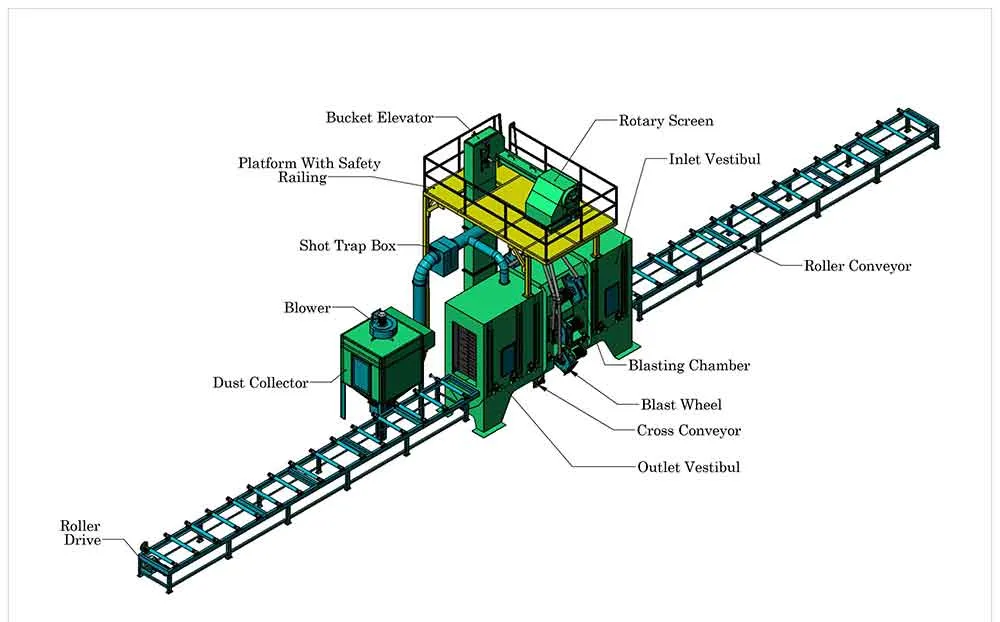

Composition: Main blasting chamber and 2 auxiliary chambers.

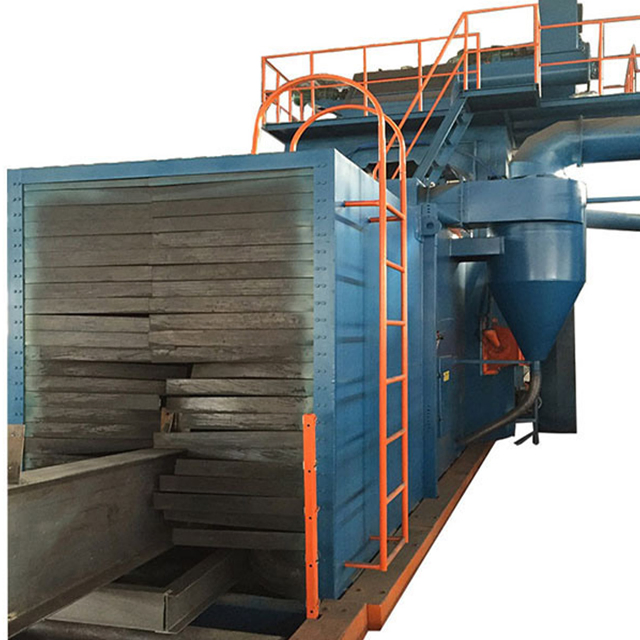

Protection: Four layers rubber curtains. Inside, walls are protected by SPMn13 material liner and 65Mn protective liner, featuring easy replacement design.
Design: Divided & Modular Chambers designed for optimal efficiency.
Our team of highly skilled and trained engineers provides high-quality design solutions focused on improving efficiency in every phase of the engineering process. We work side-by-side across production, quality, and engineering teams to ensure customer satisfaction through specific and innovative designs.
