Introduction:
X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers. The system is designed for safety, ease of use, and simple maintenance.

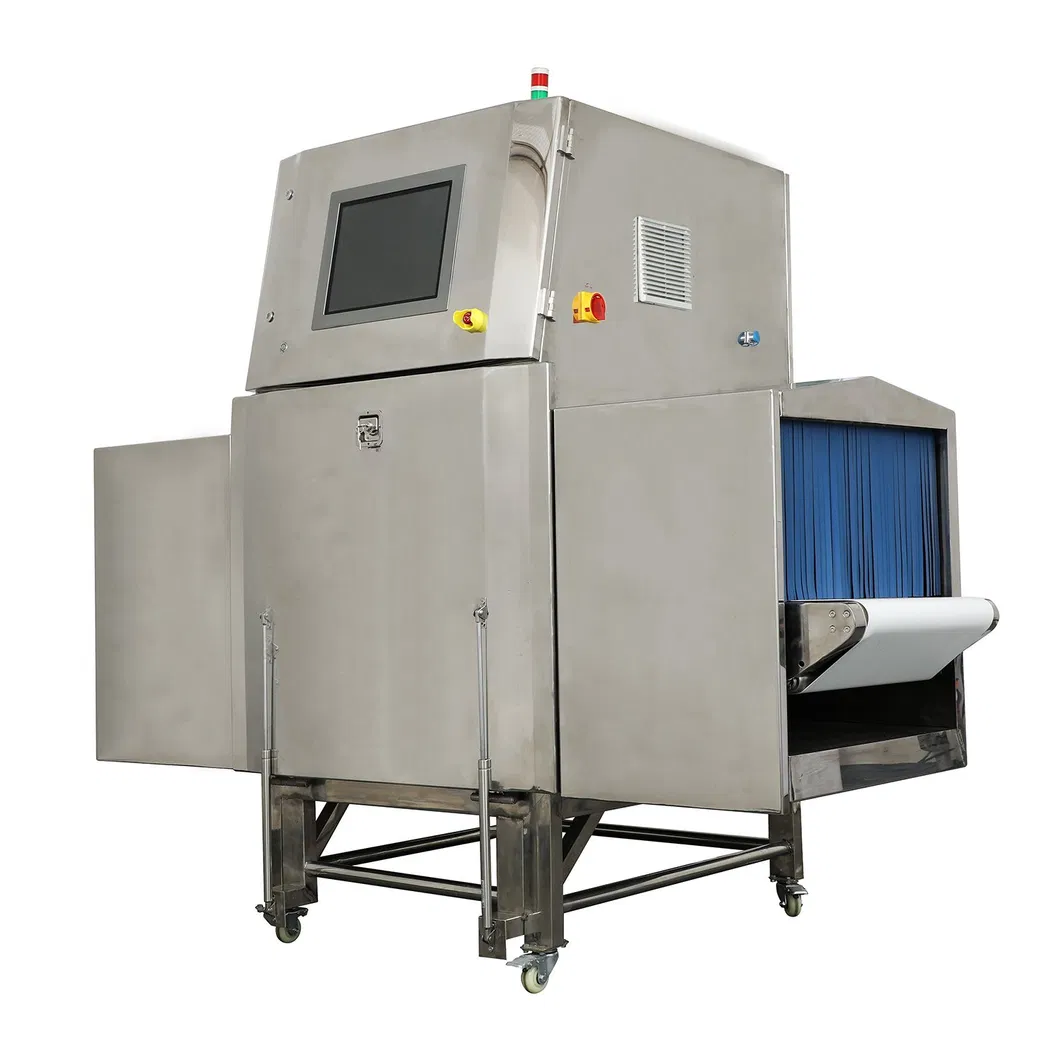

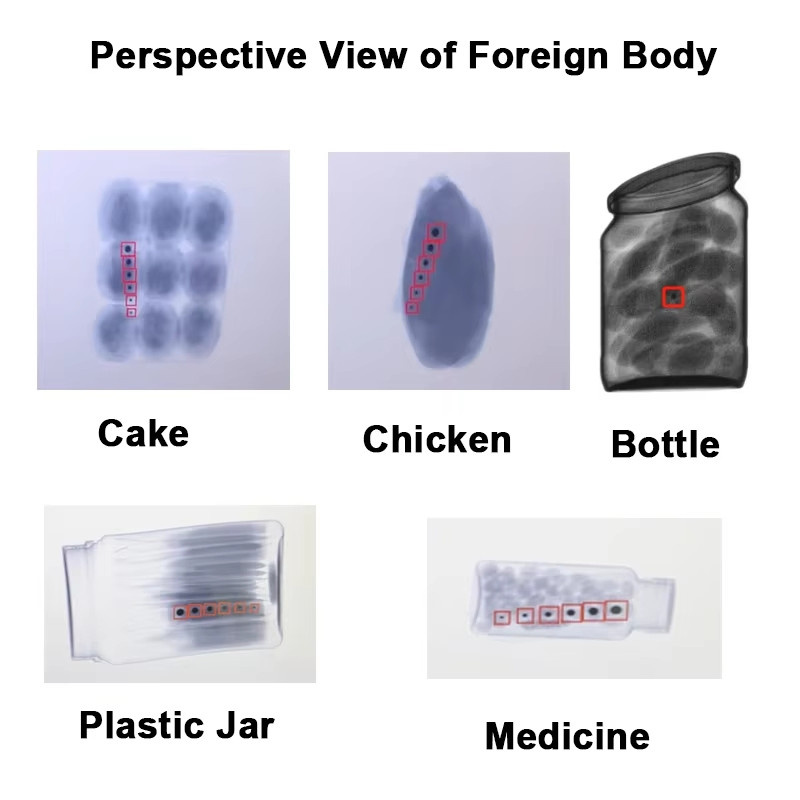

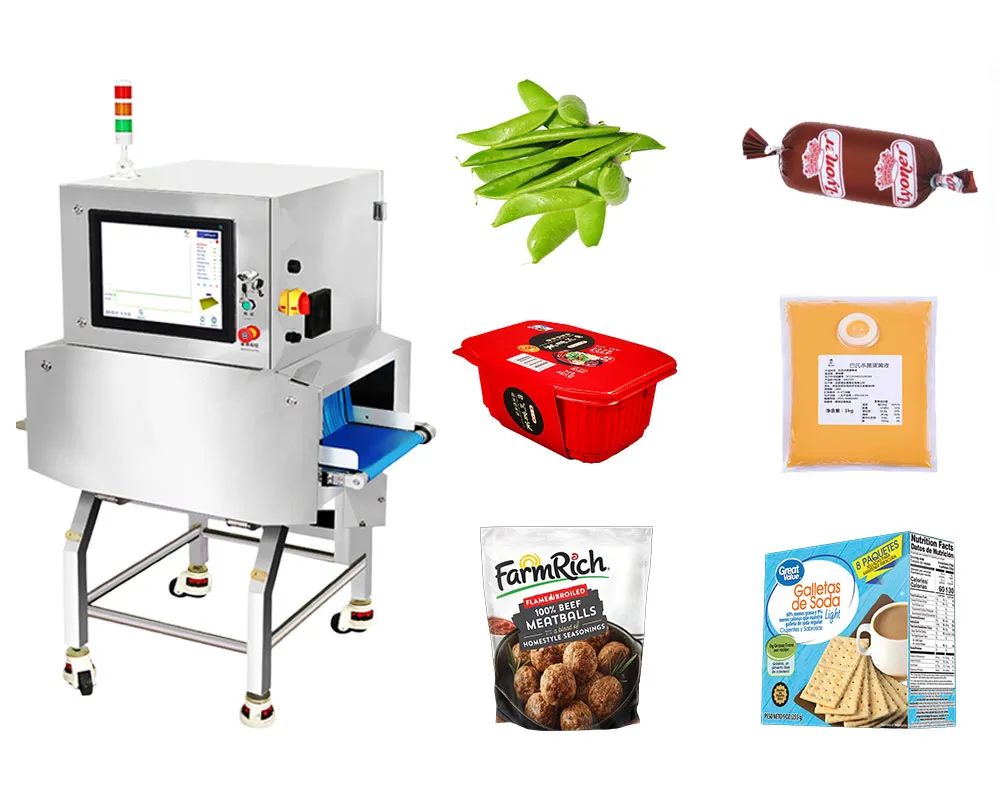

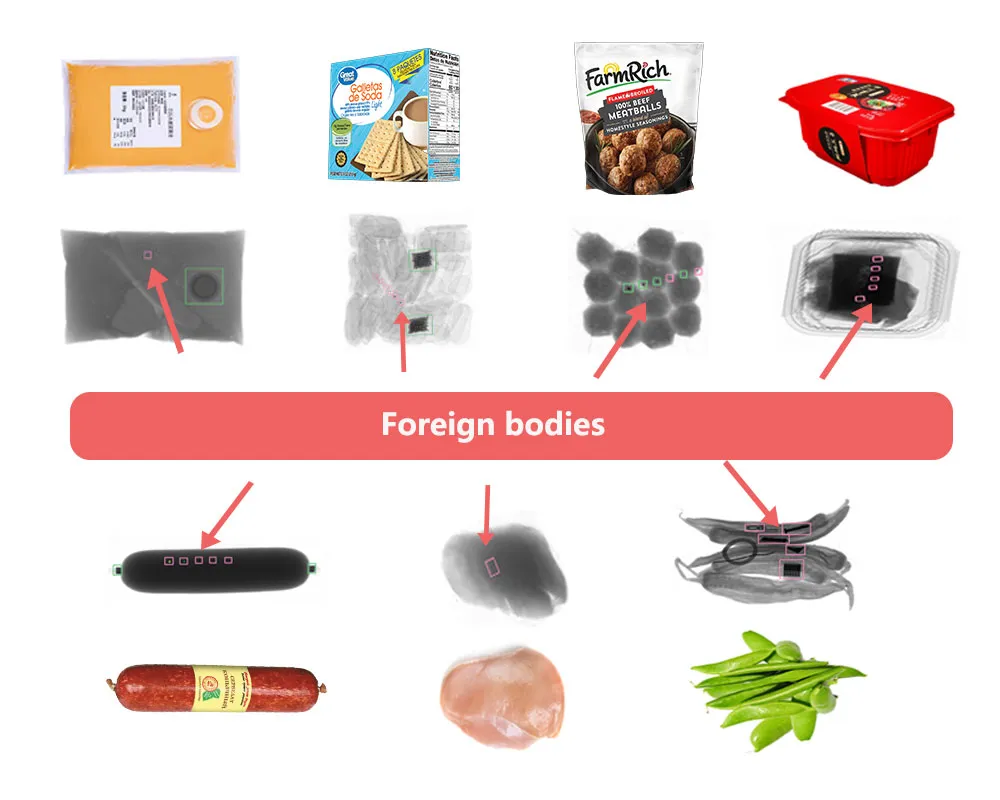

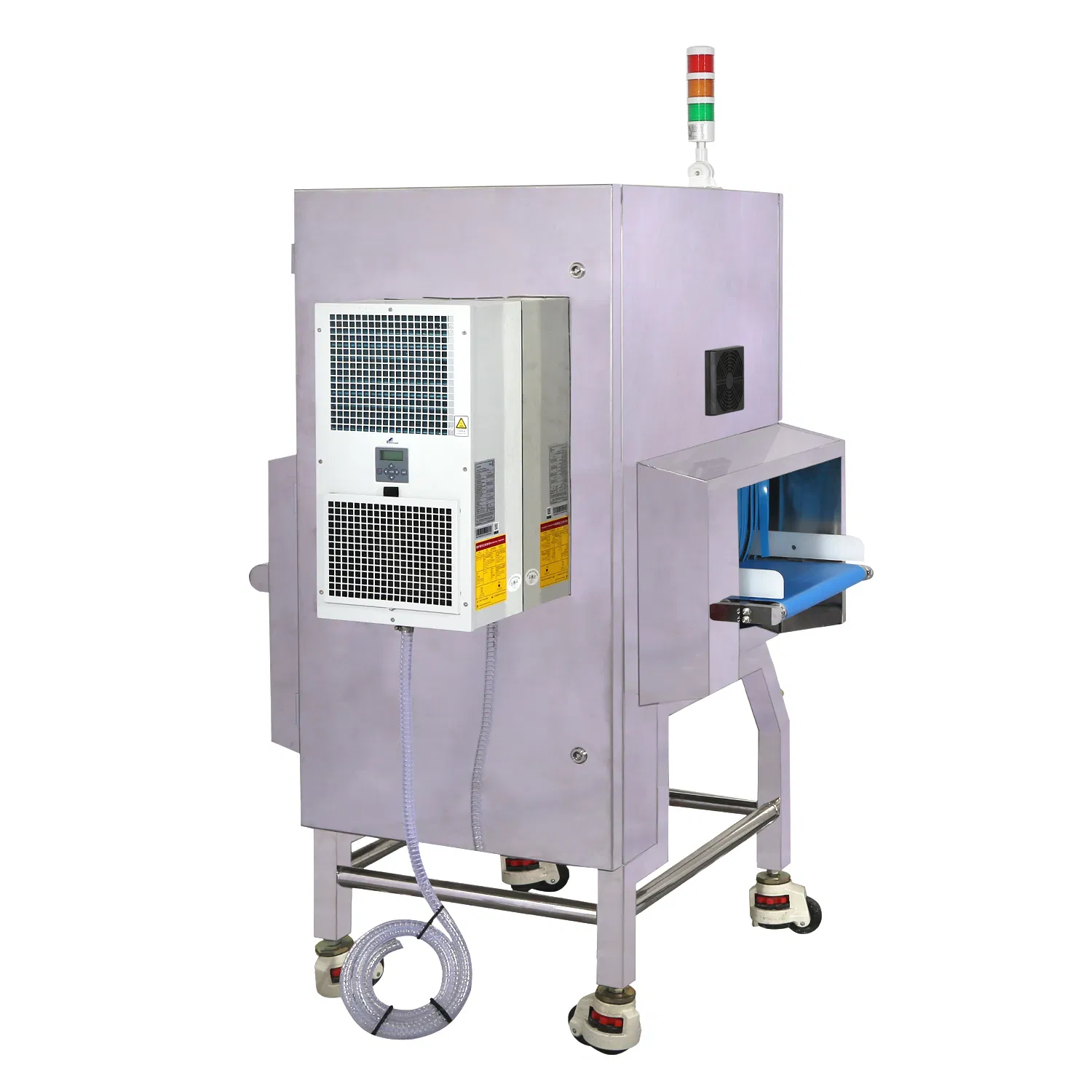

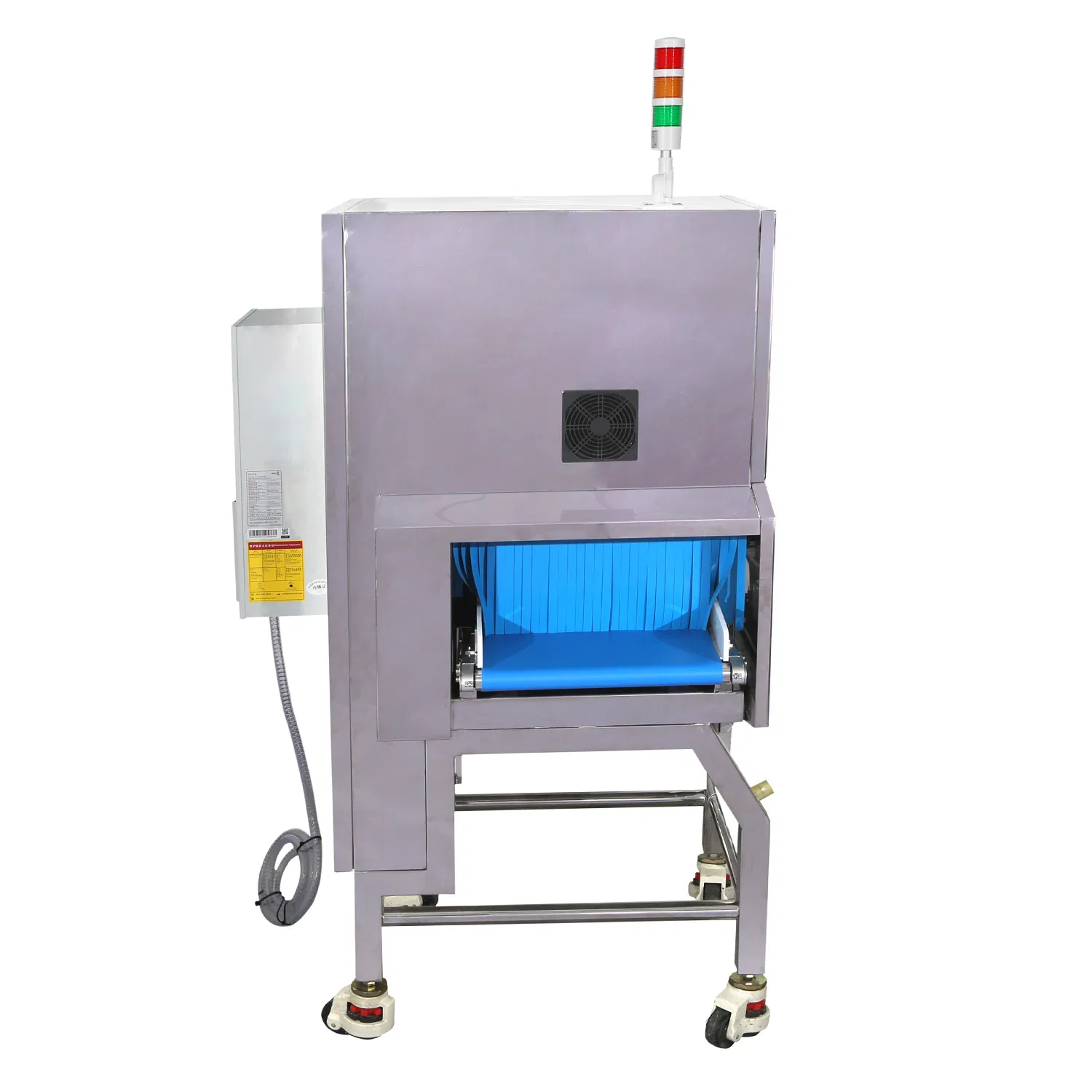

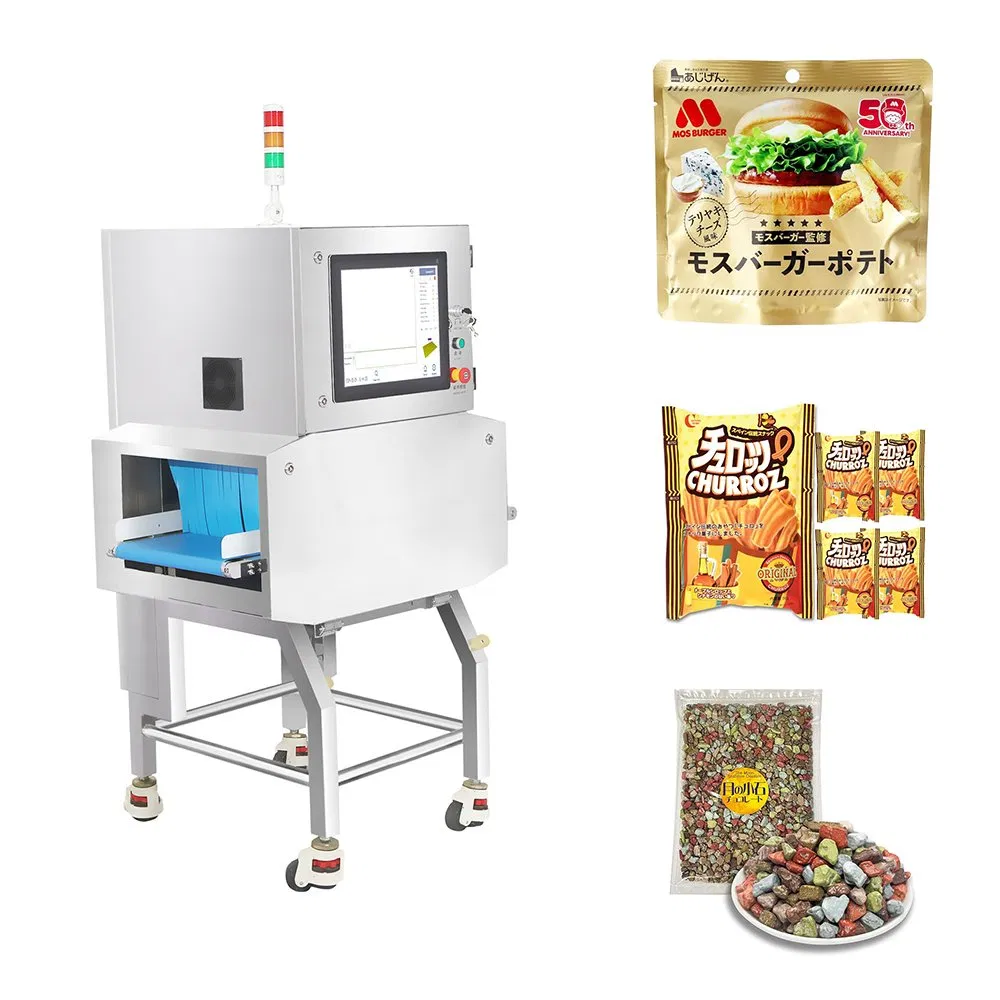

The XR-500D series is used for detecting contaminants inside small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic, even for products wrapped in aluminum foil or metallised film. Foreign objects are detectable by density differences.
| Model# | XR-500D | ||
| X-ray source | Standard: 150W, 80kV. Optional: 350W, 100kV | ||
| Tunnel size(W*H) | 400*200mm | ||
| Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm | ||
| Conveying speed | 10-40 m/min | ||

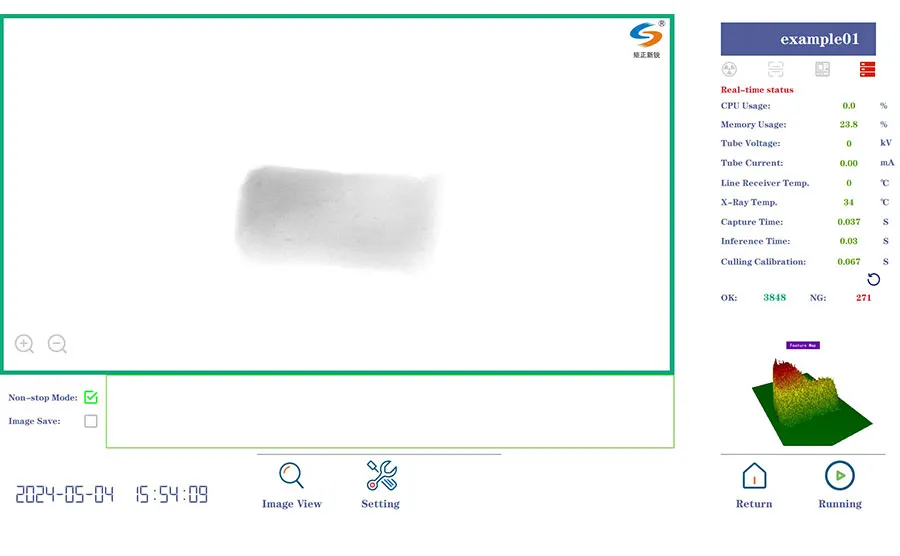

| Screen | 21.5 inch full color touchable screen | ||

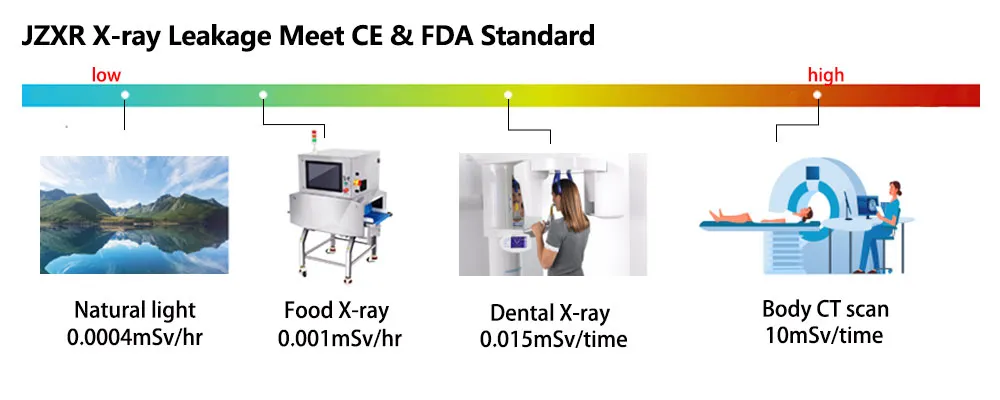

| X-ray leakage | <1µSv/hour | ||
| Working environment | Temp: -10-40ºC, Humidity: 30%-90% | ||
| Protective Mode | 6 layers of lead-free food grade soft curtain | ||
