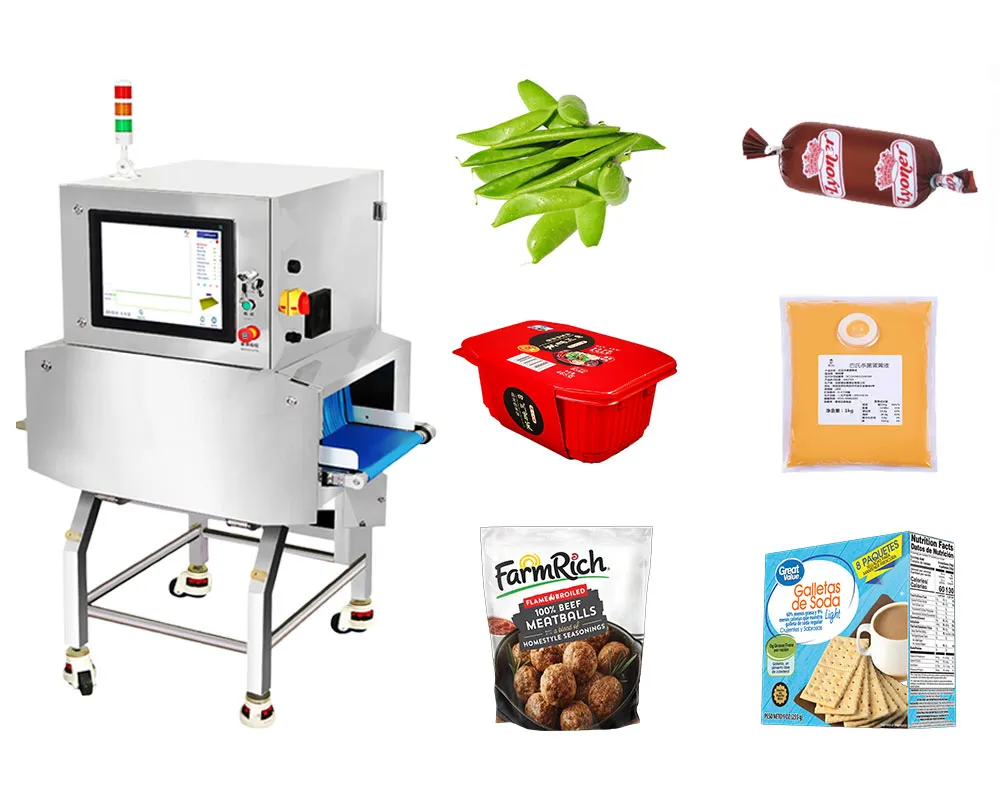

X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.

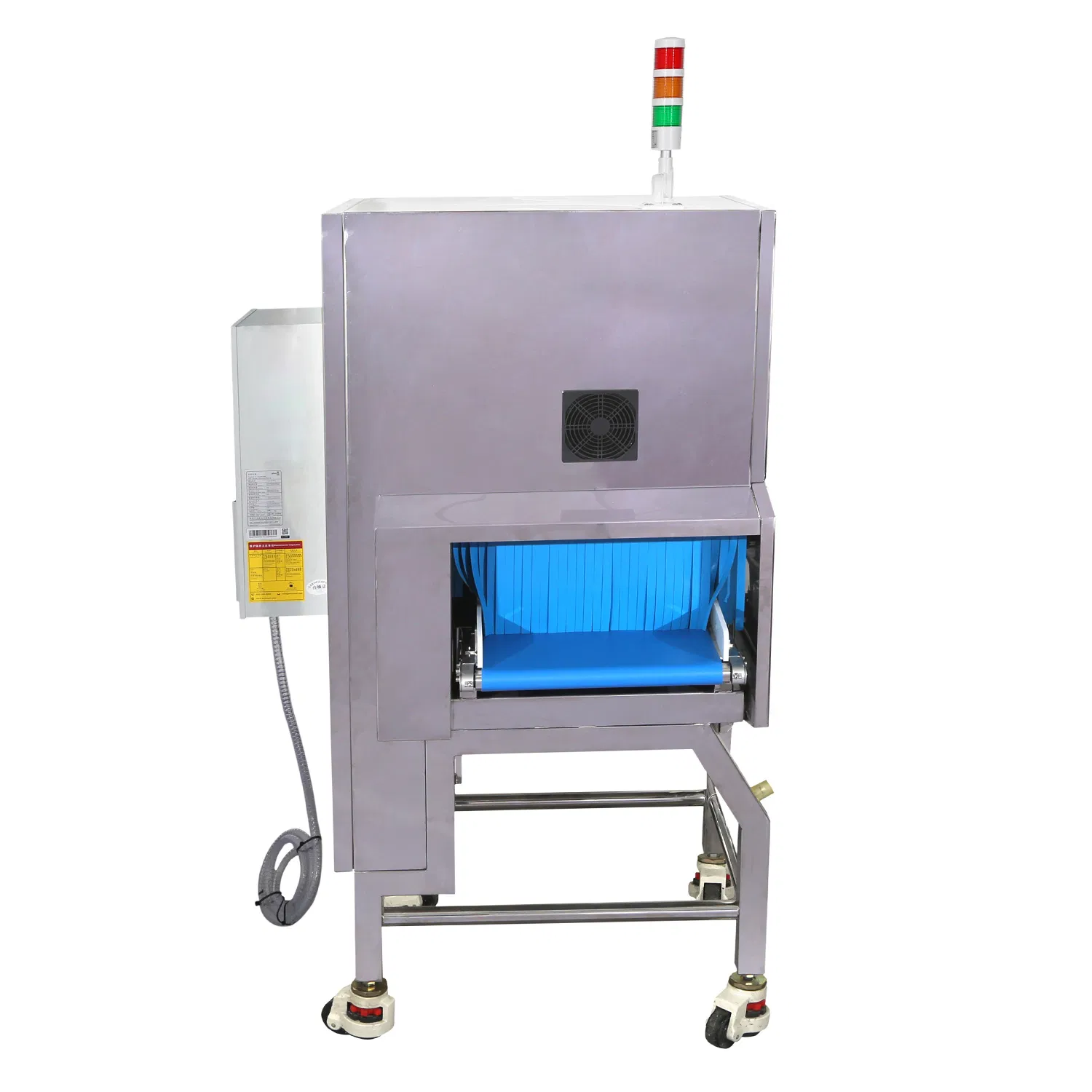

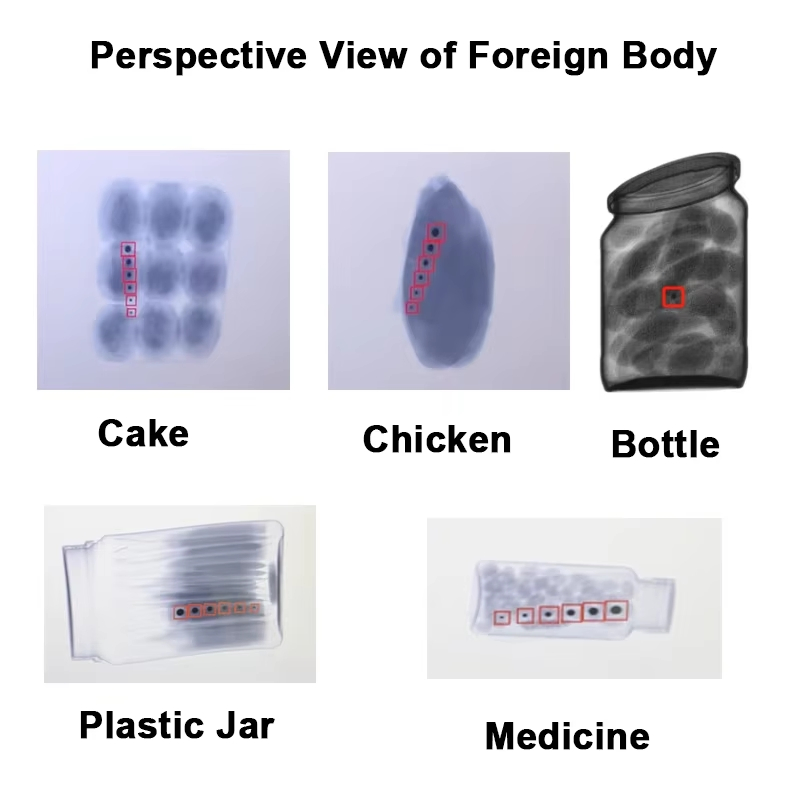

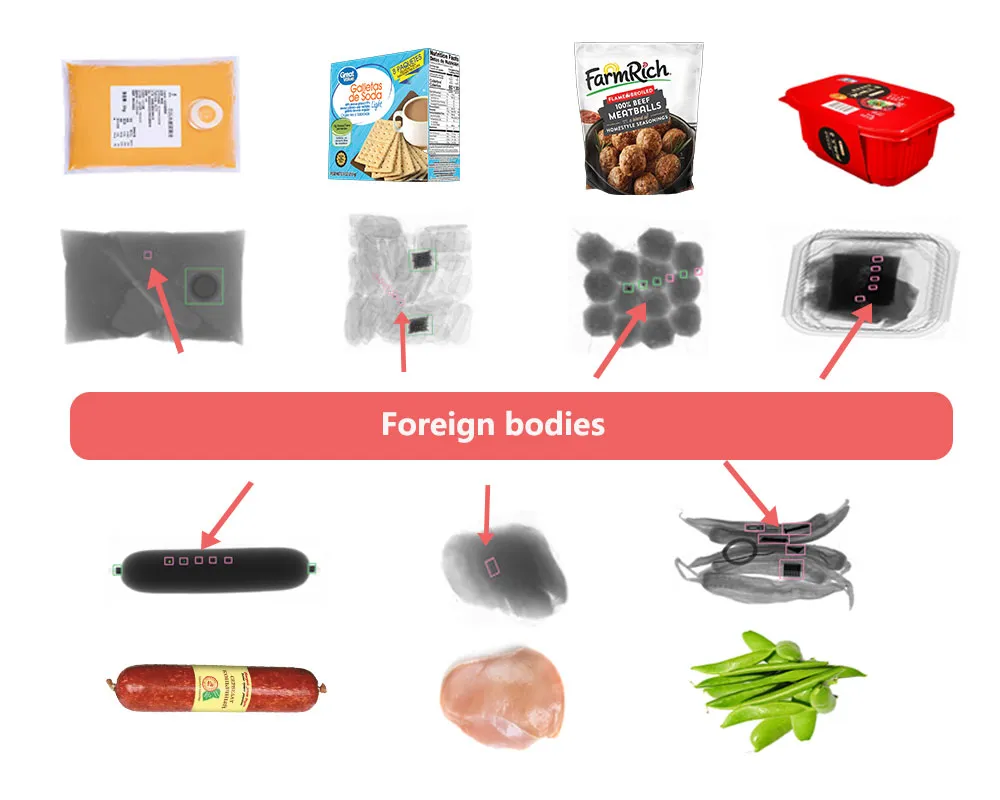

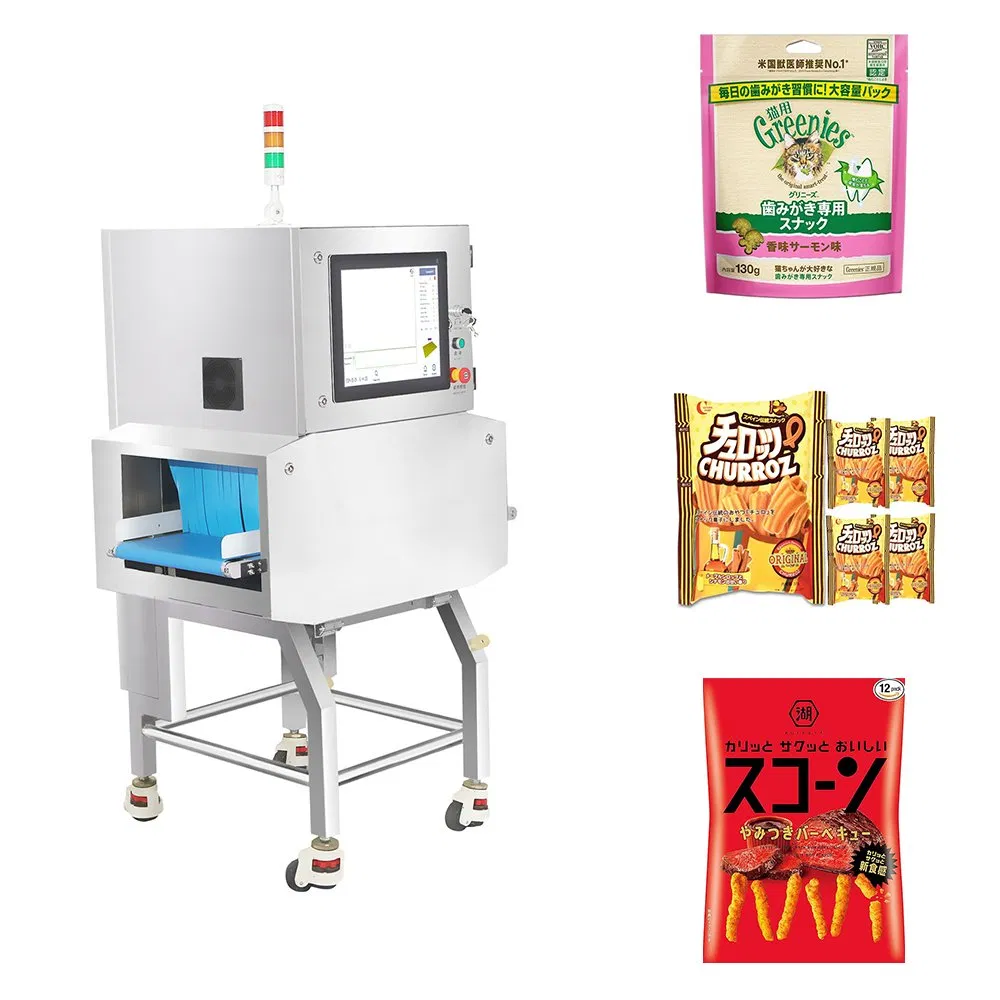

The XR-500D series is specifically designed for detecting contaminants inside small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic. Even products wrapped in aluminum foil or metallised film can be inspected effectively based on density variations.
| Feature | Specification Details |
|---|---|
| Tunnel size (W*H) | 400*200mm |
| Max sensitivity | SUS: ≥Φ0.4mm, Ceramic: ≥Φ 1.0mm, Glass: ≥1.5mm |
| Interface for data | LAN port, USB port |

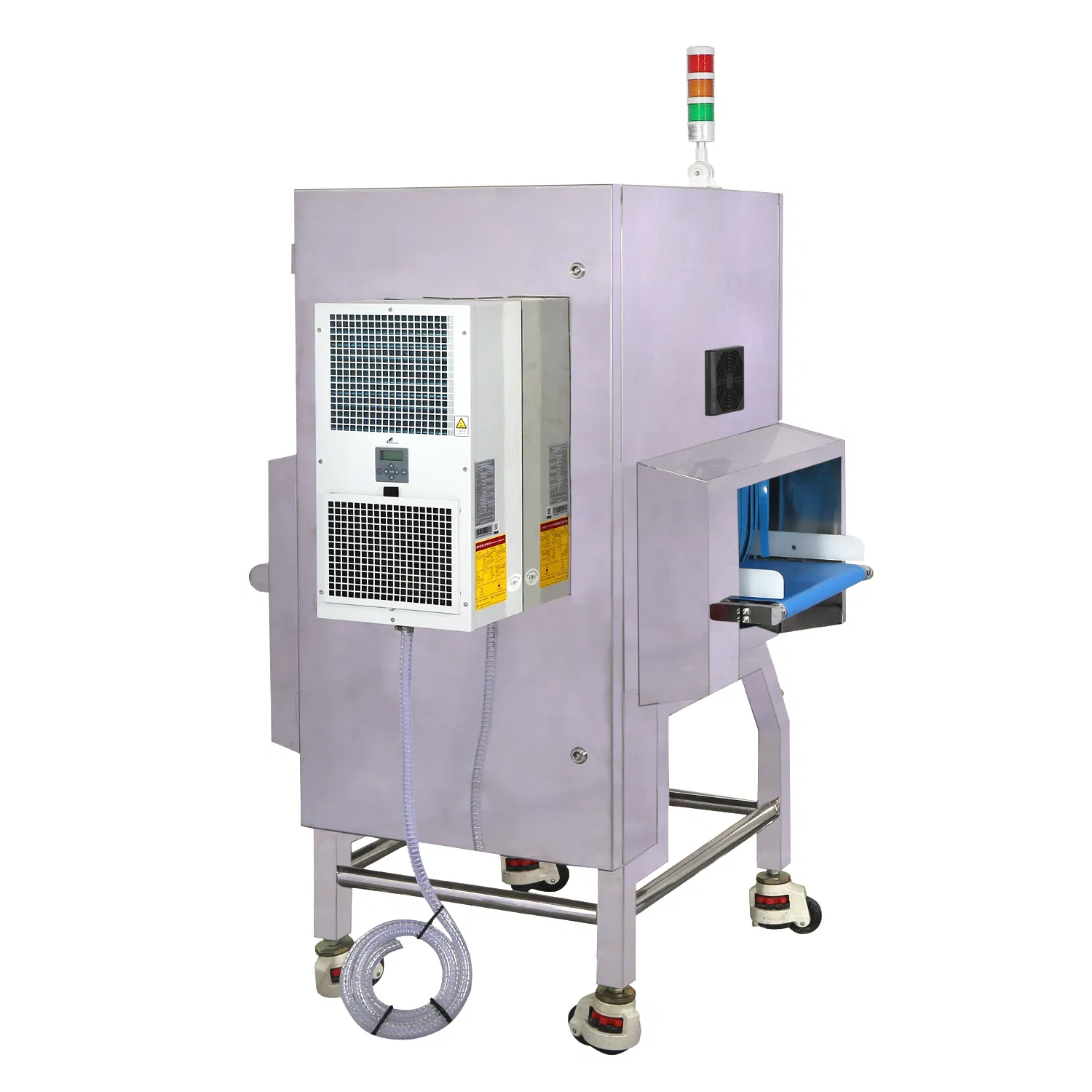

| Working environment | Temp: -10-40ºC (Industrial air condition cooling) |
| Protective mode | 6 layers of lead-free food grade soft curtain (removable) |
| Alarm System | Sound and light alarm (Optional: Stop / Rejection system) |
| Power supply | AC220V ±10% 50/60Hz, 1.5kVA Max |

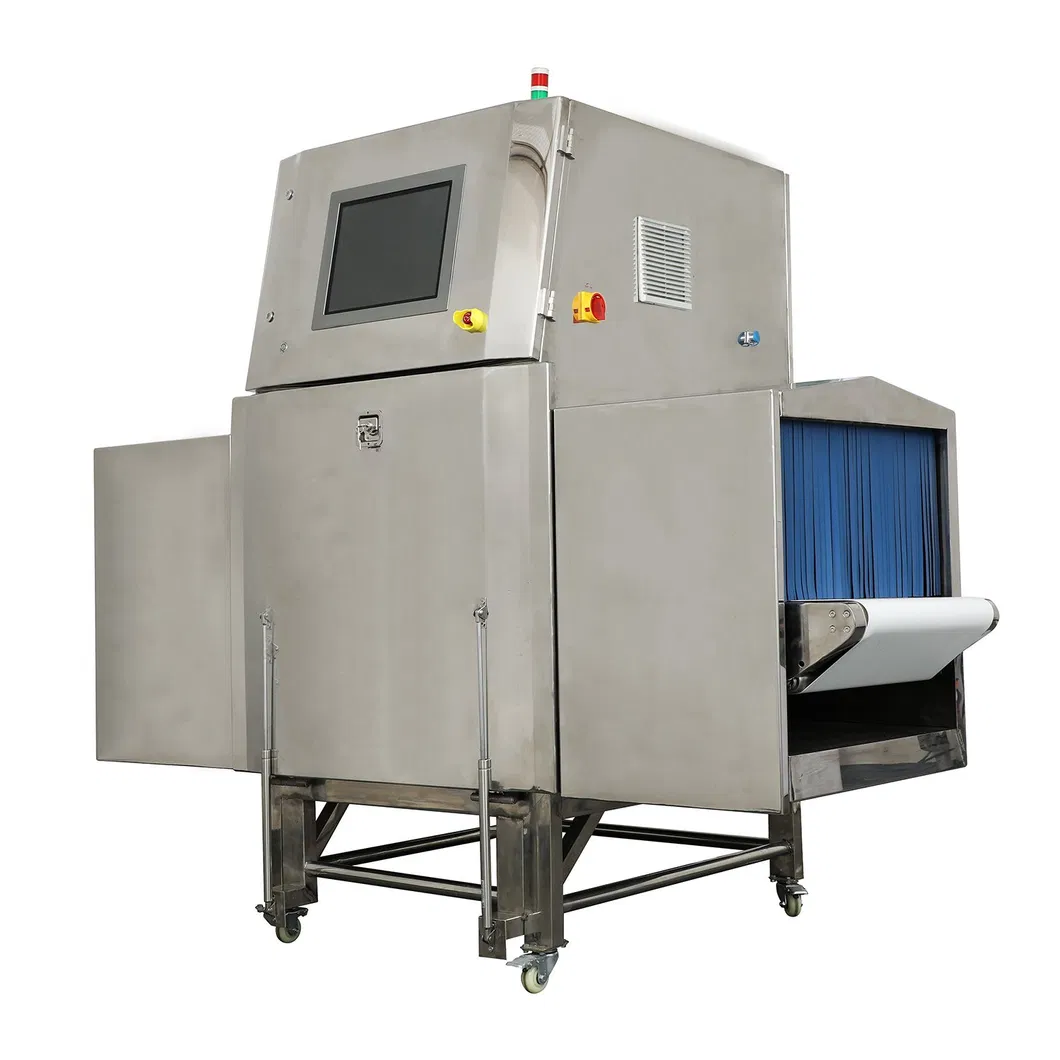

X-ray System for Big Packages

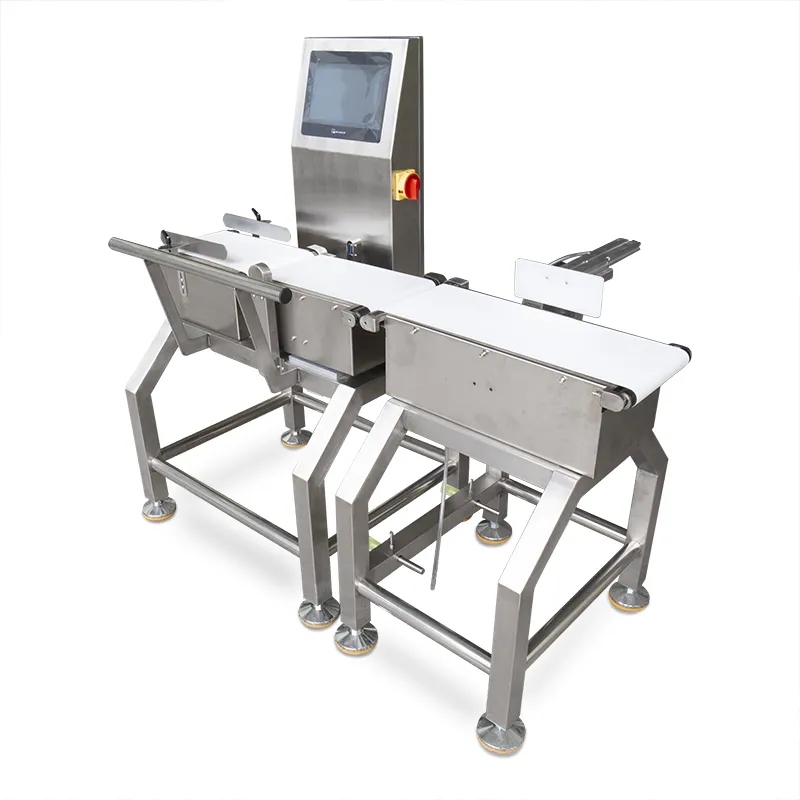

High Precise Checkweigher

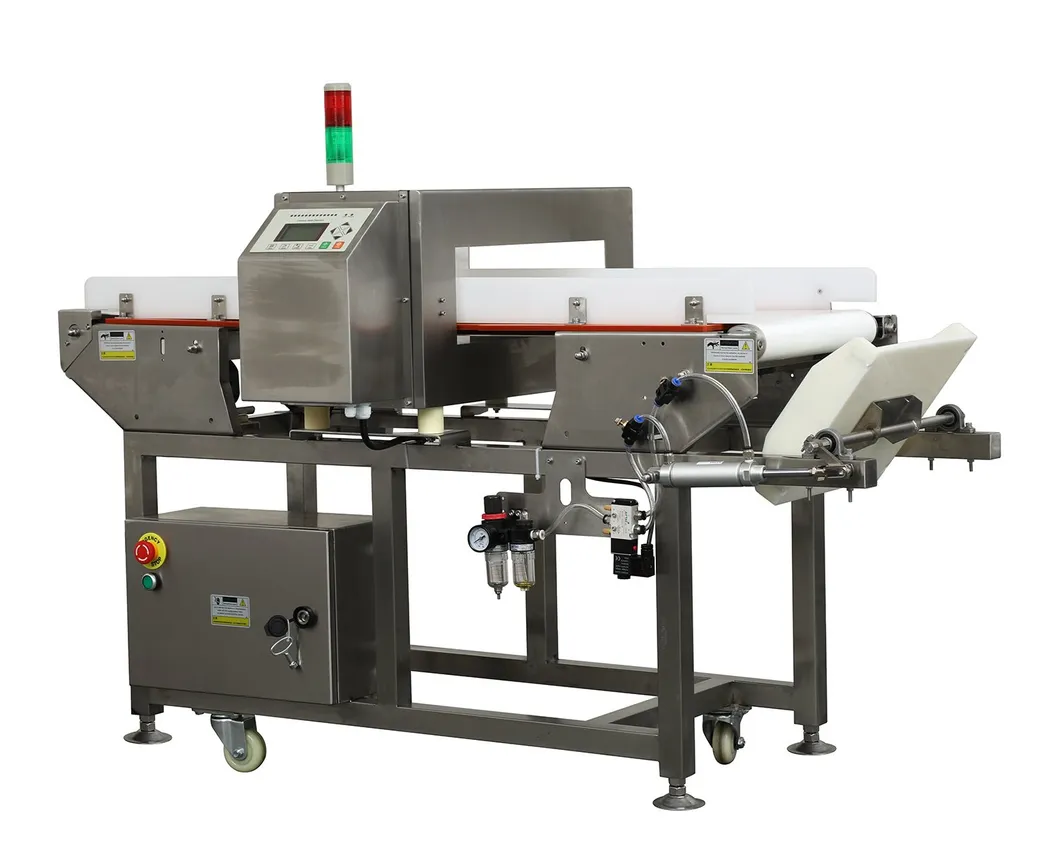

Metal Detector with Rejector

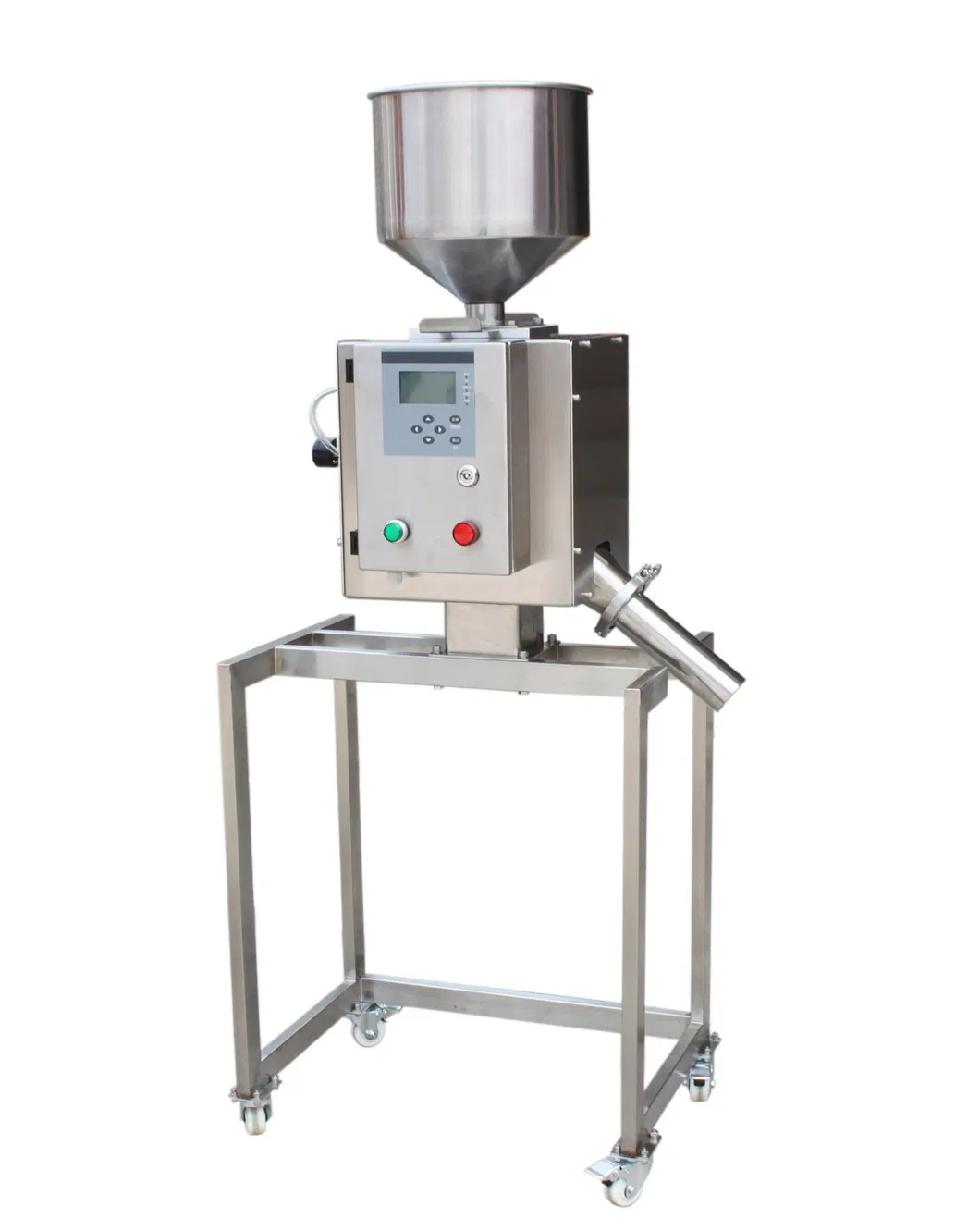

Vertical Fall Metal Detector
