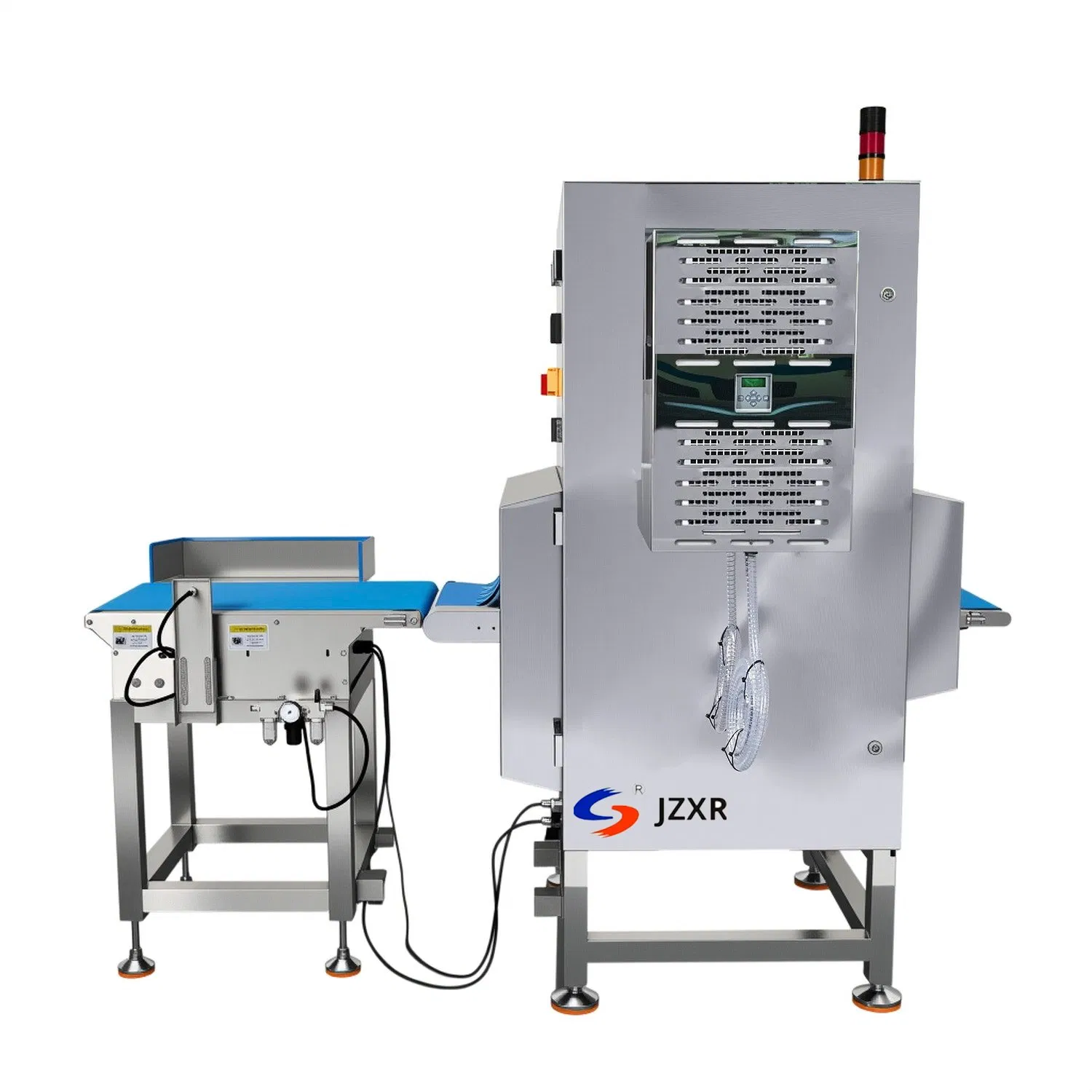

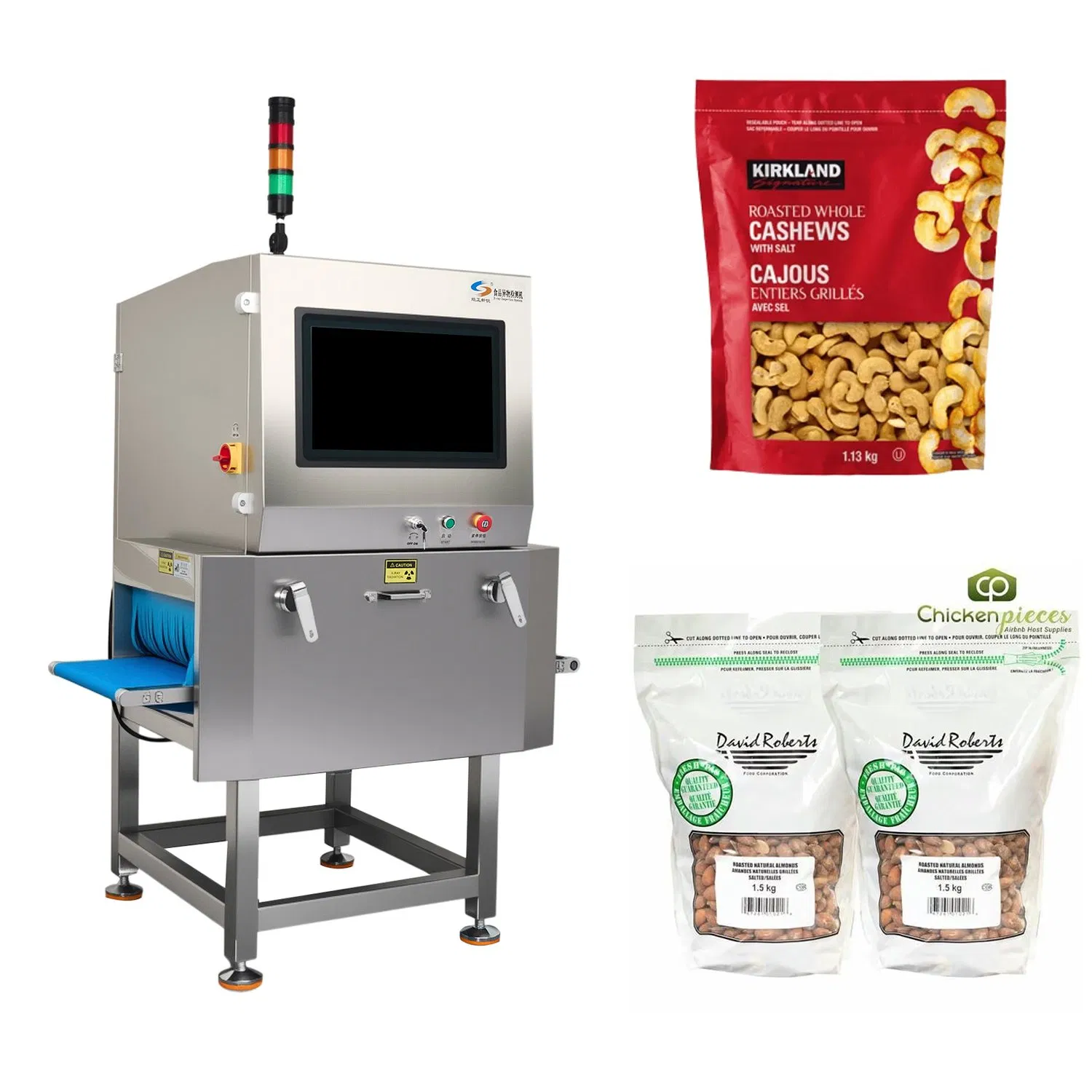

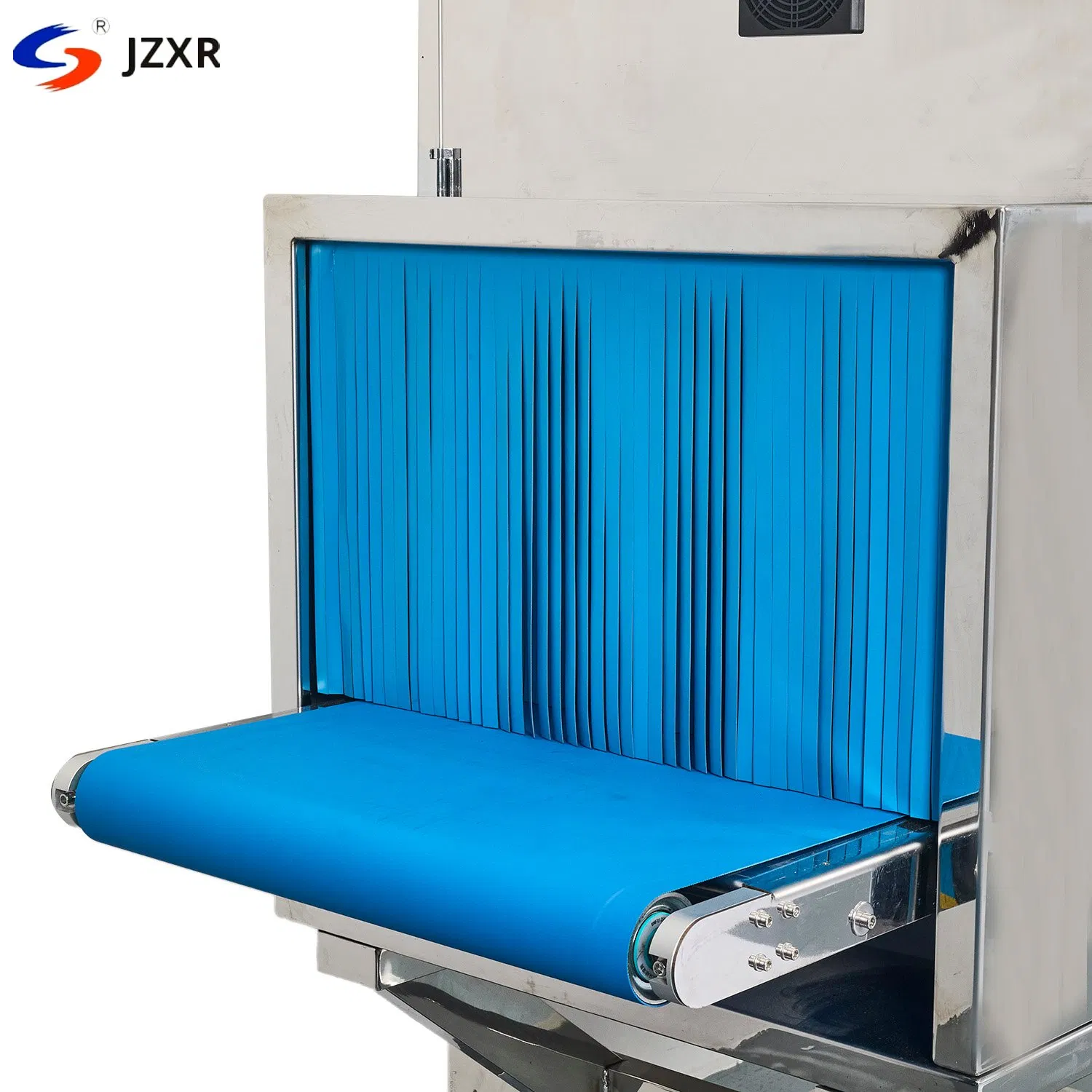

Industrial X Ray Inspection System with Blue Conveyor Belt for Bakery Products Radiation Safe, Easy Clean
Introduction:

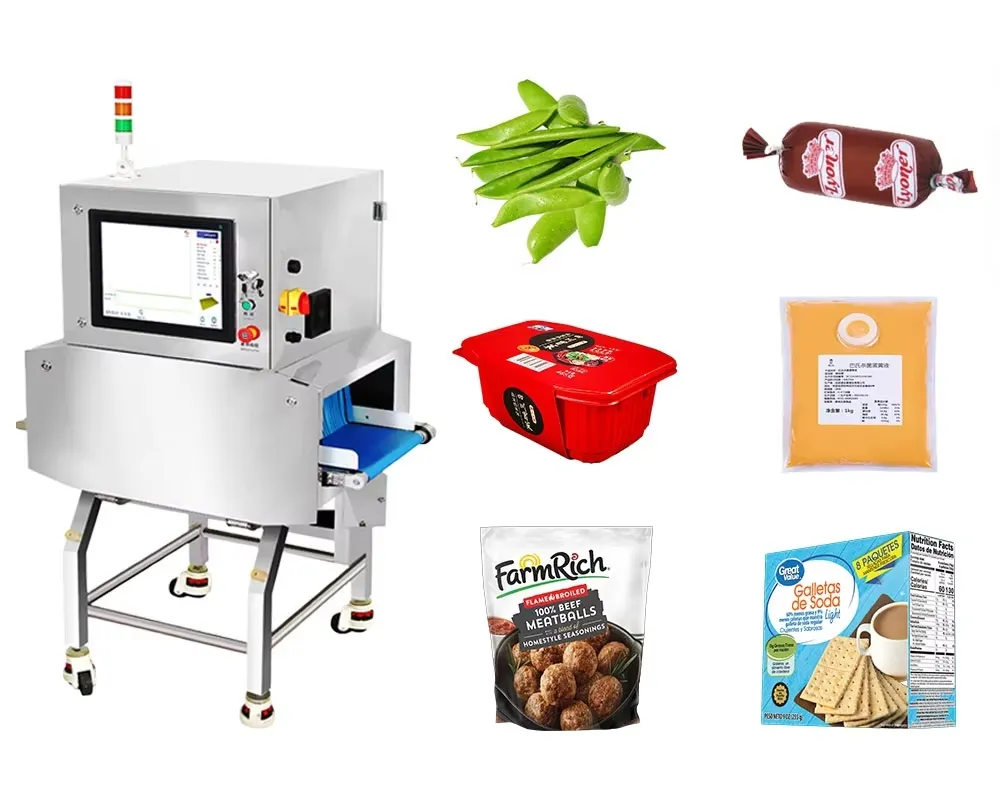

Our X-Ray Inspection Systems provide high cost-effective contaminants detection for food and pharmaceutical manufacturers.

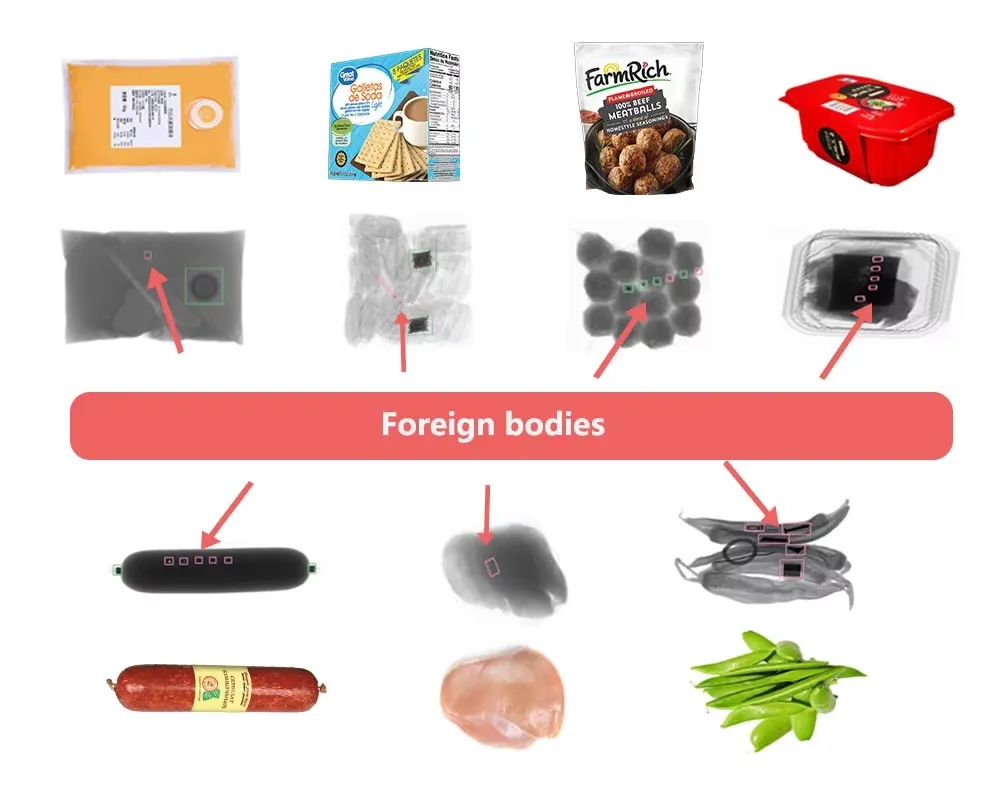

The XR-400D series is specifically designed for detecting contaminants within small packaged products. It identifies metal and non-metal impurities including ferrous, non-ferrous, stainless steel, glass, ceramic, stone, bones, hard rubber, and hard plastic. This system remains effective even for products wrapped in aluminum foil or metallised film. Detection is based on density differences—the greater the density, the easier the contaminant is identified.
| Model | XR-100D | XR-400D | |
|---|---|---|---|
| Tunnel size(W*H) | 400*200mm | 400*200mm | 400*250mm |
| X-ray Generator | 60kV,60W | 80kV,150W/350W | |
| Max Sensitivity | SUS ball: Ø0.6mm | SUS ball: Ø0.4mm | |
| Conveying speed | 10-32m/min | 10-40m/min | |
| Screen | 17'' Touchable | 21.5'' Touchable | |
| Belt Type | White or Blue food grade PU belt | ||

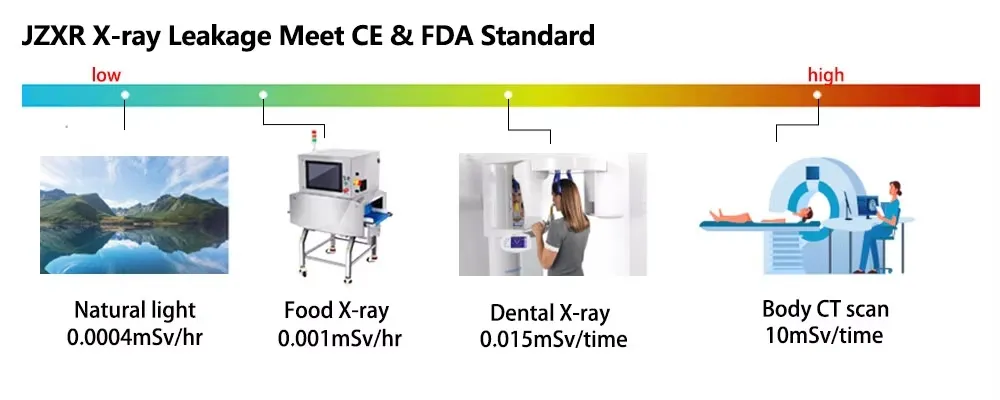

| Leakage | <1µSv/hour | ||

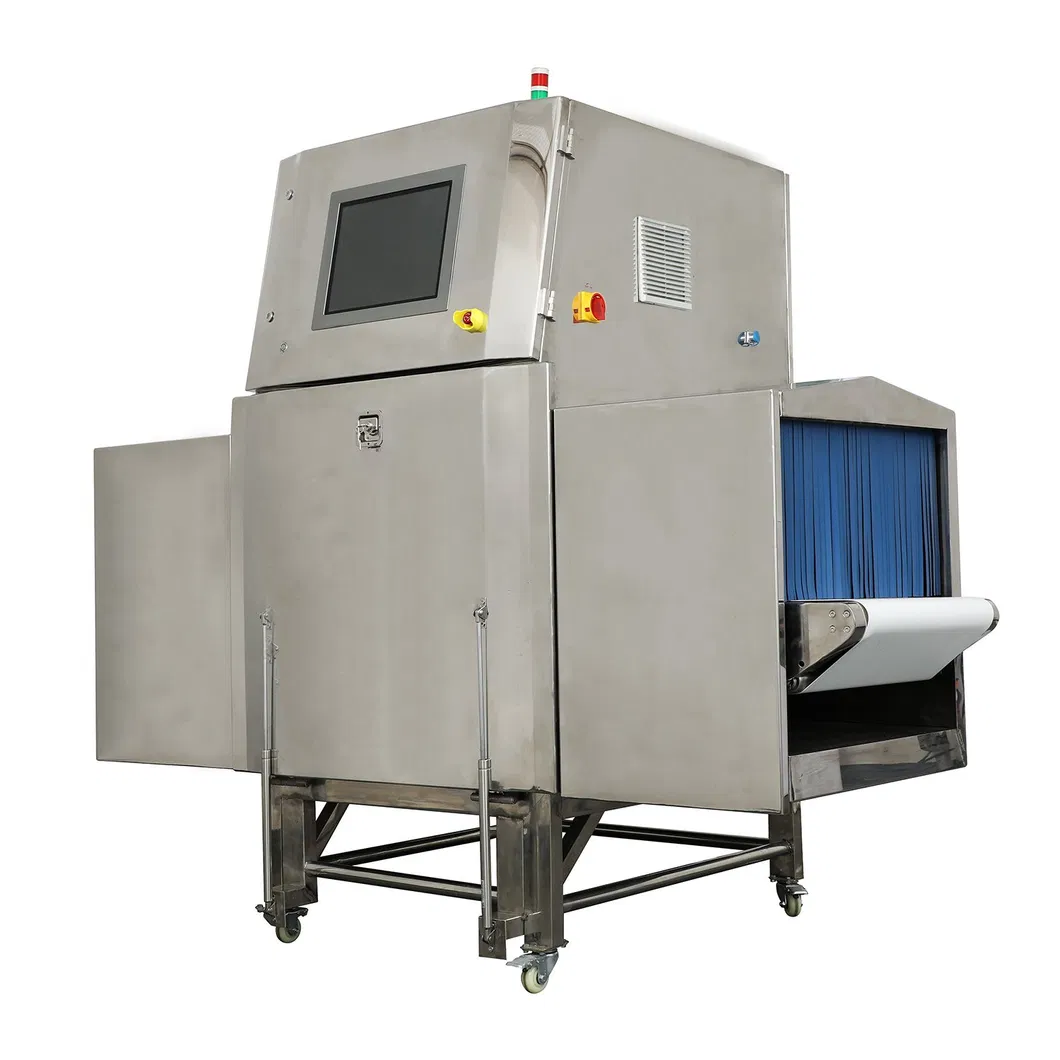

X-ray System for Big Packaged Food

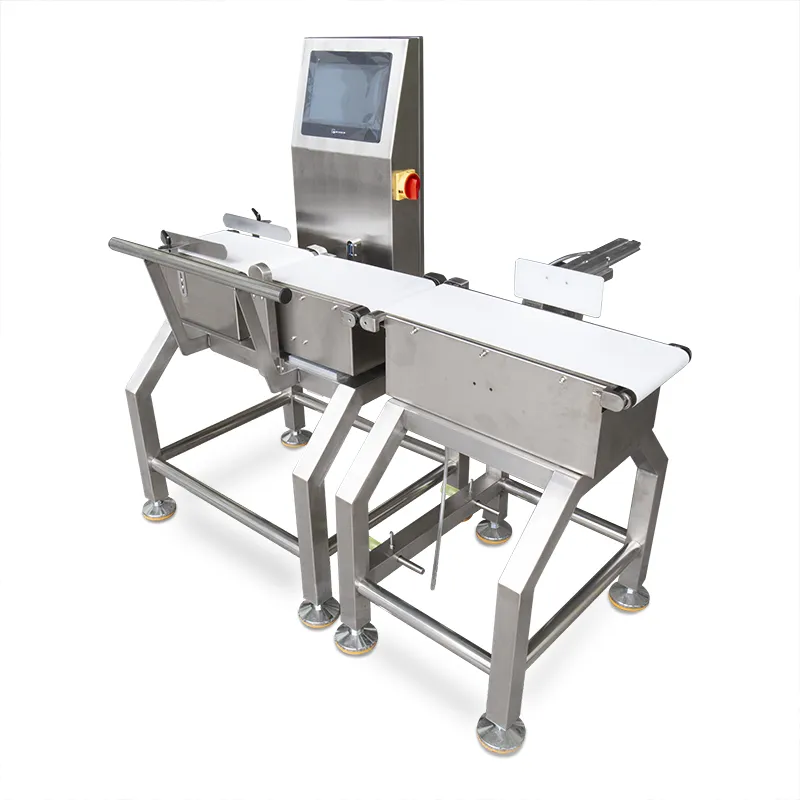

High Precise Checkweigher

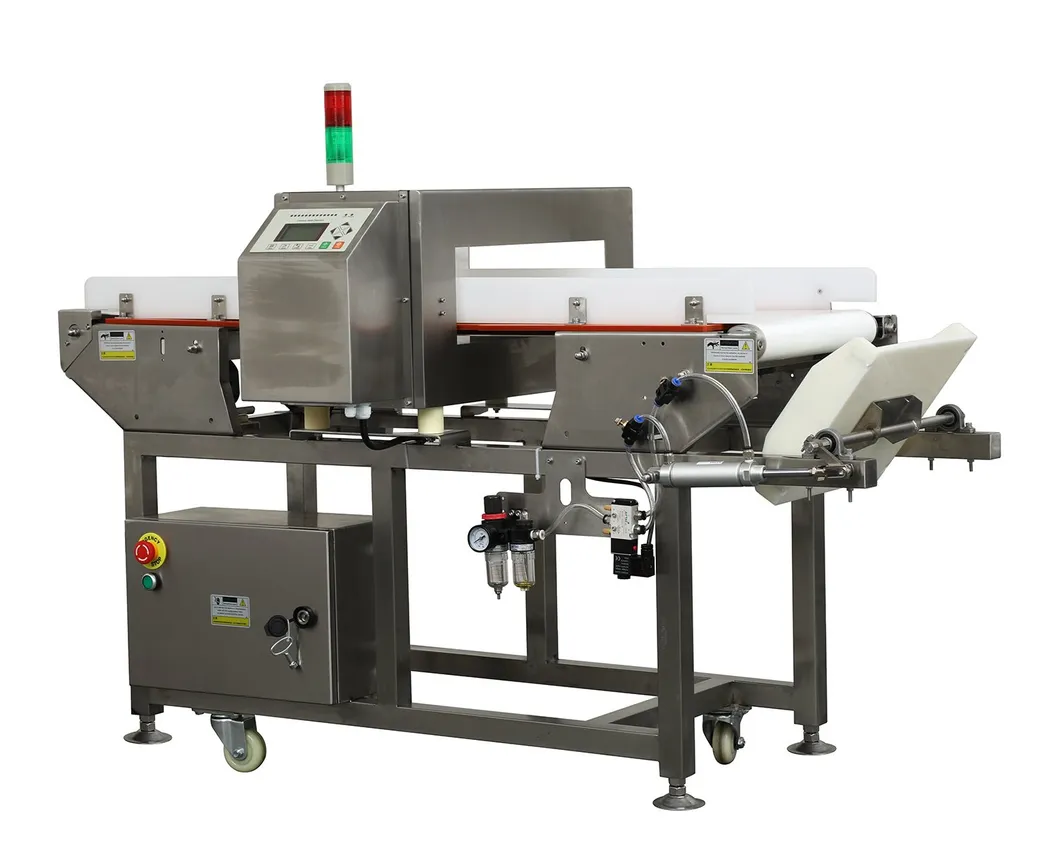

Metal Detector with Rejector

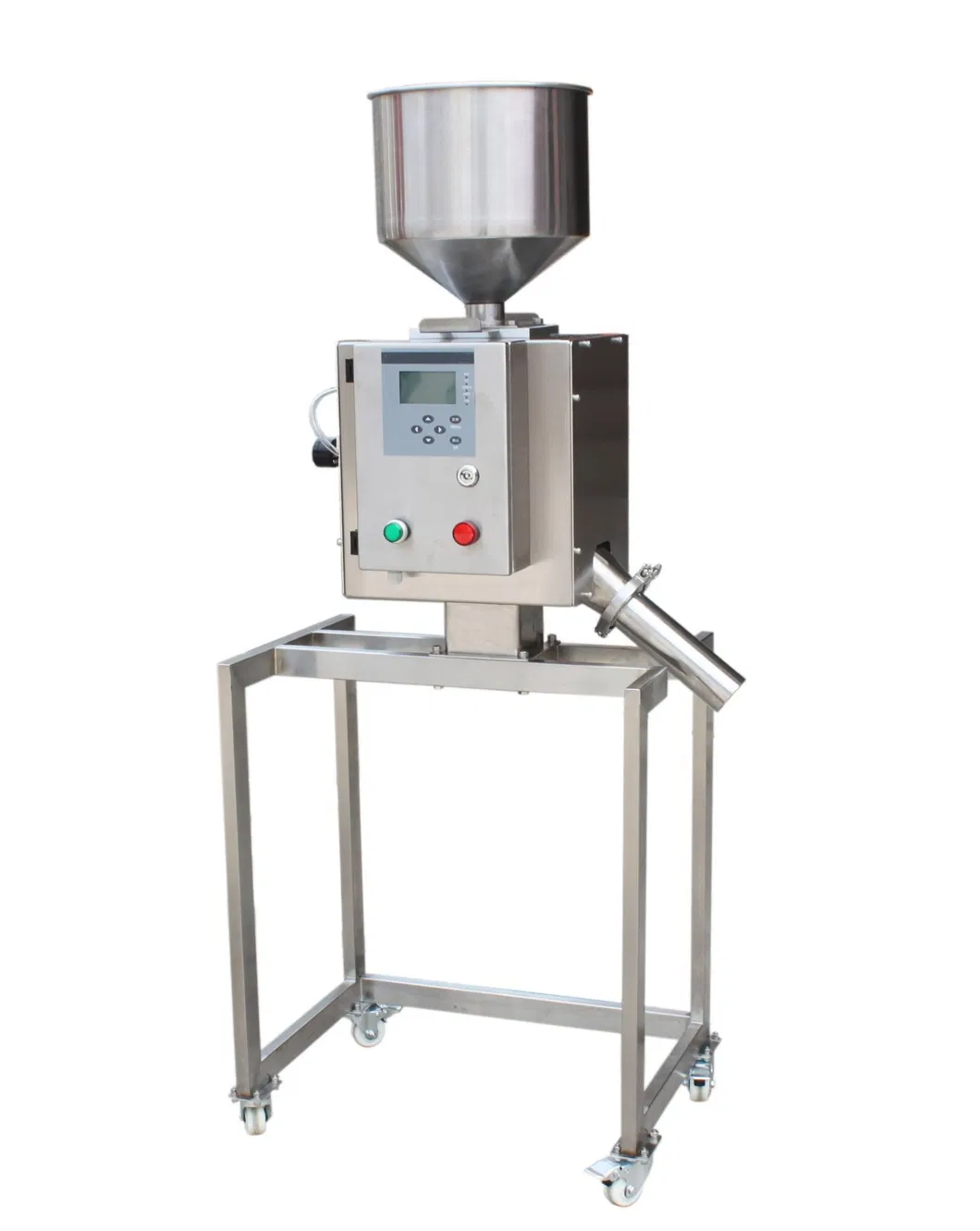

Vertical Fall Metal Detector
