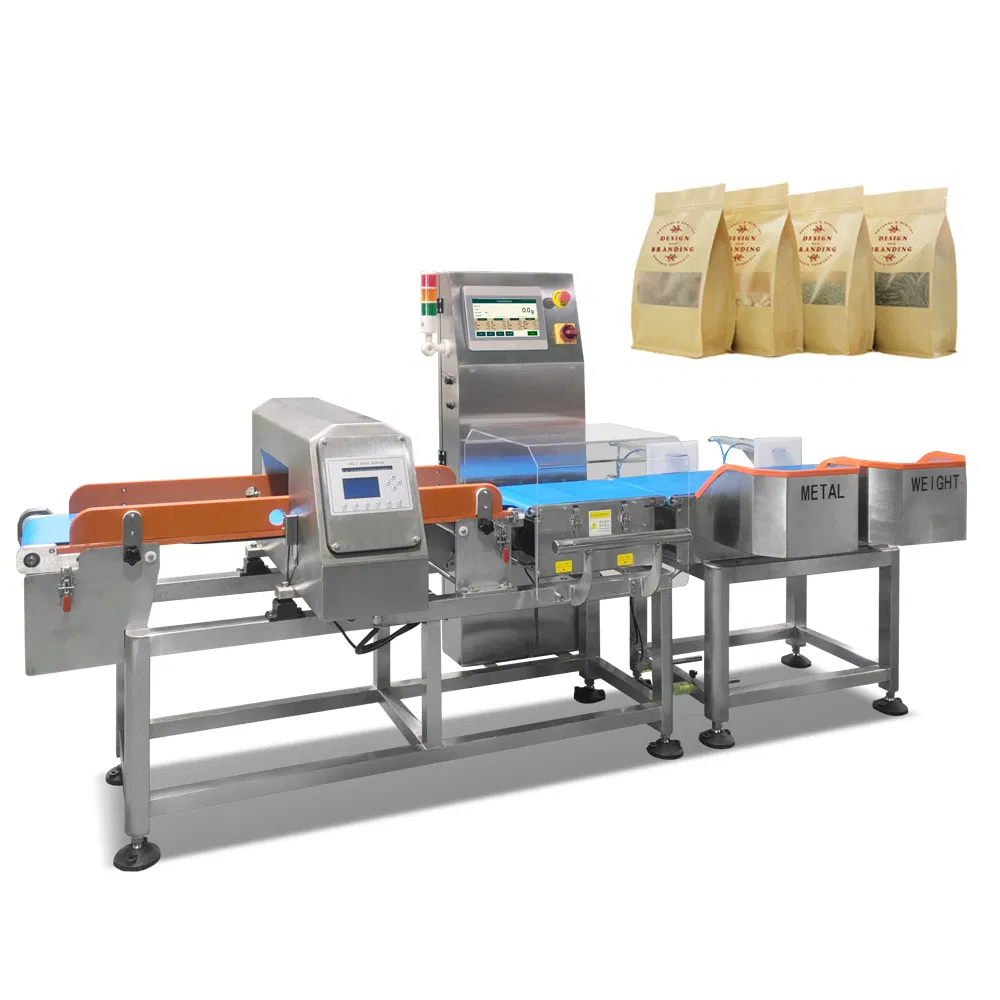

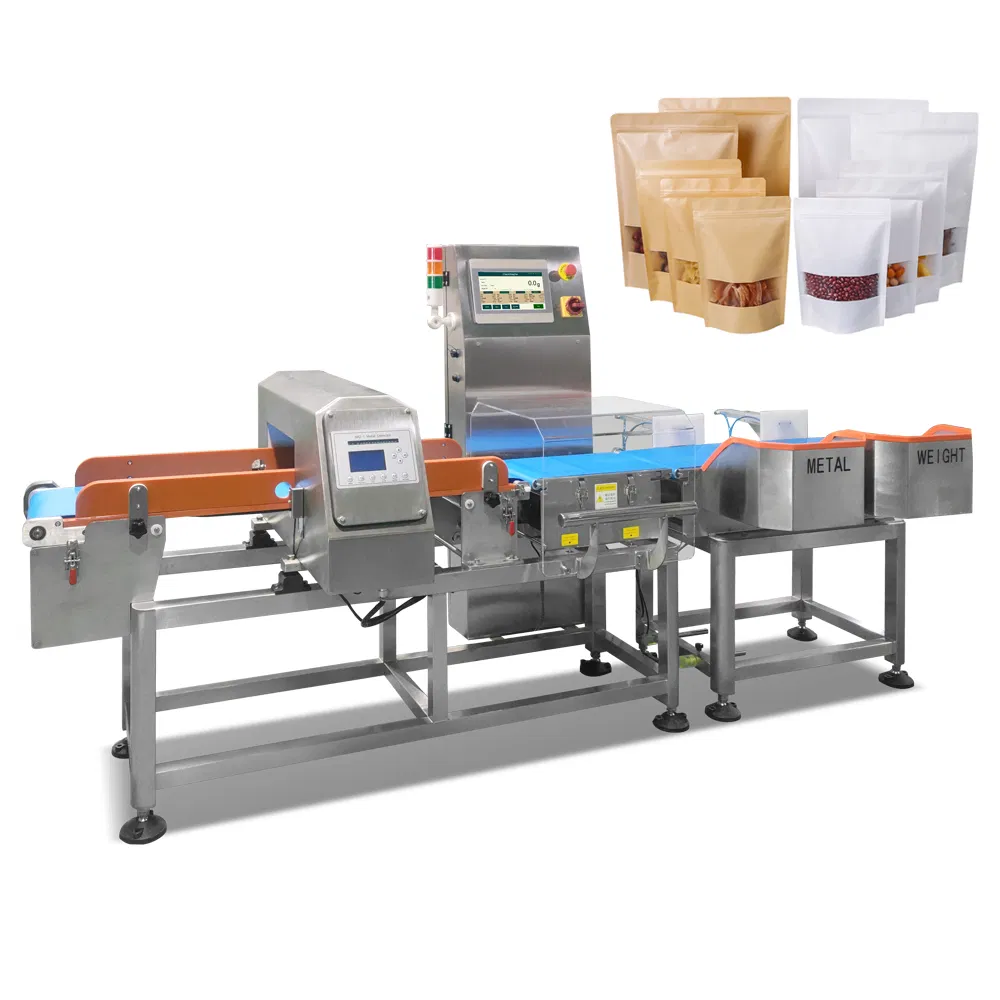

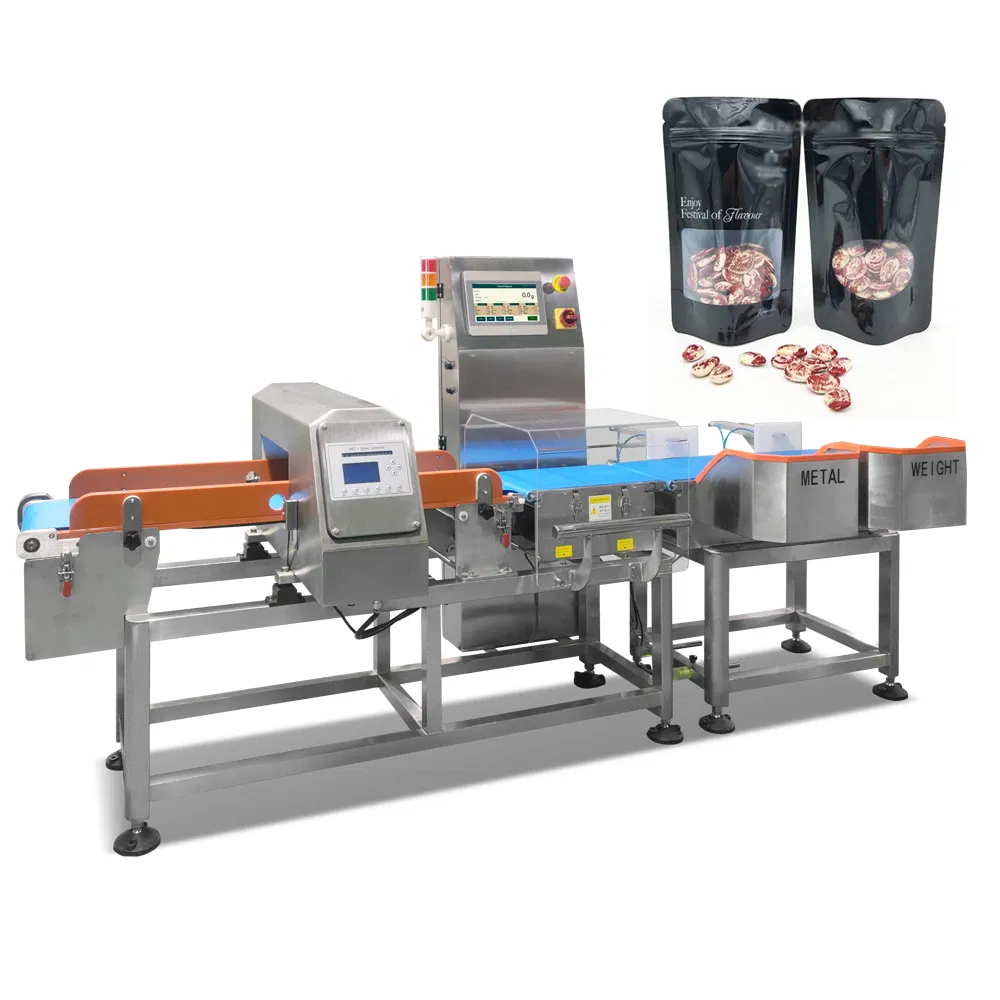

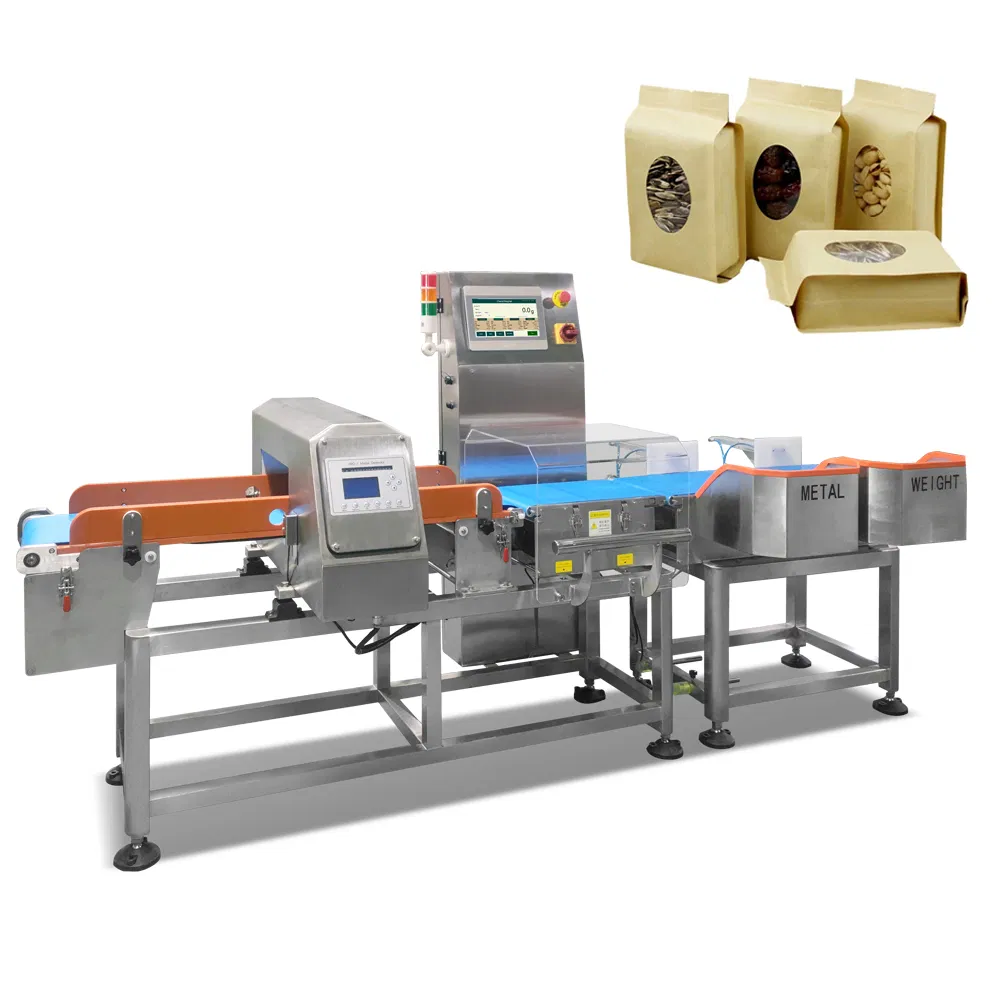

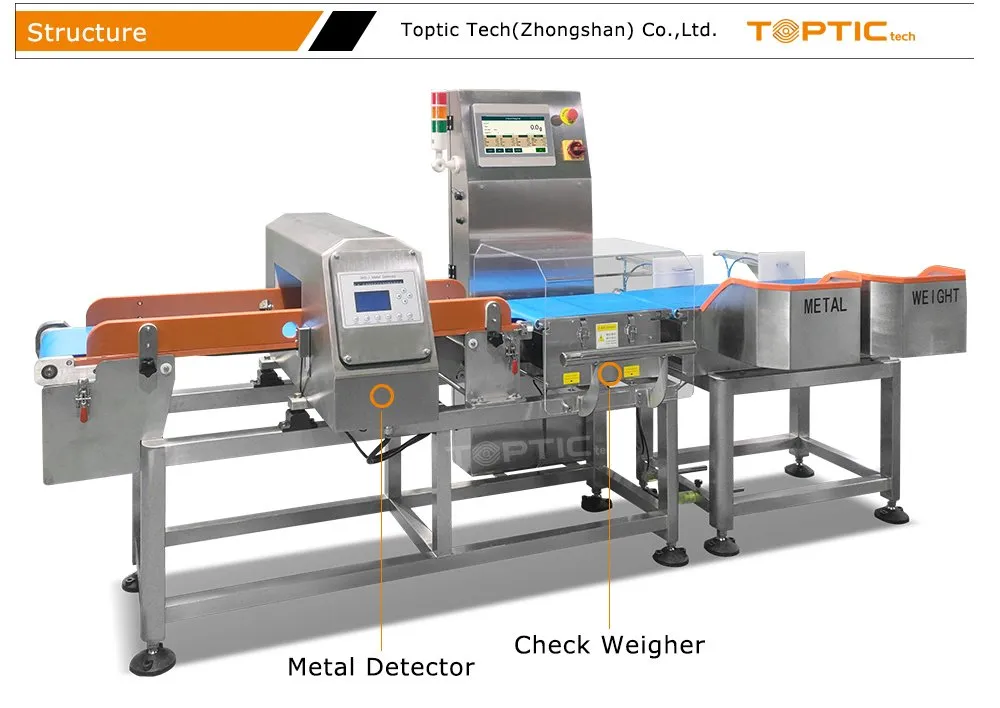

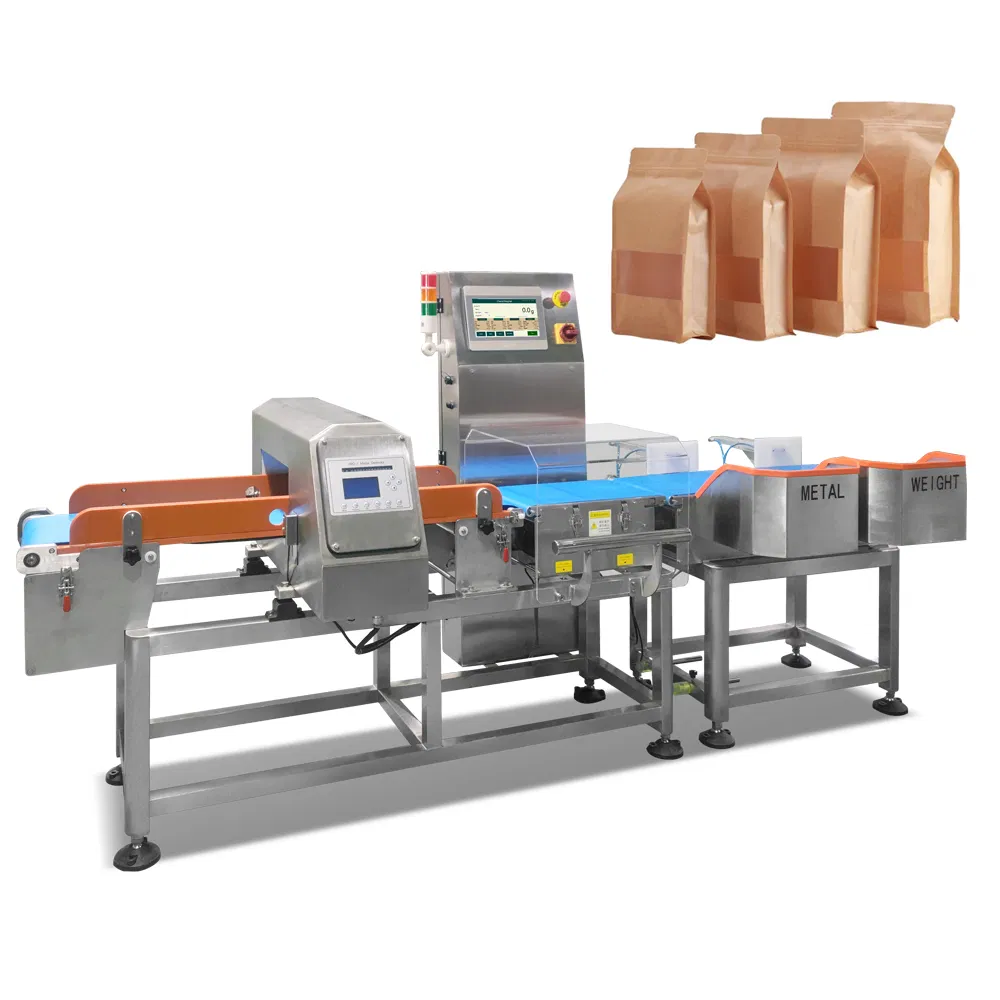

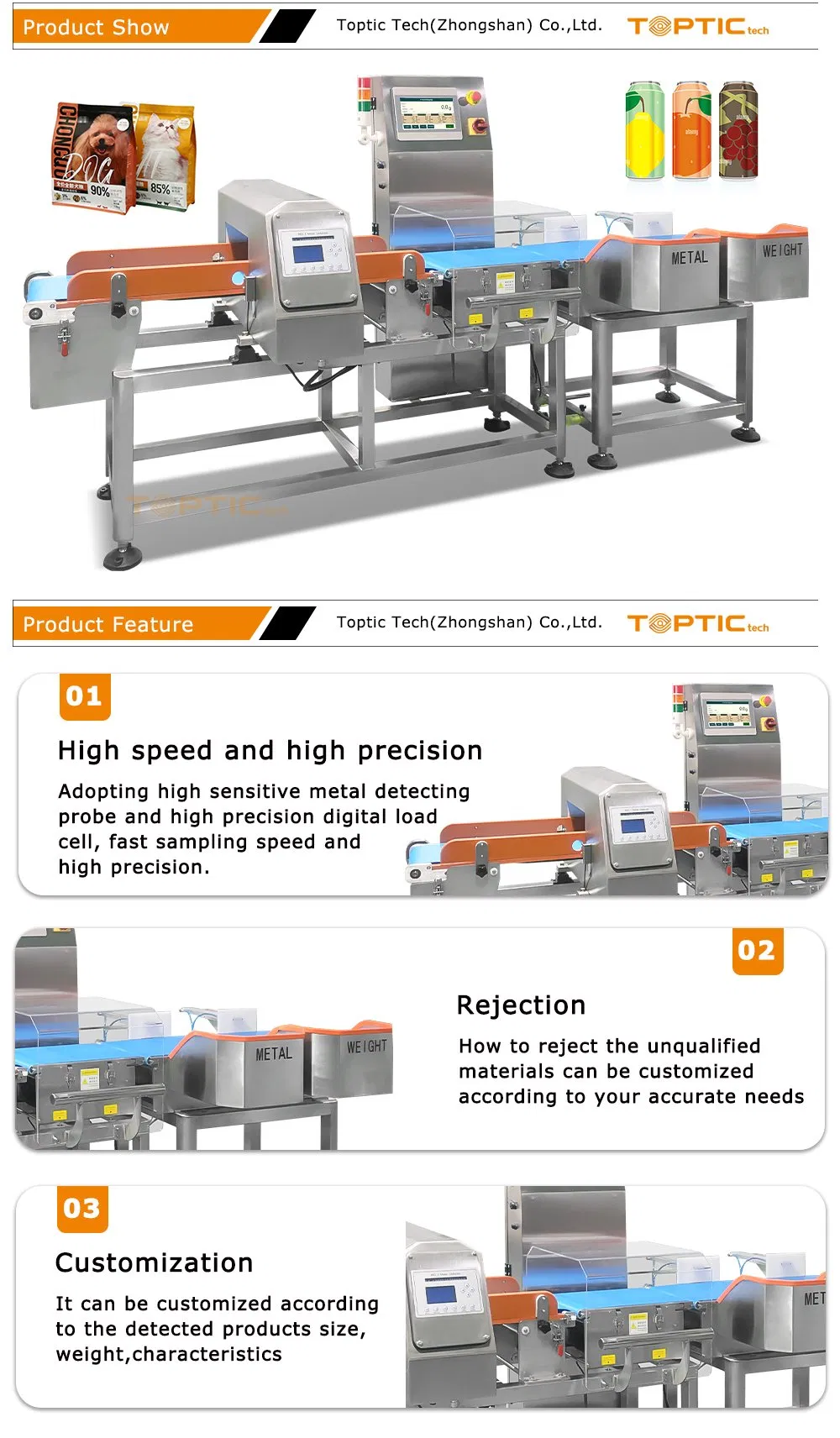

This integrated system combines a high-precision metal detector and a weighing checker into a single unit. Designed for one-stop operation, it optimizes production processes, saves space, and fits seamlessly into any production line layout.
Advanced Sensitivity: High sensitivity and strong anti-interference ability with stable performance and automatic fault detection.
Fully Customizable: Tailored to your specific production line, product size, weight, and characteristics for optimal efficiency.
Data Reporting: Real-time reporting exported to Excel. Supports storing up to 1 year of production data via USB.
User-Friendly Interface: LCD touch screen with multi-language support (Chinese/English) and password protection.
Connectivity: Easily connects to peripheral devices for synchronized operation across the full food production line.
IP65 Protection: All components are IP65 rated, ensuring durability in demanding environments.
Metal Detector Specification:
| Machine Grade | Food Grade |
|---|---|
| Detecting Width | 220, 240, 300 mm (Customized) |
| Detecting Height | 80, 100, 120 mm (Customized) |
| Sensitivity | Fe 0.5mm-1.0mm, Non-Fe 1.0mm-1.2mm, SS 1.5mm-2.0mm |
| Belt Speed | 20m/min (or specified) |
Check Weigher Specification:
| Weighing Range | 5~1000g / 10~5000g (Optional) |
|---|---|
| Sorting Accuracy | ± 0.1g ~ ±1.5g (Based on area) |
| Load Cell | METTLER TOLEDO |
| Material | 304 Stainless Steel Surface Polishing |
| Rejection Method | Air blow, Push rod, Sound and light alarm |
Established in 2009, we are a high-tech enterprise focused on R&D and production of intelligent weighing, packaging, testing, and conveying systems. Our products are exported to more than 80 countries and regions globally.
