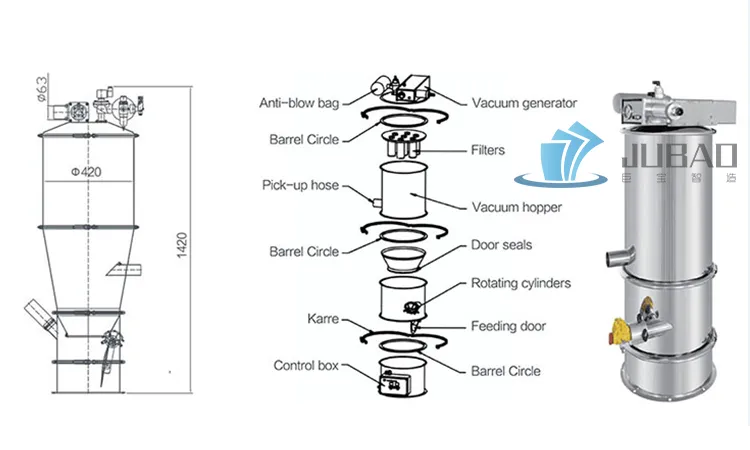

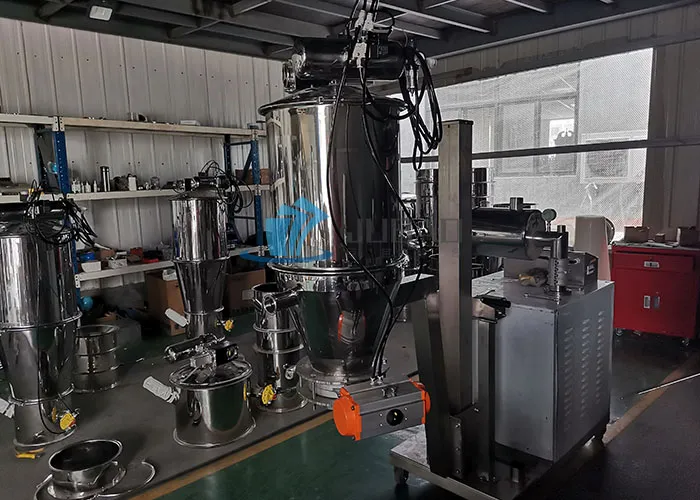

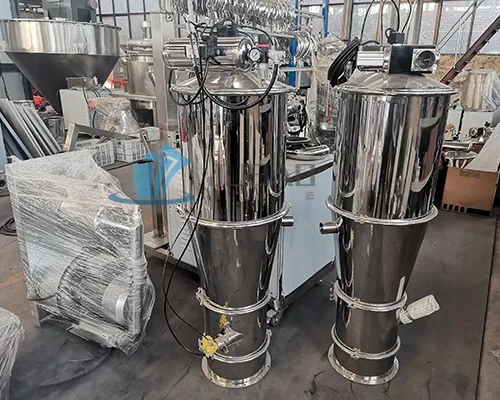

Vacuum conveyor feeder is a type of pneumatic vacuum conveyor featuring a closed structure that is environmentally friendly for powder and granules transferring systems. It utilizes the air pressure difference between the vacuum and environmental space to move air flow through the pipe, driving the movement of materials.
Due to its closed design, it is widely used for feeding materials into packaging machines, injection molding machines, shredders, and mixers.

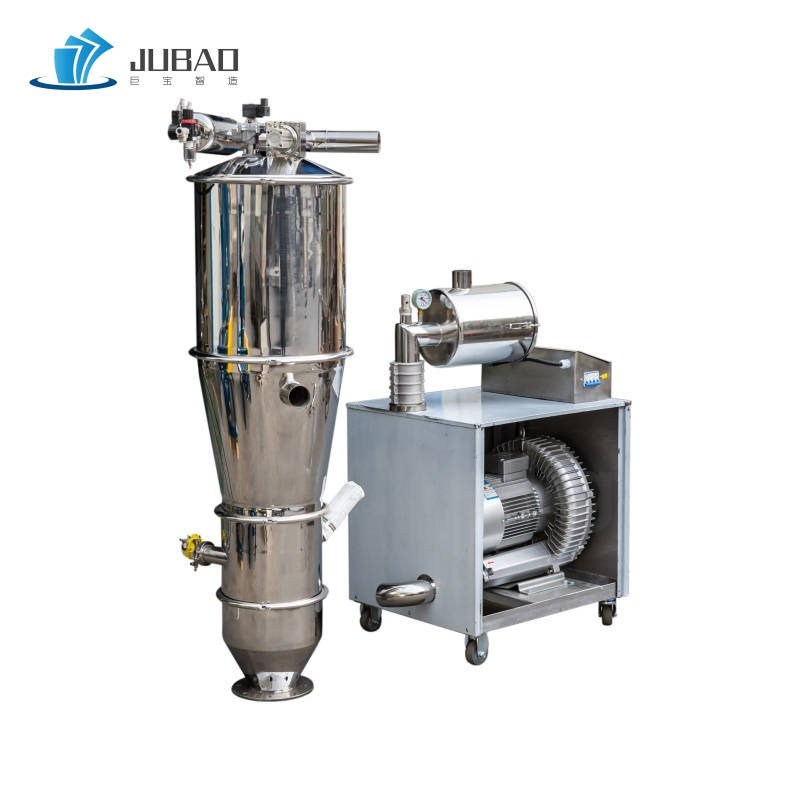

Different types of vacuum conveyor feeders are available: electric types offer large capacity, while pneumatic types are energy-saving. Various designs cater to different industrial applications.
| Model | Capacity (kg/h) | Air Consumption (L/min) | Supplied Air Pressure (MPa) | Dimension (mm) |
|---|---|---|---|---|
| QVC-1 | 350 | 180 | 0.4 - 0.6 | Φ140x560 |
| QVC-2 | 700 | 360 | 0.4 - 0.6 | Φ213x720 |
| QVC-3 | 1500 | 720 | 0.4 - 0.6 | Φ290x850 |
| QVC-4 | 3000 | 1440 | 0.4 - 0.6 | Φ420x1150 |
| QVC-5 | 6000 | 2880 | 0.4 - 0.6 | Φ420x1150 |
| QVC-6 | 9000 | 4320 | 0.4 - 0.6 | Φ420x1350 |

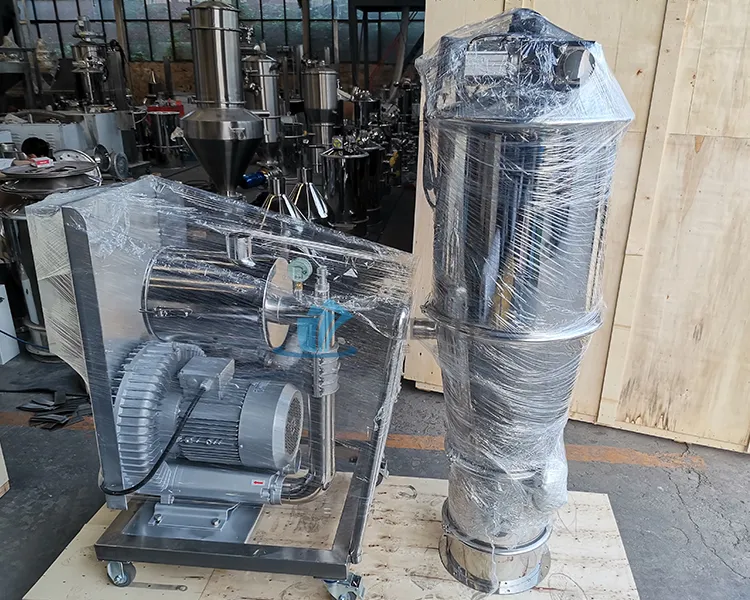

Equipment is protected with internal stretch film for moisture resistance and packed in standard fumigation plywood boxes for secure transport.
Specializing in screening and conveying solutions for over 10 years, we provide thousands of vibration screening systems and vacuum conveyors globally. Our facilities cover over 5000 square meters with a dedicated team focused on high production efficiency, stable quality, and affordable industrial solutions.
To provide the correct model of vacuum conveyor feeder, please prepare the following information:
