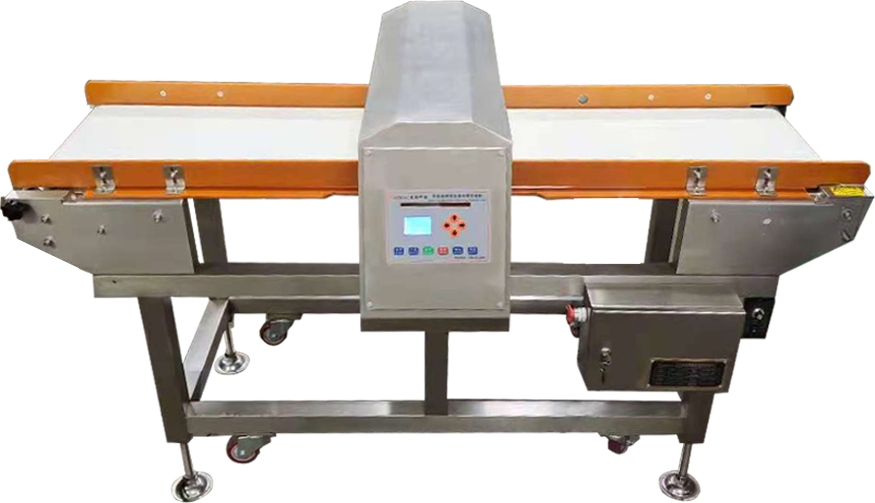

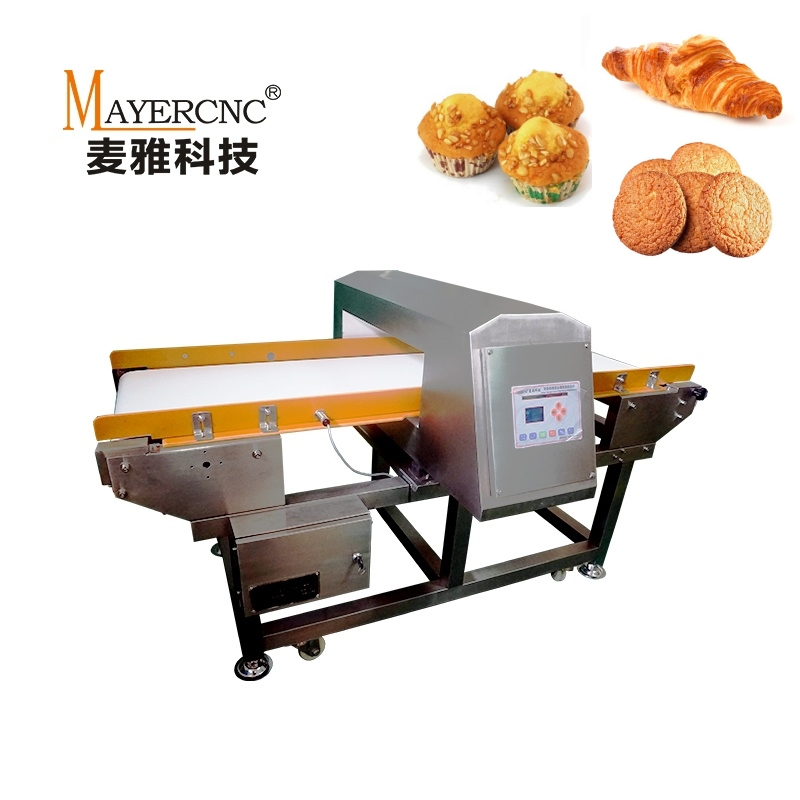

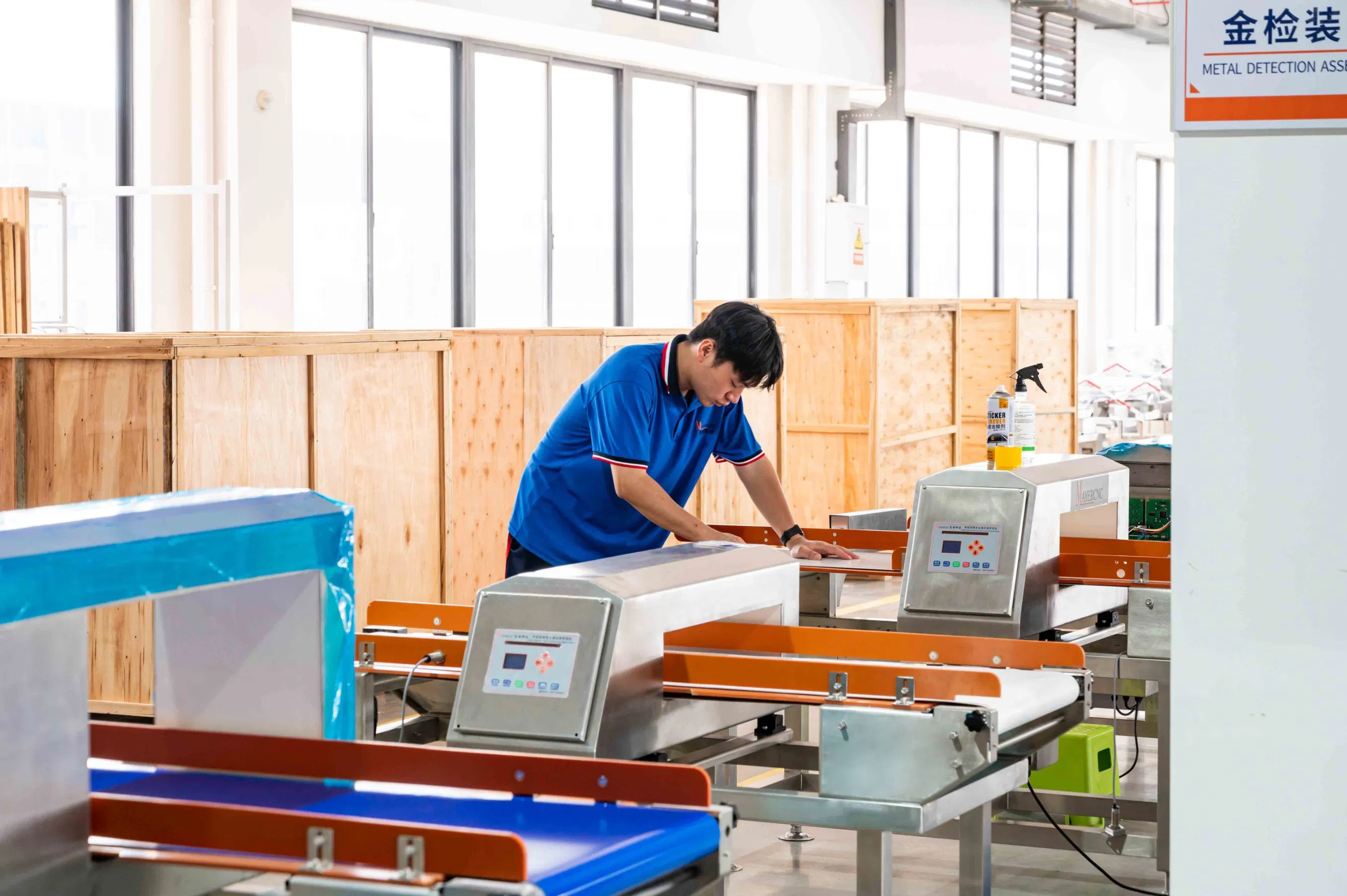

Advanced Industrial Conveyor Belt System for Metal Detection Safety

Customization: Available
After-sales Service: Online
Warranty: 12 Months

Product Description

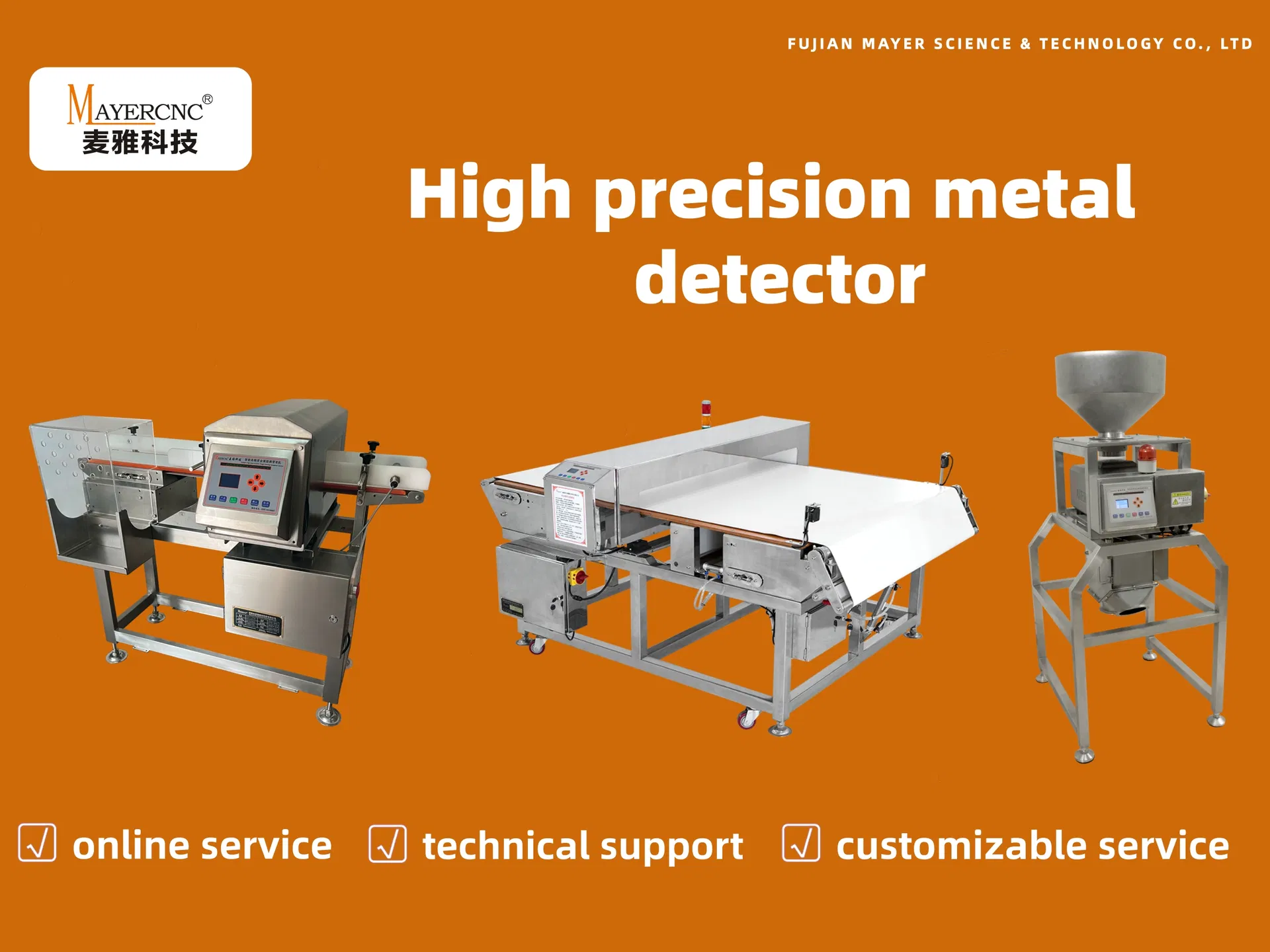

Industrial Metal Detector
Basic Information
Model NO.
MY-JTM-4010
Certification
CE, ISO
Condition
New
Customized
Available
Alarm Form
Auto Shutdown / Removal
Conveying Speed
10-30m/Min
Power Supply
AC220V
Language
Bilingual Support
Belt Material
Food Grade
Transport Package
Standard Wooden Case
Main Material
SUS304 Stainless Steel
Origin
China
Food Industry Metal Detector
Food metal detectors are critical quality control equipment in food production lines, used to detect metallic impurities such as ferrous, non-ferrous, and stainless steel in products. The equipment has high detection accuracy and can effectively identify metal fragments to ensure product safety.
This equipment is widely used in the meat, baking, dairy and other industries. It supports continuous detection and automatic removal of contaminated products, ensuring consumer safety and corporate brand reputation. It is an indispensable health and safety guardian in modern food processing.
Metal Detector Application 1
Metal Detector Application 2
Metal Detector Application 3
Technical Specifications
Product Model MY-JTM-2510 MY-JTM-4010 MY-JTM-4015 MY-JTM-5020 MY-JTM-5025
Window Height 100mm 100mm 150mm 200mm 250mm
Window Width 250mm 400mm 400mm 500mm 500mm
Iron Sensitivity ≥0.6mm ≥0.6mm ≥0.8mm ≥1.0mm ≥1.2mm
Stainless Steel Sensitivity ≥1.2mm ≥1.2mm ≥1.5mm ≥1.8mm ≥2.0mm
Conveying Speed 10-30m/min (customizable)
Type of Alarm Automatic shutdown or automatic removal (optional)
Power Supply AC220V
Key Features

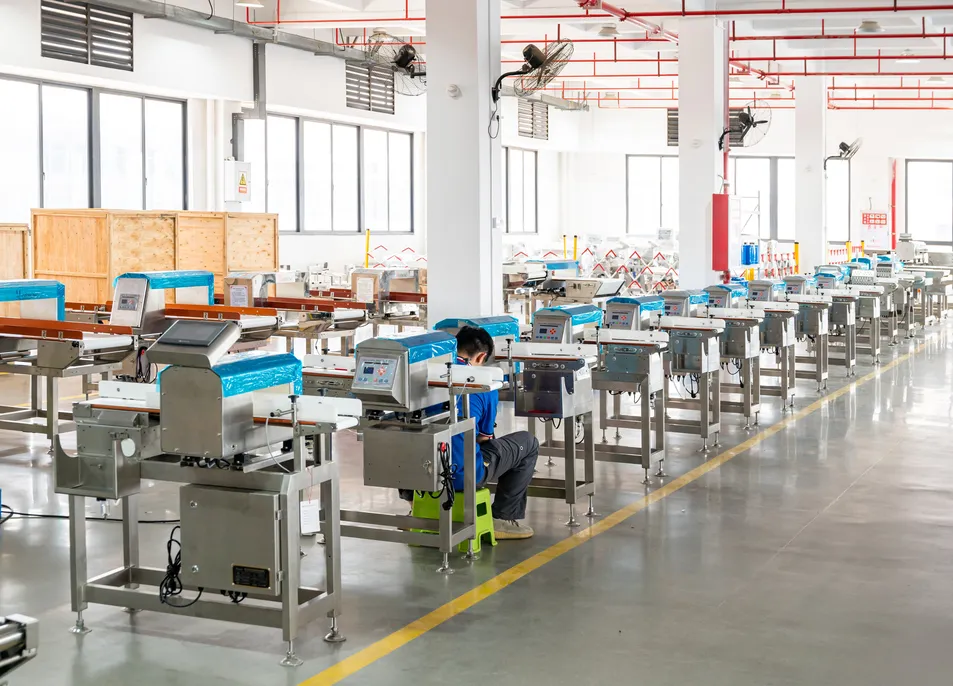

Features Display
  • 1
    0 - 360° free phase adjustment technology to effectively suppress the product effect.
  • 2
    High-speed digital signal processing and intelligent algorithms for superior accuracy.
  • 3
    User-friendly LCD screen with Chinese and English menu options.
  • 4
    Memory function to store multiple product parameters for quick adaptation.
  • 5
    Simple, detachable frame design for easy cleaning and maintenance.
  • 6
    Food-grade TPU conveyor belt meeting FDA and EU safety requirements.
Optical Rejection Device
Rejection Device 1
Rejection Device 2
Rejection Device 3
Rejection Device 4
Rejection Device 5
Rejection Device 6
Manufacturing Excellence
We specialize in the research, development, and production of metal foreign body detection equipment, weight detection equipment, visual inspection equipment, and X-ray inspection equipment. As a national high-tech enterprise, we integrate R&D, production, and sales to provide comprehensive inspection solutions.

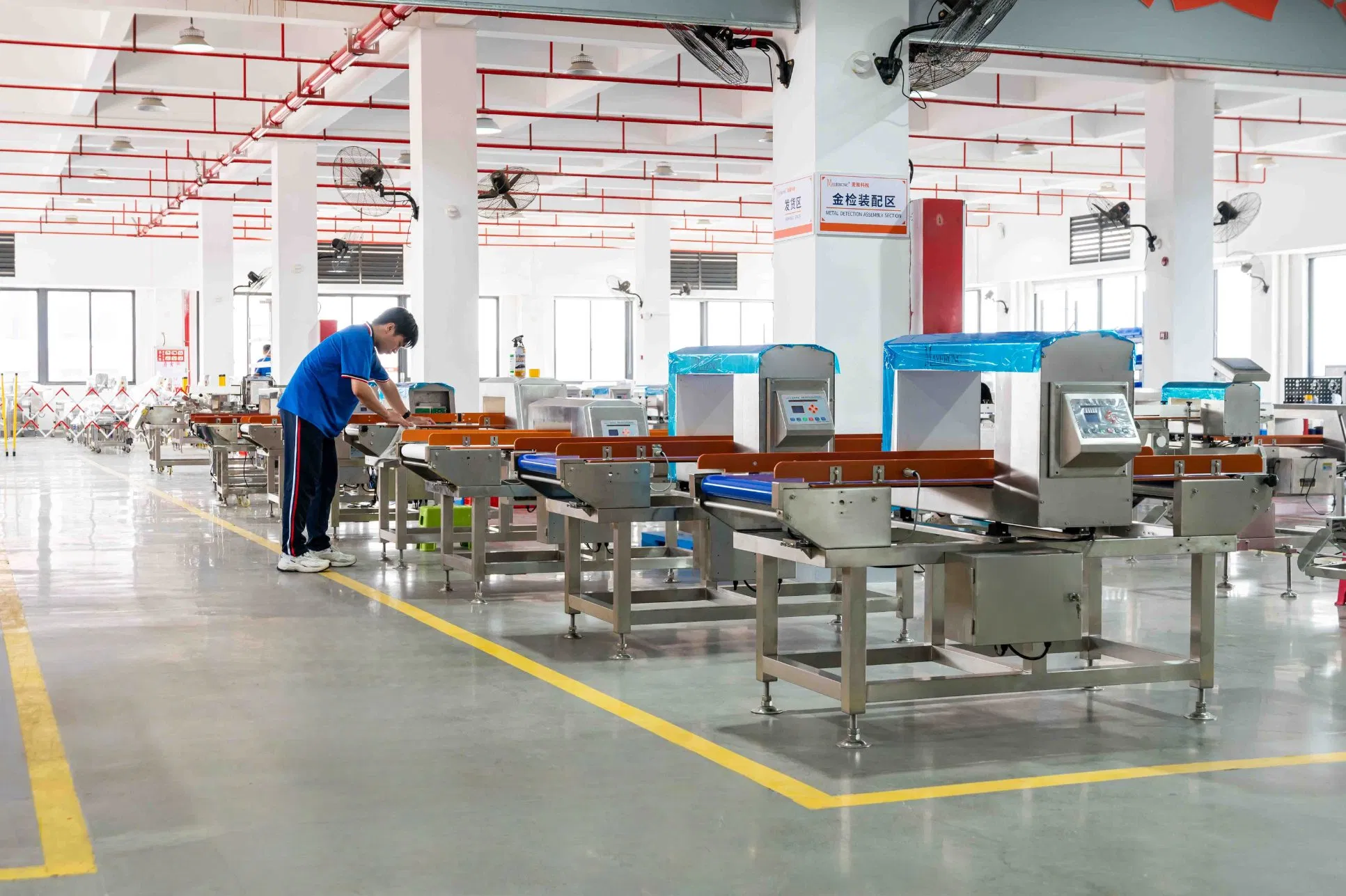

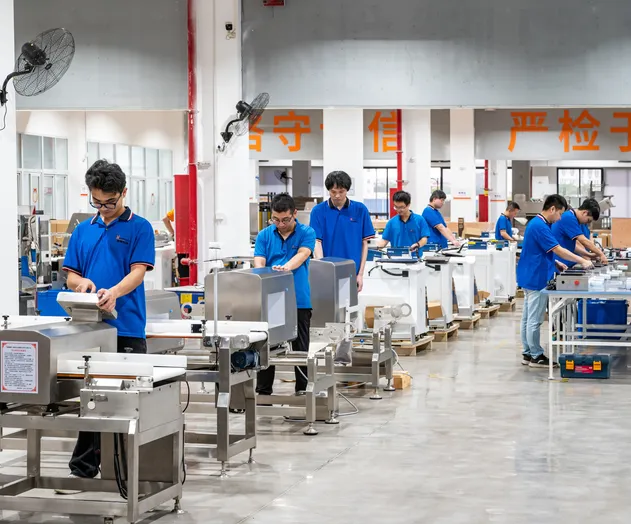

Factory View 1

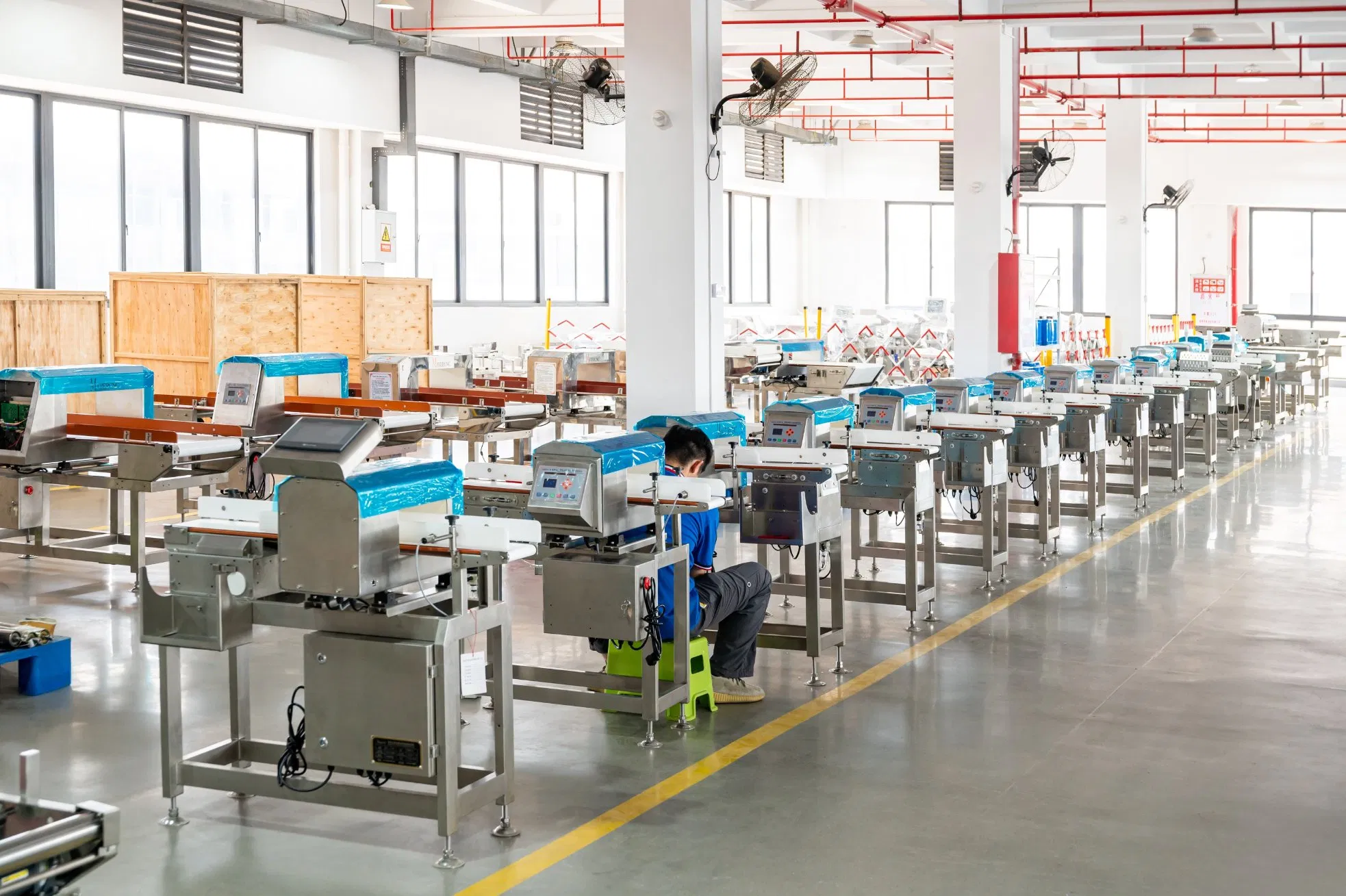

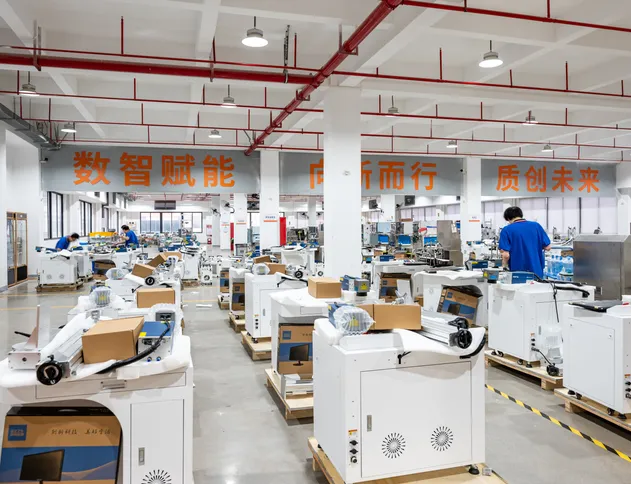

Factory View 2

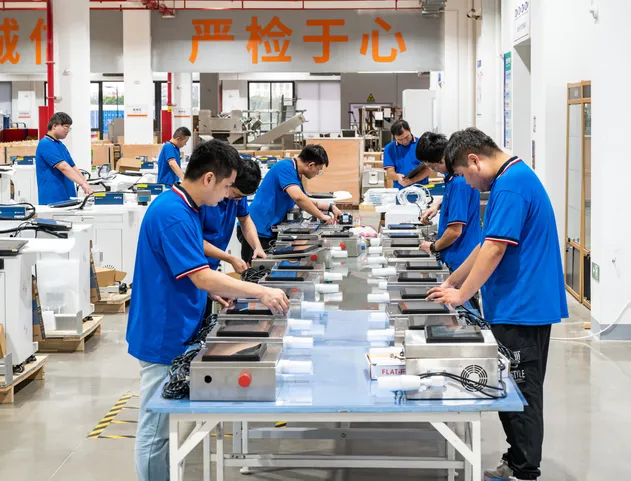

Factory View 3
Frequently Asked Questions
Are you a manufacturer?
Yes, we have 18 years of production experience dedicated to professional design and manufacturing of high-quality testing equipment.
Do you accept customization?
Absolutely. All our products can be customized according to specific customer requirements and product characteristics.
What factors can cause metal detector false alarms?
False alarms are typically caused by product characteristics, environmental magnetic interference, power supply issues, or improper device settings. These can be resolved by adjusting equipment parameters and maintaining a stable environment.
What is the warranty period?
We provide a standard one-year warranty for all our equipment.
How long is the delivery time?
The typical delivery time is approximately 20 business days after receiving the initial deposit.
Do you provide technical assistance after delivery?
Yes, our after-sales service team provides remote installation assistance, technical training, and instant online support to ensure smooth operation.
