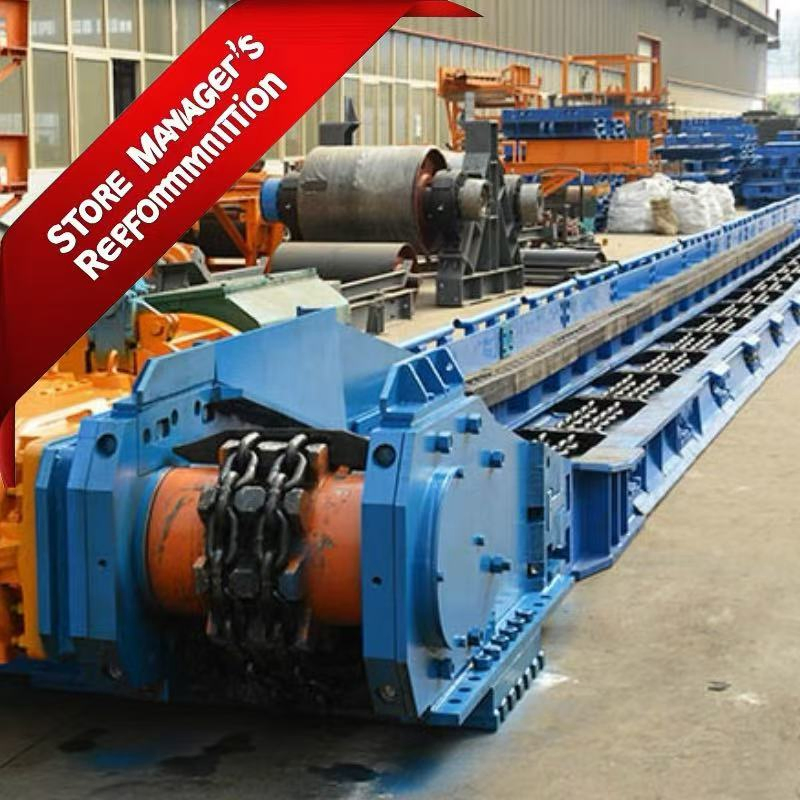

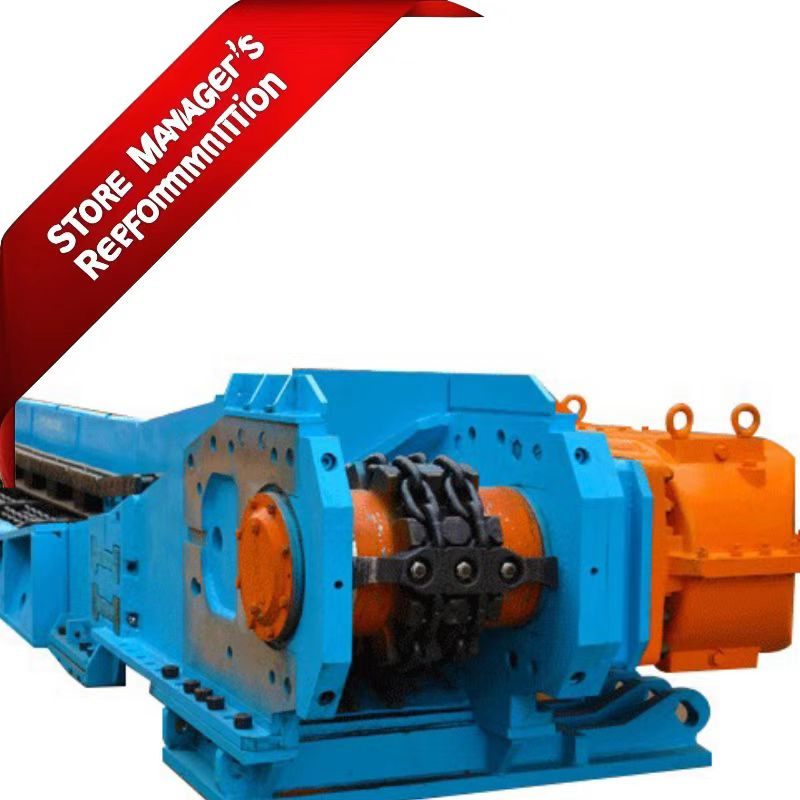

Reliable Chain Conveyor System for Coal Mining, 250 T/H, 0.86 M/S

Customization: Available
Structure: Chain Conveyor
Material: Stainless Steel

Product Description

i

Basic Information

Model NO.SGZ630
ApplicationMining Transport
ConditionNew
After-Sales ServiceYes
Warranty1 Year
Conveying Capacity T/H250
Design Length M100-160
Scraper Chain Speed M/S0.86
Tight Chain MethodTight Chain of Brake Belt
Middle Groove Size1500*630*190mm
OriginChina
Production Capacity500,000
!

Product Description

Crafted with precision, the scraper conveyor stands as a pinnacle of engineering, specifically designed to transport coal within the elite sphere of high-end conventional mining environments. Tailored for gently inclined, medium-thick coal seams, this robust conveyor system masterfully partners with MG80/200, MG100/240, and MG132/310 coal mining machines, delivering unmatched efficiency and performance in every operation.

P

Detailed Photos

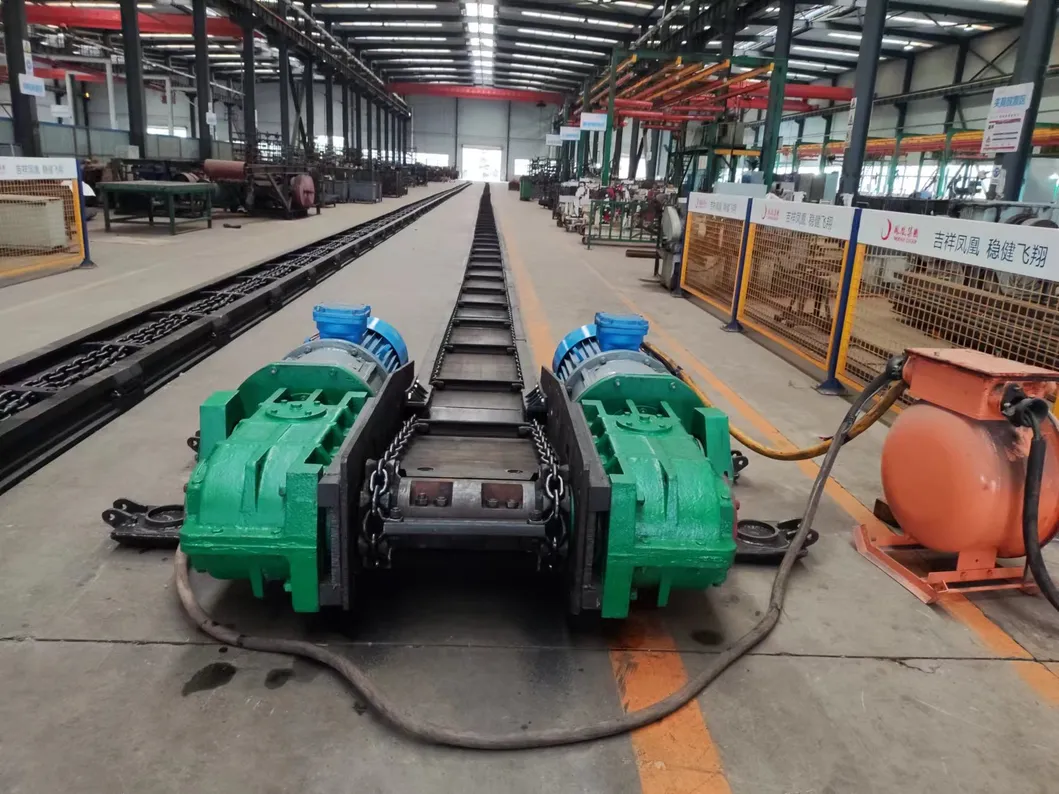

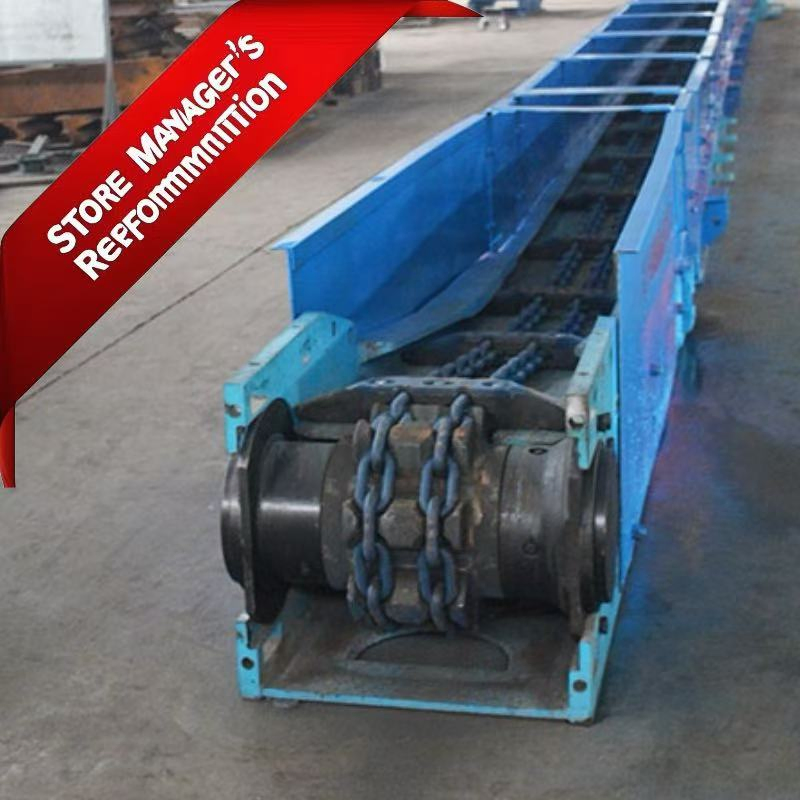

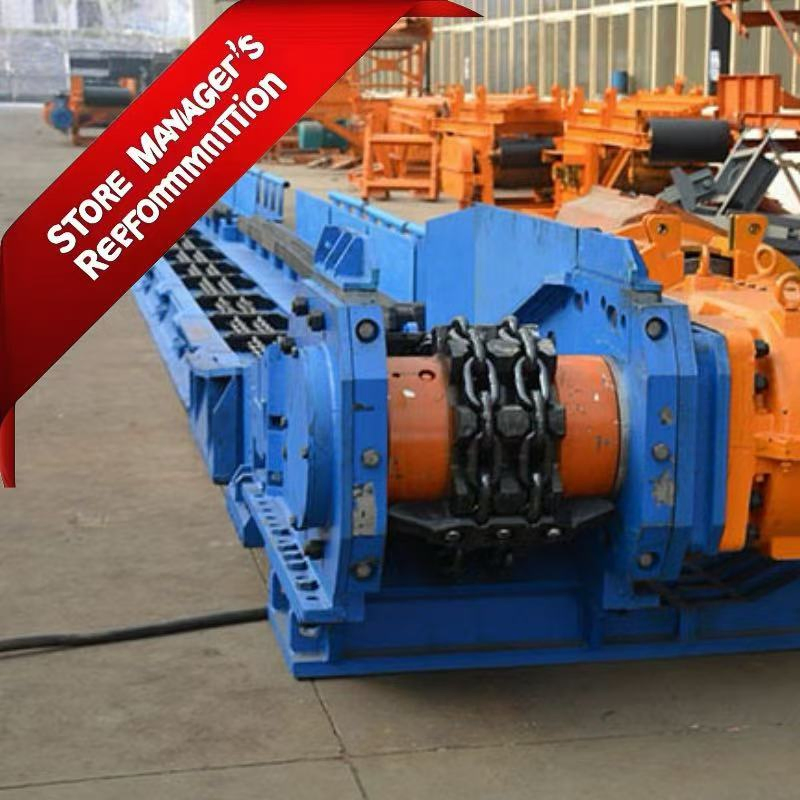

Chain Conveyor System Overview Conveyor Components Detail

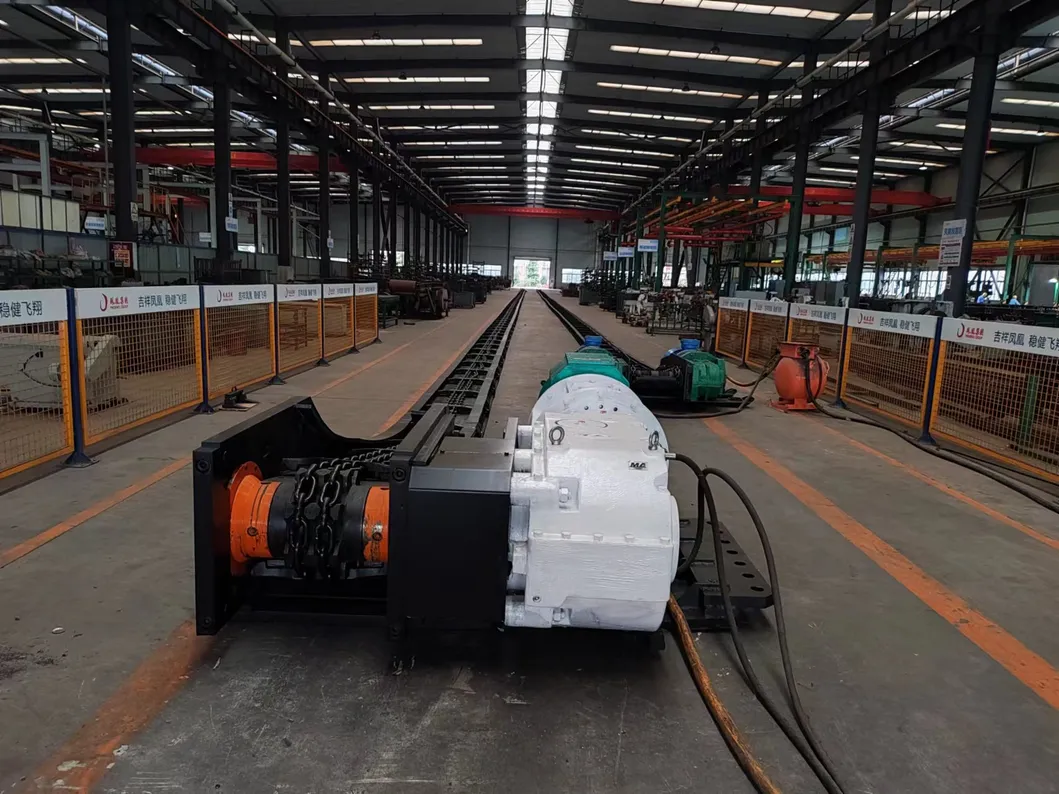

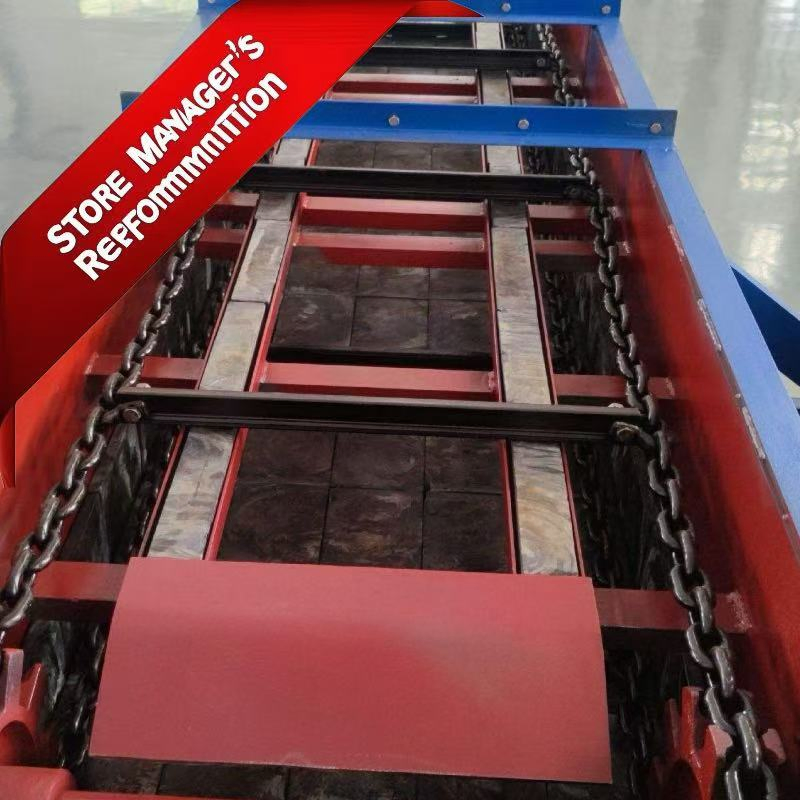

Mining Equipment Photo Scraper Chain Detail
S

Technical Parameters

Project SGZ630/75 SGZ630/90 SGZ630/150 SGZ630/180
Conveying Capacity (t/h) 250
Design Length (m) 100 160
Scraper Chain Speed (m/s) 0.86
Middle Groove Size (mm) 1500×630×190
Motor Model YBS75-4 YBS90-4 YBS75-4 YBS90-4
Installed Power (kW) 75 90 150 180
Rated Voltage (V) 380/660
Chain Specification 18×64-C (High-strength circular)
E

Industry Expertise

Since its inception in 1973, our manufacturing base has evolved from a specialized coal mine machinery facility into a vanguard of the industry. With a rich heritage spanning over 50 years, we have mastered the art of designing and manufacturing a diverse array of mining equipment. Our expertise encompasses shearers, scraper conveyors, and belt conveyors, alongside a variety of mine support materials and component parts.

Our quality standards are substantiated by esteemed certifications such as ISO 9001 and IATF16949, complemented by a plethora of patented innovations. We implement rigorous quality certification processes and select only the highest-grade raw materials. Our avant-garde production processes ensure our products consistently exceed customer expectations in performance, appearance, and service.

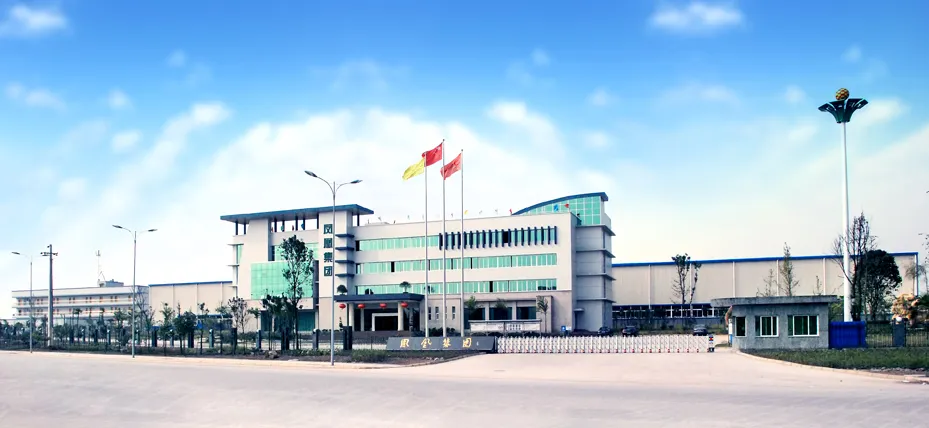

Production Facility

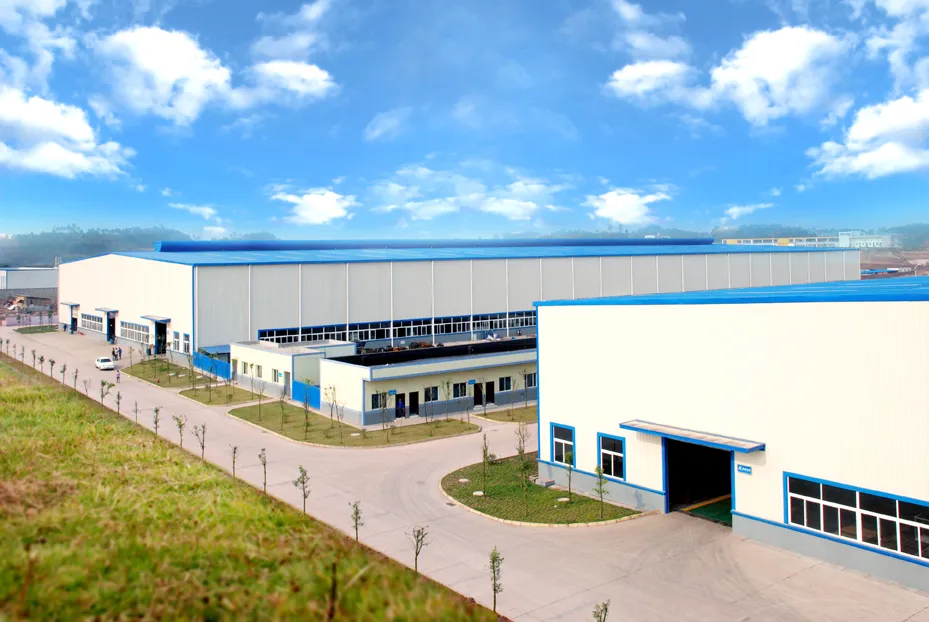

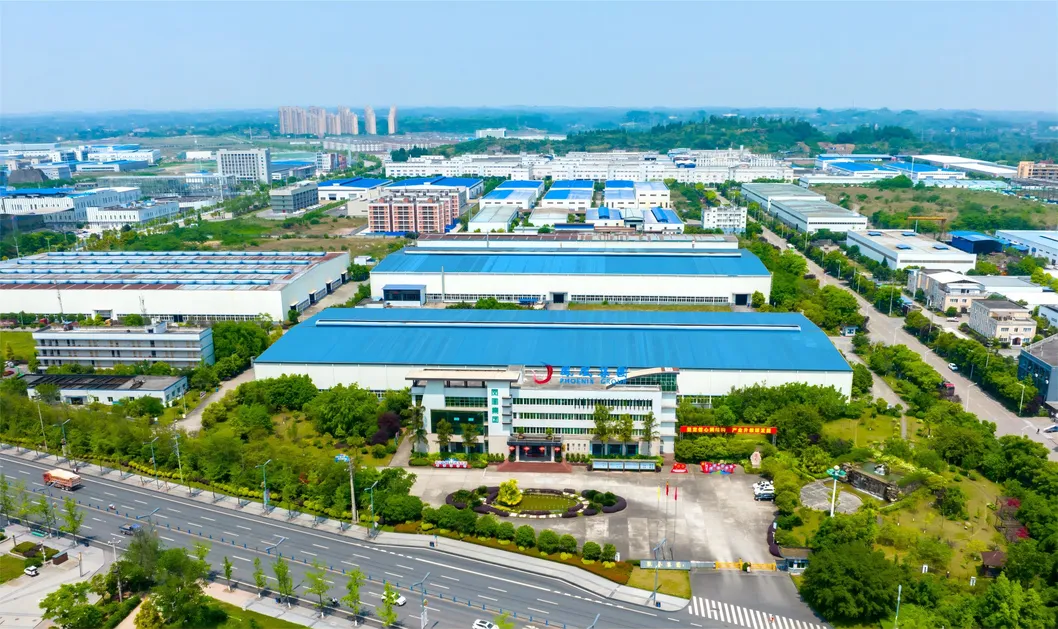

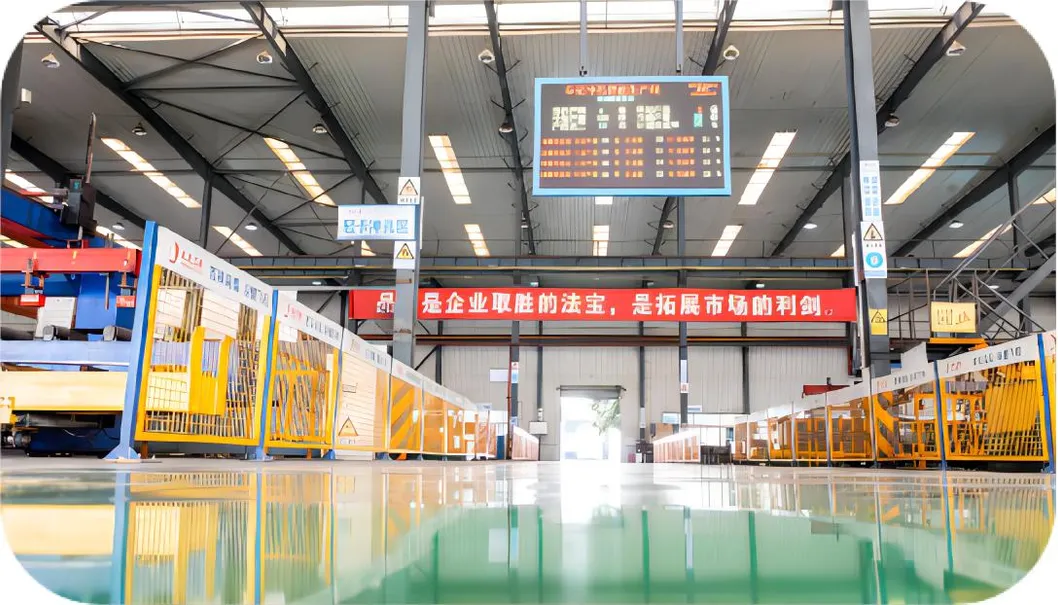

Quality Control Manufacturing Process Finished Products
?

Frequently Asked Questions

What is the primary application of the SGZ630 scraper conveyor?
It is specifically designed for transporting coal in gently inclined, medium-thick coal seams within high-end conventional mining environments.
What is the maximum conveying capacity of this system?
The SGZ630 series offers a steady conveying capacity of 250 Tons per Hour (T/H).
Which mining machines are compatible with this conveyor?
It is designed to partner efficiently with MG80/200, MG100/240, and MG132/310 series coal mining machines.
What is the scraper chain speed and design length?
The chain speed is 0.86 m/s, and the system can be configured for design lengths ranging from 100 to 160 meters.
What quality standards do these products meet?
All products are manufactured under strict adherence to ISO 9001 and IATF16949 quality management systems.
What is the warranty period for this equipment?
The equipment comes with a standard 1-year warranty covering manufacturing defects.
