Chemical Industry, Grain Transport, Mining Transport, Power Plant
Condition
New
Transport Package
Seaworthy Packing
Specification
Customizable
Origin
China
HS Code
8428391000
Product Description

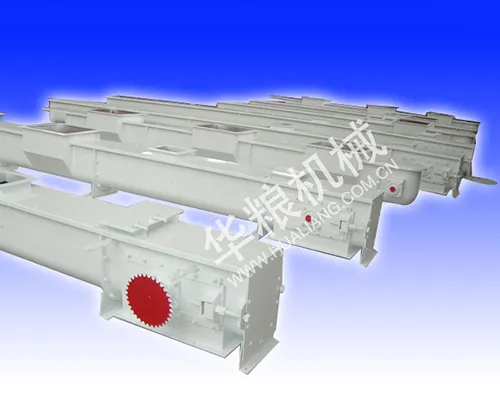

The Scraper Conveyor stands as a durable and continuous transport mechanism, featuring an adaptable traction element for seamless and efficient material handling.
Its remarkable flexibility empowers it to easily adapt to a wide array of transportation scenarios with utmost efficiency. Operating within a meticulously designed rectangular or U-shaped sealed trough, the system employs a moving scraper chain to propel materials forward. As the scraper chain advances, it integrates with the material to form a cohesive and continuous stream of transported goods.
During the transit process, the chains are embedded within the material, thus earning the name 'embedded scraper conveyor.' This innovative machinery is indispensable in grain processing plants and warehouses, serving as a vital and primary conveyor solution.
Main Structure
The Scraper Conveyor is comprised of the following essential components: scraper chains, head wheel and tail wheel, inlet and outlet, drive device and tensioning device.
Working Principle
Horizontal Transport: In horizontal transport mode, the scraper chain directly engages with the material. The combined friction between the material and the trough walls stabilizes the material, while the scraper chain's thrust propels the material forward as a unified entity.
Vertical Transport: In vertical transport scenarios, the scraper's thrust, combined with material gravity and pressure from lower to upper segments, generates lateral pressure against the trough walls. This mechanism ensures material stability, preventing slippage and facilitating smooth upward movement by effectively overcoming gravitational and frictional forces.
Key Features
Straightforward construction, lightweight design, compact size, ease of manufacturing, installation, operation, and maintenance.
Exceptional sealing capabilities ensure minimal dust dispersion and a cleaner work environment.
Simple yet efficient feeding and discharging mechanisms support multiple inlet and outlet points, offering versatile discharge options.
A flexible technological layout enables transportation in various directions, enhancing operational adaptability.
Both the scraper chain and the trough are prone to wear over time, necessitating regular maintenance.
Handling high-moisture materials can lead to adhesion and compaction, increasing the risk of chain float issues.

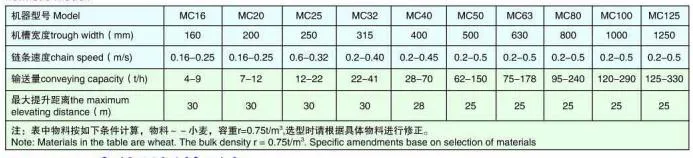

Main Technical Parameters

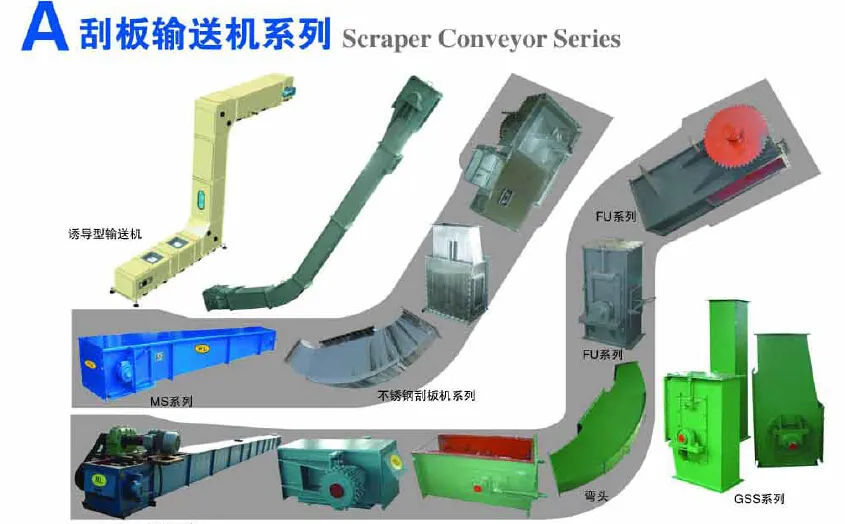

Diverse Scraper Conveyor Models
Explore our range of diverse scraper conveyor models designed to meet your specific layout and structural needs:

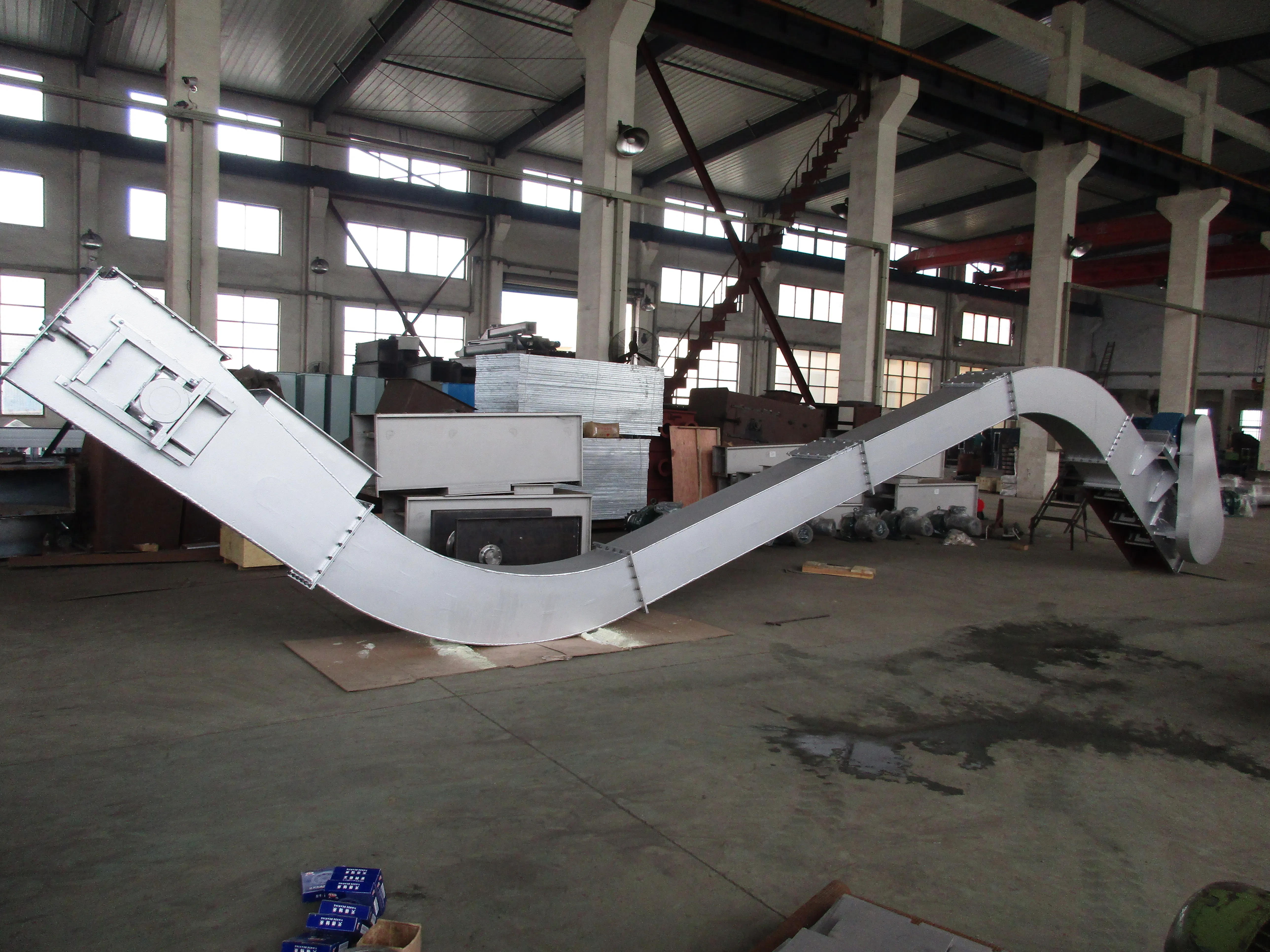

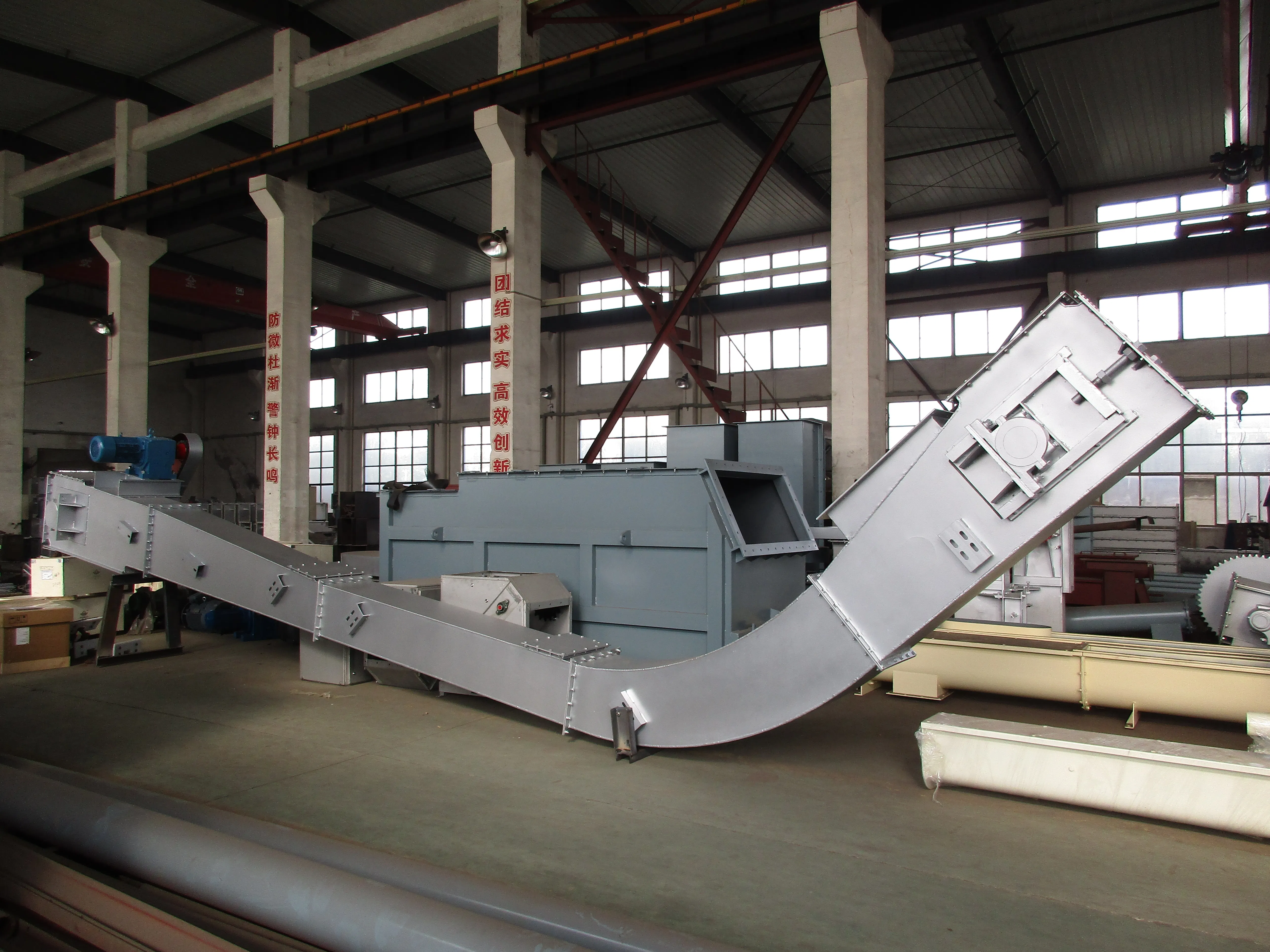

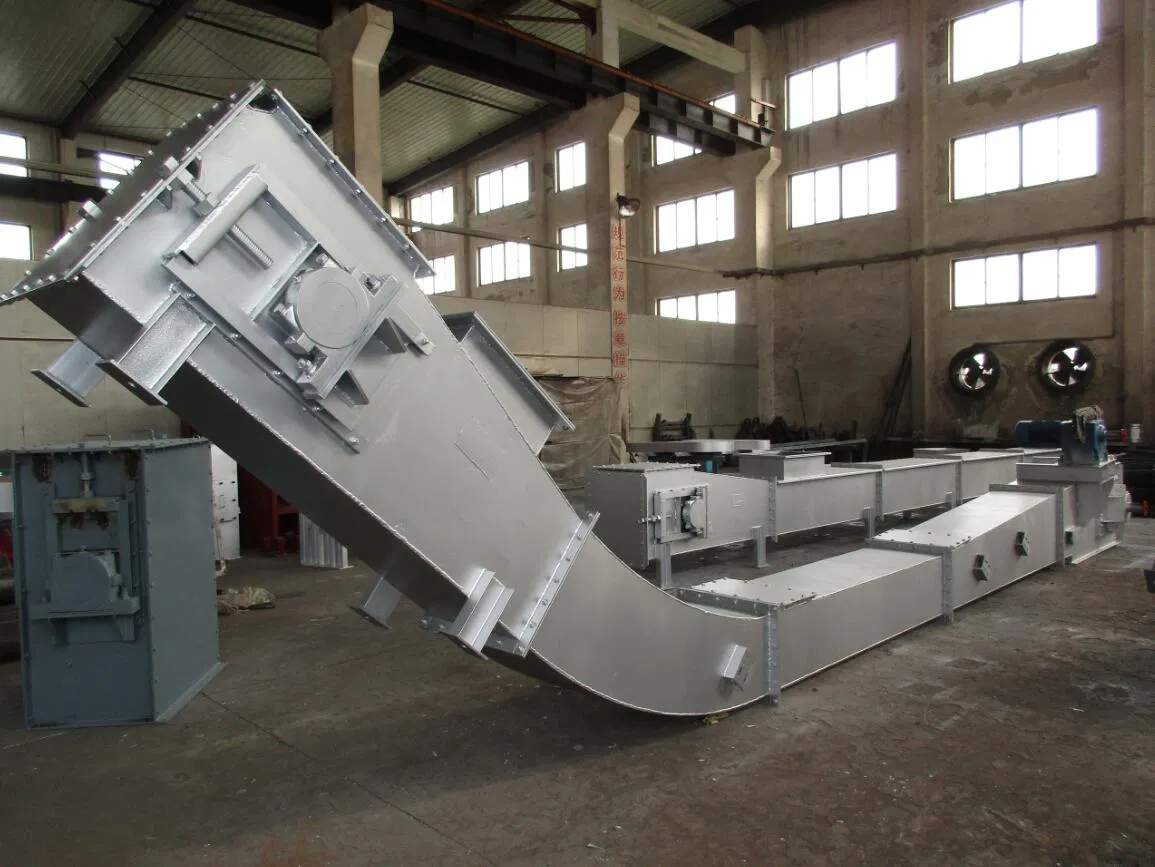

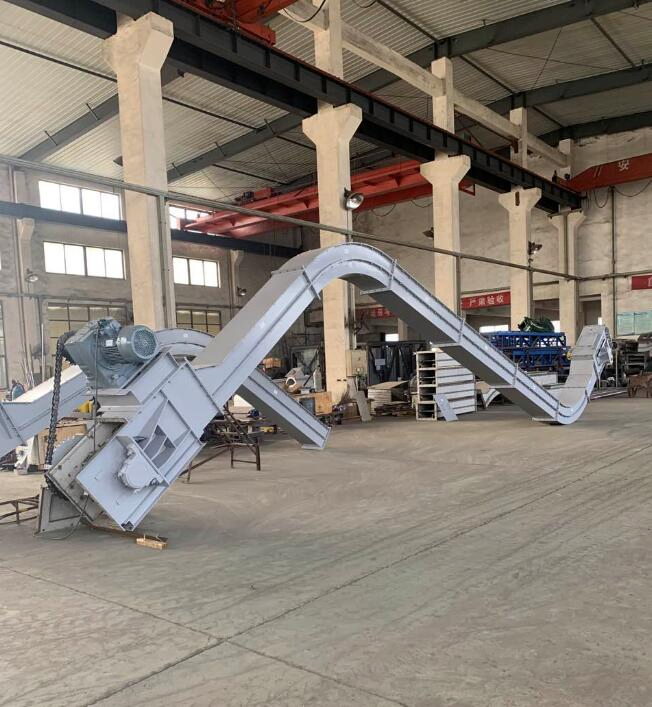

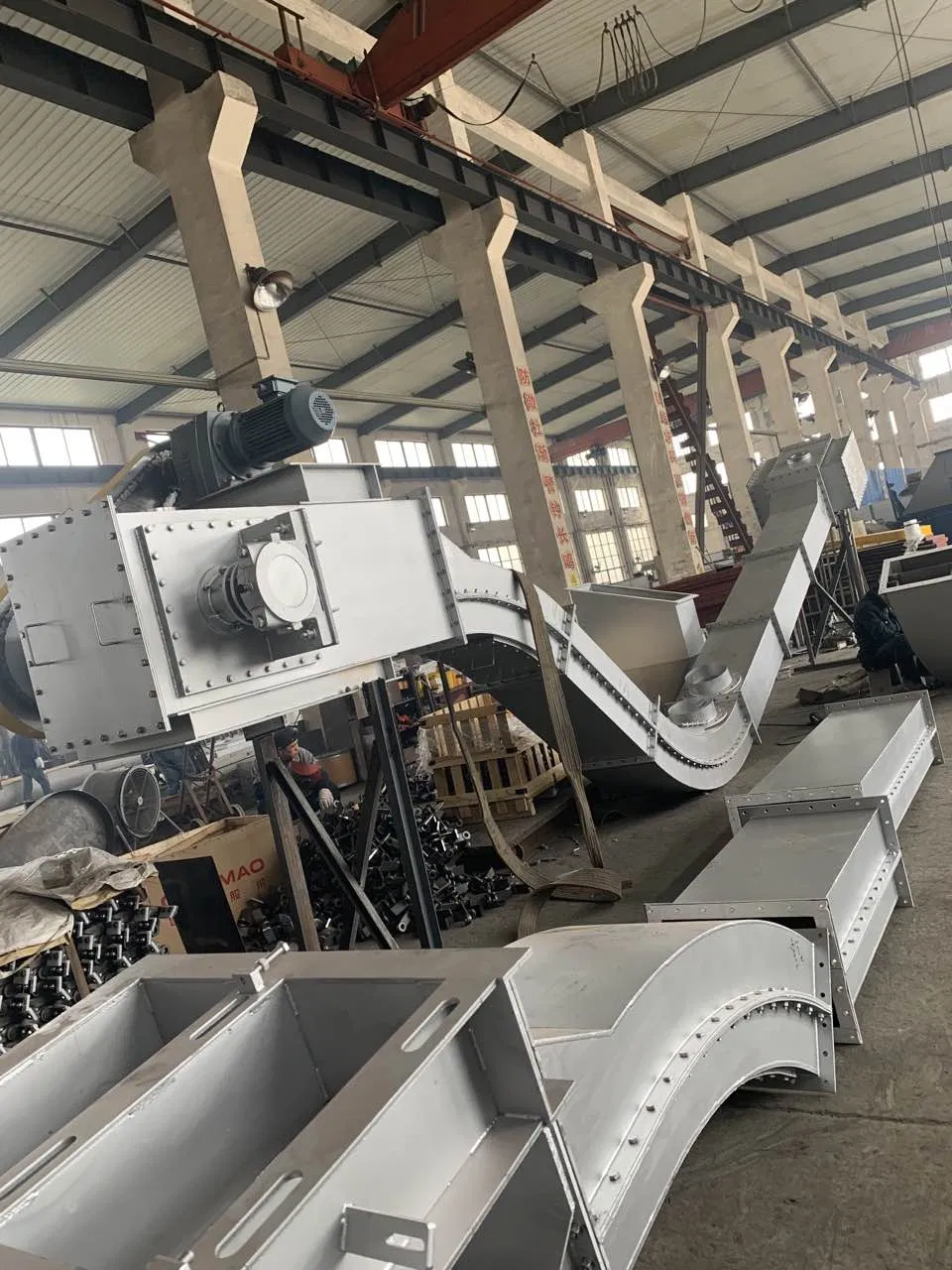

Curved Scraper Conveyor
Horizontal Scraper Conveyor
Self-Cleaning Drag Conveyor: Step into the realm of ultimate efficiency with our state-of-the-art self-cleaning drag conveyor. This advanced system is engineered to elevate your material handling process with unmatched precision and reliability.

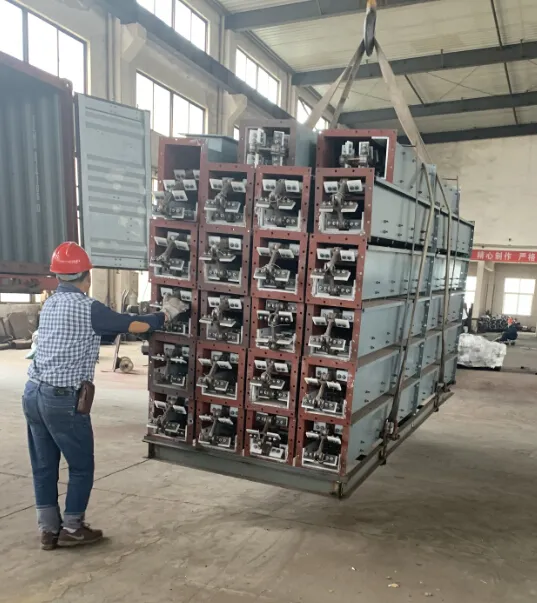

Packing and Transport
Experience unrivaled efficiency with our state-of-the-art packing and transport solutions. Your materials are treated with the highest level of care, guaranteeing seamless and hassle-free logistics from the moment they leave your facility to their final destination.

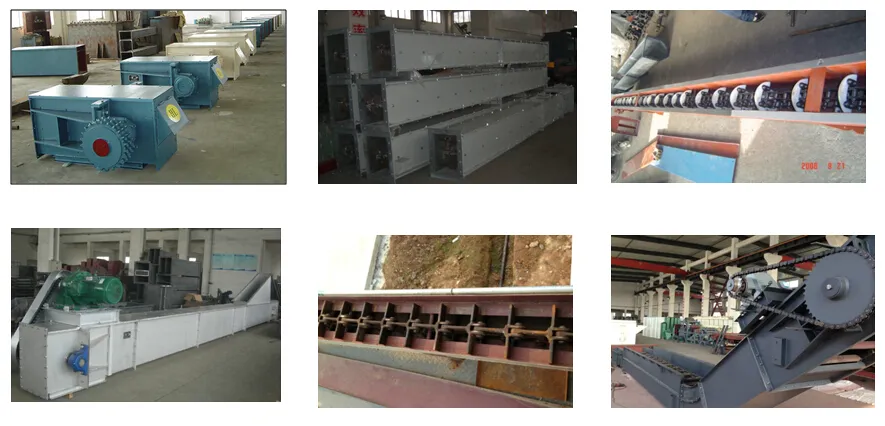

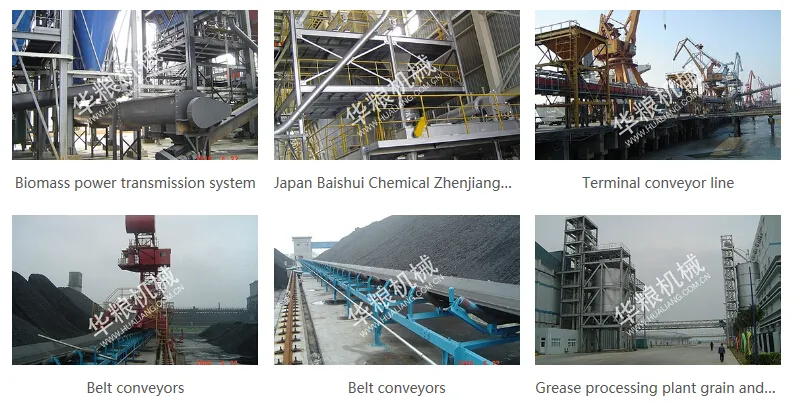

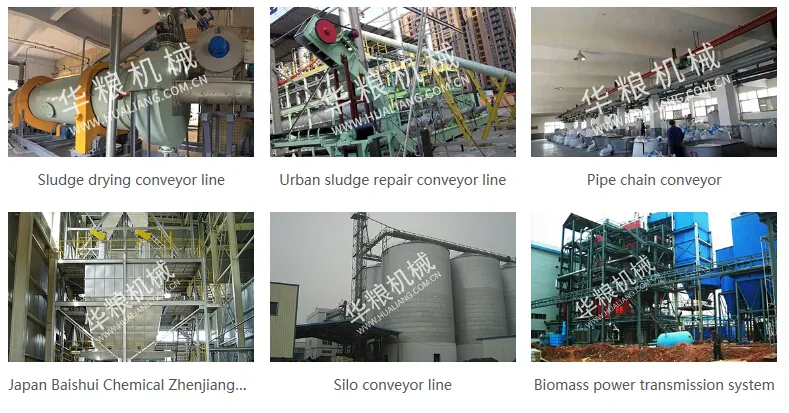

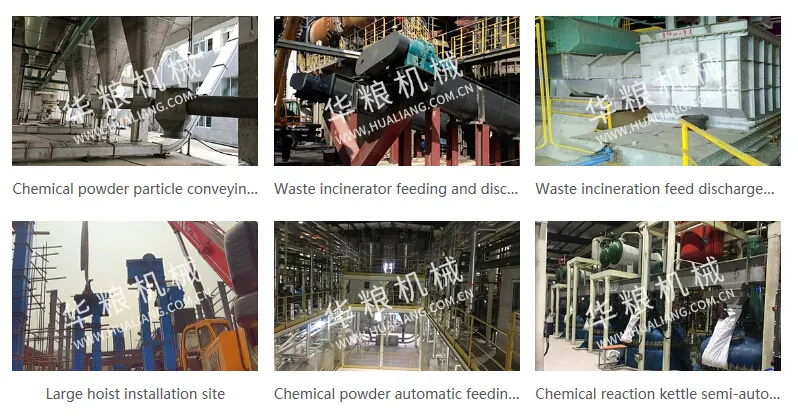

Project Cases
Dive into our impressive portfolio of successful project cases. Witness the exceptional performance and unwavering reliability of our Dual Row Scraper Chain Conveyor, proven across a variety of demanding applications and industries.
Frequently Asked Questions
Q1
What is a Scraper Conveyor and how does it operate?
A Scraper Conveyor is a durable, continuous transport mechanism that utilizes a moving scraper chain inside a rectangular or U-shaped sealed trough. As the chain advances, it moves bulk materials forward continuously as a cohesive stream.
Q2
What are the core structural components of the conveyor?
The main structure is composed of five key elements: the scraper chains, the head wheel and tail wheel, the inlets and outlets, a dedicated drive device, and a reliable tensioning mechanism.
Q3
How does it handle horizontal versus vertical transport?
For horizontal transport, material is moved via the combined force of the scraper chain thrust and friction against the trough walls. For vertical transport, the scraper thrust and lateral wall pressure together prevent slippage, enabling upward movement against gravity.
Q4
What are the primary operational benefits of this conveyor?
It features a straightforward and lightweight design, compact dimensions, simple installation, excellent sealing to limit dust dispersion, and the flexibility to support multiple inlet and outlet configurations for versatile technological layouts.
Q5
Are there any material limitations or maintenance requirements?
Yes. Since the scraper chain and trough are subject to frictional wear over time, they require routine maintenance. Additionally, handling highly moist or sticky materials can lead to compaction and increase the risk of chain floating.
