Product Description

Production Details

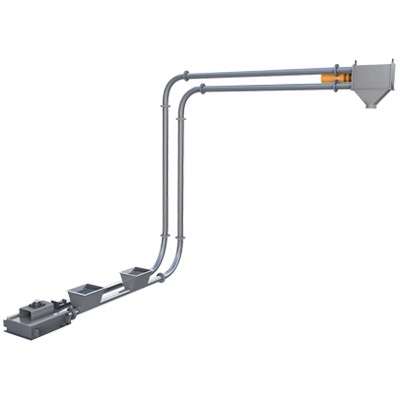

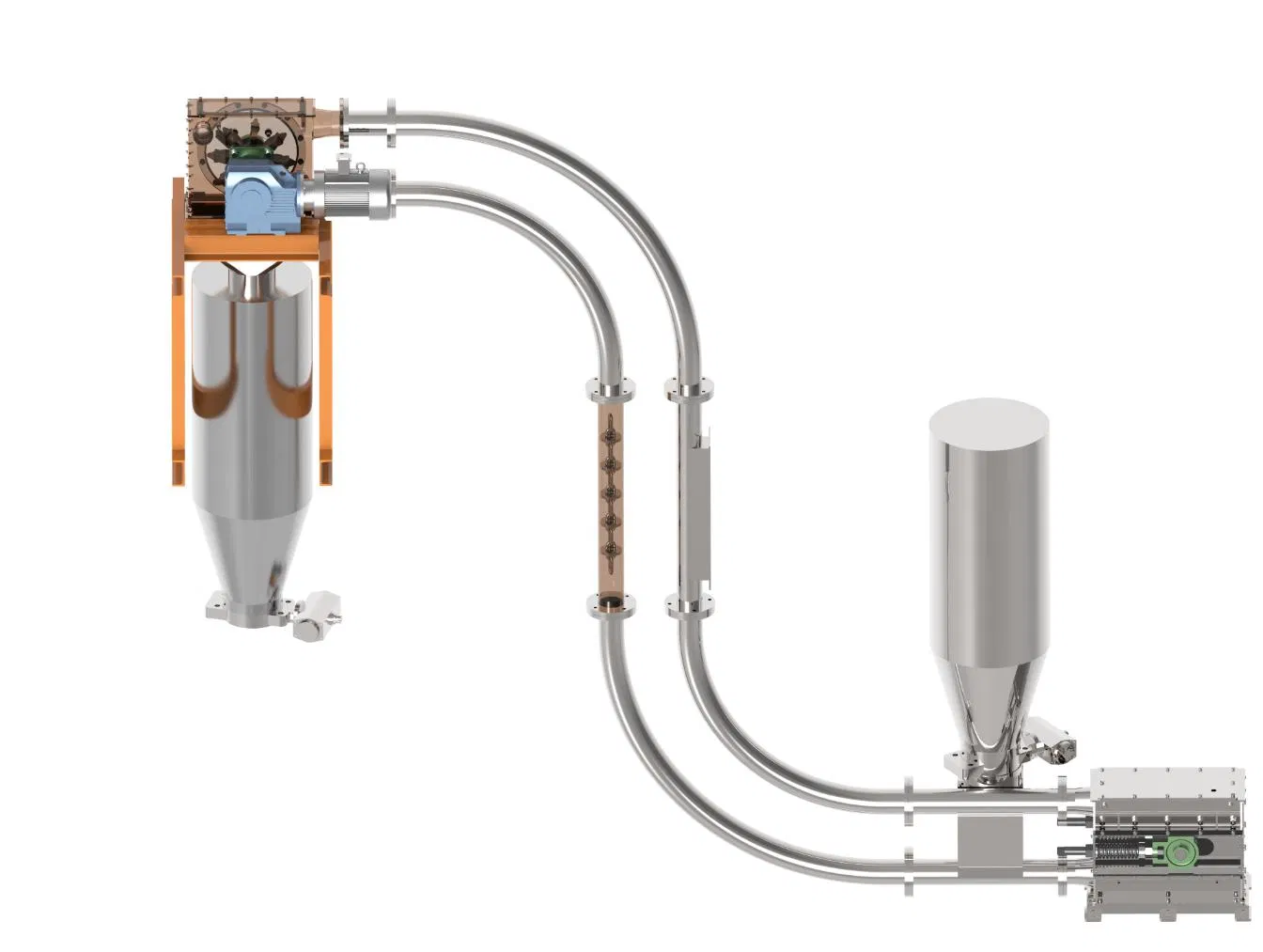

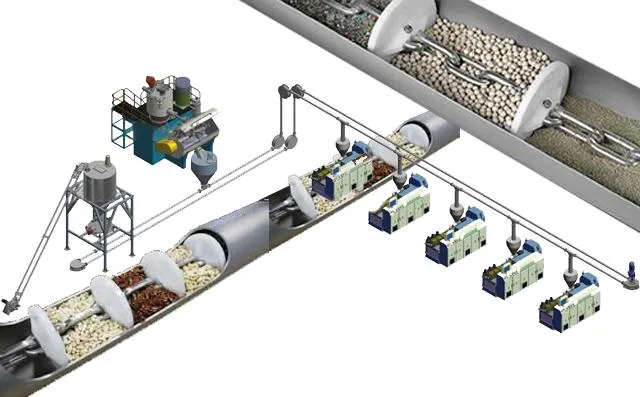

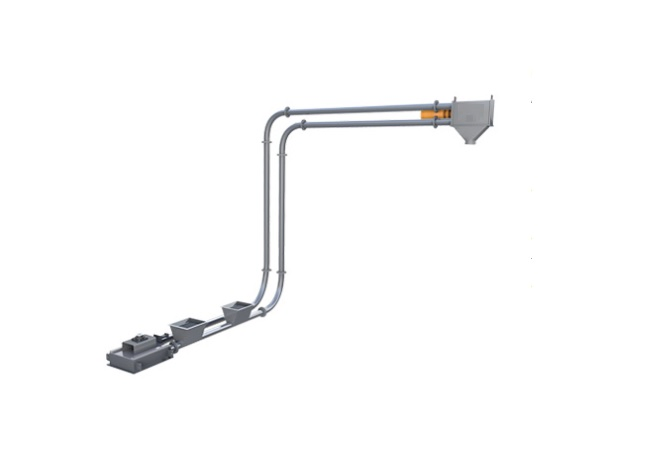

Introducing the innovative pipe chain conveyor system. This system is designed to provide efficient transportation solutions with three basic forms: horizontal, inclined, and vertical transportation. Each conveyor is meticulously crafted with a driving device, tensioning device, steering gear, conveying pipe, chain material tray, and control system for seamless operation.

Technical Parameters

Model	Power (KW)	Linear Velocity (M/S)	Speed (R/Min)	Conveying Capacity (M³/H)	Maximum Torque (N·M)	Maximum Tensile Force (N)	Notice
PC-80	4.0	0.30	20.7	3.9	1810	1300	Maximum pulling force at low speed up to 1.5 tons
		0.36	24.9	4.7	1504	1090
		0.40	27.6	5.2	1357	980
PC-100	5.5	0.30	17.5	6.0	2943	1800	Low speed maximum pulling force up to 2 tons
		0.36	21.0	7.2	2452	1500
		0.40	23.4	8.0	2200	1350
PC-150	7.5	0.30	13.4	13.7	5240	2450	Low speed maximum pulling force up to 3 tons
		0.36	16.0	16.4	4390	2050
		0.40	17.9	18.2	3923	1840
PC-200	11.0	0.30	11.4	27.4	9034	3590	Low speed maximum pulling force up to 4 tons
		0.36	13.7	32.9	7518	2990
		0.40	15.2	36.5	6776	2700

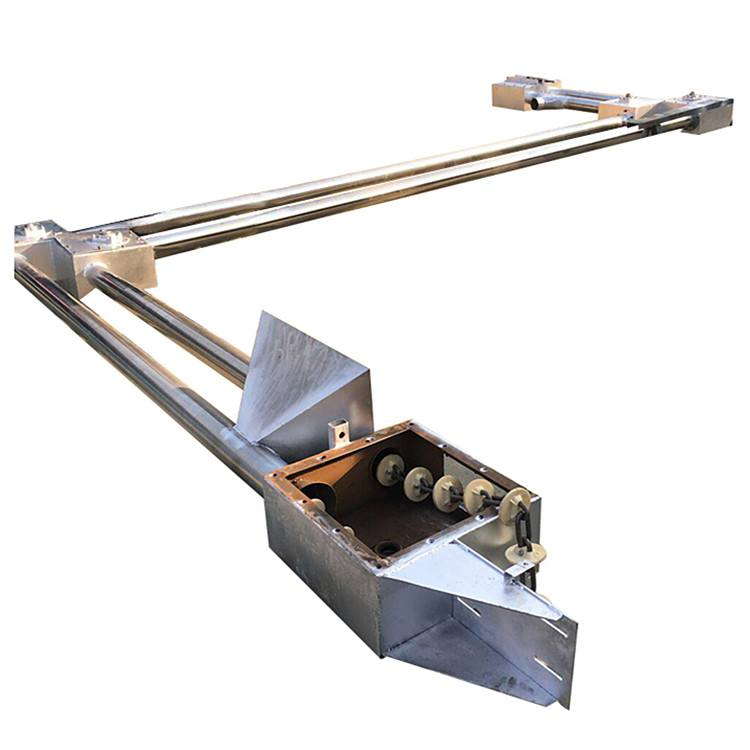

Discover our Enclosed Tubular Drag Chain Conveyor System. Ideal for vertical and continuous bulk material conveying.

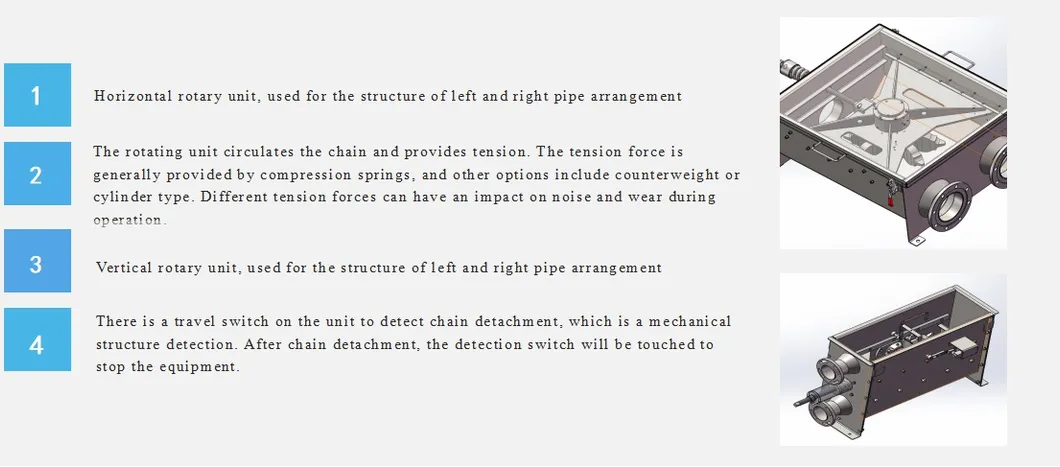

Product Features

Introducing the compact three-dimensional conveyor system. This innovative system offers a range of features and benefits:

Compact structure with a small footprint
Ability to change conveying direction in three dimensions
Sealed transportation of materials from inlet to outlet flange
No need for dust collector at the exit
Smooth material transportation with minimal internal movement
Low energy consumption and long conveying distance
Suitable for food, chemical, new energy, and building materials
Available in multiple materials and specifications
Not suitable for metal powder or high-wear particles

With a simple structure and few maintenance components, this conveyor system can transport materials up to 60 meters horizontally and 40 meters vertically. It is ideal for industries requiring efficient and reliable material handling.

Introducing the revolutionary Enclosed Tubular Drag Chain Conveyor System. This innovative system is perfect for precise vertical tube conveying of bulk materials, ensuring efficient and reliable transport.

Industries	Common Materials
Petrochemical, Plastic	PP/ PE-LLDPE-LDPE-HDPE/ PC/ PVC/ PS/ PA/ PET/ ABS/ PTA/CTA/ EVA/ MELAMINA
Chemical	Calcium carbonate/sodium carbonate/sodium hydroxide/dolomite/titanium dioxide/Barium sulfate/zinc oxide/starch/kaolin/talc/fatty acid/stabilizer (lead/zinc)/alumina/emery/glass frit/lime/sand/clay/dry soft clay/polyester/resin/dissolvent/kiln products/titanium dioxide
Rubber	Polymer/carbon black/silicon/deposited silicon/white filler/trace components/rubber compounds
Plastic	Petrochemical raw materials/fillers calcium carbonate, kaolin, chalk/stabilized artificial rubber lead, calcium, zinc, tin/processing aid pigments/titanium oxide/lubricants/plasticizers DOP, DIDP, ESO/plastic particles
Food/Pharmaceutical	Metric food/Rice noodles/flour/coarse flour/wheat bran/wheat flour/crystal sugar, rock sugar/milk powder/starch/malt/glucose/Cocoa bean/coffee beans/peanuts/black beans/vegetable oil, fat/citric acid/salt and additives
Electric Power/Metallurgical Industry	Fly ash/desulfurization ash/dust removal ash/slag/copper powder/iron powder/aluminum powder
Building Material	Cement/sand/stone/fly ash

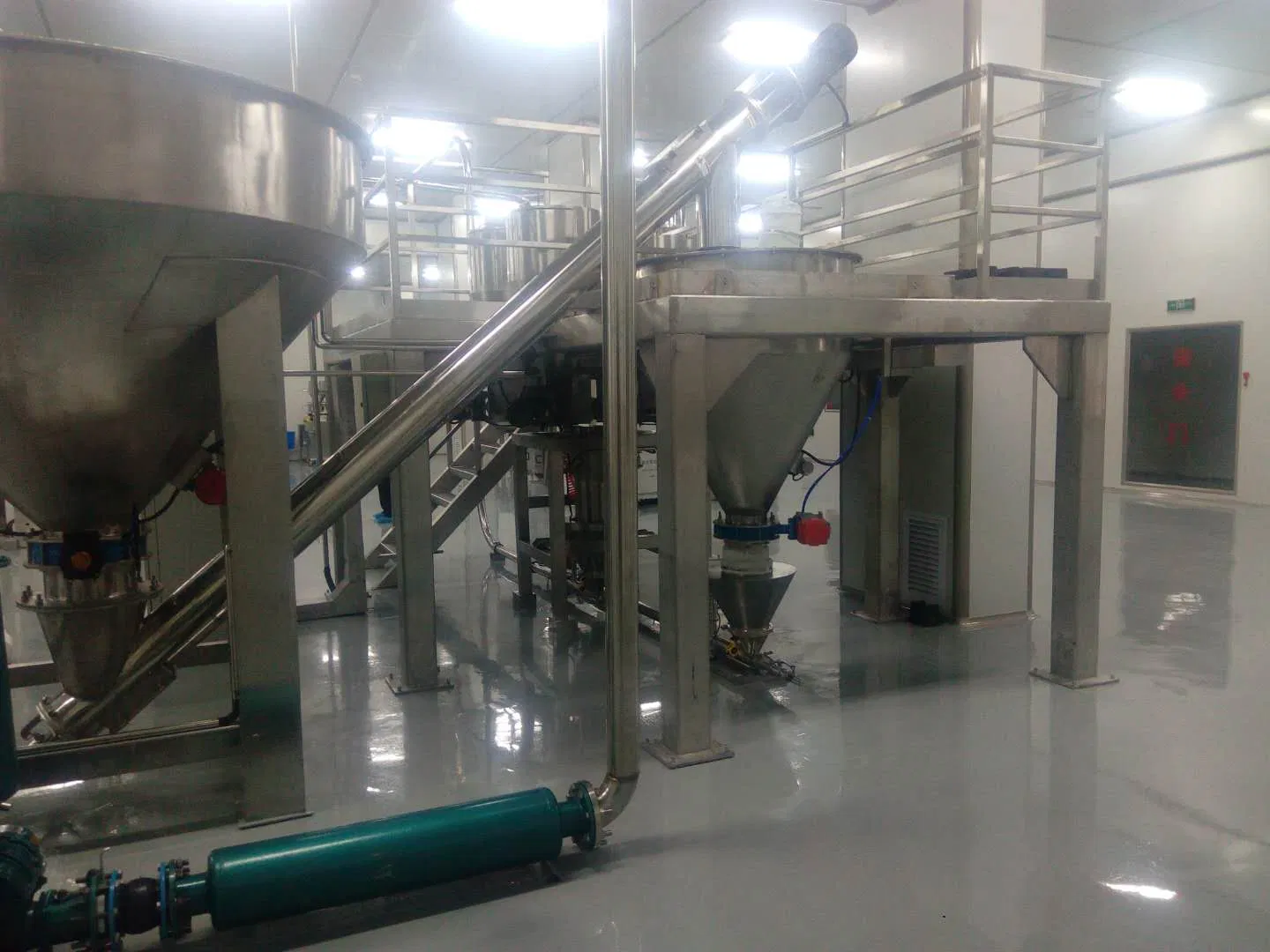

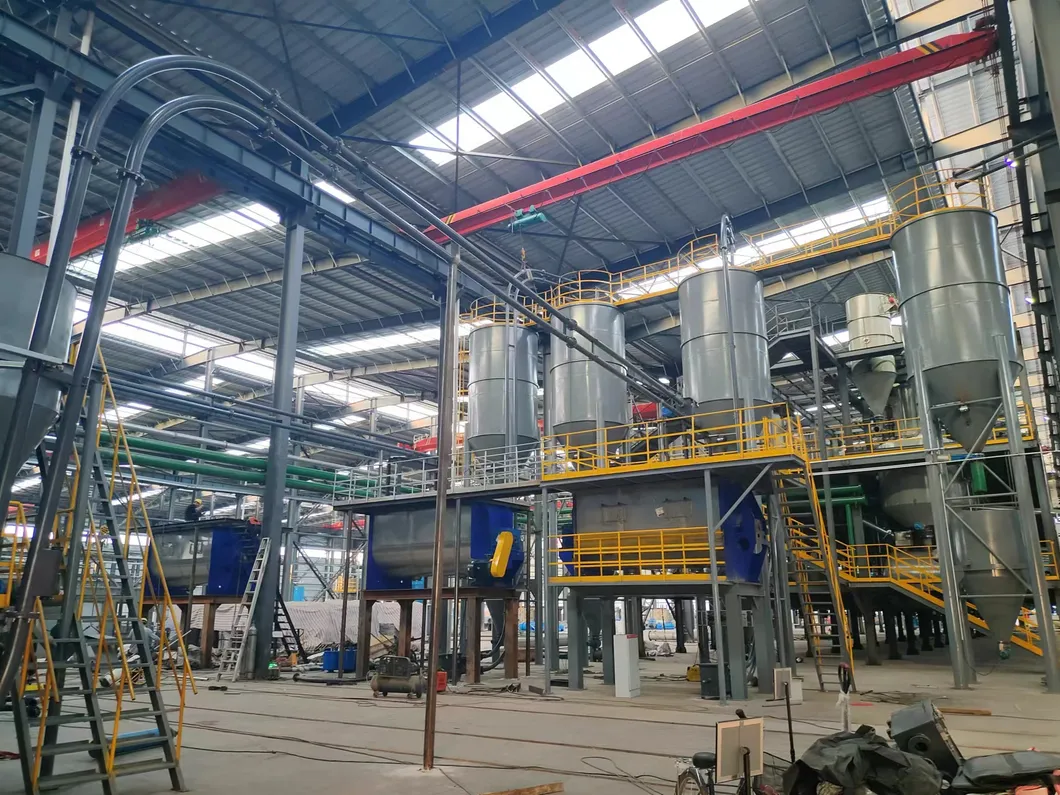

Introducing the Enclosed Tubular Drag Chain Conveyor System. This innovative system is designed for vertical tube conveying of bulk materials and powders, providing a reliable and efficient solution for your material handling needs.

Frequently Asked Questions (FAQ)

What are the main conveying directions supported by the system?

The system supports continuous three-dimensional transportation, including horizontal, inclined, and vertical directions, allowing flexible layout integration in tight spaces.

What is the conveying capacity and distance capability?

Depending on the specific model selected (PC-80 to PC-200), the system can handle horizontal conveying distances up to 60 meters and vertical rises up to 40 meters. Refer to our technical parameter chart for detailed volumetric capacities (m³/h).

Is a dust collection system required at the discharge outlet?

No. The tubular drag chain conveyor operates in a fully enclosed and sealed environment from the inlet flange to the outlet flange, preventing dust escape and eliminating the need for complex dust collection apparatus.

Which industries and materials are best suited for this system?

It is highly effective for chemical, petrochemical, rubber, plastic, food, pharmaceutical, building, and power industries. It handles various powders, granular elements, and bulk raw materials safely and cleanly.

Are there any materials that this conveyor cannot handle?

Yes, this tubular drag conveyor is not suitable for transporting metal powders or highly abrasive particles that could cause excessive wear and tear on the chain and inner tubing.

What materials are the internal conveying discs made of?

The internal conveying discs are primarily manufactured from high-quality PP (Polypropylene) or PTFE (Polytetrafluoroethylene) depending on the chemical characteristics and temperature of the transported media.
