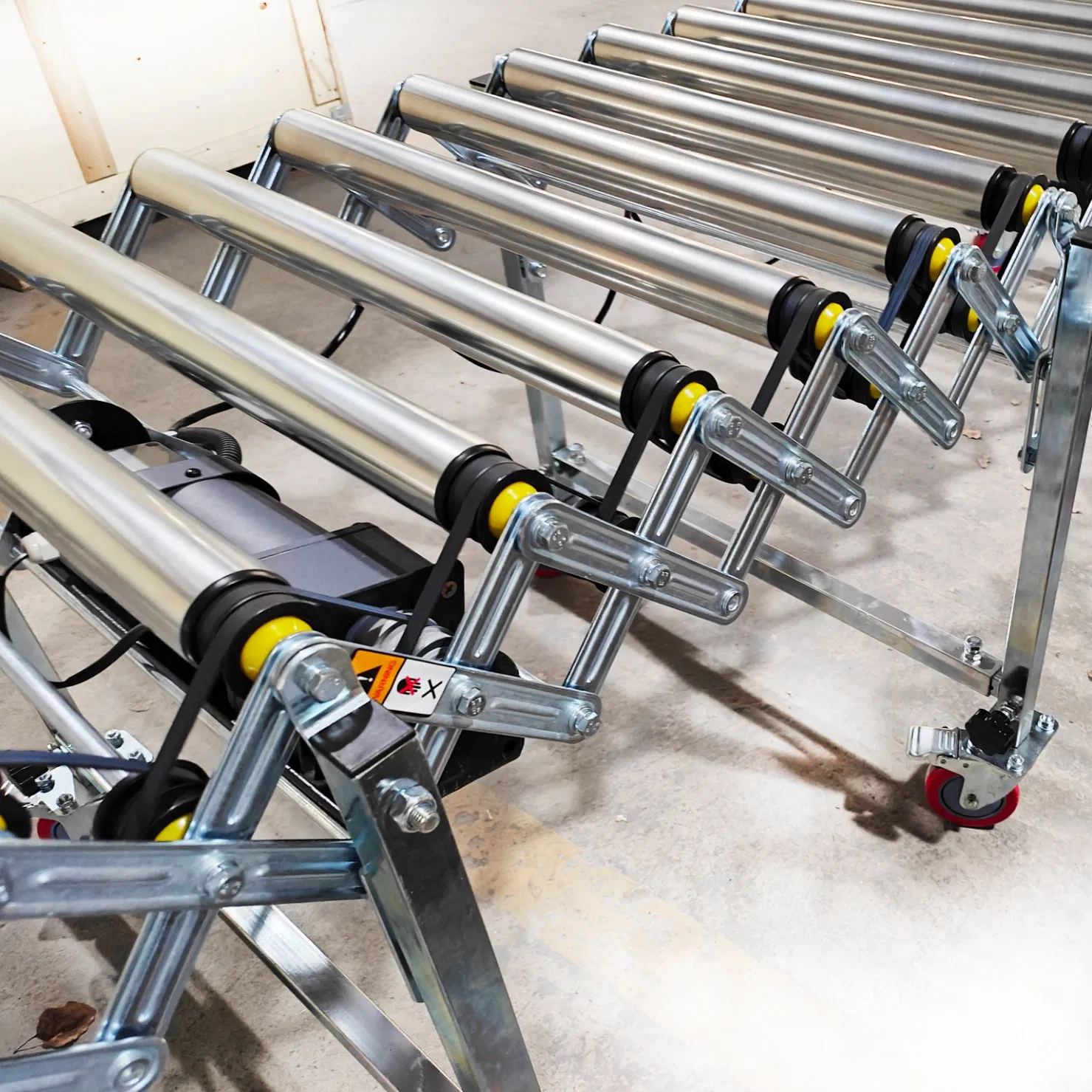

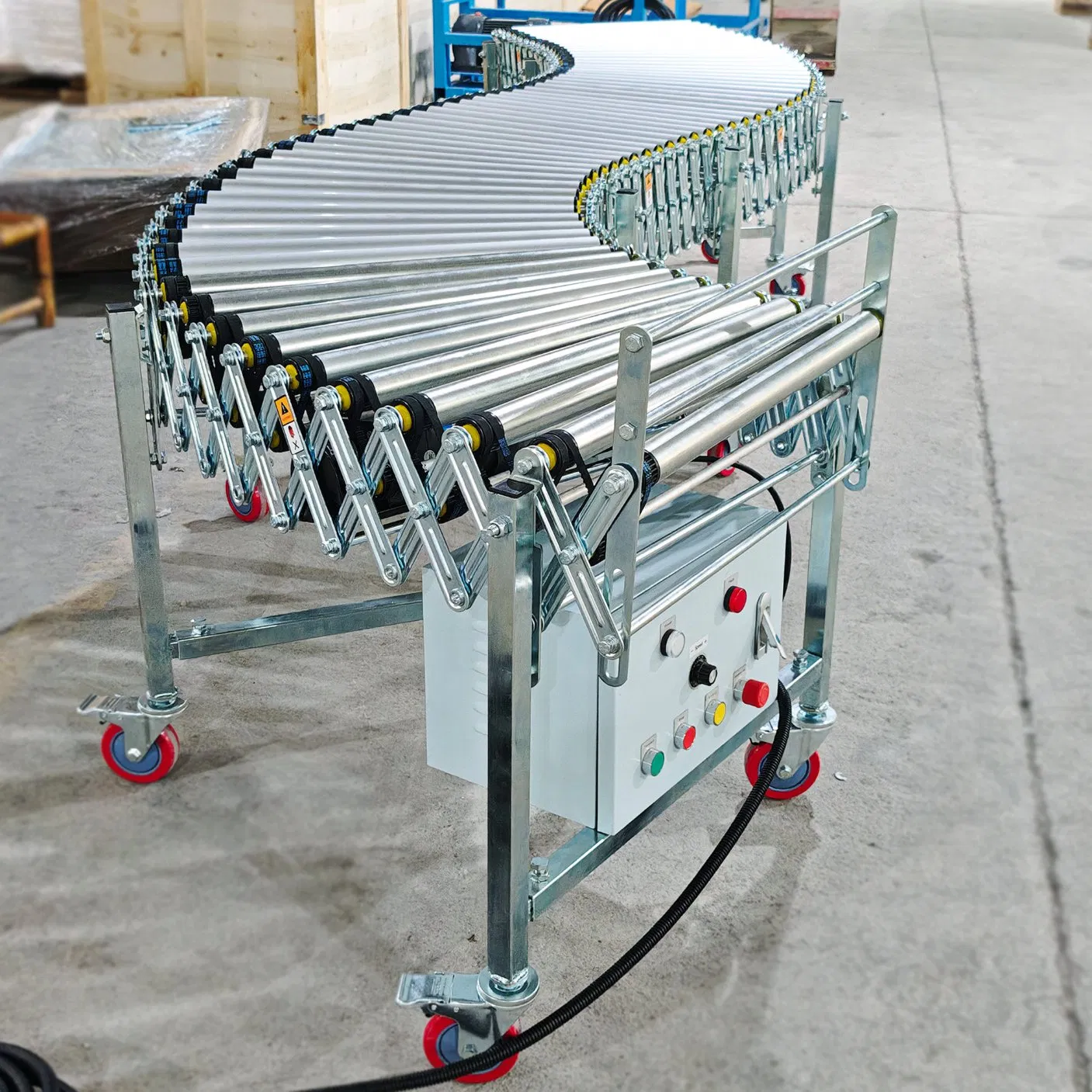

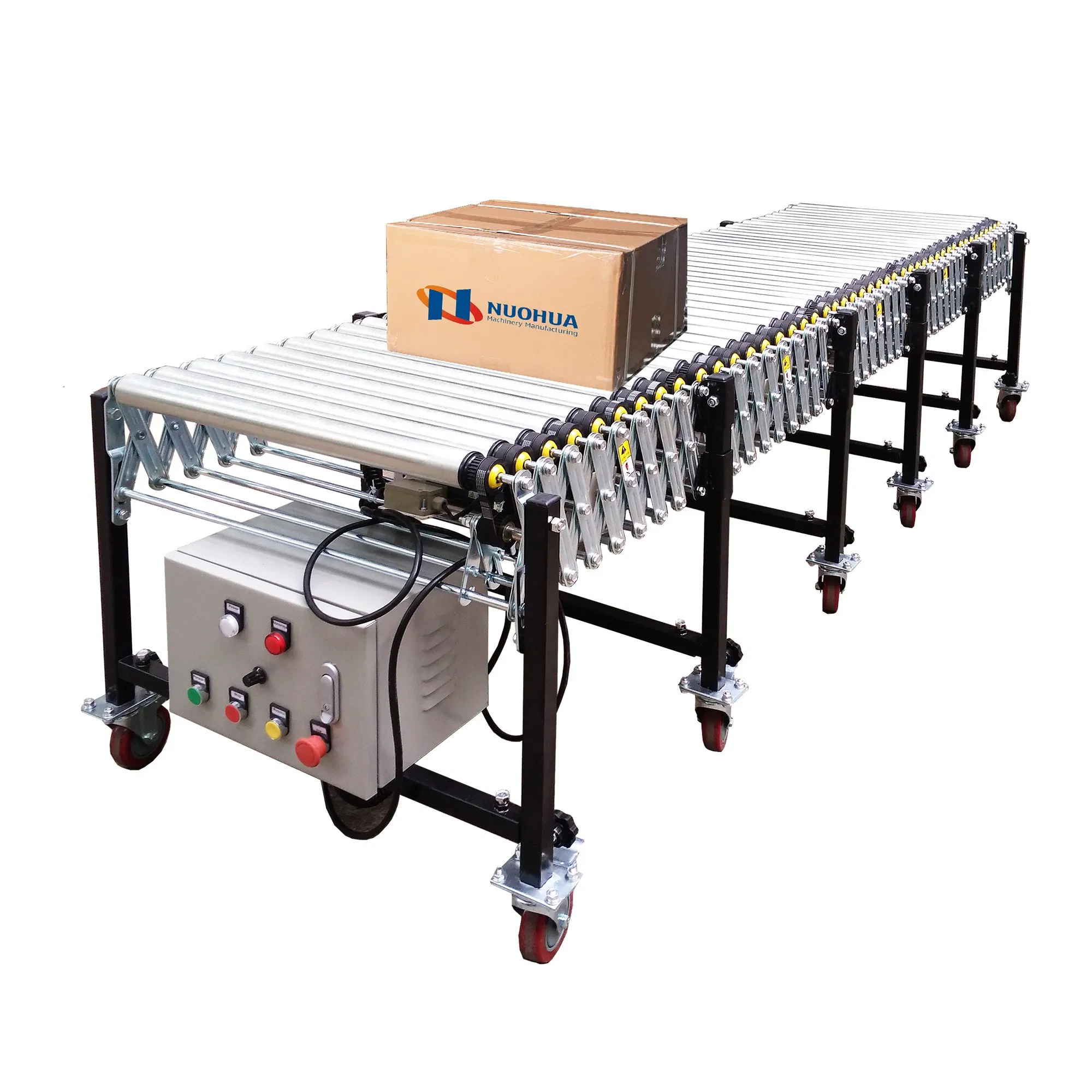

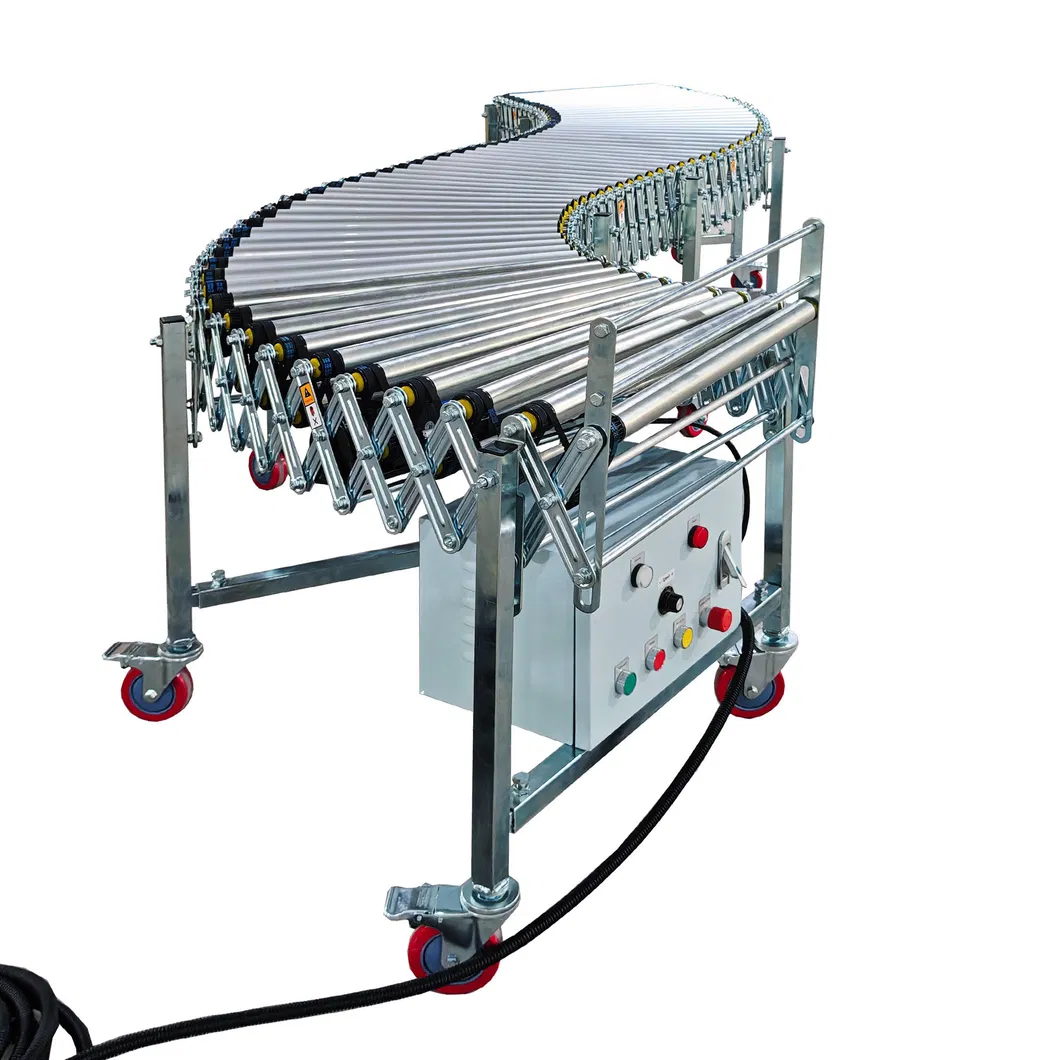

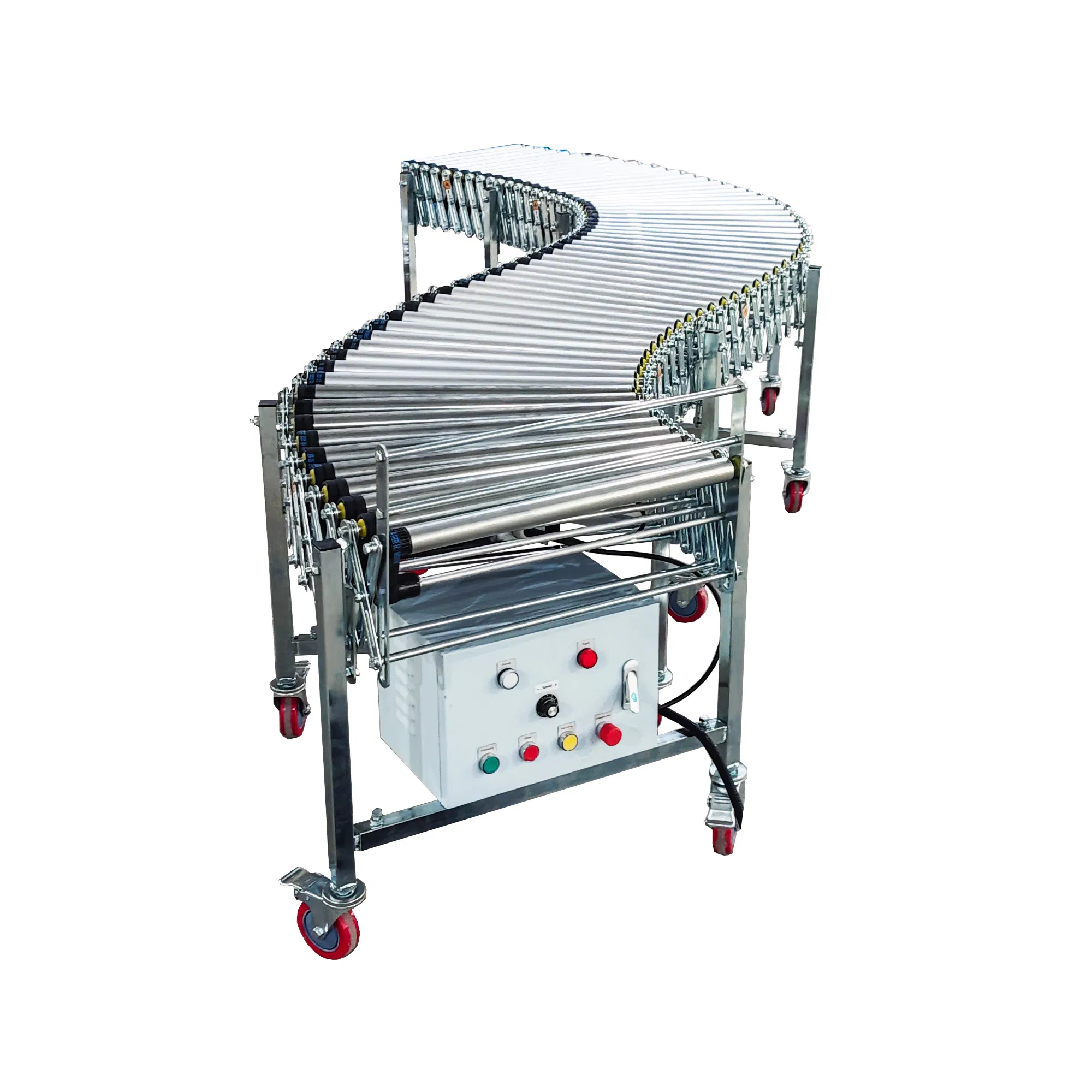

Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Product Parameters

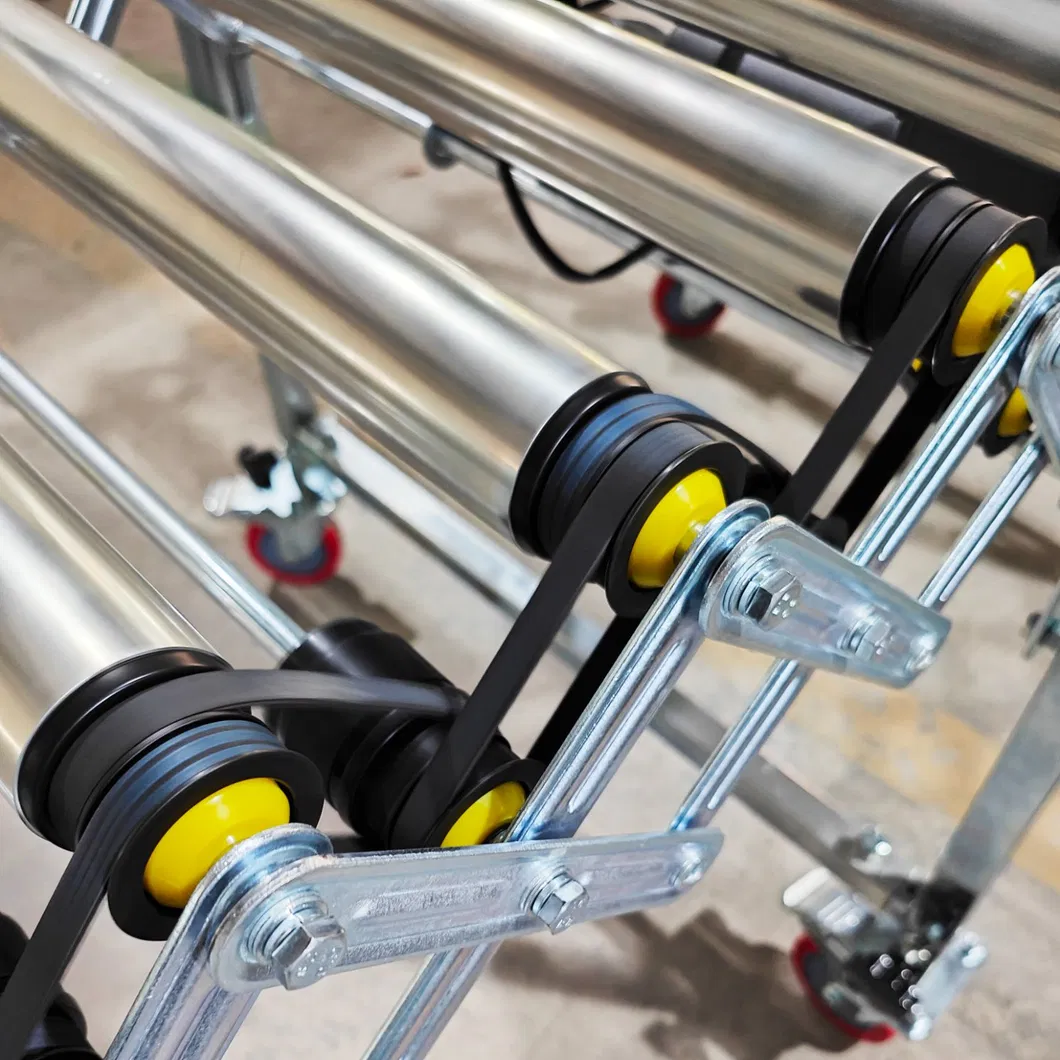

Belt
5mm high quality O ring PU belt
Roller

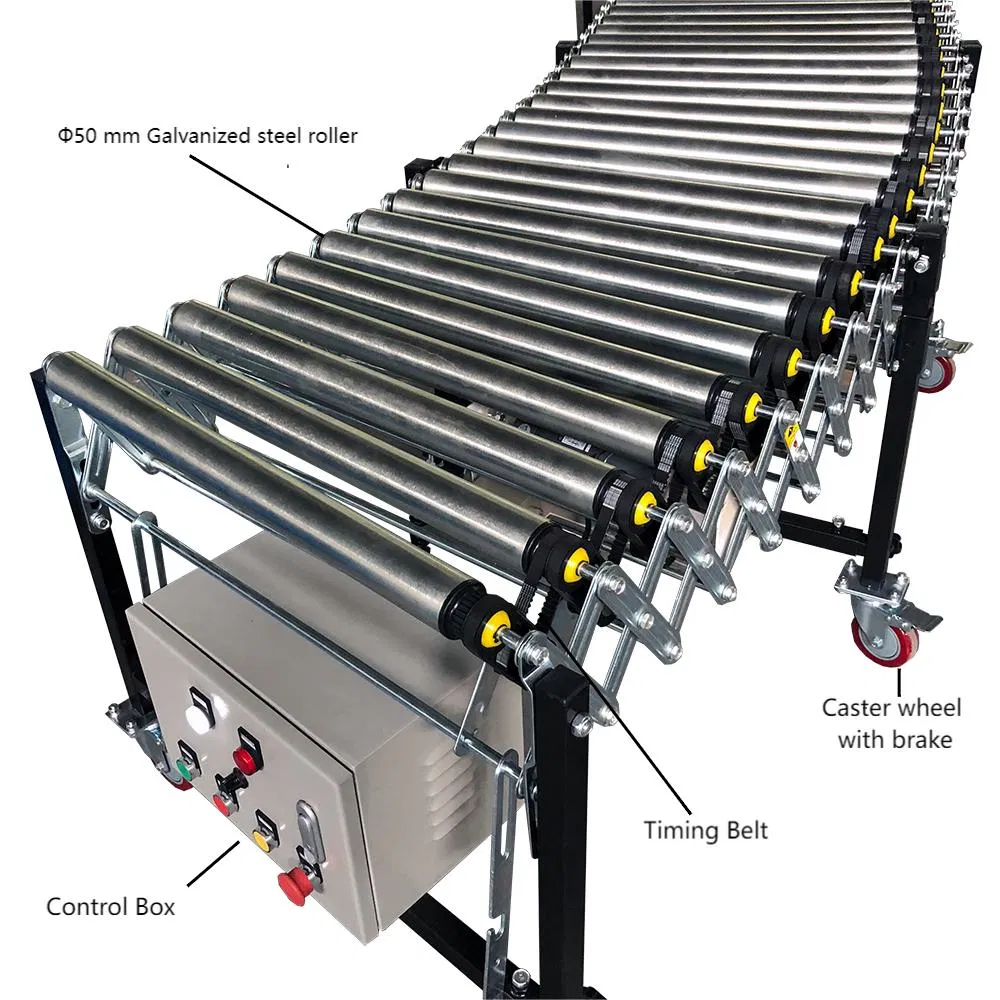

Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center
Motor
90W electronic governor motor
Frame

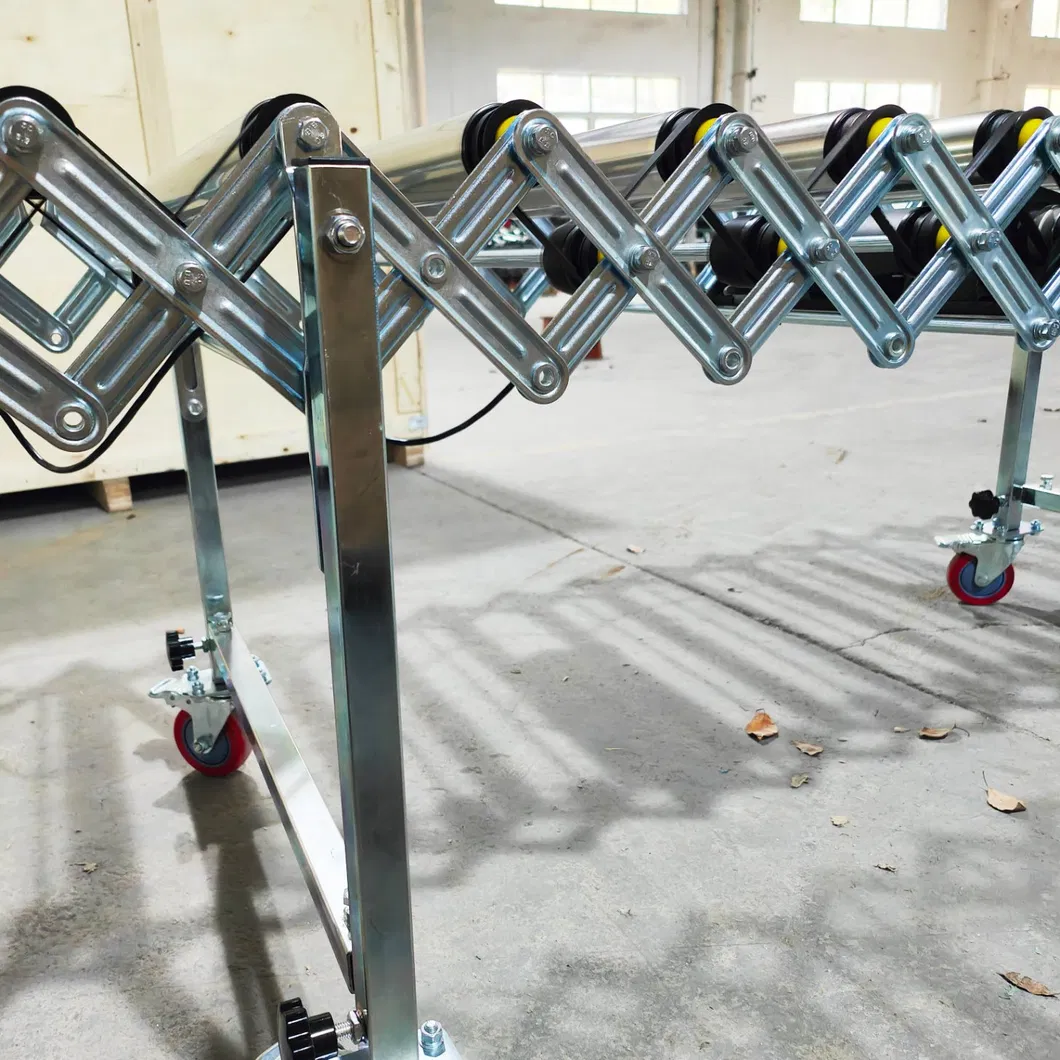

3.5mm thickness galvanized curved join plates with better load
Leg
32X32 powder coated tube with 25X25 galvanized tube inside
Caster
Dia 125mm high quality swivel lockable polyurethane casters

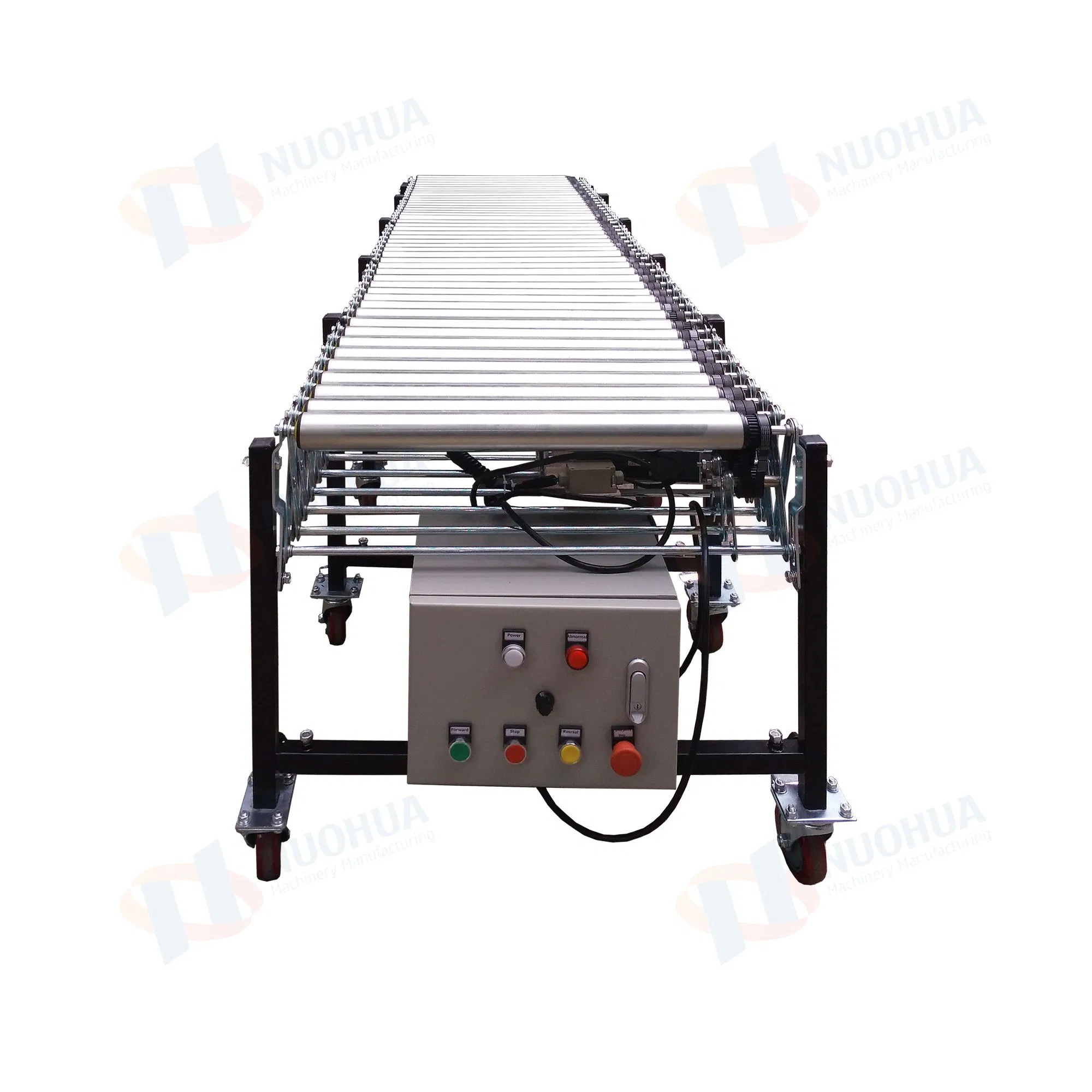

Control Box
Forward/Stop/Reverse
Frequency Inverter
Delta
Model List
Model
Open Length (mm)
Close Length (mm)
Width (mm)
Adj. Height (mm)
Speed (m/min)
Max Load (kg/m)
FPR-T4
4800
1840
600,700,800
700-1000
0-30
80
FPR-T6
6000
2300
600,700,800
700-1000
0-30
80
FPR-T8
8400
3220
600,700,800
700-1000
0-30
80
FPR-T12
12000
4600
600,700,800
700-1000
0-30
80
FPR-T20
20400
7820
600,700,800
700-1000
0-30
80
Frequently Asked Questions
Q: Are you a professional manufacturer?
A: Yes, we are a professional manufacturer with over 15 years of expert experience in the field of conveyor systems and components.
Q: What is the typical delivery period?
A: For sample orders or small quantities, the delivery time is 3-7 days. For bulk production, it is typically around 20 days.
Q: How do you guarantee product quality?
A: We follow a strictly completed working system and procedures. Additionally, every machine undergoes a rigorous test run after production is finished to ensure performance.
Q: How long is the product warranty?
A: All our products come with a 1-year warranty period.
Q: What are your accepted payment terms?
A: We accept multiple payment methods including T/T, L/C, Western Union, PayPal, and MoneyGram.
Q: Can the conveyor height and speed be adjusted?
A: Yes, the supporting legs are height adjustable (700mm-1000mm), and the conveying speed is controllable from 0-30m/min via an electronic governor motor.
