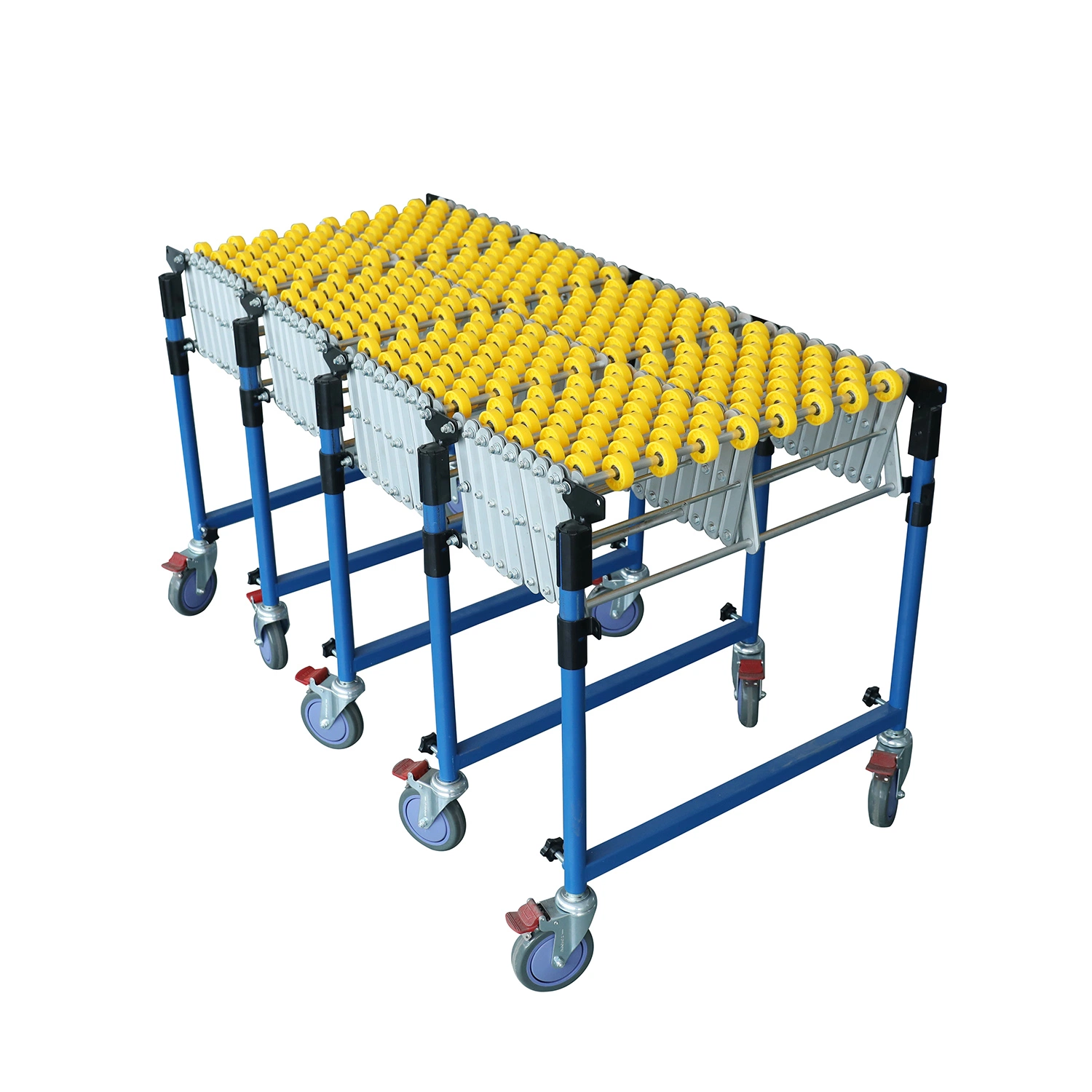

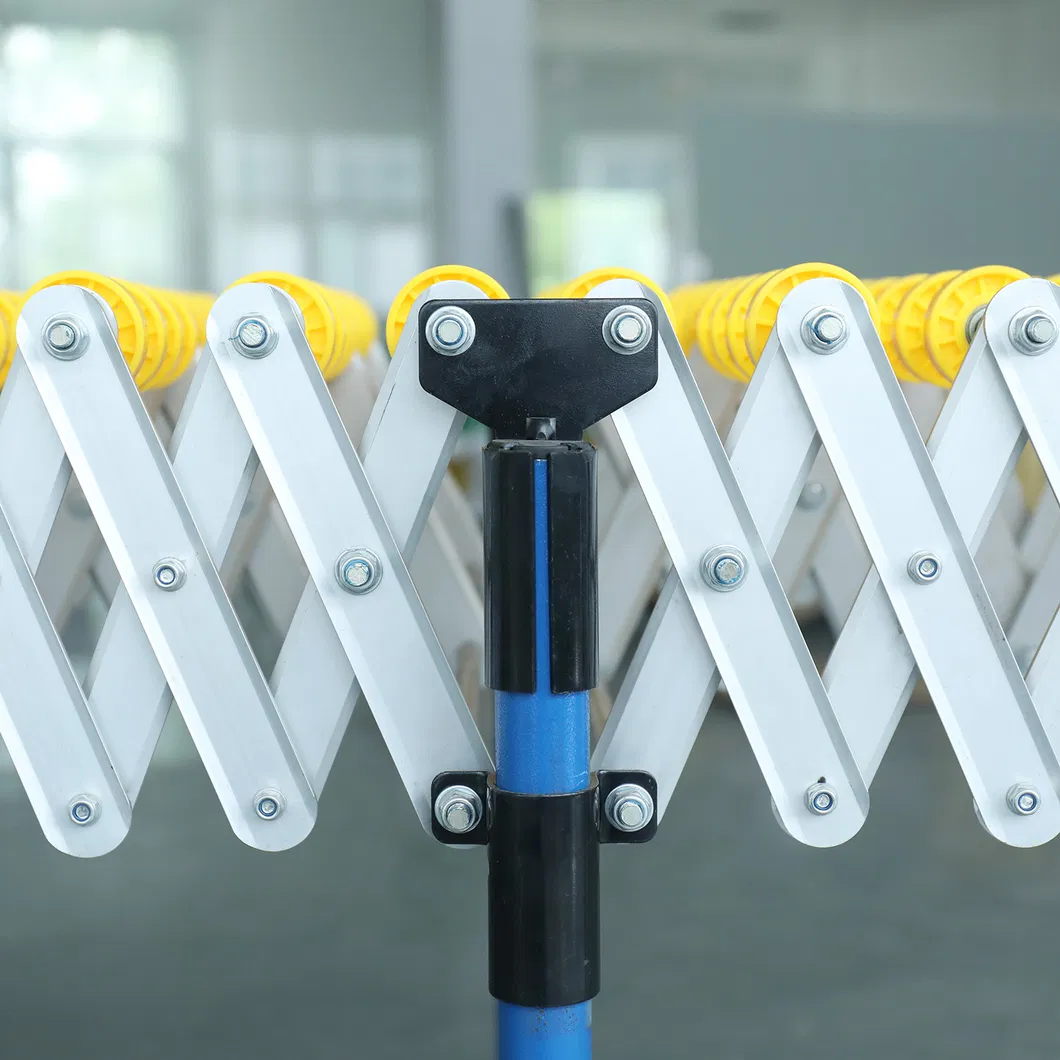

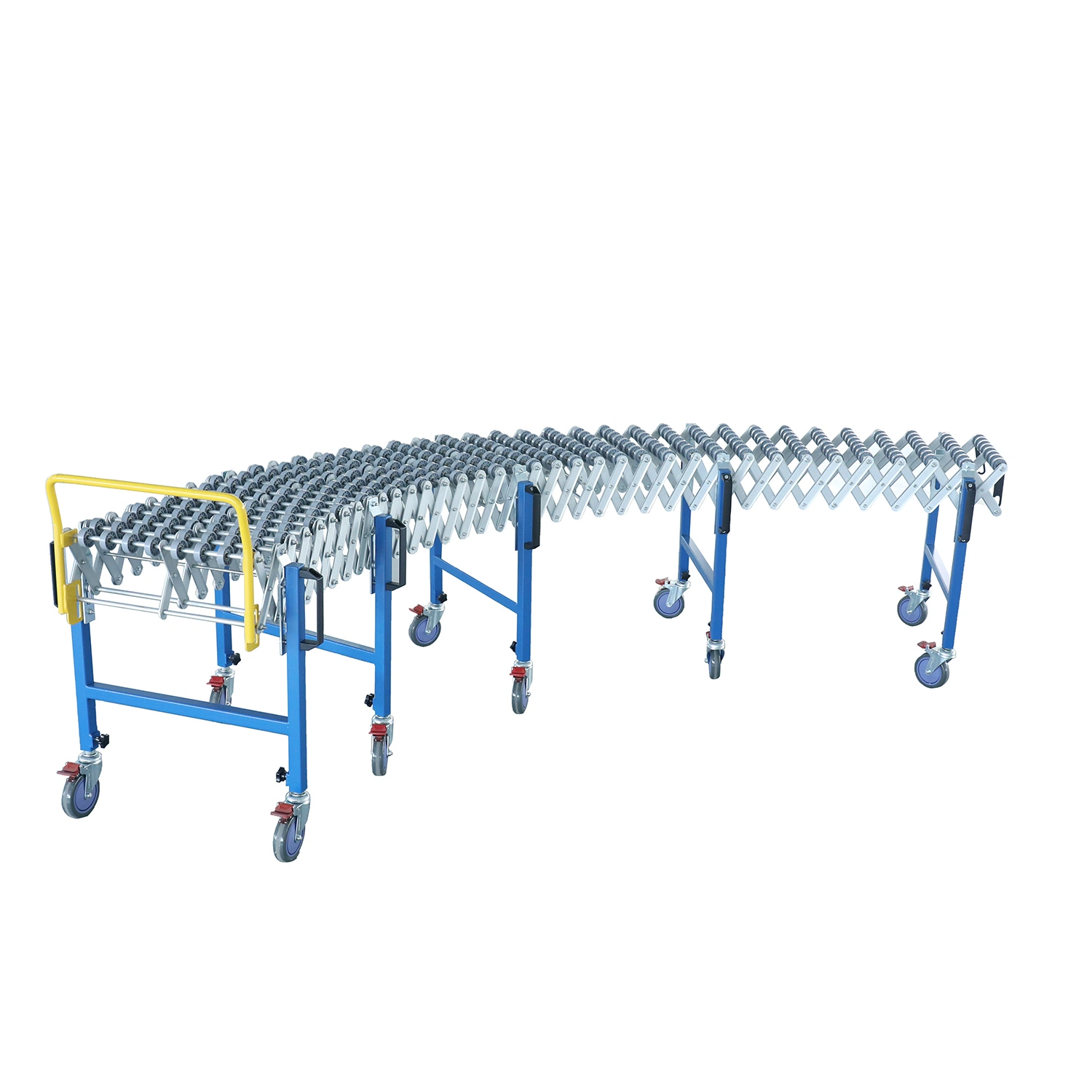

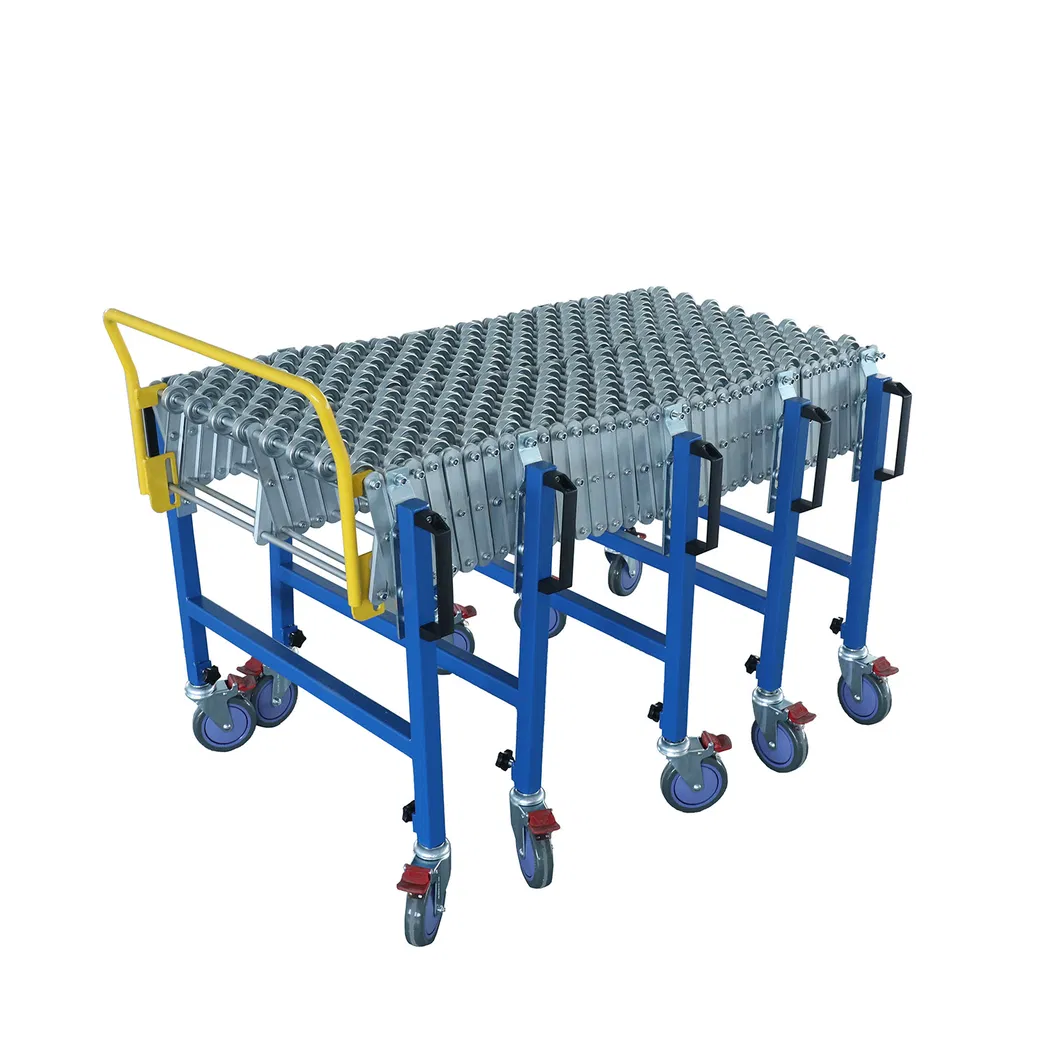

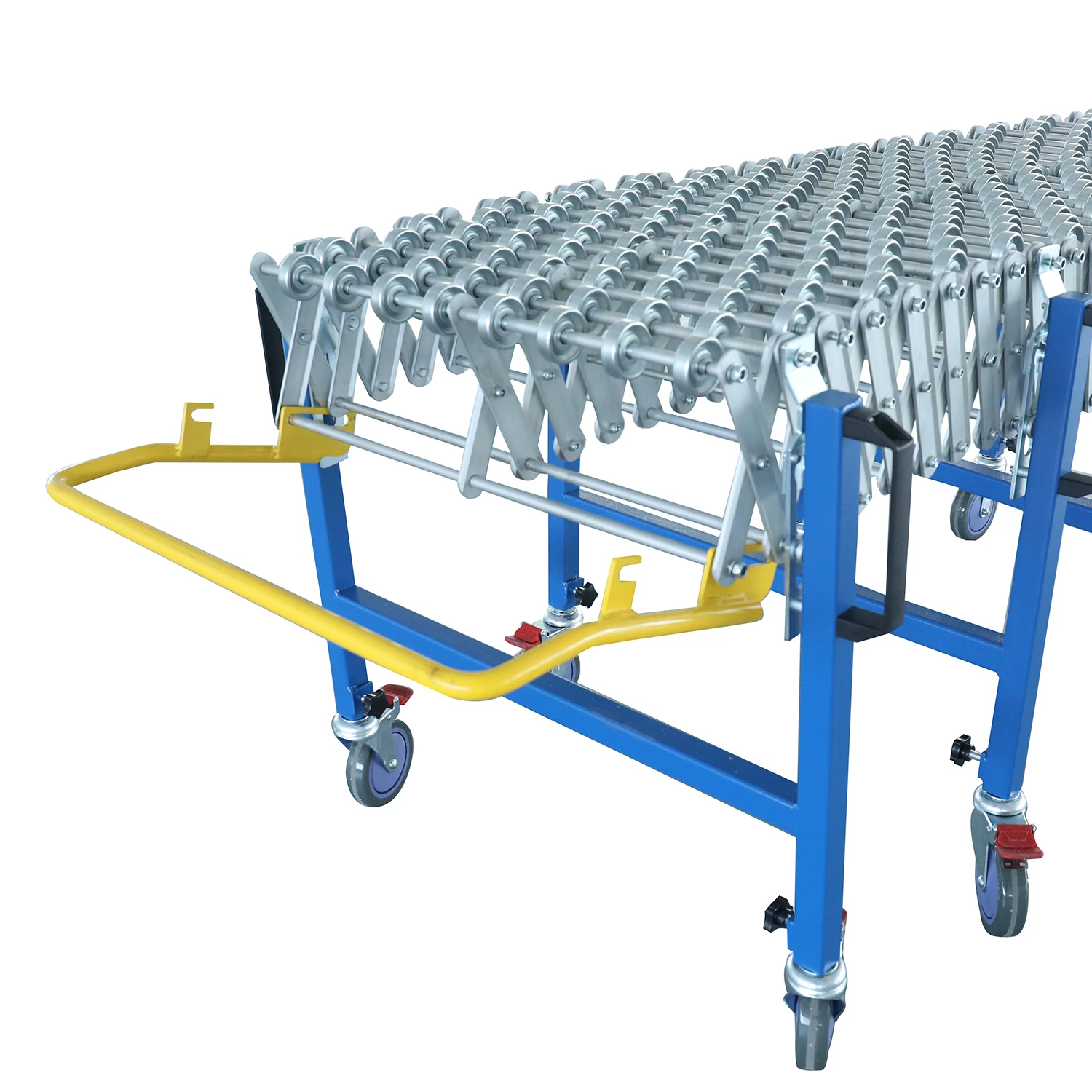

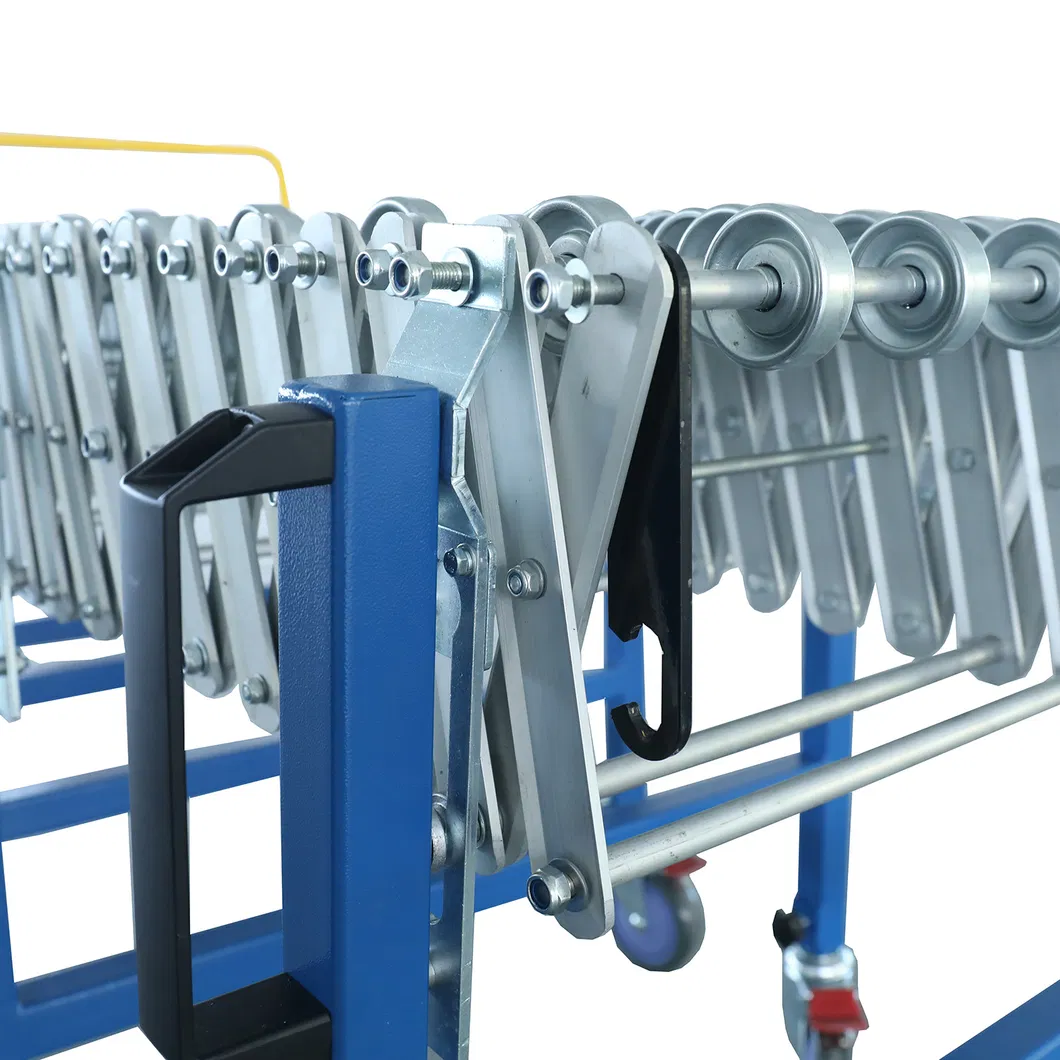

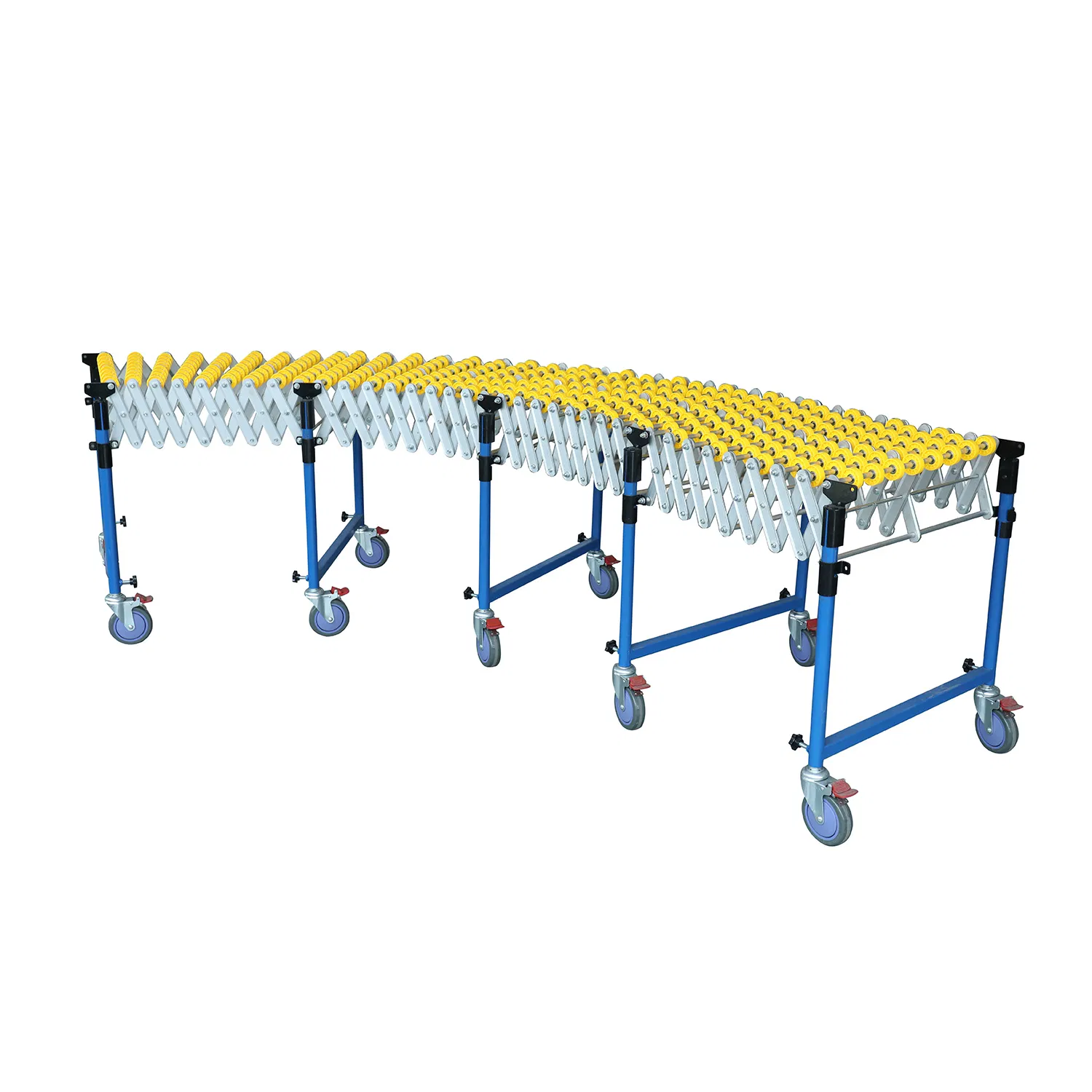

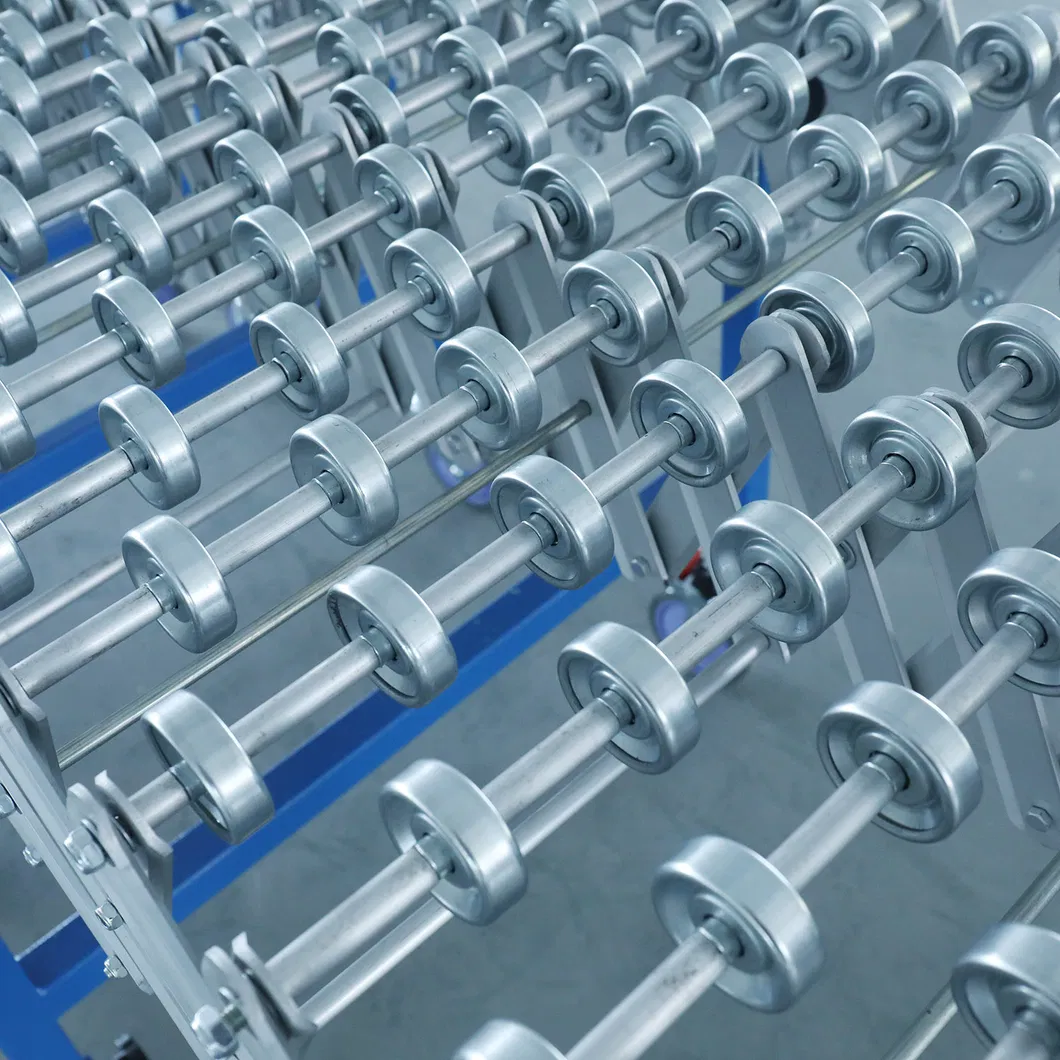

Flexible Skatewheel Conveyor Used to Transfer Pallet
A flexible conveyor is ideally suited for many roles from packaging and flexible assembly lines to loading and unloading of trucks and containers. The conveyor is easy to move around on heavy duty castors and simply compacts to a quarter of its size when not in use.
| Type | Load | Width | Wheel Dia. | Wheel Material |
|---|---|---|---|---|

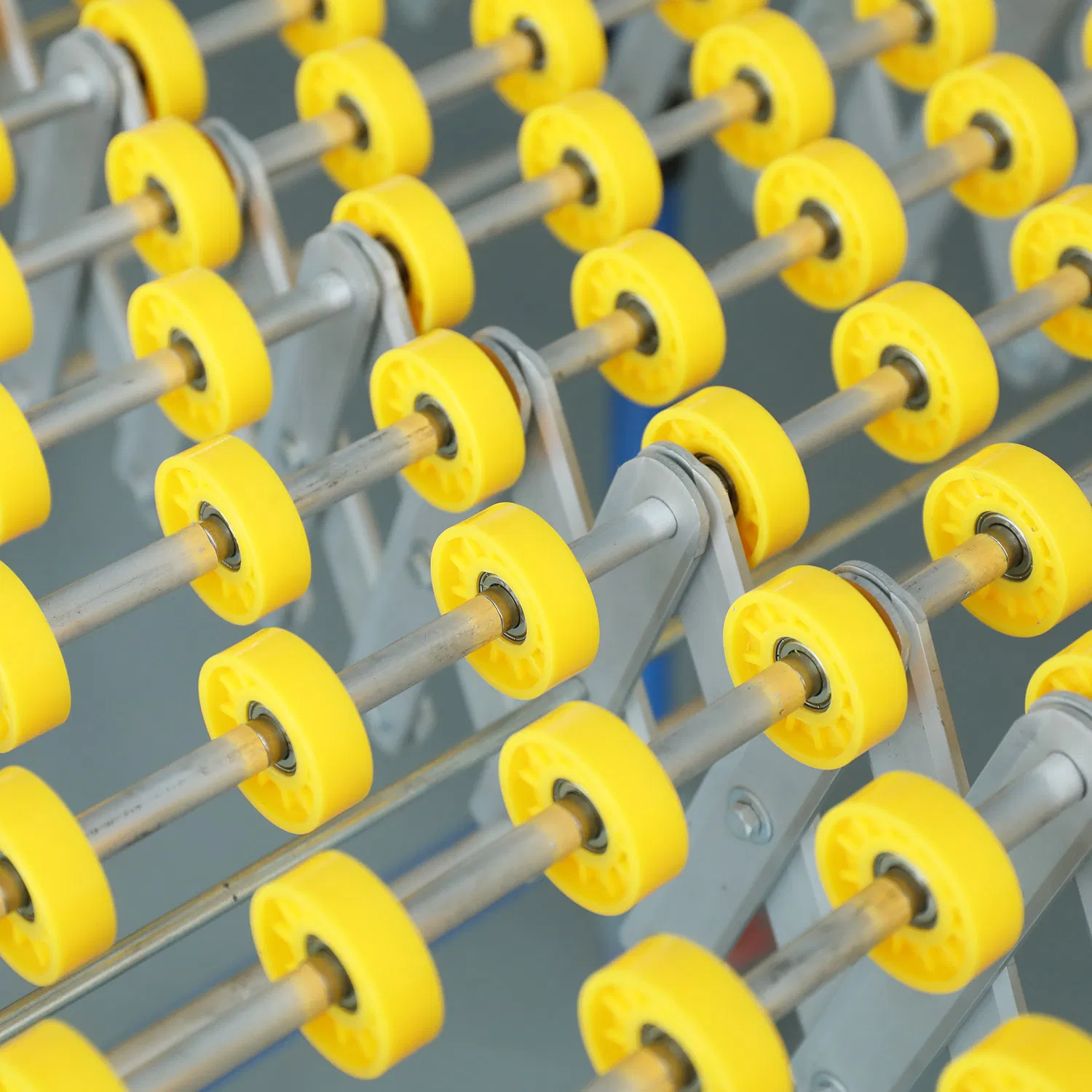

| Gravity Skatewheel | 70kg/unit | Standard 450, 500, 600mm | 48mm | Steel/Plastic |
| Type | Units | Length(L) | Width(W) | Height(H) | Capacity/Unit | Supports |
|---|---|---|---|---|---|---|
| FSC-48-1 | 1 | 490-1360 | 450/500/600/Custom | 800-1000 | 35kg | 2 |
| FSC-48-2 | 2 | 824-2360 | 3 | |||
| FSC-48-3 | 3 | 1149-3360 | 4 | |||
| FSC-48-4 | 4 | 1470-4360 | 5 | |||
| FSC-48-5 | 5 | 1799-5360 | 6 | |||
| FSC-48-6 | 6 | 2128-6360 | 7 |
* Please provide the weight and size of your conveying goods for customized engineering solutions.
Packaging Detail: Wooden box or carton packing.
Delivery Detail: Based on order quantity.
