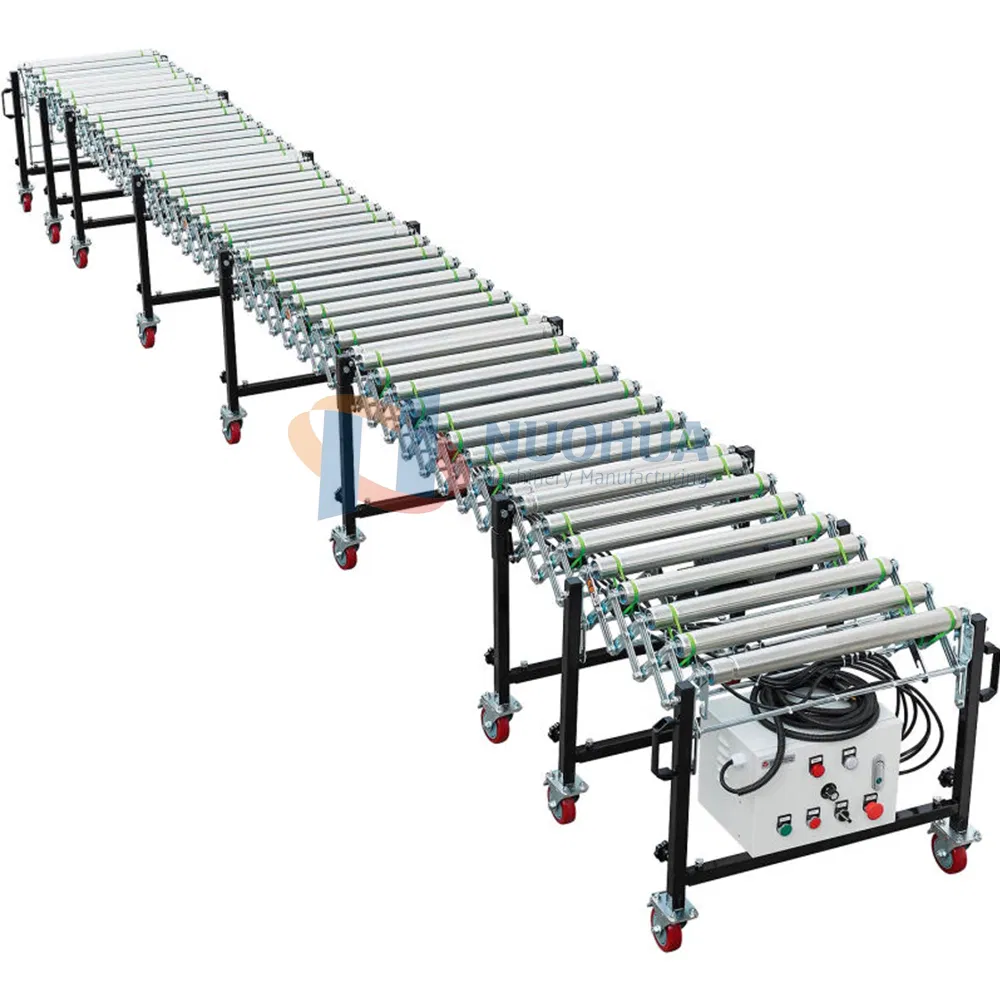

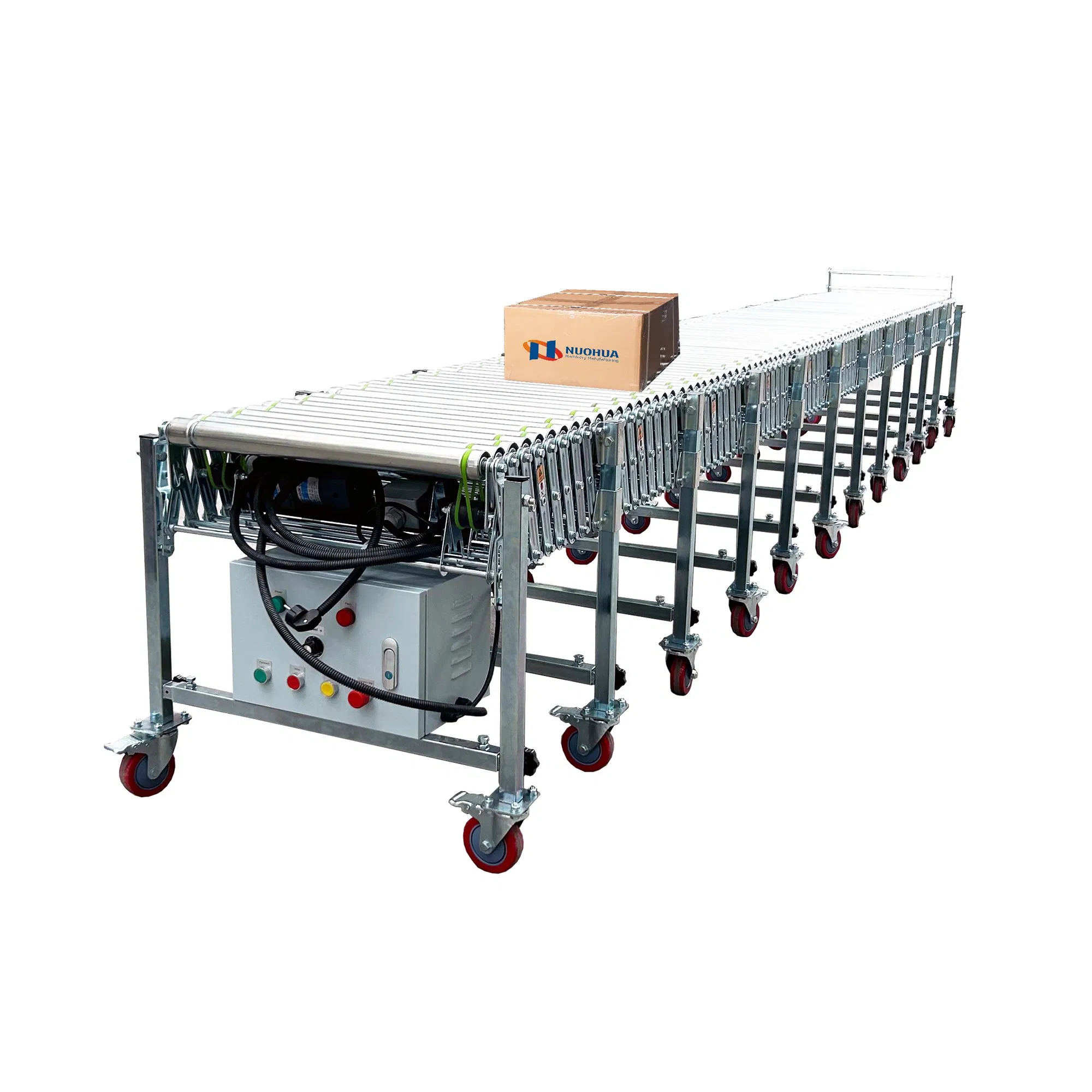

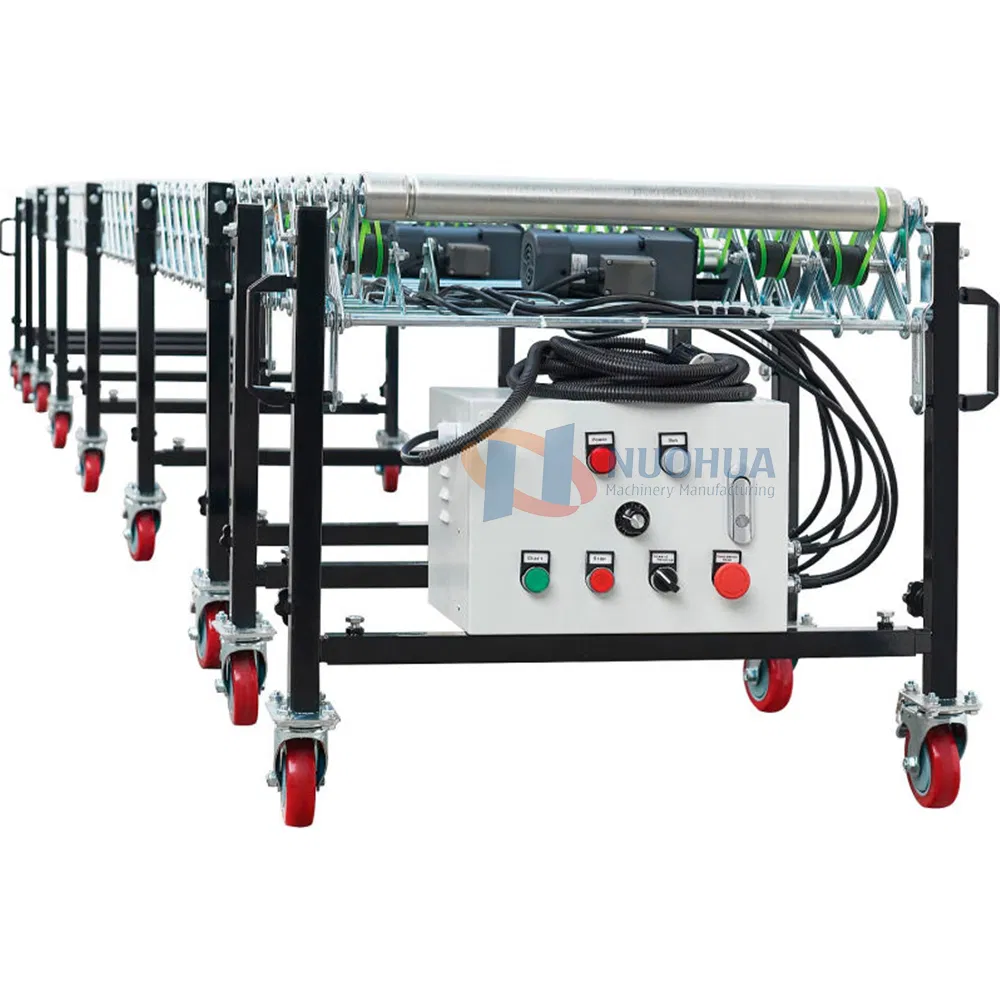

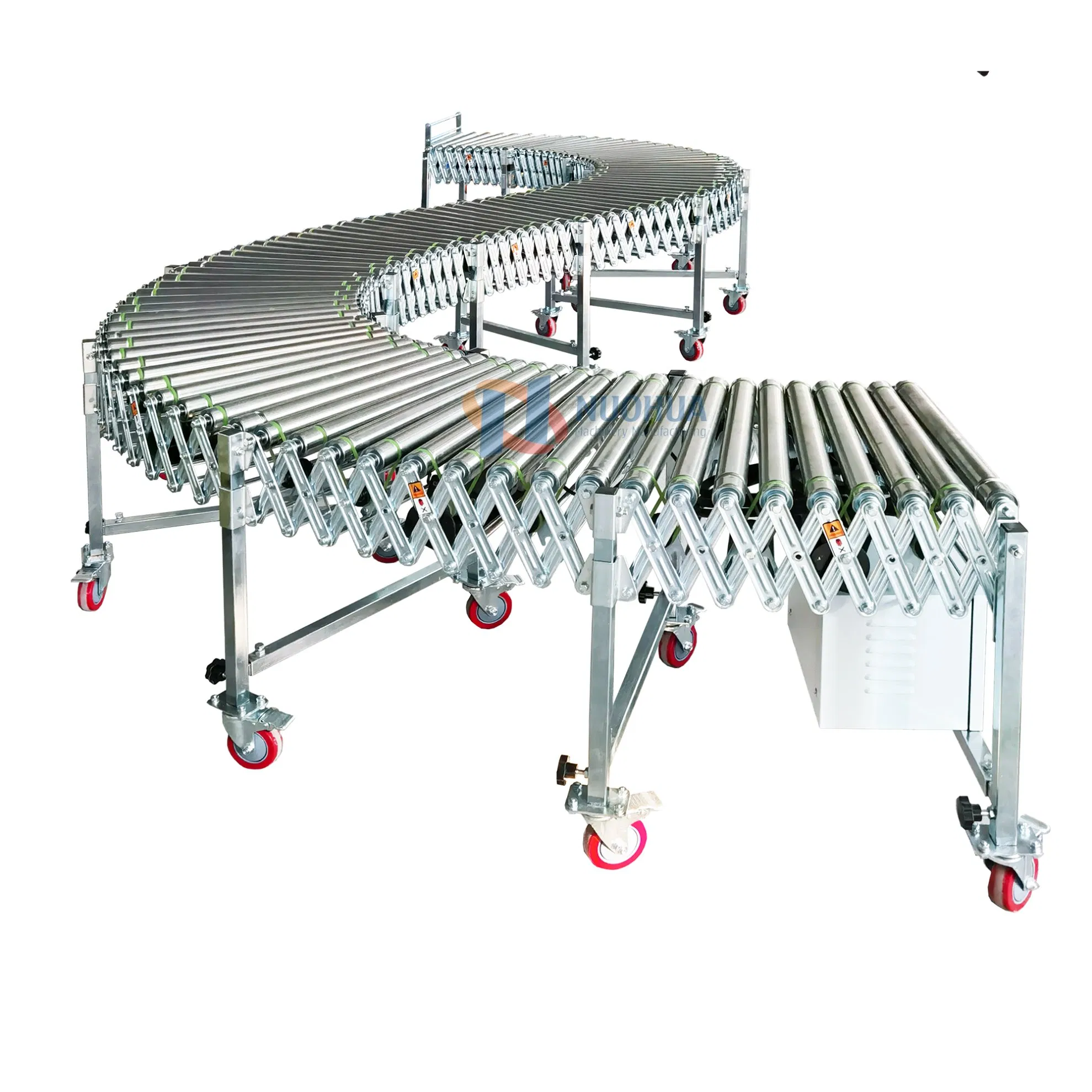

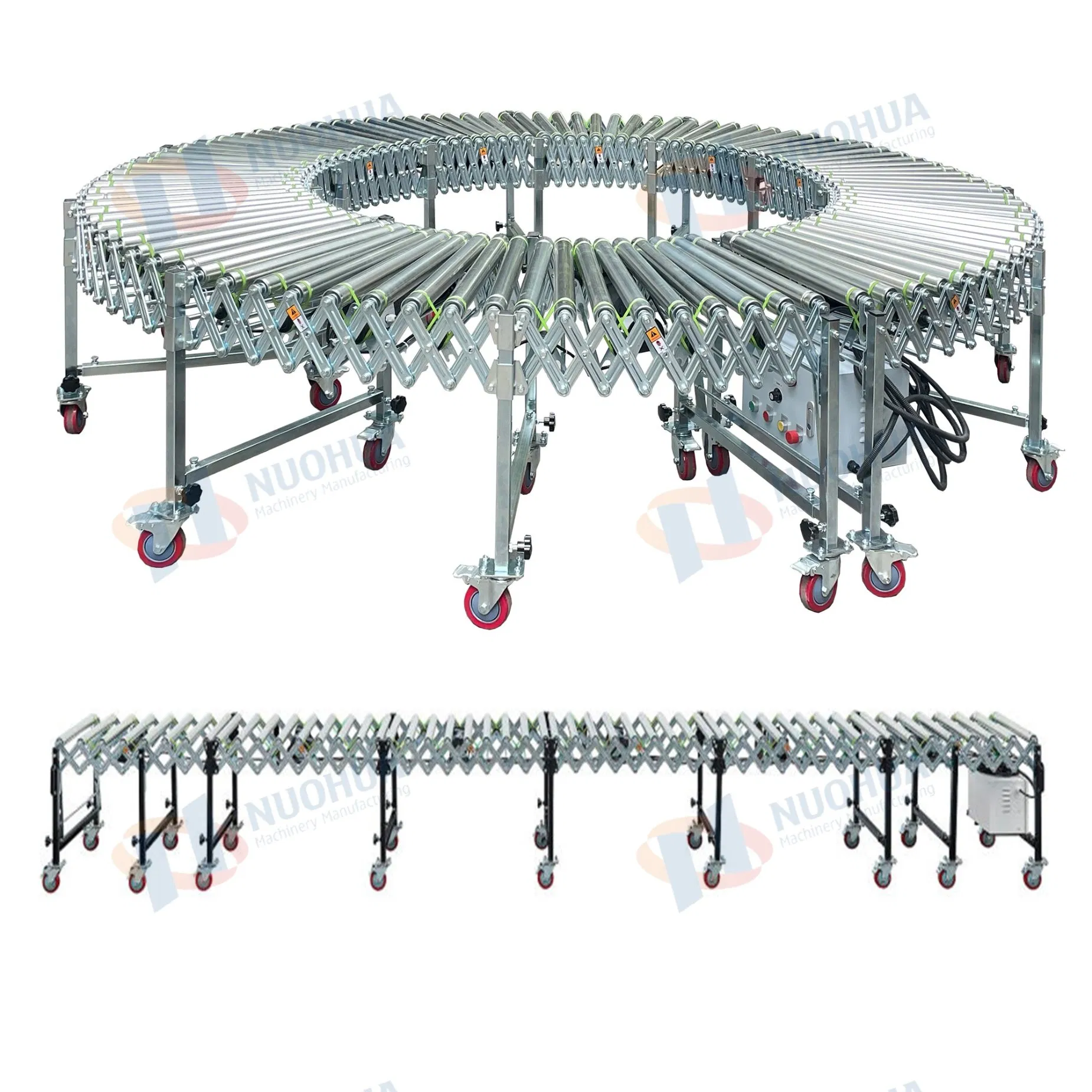

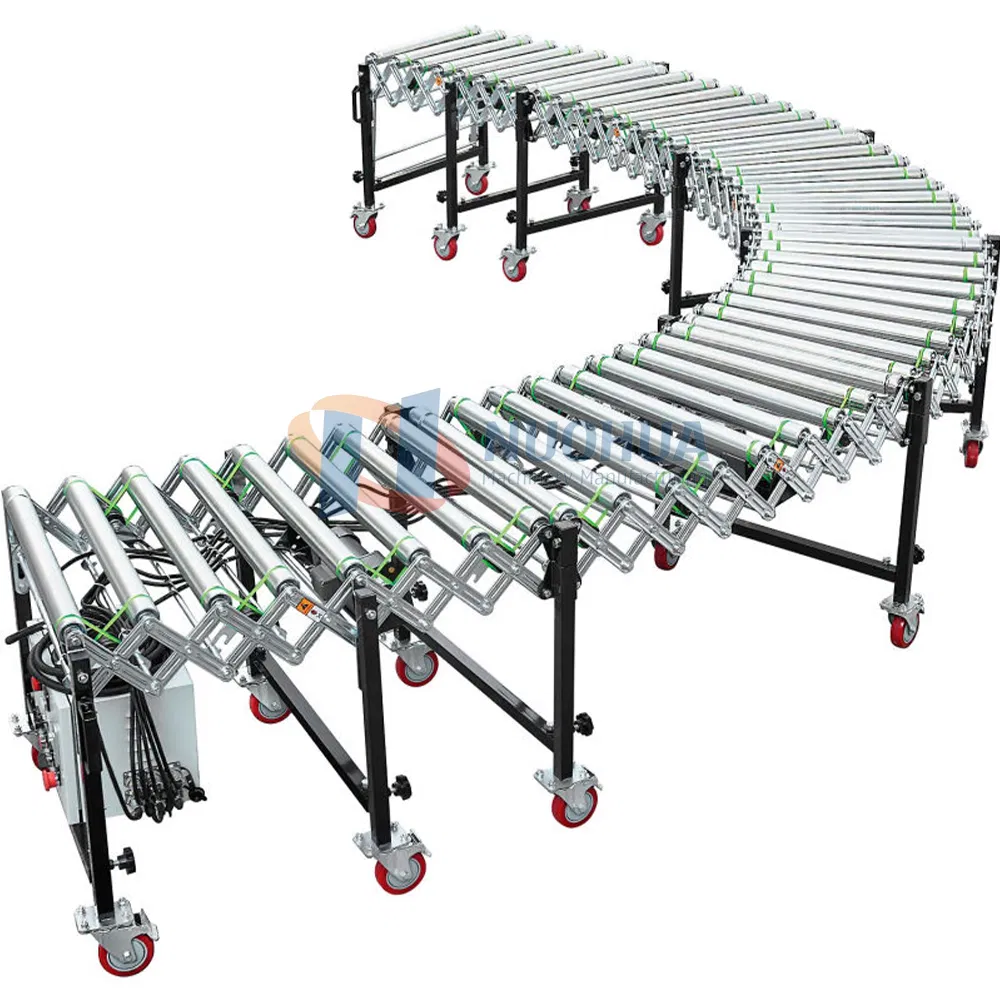

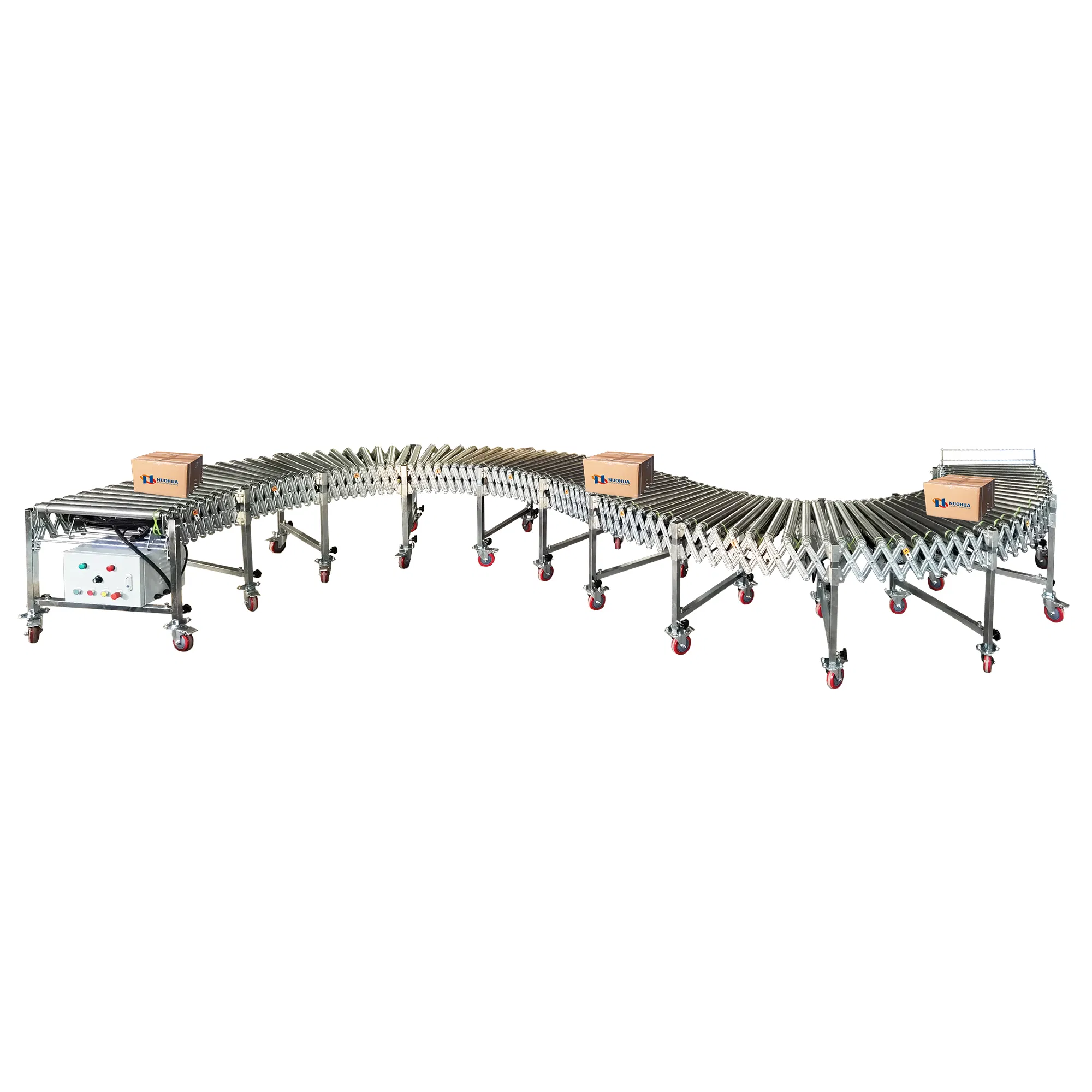

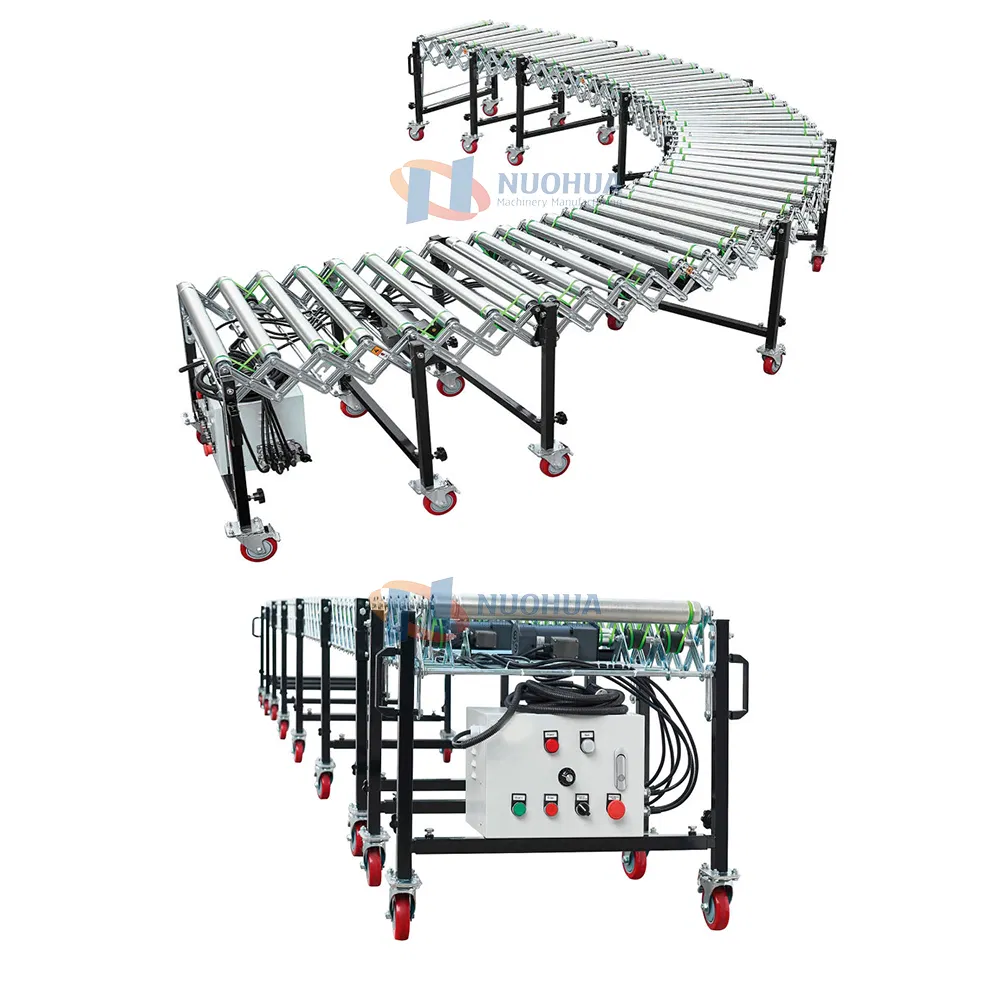

The Powered Roller Expandable Conveyor is an extendable powered automatic roller conveyor featuring controllable conveying speed & direction and adjustable supporting leg height. Equipped with an individual mini motor per section, it is perfectly qualified for intensive transport of goods, particularly those with flat bottoms, in warehouses, workshops, factories, and docks. It is an ideal solution for production-packing lines, temporary conveying lines, and goods distribution.
| Component | Specification |
|---|---|
| Belt | 5mm high quality O ring PU belt |

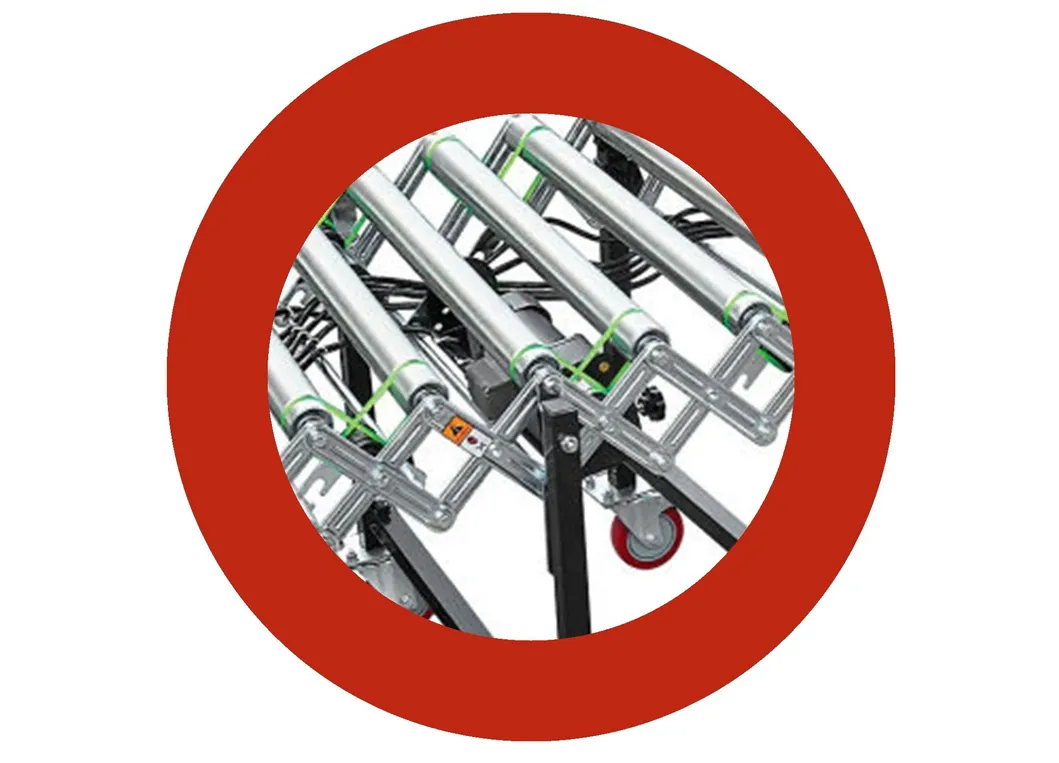

| Roller | Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center |
| Motor | 90W electronic governor motor |
| Frame | 3.5mm thickness galvanized curved join plates |
| Leg | 32X32 powder coated tube with 25X25 galvanized tube inside |

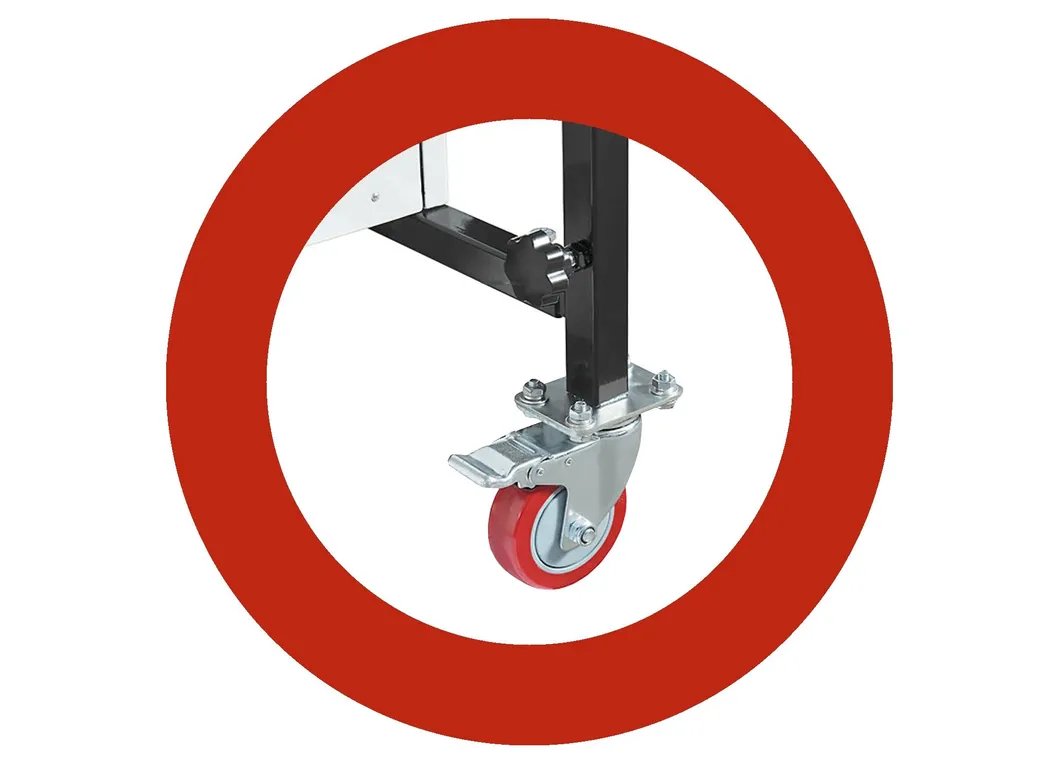

| Caster | Dia 125mm high quality swivel lockable polyurethane casters |
| Frequency Inverter | Delta |
| Model | Open Length (mm) | Width (mm) | Adj. Height (mm) | Speed (m/min) | Max Load (kg/m²) | Power (W) |
|---|---|---|---|---|---|---|
| FPR-O4 | 4800 | 600,700,800 | 600-800 | 10-20 | 50 | 360 |
| FPR-O6 | 6000 | 600,700,800 | 600-800 | 10-20 | 50 | 450 |
| FPR-O8 | 8400 | 600,700,800 | 600-800 | 10-20 | 50 | 630 |
| FPR-O10 | 10800 | 600,700,800 | 600-800 | 10-20 | 50 | 810 |
| FPR-O12 | 12000 | 600,700,800 | 600-800 | 10-20 | 50 | 900 |
| FPR-O16 | 16800 | 600,700,800 | 600-800 | 10-20 | 50 | 1260 |
| FPR-O20 | 20400 | 600,700,800 | 600-800 | 10-20 | 50 | 1530 |

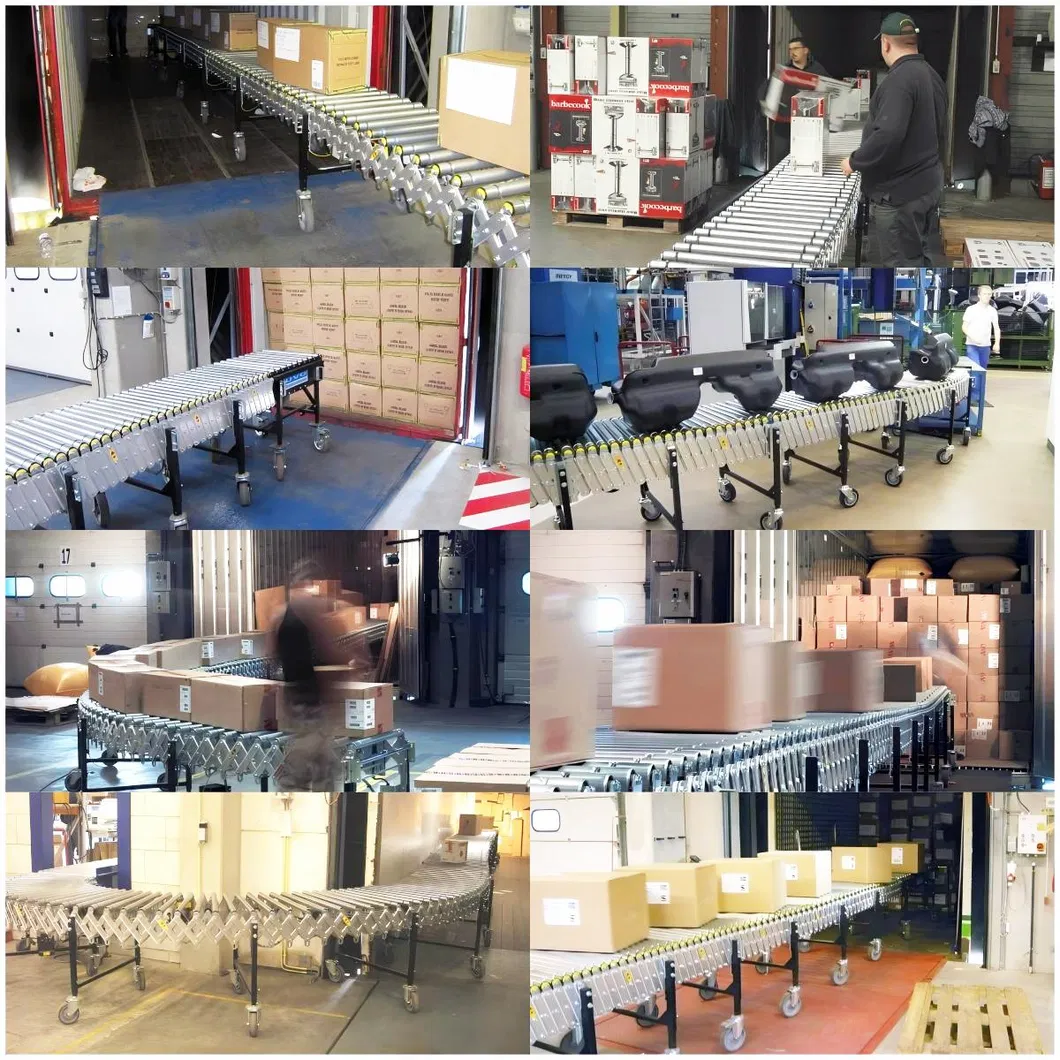

Perfect for vehicle loading and unloading, parcel distribution centres, machine-to-machine linking, and cross-docking applications. These conveyors can be easily moved in or out of trucks for faster, safer, and more efficient logistics operations.
