Product Description

📋  Basic Specifications
Model NO.
NH500FP
Installation
Horizontal
Width
500/600/800mm
Height
620-990mm
Load Capacity
300 kgs / m
HS Code
84313900

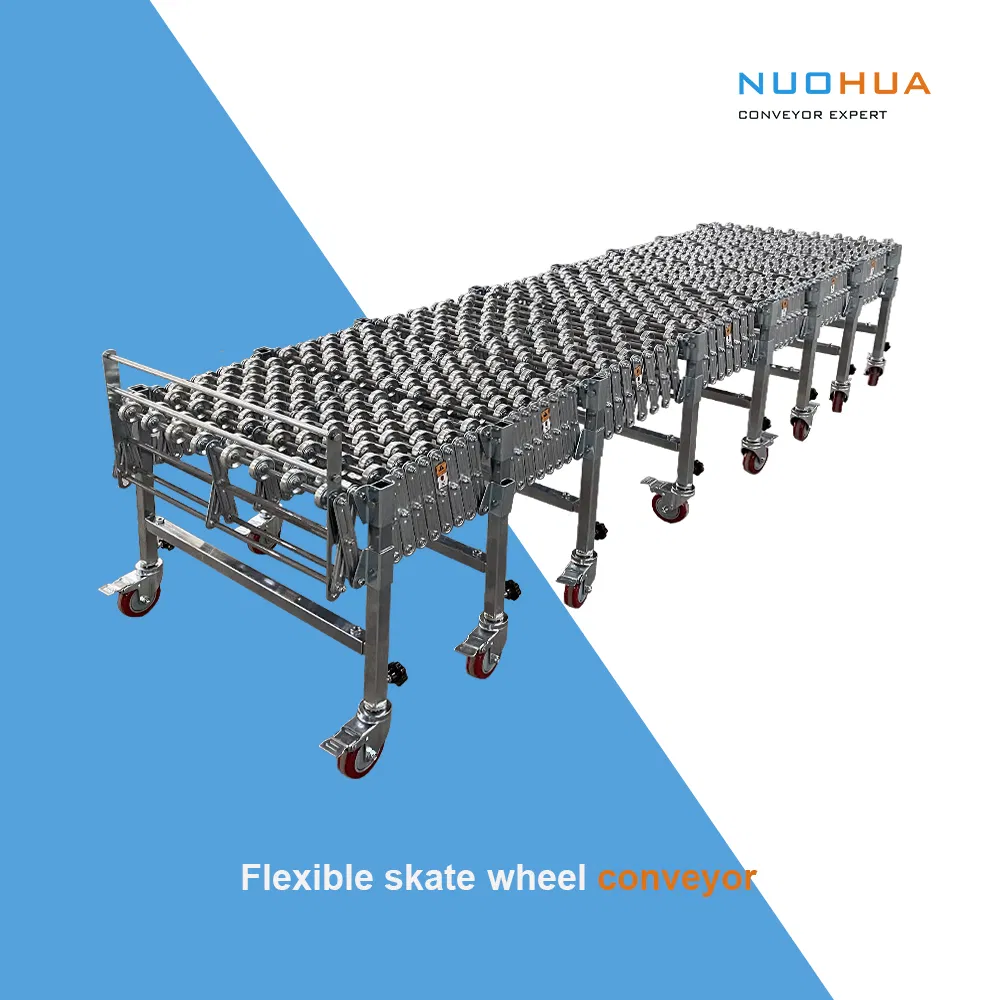

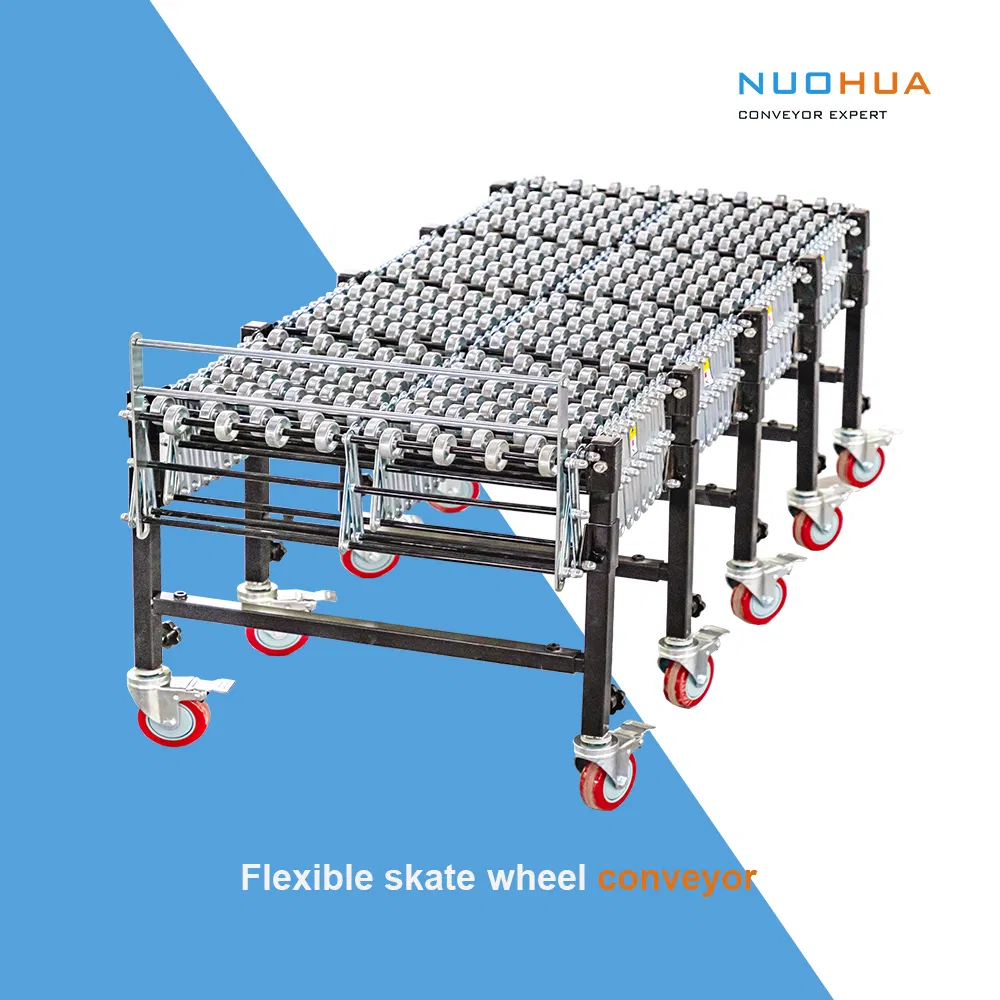

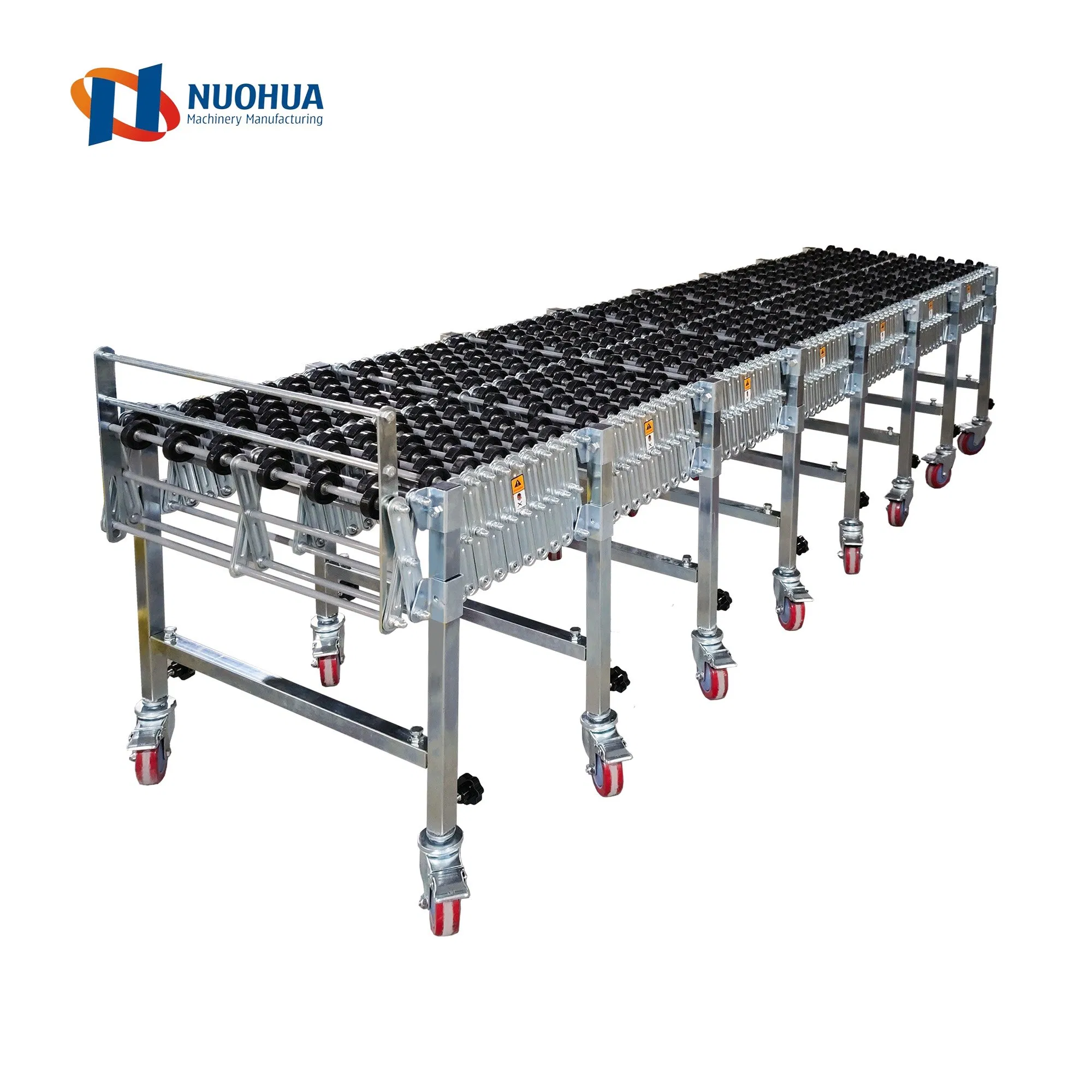

📦  Flexible Skate Wheel Conveyor

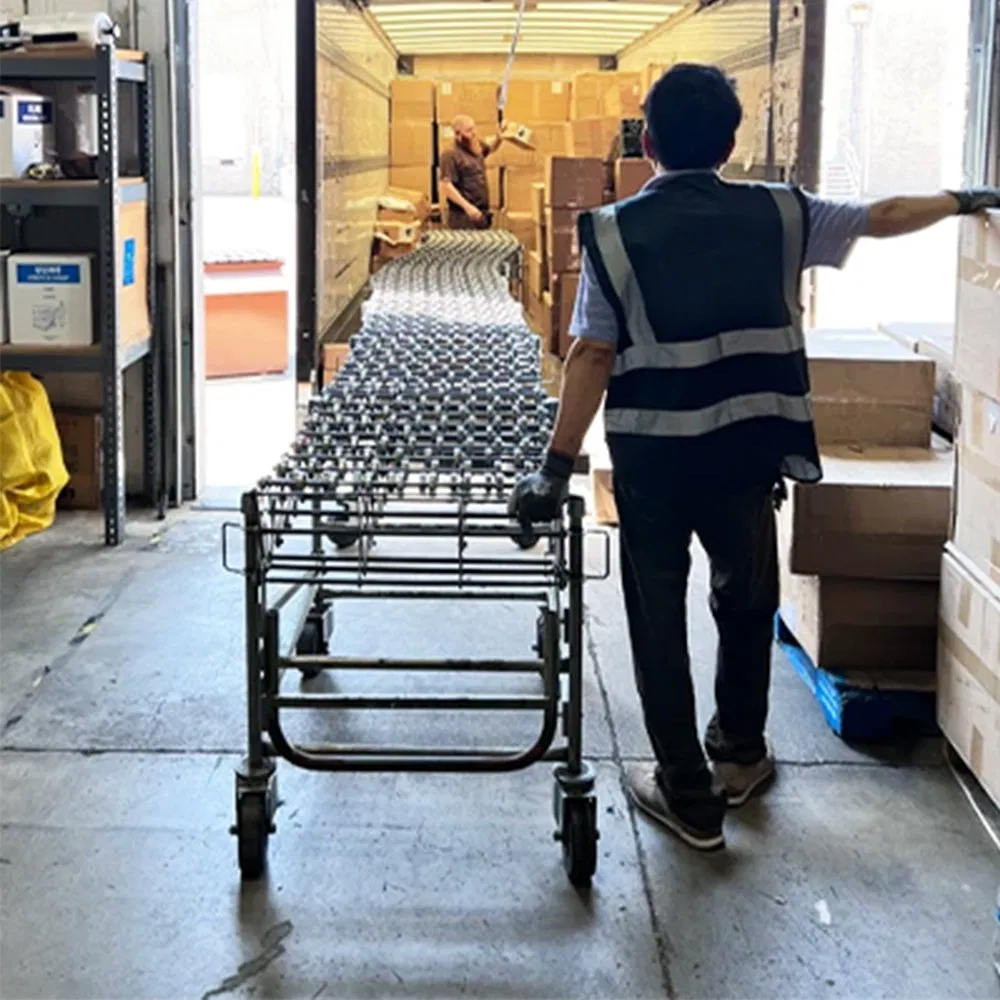

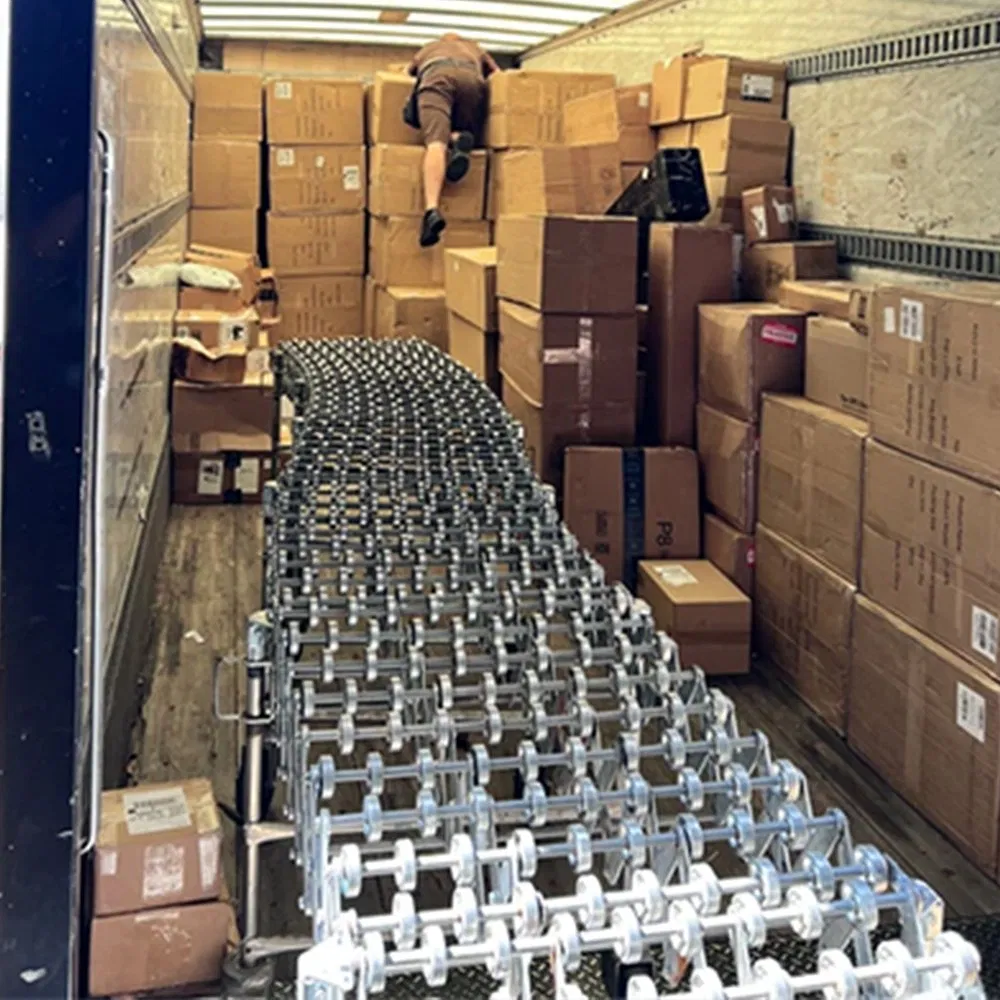

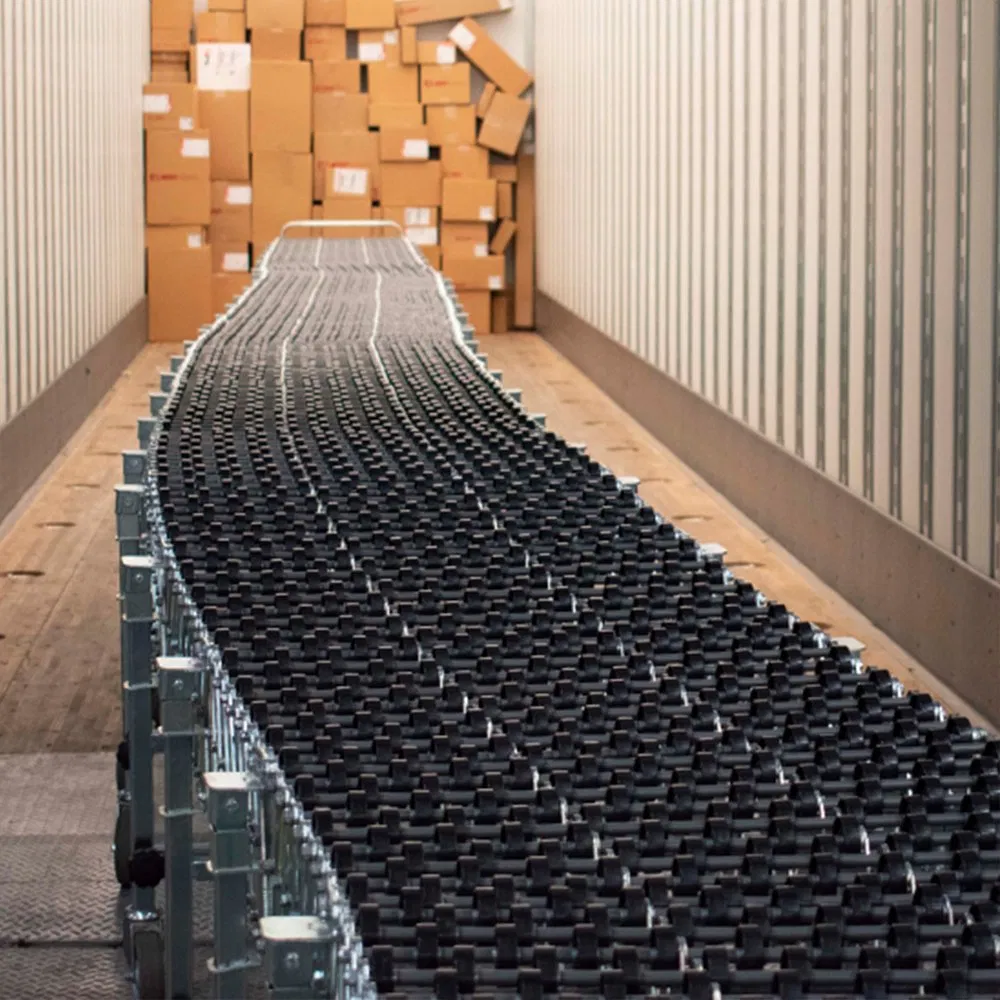

Flexible gravity conveyors offer an economical solution for loading items into a truck and unloading items from the truck. These conveyors easily expand to reach from within a store or from the end of a fixed conveyor to the front wall of the trailer. They can also gradually contract or expand as the trailer is filled or emptied for maximum efficiency and ergonomic benefit.
Skate Wheel Conveyor 1
Skate Wheel Conveyor 2
This unit is a self-tracking, gravity skate wheel conveyor that has a per linear foot capacity of 80kgs. Engineered to handle multi-sized cartons in low to medium volume applications, the all-steel construction provides unmatched structural integrity. Adjustable inner legs vary height to achieve optimal gravity flow.

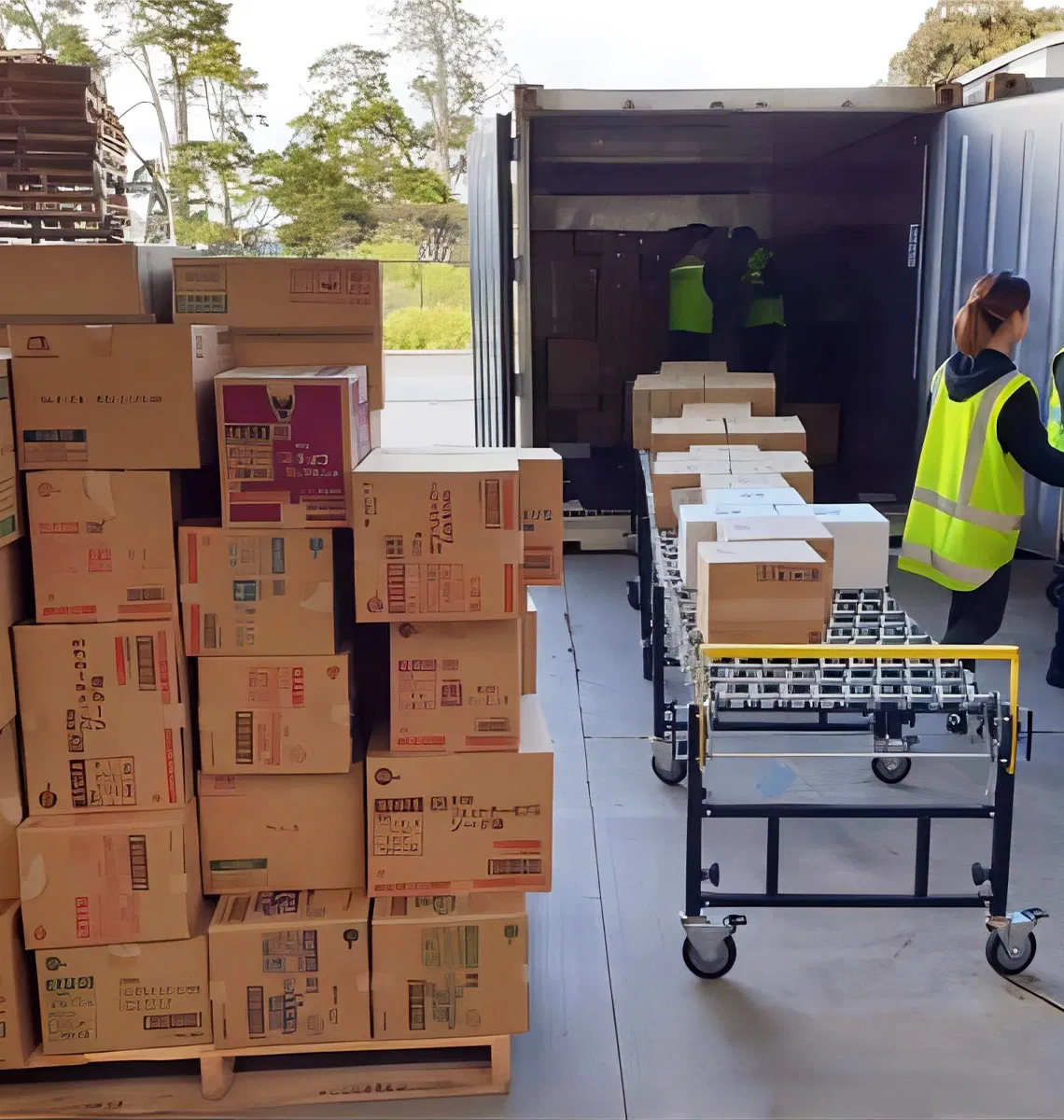

Application View

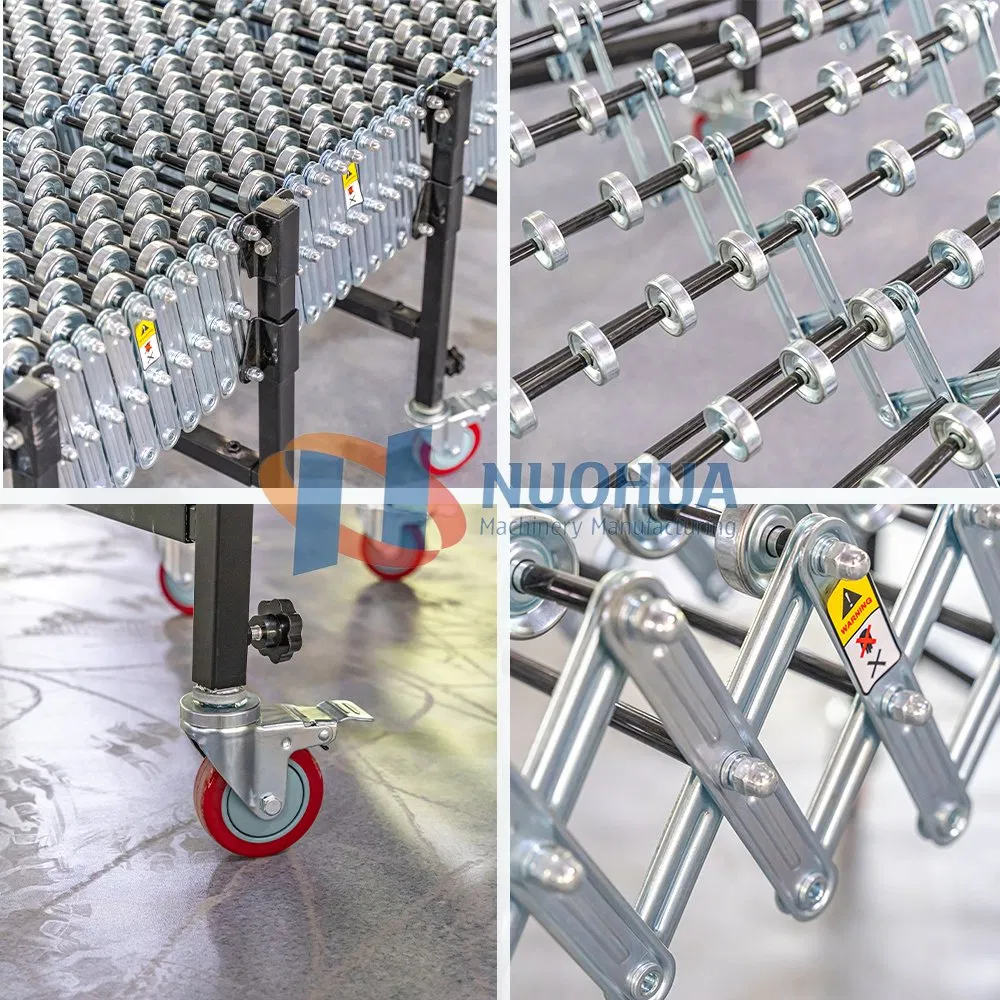

Detail View
⭐  Key Features
✓
Self-Tracking: Cartons follow the path of the conveyor without using engineered curves.
✓
Adjustable Height: Telescopic leg sections are used to raise or lower the conveyor height.
✓
Square Tubing Legs: Heavy-duty square tubing legs offer longer service life and stability.
✓
Side Plate: Carbon Steel construction features a ribbed design for added strength.
✓
Castors with Brakes: 4 inches swivel castors allow easy movement and secure positioning.
💡  Selection Guide
  • The flexible roller conveyors have a bigger load capacity than the standard flexible skate wheel conveyor.
  • Standard flexible skate wheel conveyors are more economical and ensure smoother movement for lightweight goods.
  • Items with uneven or open bottoms should be transported on rollers rather than wheels.
  • Typically, at least 3 skate wheel lines must be beneath the load at any time for easy rolling.

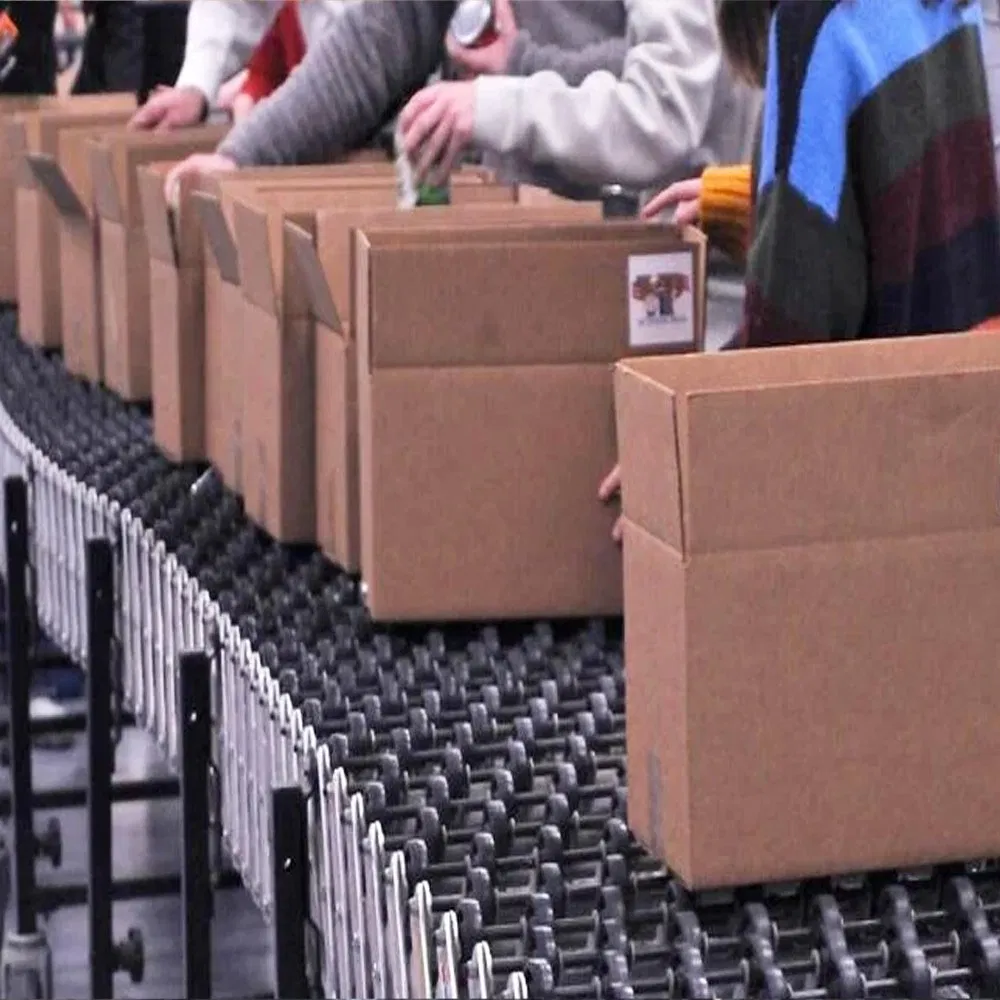

Loading View 1
Loading View 2
Feature Description
Industry Use Factories, Warehouses, Distribution & Logistic centres
Power Supply Non Power, Gravity
Load Capacity 300 kgs / m
Skate Wheel ABS or Steel Diameter: 48mm
Conveyor Length 1m - 30m (Customized)
Conveyor Width 400mm - 1000mm (Customized)
Structure View
Support Detail

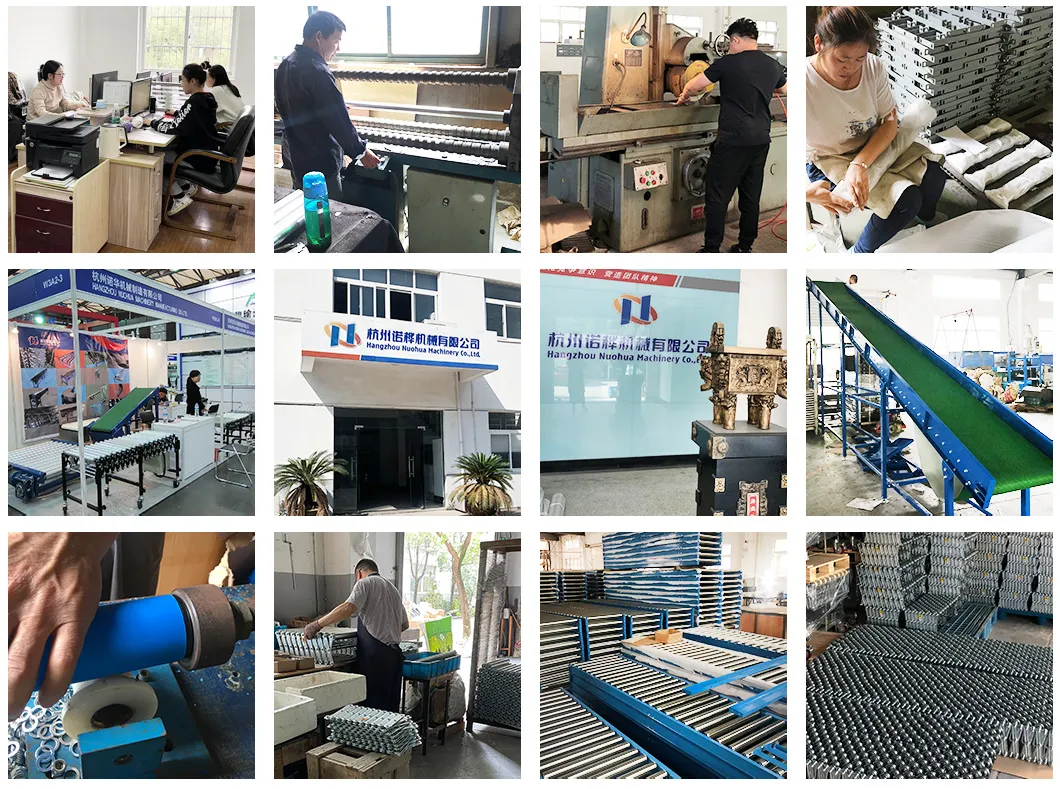

Factory Testing
Warehouse Setup
Packing Solution
❓  Frequently Asked Questions
Q: Are you a professional manufacturer?
A: Yes, we are a professional manufacturer specializing in conveyor systems and components with over 15 years of industry experience.
Q: How can I place an order?
A: Simply clarify your requirements to our sales team. We will provide a quotation, discuss technical details, confirm the order, and proceed with production after the deposit is received.
Q: What is the standard delivery period?
A: For sample orders or small quantities, delivery is typically 3-7 days. Bulk production usually takes around 20 days.
Q: How do you guarantee product quality?
A: We follow a strict working system and procedures. Every machine undergoes a rigorous test run after production is finished to ensure perfect operation.
Q: What is the warranty period for your products?
A: All our conveyor products come with a 1-year warranty from the date of delivery.
Q: What payment terms do you accept?
A: We accept various payment methods including T/T, L/C, Western Union, PayPal, and MoneyGram.
