Product Description

Product Description
Powered Flexible Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse, workshop, factory, harbor, dock, etc. In addition, it can be applied to such situations as production-packing line, temporary conveying line and goods distribution line. It satisfies the easy, quick and efficient goods delivery.
Product Parameters
Overall length4500mm
Roller width600mm
Roller diameter50mm
Roller shaft12mm
Wall thickness of roller1.5mm
Whole machine height700-1100mm
Whole machine weight270kg
Telescopic ratio1:2
Roller center distance125mm
Loading Capacity45kg/m
Voltage110/220V
Power60W per section
Speed10-30m/min
Detailed Photos

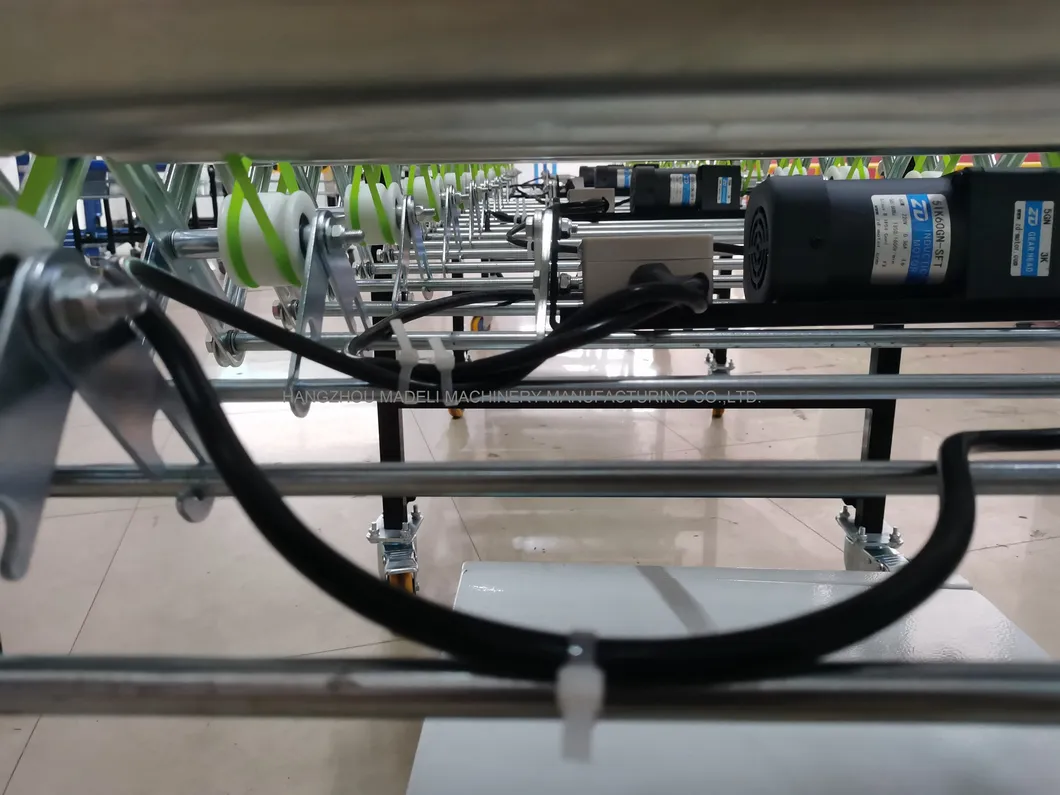

Powered Flexible Roller Conveyor 1

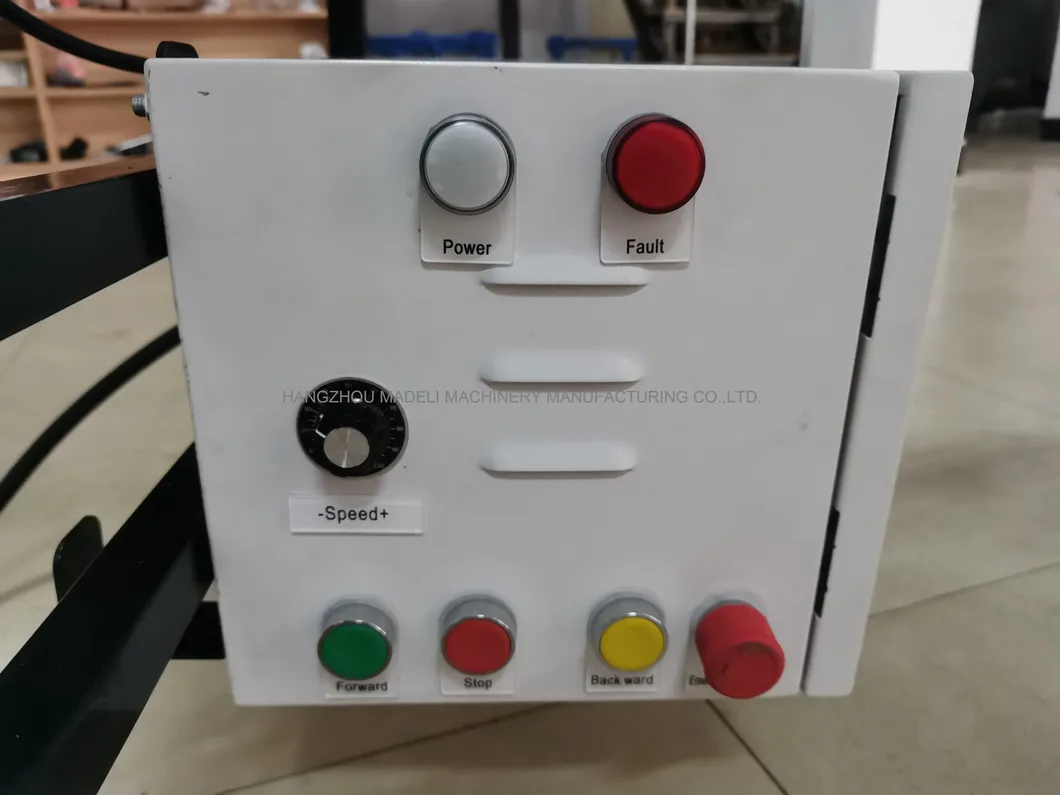

Powered Flexible Roller Conveyor 2

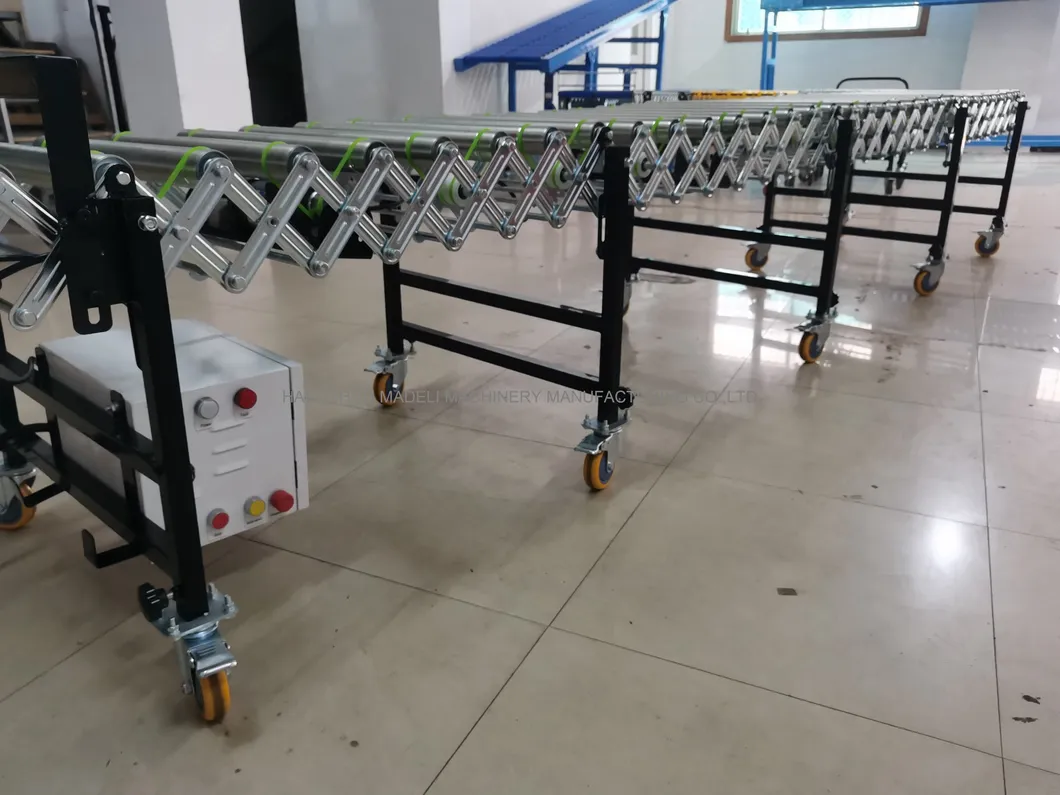

Powered Flexible Roller Conveyor 3

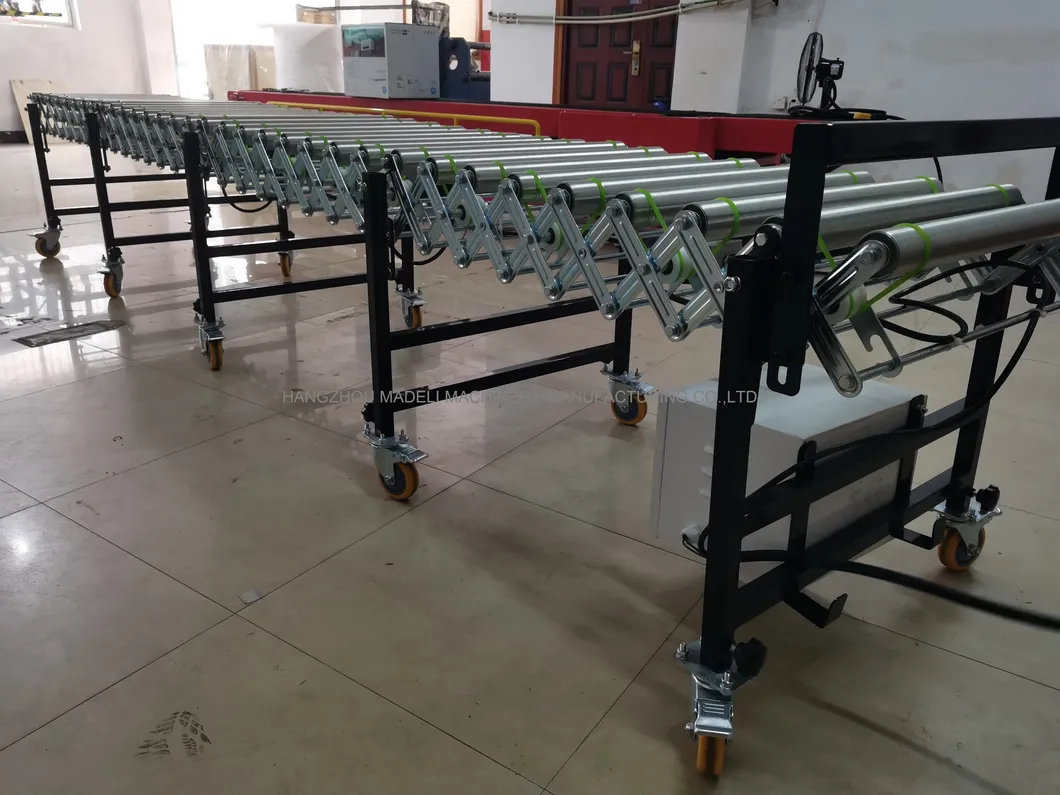

Powered Flexible Roller Conveyor 4

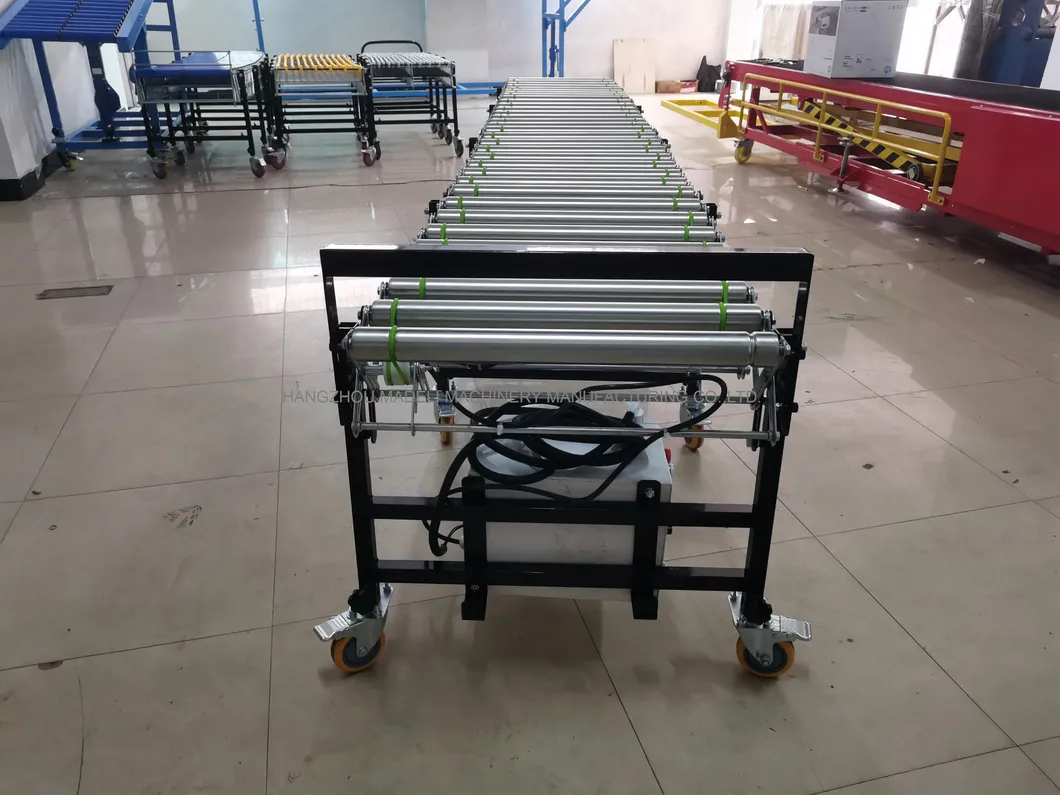

Powered Flexible Roller Conveyor 5

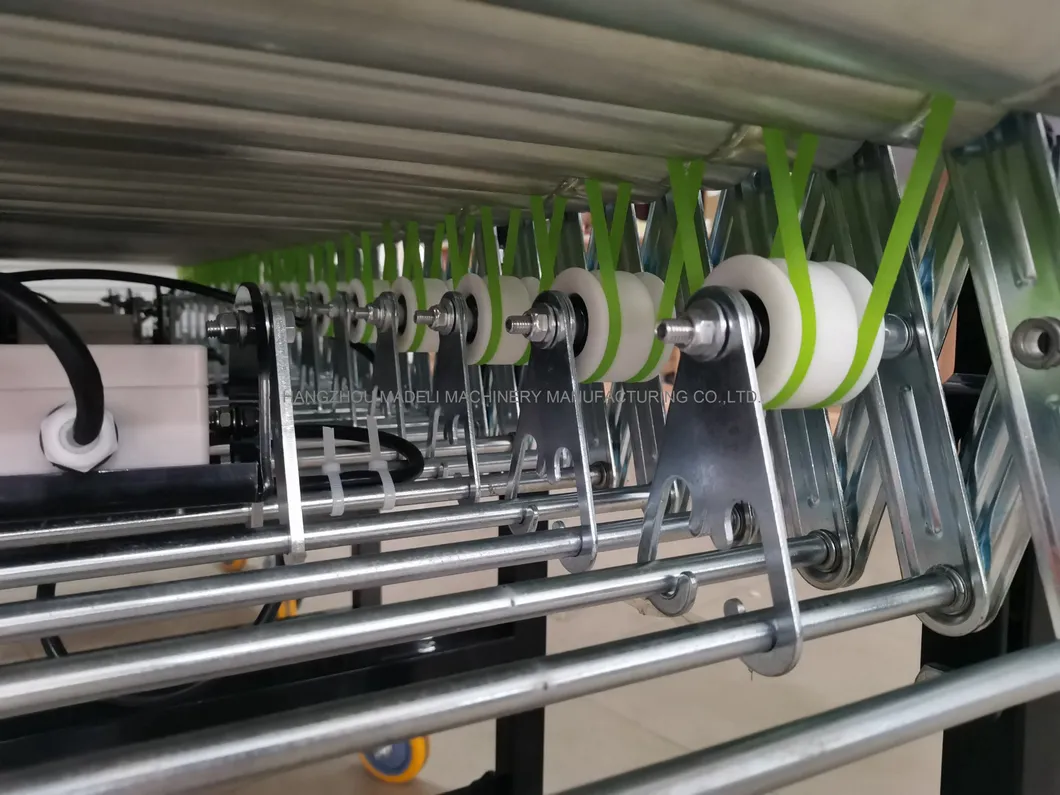

Powered Flexible Roller Conveyor 6

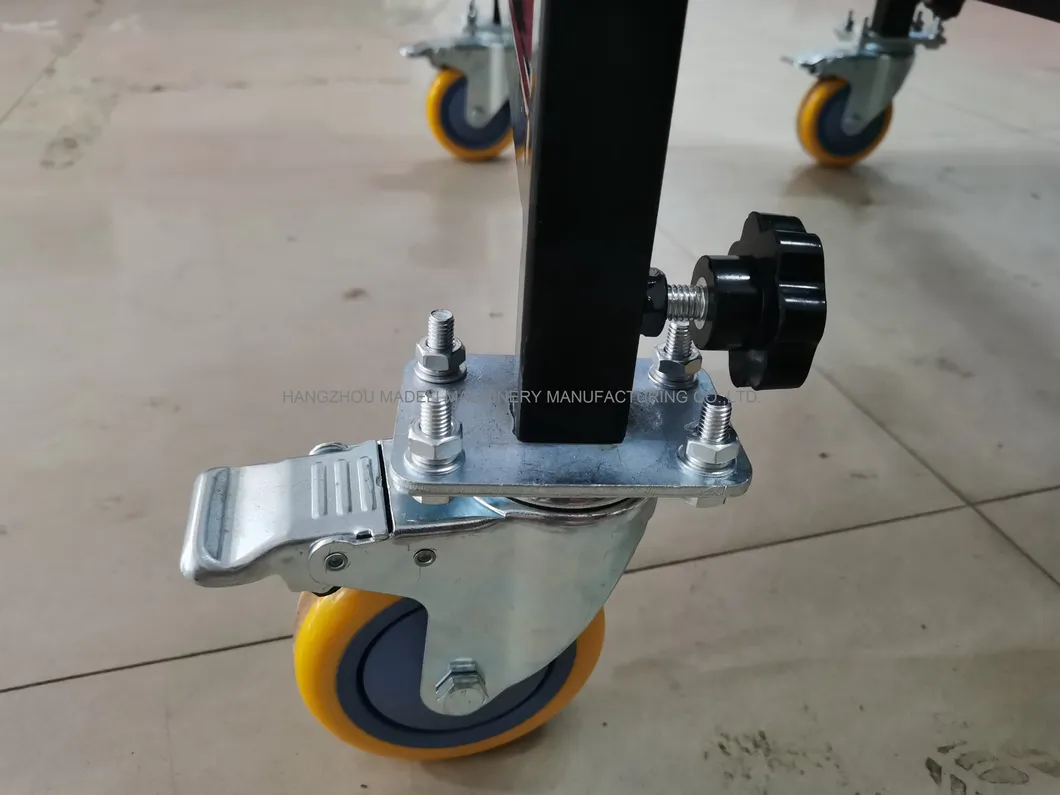

Powered Flexible Roller Conveyor 7

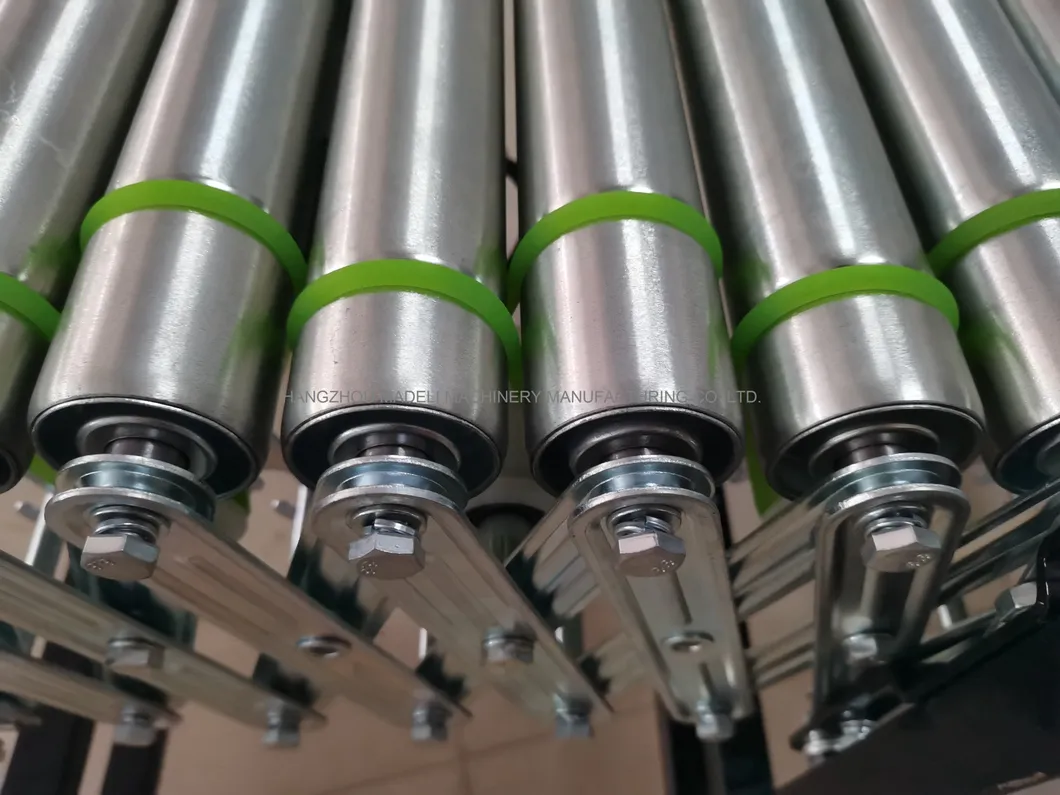

Powered Flexible Roller Conveyor 8

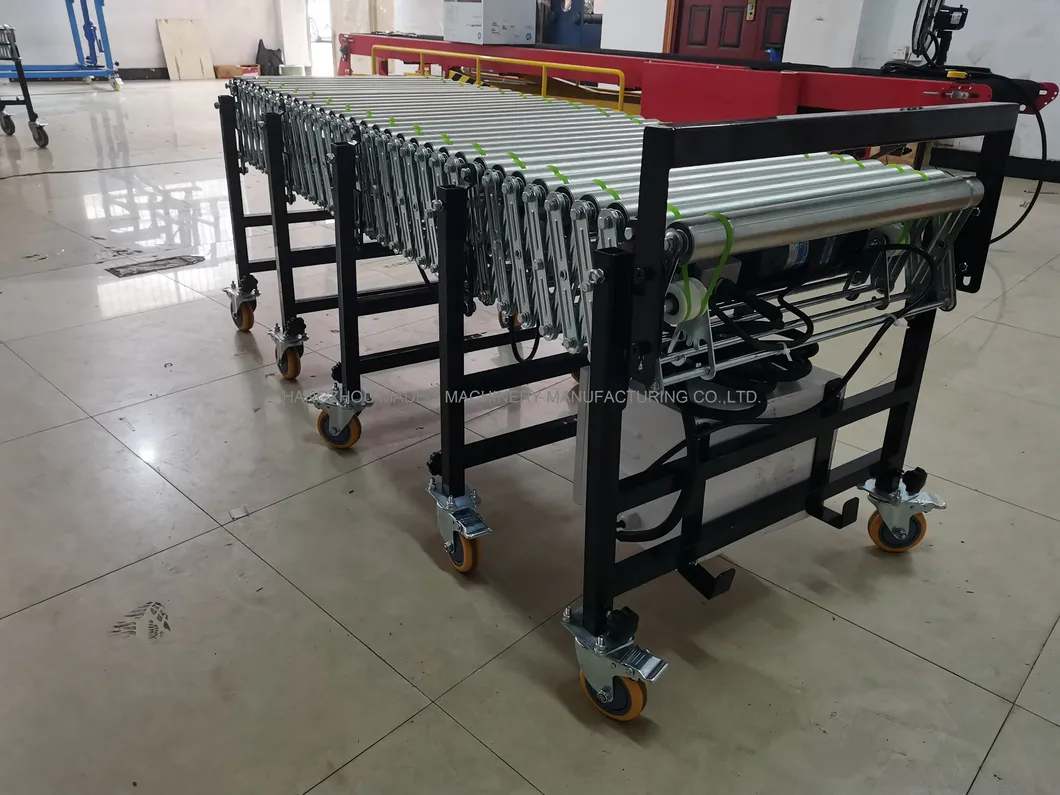

Powered Flexible Roller Conveyor 9

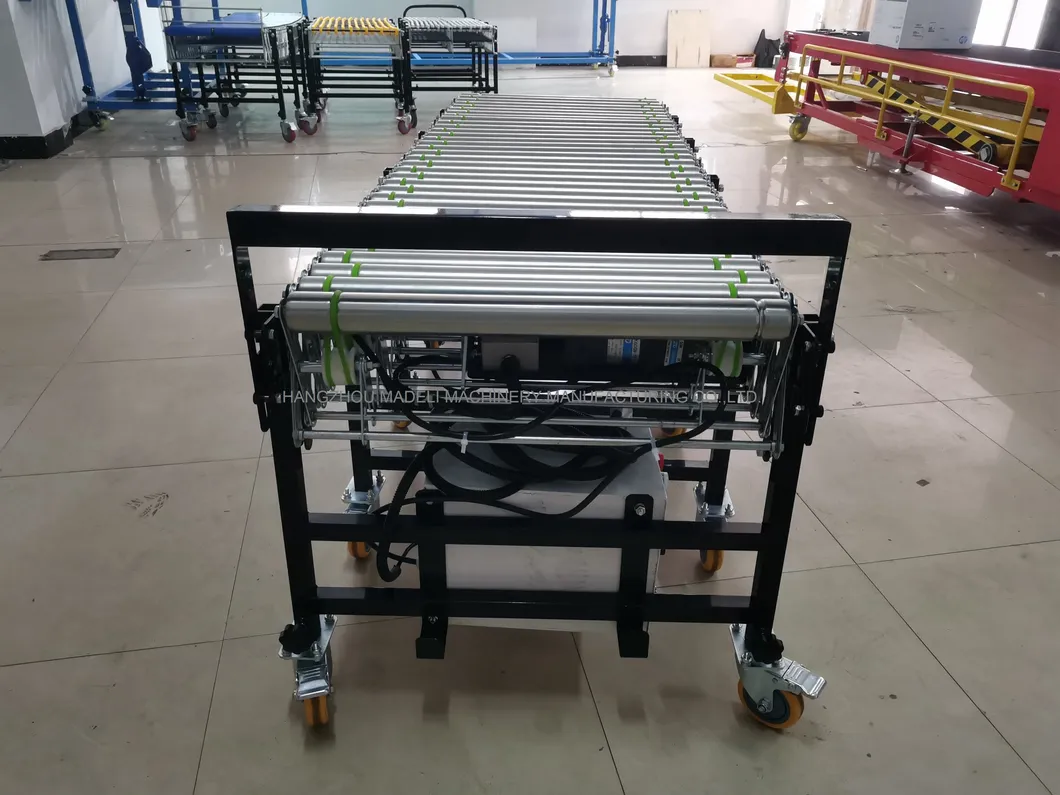

Powered Flexible Roller Conveyor 10

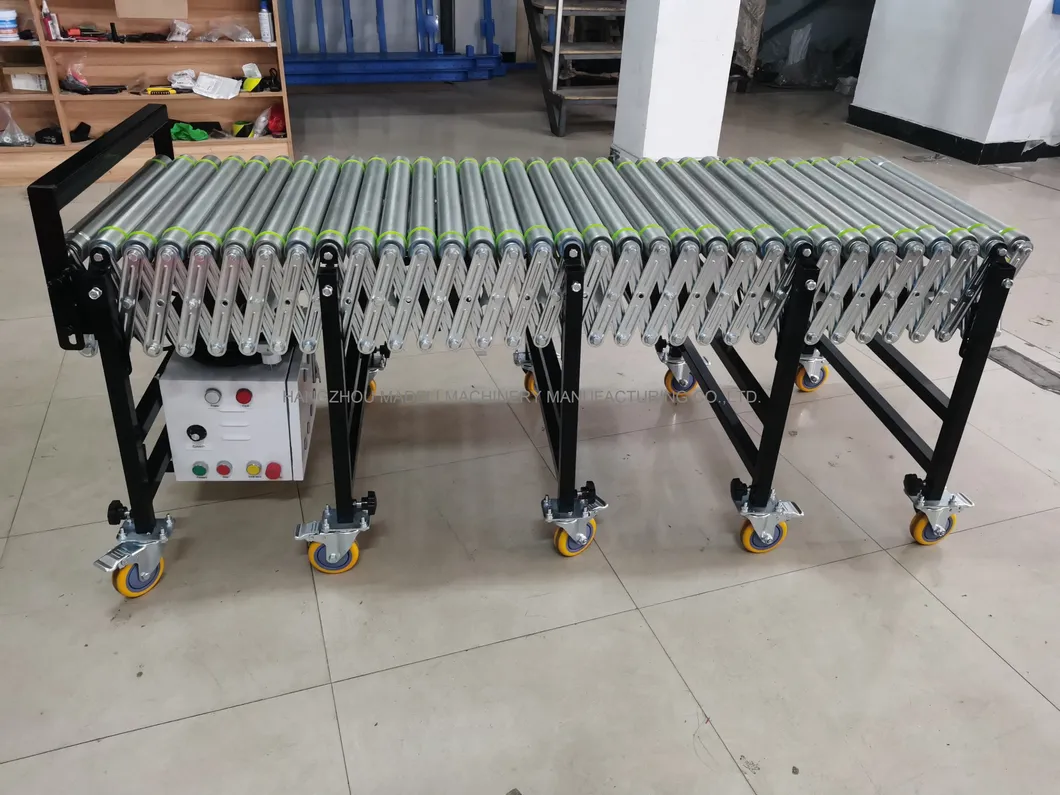

Powered Flexible Roller Conveyor 11
Frequently Asked Questions
1. What is the main benefit of a Powered Flexible Roller Conveyor?
It is an extendable and automatic system that allows for controllable speed and direction, making it highly efficient for transporting flat-bottomed goods in various industrial environments.
2. Can the height of the conveyor be adjusted?
Yes, the conveyor features adjustable supporting legs with a height range of 700mm to 1100mm to suit different working requirements.
3. What is the loading capacity of this system?
The system has a robust loading capacity of 45kg per meter, suitable for intensive goods transport.
4. How is the speed controlled?
The conveying speed is controllable and ranges from 10 to 30 meters per minute, powered by 60W mini motors in each section.
5. What is the telescopic ratio of the conveyor?
The conveyor has a telescopic ratio of 1:2, allowing it to extend significantly to reach further into trailers or across warehouse floors.
6. What voltage does the conveyor require?
The equipment is compatible with standard industrial power supplies of 110V or 220V.
