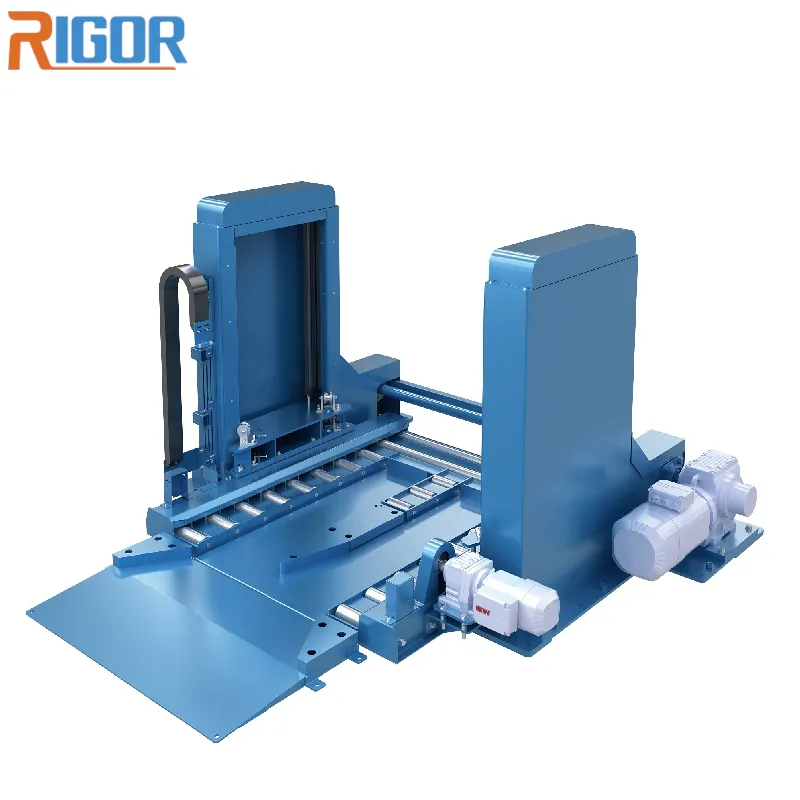

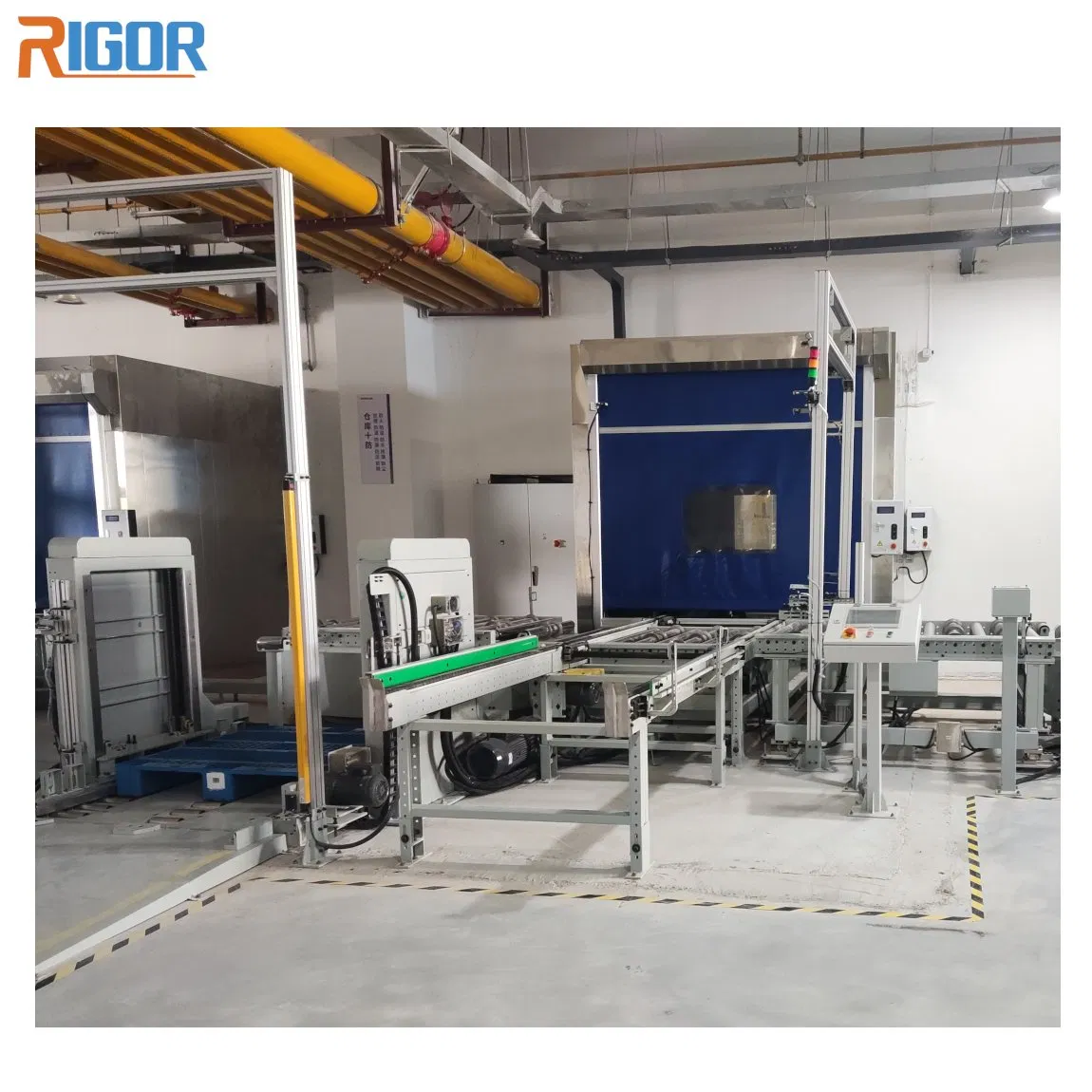

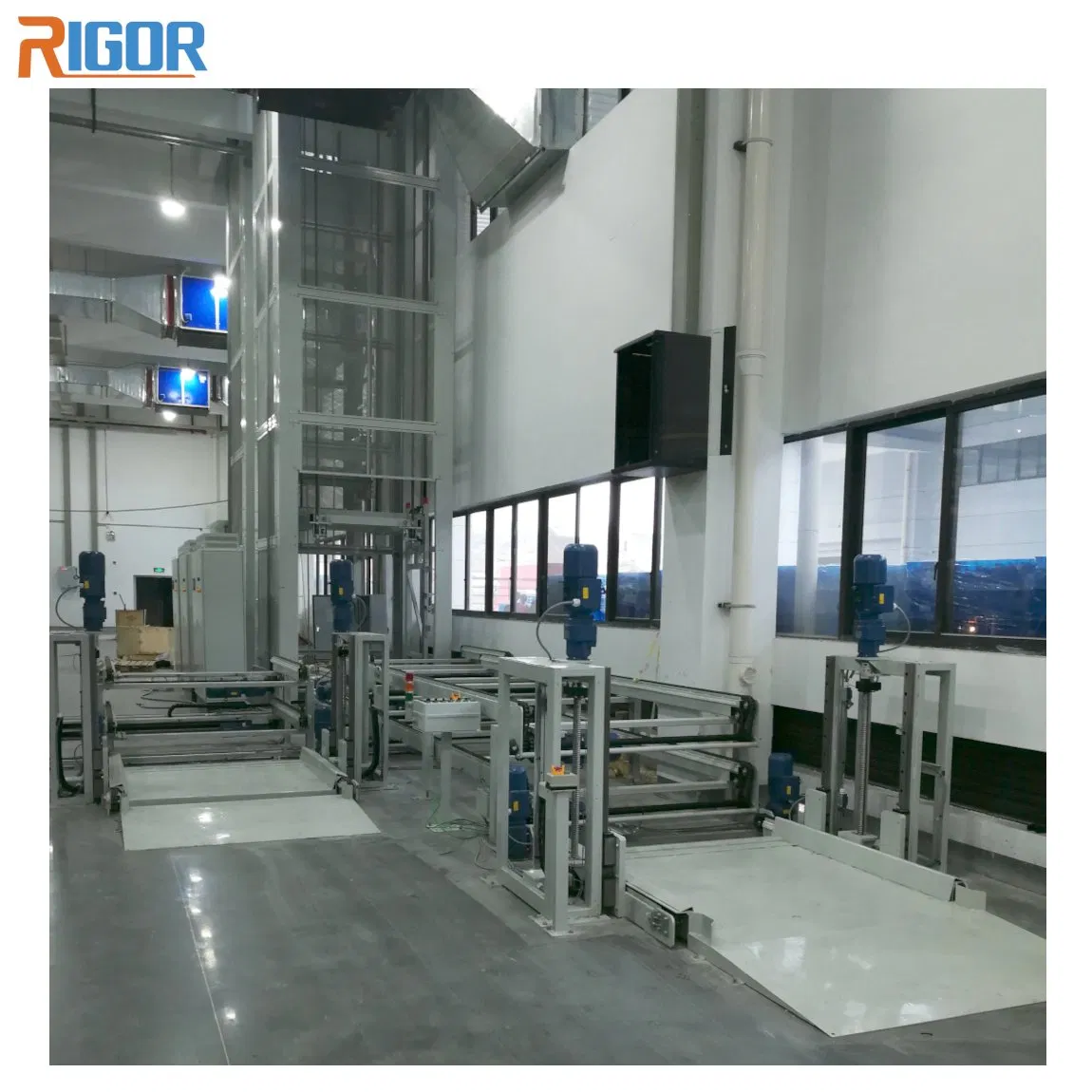

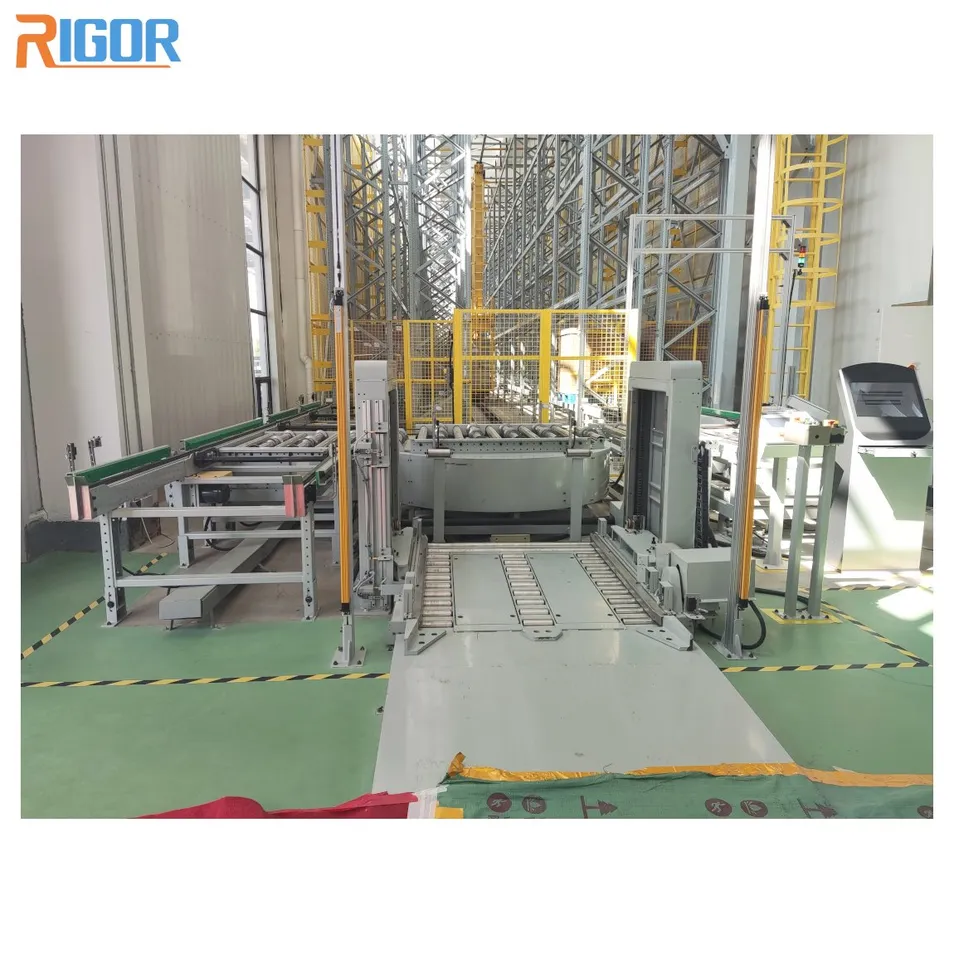

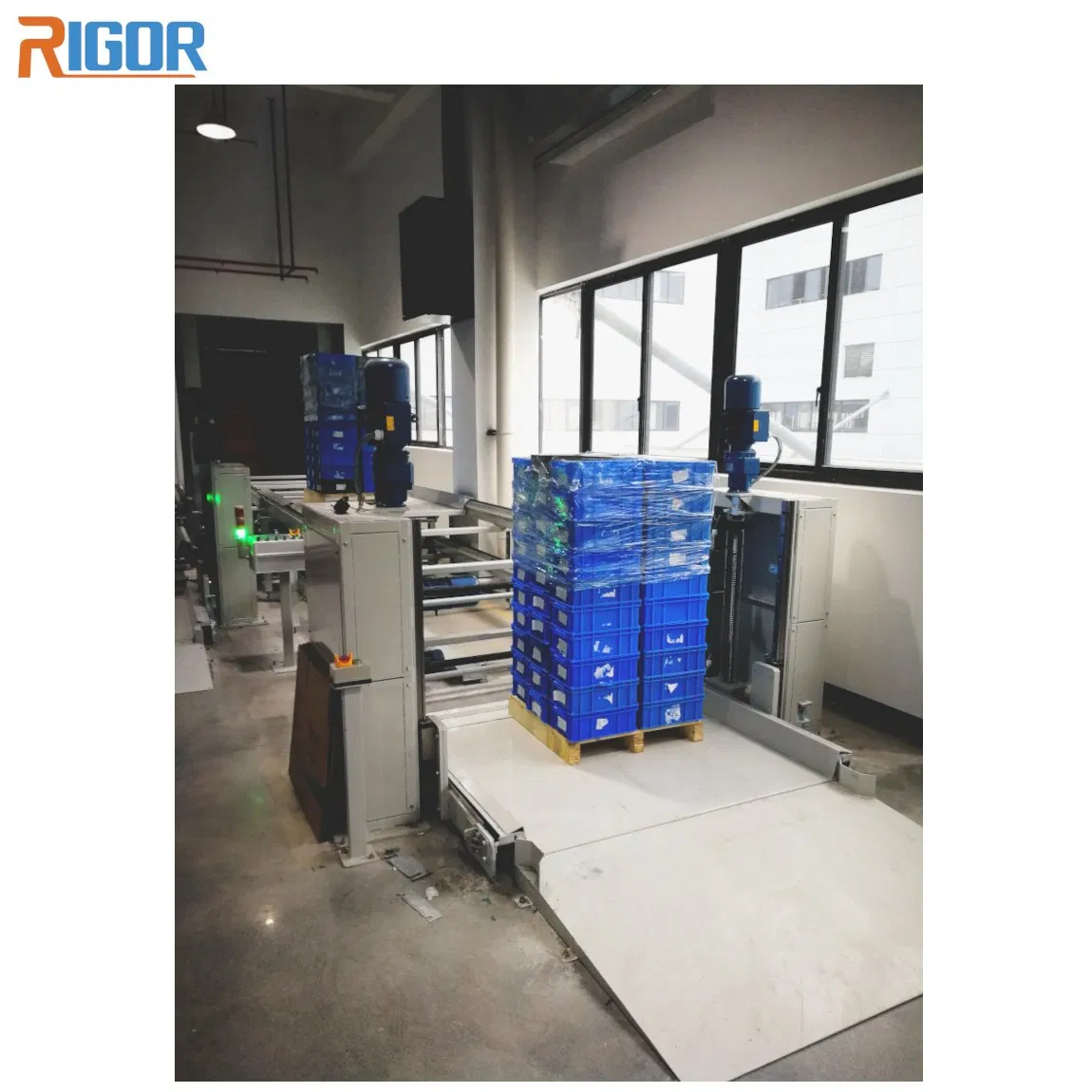

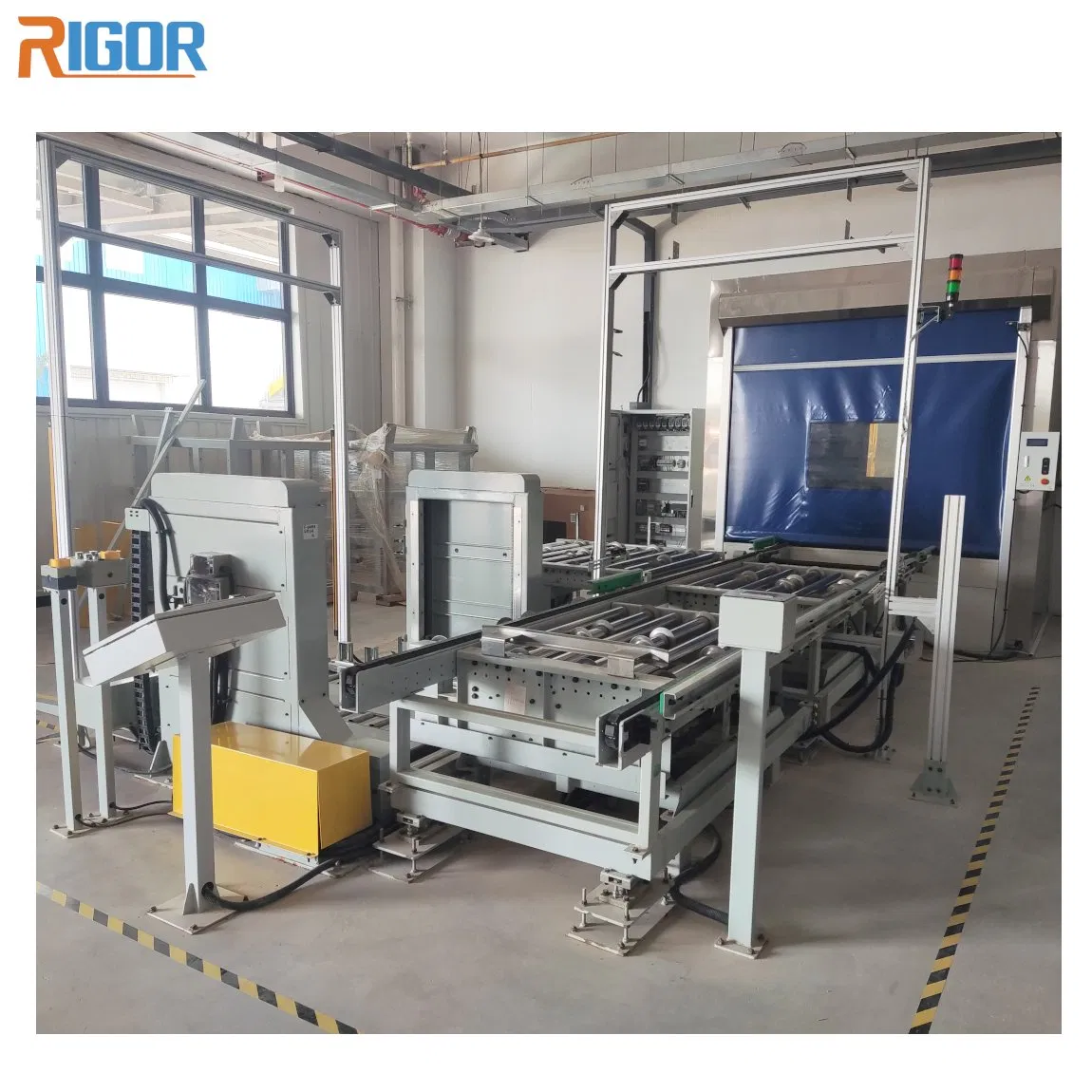

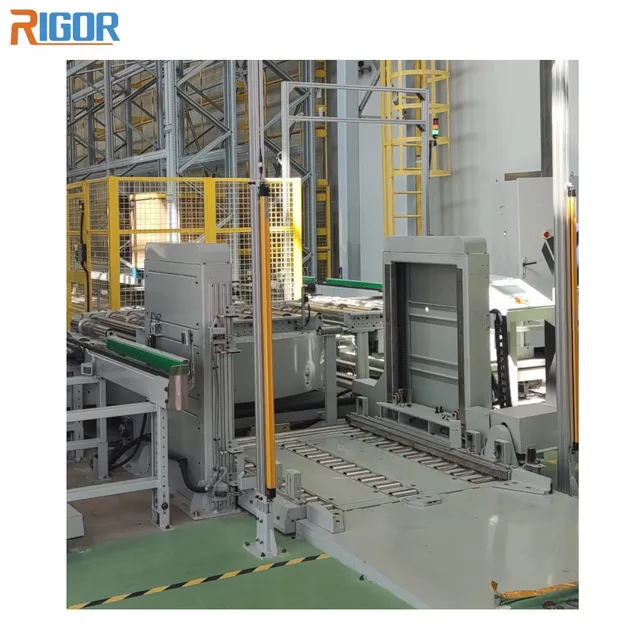

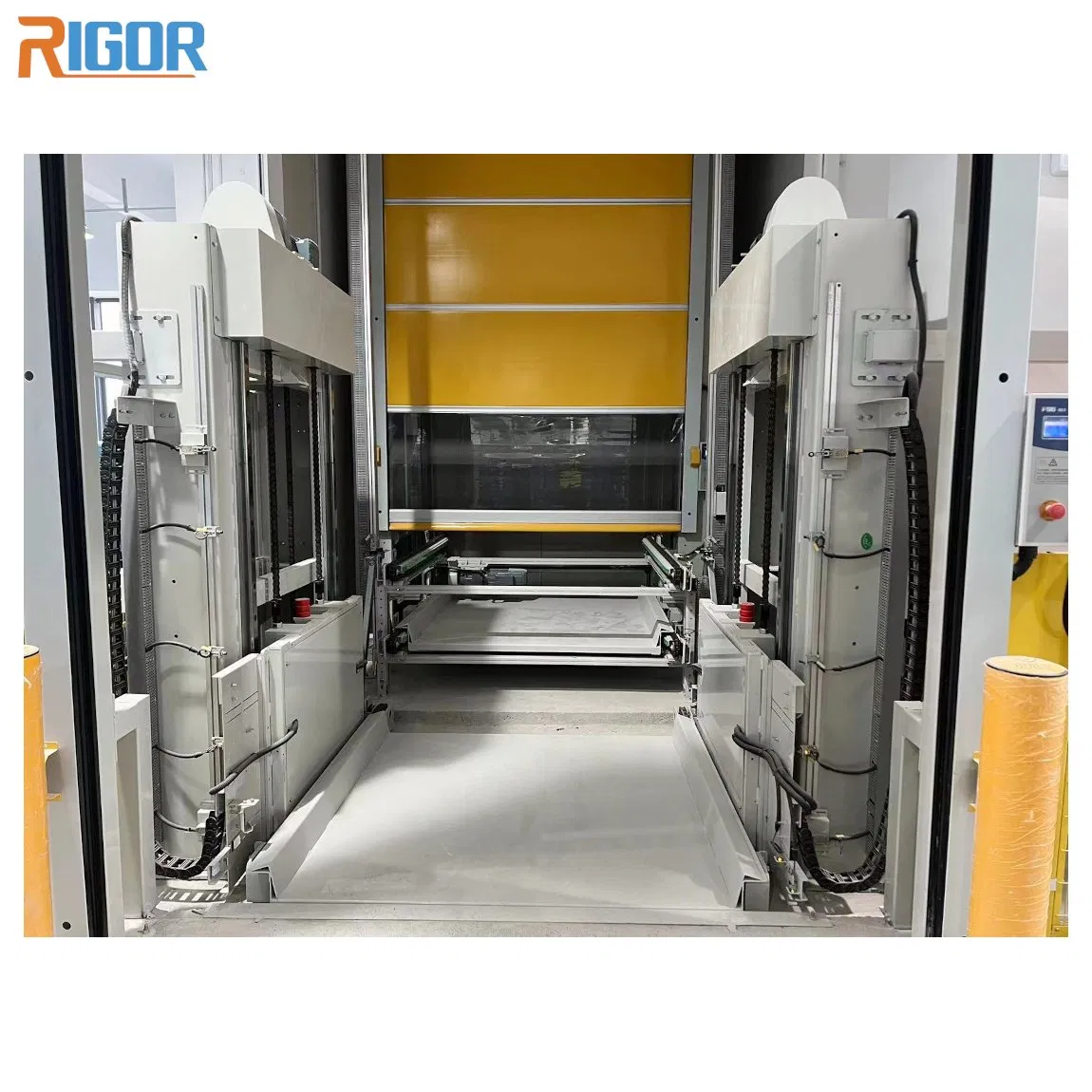

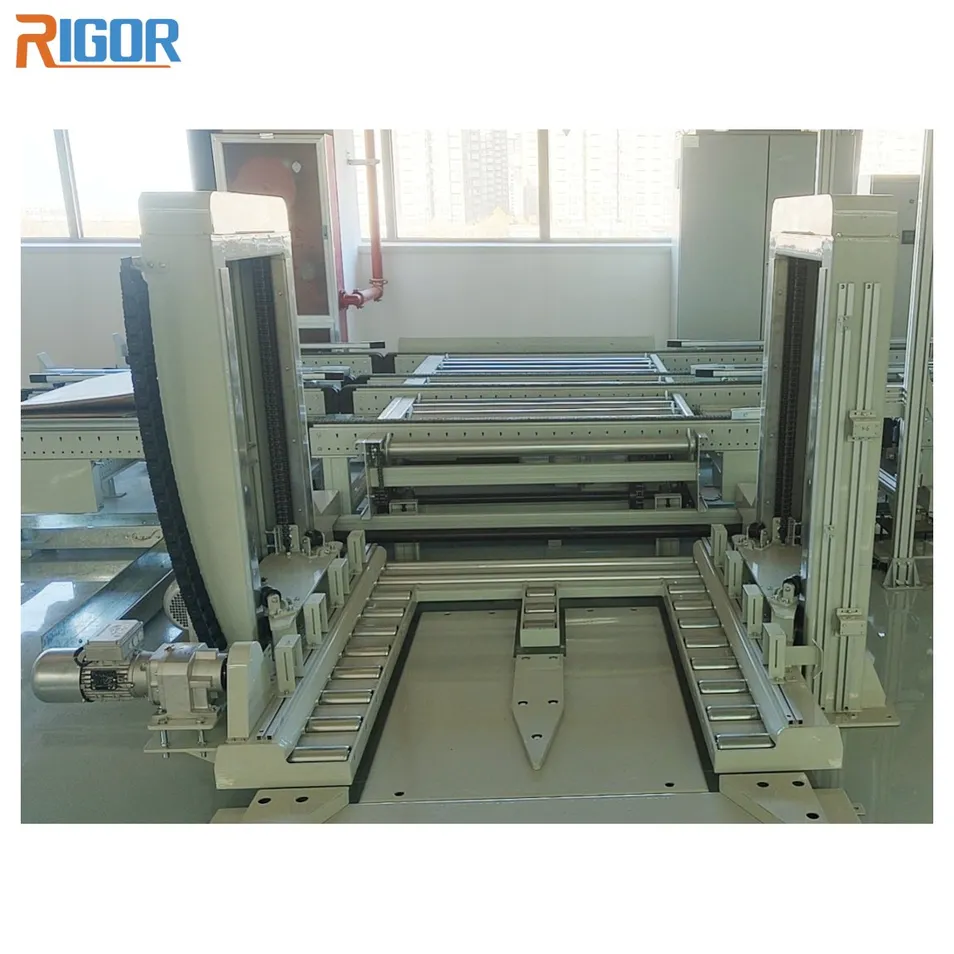

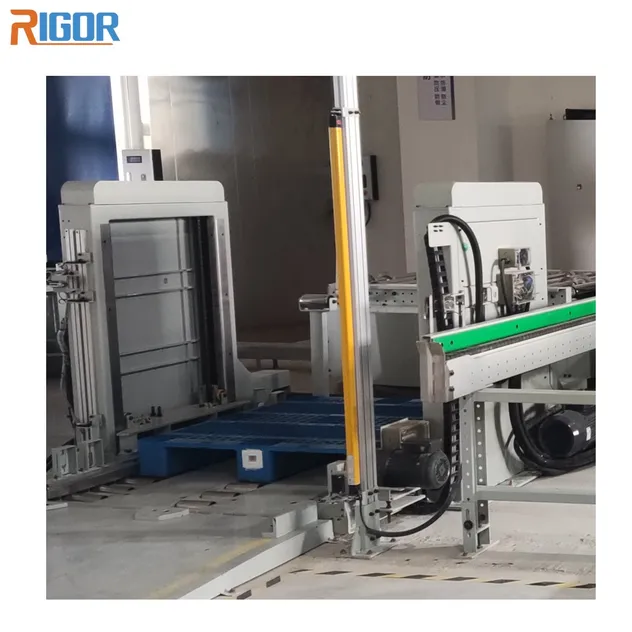

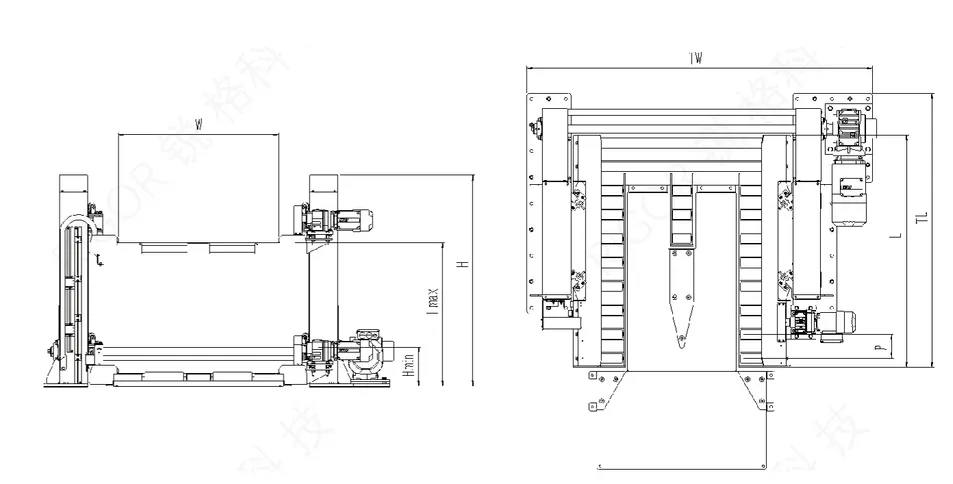

The 2PTGD floor-type vertical elevator carries materials and moves them back and forth within a certain height to complete the docking and transportation to the main line. It is engineered for high-performance vertical lifting, streamlining pallet handling in modern warehouses and production facilities.

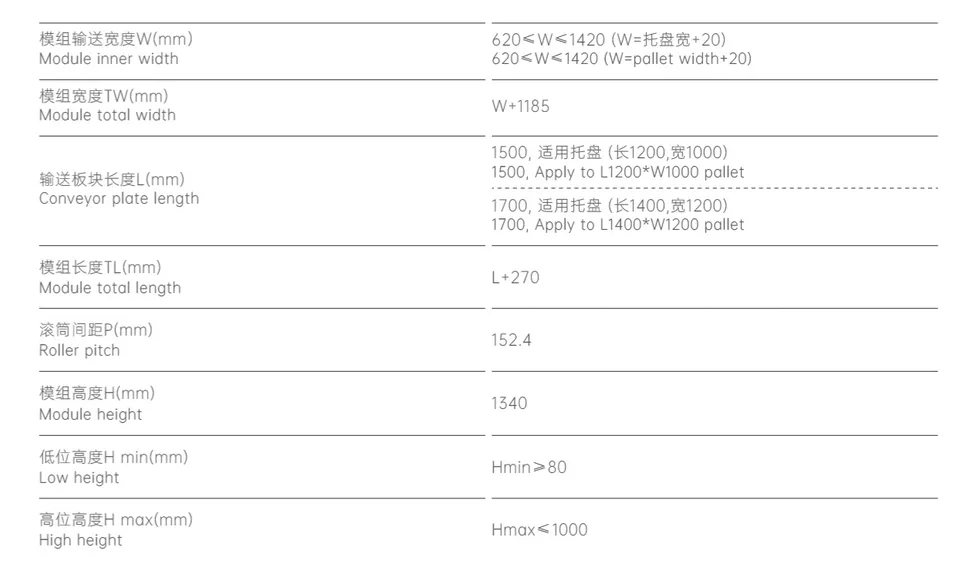

| Max Payload (kg) | 1500 |
| Conveying Motor Power (kW) | 0.37, 0.55 (Default/Specified) |
| Lifting Motor Power (kW) | 4 |
| Roller Diameter (mm) | φ60 |
| Line Speed (m/min) | 13, 16, 18 |
| Lifting Speed (m/min) | 10 |
| Roller Tube Material | Galvanized, SUS201, SUS304 |
| Environment Temperature (ºC) | -5 ~ +40 |
| Surface Treatment | Powder coating with RAL color |
We specialize in the design, manufacturing, and installation of advanced logistics transportation equipment and automated systems. Our expertise includes turnkey projects for large-scale industrial systems, providing professional planning and mechanical design capabilities.
Our business covers contracting for complete sets of equipment, joint bidding for international logistics systems, and domestic trade in various industrial categories. We maintain strong partnerships to ensure the delivery of high-quality products and services to global clients.

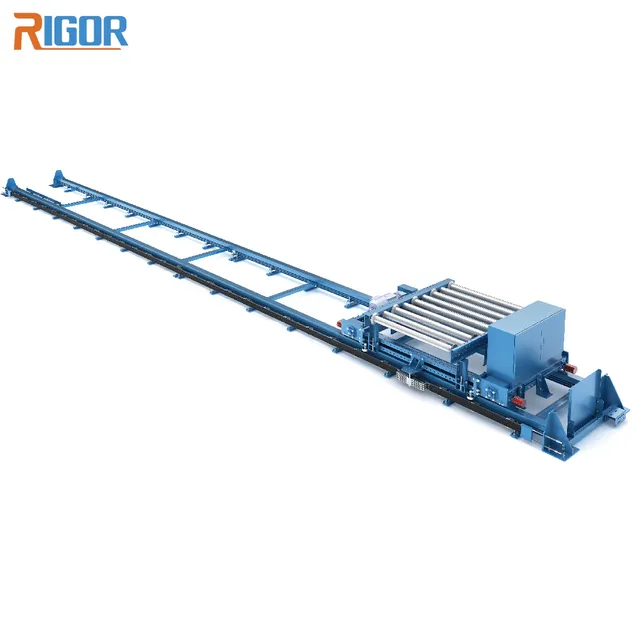

Used for loading/unloading pallets at pick-up stations and storage slots with high speed and reliability.

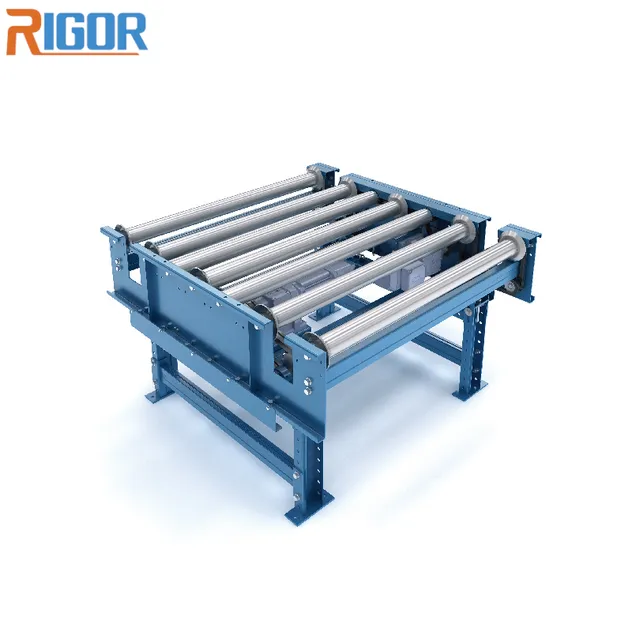

Designed for horizontal transportation of pallets with a 90° turn and adjustable legs for uneven ground.

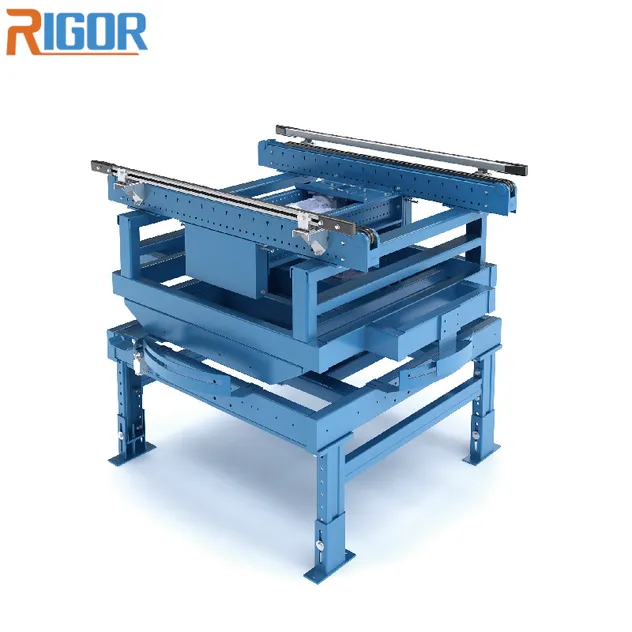

Rotation range of 0° to 360° to change direction for full and empty trays.
