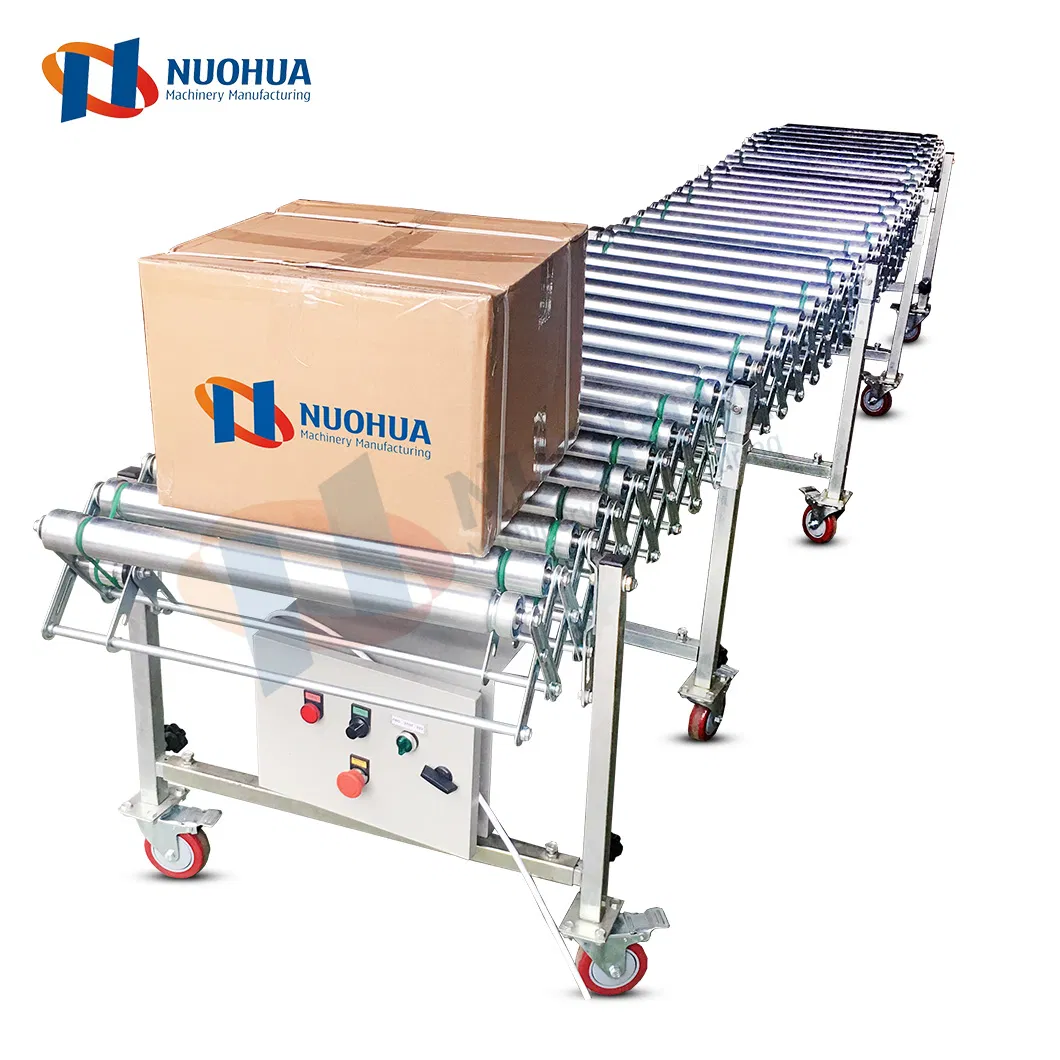

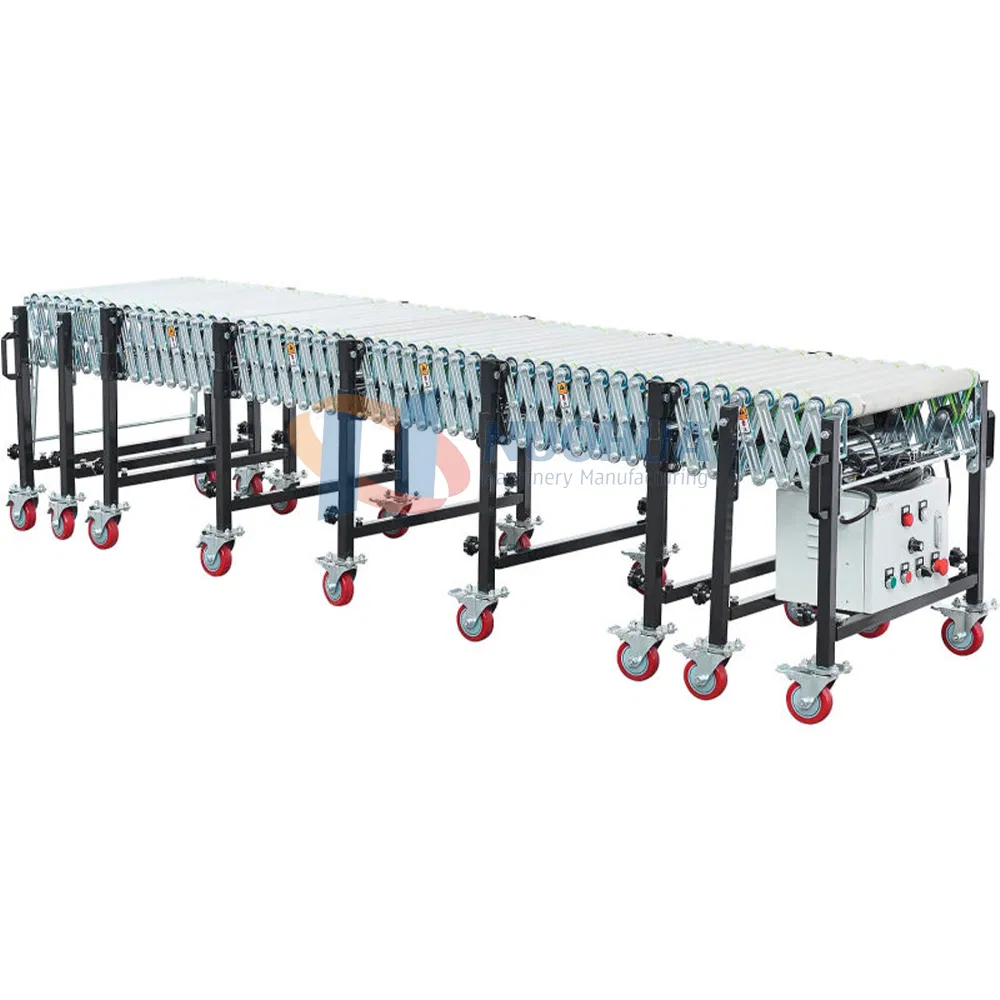

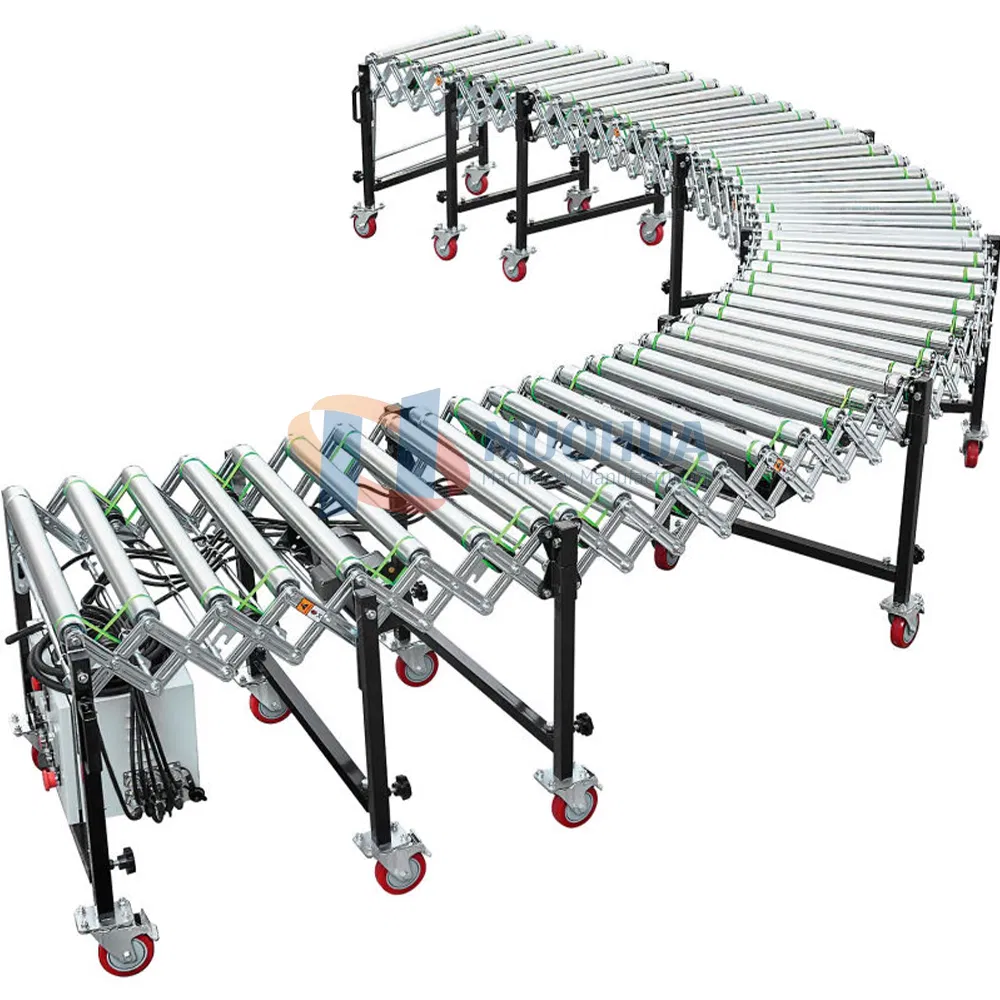

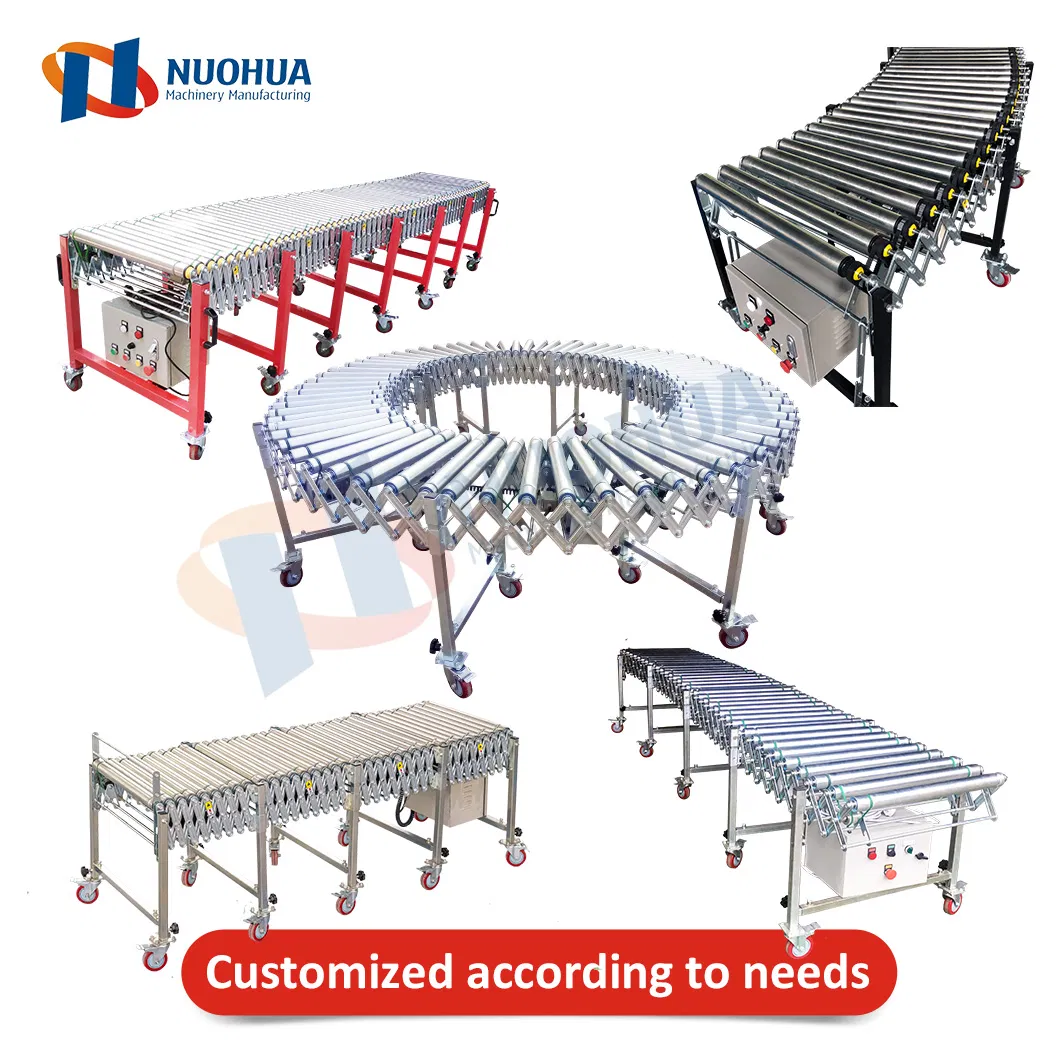

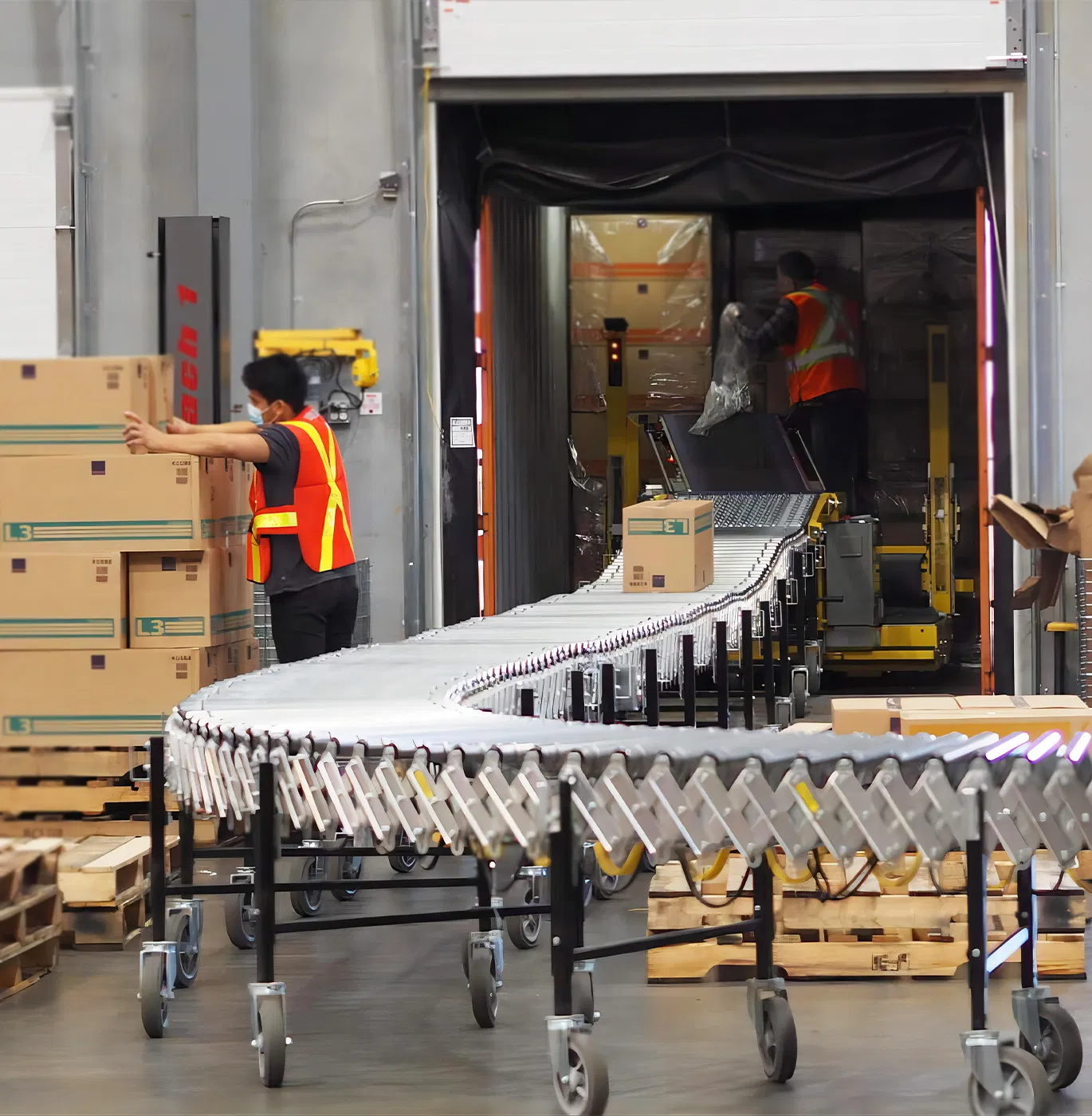

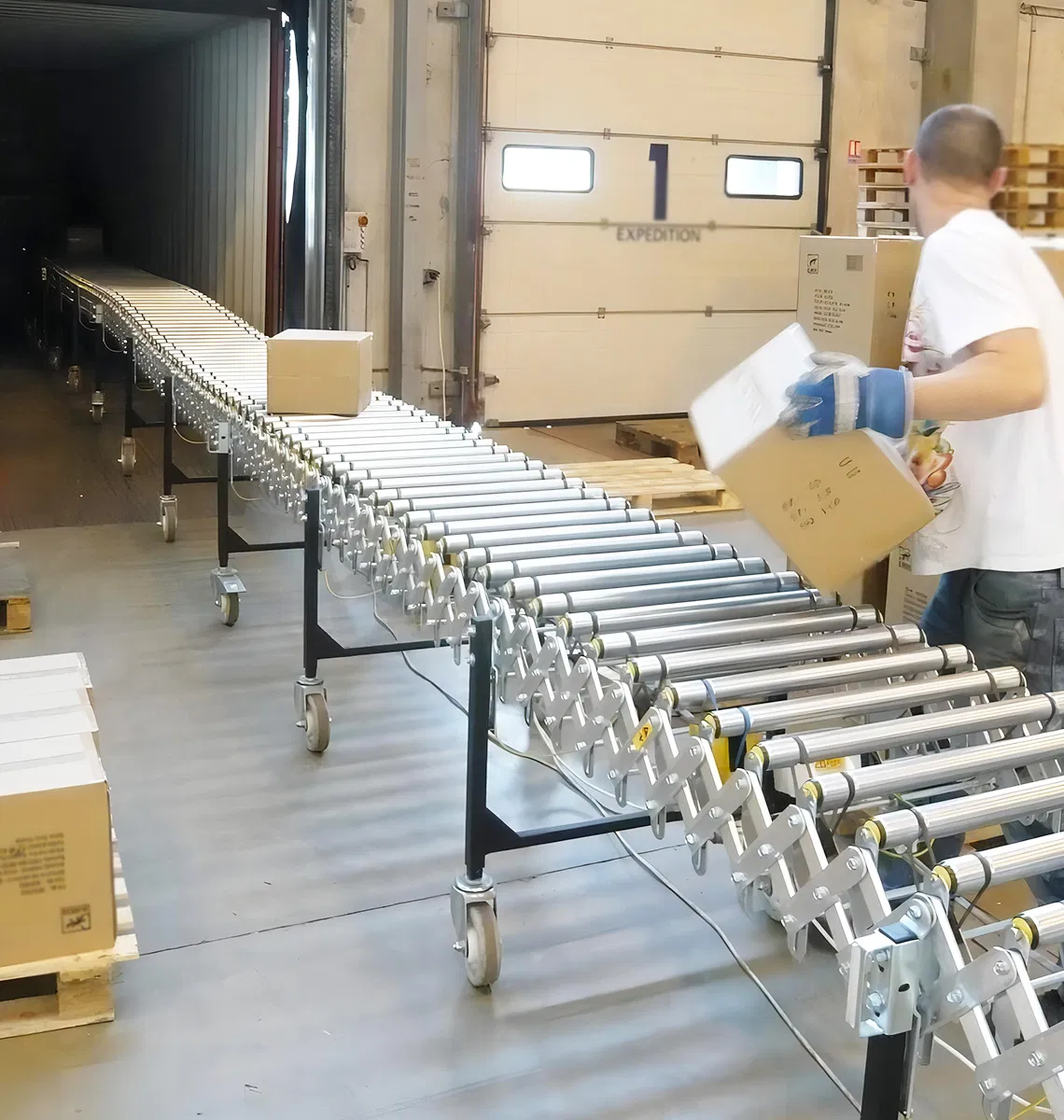

This system can be applied to such situations as production-packing lines, temporary conveying lines, and goods distribution lines. It satisfies easy, quick, and efficient goods delivery by using one mini motor per section to ensure sufficient power supply.
| Component | Specifications |
|---|---|
| Belt | 5mm high quality O ring PU belt |

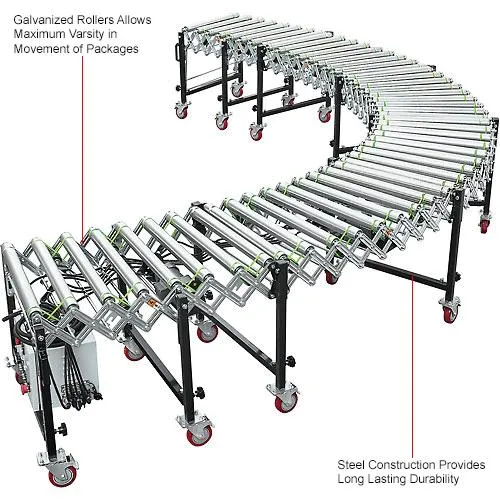

| Roller | Dia 50*1.5mm galvanized steel roller, Max. gap 130mm center to center |
| Motor | 90W electronic governor motor |
| Frame | 3.5mm thickness galvanized curved join plates |

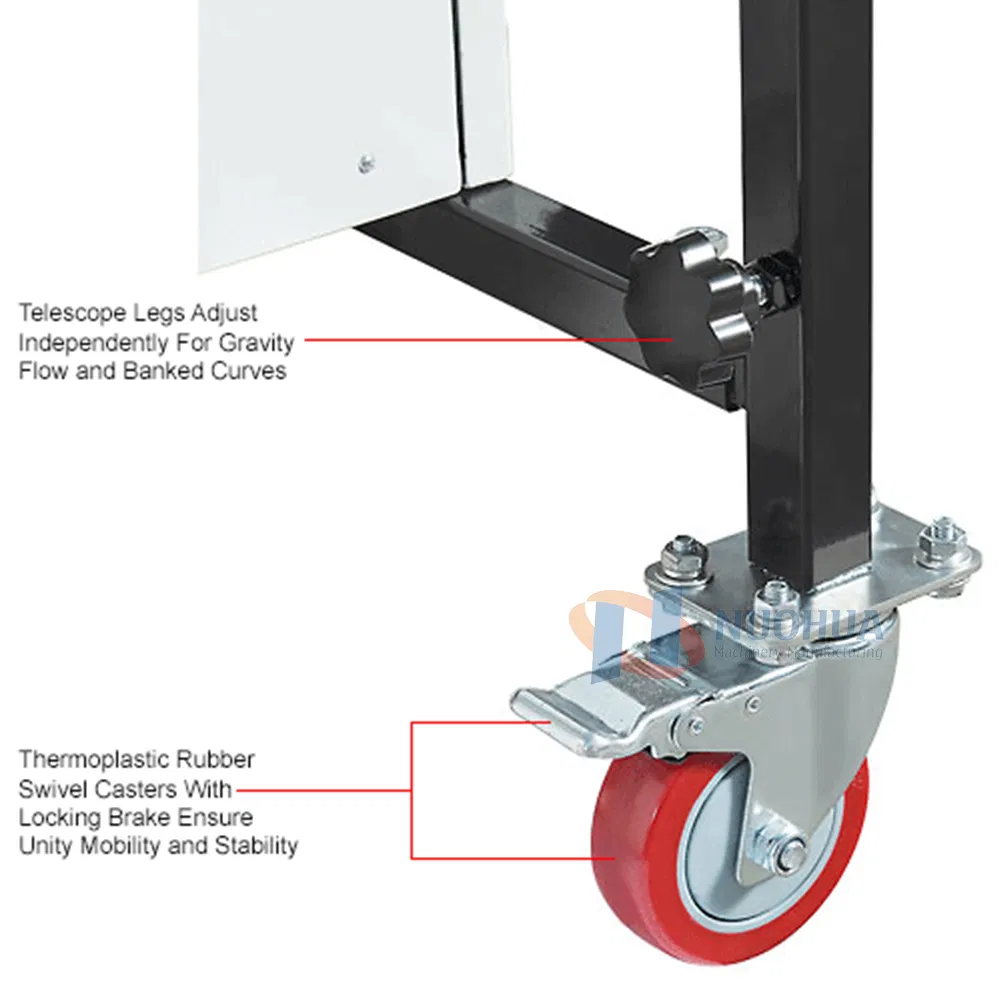

| Leg | 32X32 powder coated tube with 25X25 galvanized tube inside |
| Caster | Dia 125mm high quality swivel lockable polyurethane casters |

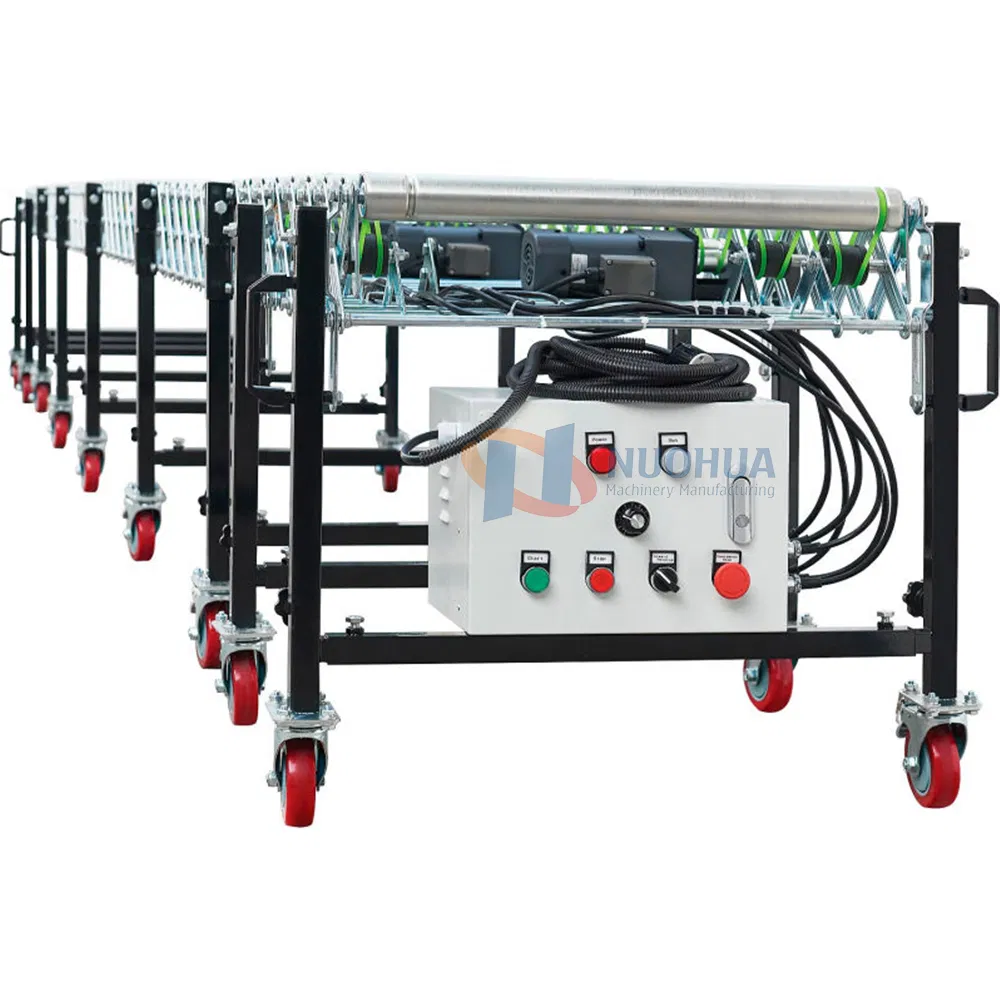

| Control Box | Forward / Stop / Reverse |
| Inverter | Delta Frequency Inverter |

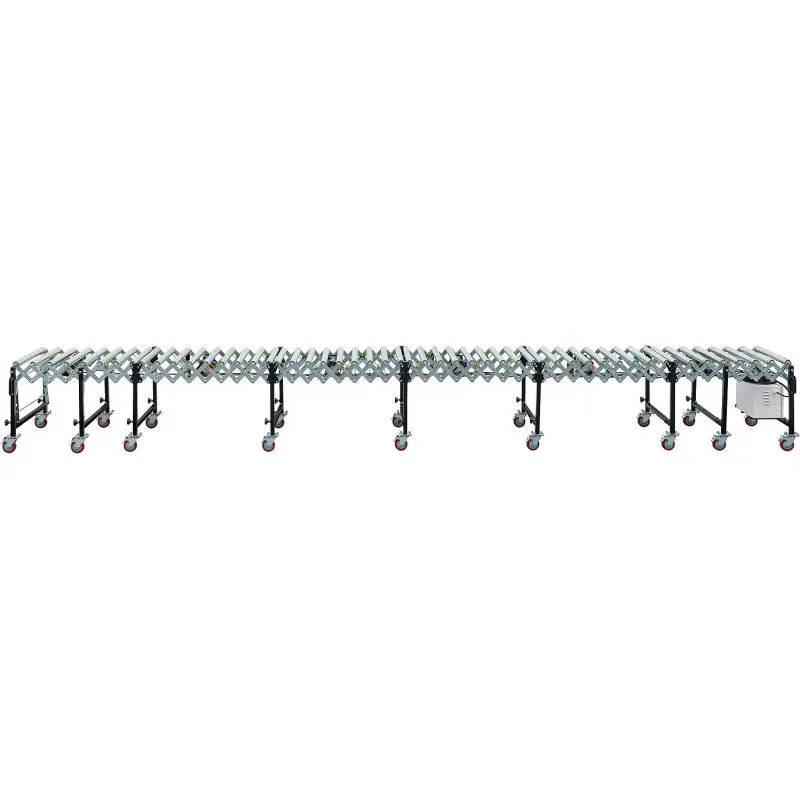

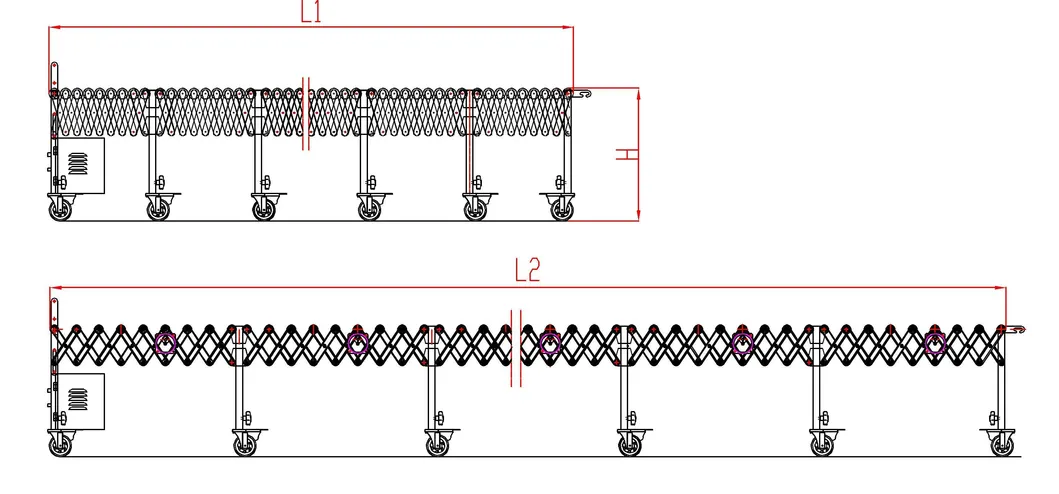

| Model | Open Length (mm) | Close Length (mm) | Width (mm) | Height (mm) | Speed (m/min) | Max Load |
|---|---|---|---|---|---|---|
| FPR-O4 | 4800 | 1840 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |
| FPR-O6 | 6000 | 2300 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |
| FPR-O8 | 8400 | 3220 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |
| FPR-O12 | 12000 | 4600 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |
| FPR-O16 | 16800 | 6440 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |
| FPR-O20 | 20400 | 7820 | 600,700,800 | 600-800 | 10-20 | 50 kg/m² |

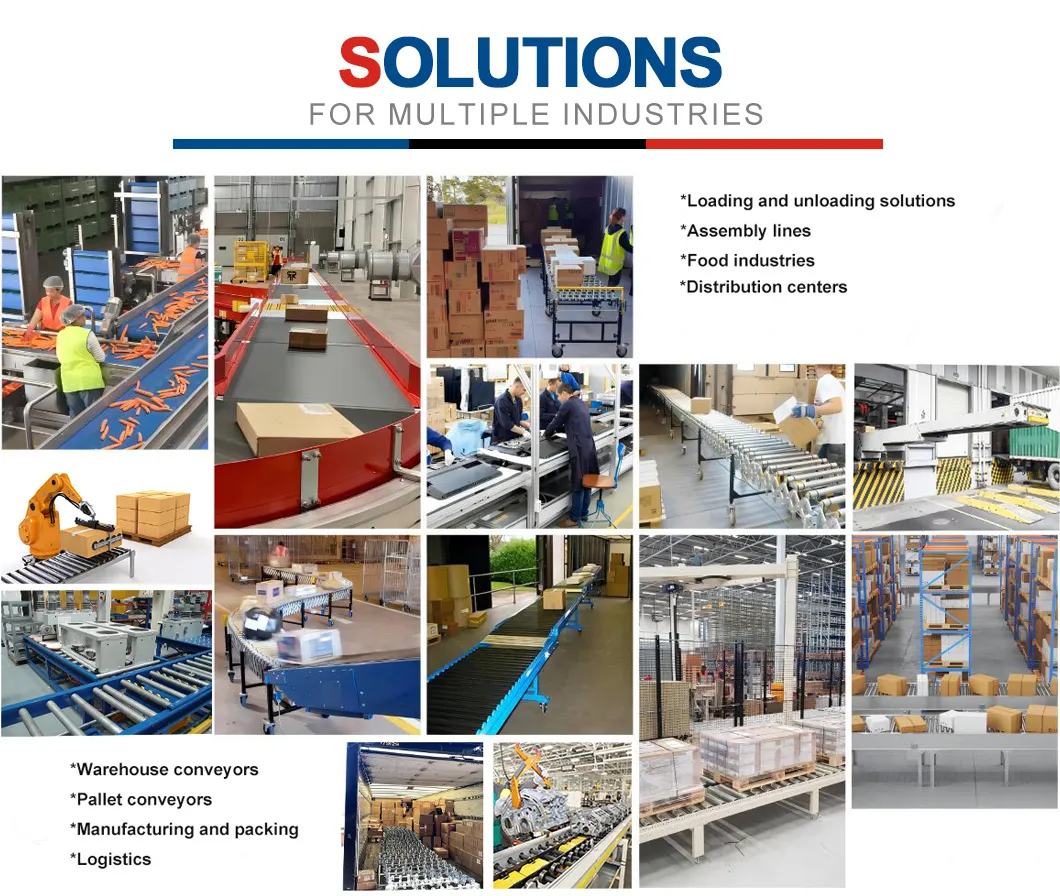

With over 15 years of experience in the field of conveyors, we design and manufacture comprehensive conveyor systems and components. Our automation solutions serve various industries including furniture, express logistics, garment factories, and E-commerce warehouses.
