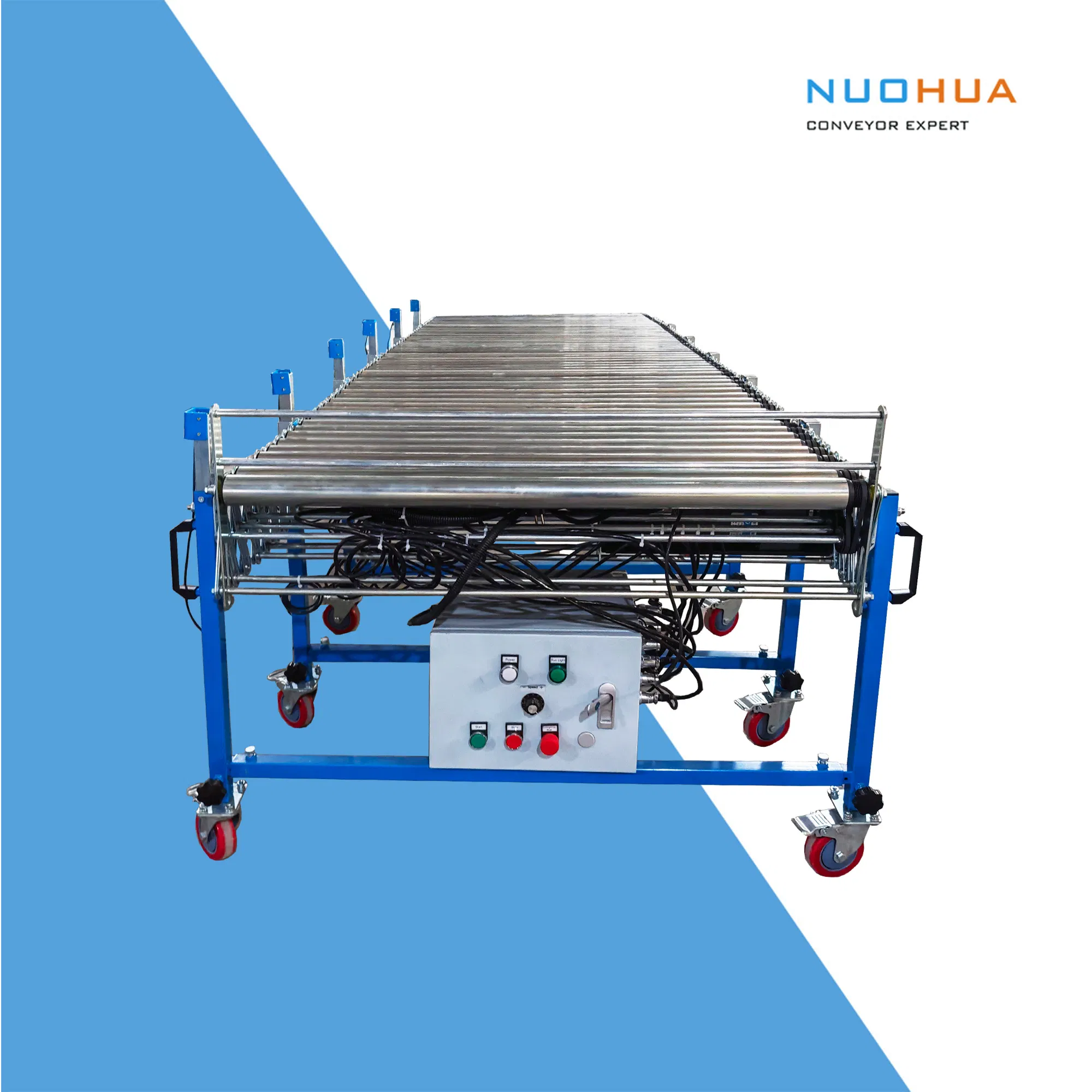

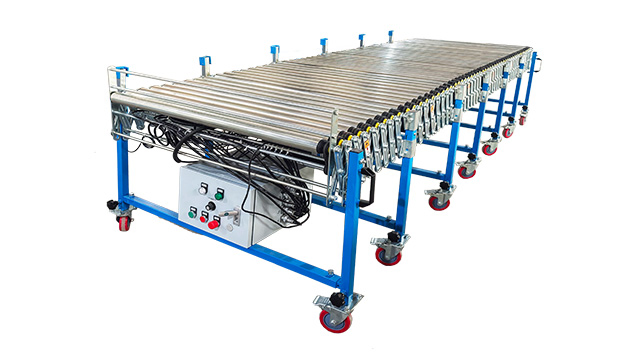

Expandable Labor Saving Powered Roller Conveyor Line with Flexible Conveyor Roller

Product Description

1

Flexible Motorized Roller Conveyor Overview

Flexible Powered Roller Conveyor is an extendable powered automatic roller conveyor with controllable conveying speed & direction and adjustable supporting leg height. Having enough power supply by one mini motor per section, it is well qualified to intensively transport goods especially with flat bottom in the warehouse, storehouse, workshop, factory, harbor, and dock. It satisfies easy, quick, and efficient goods delivery requirements for production-packing lines and distribution centers.

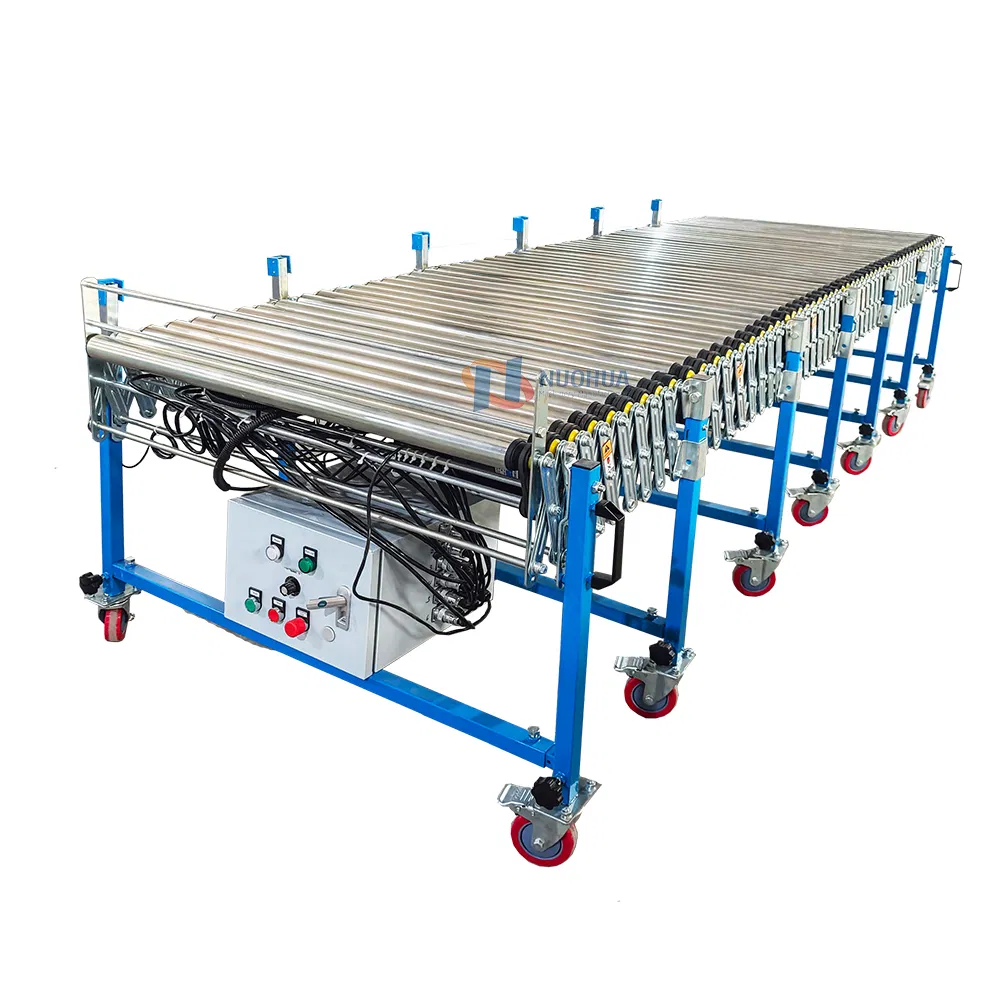

Flexible Powered Roller Conveyor
2

Key Visuals & Structure

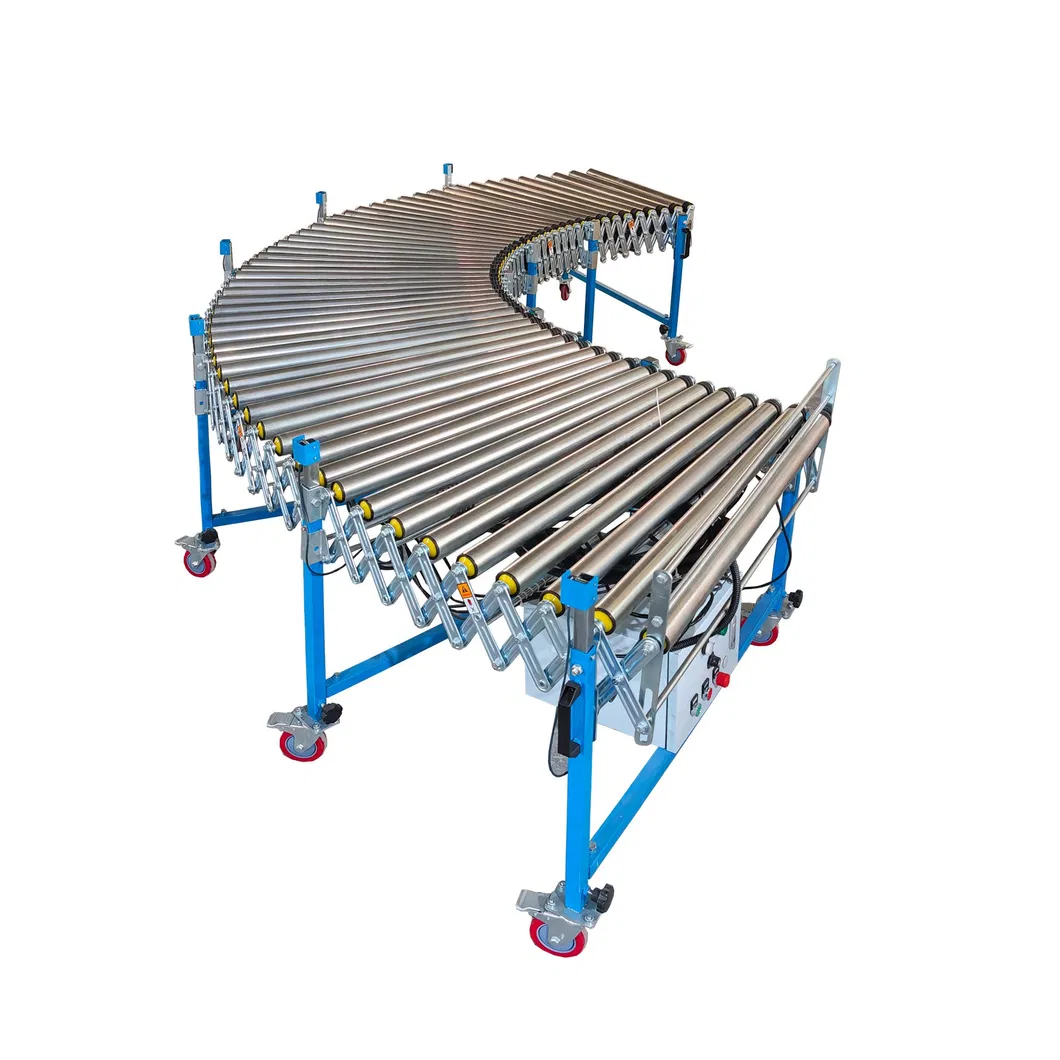

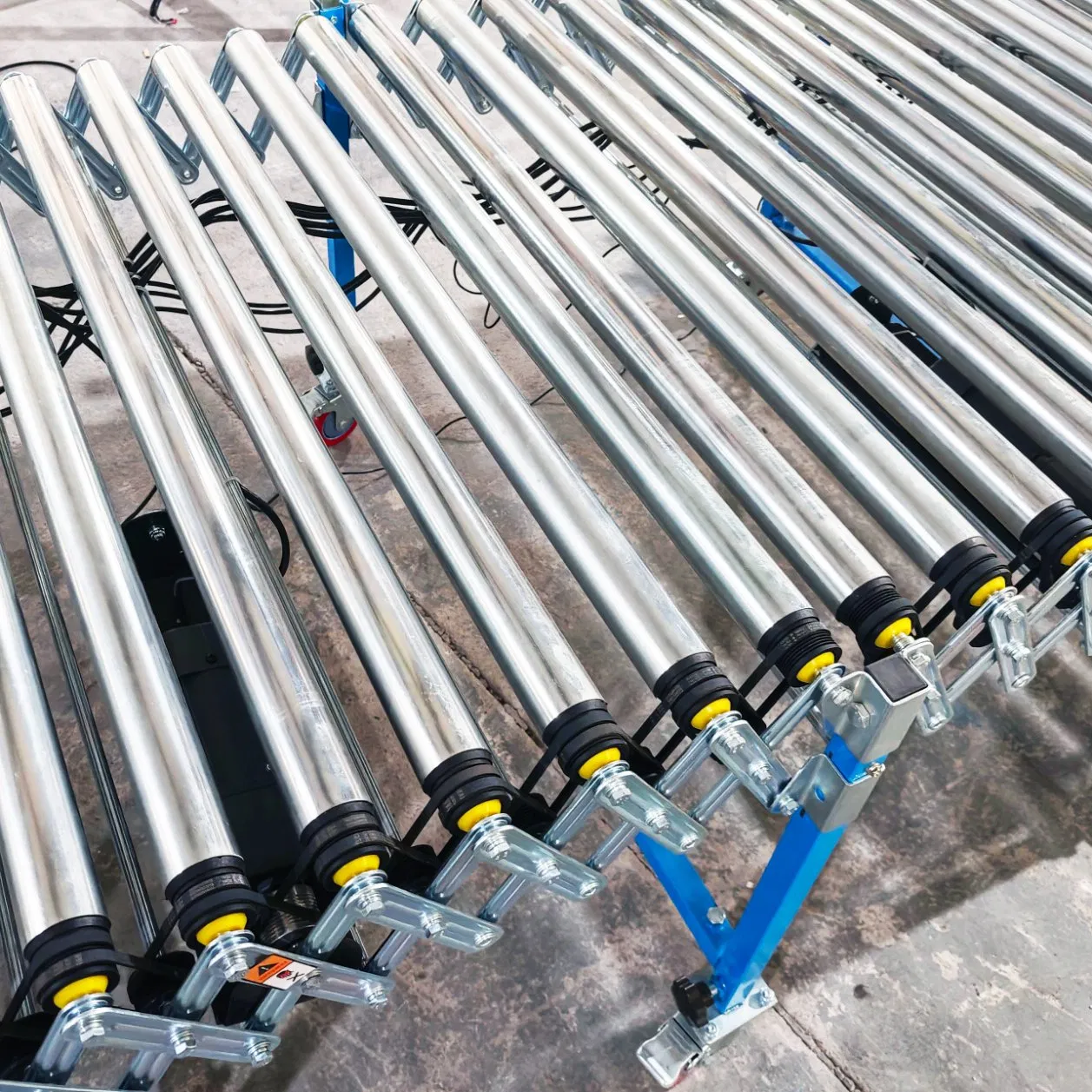

Conveyor Detail 1

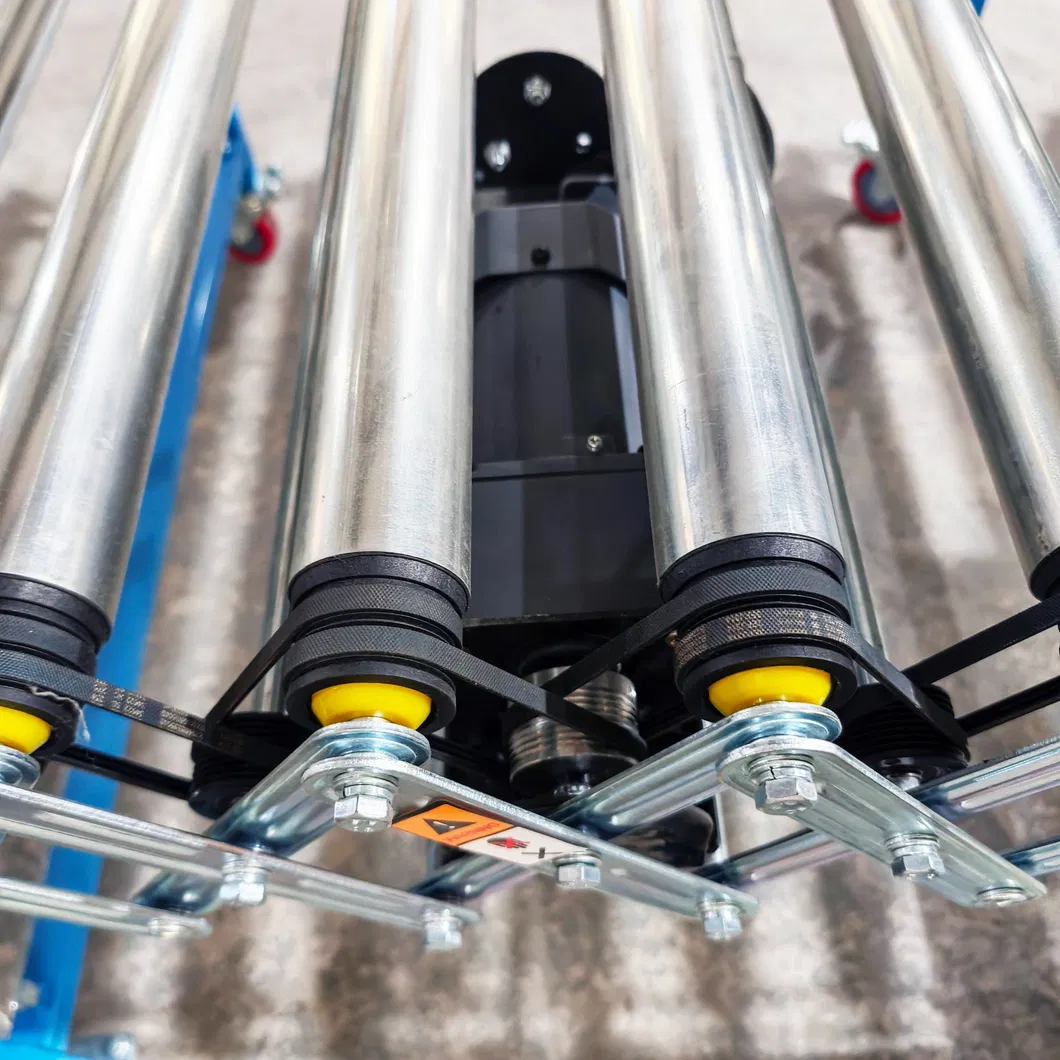

Conveyor Detail 2

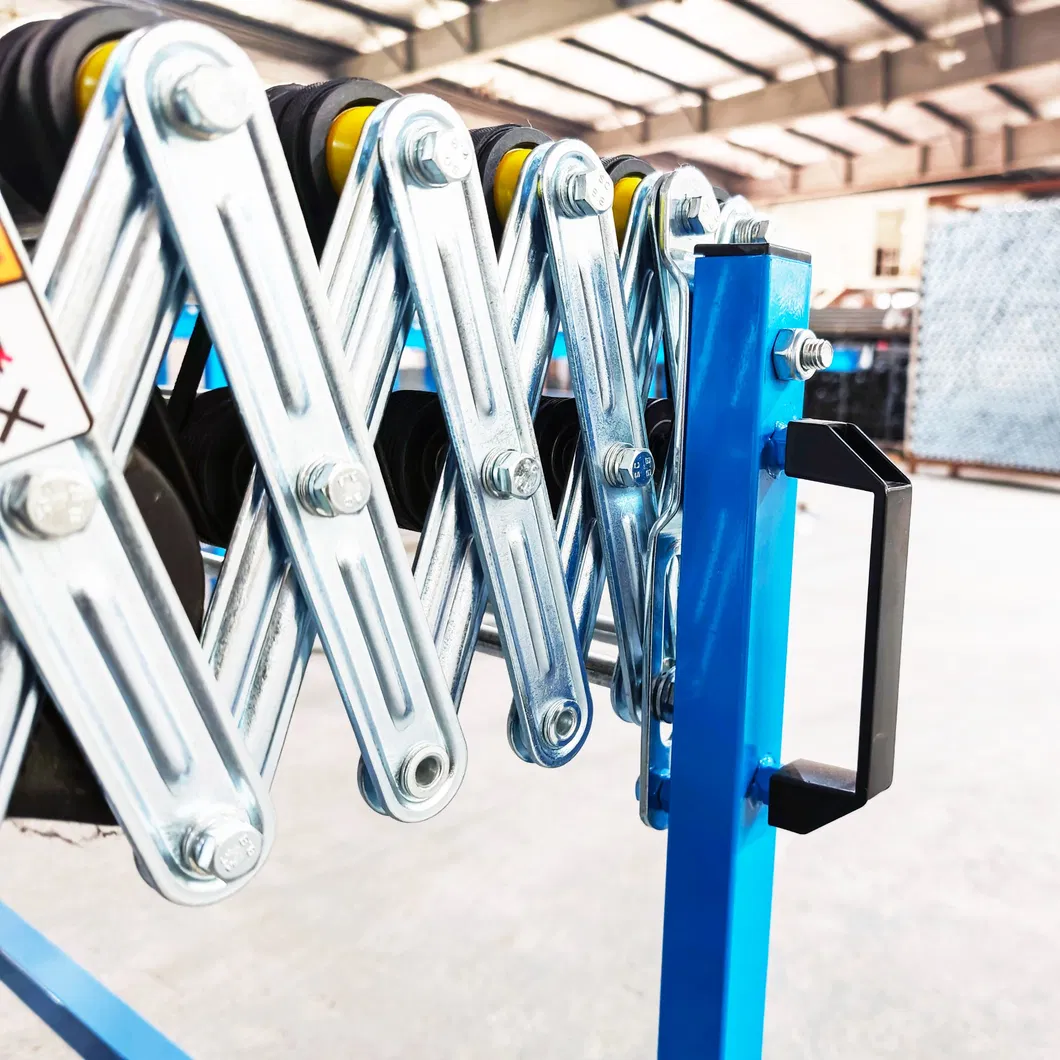

Conveyor Detail 3

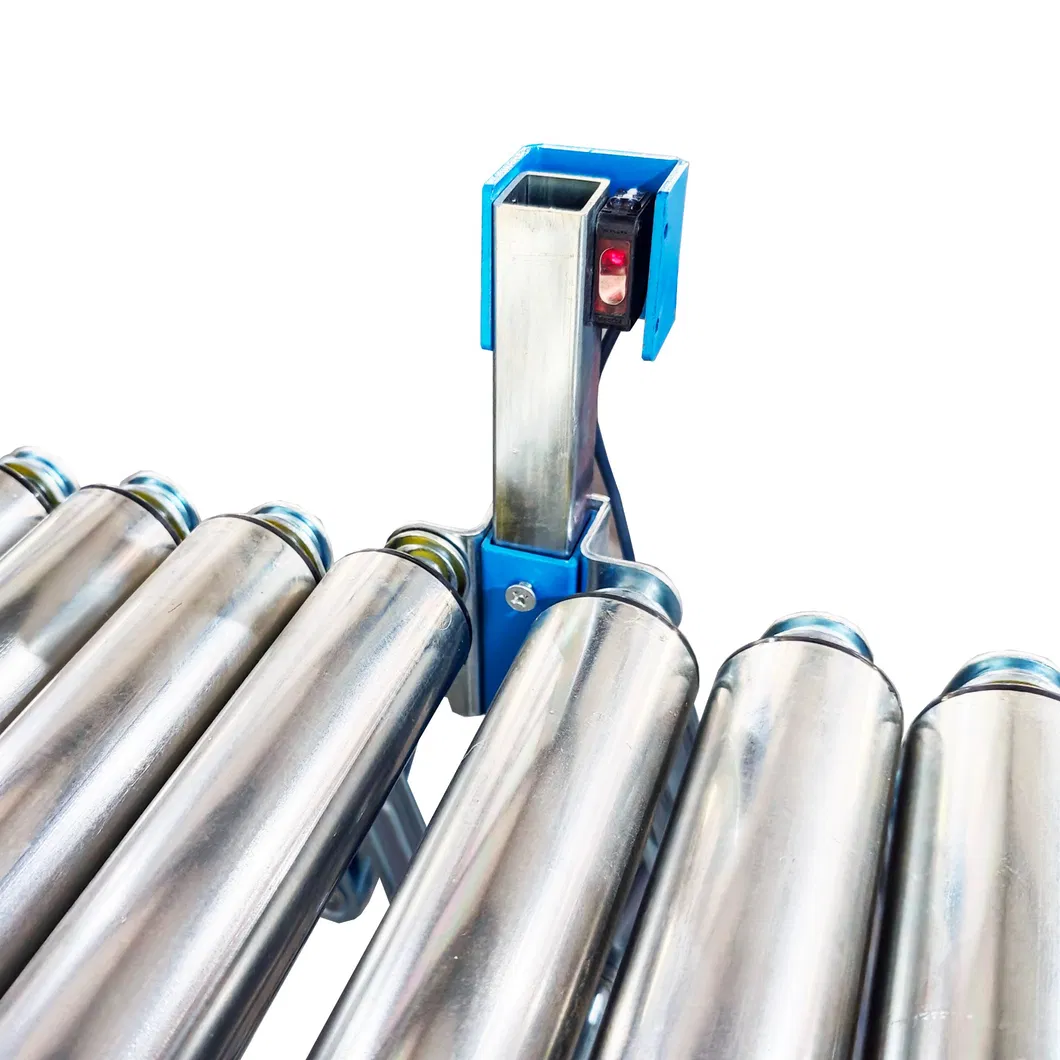

Conveyor Detail 4

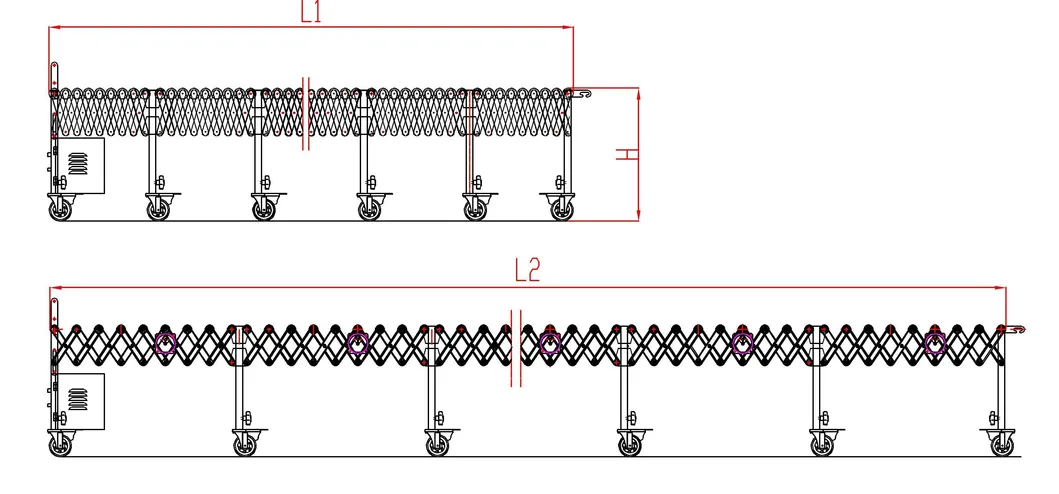

Full View Conveyor
3

Product Parameters

Component Specifications
Belt 5mm high quality Timing belt
Roller Dia 50*1.5mm galvanized steel roller, Max. gap 127 mm center to center
Motor 90W electronic governor motor
Frame 3.5mm thickness galvanized curved join plates with better load
Leg 32x32 powder coated tube with 25x25 galvanized tube inside
Caster Dia 125mm high quality swivel lockable polyurethane casters
Control Box Forward / Stop / Reverse Functions
Frequency Inverter Delta Inverter
4

Model Selection List

Model Open Length (mm) Close Length (mm) Width (mm) Adj. Height (mm) Speed (m/min) Max Load (kg/m²) Power (W)
FPR-T448001840600-800700-10000-3080360
FPR-T660002300600-800700-10000-3080450
FPR-T772002760600-800700-10000-3080540
FPR-T884003220600-800700-10000-3080630
FPR-T10108004140600-800700-10000-3080810
FPR-T12120004600600-800700-10000-3080900
FPR-T15156005980600-800700-10000-30801170
FPR-T20204007820600-800700-10000-30801530
5

Application Showcase

Application 1
Application 2

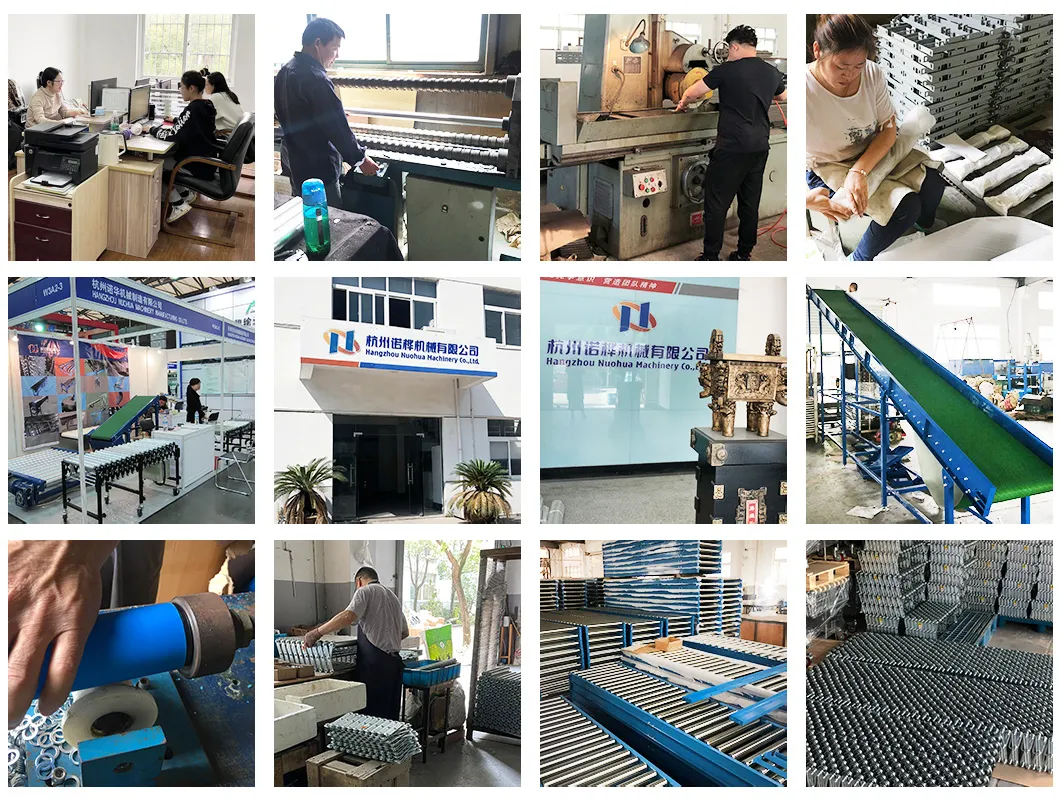

Warehouse Setup
Loading Process
Quality Check
?

Frequently Asked Questions

Q: What makes the motorized roller conveyor "flexible"?
A: It is extendable and contractible in length, allowing it to navigate curves and fit into varied warehouse spaces. The supporting legs are also height-adjustable to match different loading heights.
Q: Can the speed and direction of the conveyor be controlled?
A: Yes, the system includes a control box that supports Forward, Stop, and Reverse operations, with variable speed settings ranging from 0 to 30 meters per minute.
Q: What is the typical lead time for an order?
A: For sample or small quantity orders, the delivery period is 3-7 days. For bulk production orders, the standard lead time is approximately 20 days.
Q: How do you ensure the quality of the machinery?
A: We follow a strict working system and procedure. Every machine undergoes a rigorous test running phase after assembly to ensure all components function perfectly before shipping.
Q: What are the primary applications for this equipment?
A: It is ideal for intensive transport of flat-bottomed goods in warehouses, E-commerce distribution centers, garment factories, and for loading/unloading at harbors and docks.
Q: What is the warranty period for the conveyor?
A: The product comes with a standard 1-year warranty covering manufacturing defects and operational failures under normal use.
