Maith Conveyor
1 / 5
| Model NO. | SS-717 |
| Structure | Chain Conveyor |
| Material | Stainless Steel |
| Material Feature | Heat Resistant, Fire Resistant |
| Application | Chemical Industry, Grain Transport, Mining Transport, Power Plant |
| Core Components | Motor, Gearbox, Casing, Circle Blade |
| Voltage | 110V / 220V / 380V / 415V / 440V (Customized) |
| Power | 2.2kw - 22kw (Depends on Capacity) |
| Load Capacity | 5 - 150 M³/H |
| Max Inclination Angle | 0° - 90° (Supports Vertical Conveying) |
| Conveying Speed | 0.1 - 0.3 M/S (Adjustable Via VFD) |

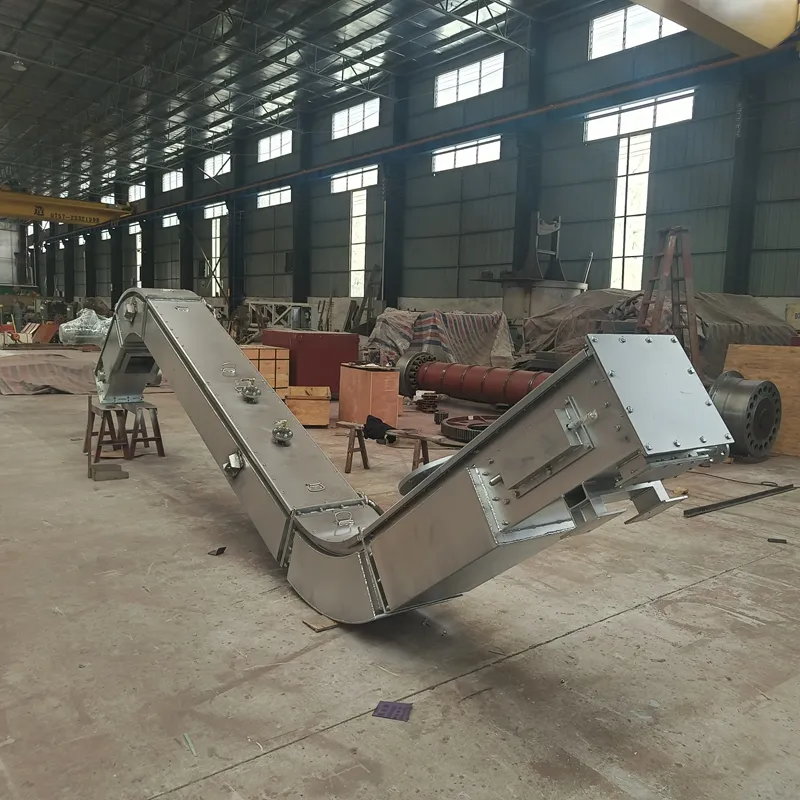

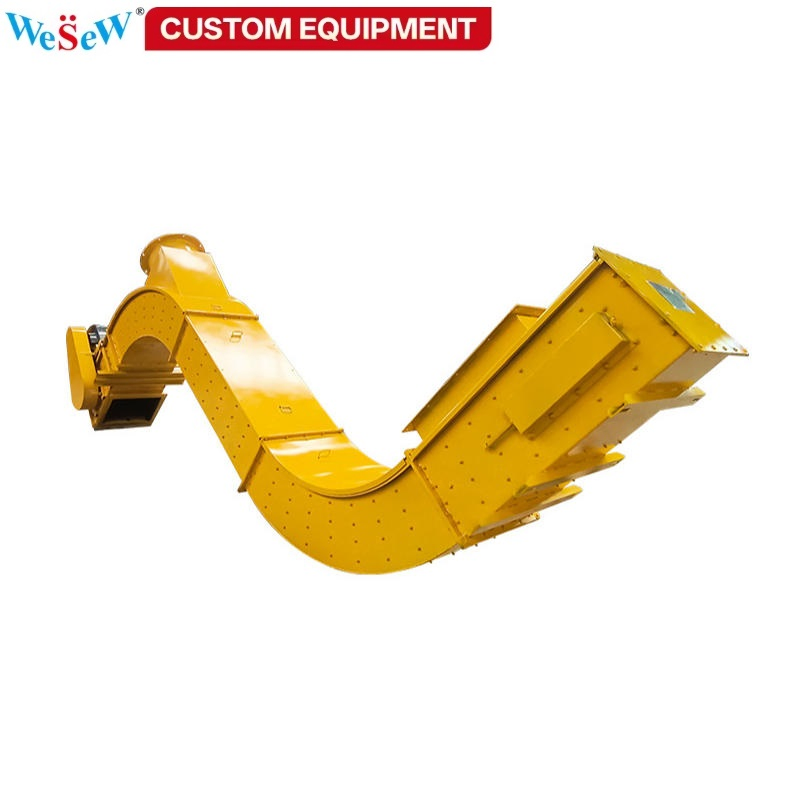

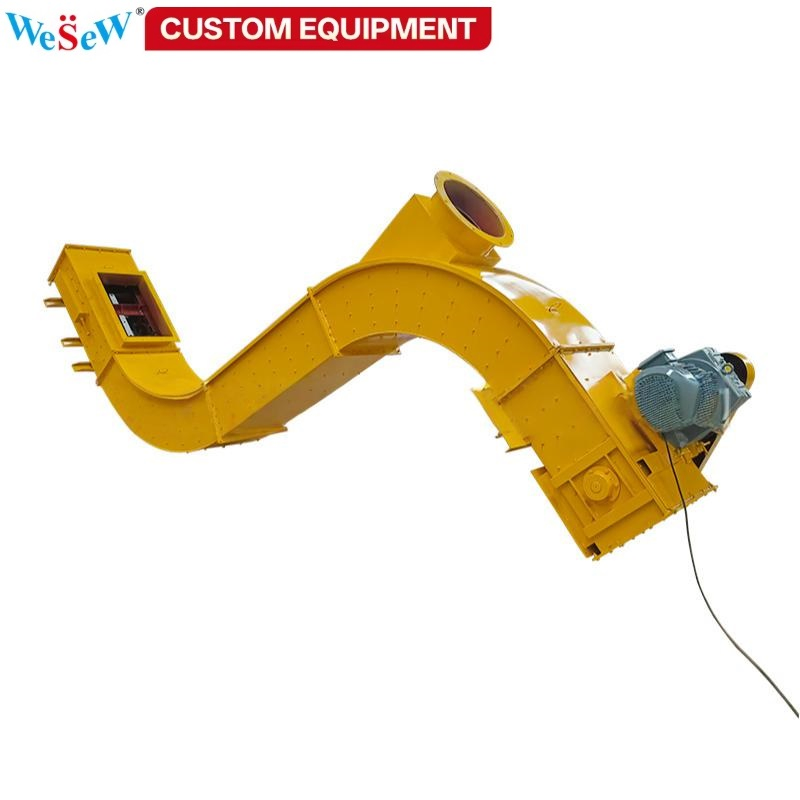

| Design Type | Enclosed Trough, Z-Shape / S-Shape / Vertical Lift |

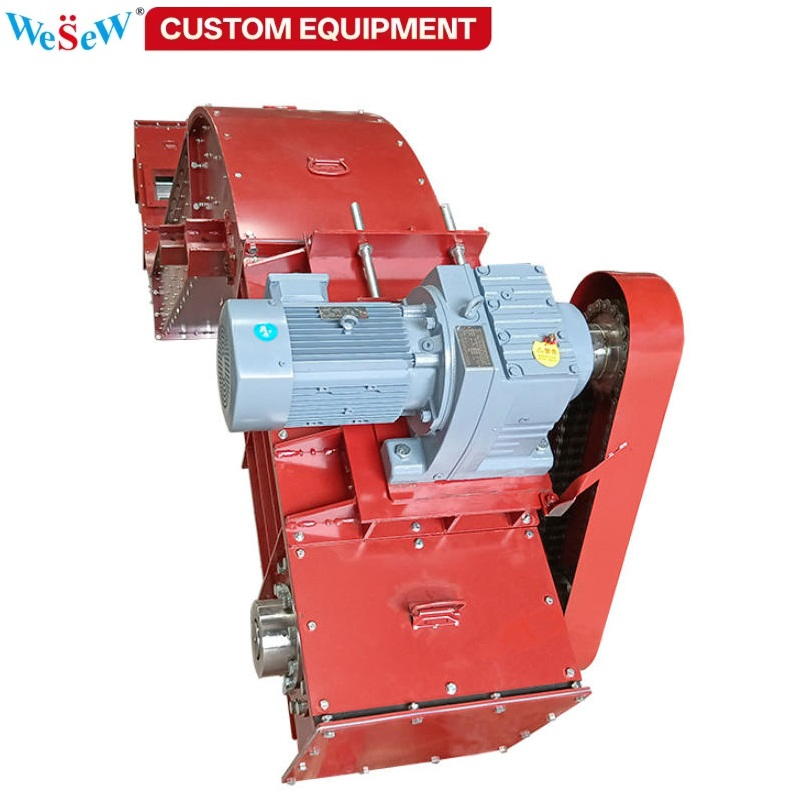

OEM Custom Carbon Steel Painting Chain Scraper Conveyor: An essential transportation tool for conveying materials such as sludge, kitchen waste, and dust. This equipment is designed to enhance sealing performance, scraper strength, and overall conveying capacity.
Working Principle: The scraper is fixed to a chain forming a traction member. As the transmission starts, the sprocket drives the scraper chain to circulate, moving material along the chute until it is unloaded at the machine head. This stepless closed cycle ensures continuous material transport.

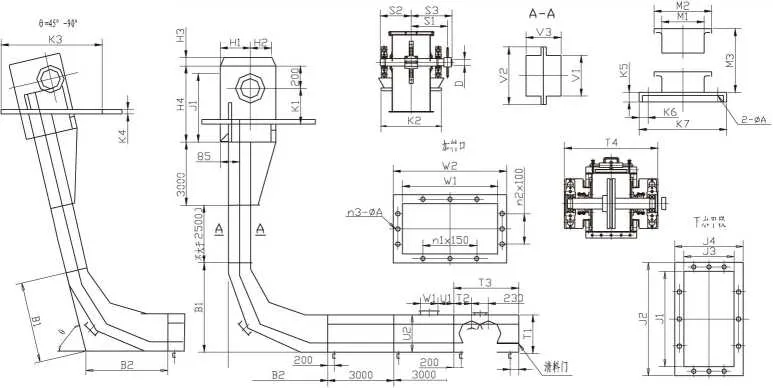

Technical Drawing
