| Model NO. | ZXFlasee W-I Type |
| Application | Industrial High-definition X-ray Detector |
| Certification | CE, ISO |
| X-ray Energy | 160kv/225kv Option |
| X-ray Detector | 100μm/120μm/140μm/154μm Option |
| Imaging Software | Raysov Developed X-ray Image Filer Software |
| Workstation | 2 Window or 3 Window Control Station |
| NDT Type | NDT-Rt Digital Radiography |
High-precision X-ray Vertical radiography flat panel detector X-ray inspection systems NDT solutions.

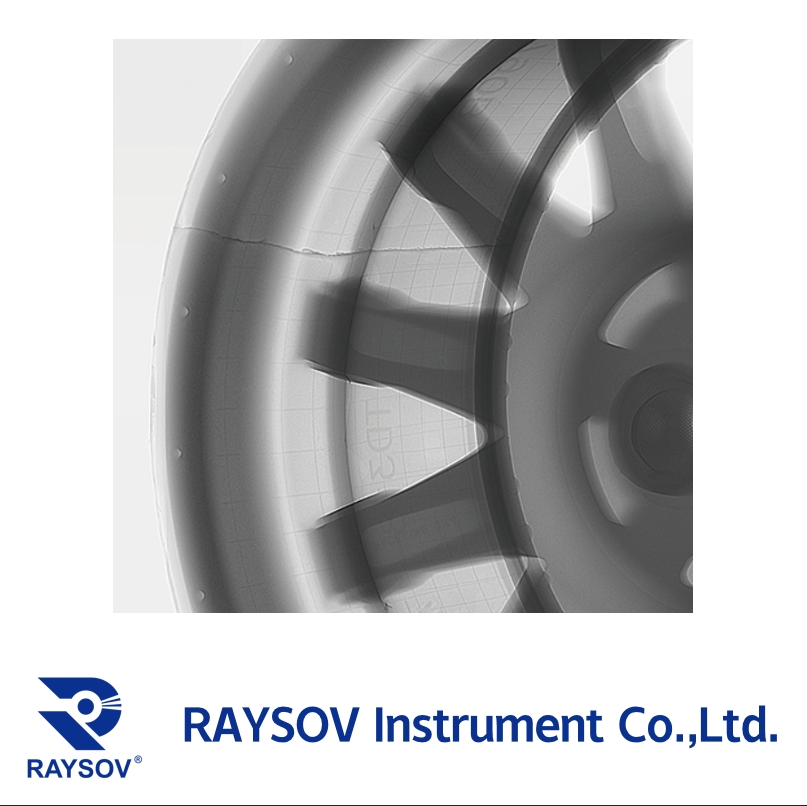

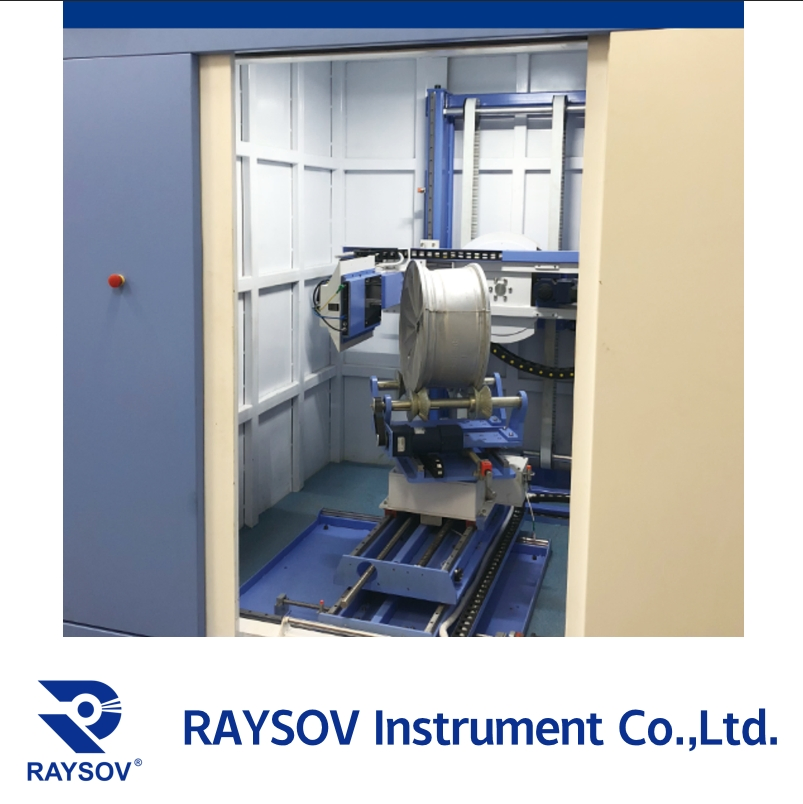

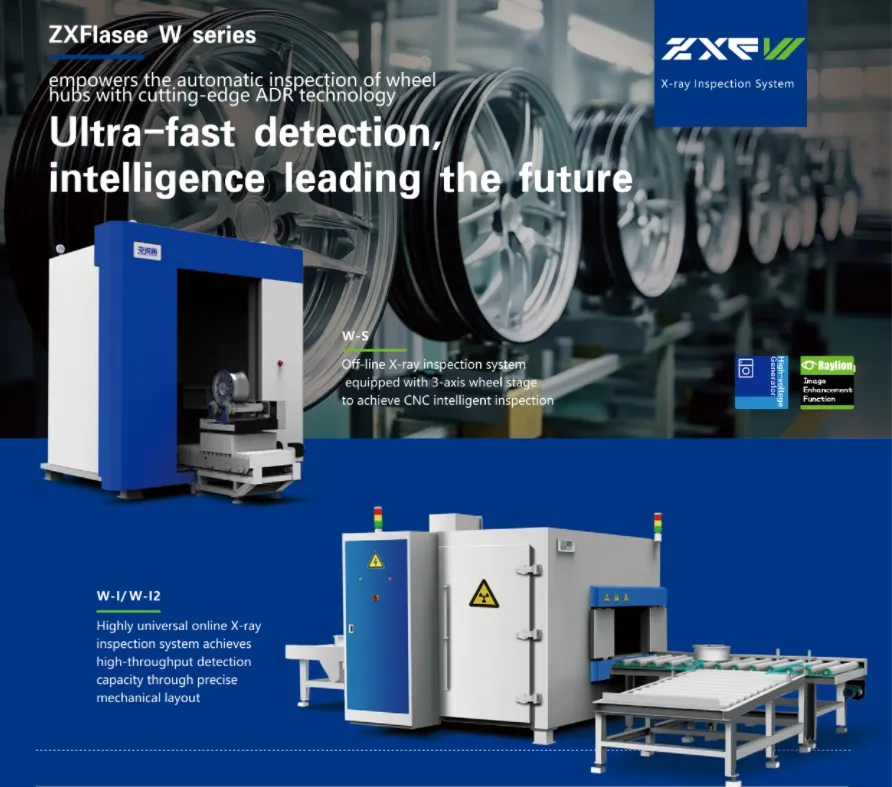

The ZXFlasee W-I Series is an online X-ray inspection system developed based on high-resolution, high-frame-ratio speed online X-ray digital imaging capability. It is specifically designed for batch quality control needs for automobile wheels (aluminum alloy, magnesium alloy, steel, etc.) and various wheel hub specifications.
Designed with advanced technology and robust materials, this system ensures superior operation in harsh environments, meeting high-precision requirements while maintaining testing efficiency. It is widely used in new energy automobile manufacturing and research fields.

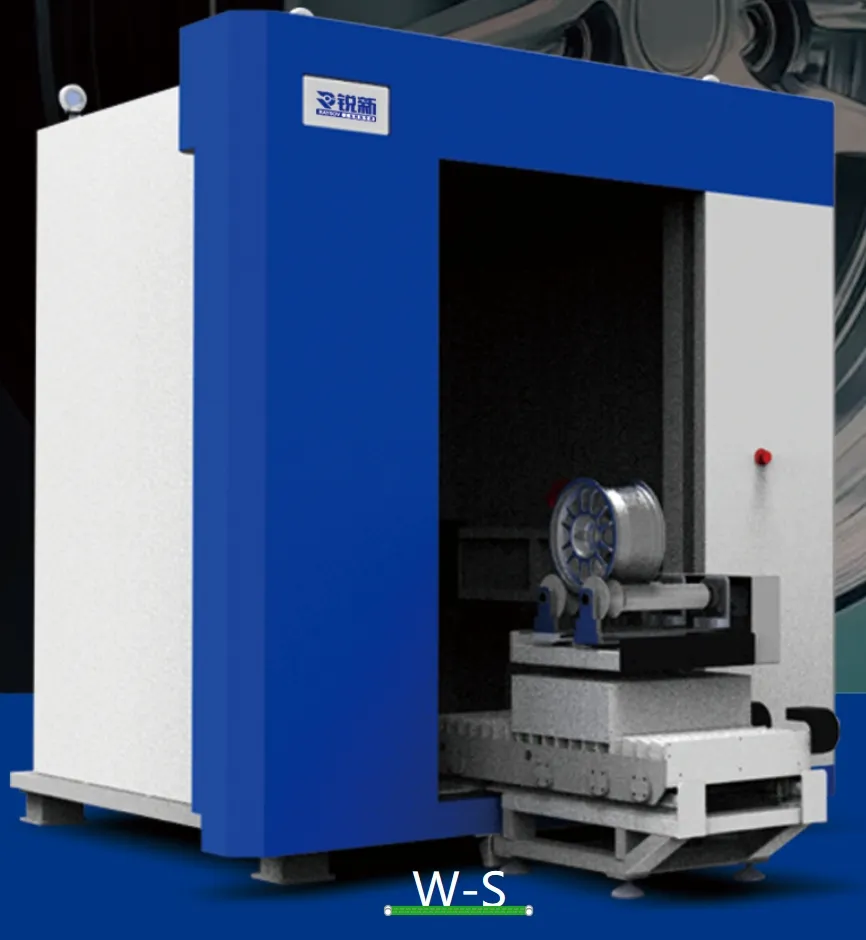

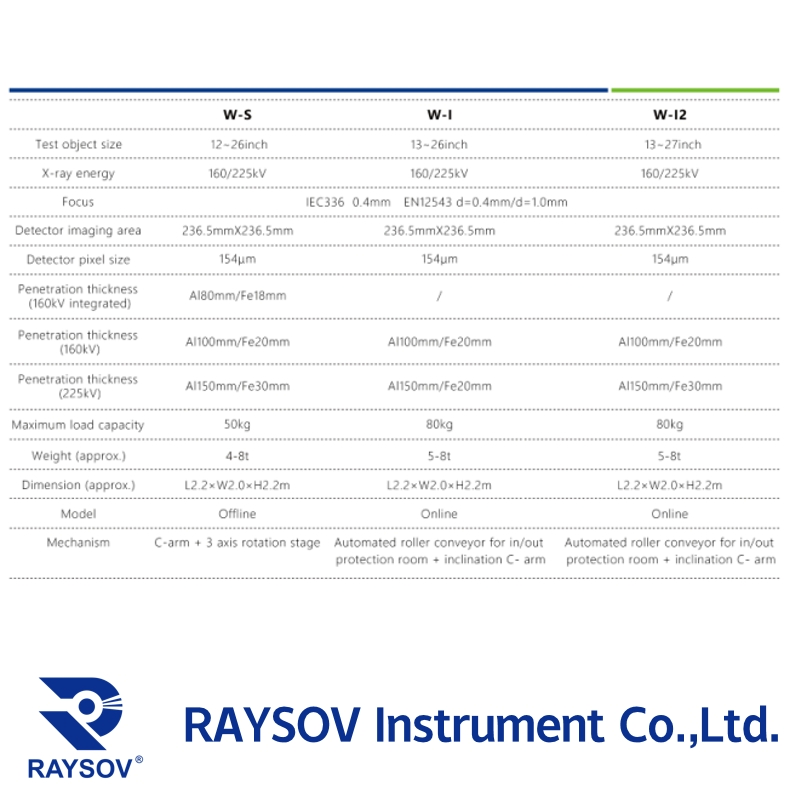

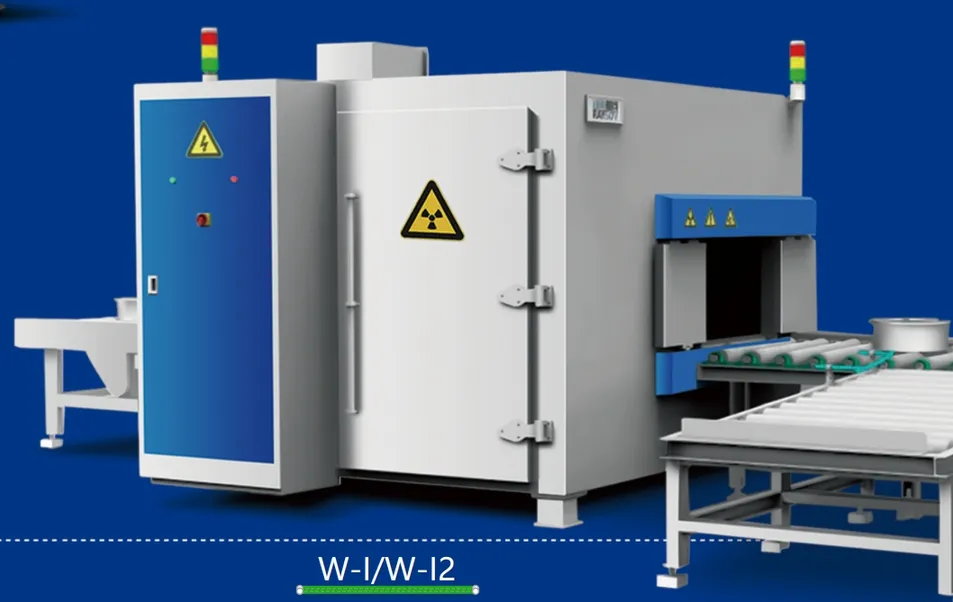

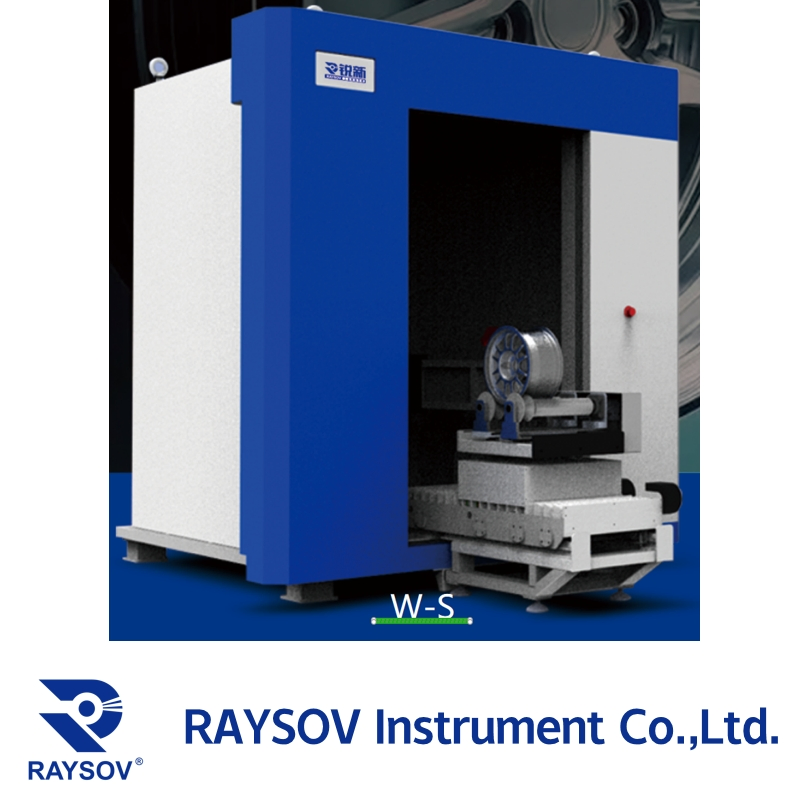

| Parameter | W-S | W-I | W-I2 |
|---|---|---|---|
| Test object size | 12-26inch | 13-26inch | 13-27inch |
| X-ray energy | 160/225kV | 160/225kV | 160/225kV |
| Detector pixel size | 154µm | 154µm | 154µm |
| Max load capacity | 50kg | 80kg | 80kg |
