Customizable Chain Conveyor System for Bulk Material by Hualiang

After-sales Service:	12 Months
Warranty:	12 Months
Structure:	Chain Conveyor

Send Inquiry

Product Description

Technical Specifications

Model NO.

Material

Carbon Steel

Application

Chemical, Grain, Mining, Power

Condition

New

Main Structure

Chain Type

Origin

China

HS Code

8428391000

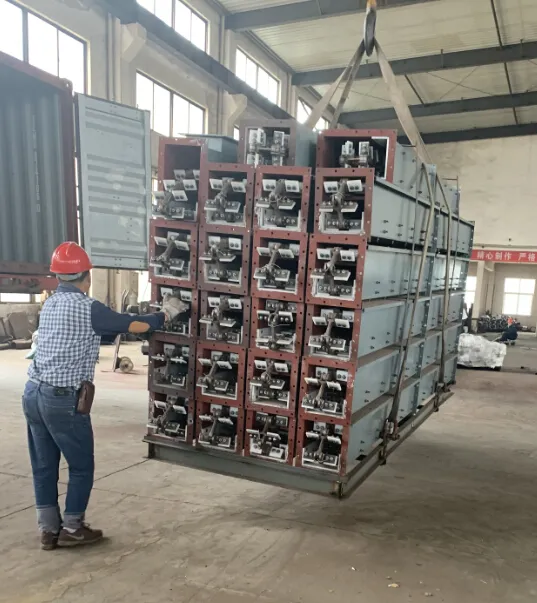

Package

Seaworthy Packing

Product Overview

The Scraper Conveyor is a premier continuous transport solution, featuring a sophisticated flexible traction component that sets it apart in material handling. Designed with precision, this conveyor boasts a rectangular form in a sealed or 'U' shape trough. Leveraging the thrust force from a moving scraper chain, materials and the chain become a seamless single unit for transport. As the scraper chains are embedded in the material during transit, it is aptly termed an 'embedded scraper conveyor.' This apparatus is indispensable in grain processing plants and warehouses, serving as a primary conveyance system.

⚡ Main Assembly Components:

The Scraper Conveyor is ingeniously crafted with a multi-component assembly consisting of a robust trough, efficient scraper chains, durable head and tail wheels, convenient inlet and outlet, and an advanced drive and tensioning device.

Working Principle

Horizontal Transport:

The scraper chain drives materials forward as the friction between the trough wall and the material is surpassed by the direct action of the scraper chain, creating a unified movement.

Vertical Transport:

Materials are thrust upwards by the scraper, counteracting their own weight and vertical pressure. This forms a stable lateral pressure against the trough walls to ensure smooth ascent.

Key Features & Advantages

✔ Simple yet refined structure, lightweight and compact design with a small footprint.
✔ Excellent sealing properties, ensuring dust-free operation for environmental protection.
✔ Flexible feeding and discharge supporting multiple points for operational versatility.
✔ Technological layout flexibility enables material transport in varied directions.
⚠ Designed for heavy-duty use; suitable for materials with appropriate moisture levels to avoid adhesion.

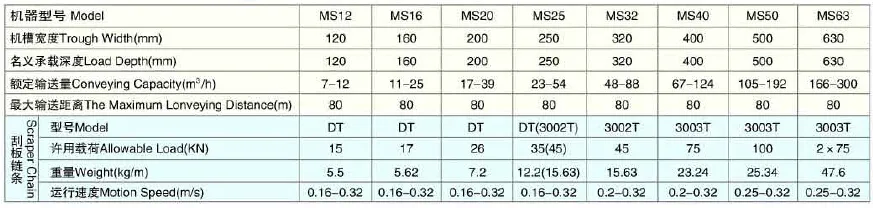

Technical Parameters

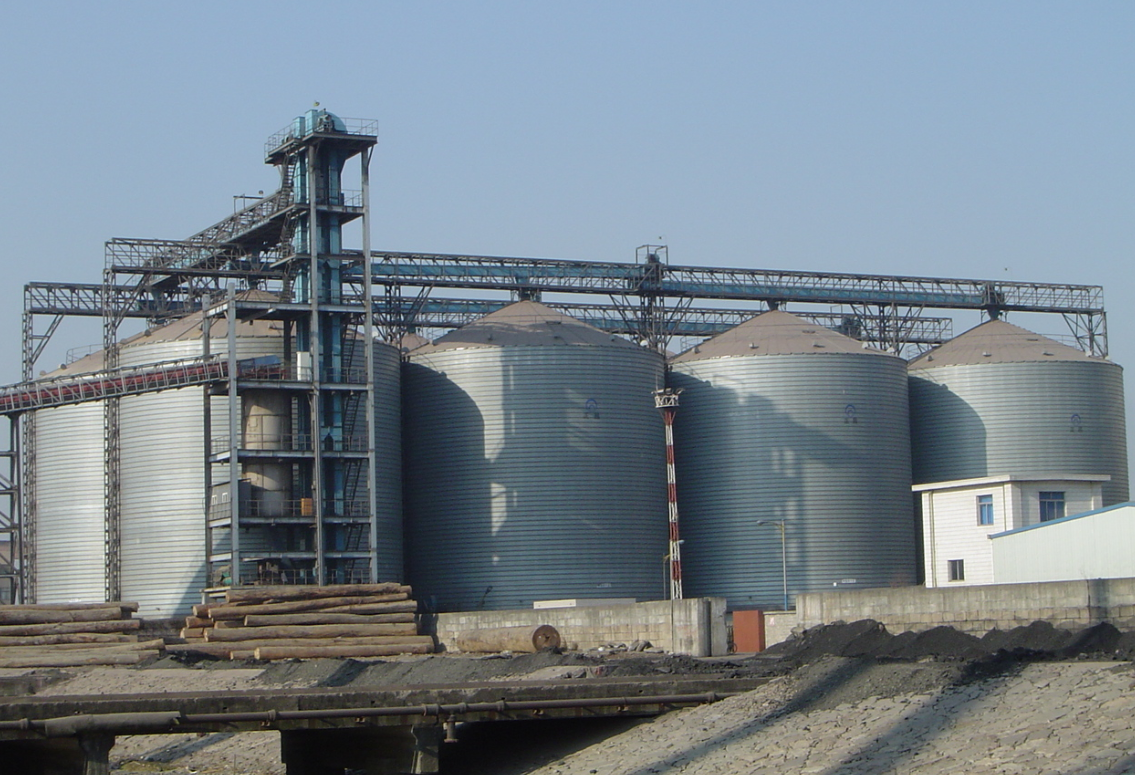

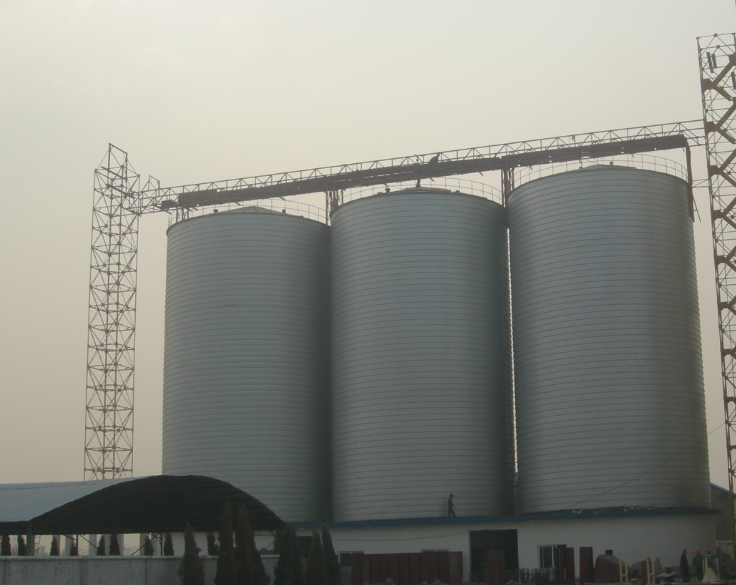

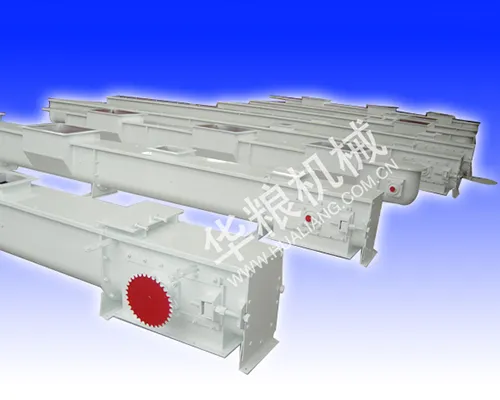

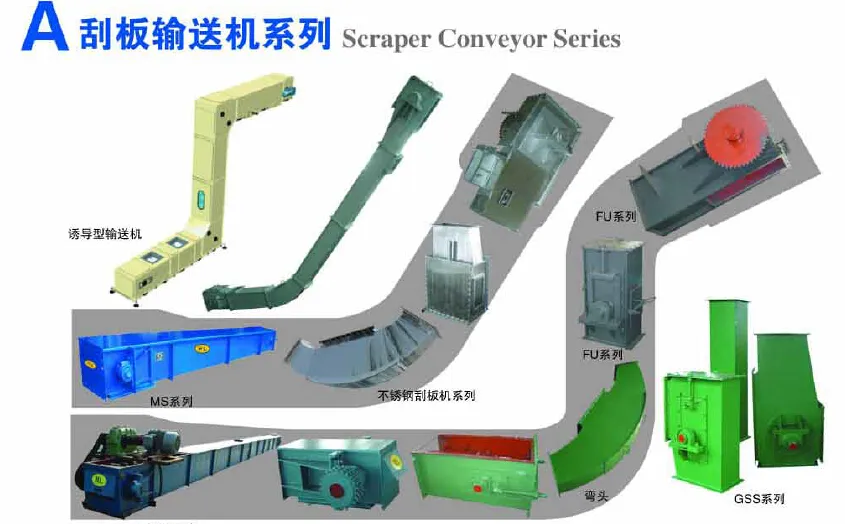

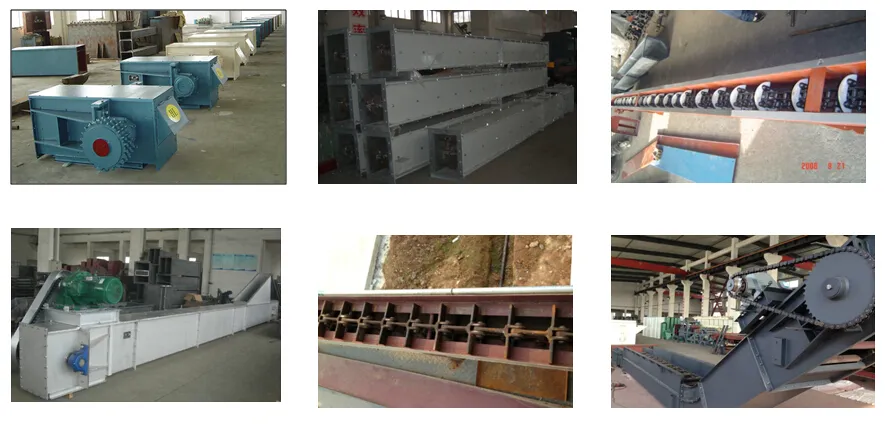

Product Gallery

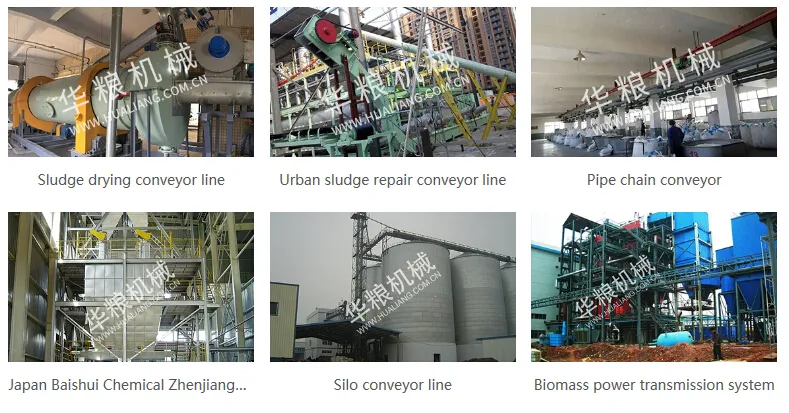

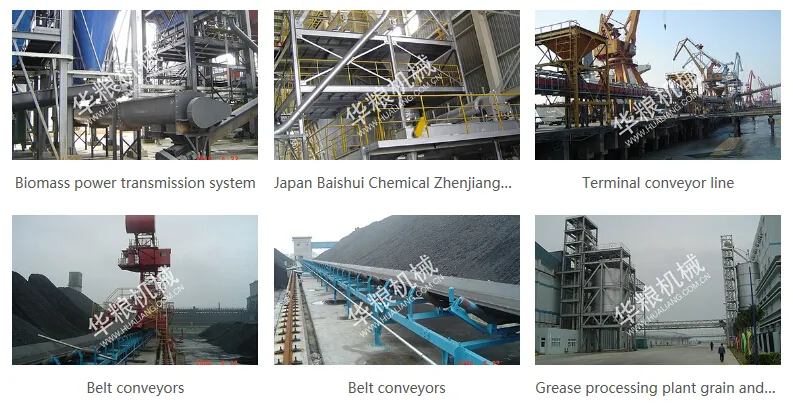

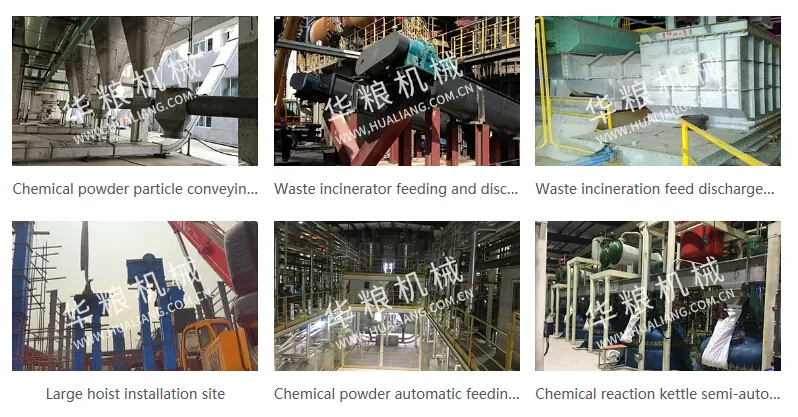

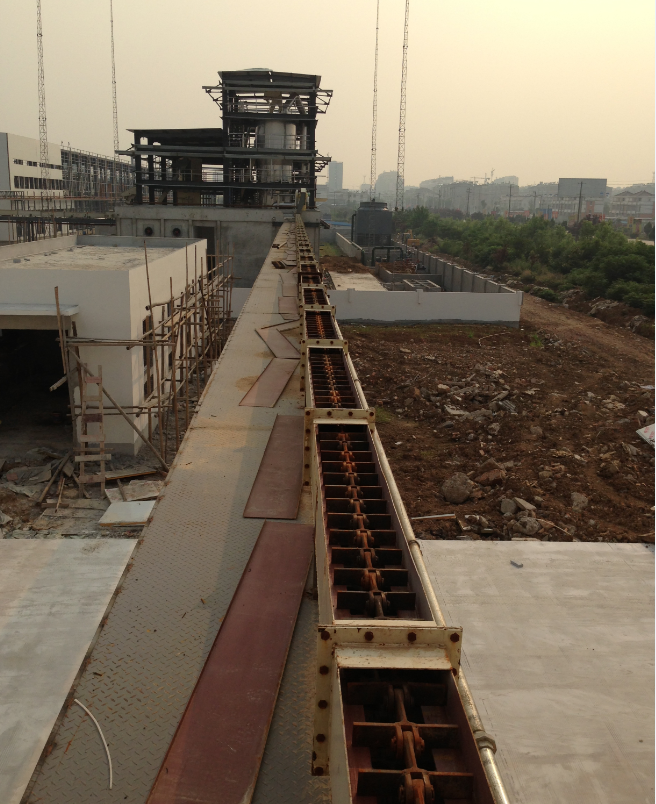

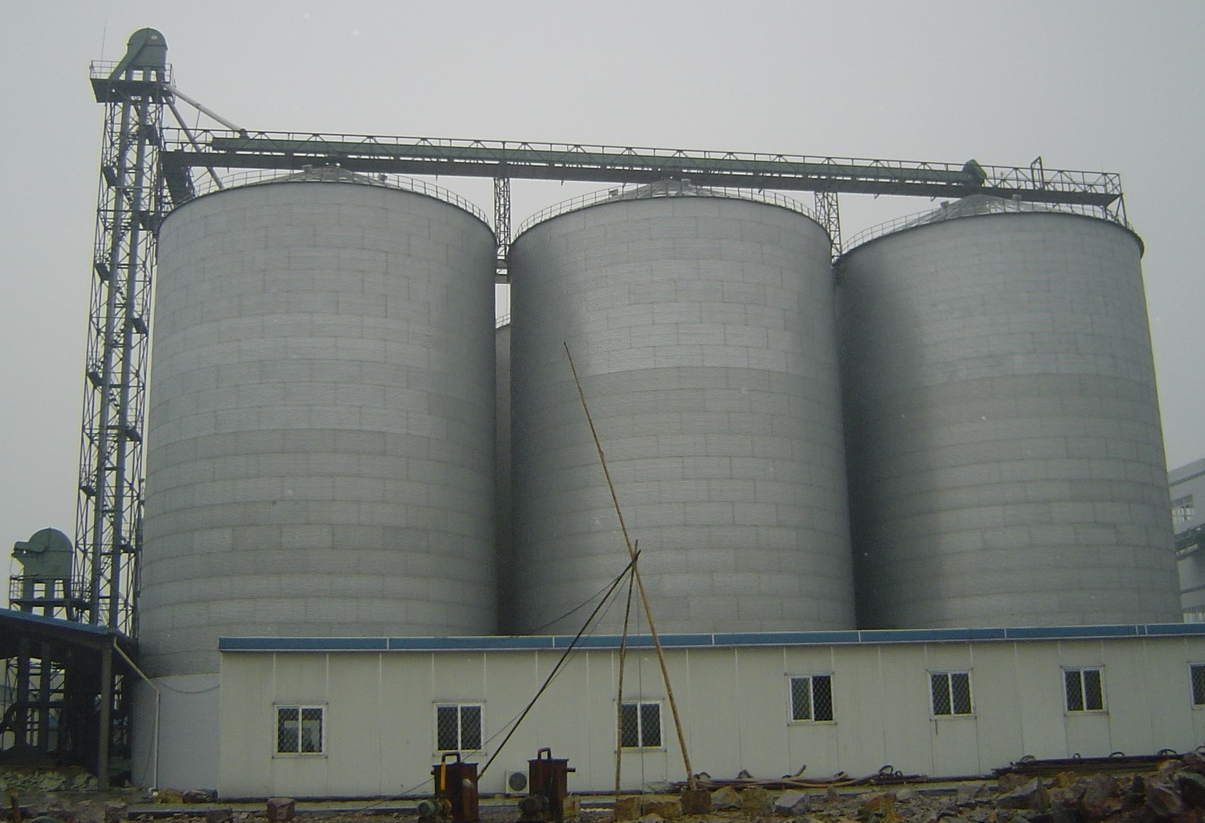

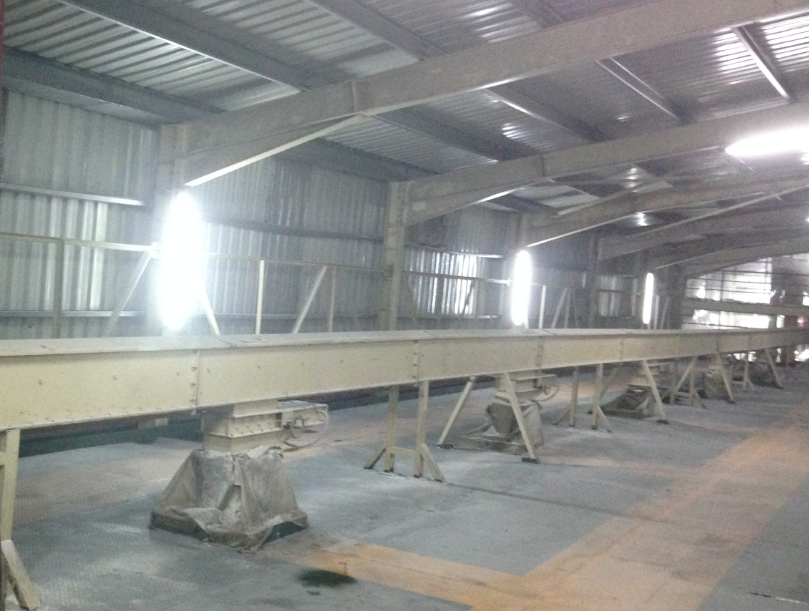

Project Cases & Implementation

Discover how advanced machinery has been successfully implemented in real-world applications, delivering exceptional performance outcomes and exceeding expectations.

Frequently Asked Questions

What is an embedded scraper conveyor?

It is a conveyor where the scraper chain is completely embedded in the material during transport, allowing the material and chain to move together as a single unit within a sealed trough.

Can this conveyor handle vertical transport?

Yes, the system is designed to handle both horizontal and vertical transport by using internal friction and lateral pressure to move materials upward efficiently.

Is the operation dust-free?

Yes, the conveyor features a sealed trough design which provides excellent sealing properties, ensuring a clean and dust-free working environment.

What materials are most suitable for this equipment?

It is ideal for bulk materials in the chemical industry, grain transport, mining, and power plants. It works best with materials that have lower moisture content to prevent adhesion.

How flexible is the feeding and discharge system?

The system is highly flexible, allowing for multiple feeding and discharge points along the technological layout to suit diverse operational requirements.

Is the system easy to maintain?

Despite its heavy-duty nature, the scraper conveyor has a simple and compact structure, making it relatively easy to manufacture, install, and maintain.
