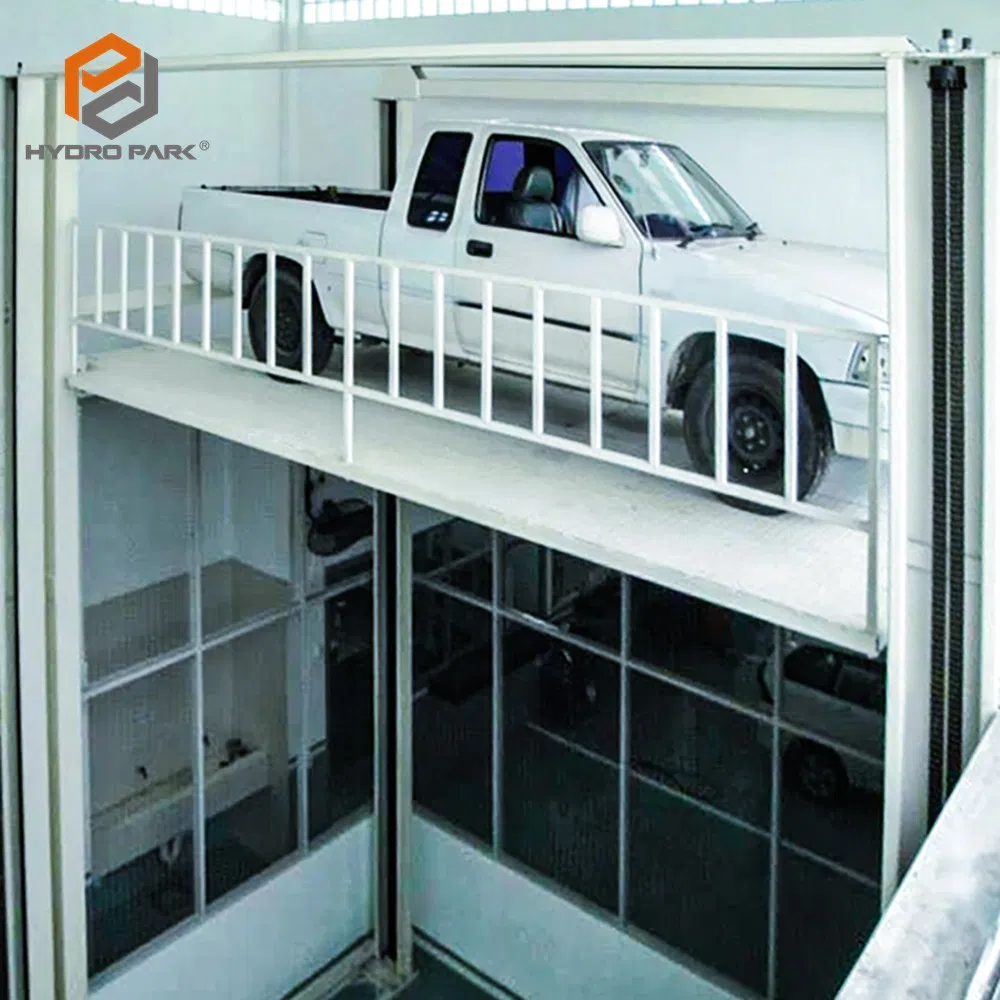

4 Ton SUV Vertical Conveyor Car Elevator Parking System

1 / 5

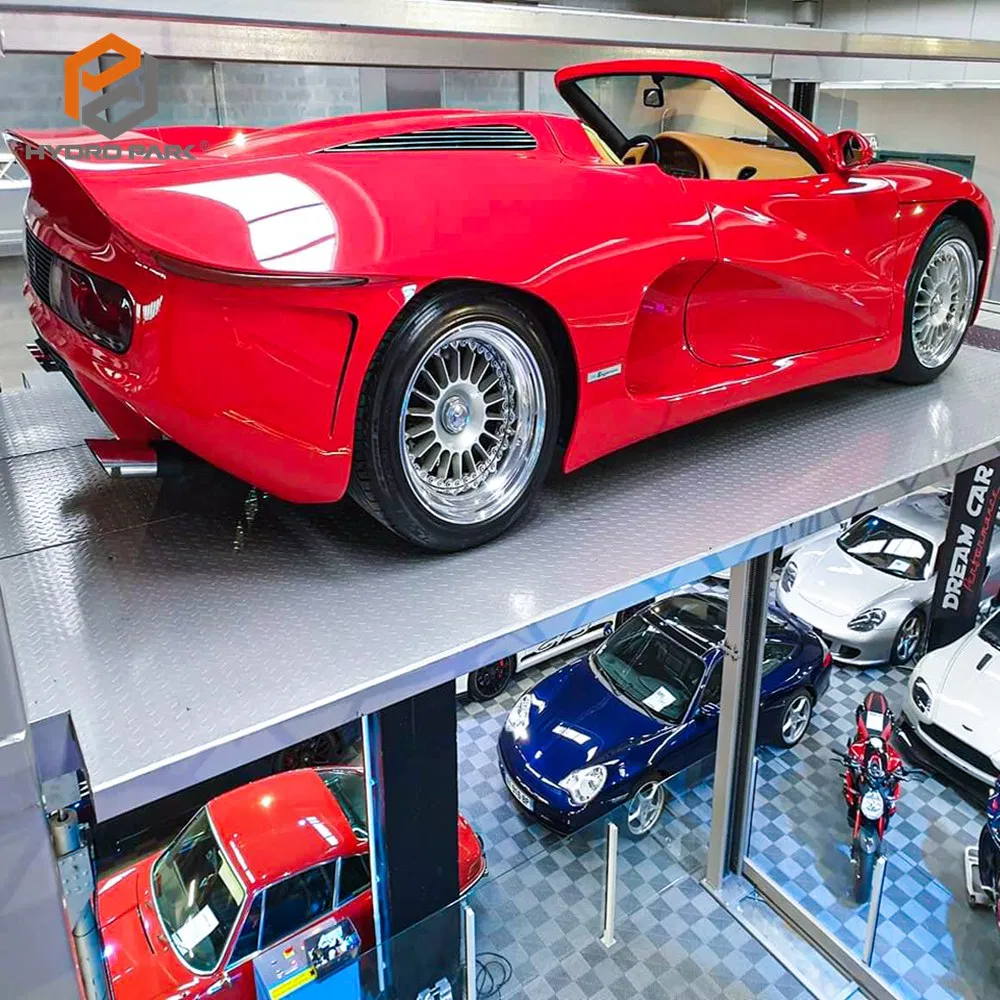

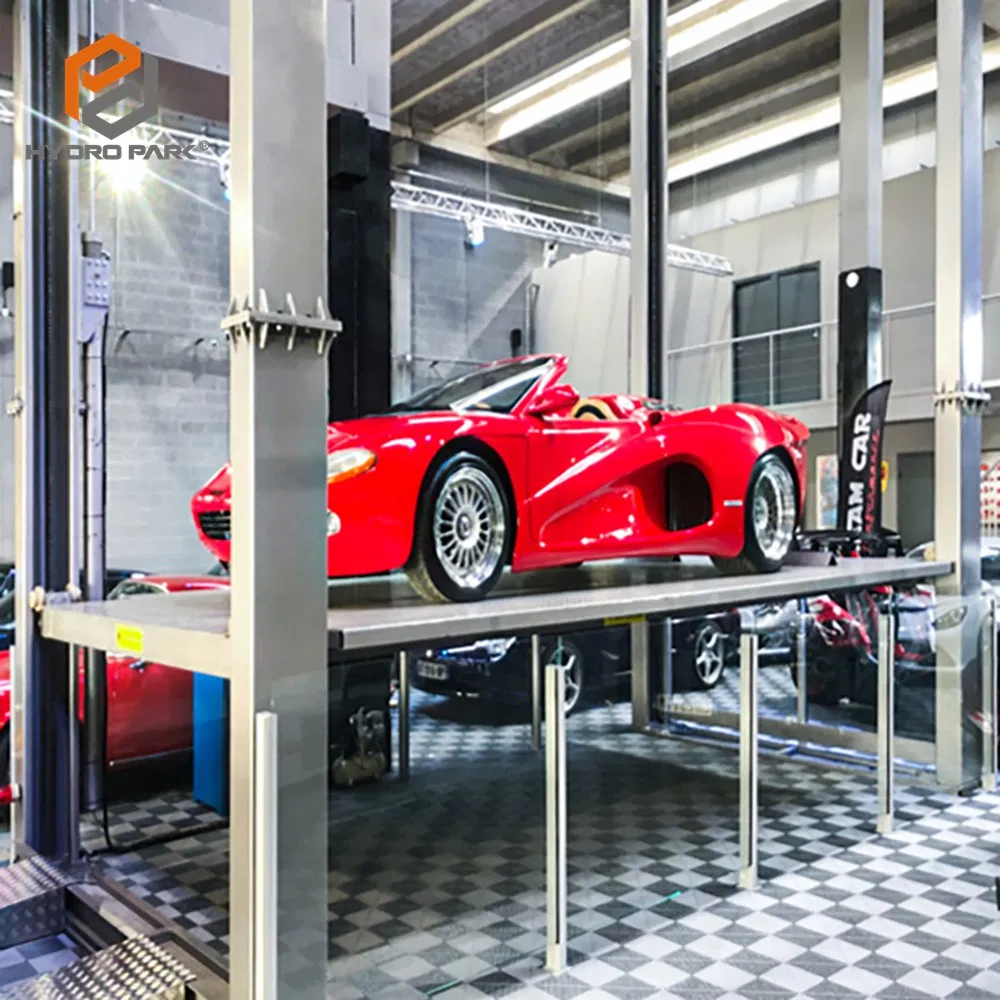

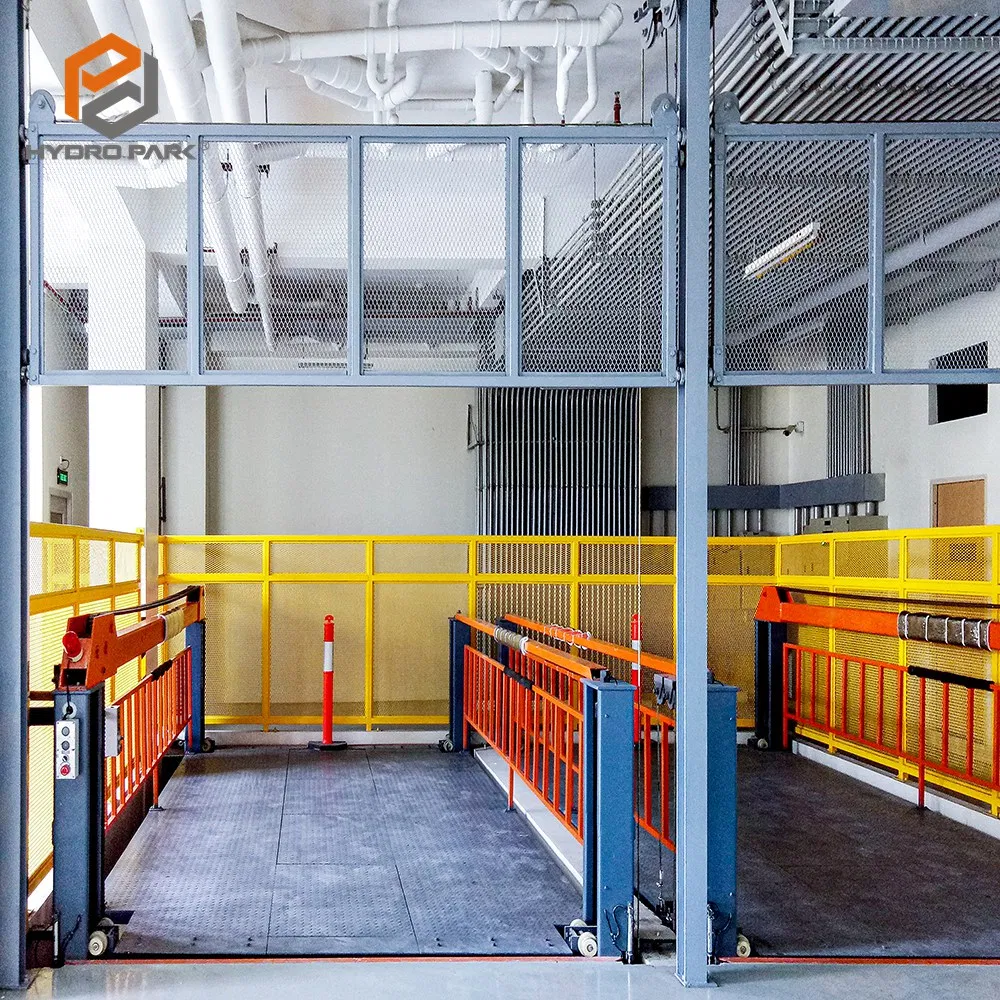

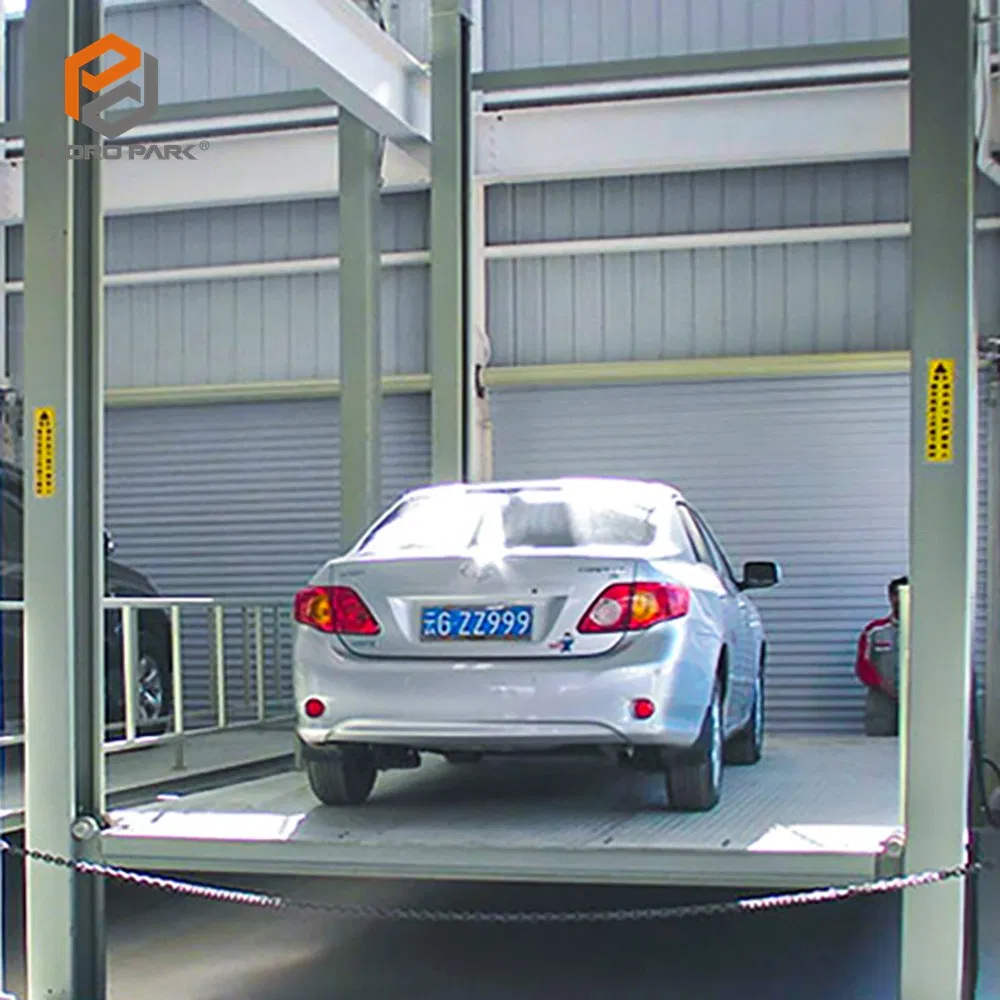

4 Ton SUV Vertical Conveyor Car Elevator Parking System

Customization:	Available
After-sales Service:	12 Months
Warranty:	1 Year, 1 Year for Whole Machine

Send Inquiry

Product Description

Basic Info.

Model NO.

FP-VRC

Type

Hydraulic(Cylinder with Double Steel Chains), Parking Lift

Lifting Capacity

2,000-10,000 Kg

Driving Type

Hydraulic

Certification

CE, ISO

Shearing Lift Type

Car Elevator

Condition

New

Design

Four Post

Voltage

220V

Working Mode

Buttons

Production Capacity

500pieces/Month

Product Description

4 Ton SUV Vertical Conveyor Car Elevator Parking System

VRC (Vertical Reciprocating Conveyor) is a transportation conveyor moving cars from one floor to another. It is a highly customized product, which can be tailored according to specific requirements including lifting height, capacity, and platform size.

Scope of Applications:

Optimizing space is crucial in modern urban development. The lifting platform solution is ideal for:

Car Dealerships & Showrooms
Multilevel Parking Systems
Underground Garages
Warehouse Logistics
Hotels & Business Centers
Private residential use for anti-theft protection

Main Features

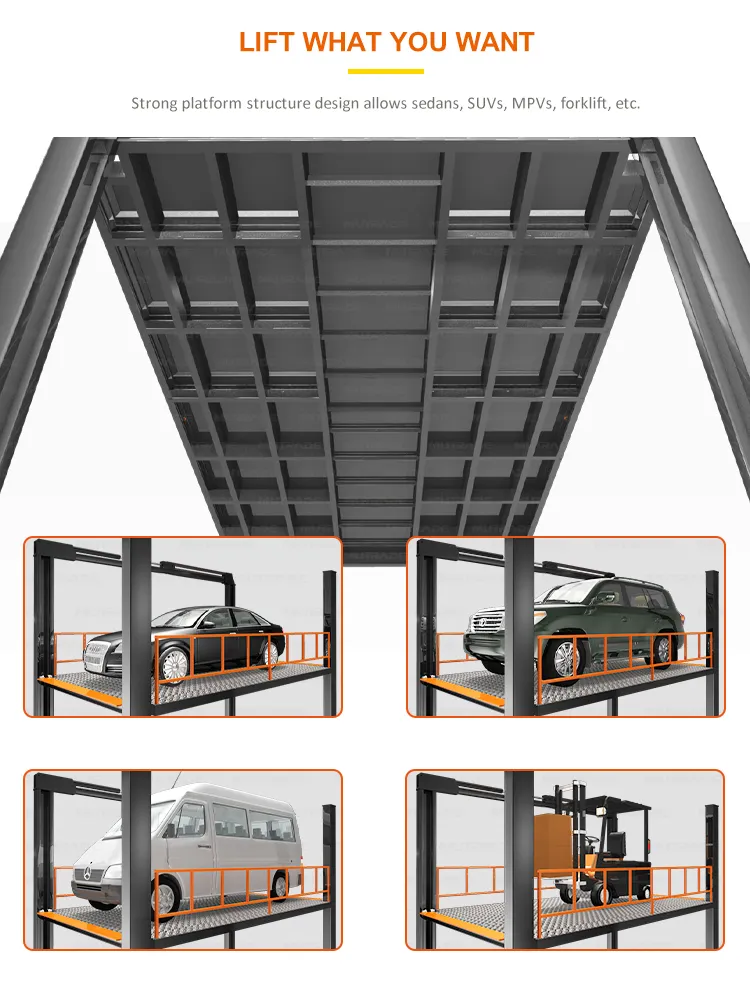

Multi-purpose: Can be used for lifting cars or general goods.

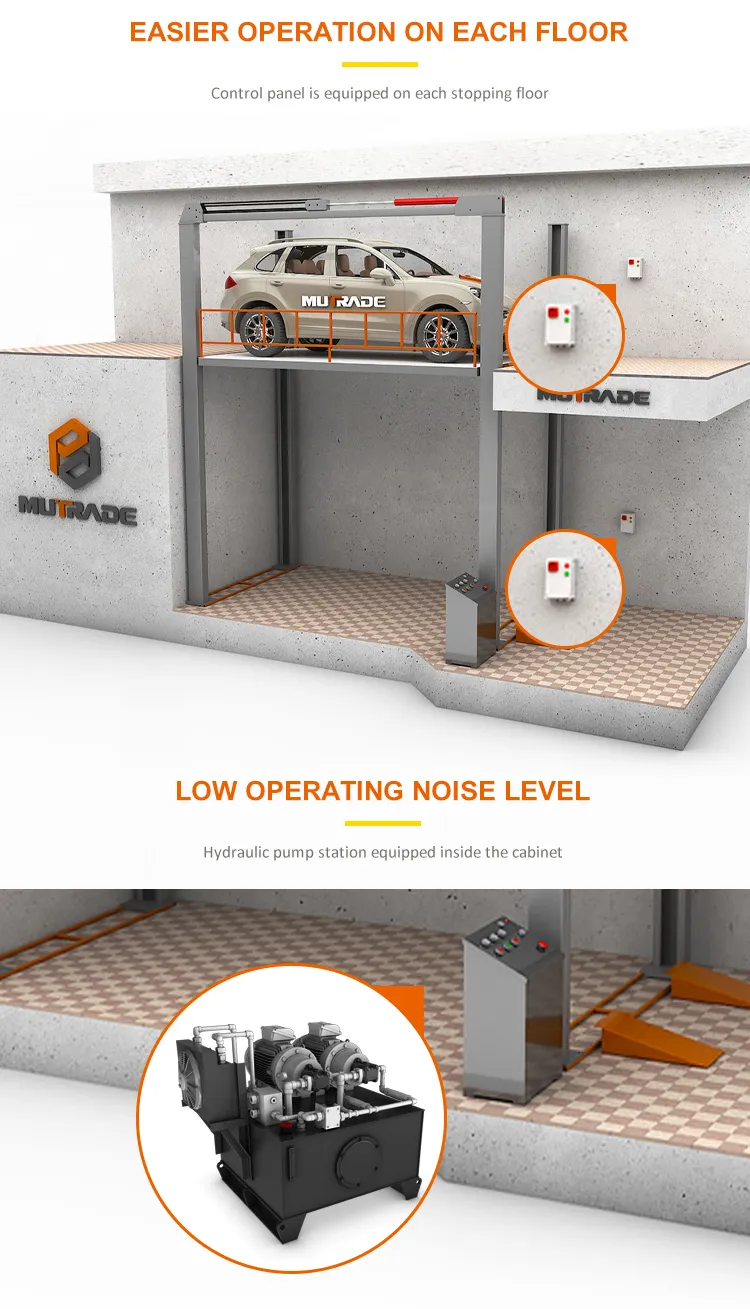

Hydraulic driving system: Low-noise and fast operation during rise and fall.
Double chains design: Enhanced safety and stability.
High precision: Stable hydraulic drive system for smooth movement.
Safety Stop: Automatic shut-off when the operator releases the button switch.
Durability: High-density chains for long-term service.
Premium Materials: Top quality diamond steel plate platform.
Overload Protection: Hydraulic overloading protection available.
Optional Control: Remote control functionality can be integrated.

Technical Specifications

Model	FP-VRC
Lifting capacity	2000kg-5000kg
Lifting height	2000mm-3000mm
Platform length	2000mm-6500mm
Platform width	2000mm-3800mm
Drive mode	Hydraulic cylinder
Operation	4kw hydraulic power pump
Lifting speed	4m/min
Finishing	Paint spray/powder coating

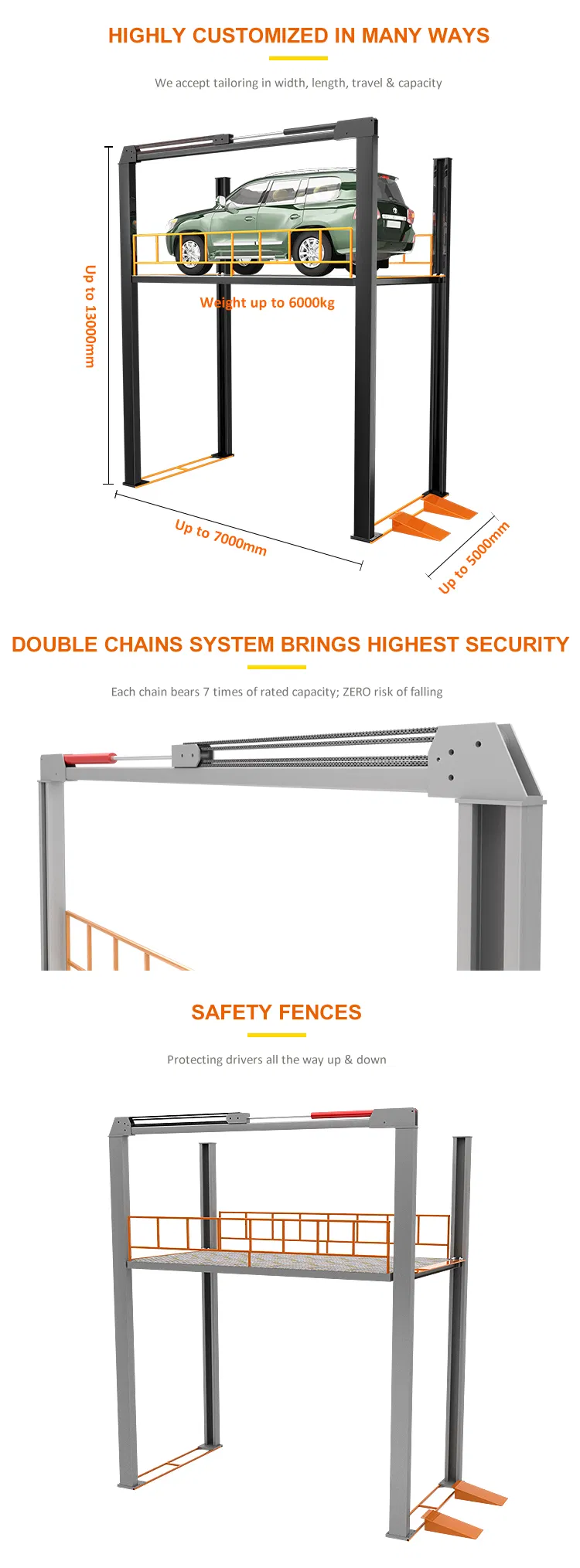

Visual Presentation

Professional Manufacturing

As a professional mechanical parking solution provider, we are committed to providing the most suitable and effective parking solutions globally. Our high-end mechanical parking equipment is developed with advanced technology and precise manufacturing processes.

Advanced Technology Integration
Precise Manufacture Processing
Strong Service Support
Customer Oriented Design

Frequently Asked Questions

What is a VRC (Vertical Reciprocating Conveyor)?

A VRC is a specialized transportation system designed to move vehicles or goods vertically between different floors or levels, commonly used in showrooms and multi-level garages.

What is the maximum lifting capacity of the FP-VRC?

The standard lifting capacity ranges from 2,000kg to 5,000kg, but it can be customized to handle up to 10,000kg depending on specific project requirements.

Can the platform size be customized?

Yes, the platform length (2000mm-6500mm) and width (2000mm-3800mm) are highly customizable to fit various vehicle sizes and site constraints.

Is the system safe for luxury SUVs and heavy vehicles?

Absolutely. The system features high-density double steel chains, a high-precision hydraulic drive, and an anti-falling lock mechanism to ensure maximum safety for all vehicle types.

What kind of maintenance does the car elevator require?

Thanks to the stable hydraulic system and durable powder coating finish, maintenance is minimal, primarily involving regular inspections of the hydraulic fluid and chain tension.

Does the system produce much noise during operation?

No, the hydraulic driving system is specifically designed for low-noise operation, making it suitable for both industrial and commercial/residential environments.
