Technical Overview
Sand Core Type
Clay Sand Core
Application
Machinery Parts
Surface Treatment
Spray-Paint
Certification
CE, ISO 9001:2000
Customization
Customized According to Demand
Production Capacity
100pieces/Year
Product Parameters
| Model |
Rated load (T) |
Excitation force (KN) |
Grid Size (mm) |
Grid hole spacing (mm) |
Motor power (Kw) |
| L251A |
1 |
2×50 |
4000×1000 |
30×120 |
3.7×2 |
| L252A |
2 |
2×75 |
5000×1200 |
35×100 |
5.5×2 |
| L253A |
3 |
2×100 |
5000×1800 |
35×100 |
7.5×2 |

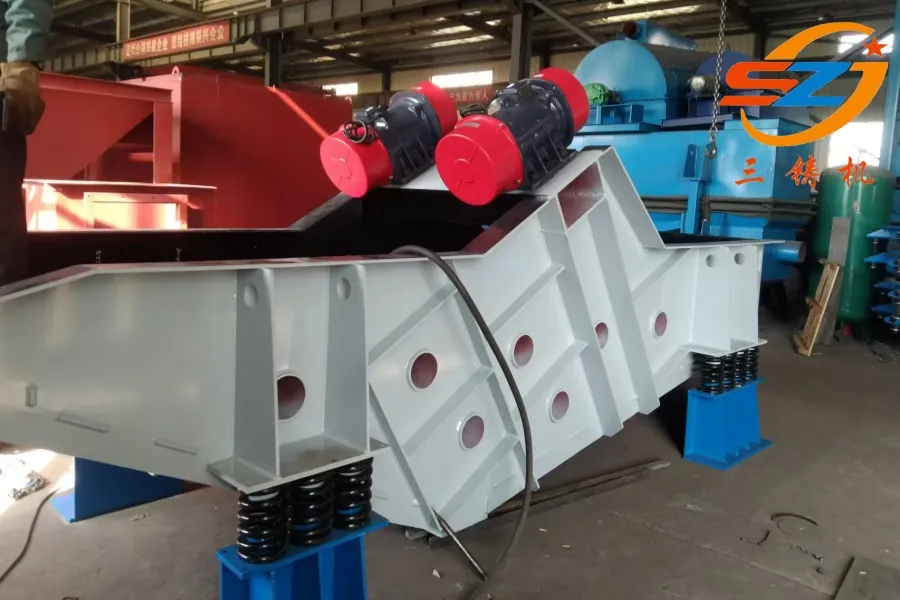

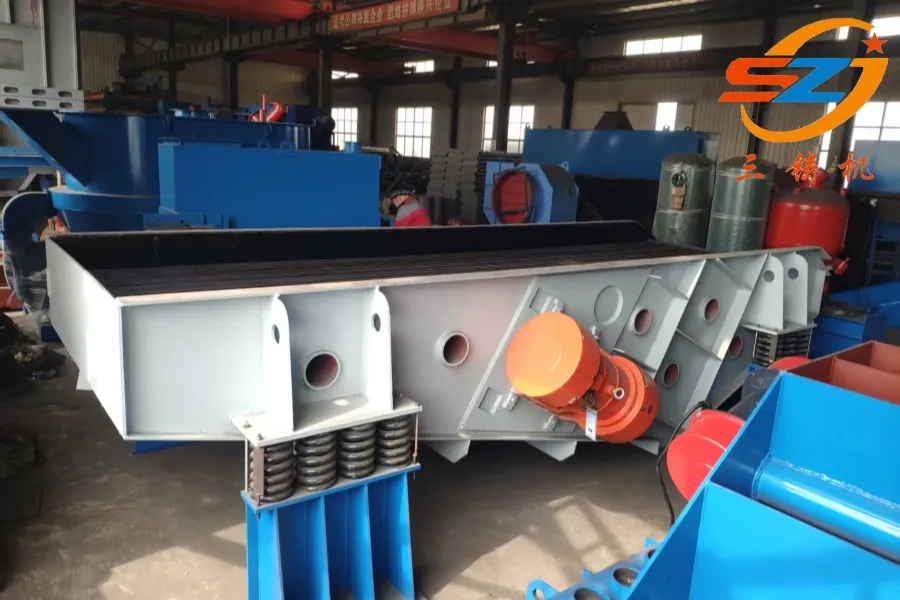

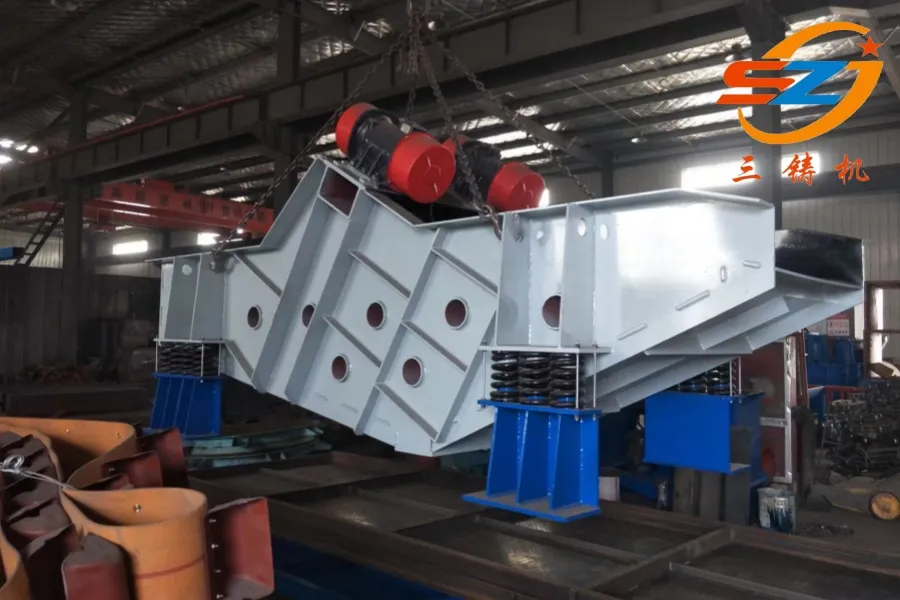

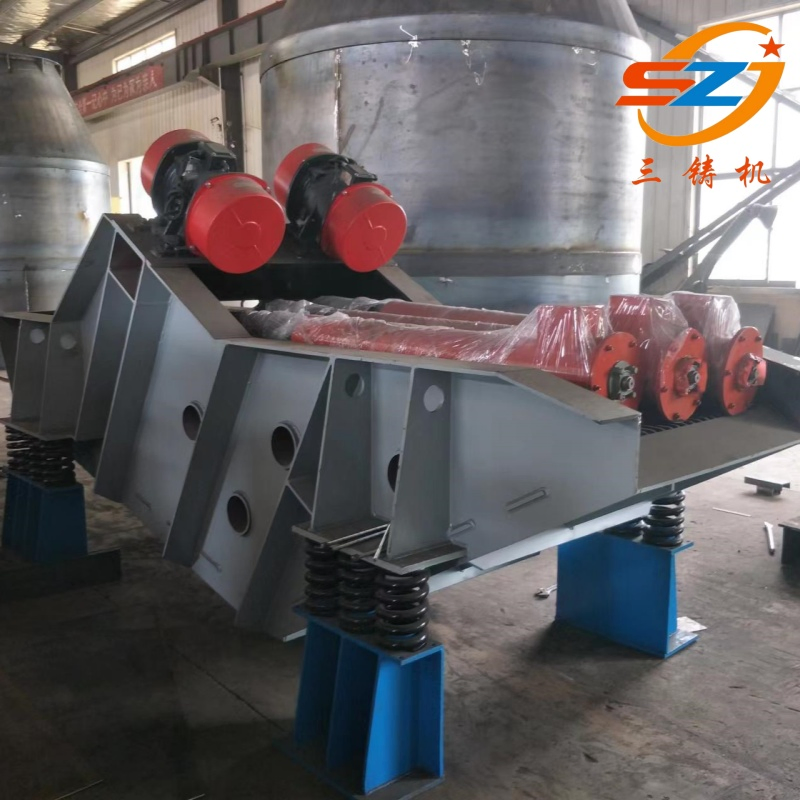

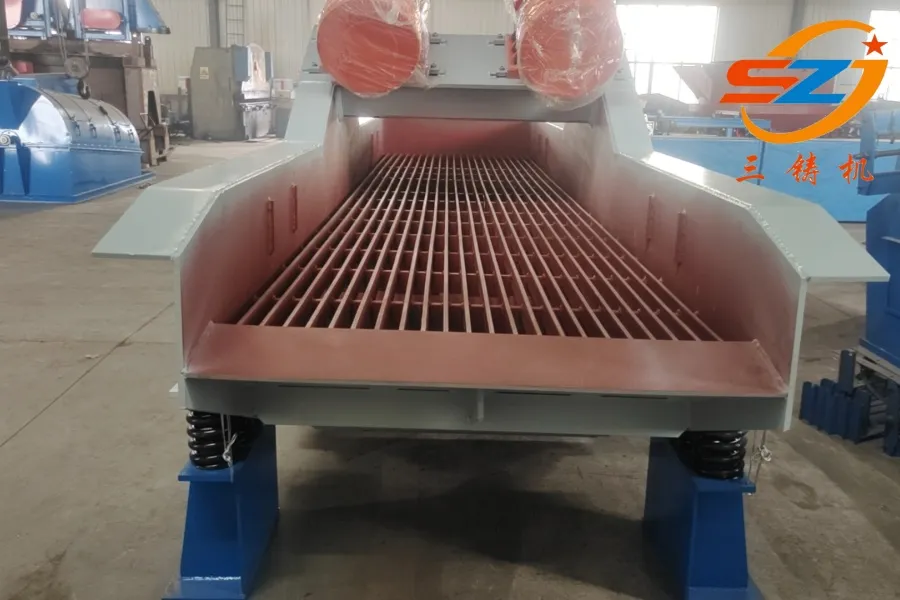

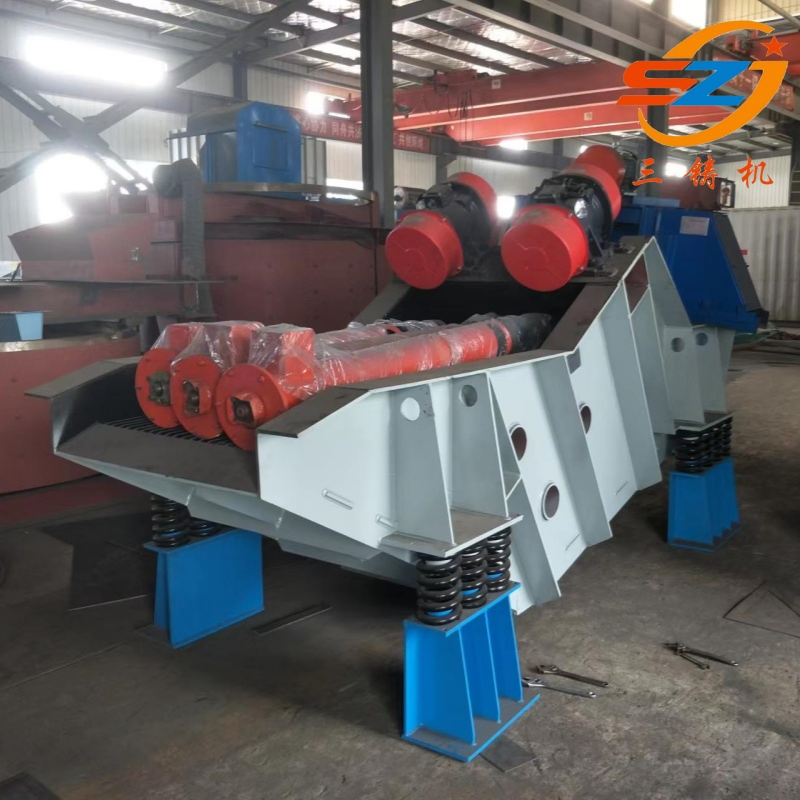

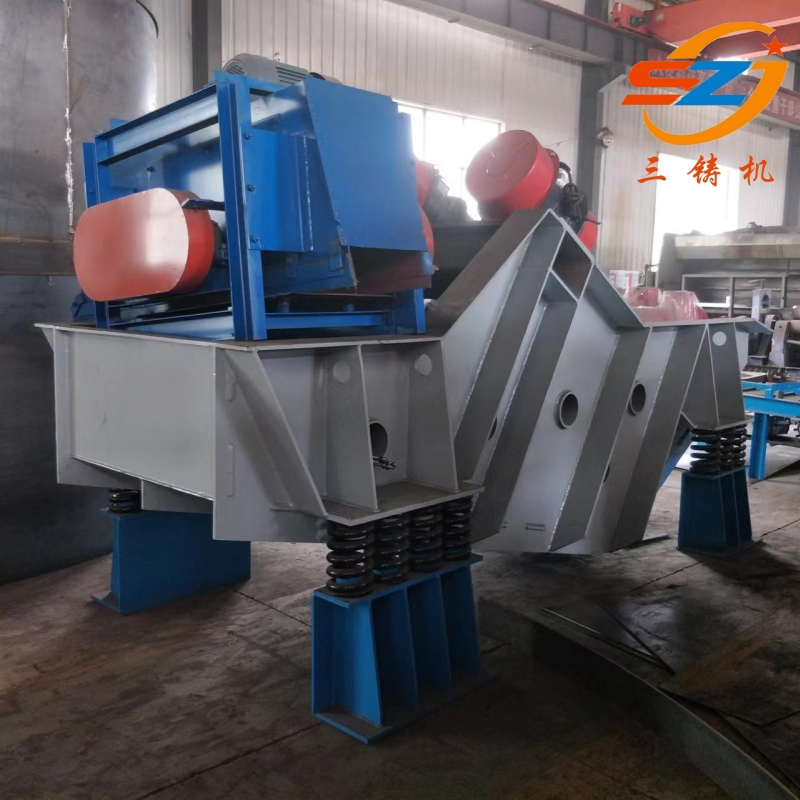

Detailed Photos
Product Description
Introducing our state-of-the-art Customized Conveyer Shakeout, a marvel of engineering excellence designed to revolutionize foundry operations. This innovative shakeout machine is crafted for seamless and precise separation of molding sand castings. As a critical link between molding and sand treatment departments, it ensures high production efficiency and cost-effective operation with low energy consumption.
1
Delta-Phase Vibration Technology: Featuring variable angle vibration control (±15°), tuning sand flow velocity and residence time. This results in separation efficiency over 98%, a 30% improvement over traditional equipment.
2
High Temperature Sand Processing: Crafted from ZG40CrMo heat-resistant steel, capable of enduring up to 800ºC. Includes a water-cooled interlayer to maintain table temperature below 80ºC.
3
Intelligent Sorting Module: Dual-layer screening structure with infrared thermal imaging to monitor temperature and adjust vibration intensity automatically, ensuring lossless separation.
Integrated Solutions
Our equipment creates a smart, closed-loop system managing sand fall, screening, cooling, and regeneration. It accommodates a sand-iron ratio from 5:1 to 60:1 and supports processing capacities between 50-200t/h.

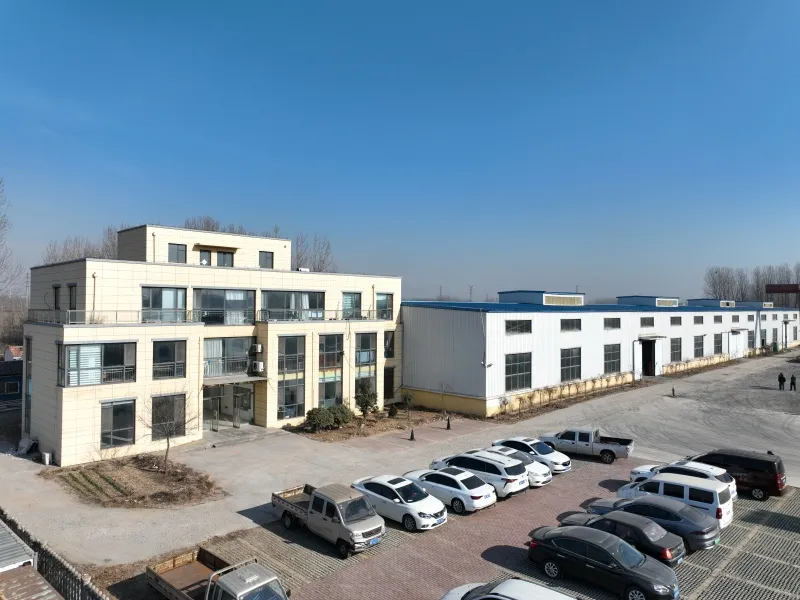

Certifications & Factory
Frequently Asked Questions
What materials can this shakeout system handle?
The system is designed for various molding sand systems, including resin sand, water glass sand, and clay sand core molds, primarily used for machinery parts.
How does the Delta-Phase Vibration technology improve efficiency?
It uses variable angle vibration control (±15°) to tune sand flow and residence time, achieving a separation efficiency of over 98%, which is 30% higher than traditional methods.
Is the equipment durable under high temperatures?
Yes, the vibration table is made of ZG40CrMo heat-resistant steel and features a water-cooled interlayer that maintains the table temperature below 80ºC, even when processing sand molds up to 800ºC.
Does the system help in reducing energy costs?
Absolutely. Our vibration energy recovery system converts 30% of kinetic energy back into electrical energy, significantly slashing power consumption per ton of casting.
What is the maintenance like for these machines?
The machines are built for durability with tungsten carbide coatings to reduce wear. We provide Turnkey Service and on-site engineer guidance for installation and long-term maintenance.
How does the system protect thin-walled castings from damage?
It uses an infrared thermal imager and intelligent sorting module to automatically adjust vibration intensity, ensuring lossless separation and keeping the scratch rate below 0.1%.
