Multi-energy X-ray Pallet Cargo Inspection System for Conveyor X-ray Scanning

Customization:	Available
Tunnel size:	1500*1800mm
Operation system:	window XP

Send Inquiry

Product Description

Basic Information

Model NO.

SPX-150180

X-ray Generator

160KV (200/300KV in option)

Penetration

32-43mm steel in option

Conveyor Loading

2000kgs

Warranty

12 months

Display

Double LCD monitor

Technical Support

Life time

Transport Package

Plywood Case

HS Code

9002199090

Product Description

Multi-energy X-ray Pallet Cargo Inspection System for Conveyor X-ray Scanning

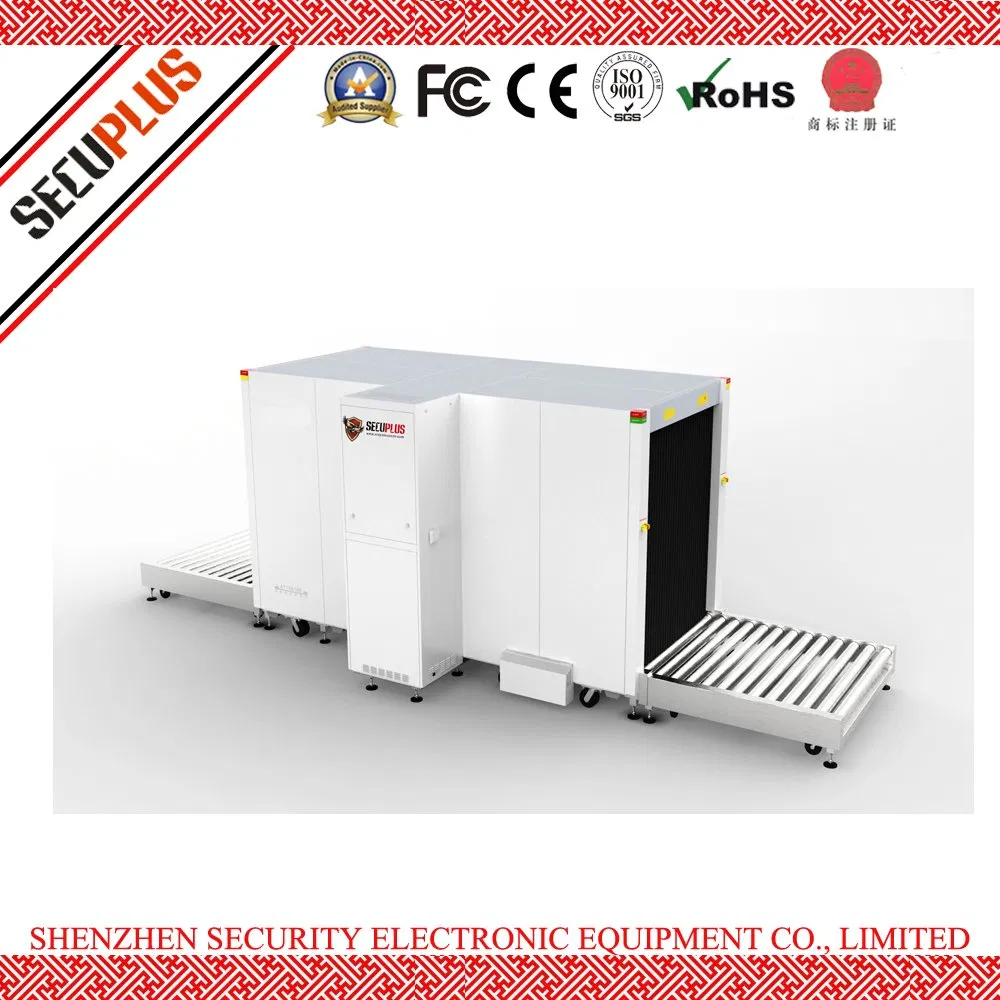

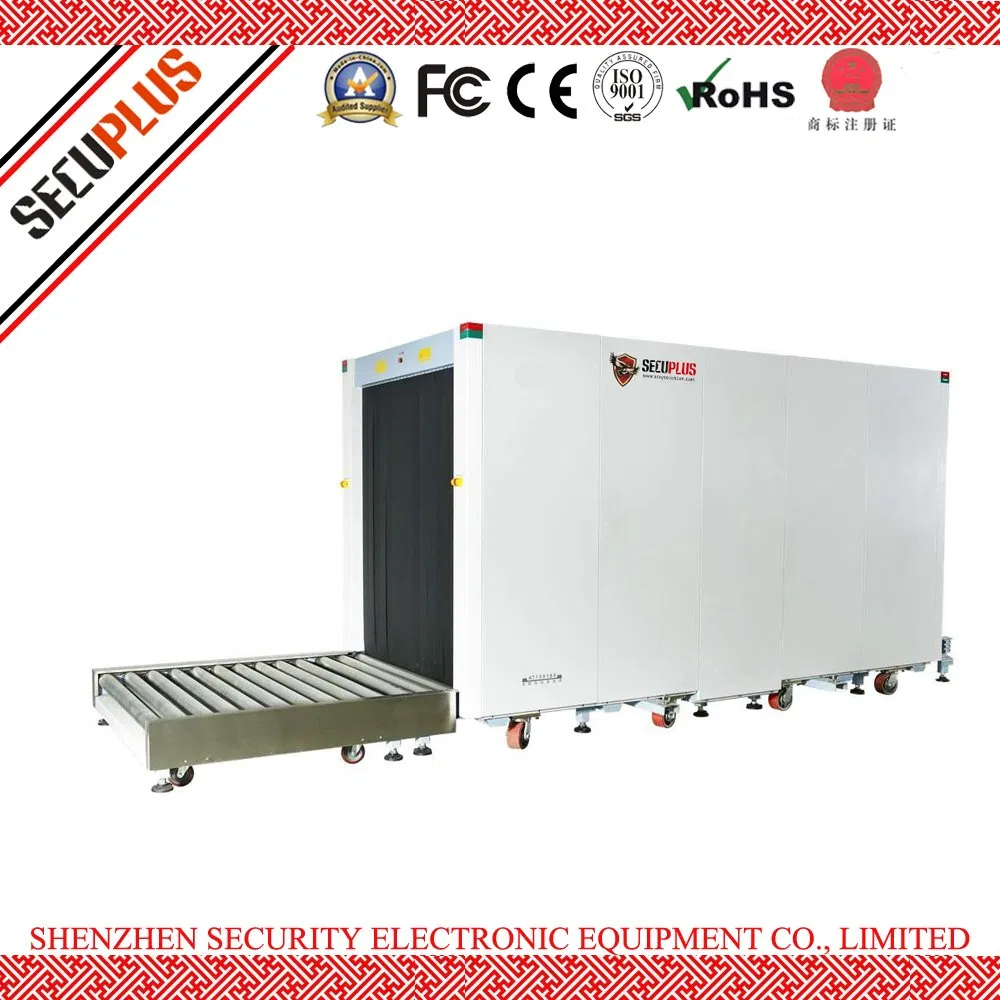

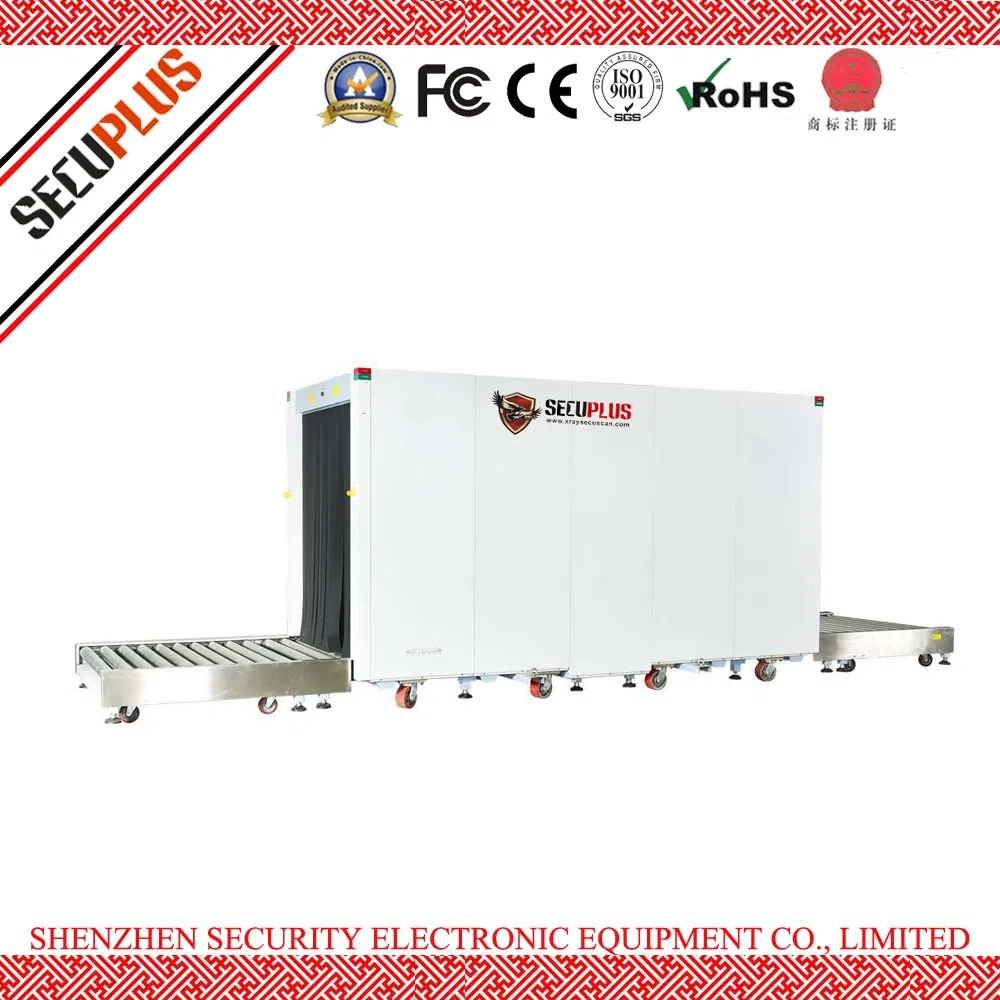

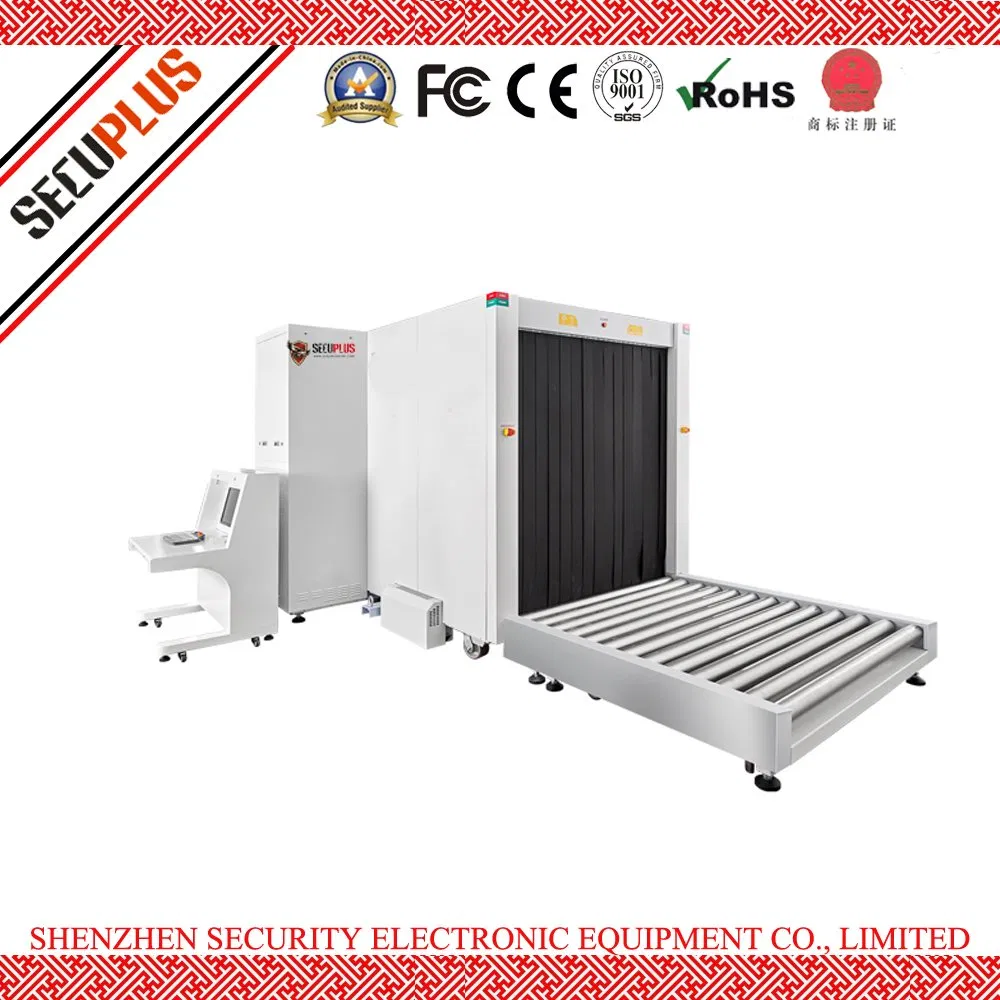

SPX-150180 is a multi-energy X-ray security detection equipment with the largest tunnel dimension of 1500mm(W) * 1800mm(H). It is designed to handle high-throughput security detection for railways, airports, customs, port warehouses, carriers, and forwarders.

To prevent parcel exploitation, this X-ray cargo scanner plays a crucial role in security inspection and is widely applied across the globe in logistics and shipping hubs.

General Specifications

Specification Item	Details
Tunnel size(mm)	1500(L) * 1800(W)
Conveyor Speed(m/s)	0.5m/s
Conveyor height(mm)	350mm
Conveyor Max Load(kgs)	2000kgs
X ray dose per inspection	1.5 μGy
X ray leakage	<0.25 μGy / h
Penetration	36-43mm steel
Wire Resolution	dia 0.0787mm copper wire (AWG40)
Image Display	High resolution 1024 * 1280 pixel
Image Archive	Up to 100,000 images stored automatically
Operation Power	220VAC(±10%) 50±3Hz

Technology Features

Shiny clear images with high-resolution output.

Advanced multi-energy penetration system.

TIP (Threat Image Projection) functionality for operator training.

High-speed parallel collection of detection data.

Support for JPG & BMP image transformation to USB.

Removable structure with an independent operator console.

Frequently Asked Questions

1. What is the maximum weight the SPX-150180 can handle? The system features a heavy-duty conveyor belt capable of handling a maximum load of 2000kgs, ideal for palletized cargo.

2. How large is the inspection tunnel? The tunnel dimensions are 1500mm wide by 1800mm high, making it suitable for large-scale pallet inspection.

3. Does the system provide alerts for explosives or narcotics? Yes, it includes an integrated alarm system that highlights threats based on the atomic number signature of the scanned materials.

4. Can I export the scanned images for records? The system automatically stores up to 100,000 images and supports transferring files to a USB disk in common formats like JPG and BMP.

5. What kind of technical support is provided? We offer a 12-month warranty along with lifetime technical support to ensure the continuous operation of your security equipment.

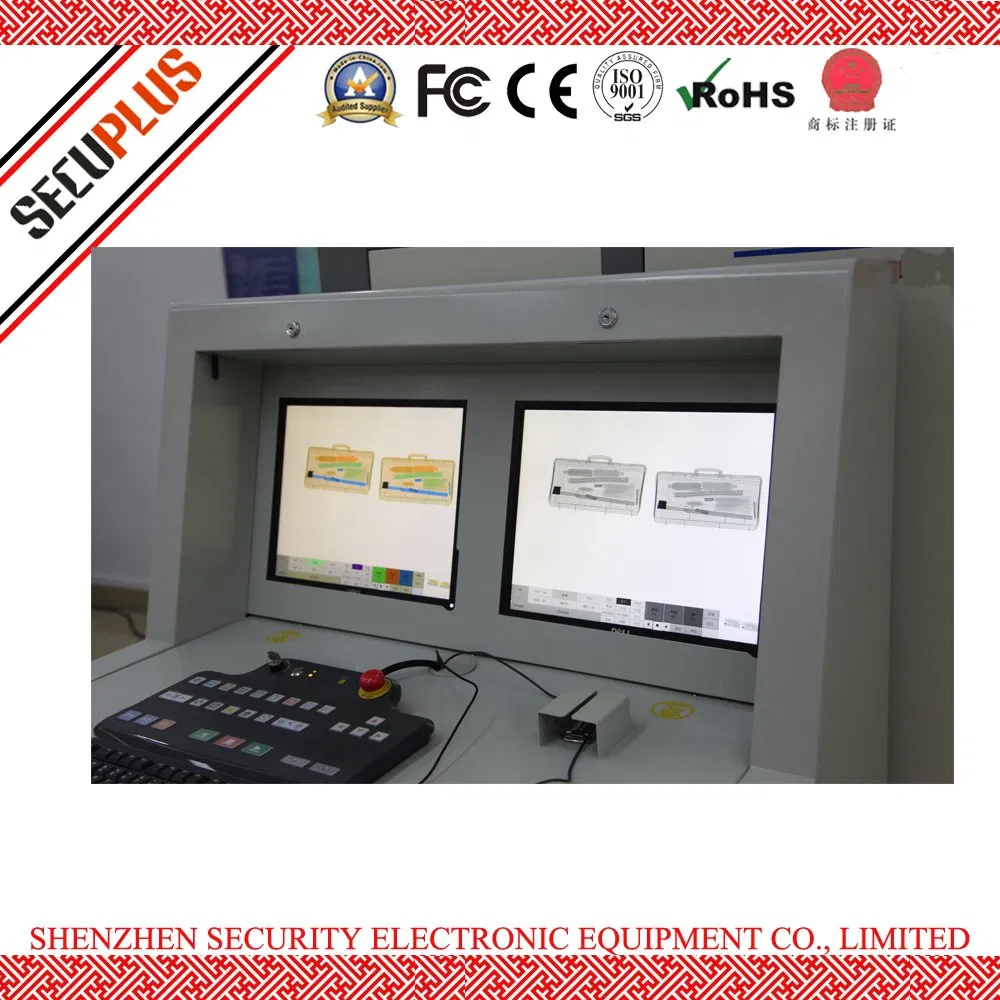

6. Is the image resolution sufficient for detailed inspection? Absolutely, the system uses a high-resolution double LCD monitor display with 1024 * 1280 pixels and advanced image enhancement features.
