Pallet conveyor system pallet strapping wrapping machine packaging system
Automatic SIEMENS PLC conveyor pallet stretch wrapper

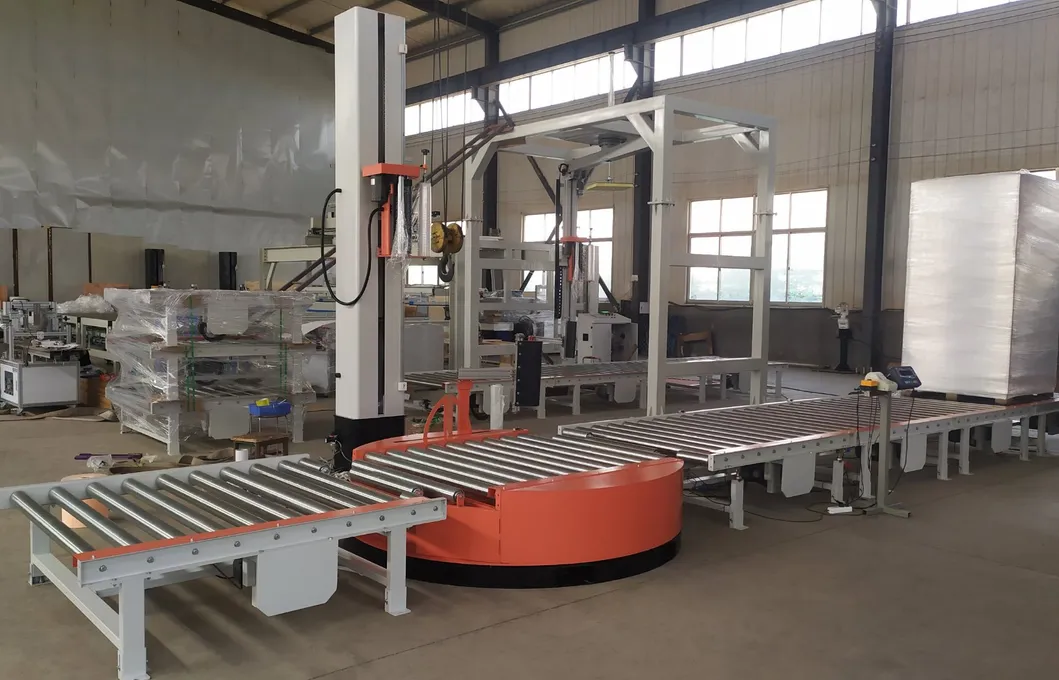

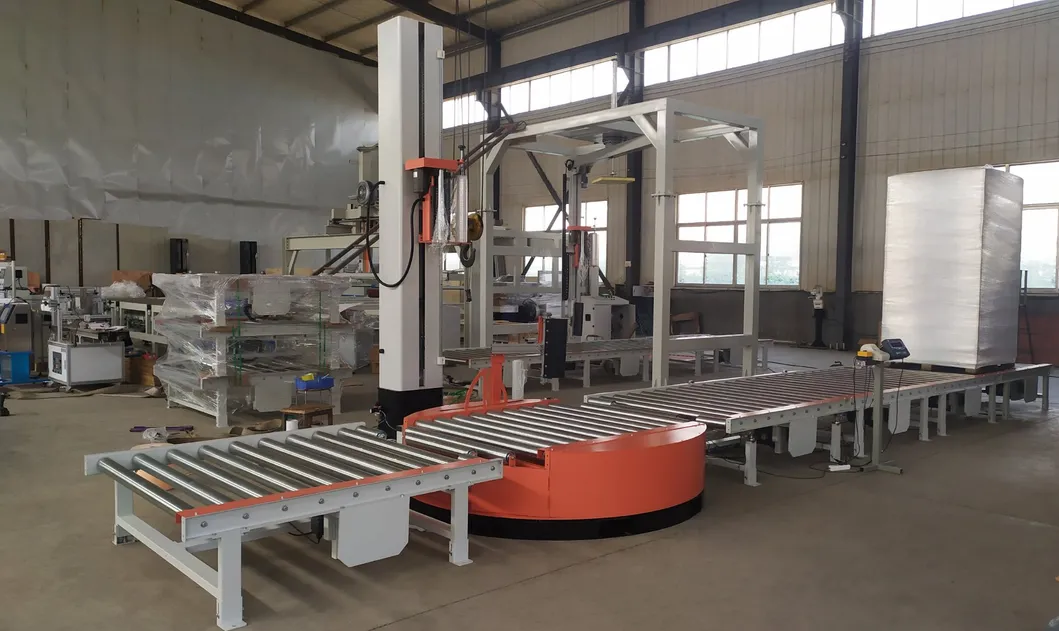

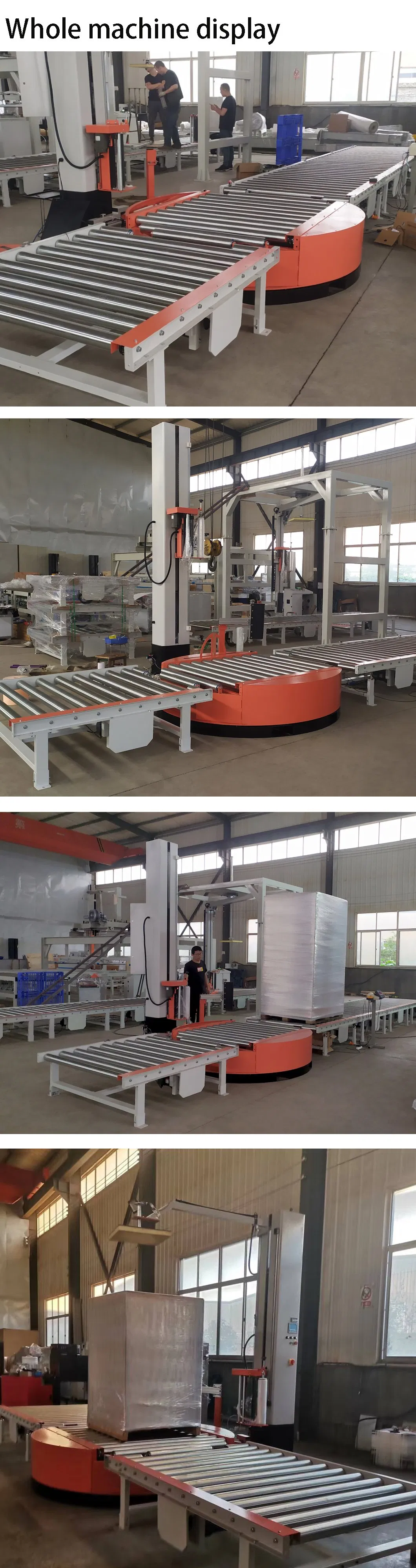

This is a fully automatic turntable type stretch wrapping machine for pallets, working with a powerful roller conveyor. Wrapping size, loading, and wrapping height can be customized according to your specific requirements. The machine operates fully automatically with integrated film cutting.
| Model | UCR-T2000A |
| Packing Size | L 2000 x W 2000 mm |
| Wrapping height | 2000 mm |
| Loading capacity | 2000 kg |
| Efficiency | 40-60 loads/h |
| Turntable Speed | 0-12 rpm, variable |
| Voltage | AC380V 3ph 50/60Hz |
| Air Supply | 6-8kg/cm² |
| Stretch Film | LLDPE stretch film; 500 mm width; 15-35 um thickness |

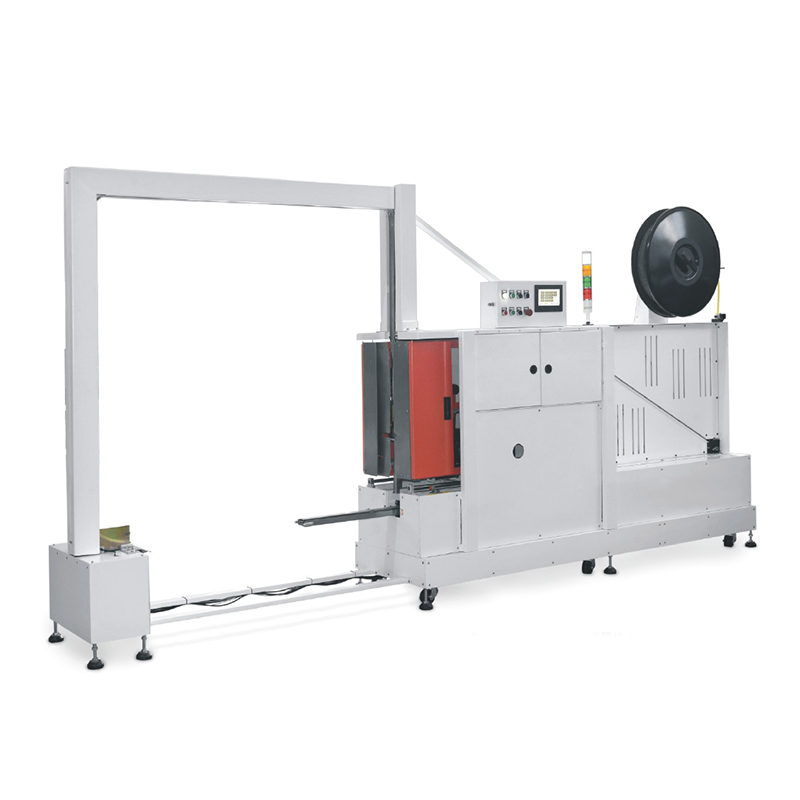

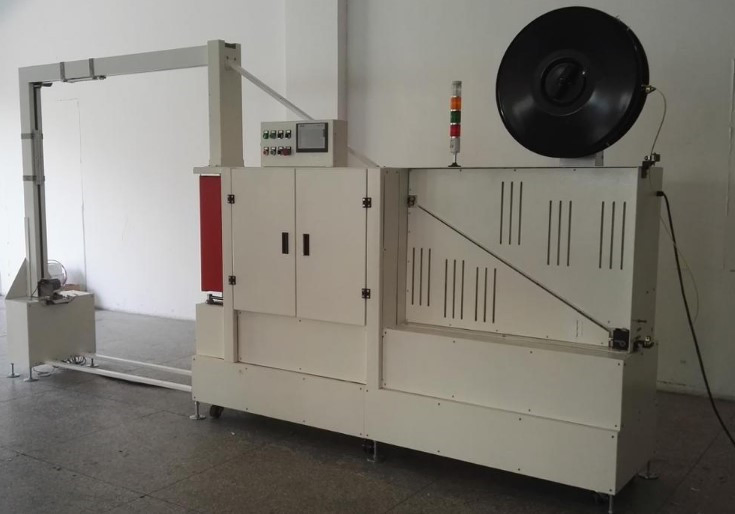

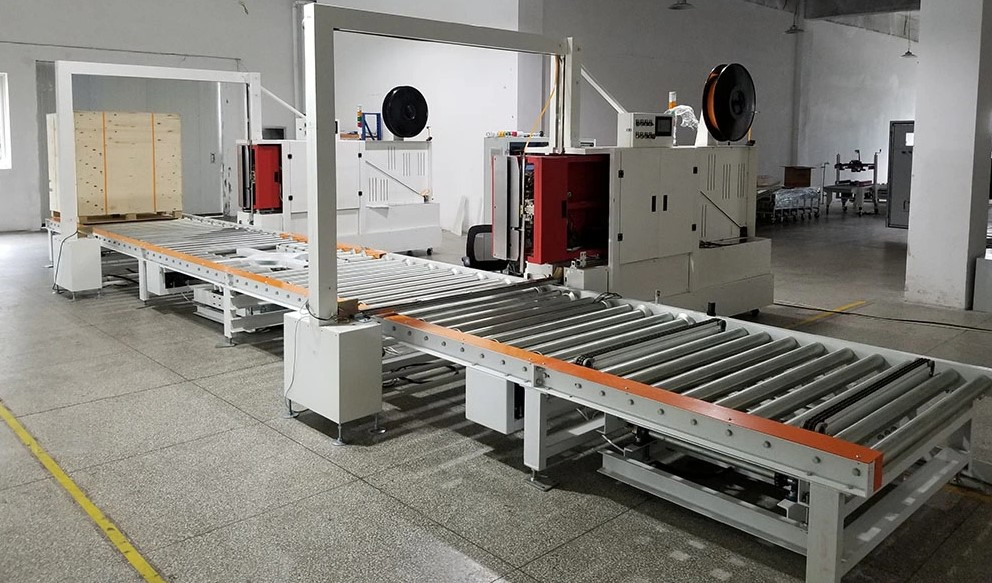

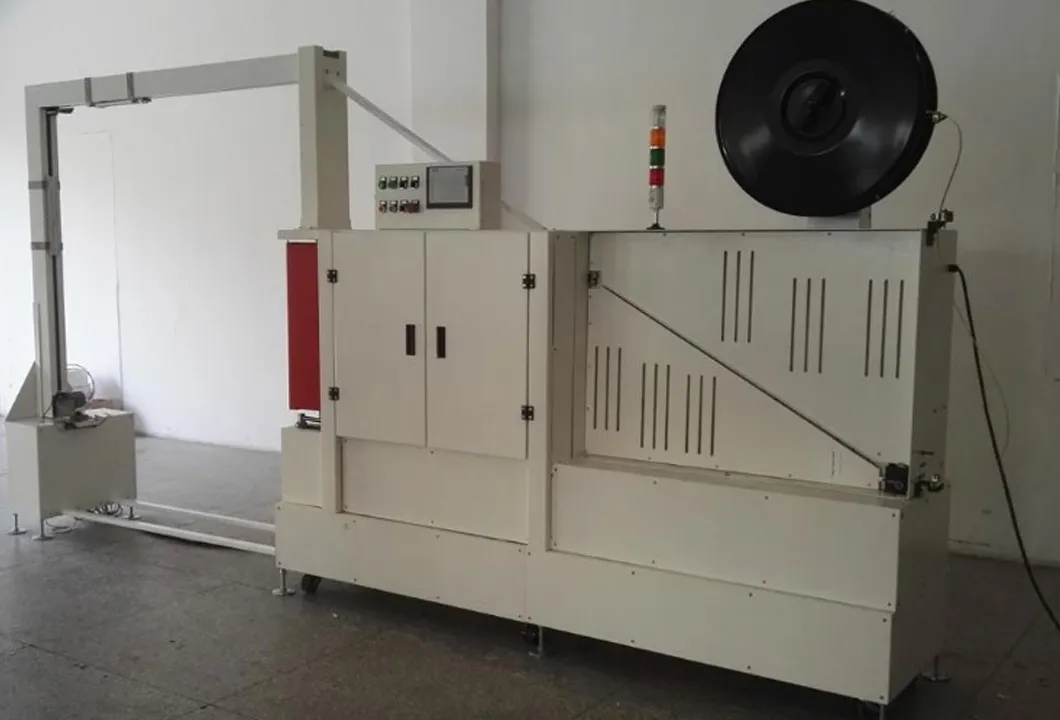

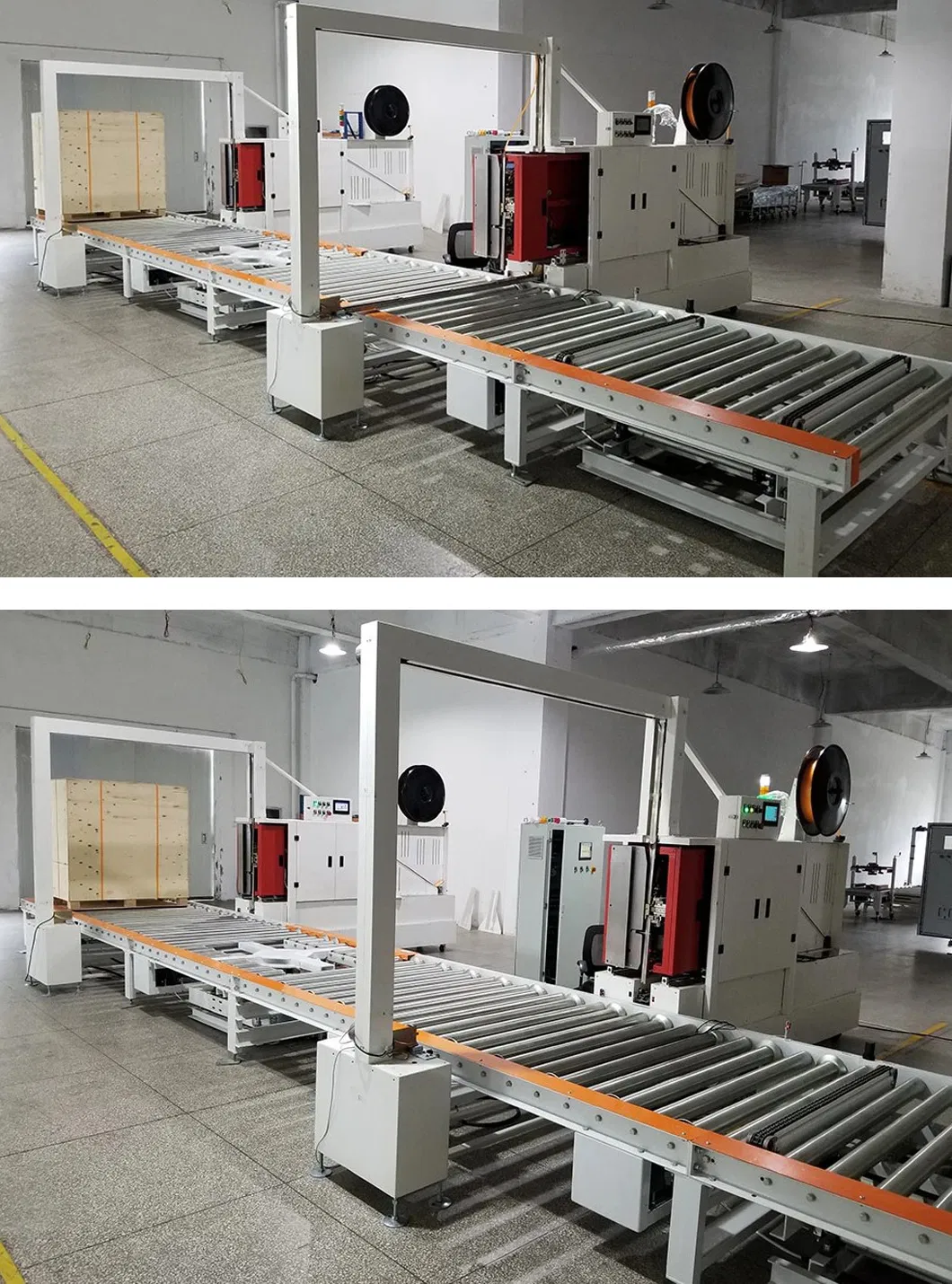

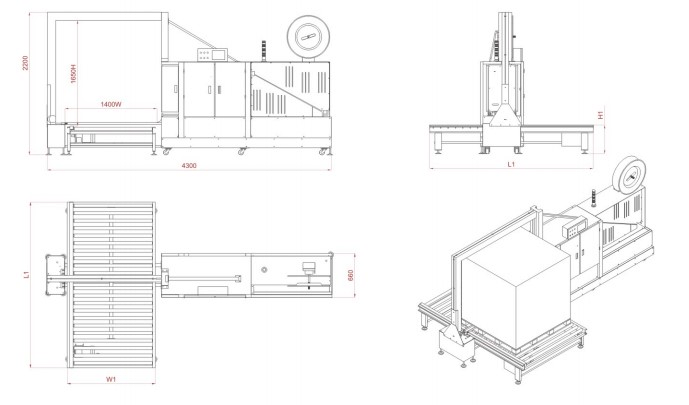

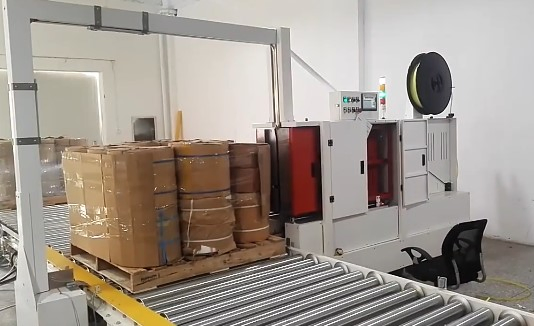

We provide two kinds of pallet strapping machines. One is the manual type semi-auto pallet strapping machine, suitable for products that cannot move. The other is the full automatic arch type pallet strapping machine shown in the documentation, which works with a powerful roller conveyor to realize full pallet packing automation. It can also be integrated with a full automatic pallet stretch wrapping machine.
| Model | UDB-105B |
| Arch Size | W 1400 mm × H 1650 mm (Customized) |
| Pack Size Max. | L 1200 mm × W 1200 mm × H 1500 mm |
| Speed | ≤ 15 sec/strap |
| Tension | > 100 kg |
| Strap Material | PP/PET strap; 12/16/19 mm width |
| Sealing Method | Heating Element |
| Control System | PLC Control |
| Machine Weight | 600 kg |
Established in 2015, the company specializes in the design, development, and manufacturing of packaging machinery as well as automation packaging solutions. With continuous growth, we offer more than 100 kinds of machines in 8 series including Pallet Wrappers, Shrink Wrappers, Strappers, Case Erectors, Case Sealers, Vacuum Packing Machines, Palletizers, and Conveyor Systems.
All machines have passed CE certification. Our experienced engineer team has obtained a number of patented technologies in Shrink Wrappers and Conveyor Systems. Our high-quality products and services have earned us customers in North America, Europe, Australia, and other global markets.
