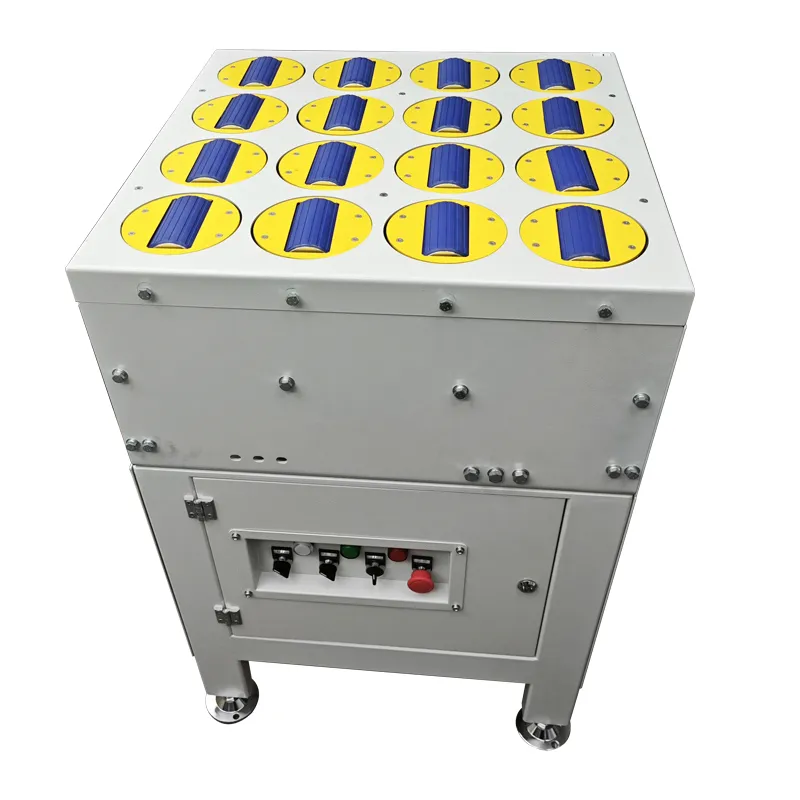

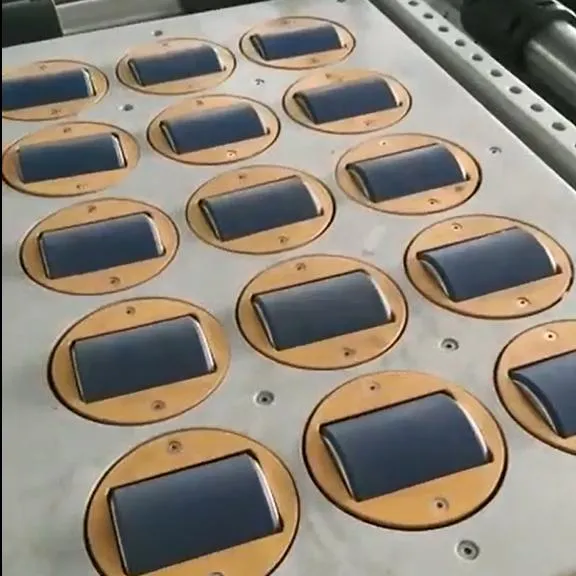

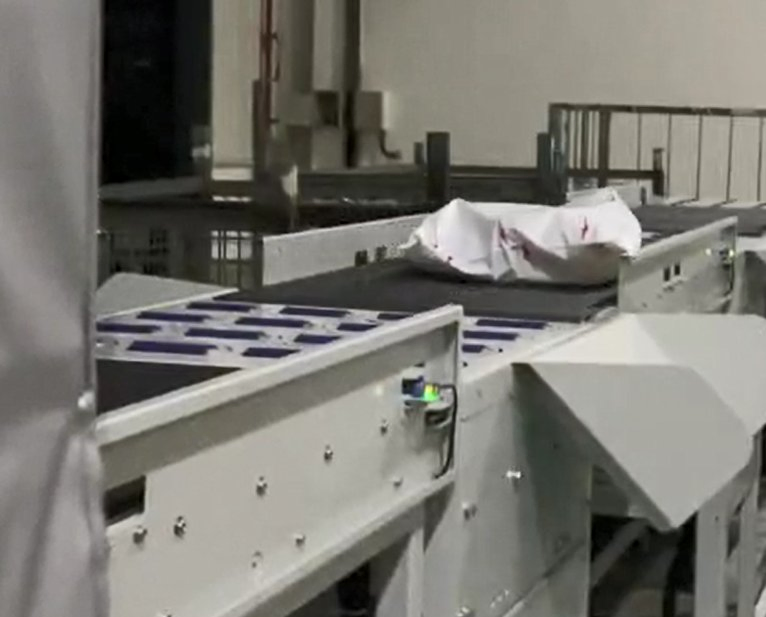

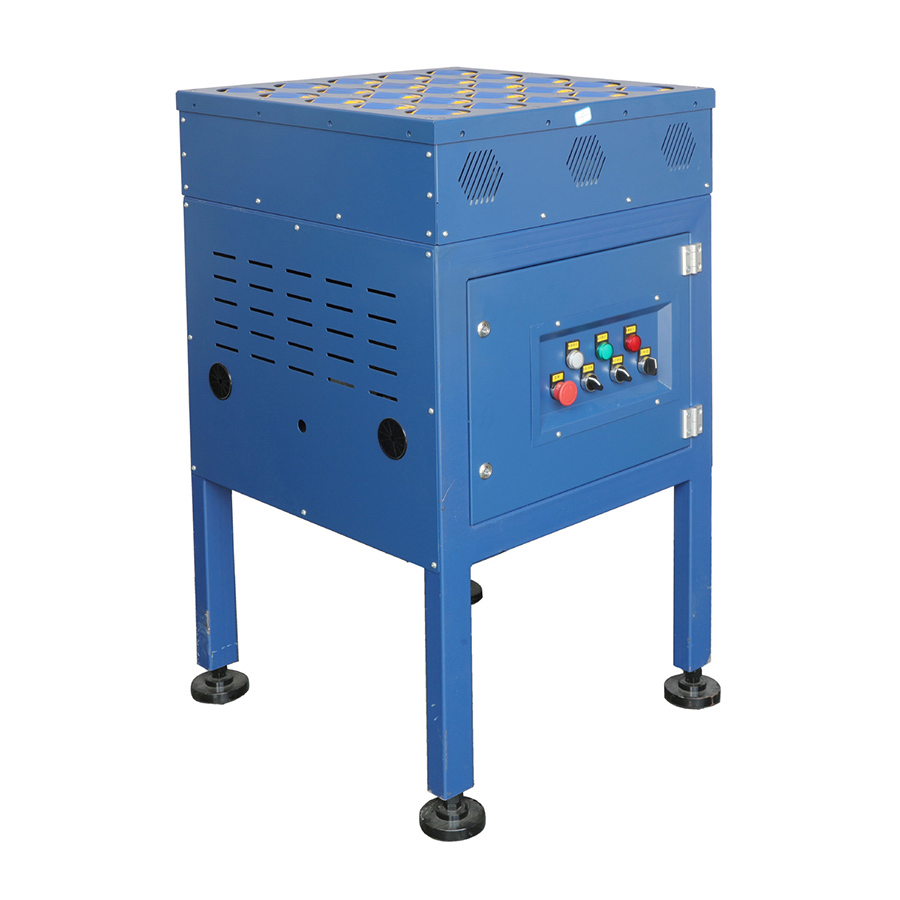

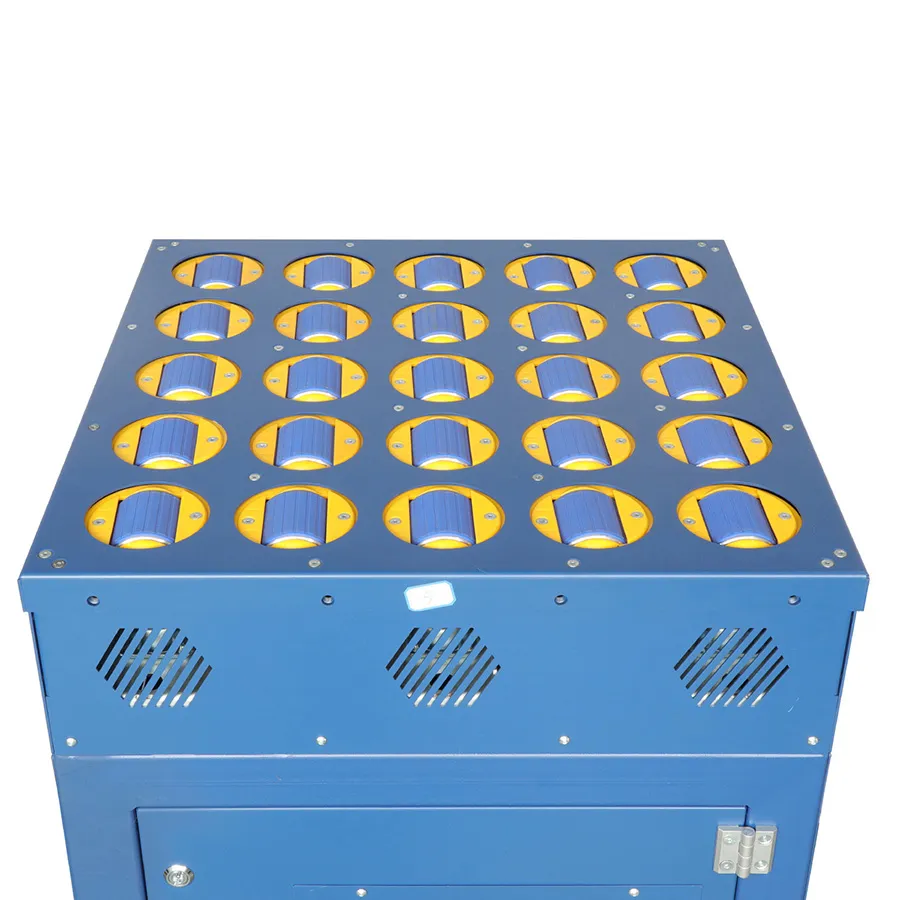

Swivel Wheel Sorter design is simple and stable, eliminating the need for frequent maintenance. Turning power is derived from the servo motor, which offers fast response, stability, and reliability. The compact structure ensures smooth and stable sorting. Independently controlled, it can execute sorting actions simply by accepting a signal, greatly reducing on-site commissioning time.

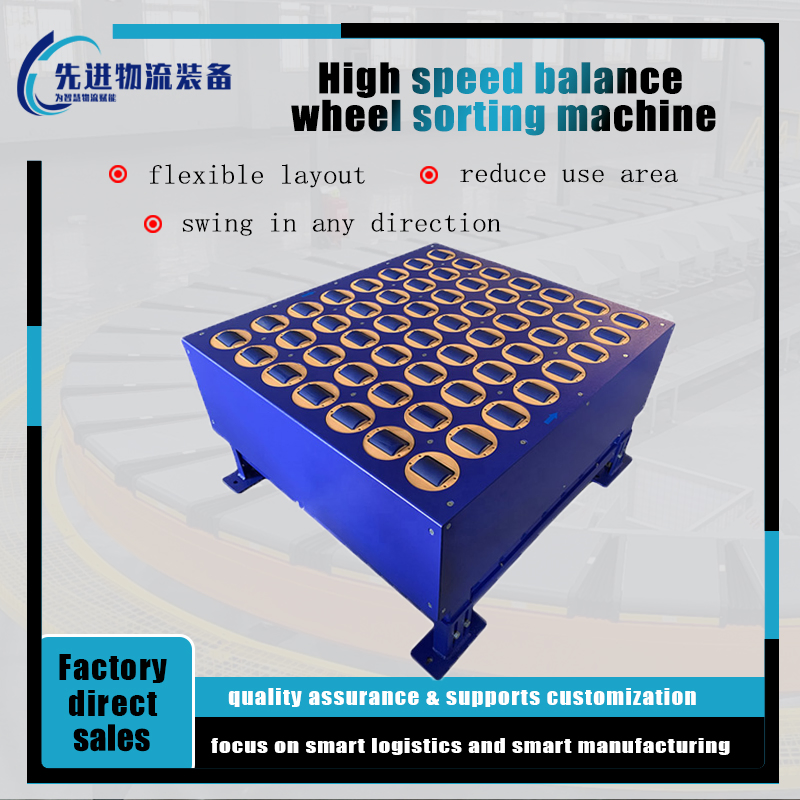

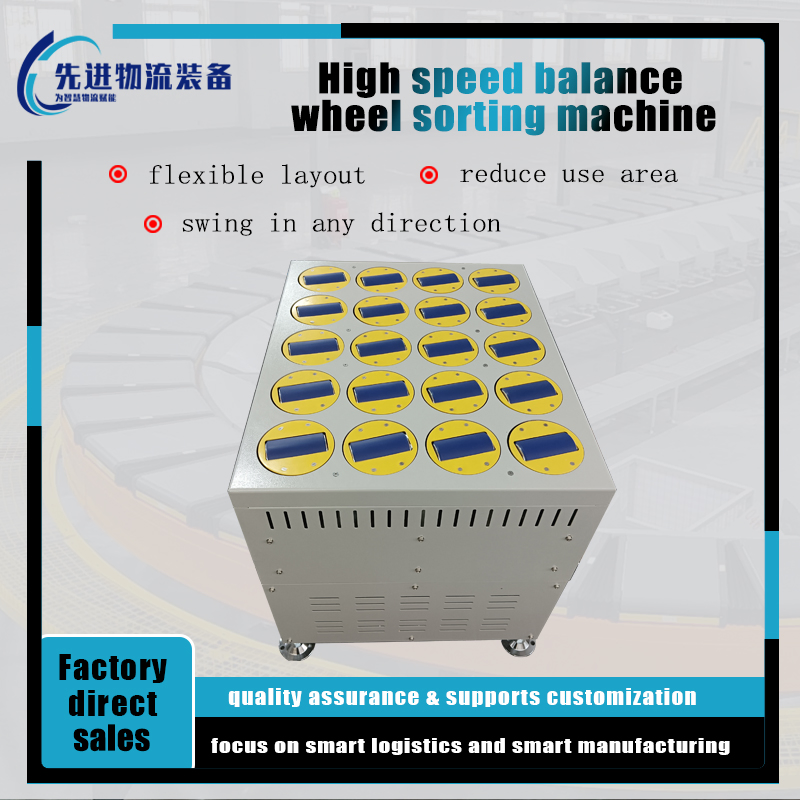

Our high-speed balance wheel sorter is a state-of-the-art system engineered with cutting-edge conveying equipment, precision driving wheels, and high-performance servo controllers. It is the quintessential solution for logistics distribution centers demanding peak efficiency and cost-effectiveness, capable of handling up to 80kg per item.
| Functional characteristics | Parameter |
|---|---|
| Number of Destination chutes | On Demand |
| Destination chutes width | 800mm(customizable) |
| Standard unit size | L650mm*w650mm to L1200mm*W1200mm |
| Conveying speed | 1.0-2.5m/s |
| Weight range of the item | 0.05 - 80kg |
| Item size (min) | L100*W90*H20mm |
| Item size (max) | L1200*W1000*H800mm |
| Sorting capacity | 3000 to 6000 item/hr |
The company is an innovative technology enterprise focusing on smart logistics and smart manufacturing. Established with a commitment to applying advanced technologies including AI vision, Internet of Things, Big Data, Cloud Computing, 5G, and Neural Networks to smart logistics, it uses smart warehousing to platformize closed-loop processes. This helps enterprises improve their core competitiveness and creativity.

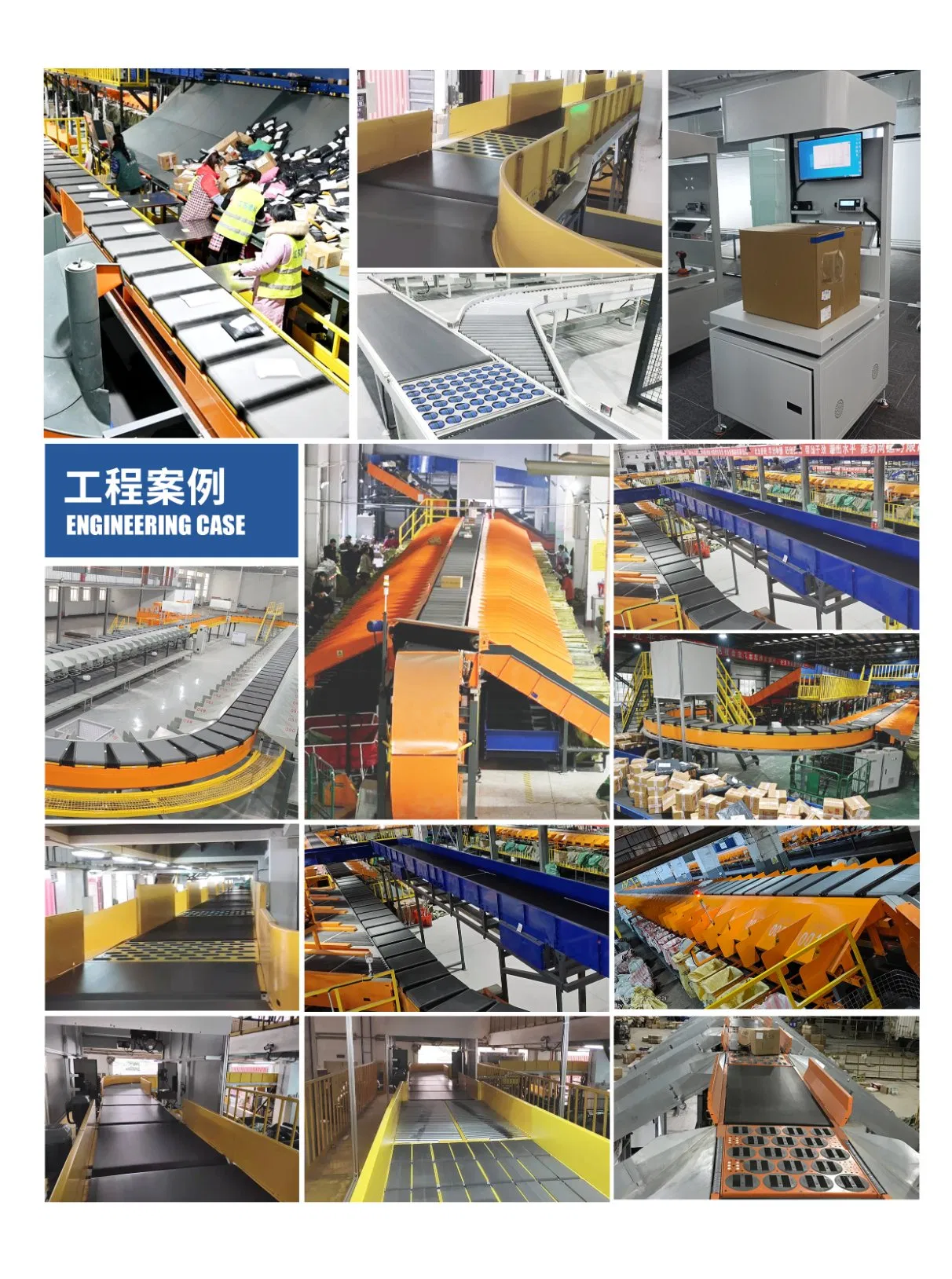

The R&D team has developed products covering CEP express logistics, e-commerce, automobiles, pharmaceutical, airports, and other fields. The product range includes loop cross-belt sorters, linear cross-belt sorters, balance wheel sorters, dynamic DWS, belt telescopic conveyors, and comprehensive warehousing automation management solutions.
