Maith Conveyor
1 / 5
| Model NO. | 80 |
|---|---|
| Structure | Conveyor System |
| Material | Carbon Steel Q235 |
| Speed | 1.5~2m/S |
| Parcel Control Spacing | 700mm |
| Suitable Parcel Size | 150mm*100mm*50mm - 700mm*700mm*600mm |
| Efficiency | ≤5000 PCS/H |
| Parcel Weight | ≤30kg |
| Separation Success Rate | ≥99% |
| Origin | China |

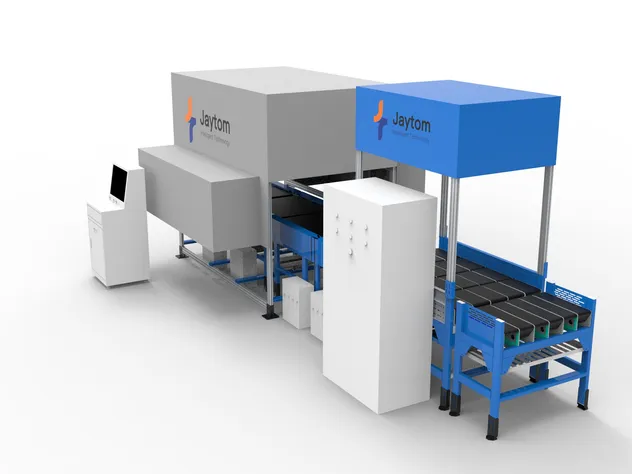

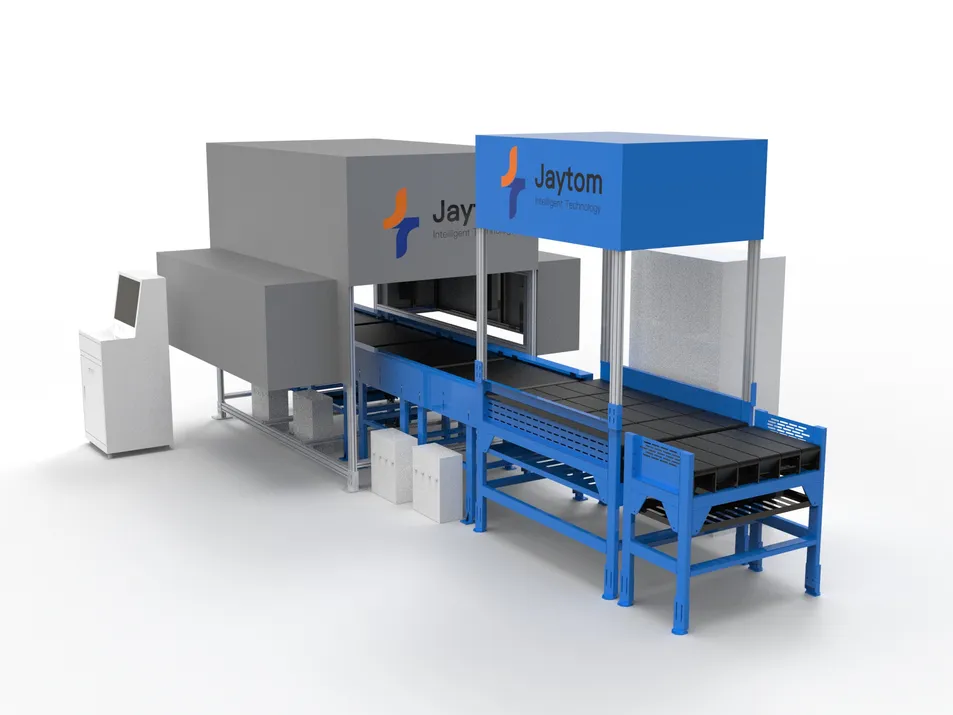

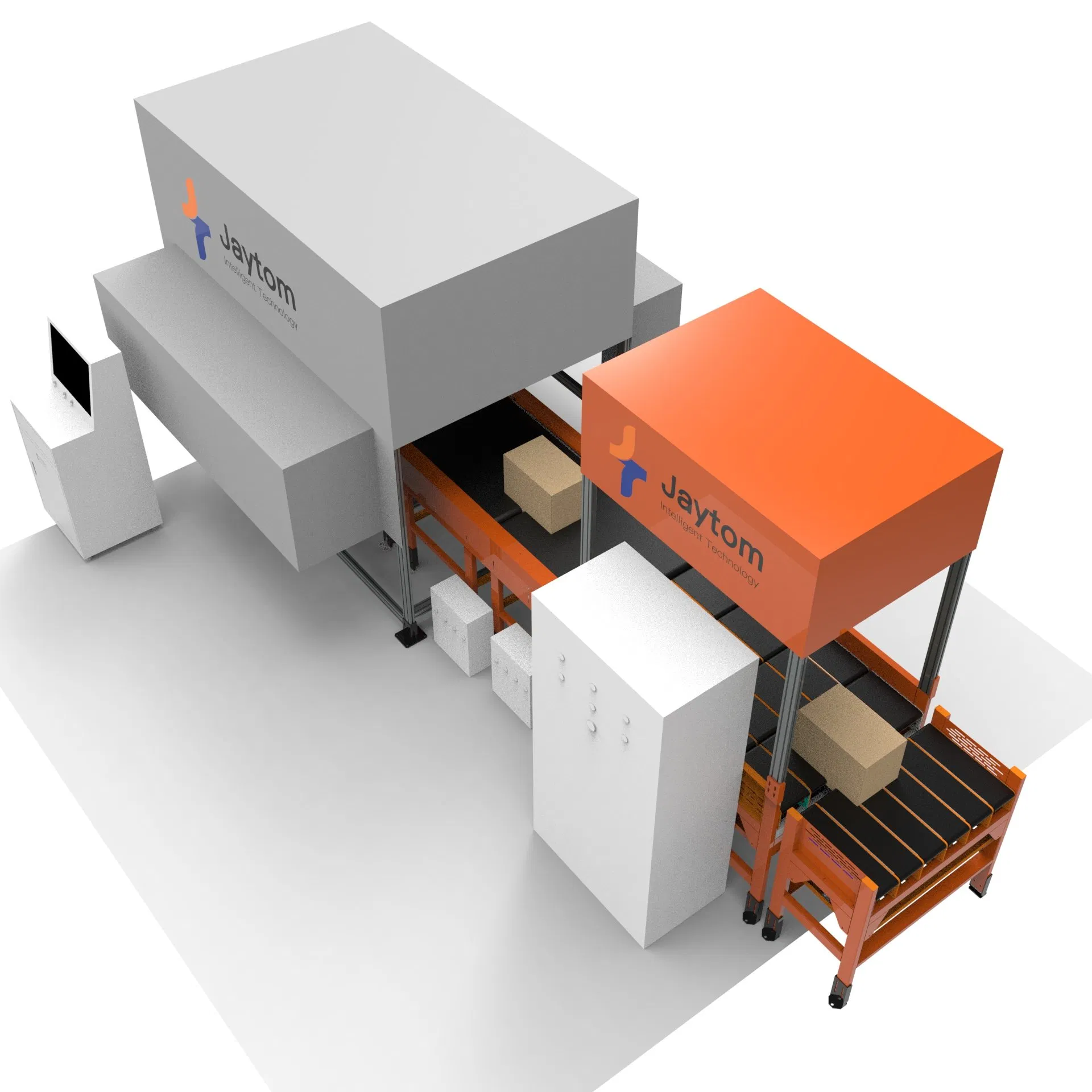

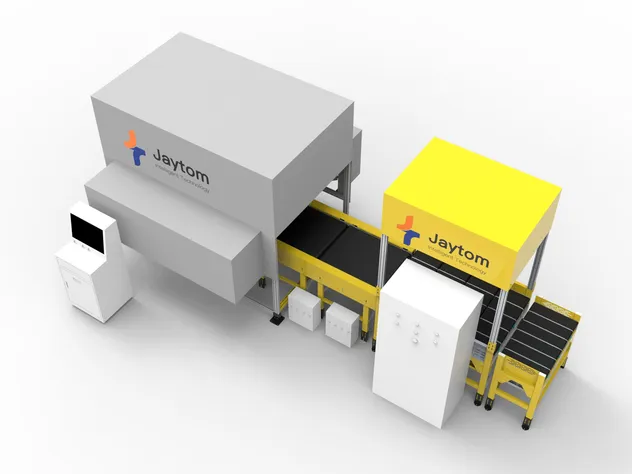

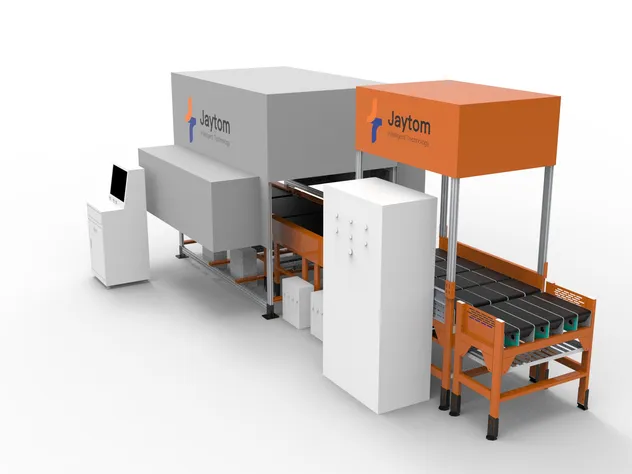

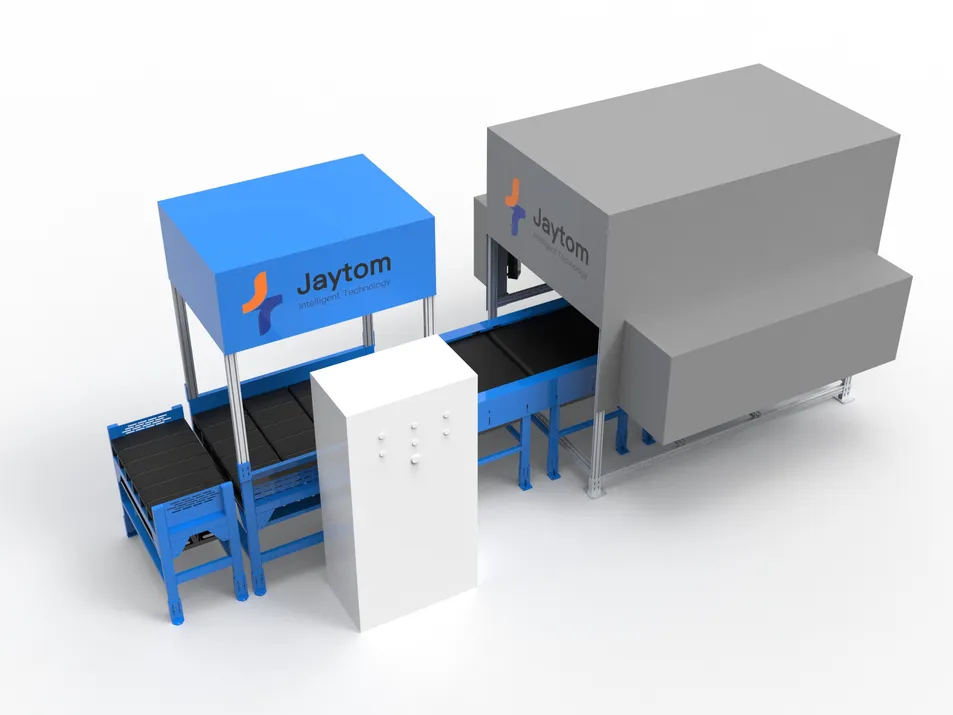

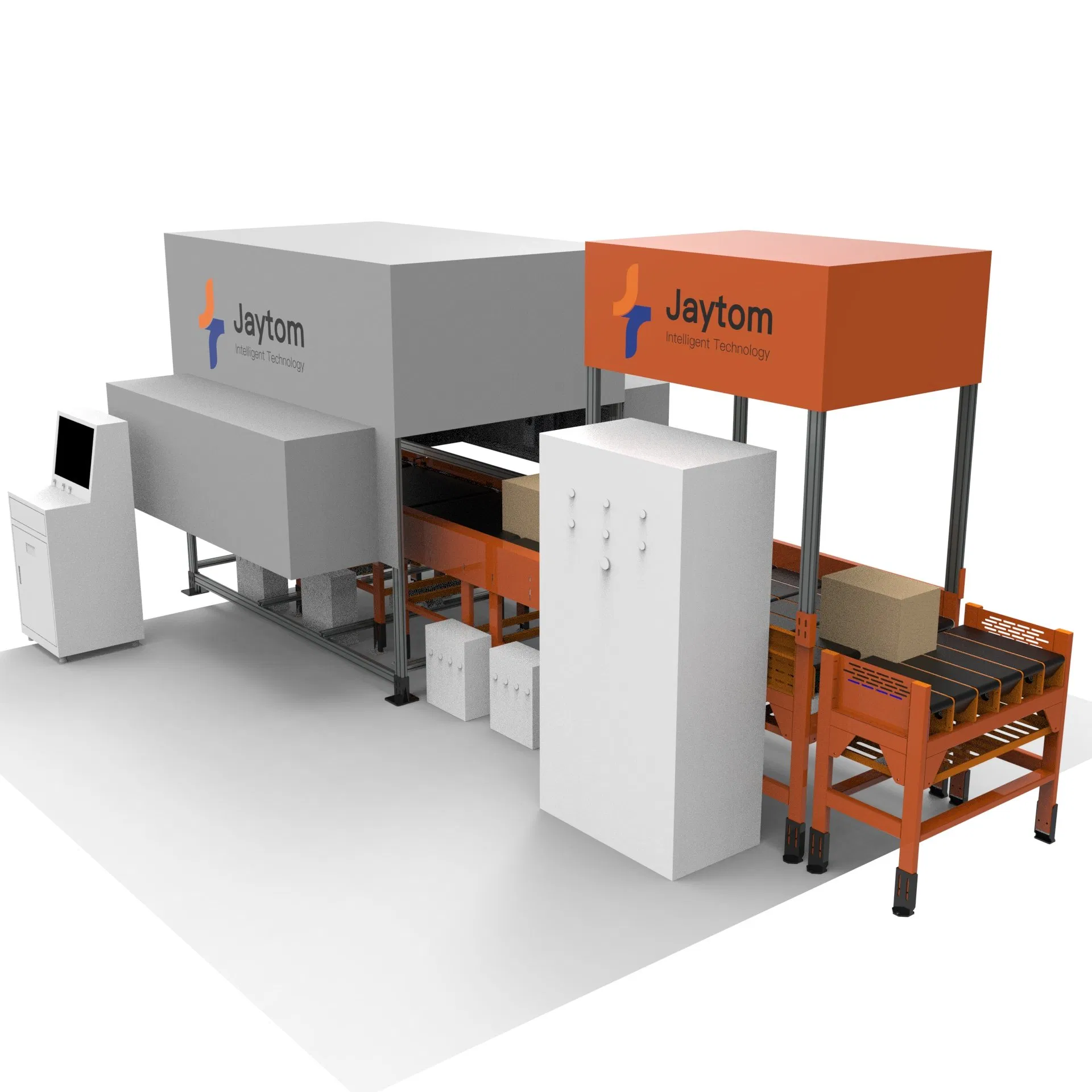

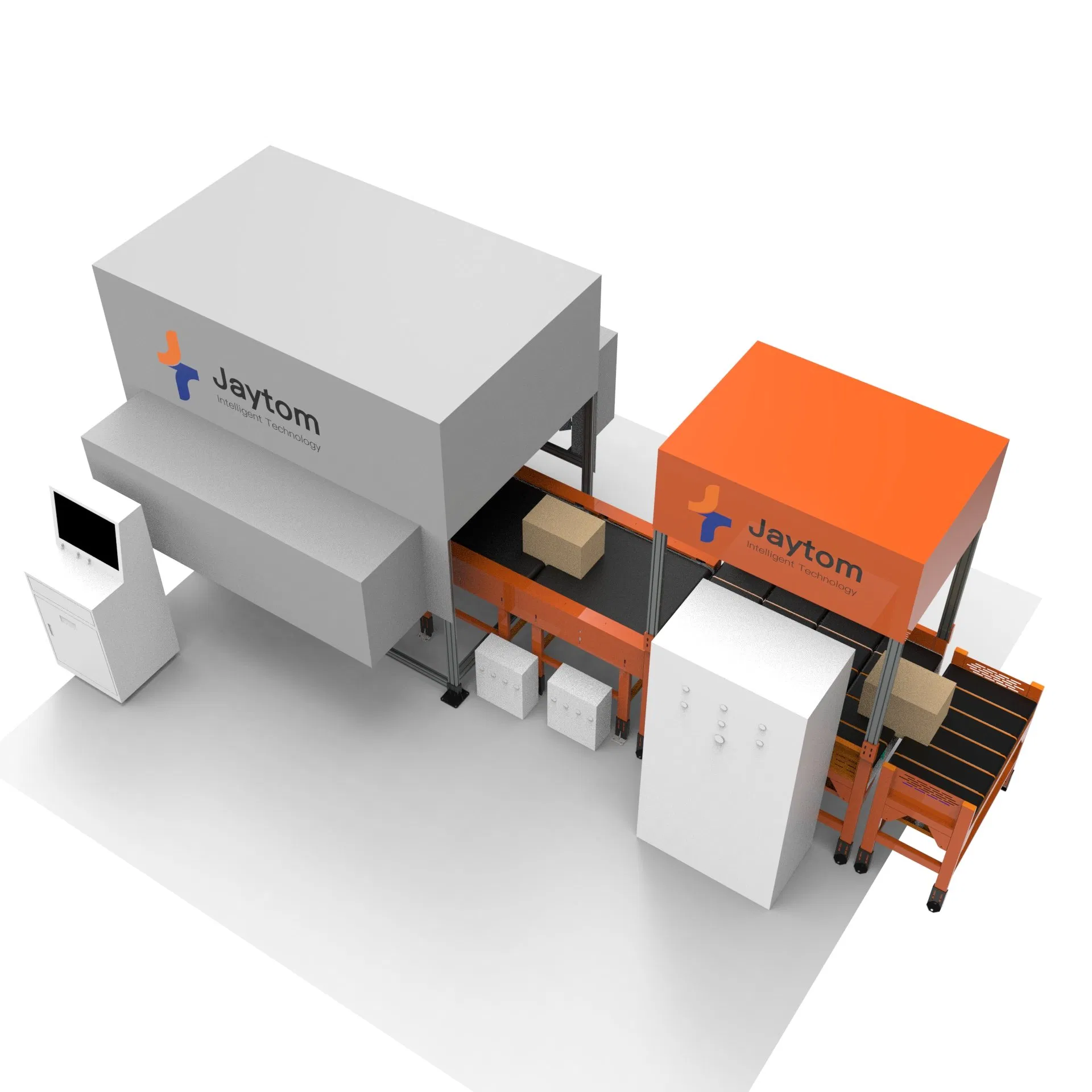

The system automatically disassembles grouped and stacked parcels into individual units while collecting critical data (barcodes, dimensions, weight) through 6-sided scanning without manual intervention. It is highly efficient for e-commerce warehouses, express transit centers, and fresh food distribution hubs.
| Component / Parameter | Specifications / Functions |
|---|---|

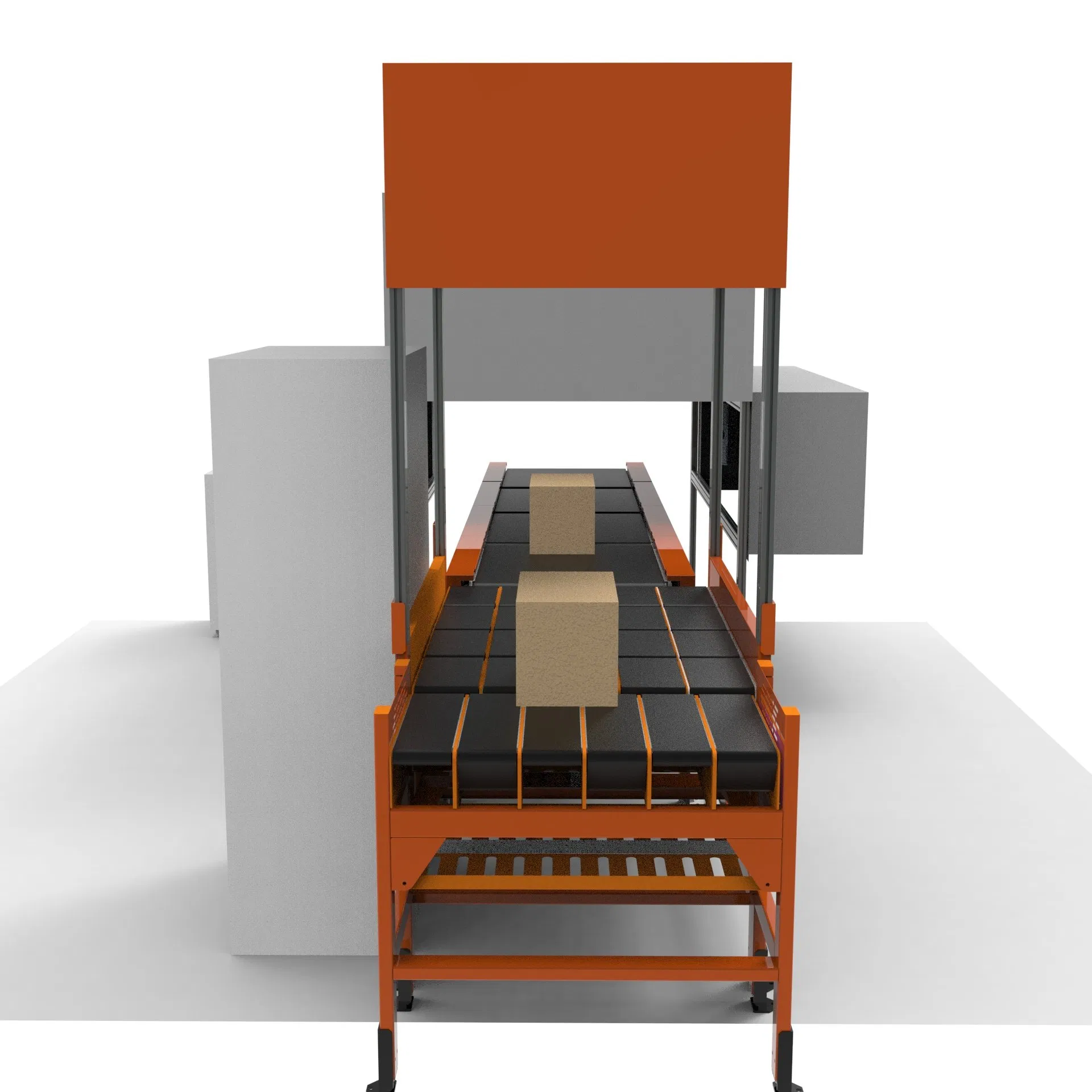

| Single-piece Separation System | Automatically separate bulk parcels |
| DWS Parcel Pulling Section | Adjust posture for optimal weighing angle |
| DWS Single-scale Weighing | Weight detection and data recording (Accuracy ±20g) |
| WS Six-sided Scanning | 360° Barcode identification (Reading Rate ≥99%) |
| Measurement Resolution | Image Resolution 4000×3000 |
| Volume Measurement (Optional) | Range: 100x50x10mm up to 500x500x500mm |
As a system integrator deeply exploring the logistics industry, our team focuses on providing overall logistics solutions supported by barcode scanning, 3D visual measurement, and automated control technologies. Our R&D team consists of engineers with extensive experience in image processing and machine learning.
