Customization: Available
Type: EP200
Material: PU
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
DWS-M-100-3stage-Six side scanning
Inside Material
Polyester
Feature
Heat-Resistant
Tensile Strength
Strong
Package
Box
Specification
100
HS Code
8471419000
P

Product Description

DWS Scan Automated Parcel System
High Speed Automatic Sorting System

Application Introduction

  • Fully automatic dynamic recognition sorting technology
  • 6-sided DWS system with all-round scanning (no dead angles) and no need for manual barcode surface flipping
  • Automatic weighing and recognition system with an efficiency of over 5,000 pieces/hour
  • High-speed recognition system, which can be arbitrarily paired with various sorting systems: swing wheel sorting system, linear high-speed sorter, cross-belt sorter, etc.

Core Features & Advantages

  • Core Function: The system completes one-time collection of parcel information (including barcode, dimension, and weight) through 6-sided dead-angle-free scanning, requiring no manual intervention.
  • Efficiency Advantage: It eliminates the manual process of searching for and flipping to the barcode side, capable of handling thousands of parcels per hour. This significantly improves processing efficiency in express delivery and warehousing.
  • Applicable Scenarios: Widely used in e-commerce warehouses, express transfer centers, and fresh produce distribution centers.
  • Linkage Value: Collected data connects to backend sorting systems (e.g., swing wheel sorters, cross-belt sorters), enabling a fully automated closed-loop process.

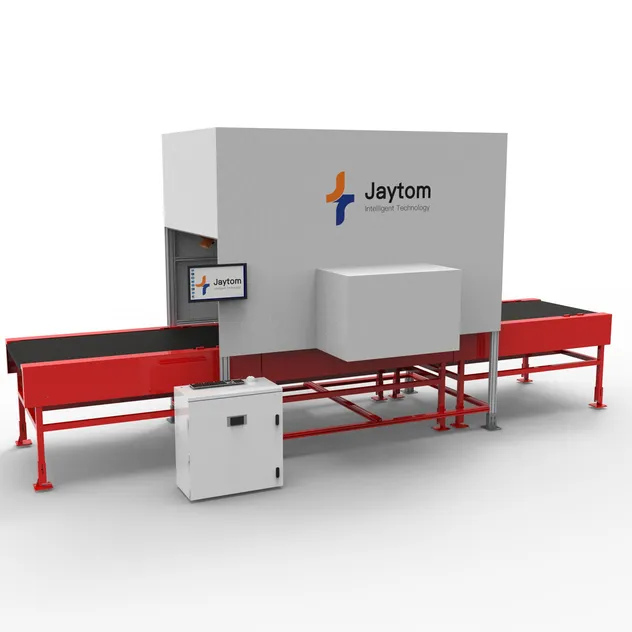

Logistics Belt Conveyor Detail 1
Logistics Belt Conveyor Detail 2
Logistics Belt Conveyor Detail 3
T

Technical Parameters

Category Parameter Item Details / Specifications
Solution Components Parcel Pulling Section Adjust parcel posture for suitable angle entry
Single-scale Weighing Automatic weight detection and data recording
Buffer Section Information processing of scanned items
Six-sided Scanning All-round barcode identification and collection
Performance Speed 1.5 ~ 2 m/s
Efficiency 6000 pieces/hour
Field of View No Blind Area
Weighing Max Weight ≤ 50 kg
Accuracy ± 20 g (Class III)
Applicability Suitable Size Min: 100x100x50mm | Max: 800x1500x700mm
Suitable Types Various parcels with flat surface waybills
Identification Min Barcode Width 0.25 mm
Barcode Types 1D (Code128, EAN), 2D (QR, DM)
Reading Rate ≥ 99%
?

Frequently Asked Questions

Q1: What are the advantages of a six-sided scanning system? A1: It allows for all-round identification of barcodes regardless of parcel orientation, eliminating the need for manual flipping and significantly increasing processing speed.
Q2: What is the maximum throughput of the DWS system? A2: The system can handle up to 6,000 pieces per hour with a belt speed of 1.5 to 2 meters per second.
Q3: How accurate is the integrated weighing system? A3: The DWS single-scale weighing section provides a measurement accuracy of ±20g for objects weighing up to 50kg.
Q4: Can the system recognize 2D barcodes? A4: Yes, the system identifies both 1D codes (like Code128 and EAN) and 2D codes (like QR and Data Matrix) with a reading rate of ≥99%.
Q5: Are there any types of parcels that are unsuitable for this system? A5: Highly reflective or transparent parcels may affect volume measurement accuracy. Cylindrical or spherical packages and severely damaged waybills are also not recommended.
Q6: What is the parcel size range supported? A6: It supports parcels from a minimum of 100x100x50mm up to a maximum of 800x1500x700mm.
