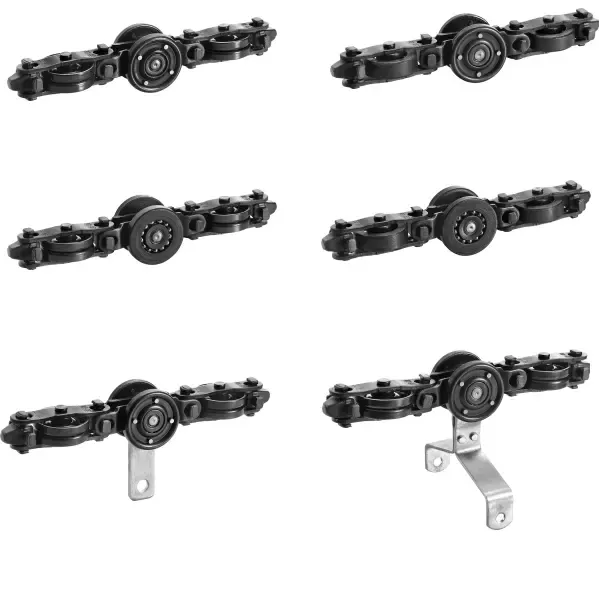

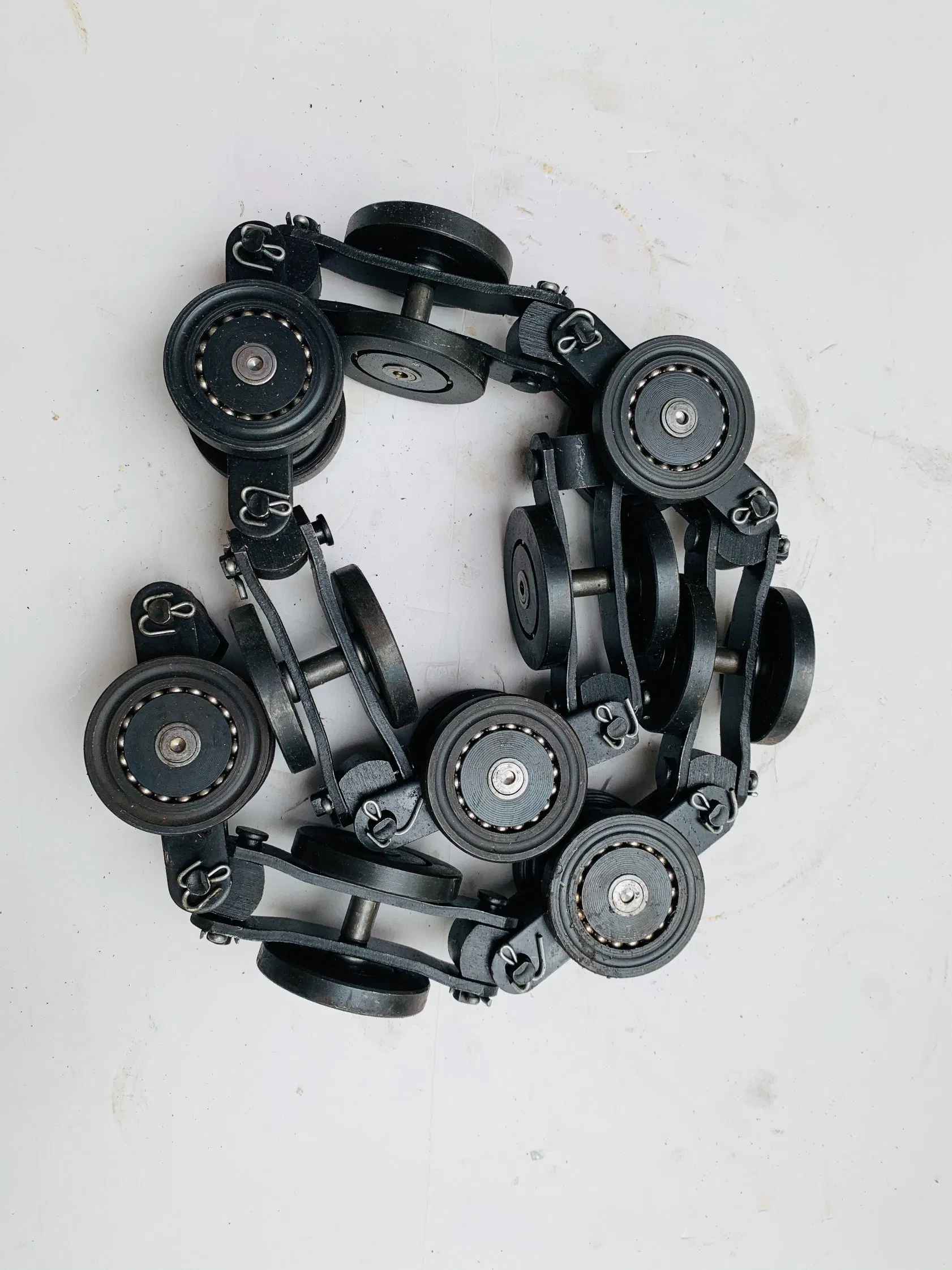

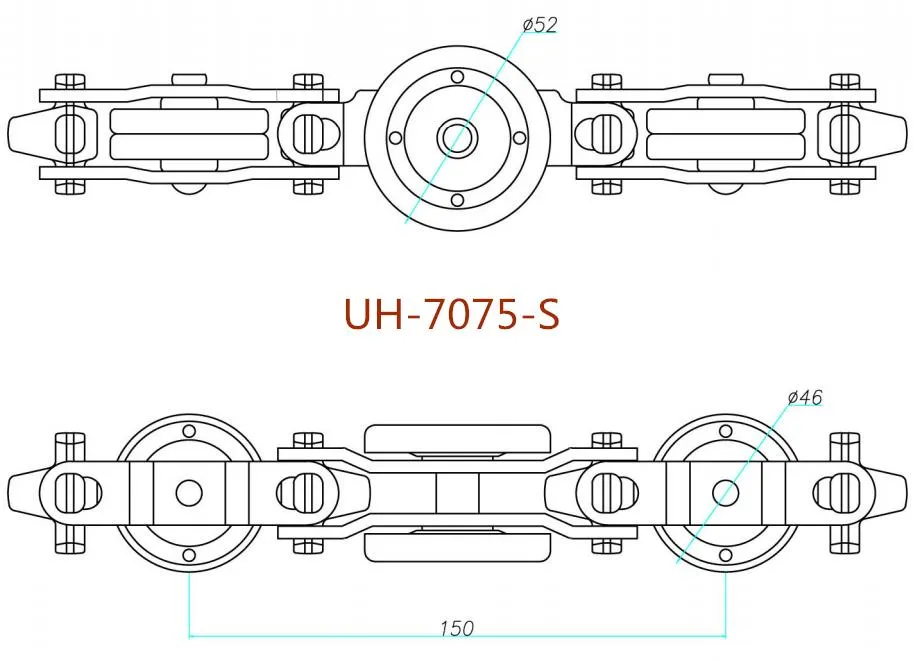

The UH-7075-S is the fundamental style of the five-ton cross suspension chain, specifically engineered for general overhead conveyor lines. Its simple yet efficient shape ensures reliable performance in industrial environments.

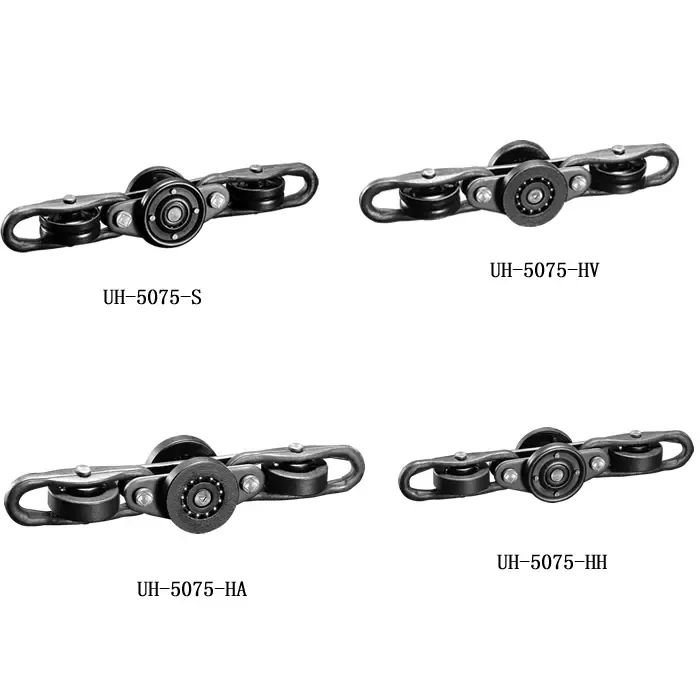

The traditional five-ton chain (UH-5075) remains a widely utilized suspension chain due to its small pitch, allowing it to navigate smaller curved rails effectively. This versatility enables the handling of more objects simultaneously. With a comprehensive range of accessories and a streamlined installation process, it has consistently been a preferred choice for suspension conveyor systems.
Building upon this legacy, the UH-7075-S cross-shaped chain represents a significant evolution. It is not merely a change in appearance but incorporates critical improvements in mechanical performance, designed to meet modern heavy-duty requirements.
| Spare Parts Item | Features | Visual Reference |
|---|---|---|

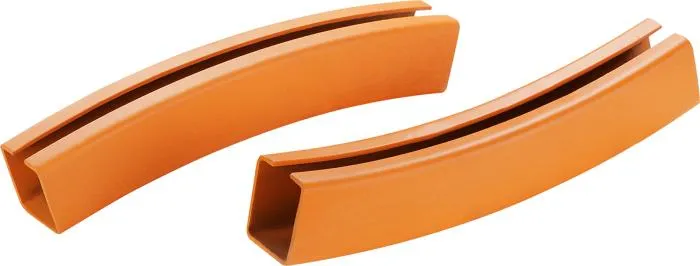

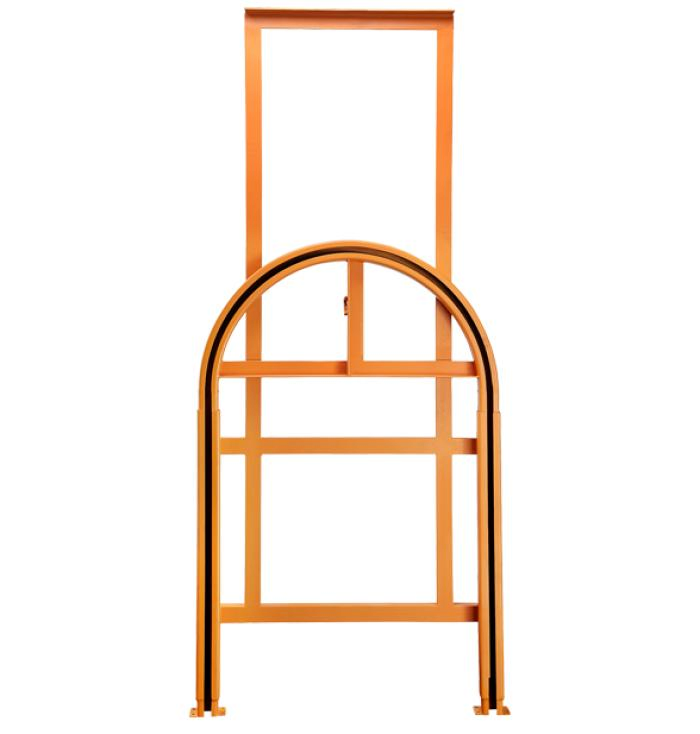

| Up-Down Track | Used for rising or falling areas. Standard diameter is 1.2 meters at a 180º angle. Can be customized to specific angles (not exceeding 45º) based on installation needs. |  |

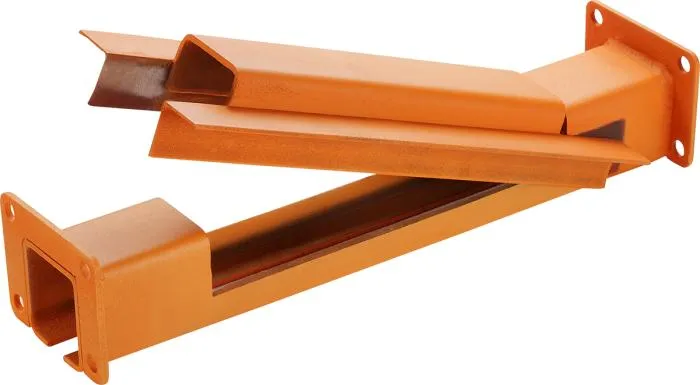

| Check Track | Includes an accessible hatch for workers to dismantle, install, or perform maintenance on the conveying chains. Usually located between the driver and take-up device. |  |
| Take-up Device (Tensioner) | Maintains original chain tension and compensates for deformation caused by force or temperature changes. Ensures steady movement between the driver and tensioner. |  |

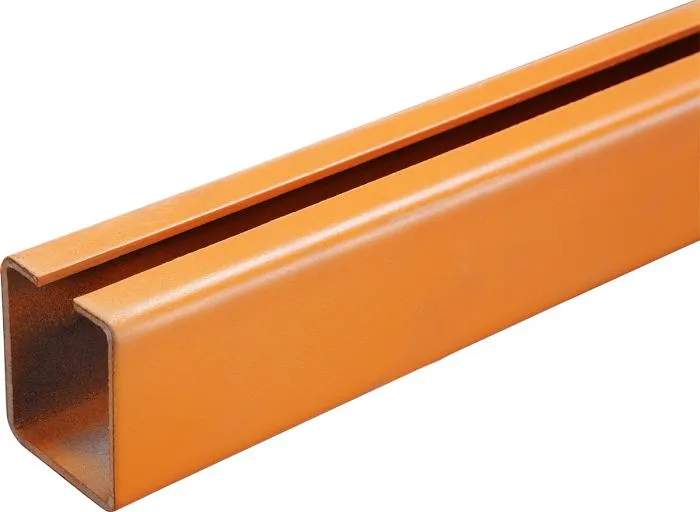

| Straight Track | Standard 3-meter sections for straight conveyor paths. Can be cut to fit specific layout requirements. |  |

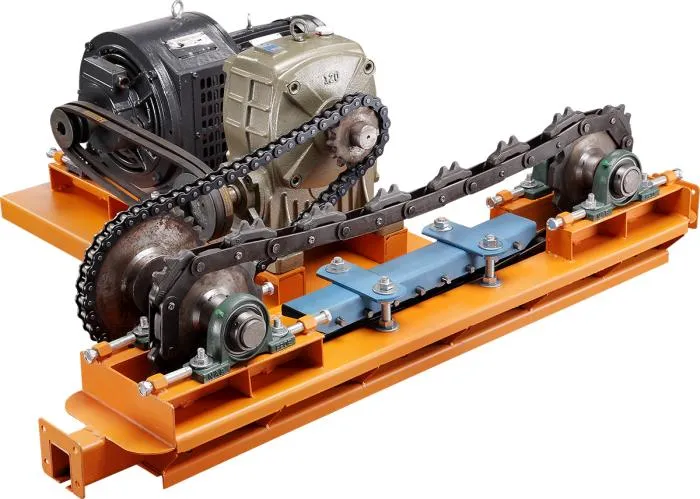

| Caterpillar Driver | Available in Standard and Heavy Duty types. It reduces motor speed to increase power, pushing the chain forward via pusher dogs. |  |

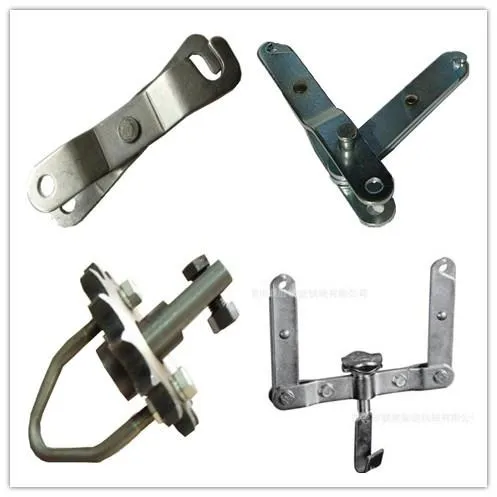

| Hangers | Multiple types available: Cross, Y, I, Sprocket wheel, U-type, and Bearing hangers. Customized options are also supported. |  |
| Automatic Oil Sprayer | Specially designed for automatic chain lubrication. Features transparent pipes for easy monitoring of oil volume and distribution. |  |
