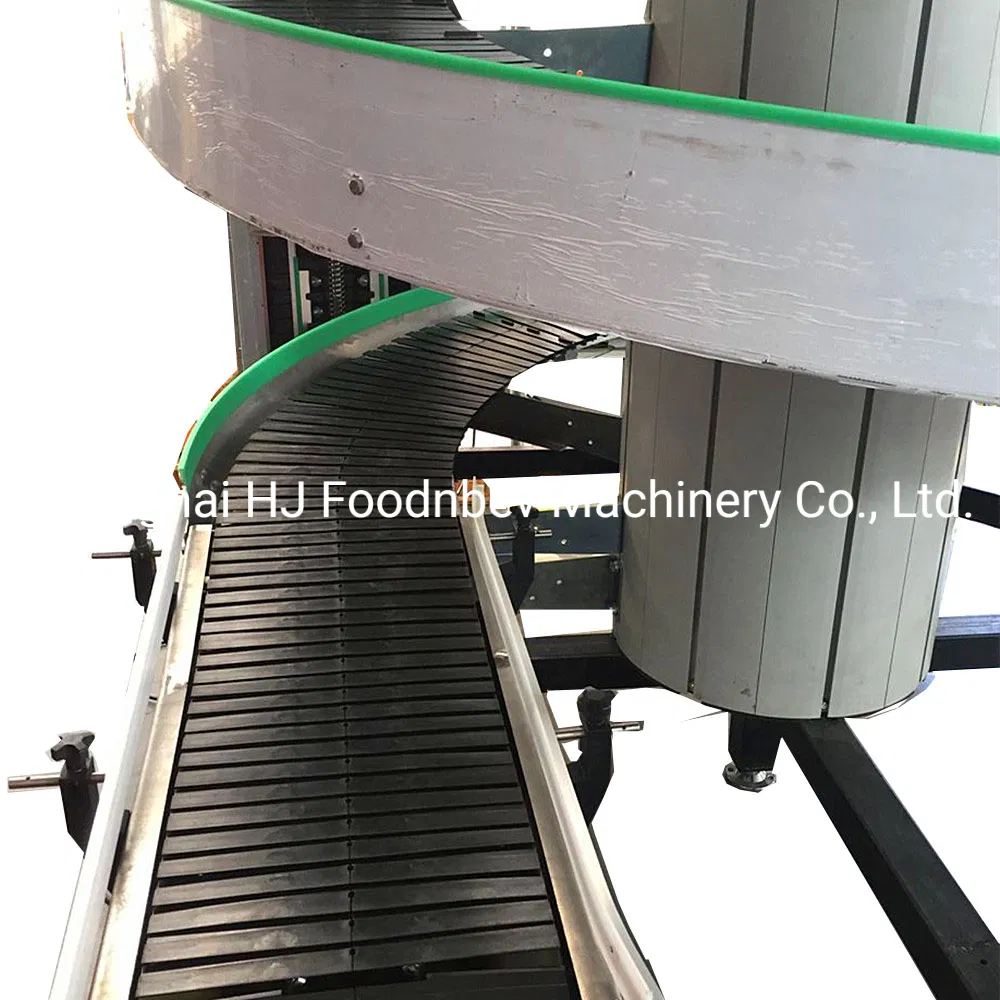

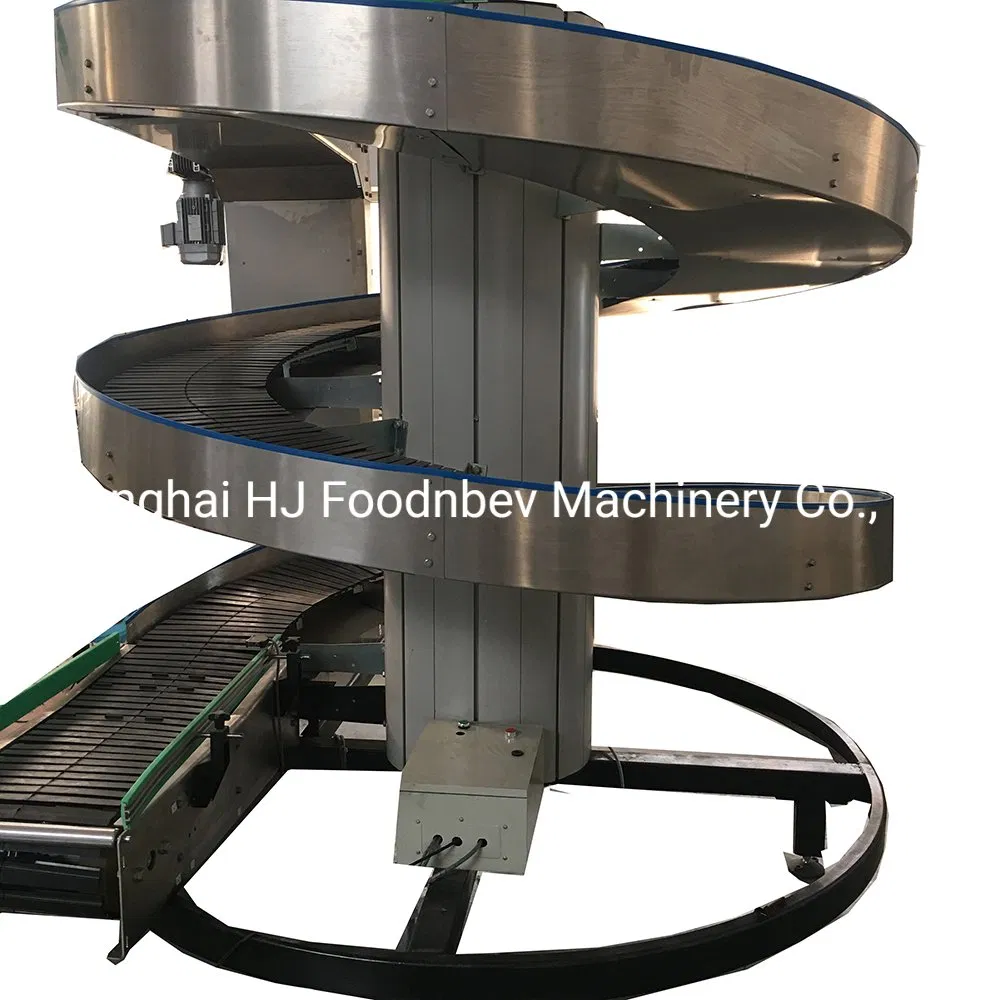

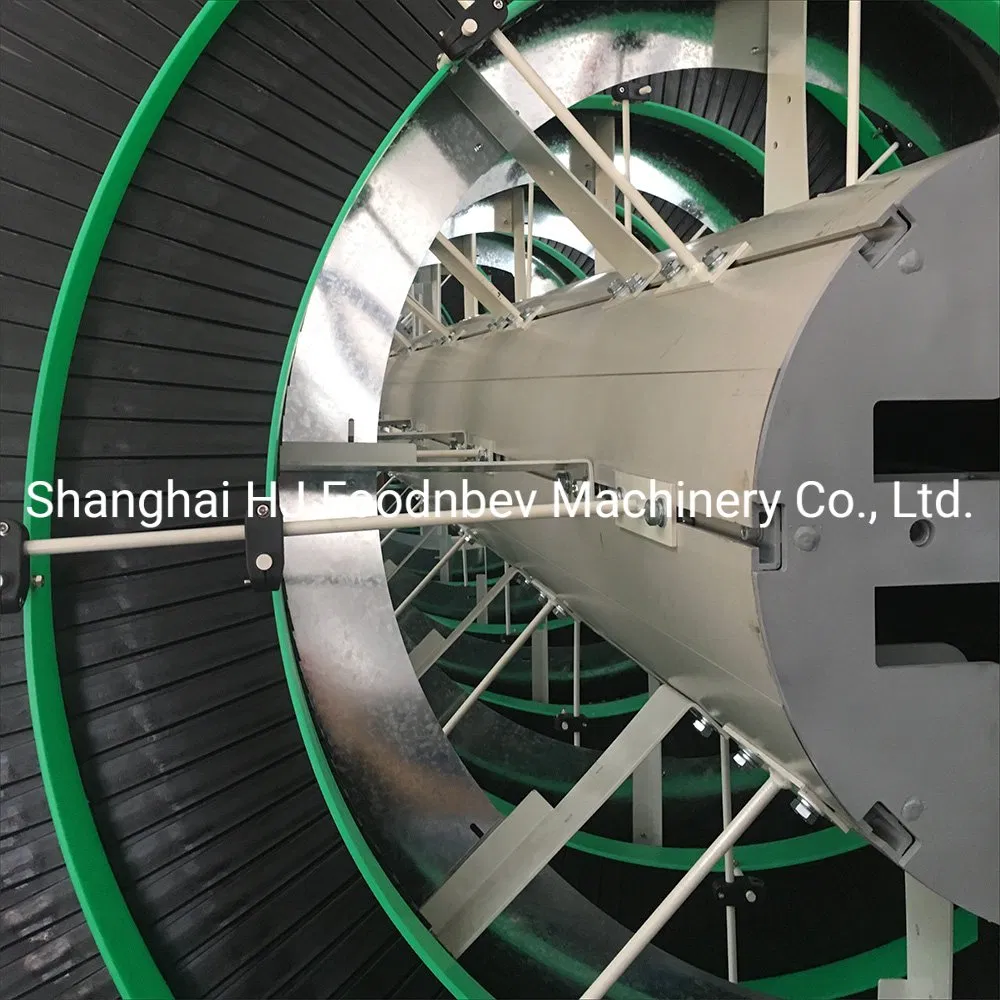

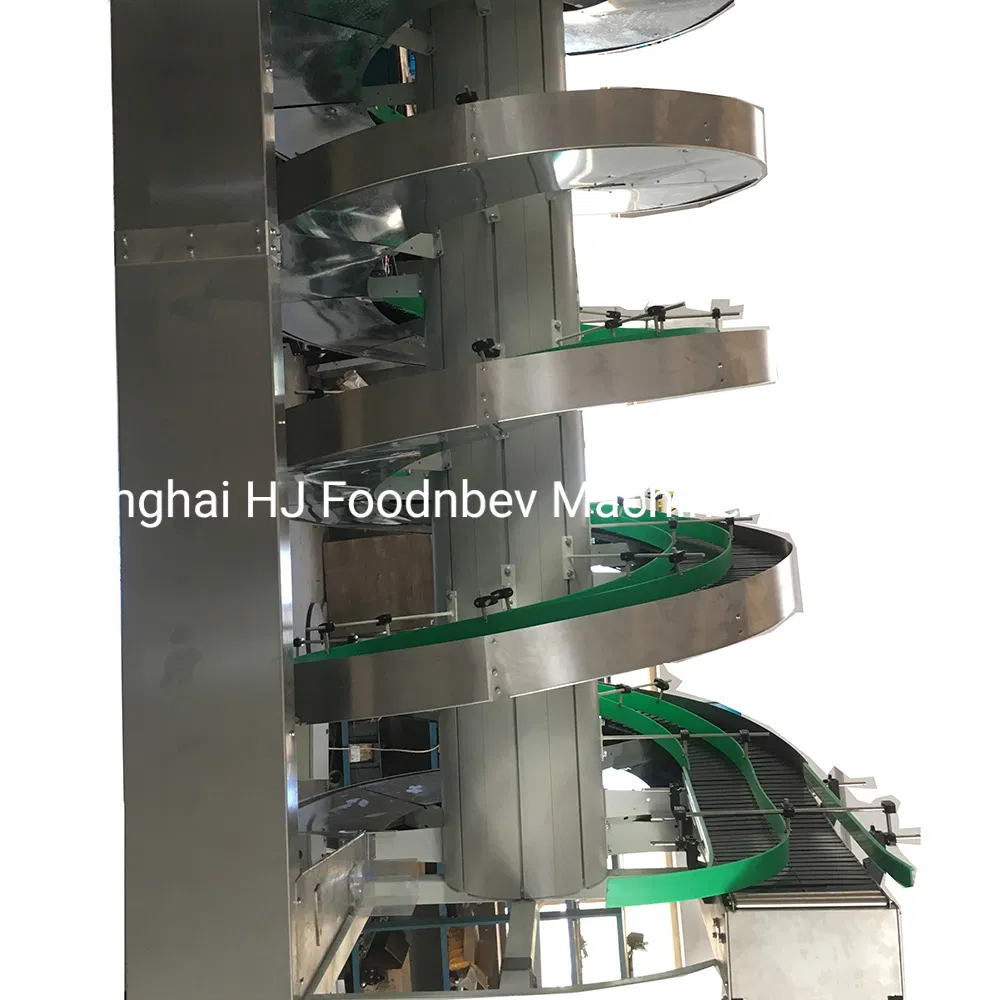

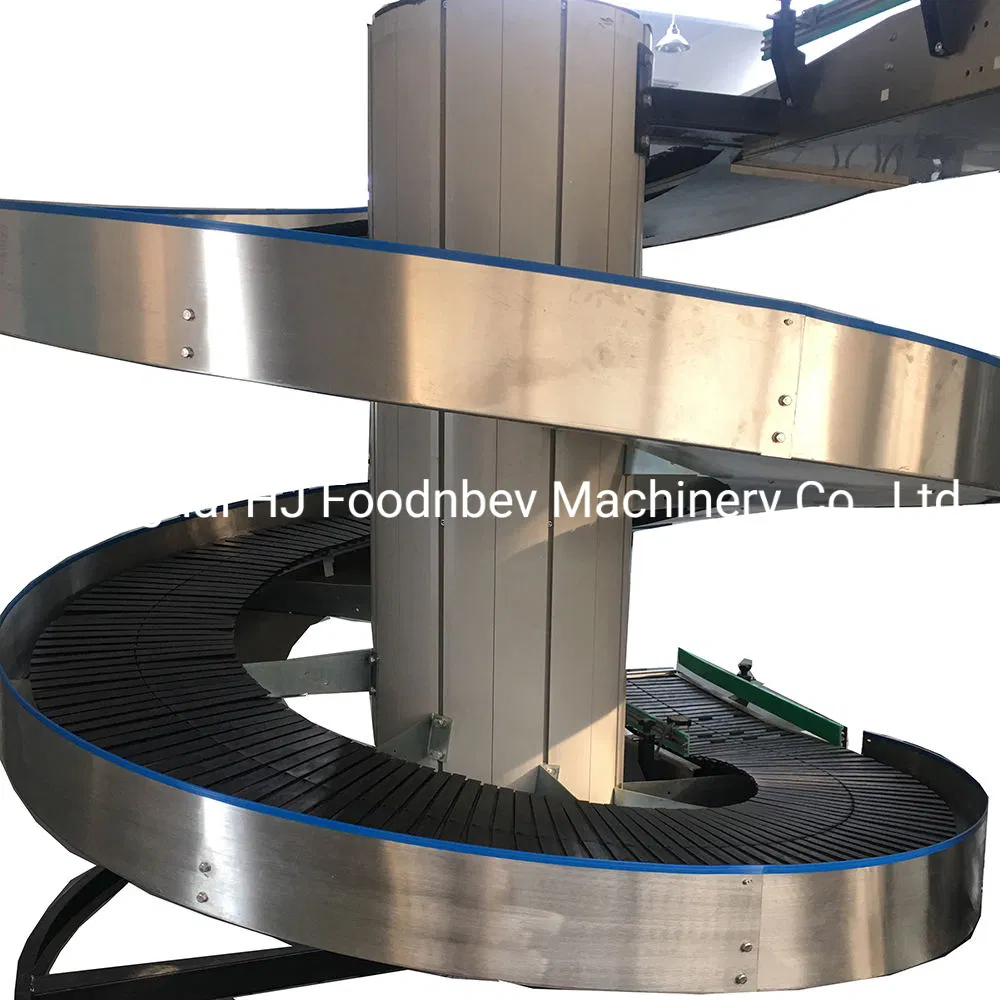

Gravity or Powered Spiral Screw Vertical Conveyor Big Box Upload System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

big box upload system

Material Feature

Oil Resistant

Application

Chemical Industry, Grain Transport, Power Plant

Condition

New

Design Standard

Food Standard Conveyor

Warranty Period

2 Year for Main Part

Business Type

Manufacturer

Certificate

SGS/FDA

Package

by Wooden Box

Specification

Stainless steel frame with modular belt

Origin

China

HS Code

8428330000

Capacity

300 Set/ Month

Product Features

Compact structure, saving floor space.

Economical, simplify processing technology, enhancing productivity.

Easy to install and maintain.

The spiral conveyor less than 10m can be made as a whole and only need one motor.

Widely use in beverage, food, daily commodity, pharmaceutical and logistics, etc.

Working principle: from different floors vertical transport, mainly for plastic box, carbons, cases and packed items.

Uplifting or down transport, Max load: 50Kg/m, Max speed: 60m/min, Angle: 7-15°.

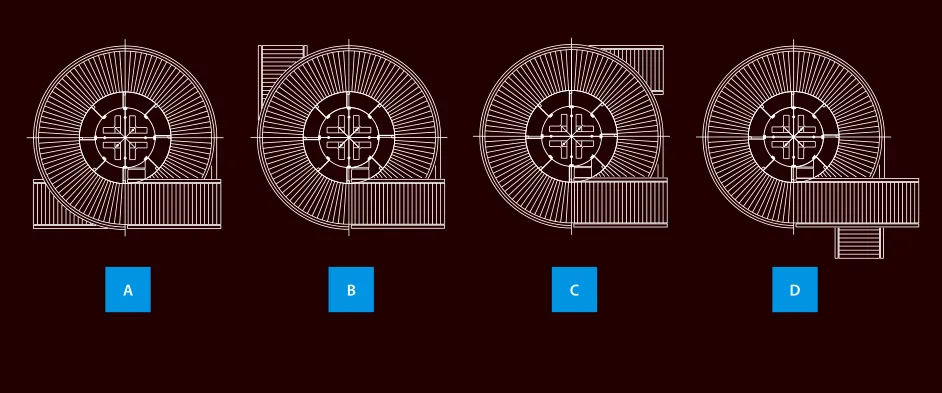

Layout & Design

Expert production of all kinds of conveyor systems depending on customer needs, including all types of conveyor spare parts like modular belts, top chains, and connection parts.

Technical Specifications

Parameter	Description
Conveyor Length	1-25m, depending on project design
Conveyor Width	0.3-3m (recommend chain conveyor for smaller width)
Conveyor Height	Adjustable. Wheels and brake are available
Frame material	Stainless steel/ Carbon steel with coating/ Aluminum
Belt material	POM/PP plastic modular belt
Other belts	PVC/PU/Mesh belt/ Plastic chain/Stainless chain available
Motor	Italy brand/SEW/China brand
Voltage	380V(415V)/50HZ(60HZ)
Certificate	SGS/FDA
Business type	Manufacturer

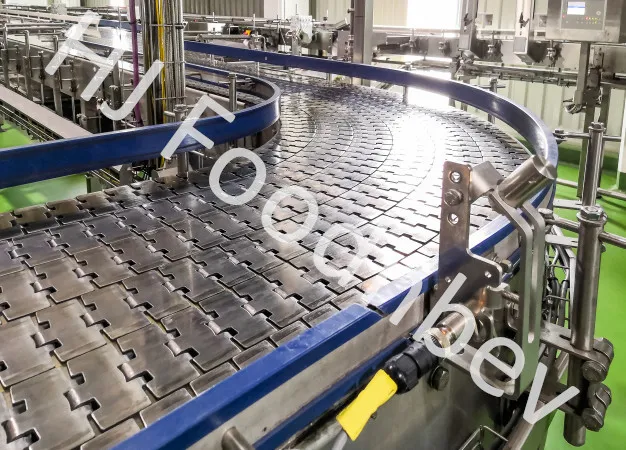

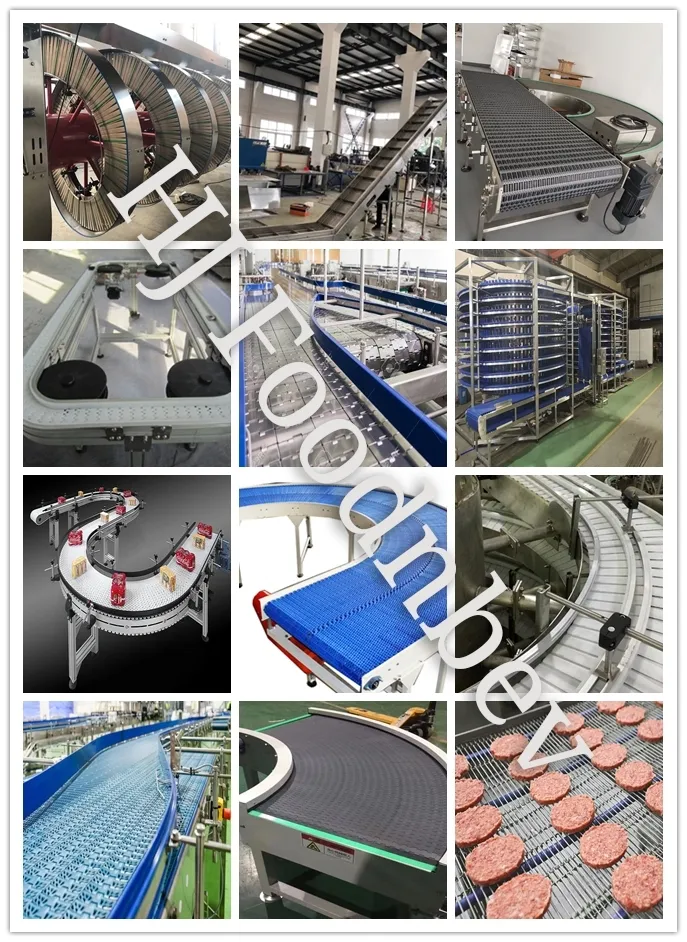

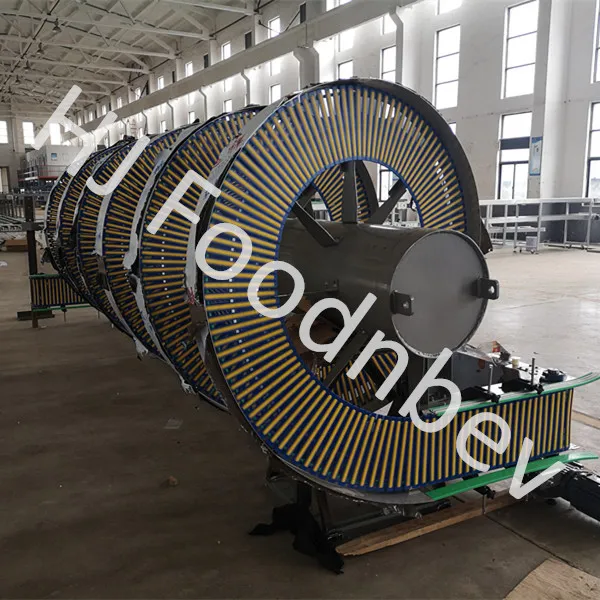

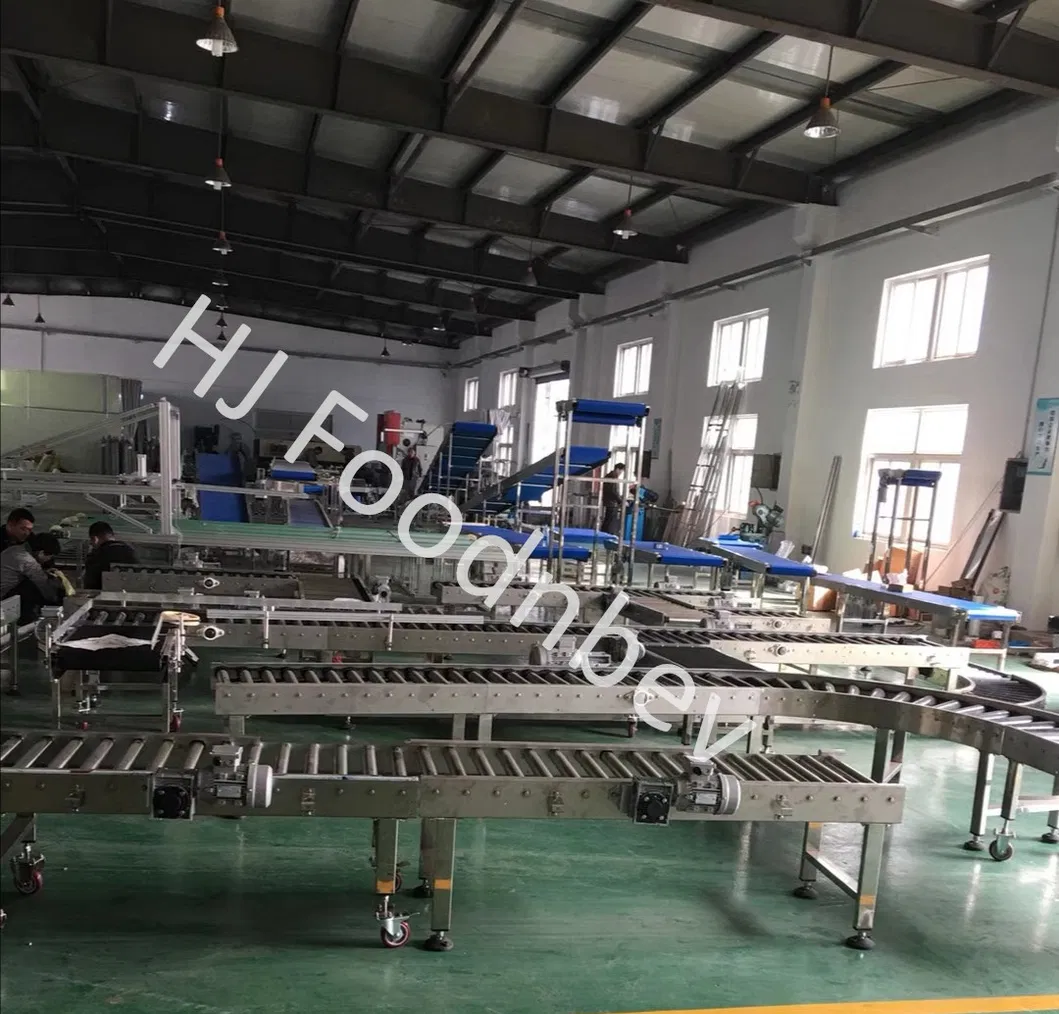

Conveyor System Gallery

Modular Belt Configuration

Component	Details
Belt	Flat top or Flush grid modular belt, POM material.
Frame structure	Waterproof SS 304 material frame with SS304 bearing; bending without slots at backside for longevity. Filler strip included for smooth high-load operation.
Support leg	Bow shape for stability or tripod stand options.
Power system	High-quality motor with electrical control cabinet.
Automatic control	Supports lane separation, sorting, screening, classification, etc.
Delivery time	15 workdays.

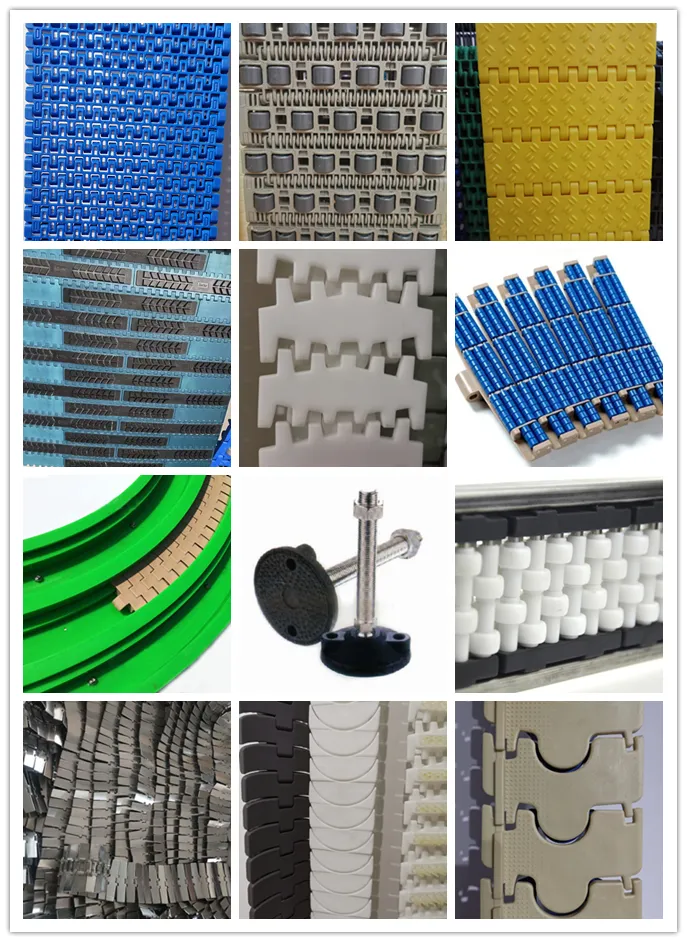

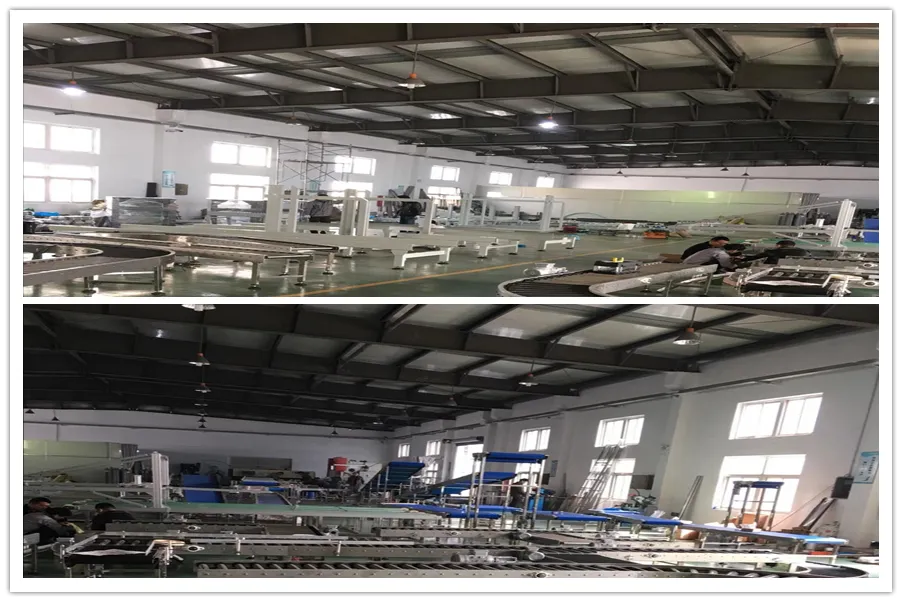

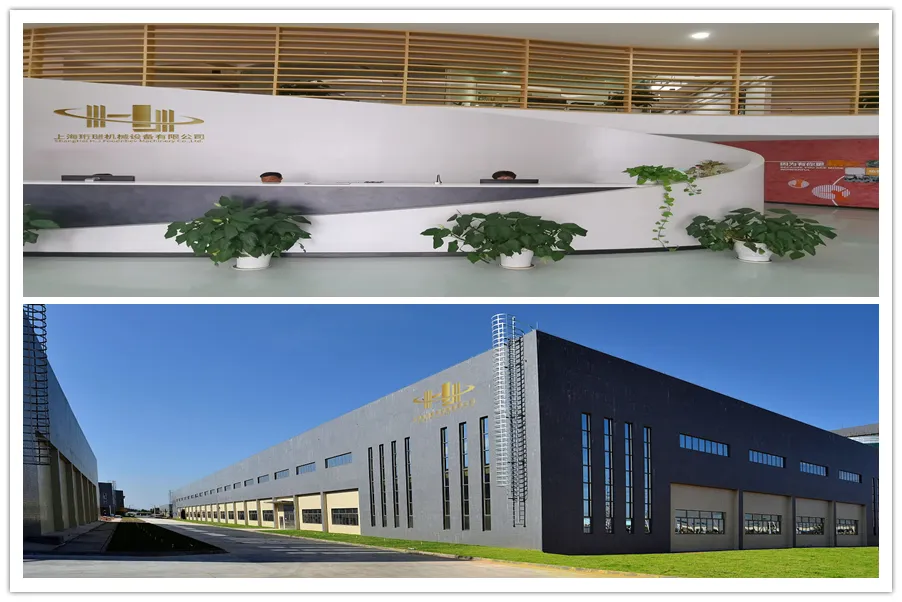

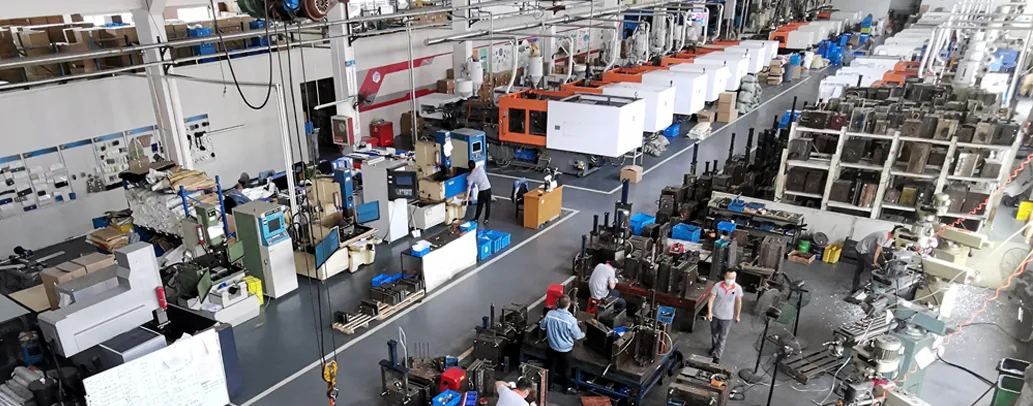

Factory Overview & Products

Category	Range of Products
Conveyor system	All kinds of the automatic conveyor system
Modular belt	FT/FG/RIB/ROLLER TOP series
Plastic chain	Plastic top chain, Flexible chain, Stainless steel chain
Industry belt	PVC/PU belt, TPU belt, timing belt
Conveyor roller	Stainless steel roller, PVC roller
Spare parts	Guard rails, Wear strips, Foot basis, Bearing, Connection parts

We focus on providing reliable, easy-to-use conveyor systems and related parts. With our dedicated production facility, products are exported globally and are highly recognized in various industrial markets. We approach each project by listening to individual needs and applying tailored solutions for specific material handling requirements.

Frequently Asked Questions

What is the maximum load capacity and speed of the spiral conveyor?

The spiral conveyor supports a maximum load of 50Kg/m and can reach a maximum speed of 60m/min.

Which industries typically use these conveyor systems?

These systems are widely used in the beverage, food, daily commodity, pharmaceutical, chemical, and logistics industries.

What materials are available for the conveyor frame?

Frames can be constructed from Stainless Steel (SS304), Carbon Steel with coating, or Aluminum depending on your specific environment and requirements.

Can the conveyor be designed for vertical transport?

Yes, it is designed for vertical transport between different floors, supporting both uplifting and down transport with angles between 7° and 15°.

What is the standard lead time for delivery?

The standard delivery time is approximately 15 workdays from the confirmation of the design.

What certifications does the equipment carry?

All equipment meets high-quality standards and carries SGS and FDA certifications, making them suitable for food and beverage applications.
