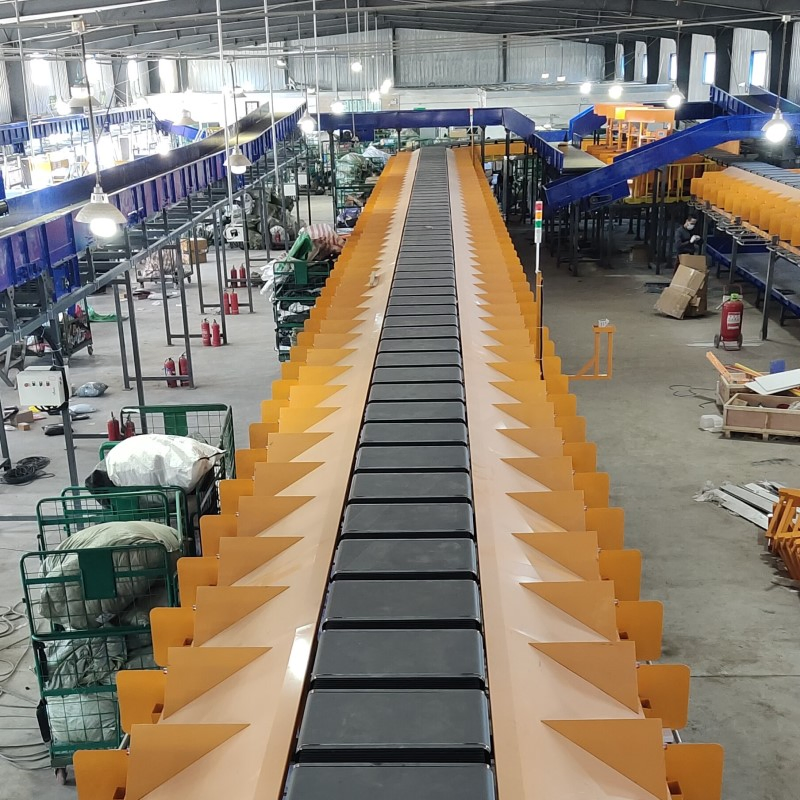

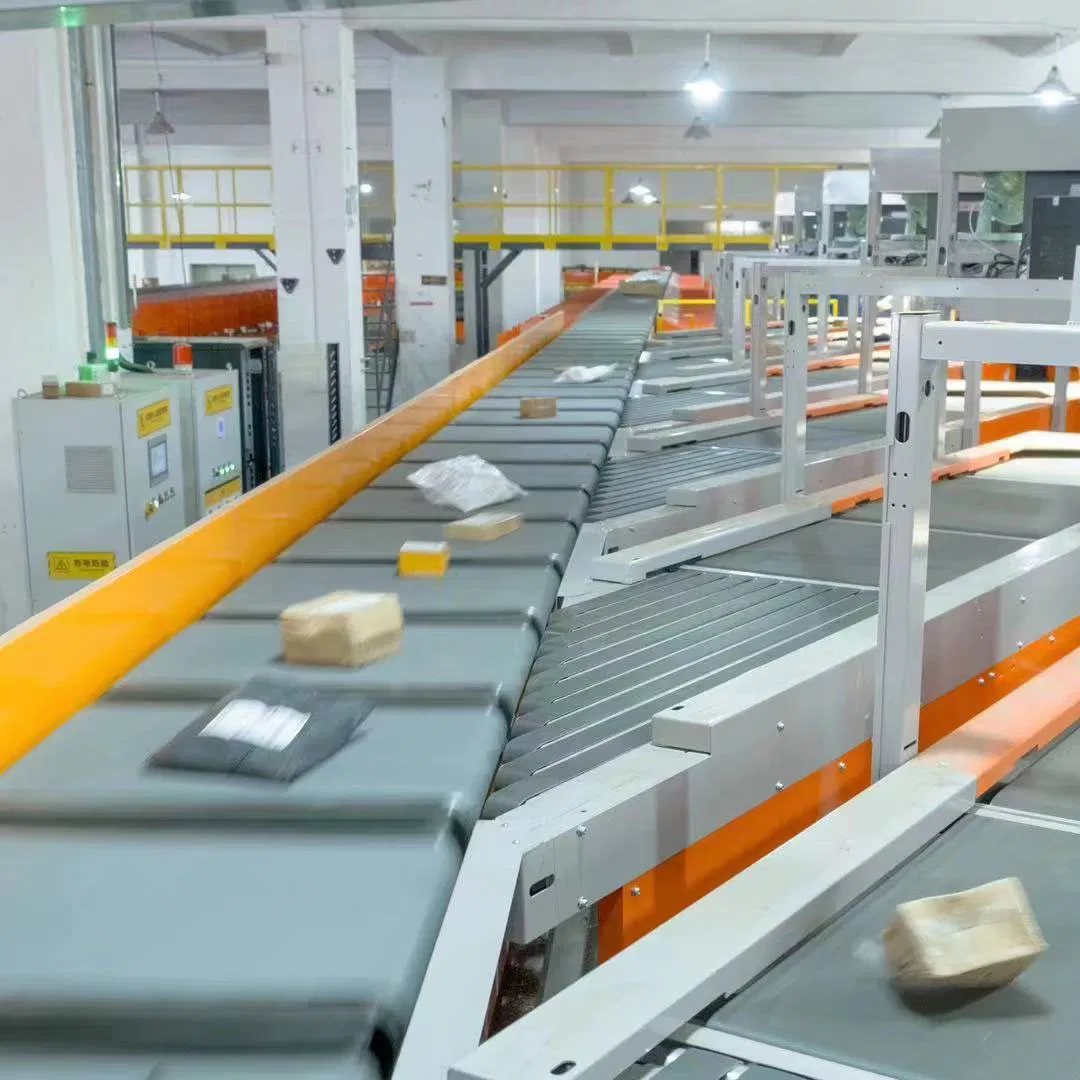

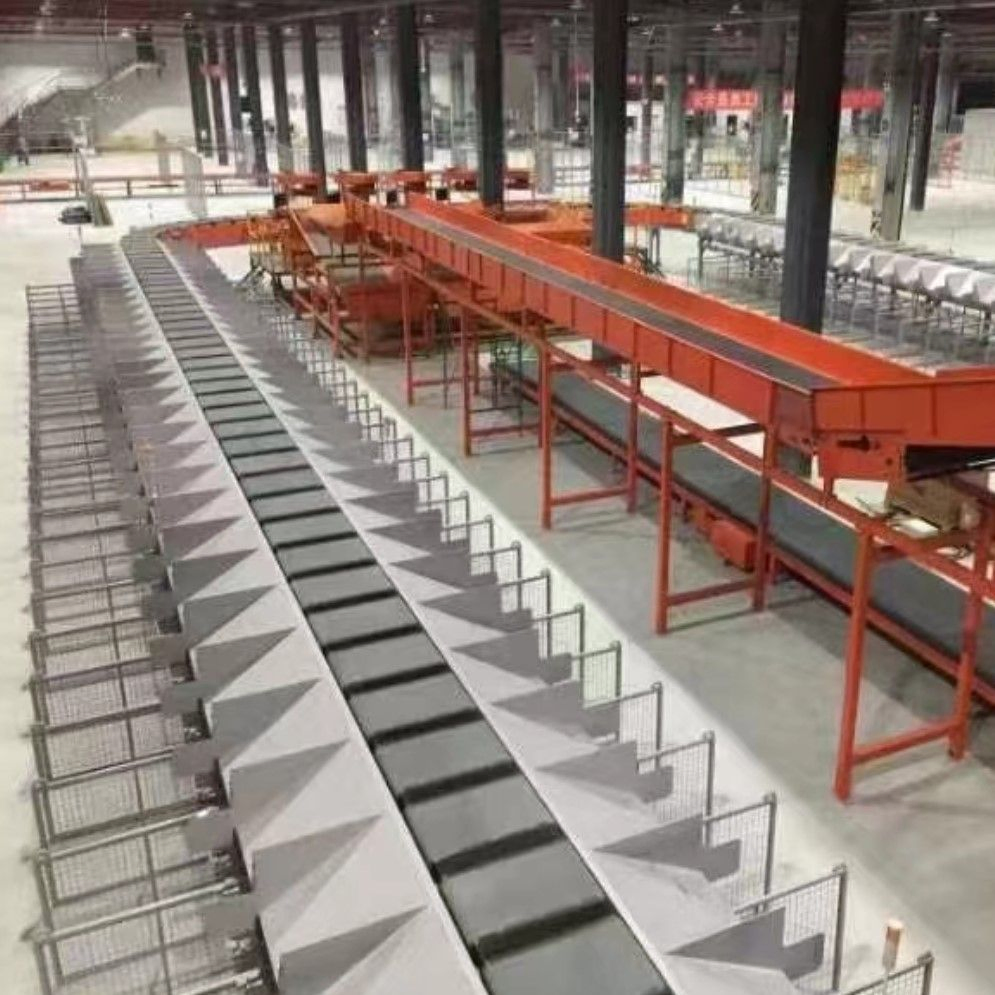

Efficient Sorting Line for Fast and Precise Product Distribution

Product Description

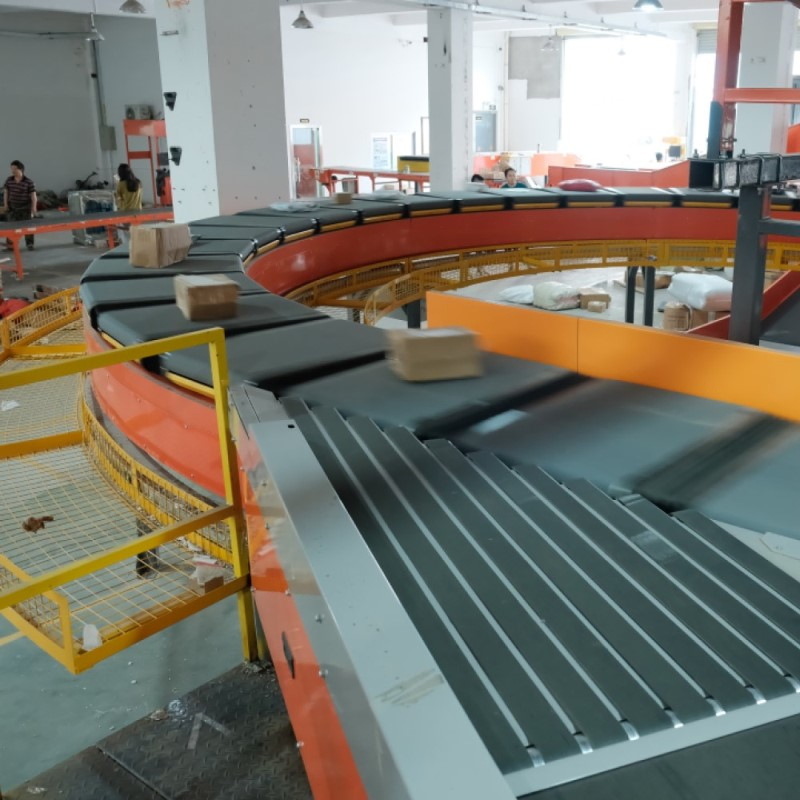

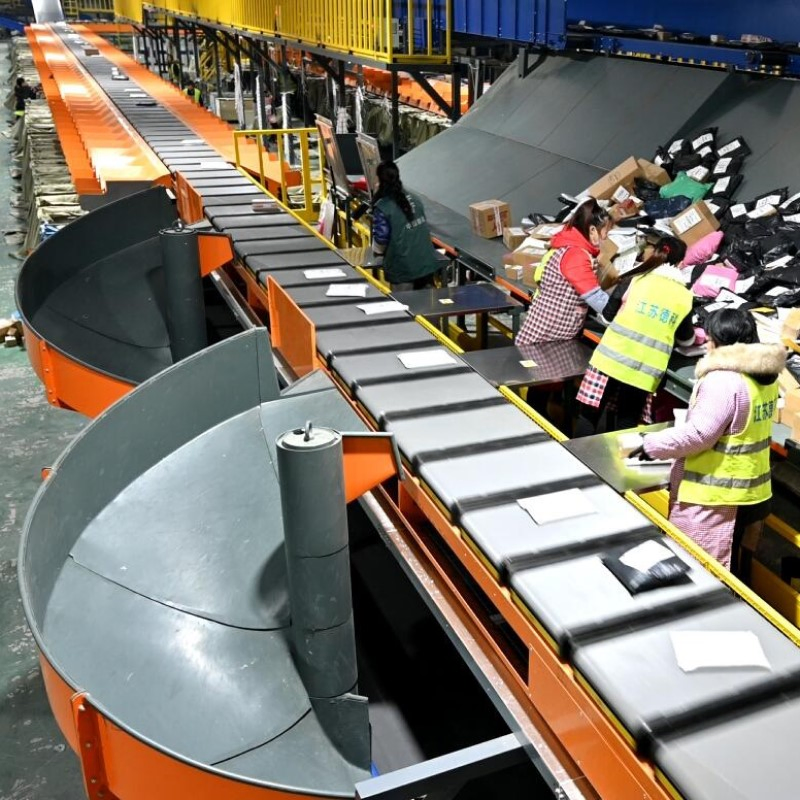

Crossbelt Sorting Line Introduction
The Crossbelt Sorter is a carrier belt based on sortation system developed for sorting a wide range of products, from clothing, multimedia, pharmaceutical and postal packages to fresh foods (even cartons with eggs) and fragile or bottled products. Goods are placed on separate carrier belts installed to move perpendicular to the flow of the sorter. The belt moves left or right to discharge the product to the correct destination. The carrier belts are driven mechanically. Goods can be inducted on the carriers manually or via a semi-automated induction belt. The Crossbelt Sorter is a modular design available in a horizontal or vertical orientation, and an oval, U, or straight shape.

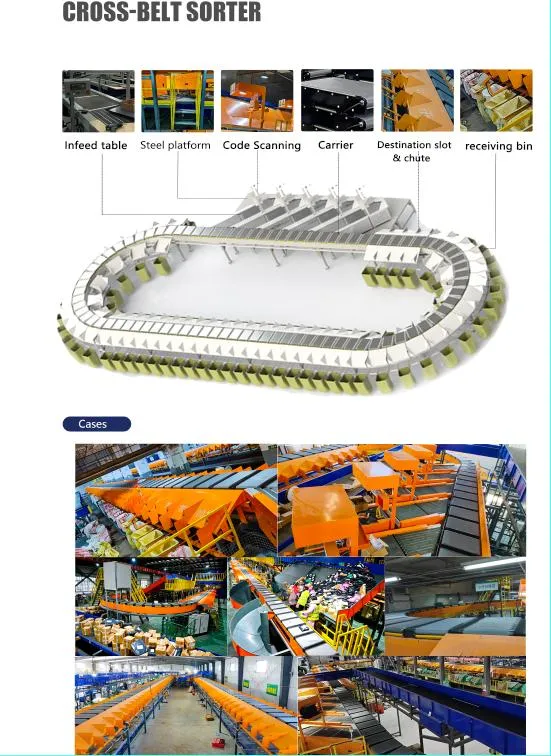

Sorting Line
Features:
1. Precise and efficient modular design with wide application.
2. Standardized sorting action with low package impact.
3. Scientific structure, low noise, and easy assembly.
4. Strong docking adaptability for management systems.
5. Supports automatic scanning, weighing, and dimension measurement.
6. Stable performance with flexible, customized configuration.
Applicable Industries
Express delivery, e-commerce, shoes and clothing, books, medicine, tobacco, supermarket supply chain, etc. Logistics companies that have extremely high requirements on sorting efficiency and package accuracy. It can build a high-speed sorting assembly line for sorting goods of various packaging and shapes, meeting high-speed circulation needs for production and logistics enterprises.
Crossbelt Sorting Line Parameters
Functional Characteristics Parameter Details
Number of Destination Chutes 180 (Other number on request)
Destination Chutes Width 750mm
Destination Chutes Type Chutes or double chutes
Carrier Number Customizable
Carrier Size 428 x 700mm
Conveying Speed 2.0 m/s
Sorting Capacity 21600 items/hr
Line Height 1.4-1.9m (Customizable)
Weight Range 0.1-10kg
Sorting Accuracy 99.99%
Package Size (Min) L100mm x W100mm x H10mm
Package Size (Max) L400mm x W400mm x H350mm
Crossbelt Conveyor Gallery

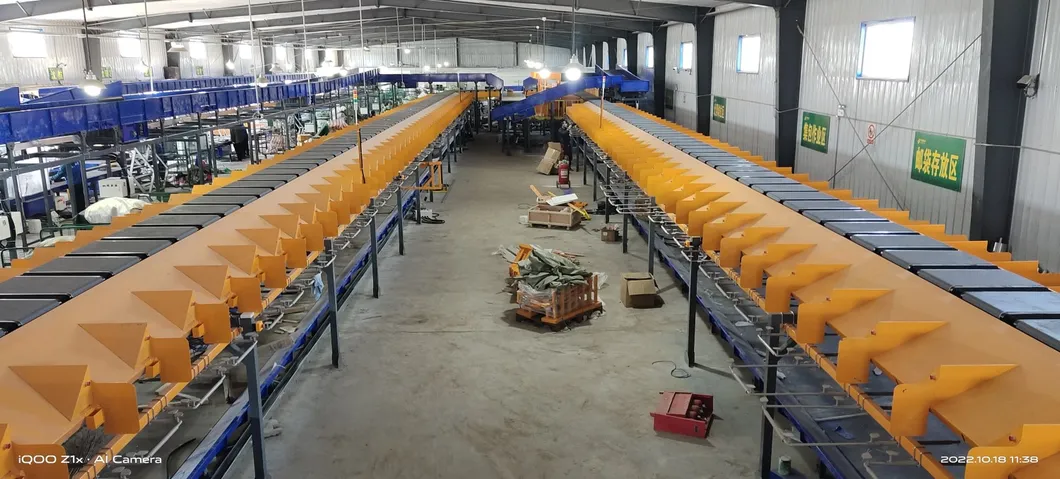

Conveyor detail

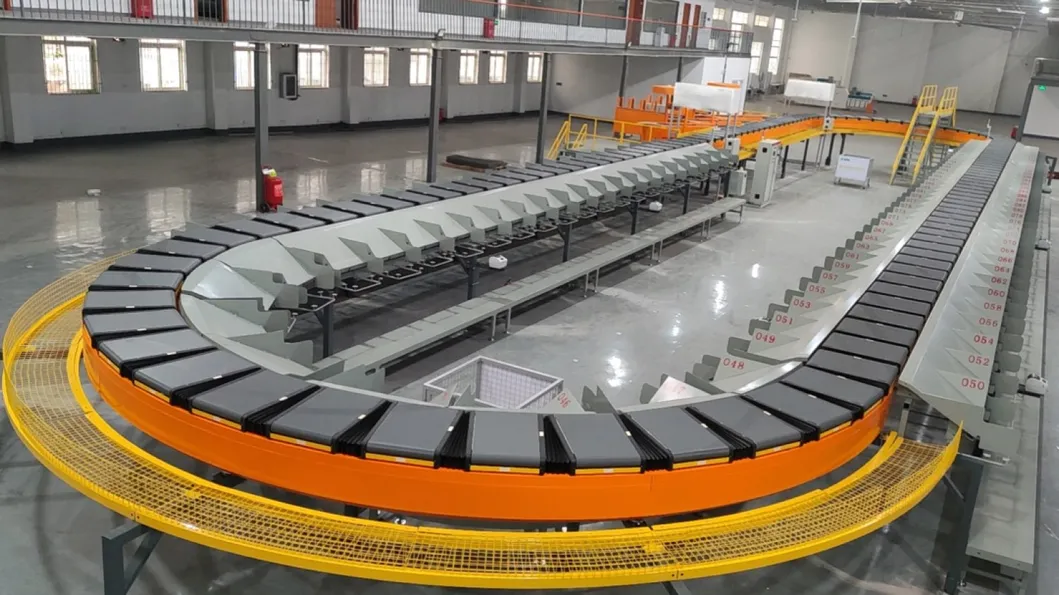

Conveyor view

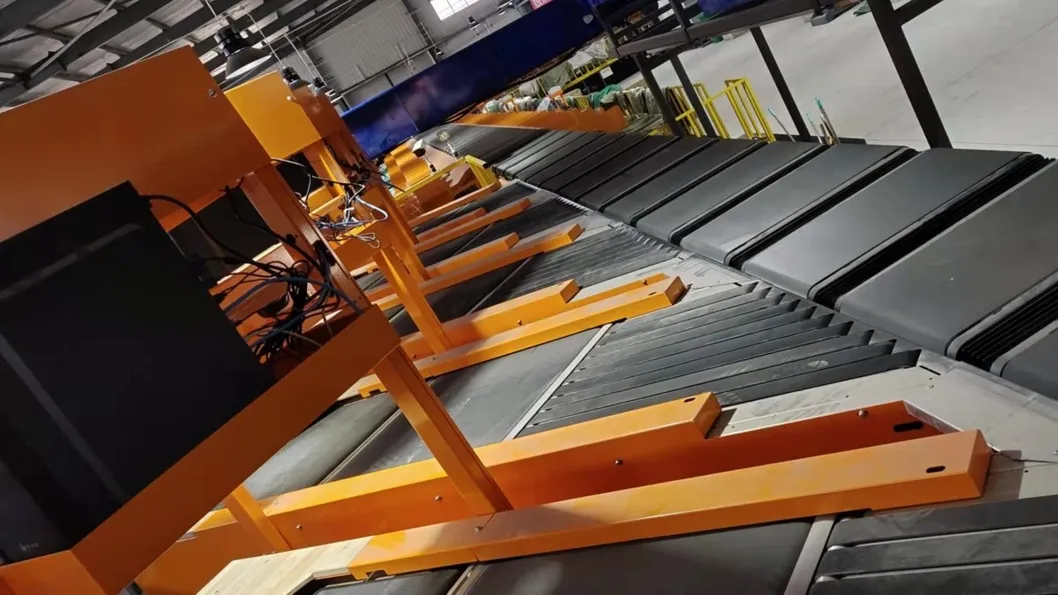

Conveyor system

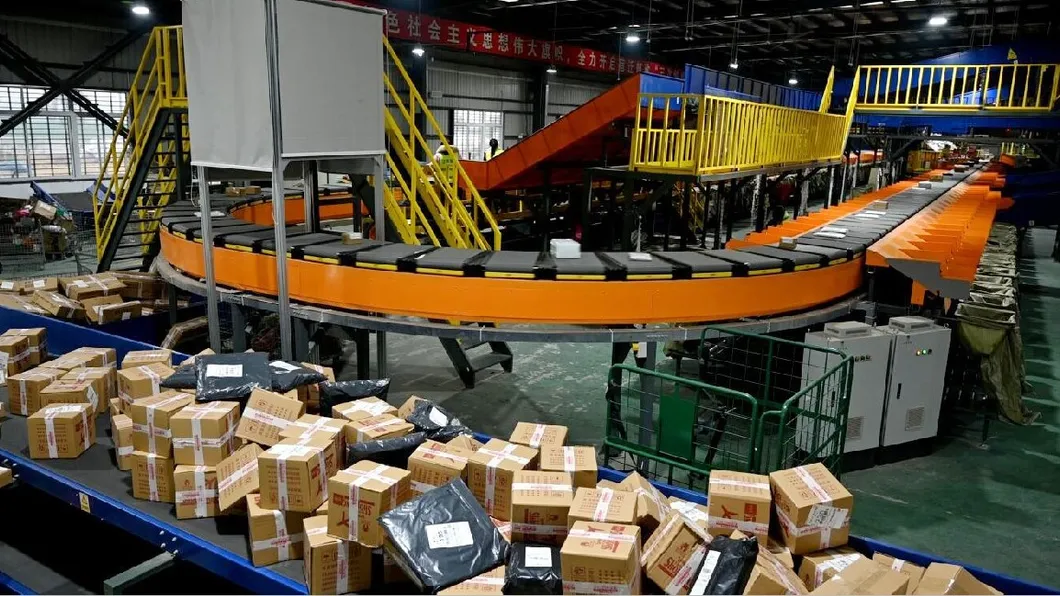

Sorting process

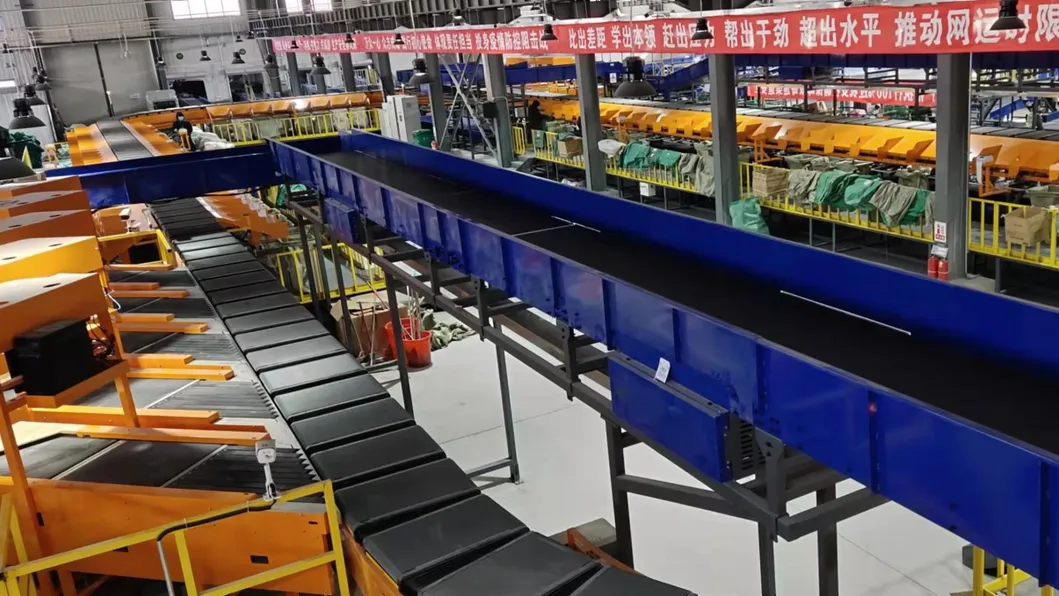

Sorting facility

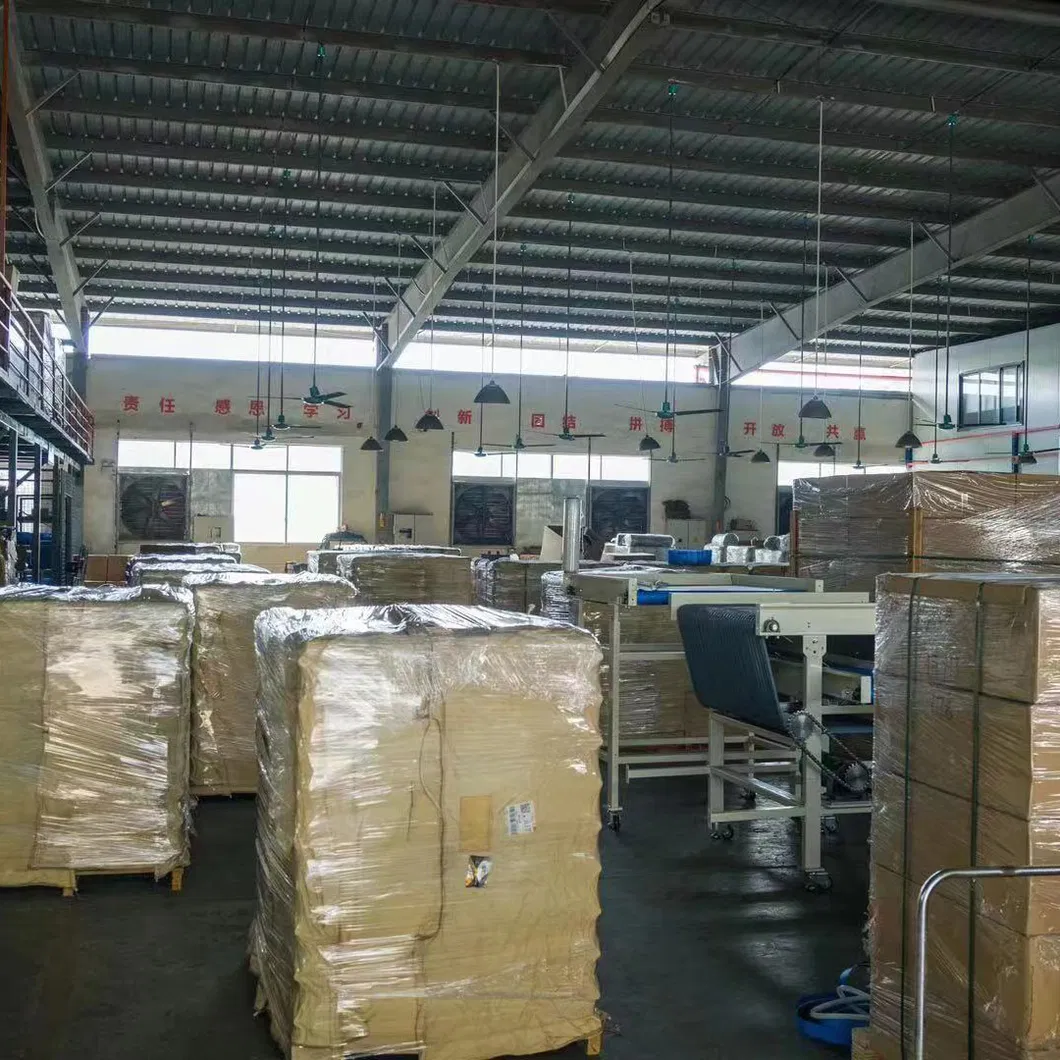

Packaging & Shipping
Shipping 1
Shipping 2
Shipping 3
About Our Company
We are a high-tech enterprise specializing in the R&D and production of intelligent sorting systems and providing intelligent logistics solutions. Our sorting machine equipment helps improve warehousing efficiency, production management, and reduces operating costs across various global markets.

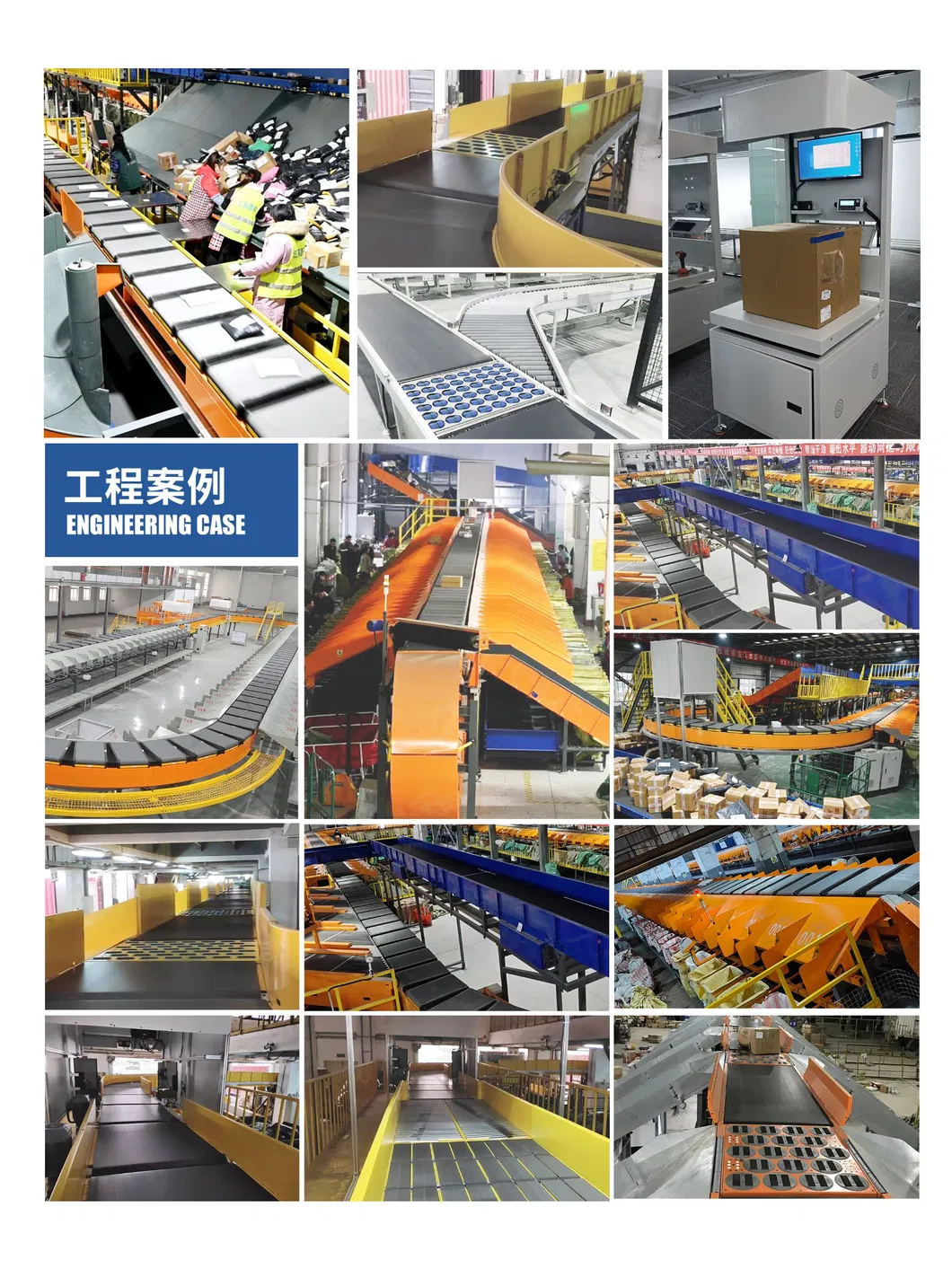

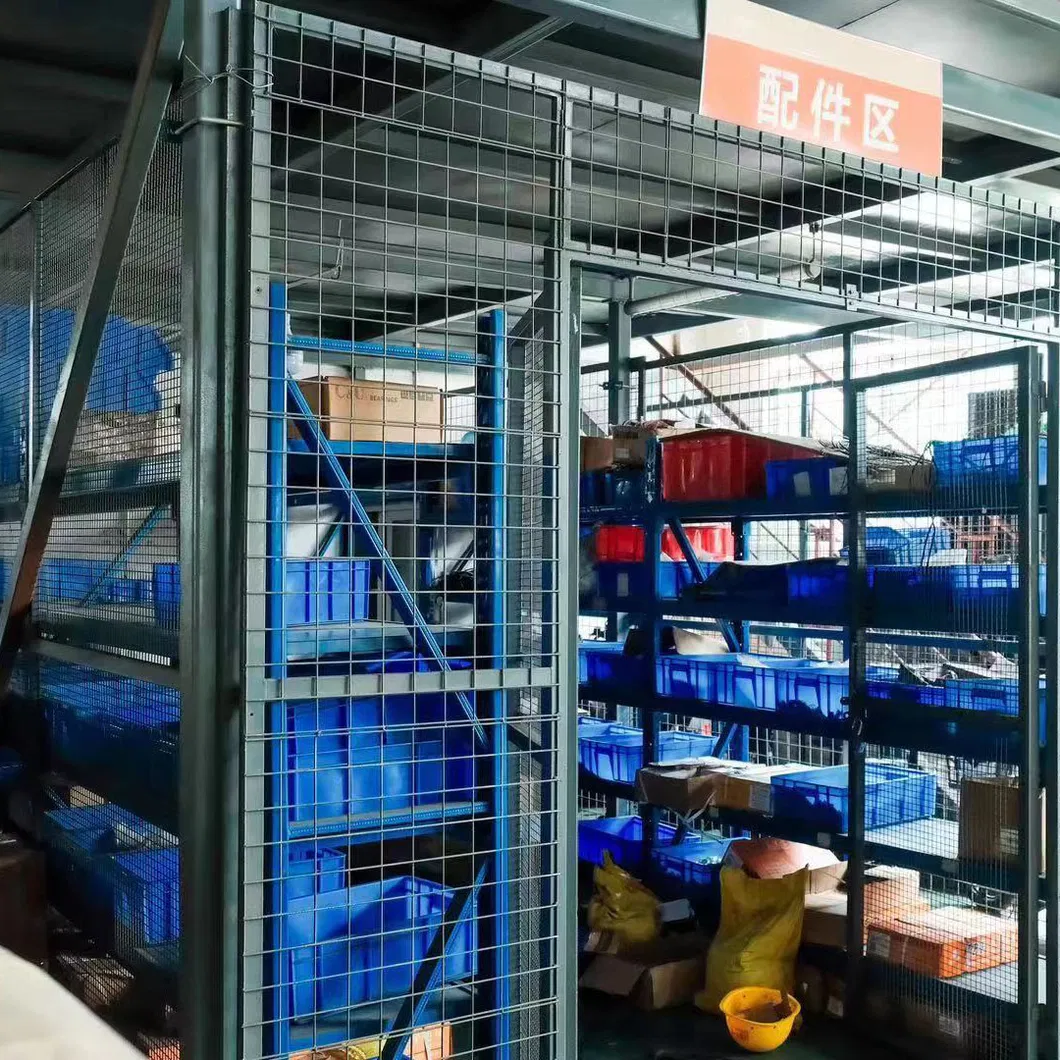

Process flow Factory interior
Why Choose Us
📦 Warehouse Systems
We provide complete warehouse transport systems and tailored logistics solutions.
👥 Expert Team
Experienced sales and engineering teams to meet specific technical demands.
⚙️ Innovation
We focus on intelligent manufacturing and high-tech logistics automation.
Frequently Asked Questions
Q1. Are you a trading company or a manufacturing company? We are a manufacturing company specializing in intelligent sorting systems.
Q2. What is your advantage? As a national high-tech enterprise, we have our own software development team with fast R&D capabilities, supporting both OEM and ODM services.
Q3. What services do you provide? Pre-sales includes customized solutions and planning. After-sales includes 24/7 online service, remote installation guidance, and system docking.
Q4. How long is the product warranty period? The standard warranty period for our products is 12 months.
Q5. What are your payment terms? We support multiple payment methods including T/T, L/C, D/P, and D/A.
Q6. Can the sorting line be customized? Yes, our systems are highly modular and can be customized according to your specific warehouse layout and item requirements.
