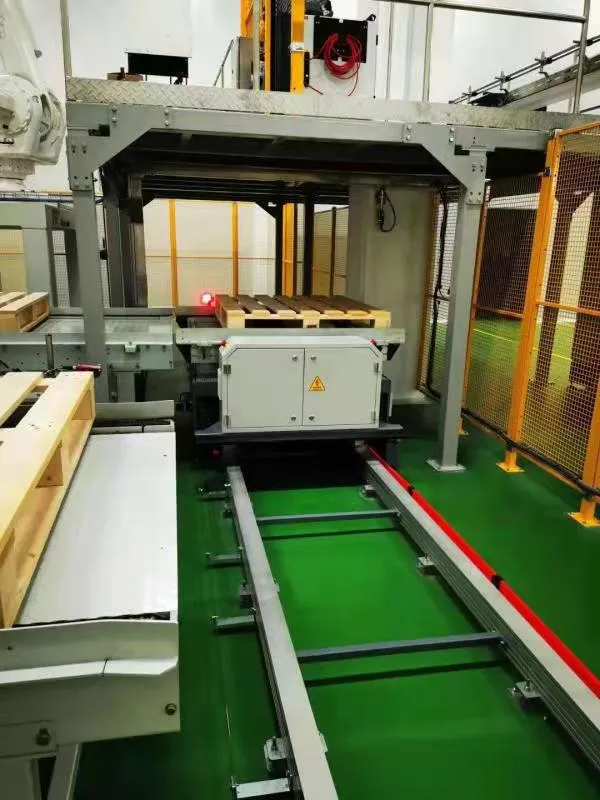

In the automated logistics conveying system, the shuttle is an important conveying equipment. Its structure is simple, maneuverable and flexible. According to the site working conditions, you can choose straight line operation, ring-type operation or Heavy-duty traverse operation. The automated shuttle can replace a large number of ordinary conveying equipment and its automatic control efficiency is high.

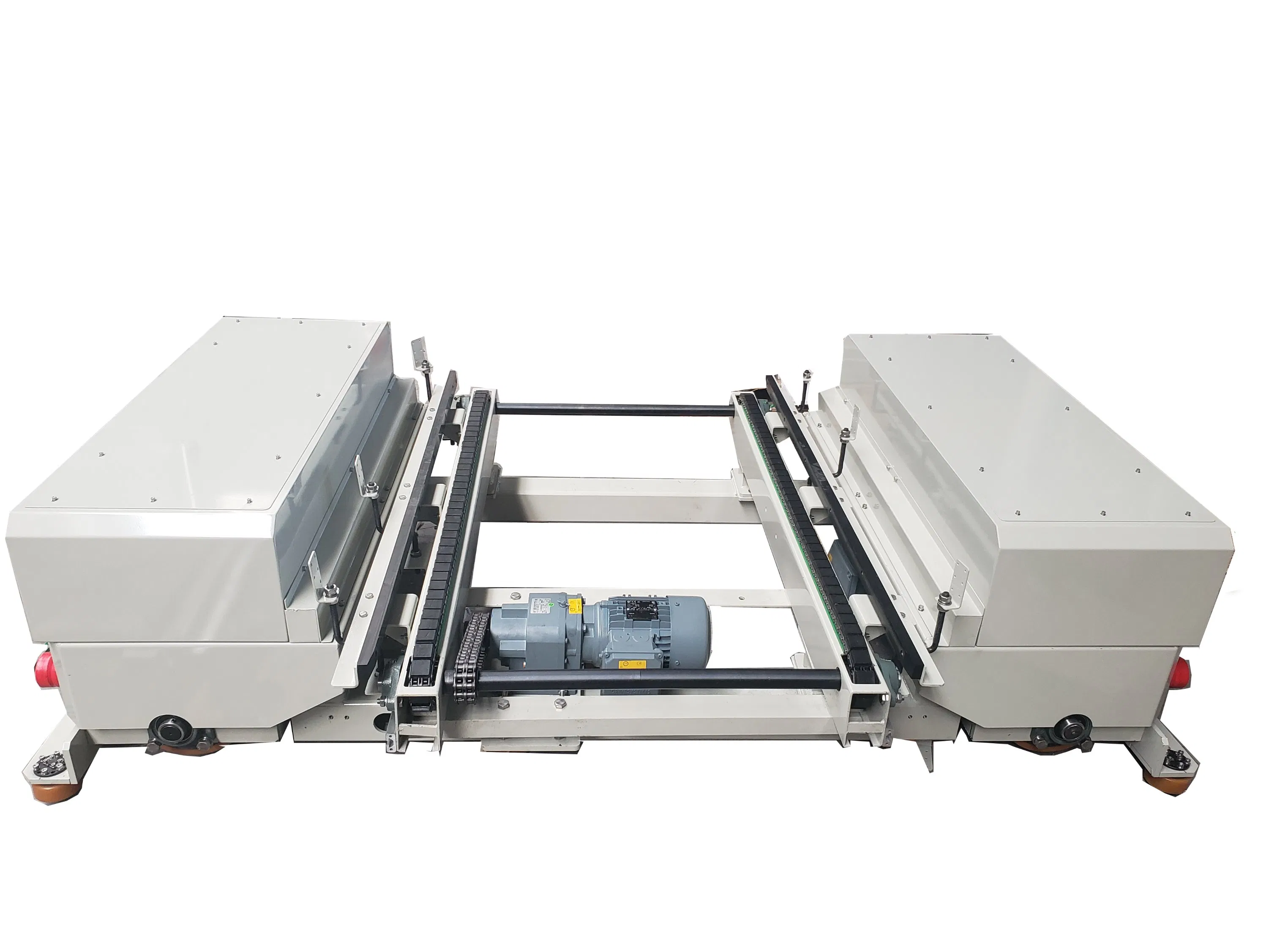

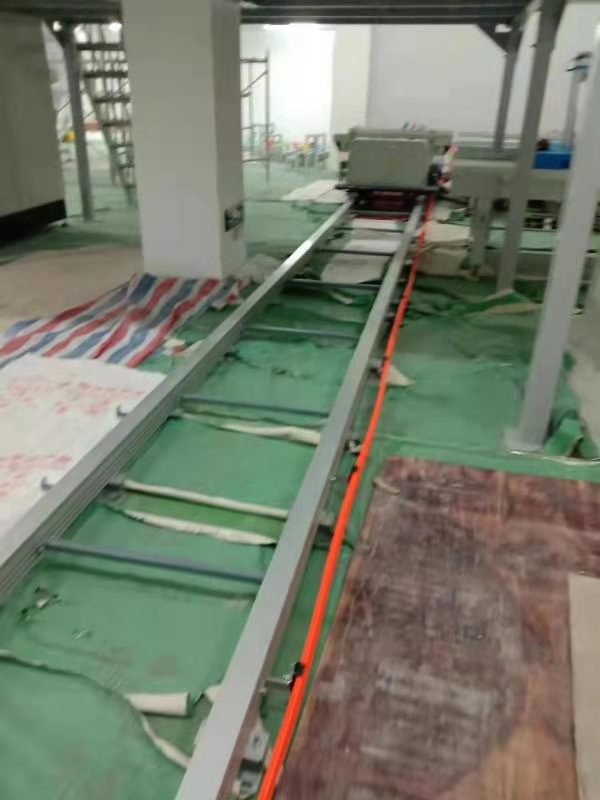

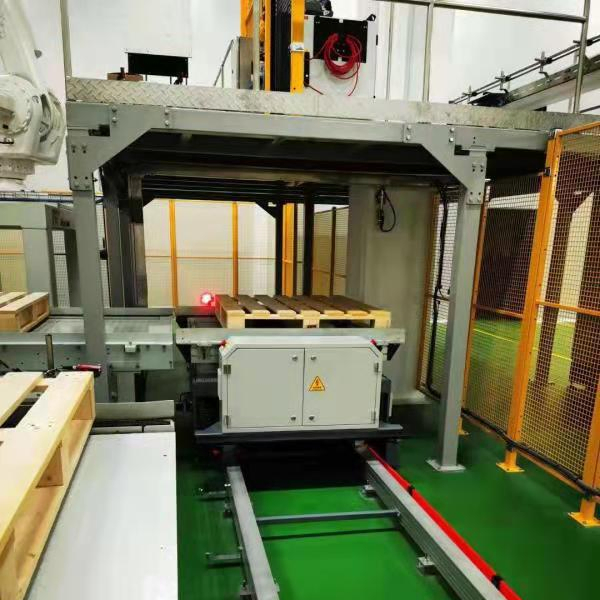

The shuttle can also greatly simplify the process and reduce the floor area. Therefore, it is widely used in logistics system. RGV Straight line shuttle is mainly used in various high-density warehouses storage, which can improve the storage capacity of the whole warehouse.
Advantages & Characteristics
- Used in various high-density warehouses storage and improving the storage capacity of the whole warehouse.
- Stable performance; fast running speed; improve overall efficiency.
- Automatic control; multi-position linkage; can be connected to multiple conveyor sites.

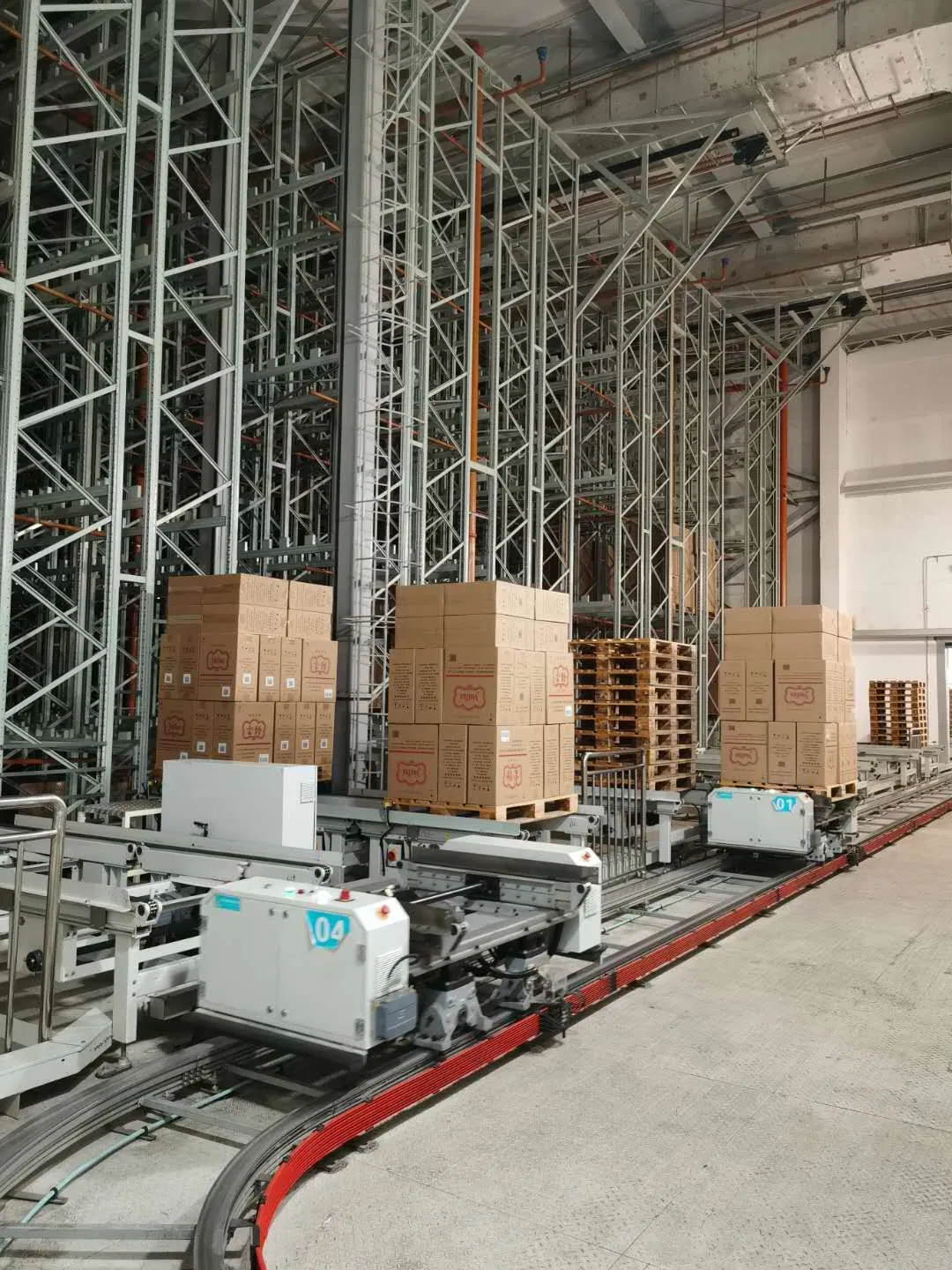

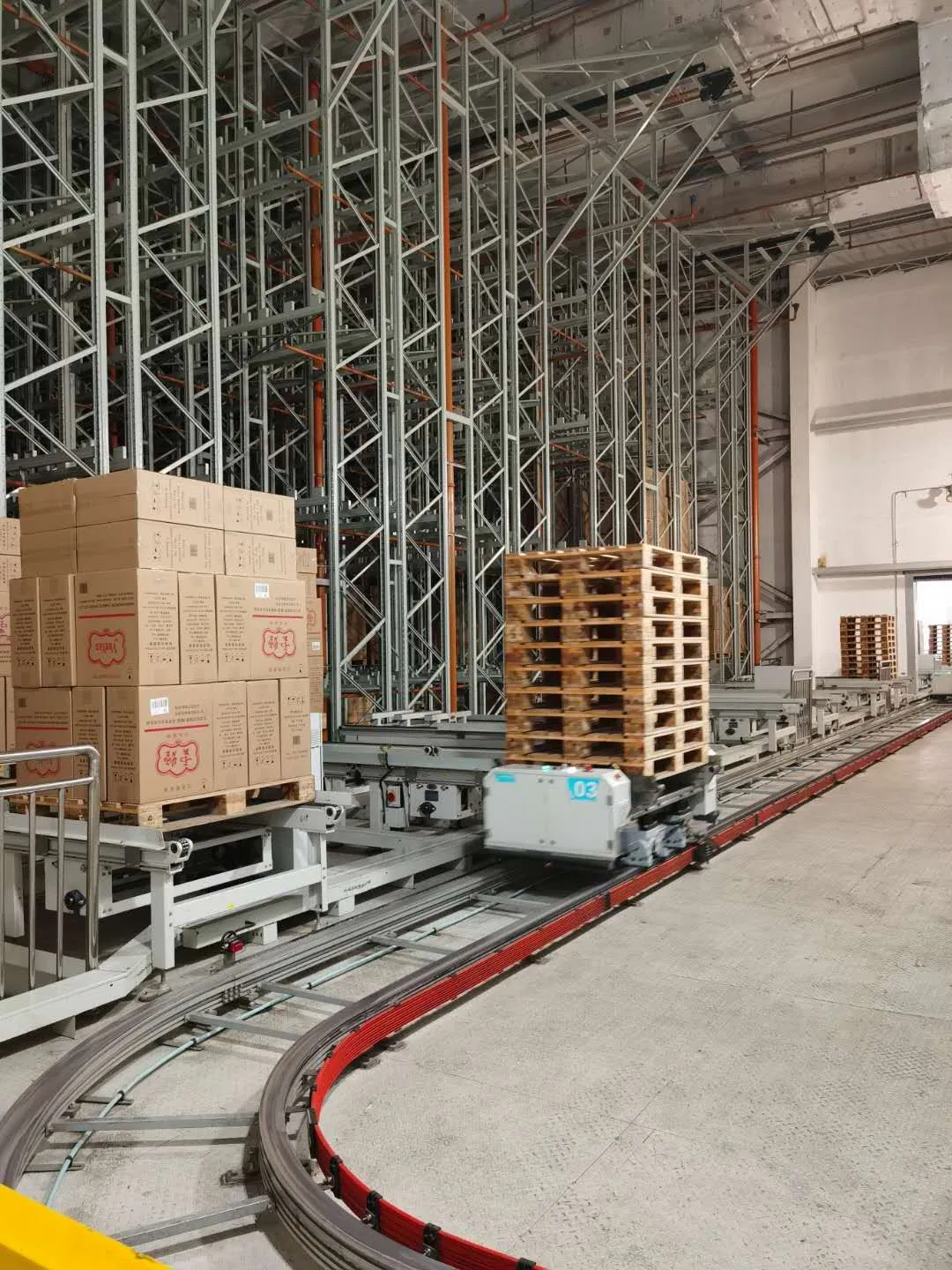

- Straight track operation or curved track operation (optional).
- Customized design, carrying a variety of carrying tools.
- Frequency conversion control or servo control (optional).
| Technical Parameters |
| Self-weight (kg) | 800kg |
| Size (mm) | 2000*1400*850 |
| Capacity (kg) | 150kg |
| Conveying surface height | 810mm |
| Transfer method | chain type |
| Transfer speed (m/min) | 12 m/min |
| Walking Performance |
| No-load speed (m/min) | MAX 100 m/min |
| No-load acceleration (m/sec2) | 0.3 m/s2 |
| Full load speed (m/min) MAX | 80 m/min |
| Acceleration at full load (m/sec2) | 0.3 m/s2 |
| No-load positioning accuracy | ≤ ±5mm |
| Full load walking positioning accuracy | ≤ ±5mm |
| Docking mode | 8Bit docking, task handshake |
Frequently Asked Questions
Are you a distributor or manufacturer?
We are a professional and leading manufacturer for nearly 20 years. We produce high-quality pallet racking, multi-shuttle systems, and ASRS with an annual production capacity of 100,000 tons and 1,000 shuttle units.
What makes your shuttle systems different from others?
We employ over 40 mechanical, electrical, and software engineers focusing on R&D. Our independent development includes proprietary WMS and WCS systems, backed by more than 60 national patents.
How long is the typical manufacturing time?
For normal orders, we promise production within 20-30 days. As a direct manufacturer, we ensure delivery times strictly follow the formal contract.
Do you provide installation and debugging services?
Yes, we have installation teams with extensive overseas experience. We send engineers to the site for debugging and staff training. We have successfully completed projects across Southeast Asia, America, and Europe.
What is the Minimum Order Quantity (MOQ)?
Normally the MOQ is one 20ft container, though larger quantities are eligible for better pricing.
What are the accepted payment methods?
We primarily accept T/T (Telegraphic Transfer) or L/C (Letter of Credit).
