Product Description

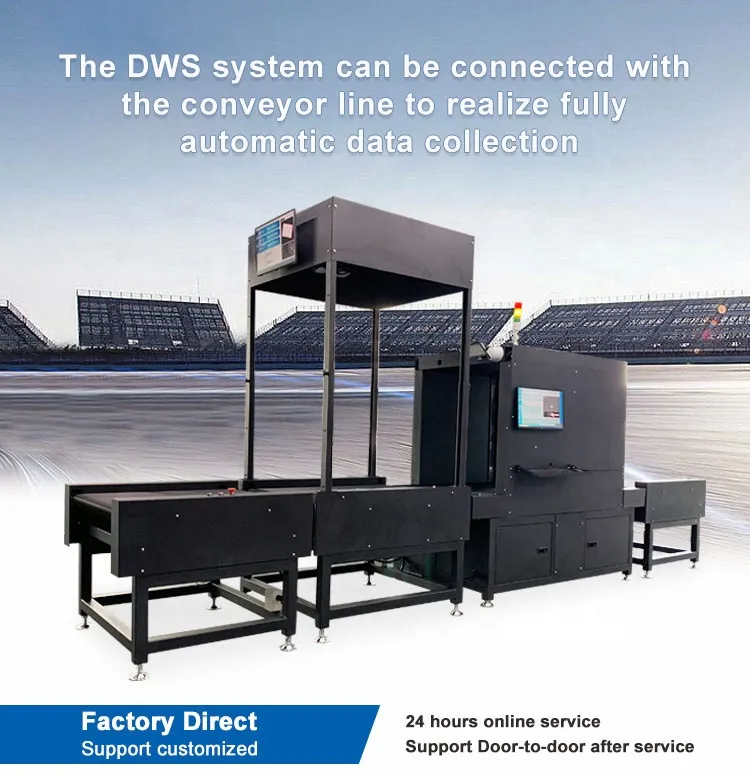

DWS System Overview
📊 Product Overview
VPAI DWS SYSTEM:
The Dimension Weight Scanning system (DWS) is an integrated weight and volume measurement solution. Featuring a modular design, it simplifies configuration and maintenance while combining five essential functions: weighing, volume measurement, barcode recognition, manual input, and camera archiving.

The system captures dimensions and weights of any shaped parcel accurately, storing high-quality product images for forensics. With an integrated barcode scanner and touchscreen interface, it streamlines logistics distribution and warehousing without requiring an external laptop.

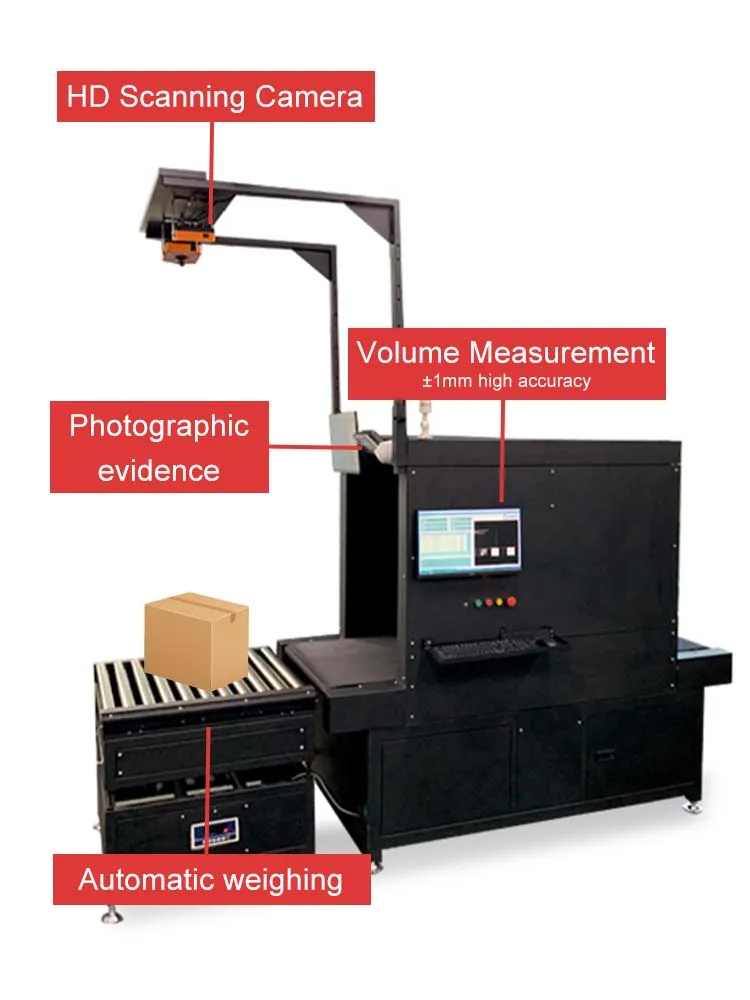

Warehouse Intelligent Sorting

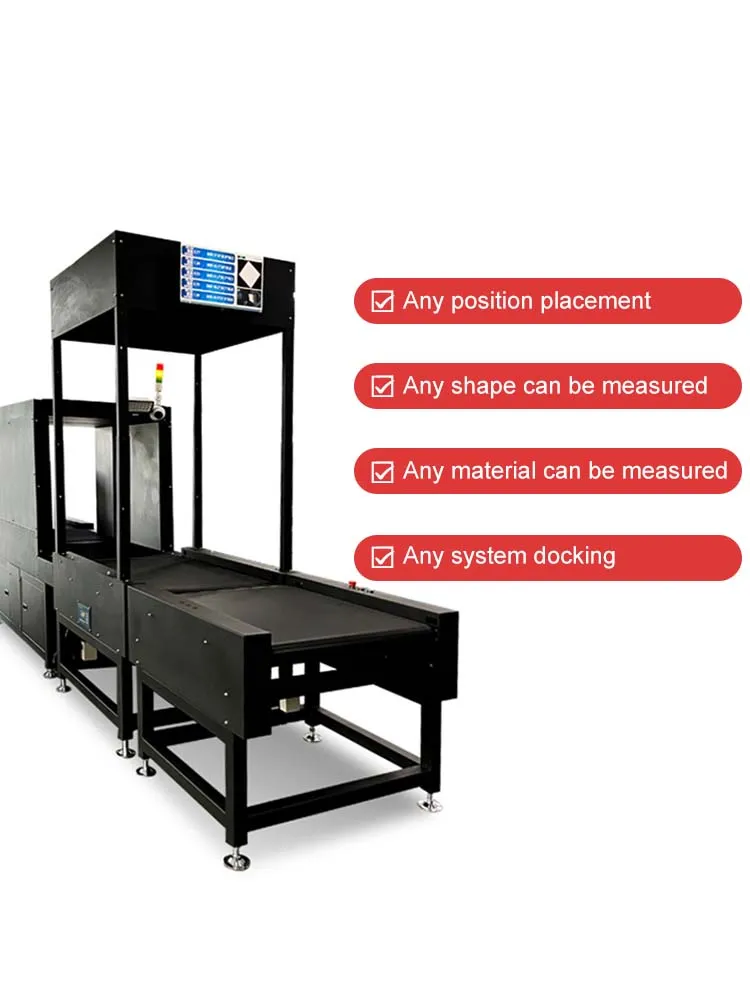

Scanning System Detail
🚀 Key Advantages
  • Compatible with Windows 7 and above operating systems.
  • Seamless integration with existing Warehouse Management Systems (WMS).
  • High adaptability to various lighting conditions.
  • Fully integrable with automated sorting systems.
  • Supports both continuous and independent operation modes.
  • Real-time display of size, weight, and volume-weight relationships for freight calculation.
  • Automated photo archiving for traceability and forensics.
📋 Technical Parameters
Feature Specifications
Device Name High-speed scanning code weighing and volume measuring machine
Hardware Components HD scanning camera, handheld scanning gun, dynamic high-precision scale, infrared grating volume measurement, industrial PC with LCD, PLC Control (Mitsubishi/Siemens).
Software Image forensics & photography software (color watermark + image archive), DWS supporting software.
Efficiency 1200 - 2400 pieces/hour
Recognition Rate Barcode recognition rate: ≥99.5%
Measurement Range Weight: 0.1-50kg | Size: Max 1000*800*800mm, Min 100*10*10mm
Accuracy Weight: ±20g | Dimensional error: ±1mm to ±5mm

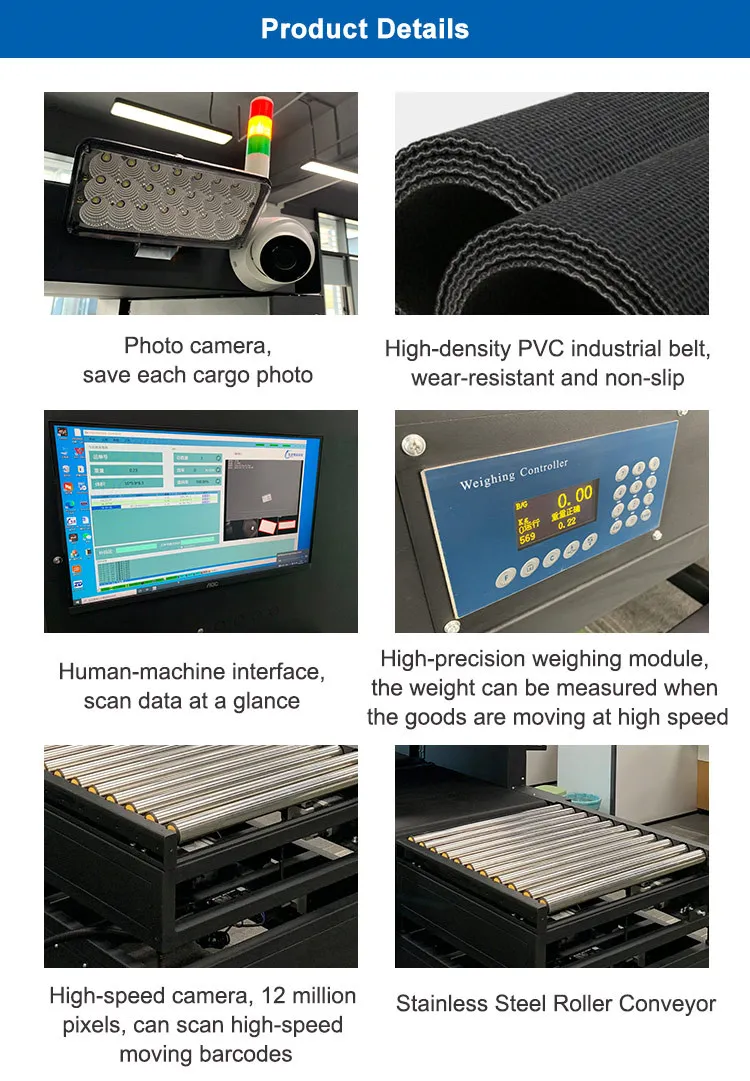

Machine Structure 1

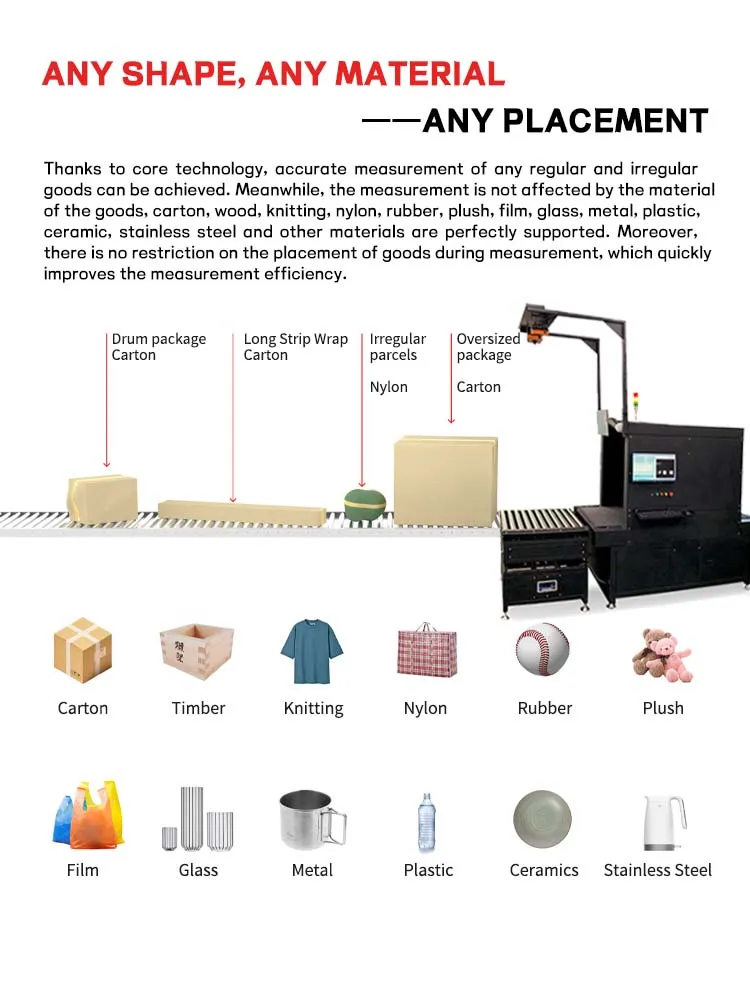

Machine Structure 2

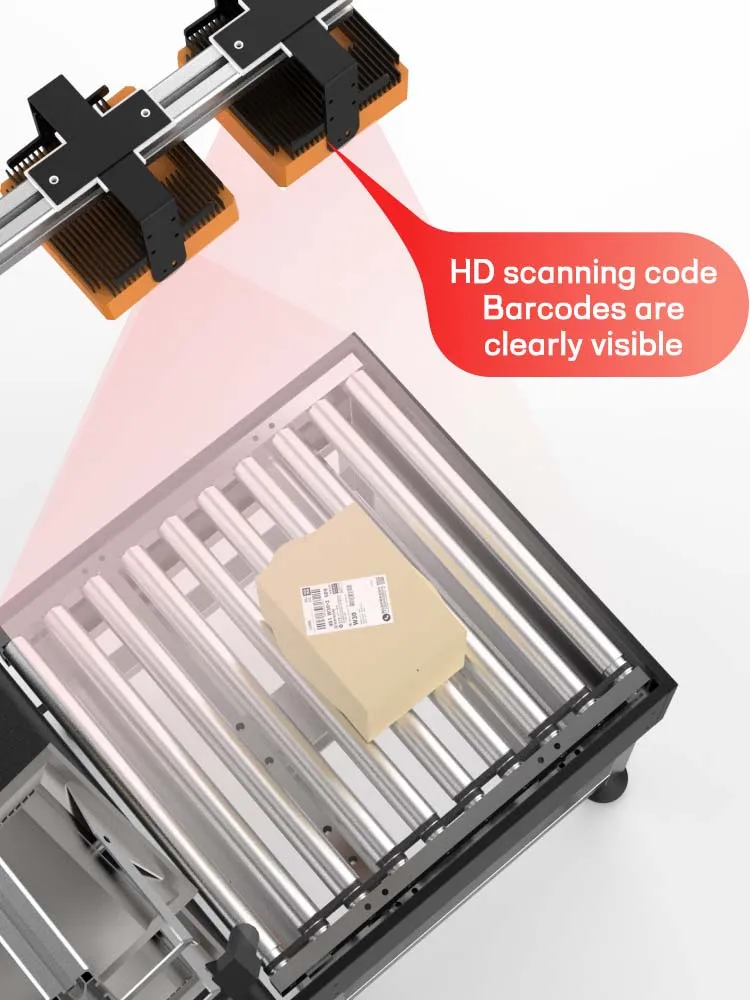

Machine Structure 3
🏗️ Main Logistics Equipment

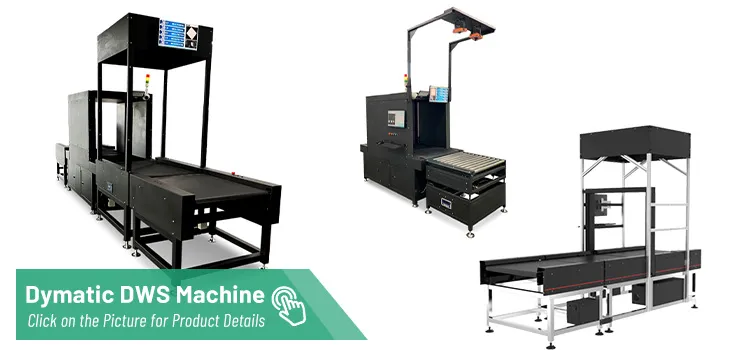

Conveyor Line

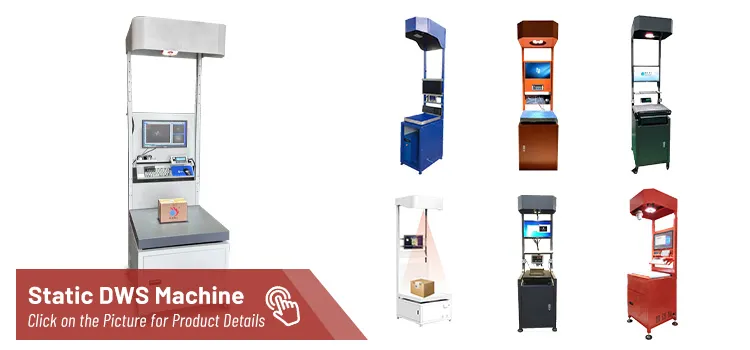

Sorting Solution

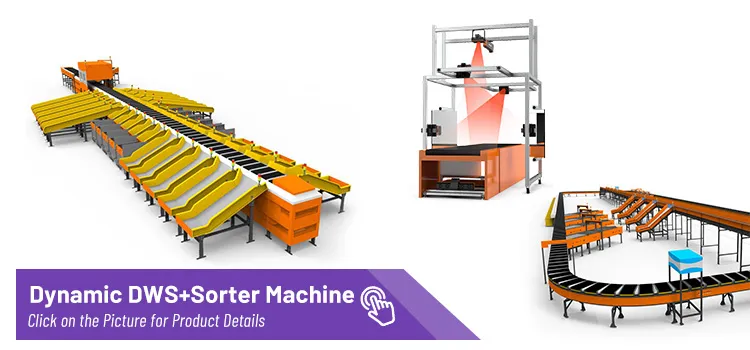

Automation Equipment
🏆 Certifications & Global Presence
Certification 1
Certification 2
Global Exhibition
❓ Frequently Asked Questions
What are the primary functions of the DWS system?
The system integrates five key functions: high-speed weighing, 3D volume measurement, barcode scanning, manual data entry, and high-definition image archiving for parcel forensics.
Is the system compatible with existing software?
Yes, our system software is compatible with Windows 7 and above and can be seamlessly integrated with most Warehouse Management Systems (WMS) and ERPs.
What is the typical delivery time for orders?
Regular products generally have a delivery time of 40 calendar days. For highly customized solutions, the timeline depends on specific technical requirements.
How do I determine the right logistics equipment for my warehouse?
You can provide details such as cargo type, daily volume, average parcel size/weight, and warehouse dimensions. Our engineers will design a tailored logistics solution for you.
What kind of after-sales support do you provide?
All equipment comes with a one-year warranty, which includes installation guidance, commissioning support, and lifetime online technical assistance.
Can the belt conveyor be used for both loading and unloading?
Yes, the belt system is reversible, allowing it to be used efficiently for both loading and unloading operations.
