Maith Conveyor
1 / 5
| Structure | Conveyor System |
| Material | Stainless Steel |
| Application | Logistic, Warehouse, Express, E-Commerce |
| Condition | New |
| Belt Width | 500/650/800/1000/1200/1400mm |
| Belt Material | PVC |
| Weighing Range | 30g~60kg |
| Advantage | Low Consumption High Efficiency |
| Weighing Model | Dynamic Weighing |
| Scanning Accuracy | 99% |
| Dimensioning Accuracy | ±5~15mm |
| Transport Package | Wooden Case |

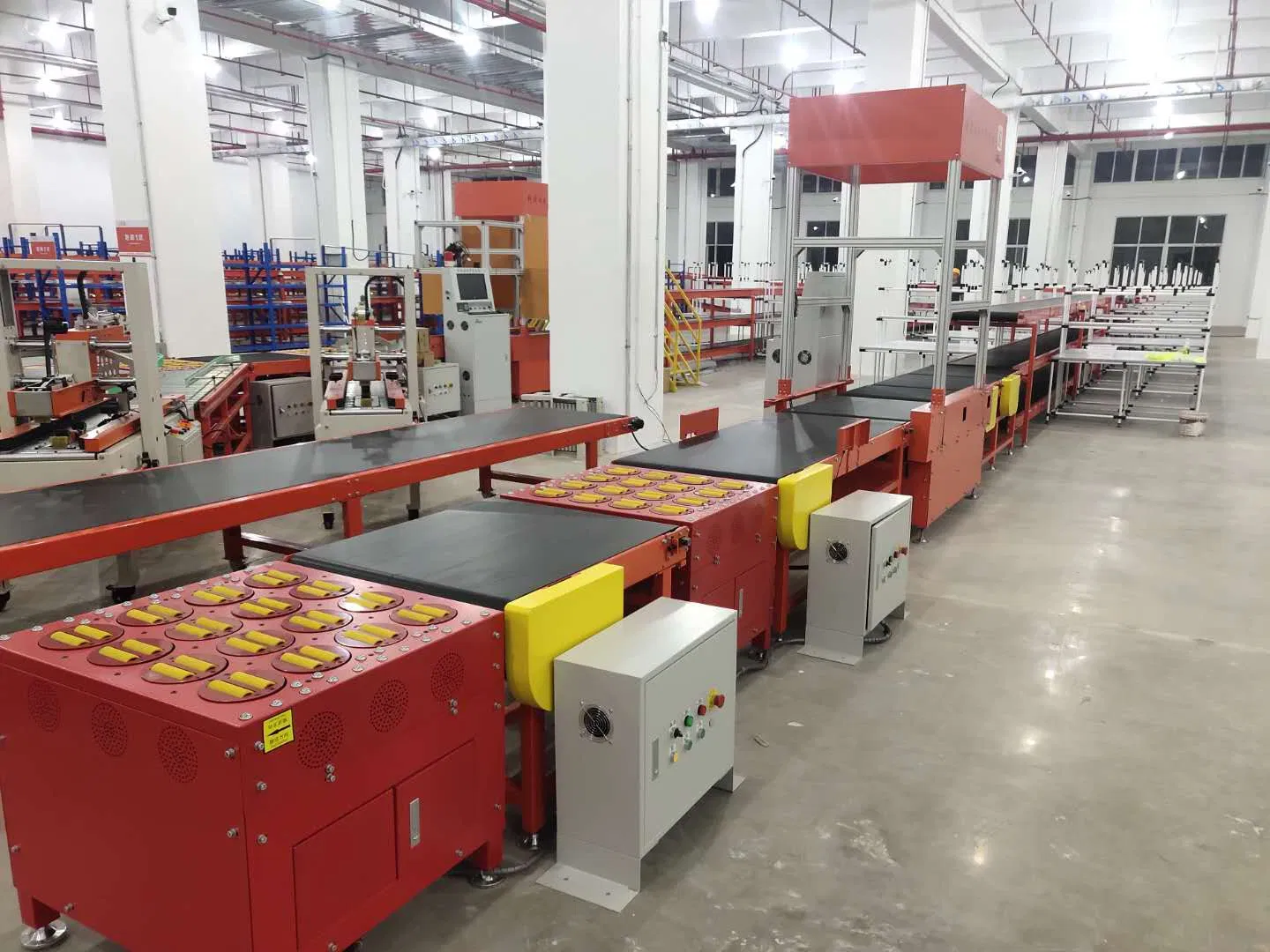

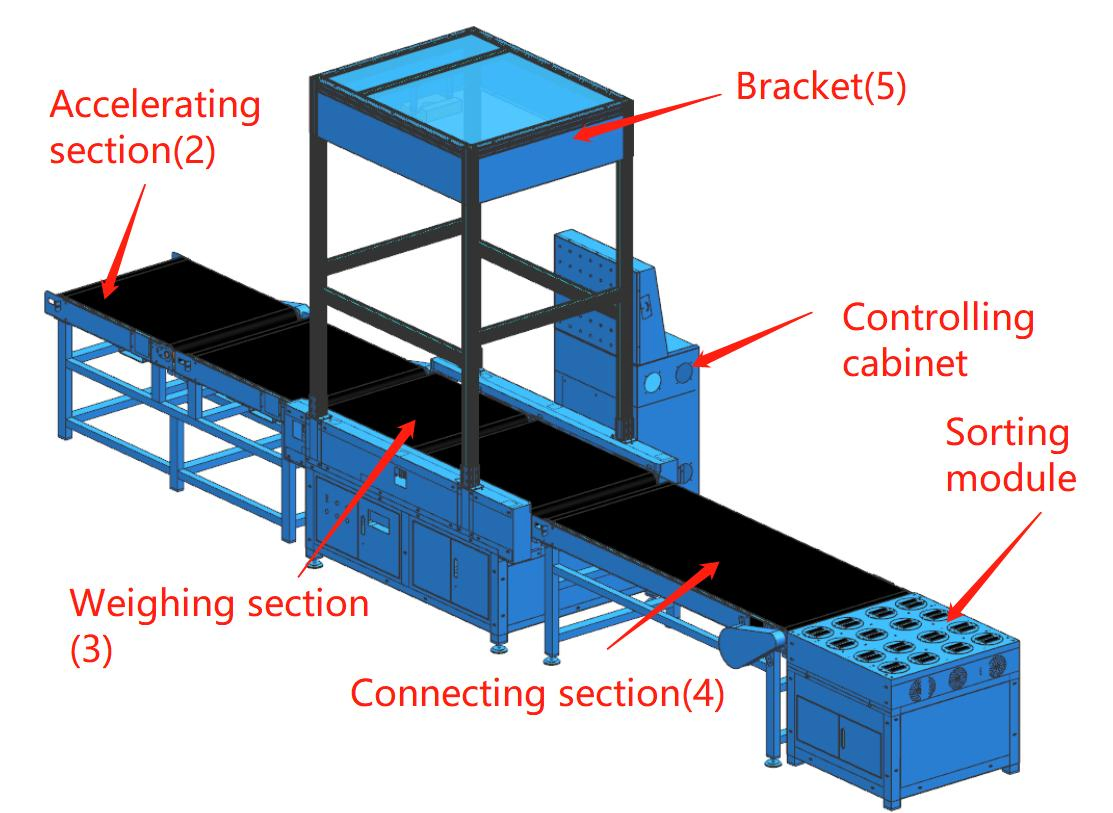

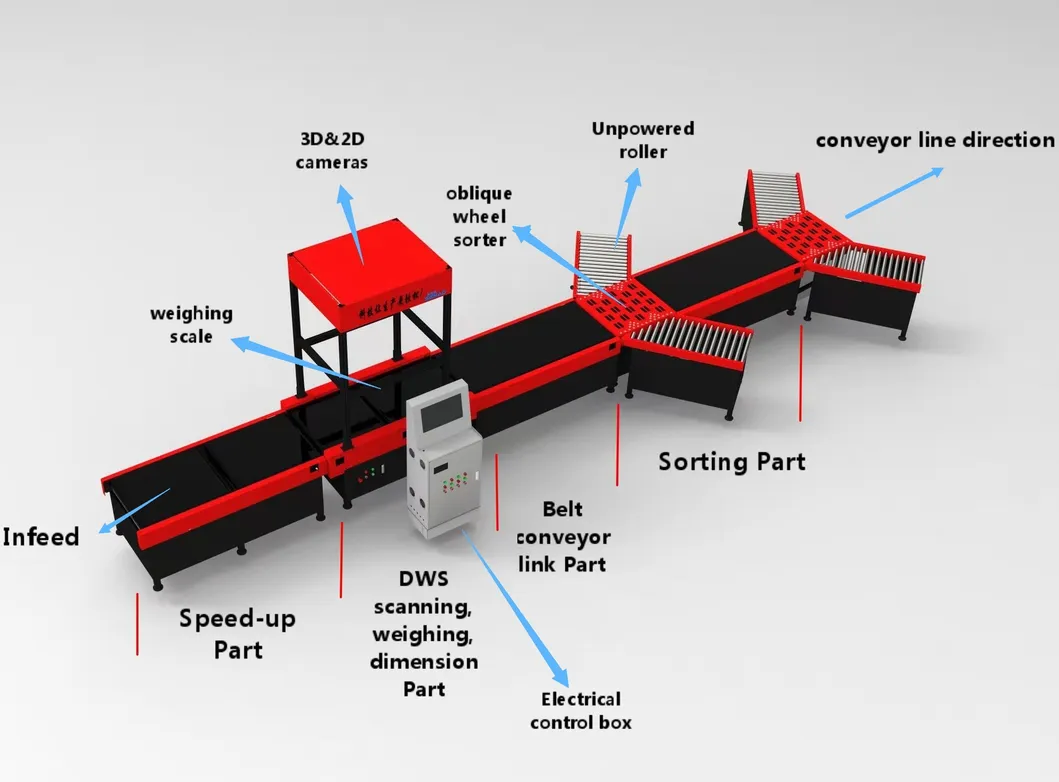

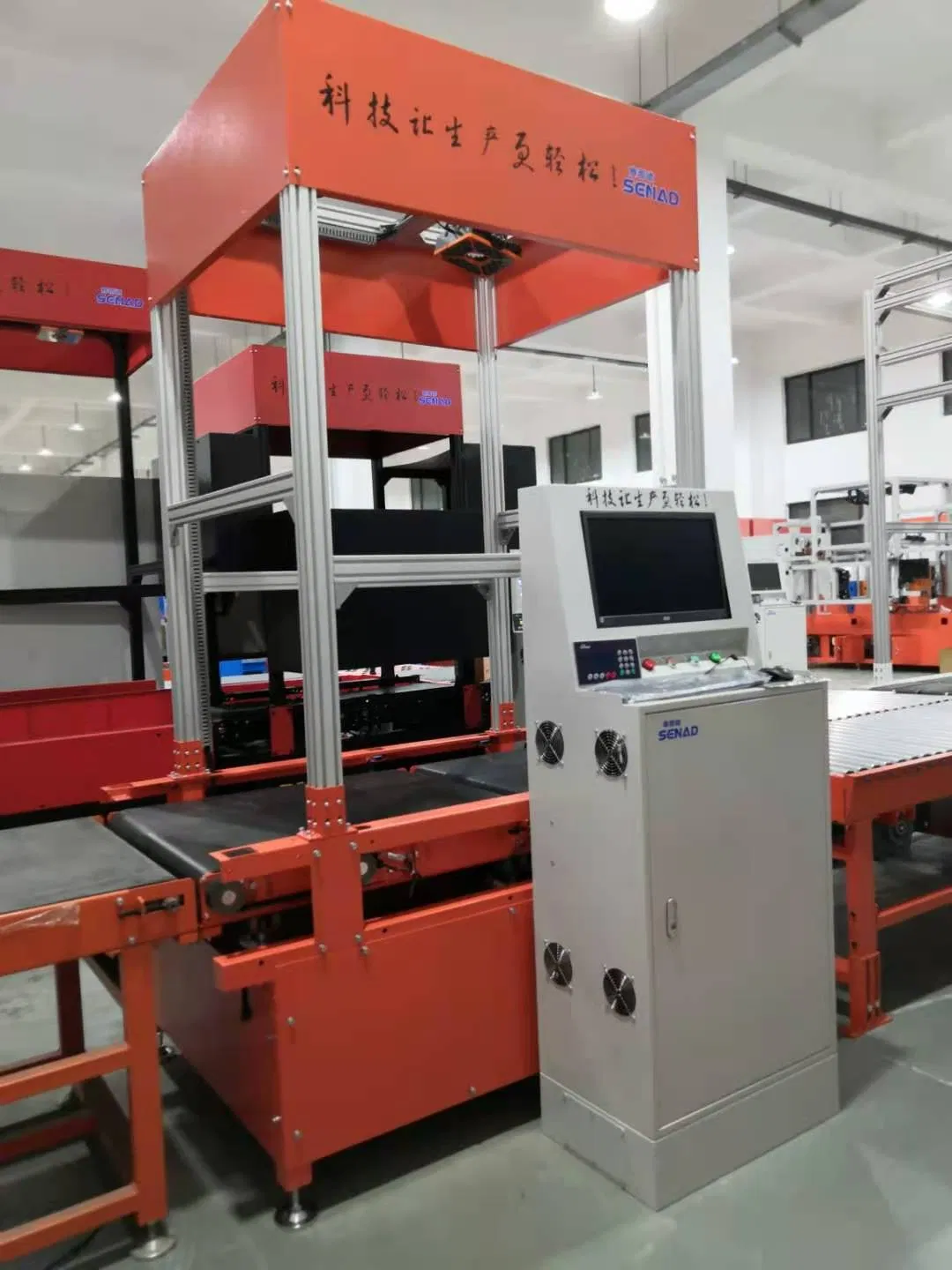

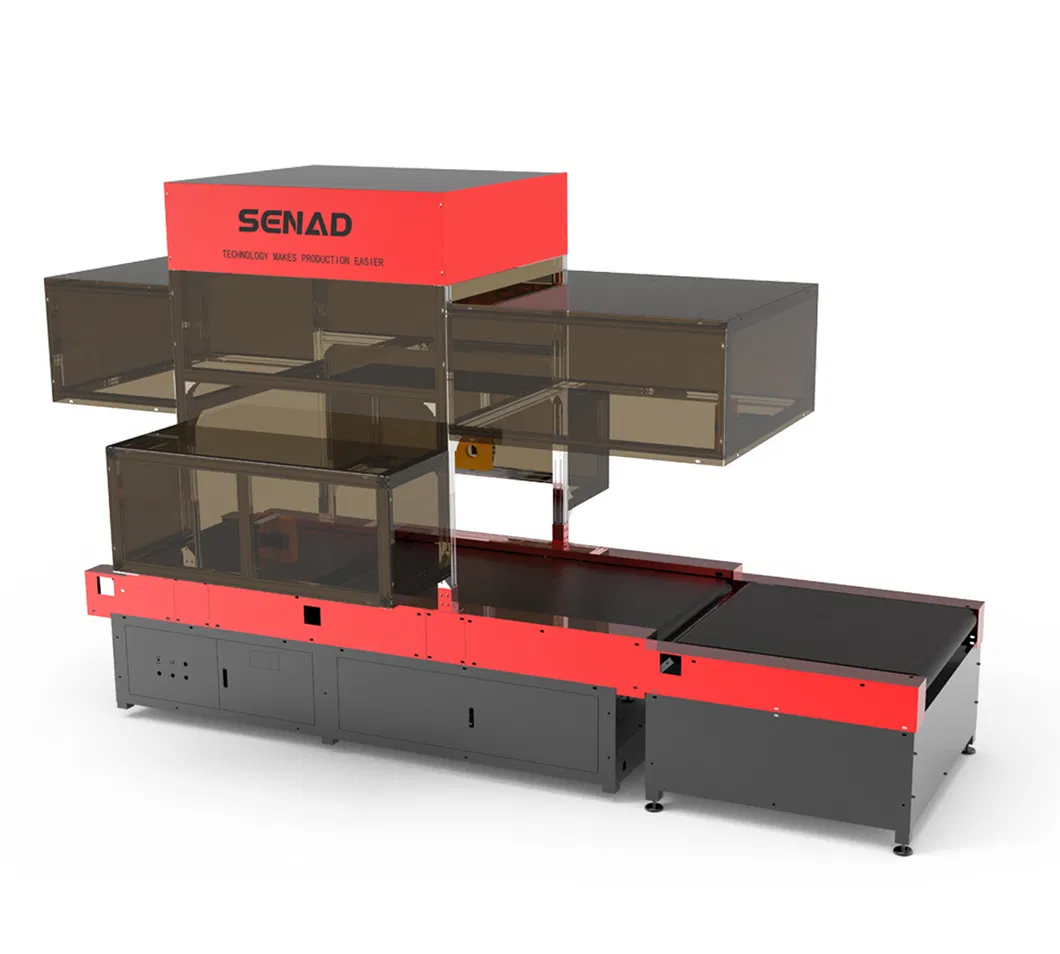

The DWS adopts high-resolution intelligent barcode reading cameras, volume measuring instruments, and dynamic weighing modules, which can efficiently complete real-time accurate collection and output of volume, barcode, and weight information. The system realizes automatic sorting of express parcels with integrated sorting equipment.
| Parts | Configuration |
| Industrial computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 million pixel Industrial camera |
| Load cell | 100kg |
| Bracket | Customized robust frame |
| Index | Parameter |
| Weighing range | 30g~60kg |
| Dimensioning range | 50*50*5~800*800*800mm |
| Capacity | 2500~3600 pcs/hour |
| Recognition rate | 99% |
| Weighing accuracy | ±10g |
| Software Interface | HTTP, TCP, 485 |

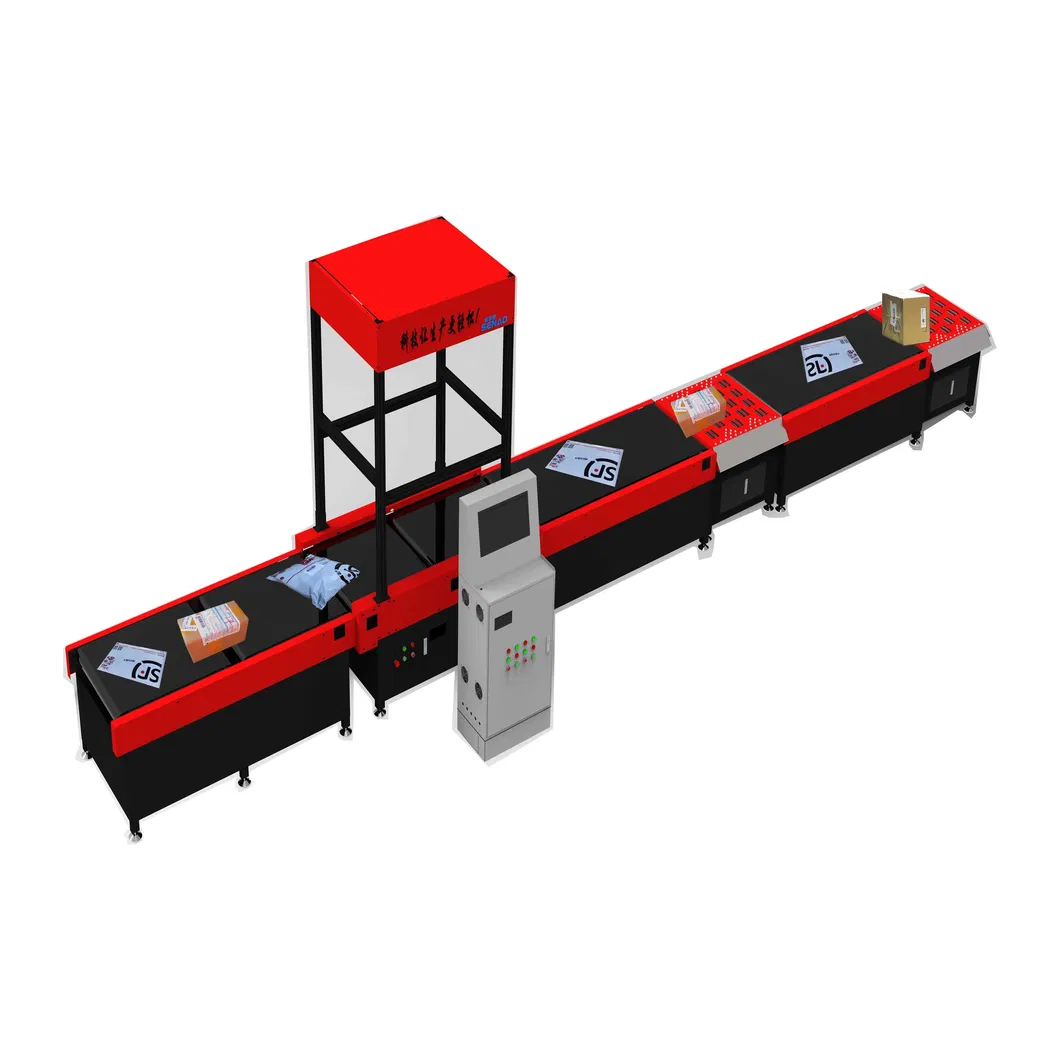

Data is collected in one pass without operator intervention, ensuring high accuracy.
The equipment triggers an alarm when packages exceed weight/dimension limits or if the barcode is unreadable.
Can be equipped with various resolution cameras and connected to telescopic conveyors or belts.

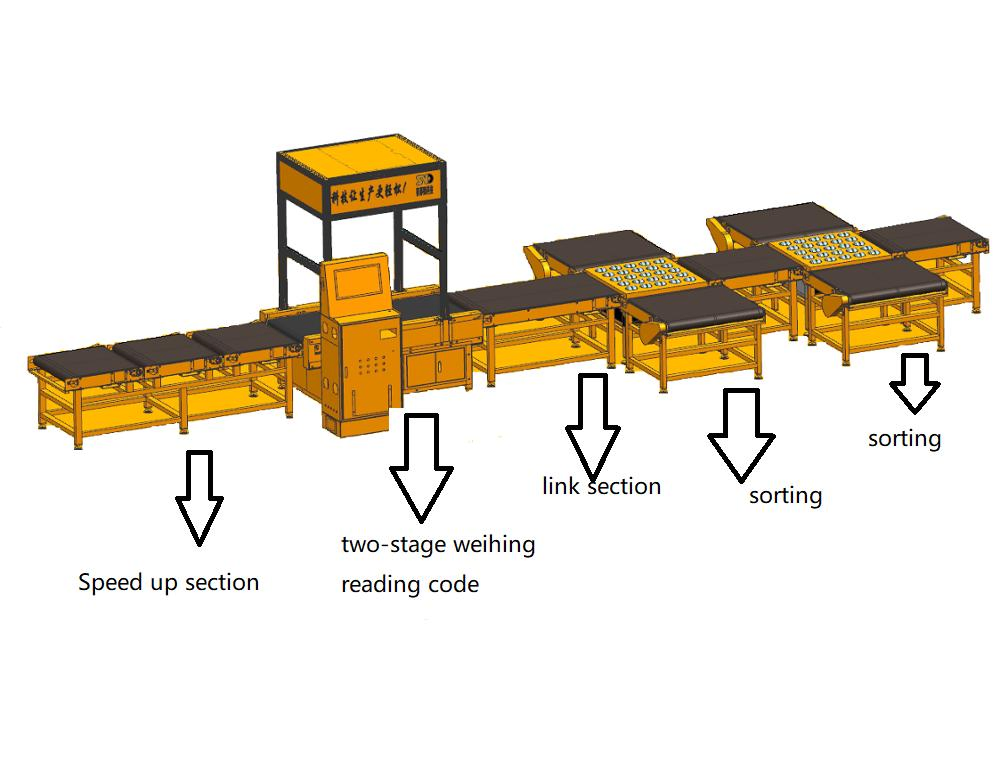

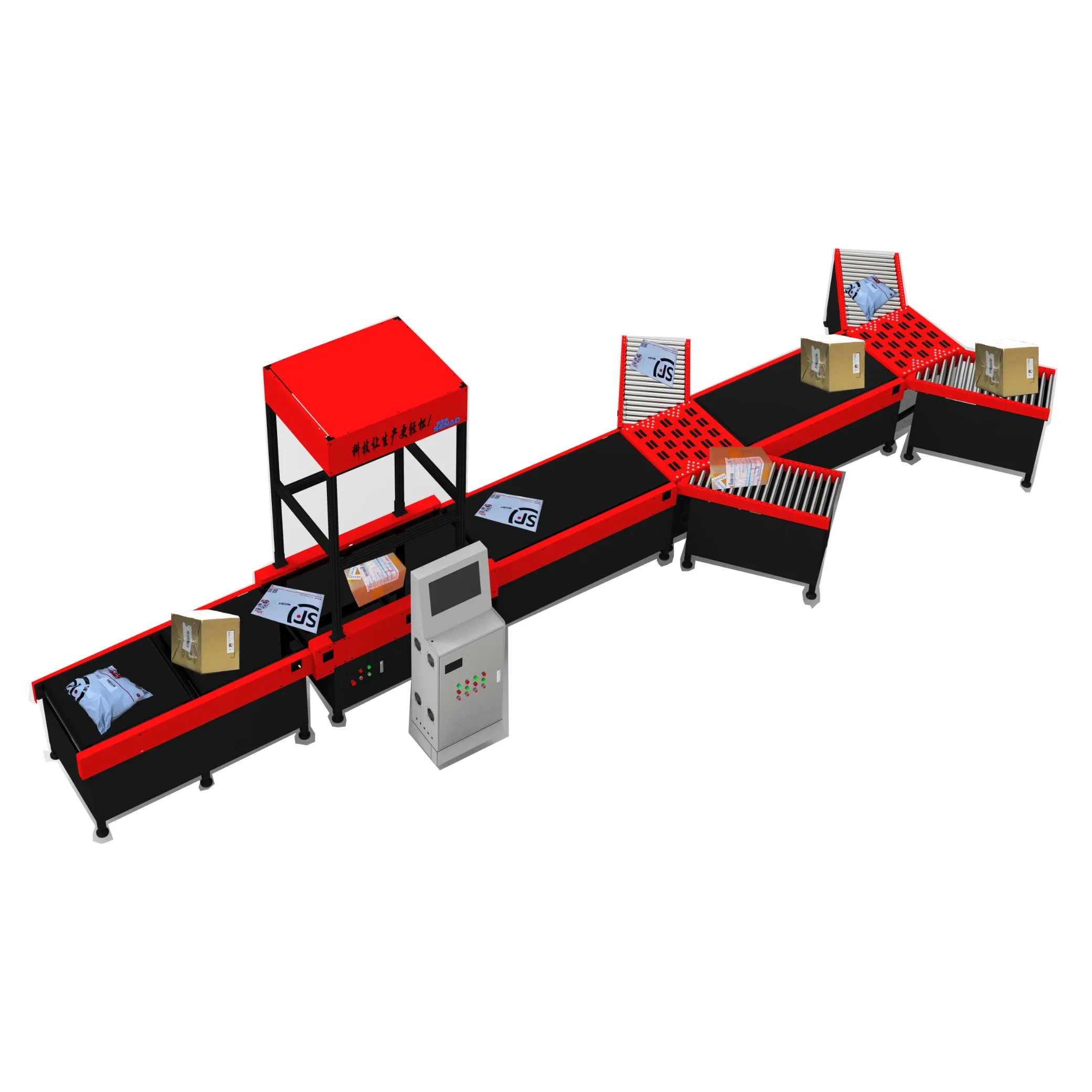

Automatic 3-direction sorting for efficient parcel handling.
Scan, weigh, and measure volume with cloud data sync.
Customizable length and width based on site requirements.

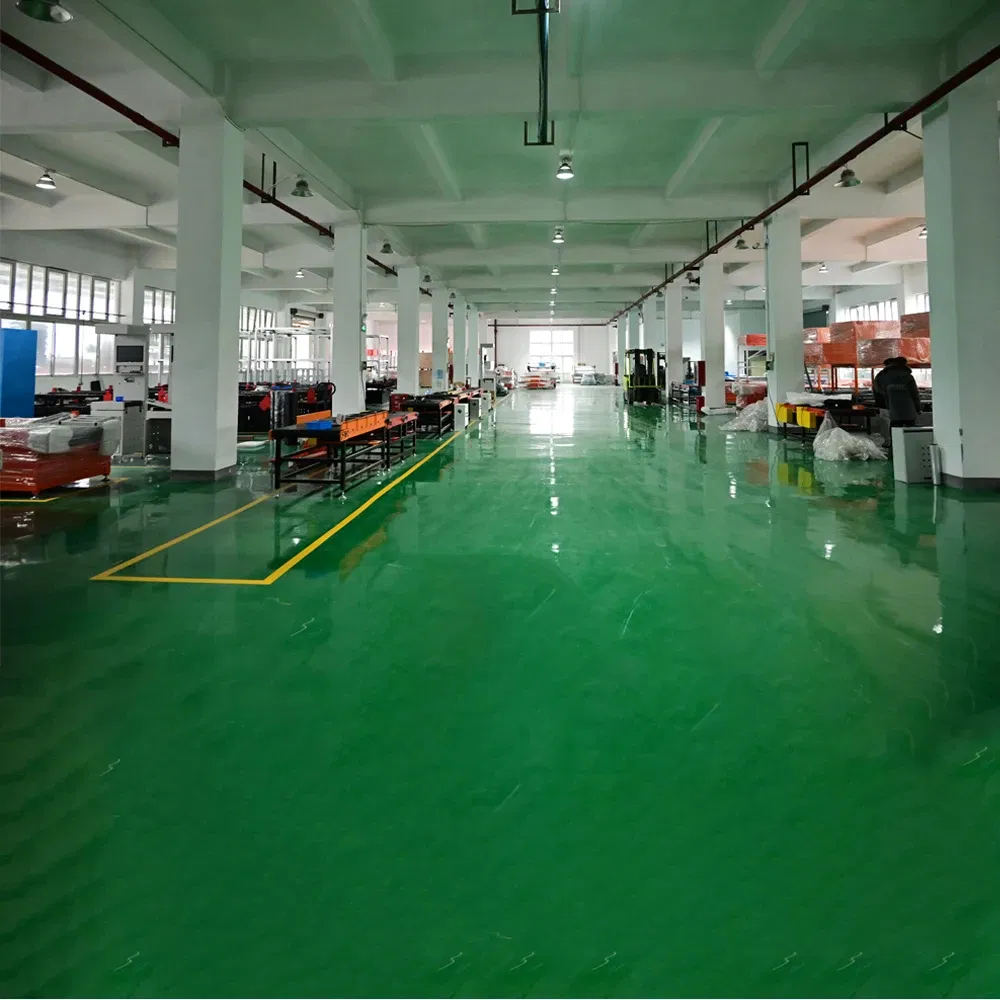

Founded in 2012, we are a high-tech enterprise focused on the research, development, and production of high-end warehouse automation equipment. We offer both standard and customizable solutions for high-speed barcode scanning, weighing, volume measurement, and integrated sorting systems.
Our core technology utilizes machine vision deep learning and robot motion control, incorporating image processing, AI, and multi-sensor fusion. Our mission is to replace manual labor with intelligent robots, enabling companies to achieve high efficiency and eliminate errors.
