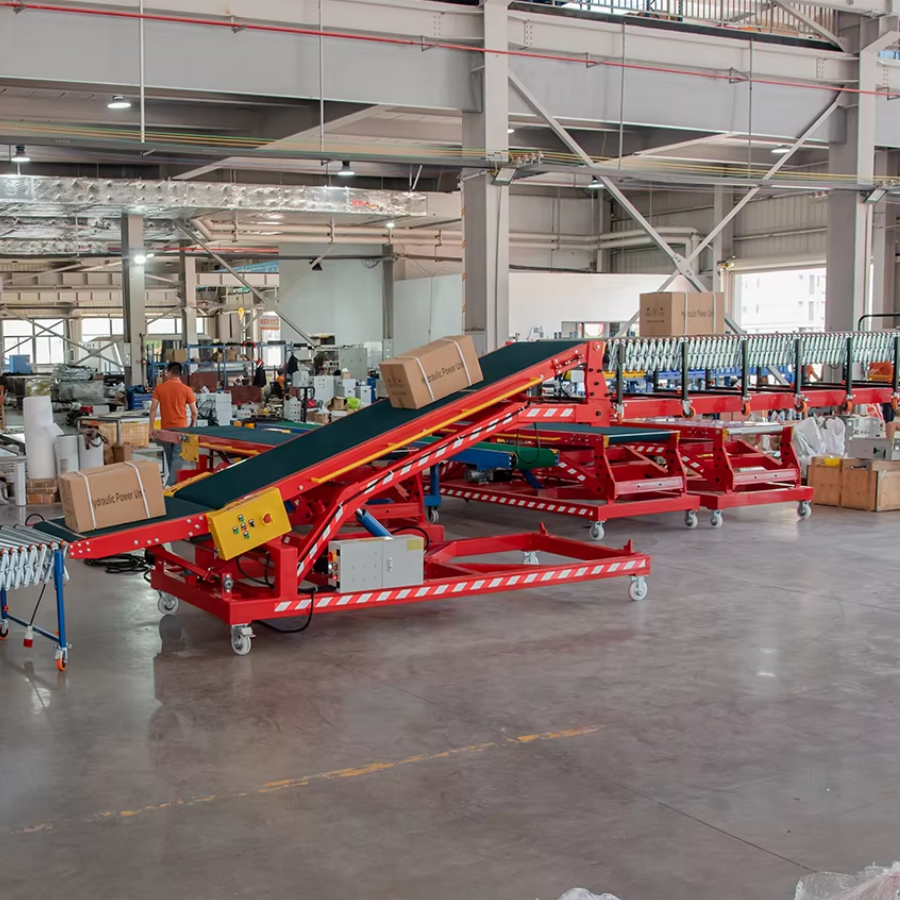

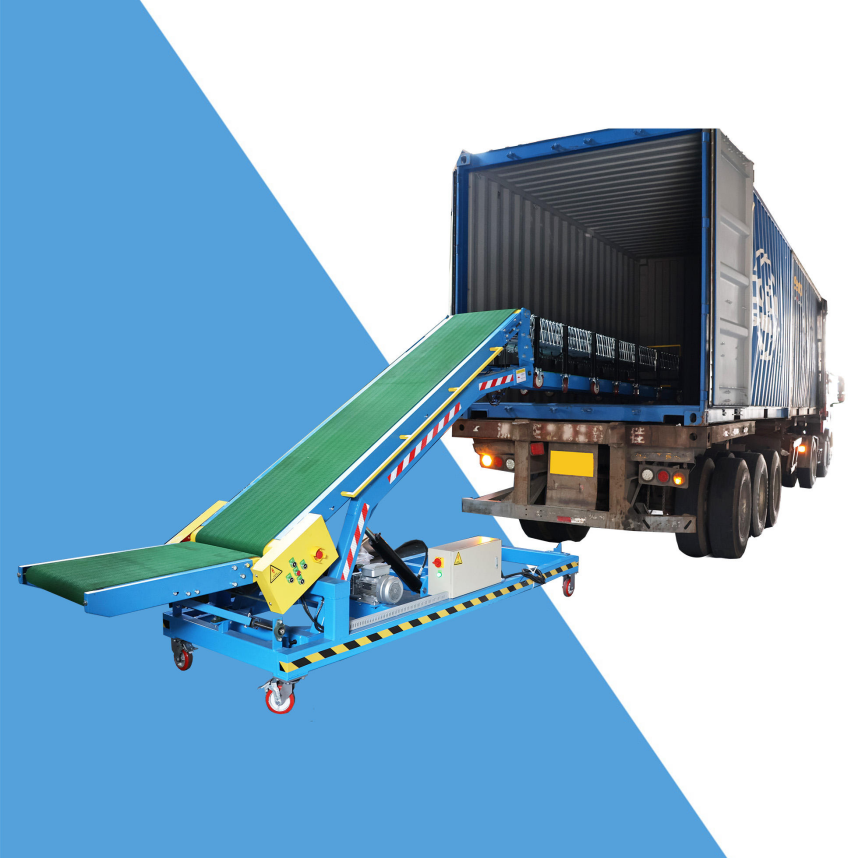

Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
1 / 5
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System
Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System

Truck Container Warehouse Loading And Unloading Machine Heavy Duty Automatic Belt Conveyor System

Send Inquiry

Product Description

1
Product Description

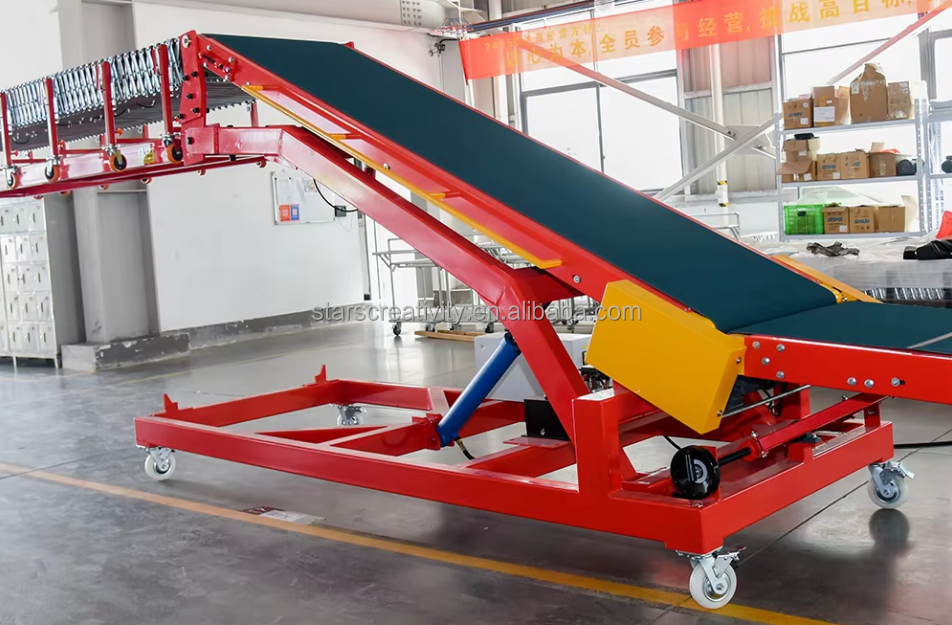

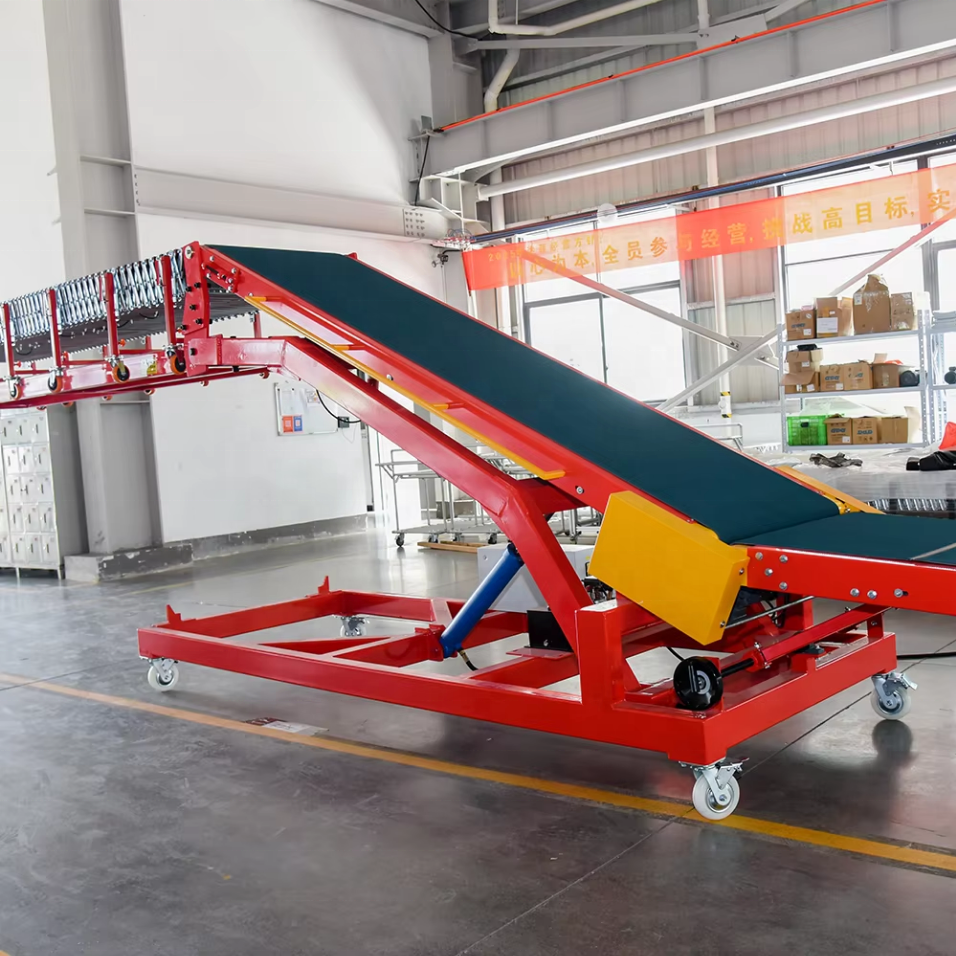

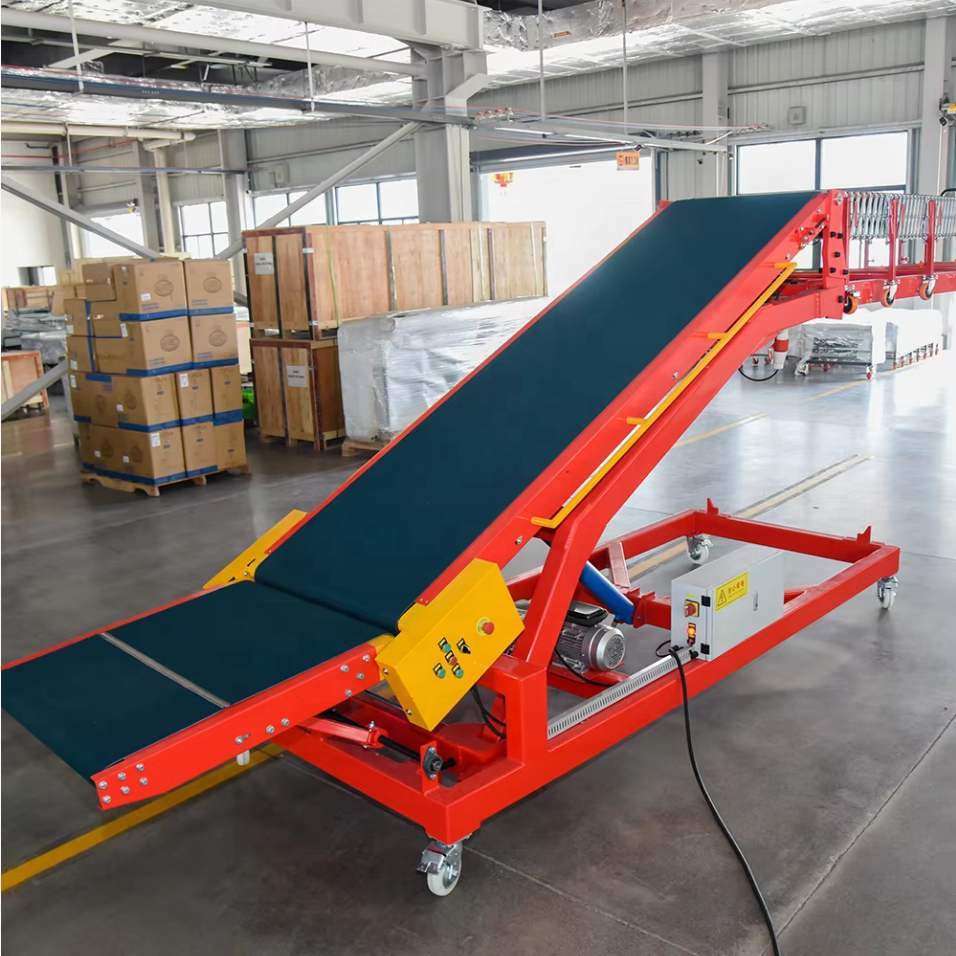

Container loading unloading conveyor
The container loading & unloading conveyor is mainly composed of a motorized inclined belt conveyor and a motorized flexible roller conveyor. The front end is a lifting inclined belt conveyor, and the products are transported to the back end of the flexible roller conveyor through the belt. The whole process of products will be automatically transported, saving time and labor. The conveyor is also the most economical and convenient one in the container loading conveyor series.

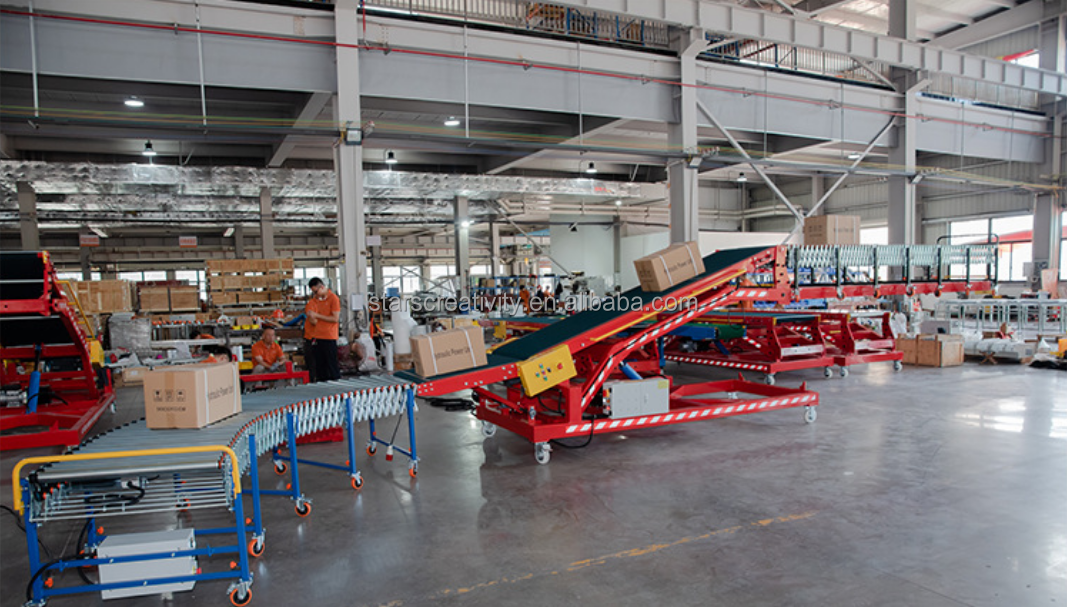

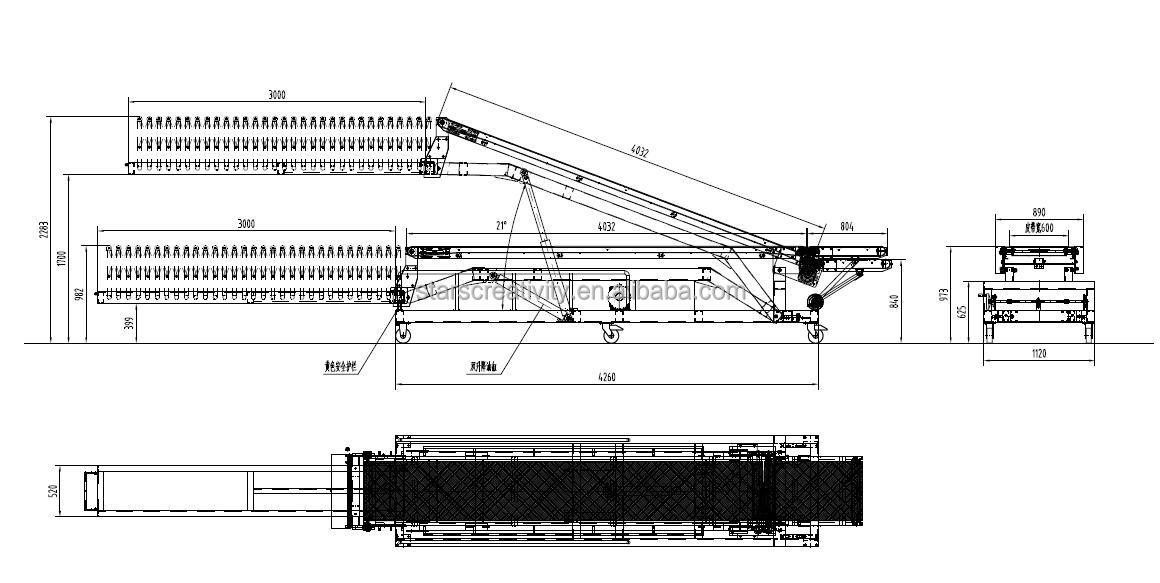

Conveyor dimensions

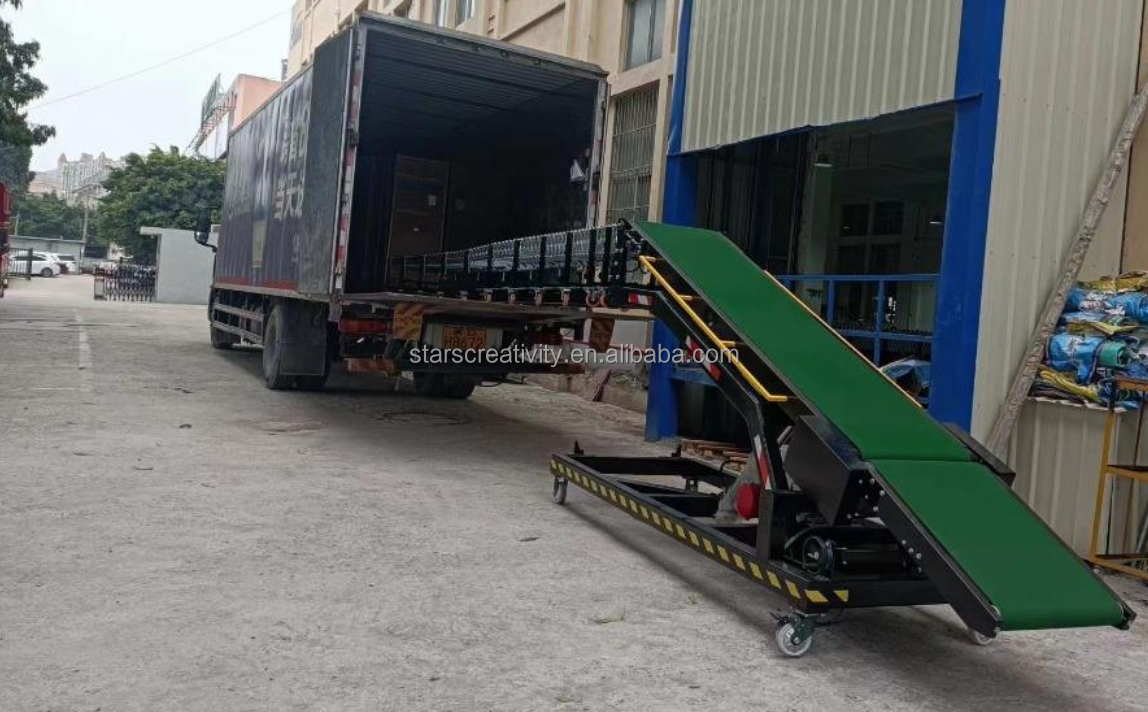

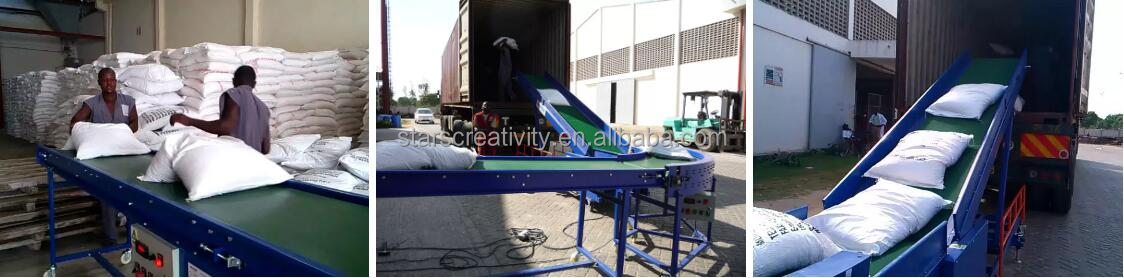

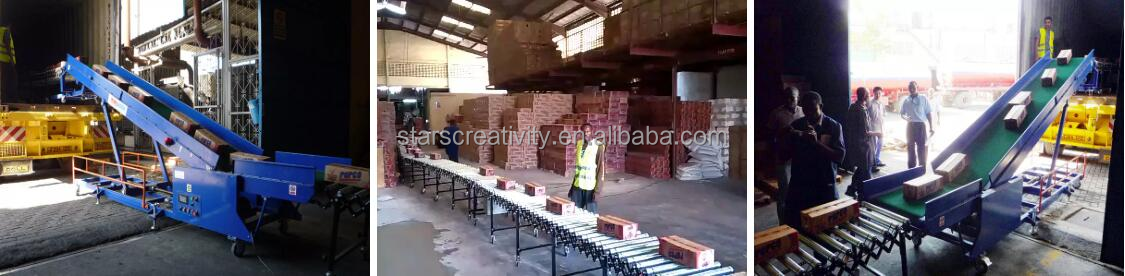

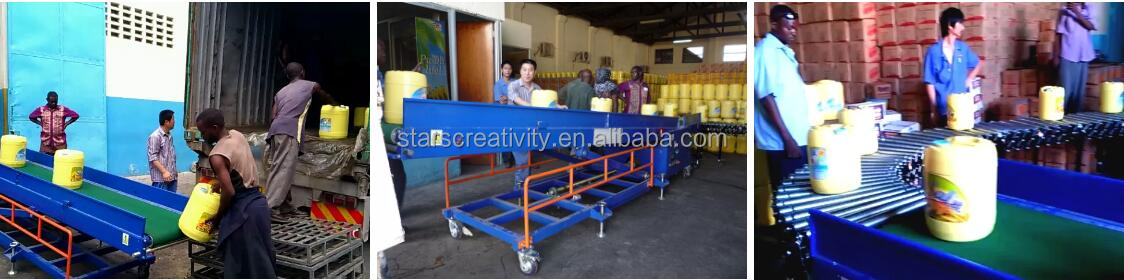

Conveyor operation
2
Specification
Product Name 20' or 40' Container loading unloading conveyor
Model MBC-800
Conveyor structure color Blue/Red/Black
Belt width 800mm
Overall wide 1320mm
Load height in vehicle 1600-1700mm
Discharge height outside vehicle 850mm from floor
Lifting height 900-1681mm
Maximum tilt angle 30°
Rise-fall Yes
Belt material Anti-skiding PVC belt (thickness 3mm)
Slope length 3000mm
Horizontal length at begining 994mm
Roller diameter 50mm
Max conveying weight 50kg/meter
Conveyor speed 10-20m/min adjustable by inverter
Voltage 220-480V 3Phase 50/60Hz (110-240V 1Phase)

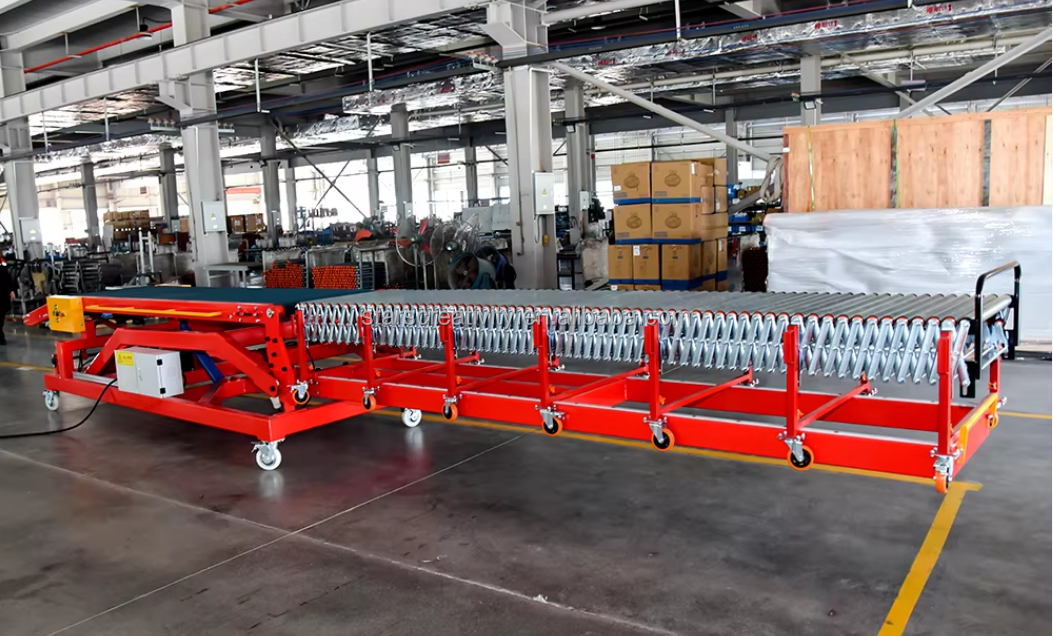

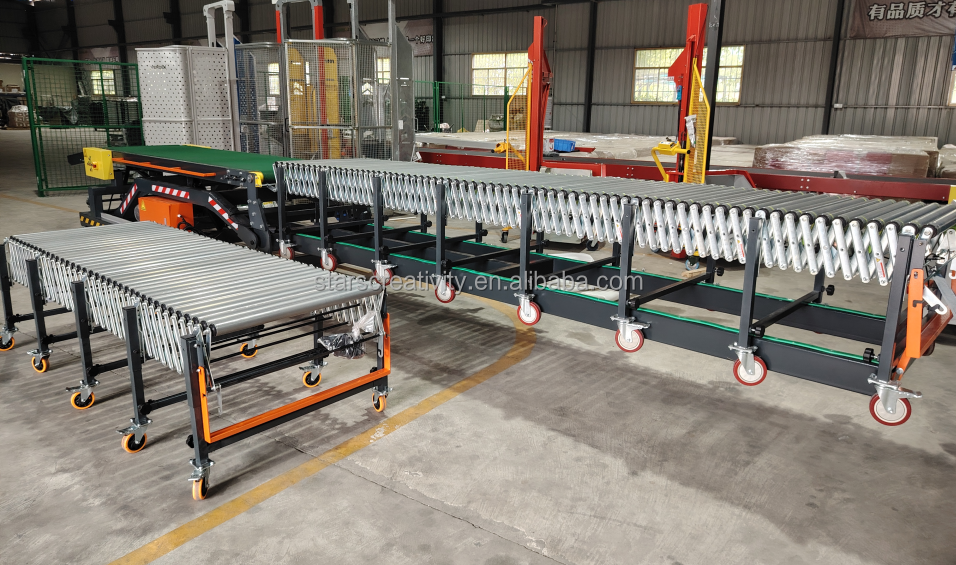

Functional Options 10.5m (35ft) Powered Flexible Roller Conveyor
3

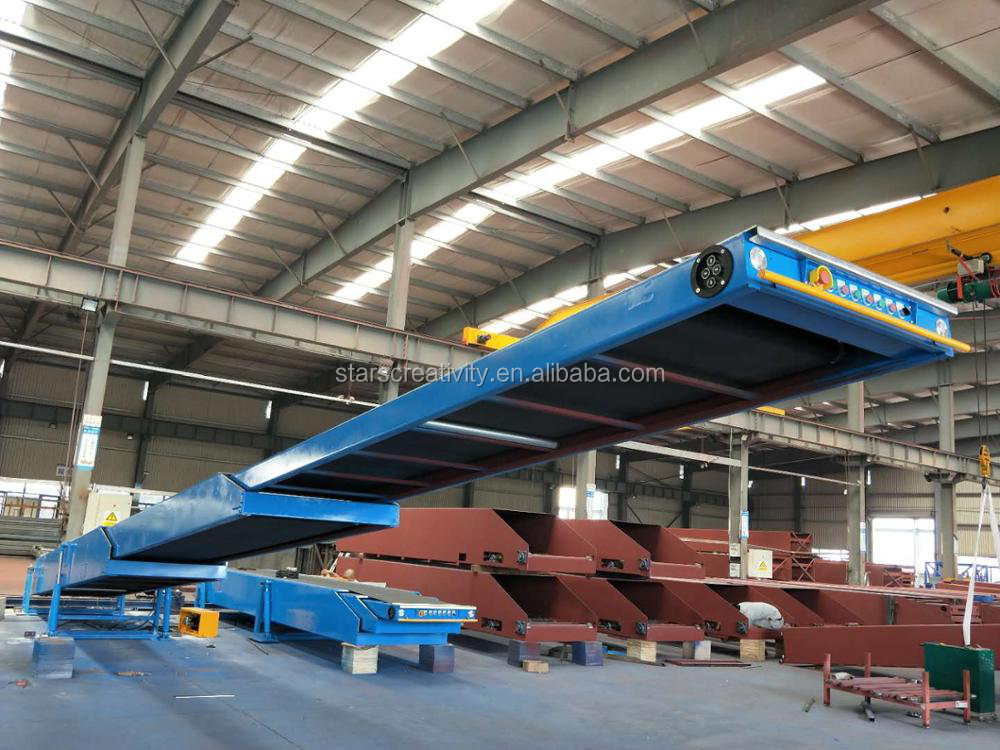

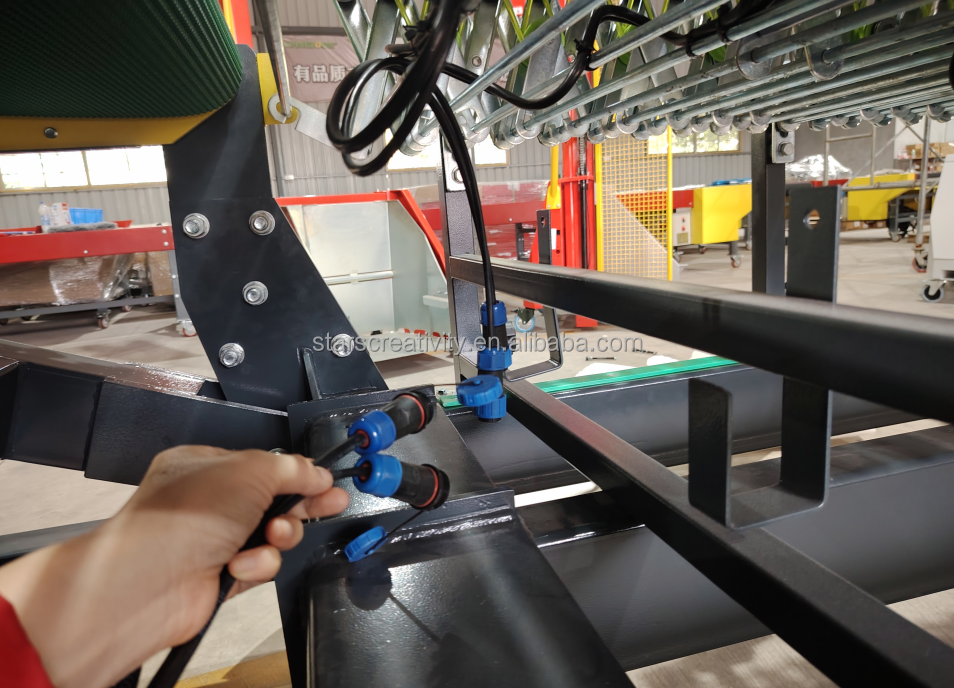

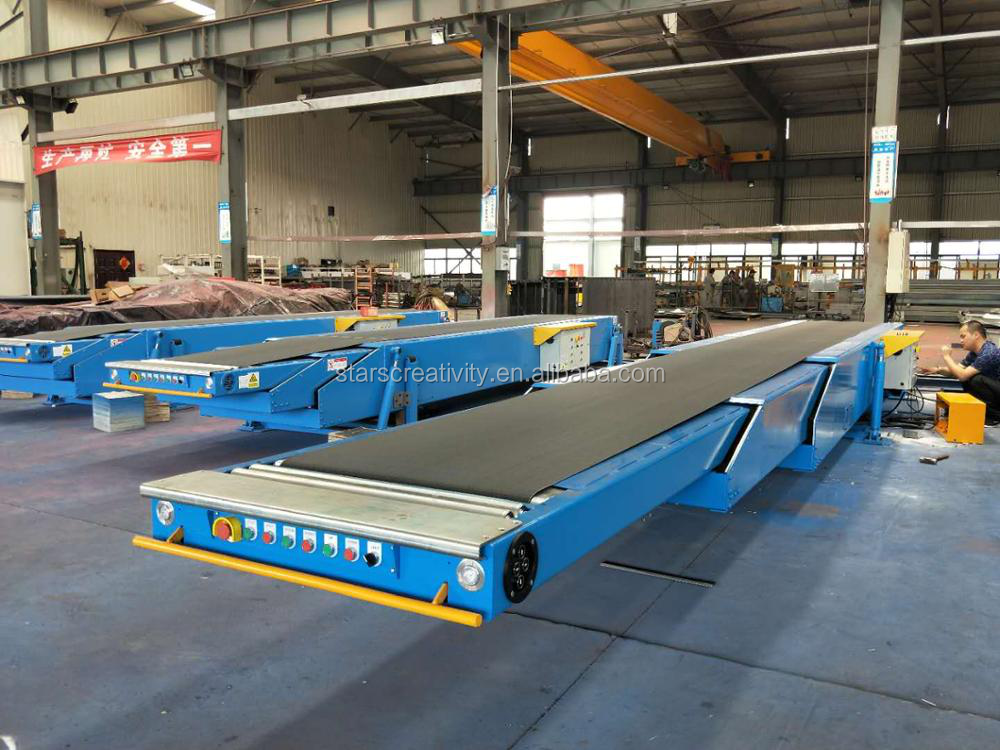

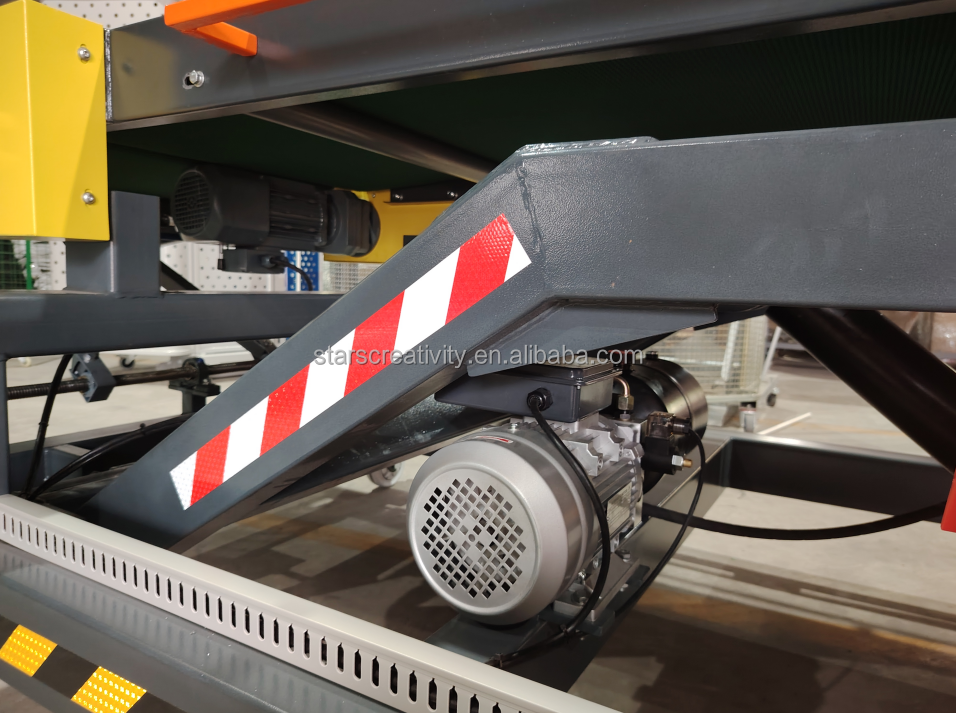

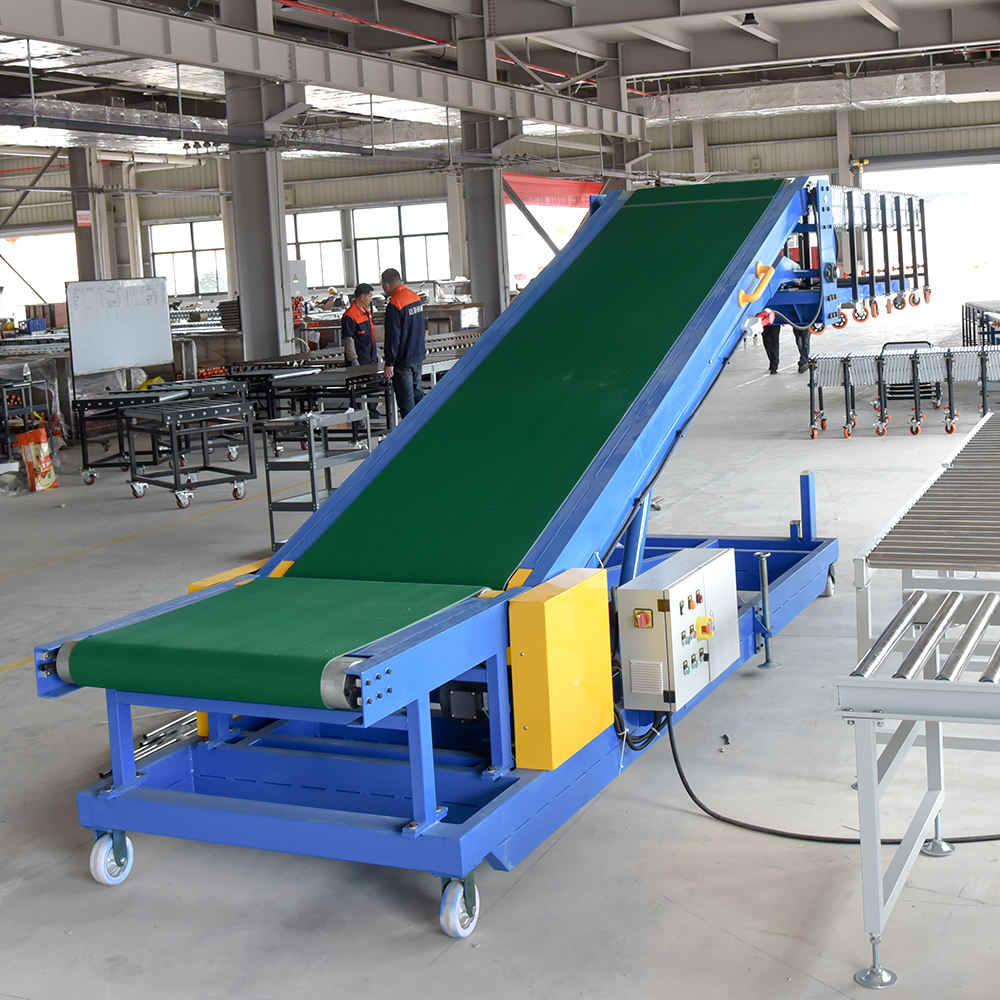

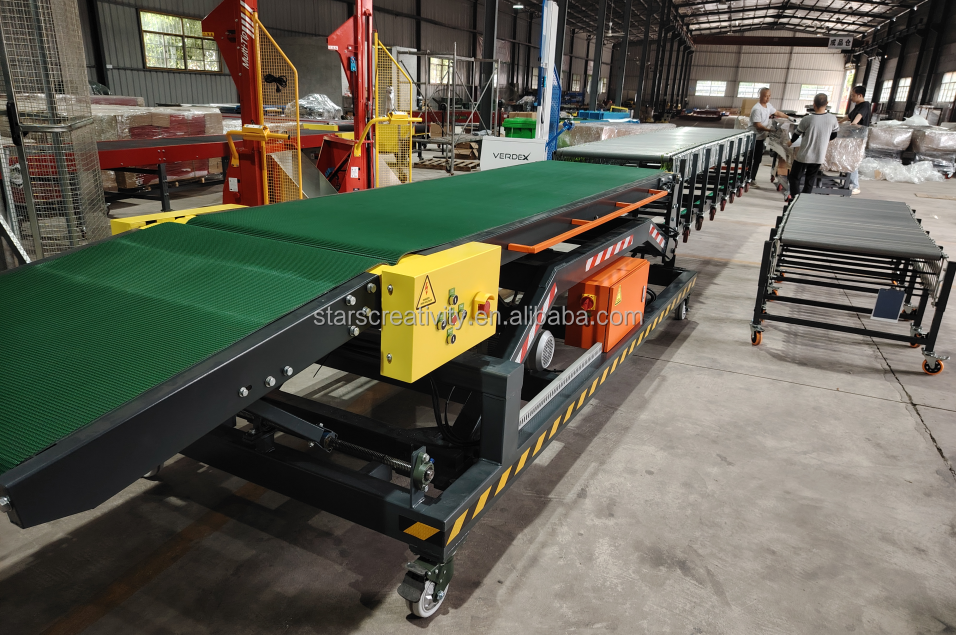

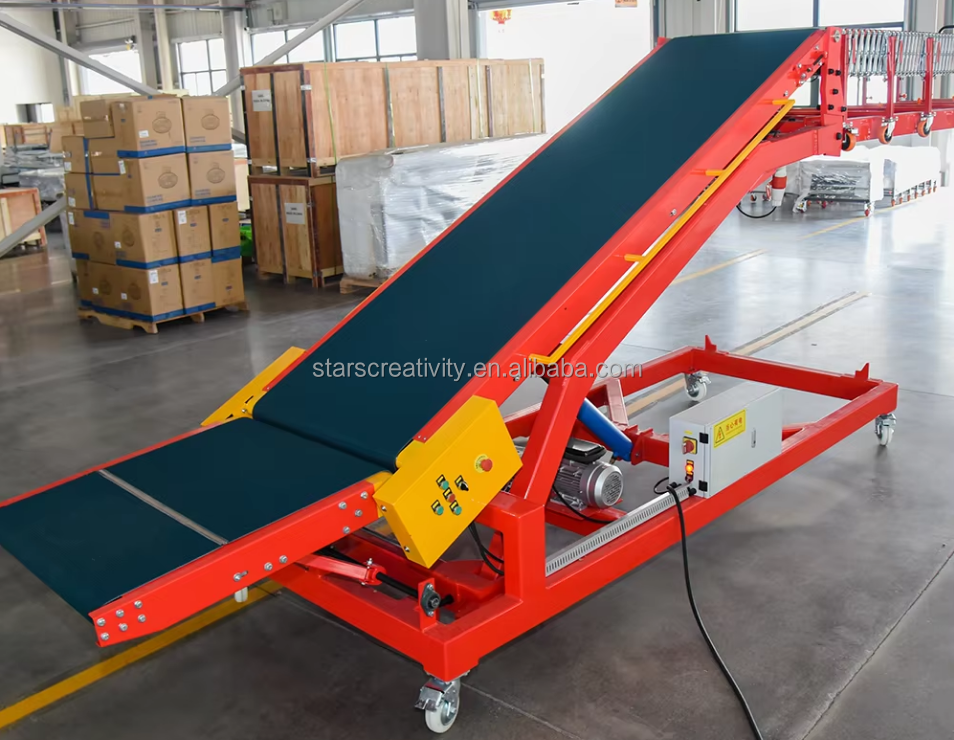

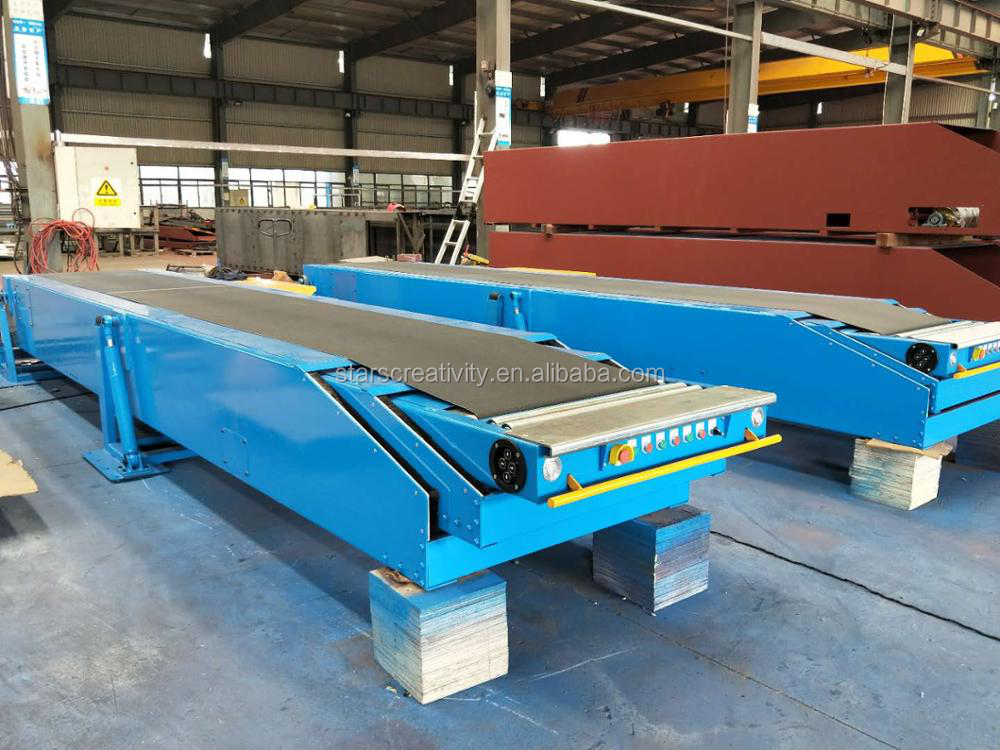

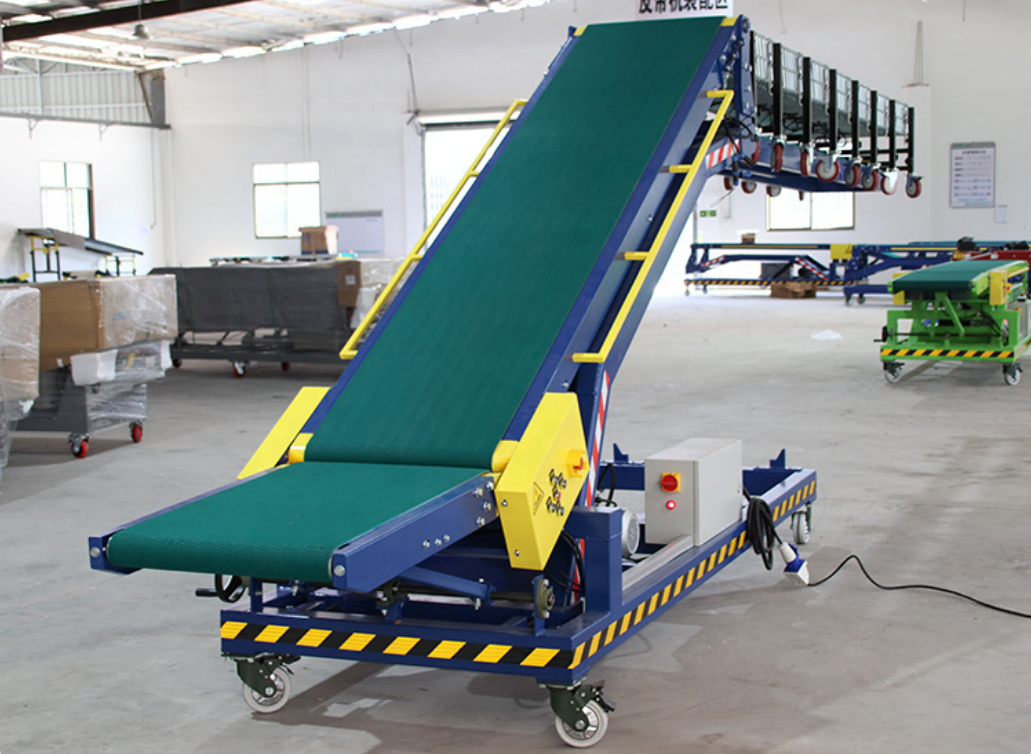

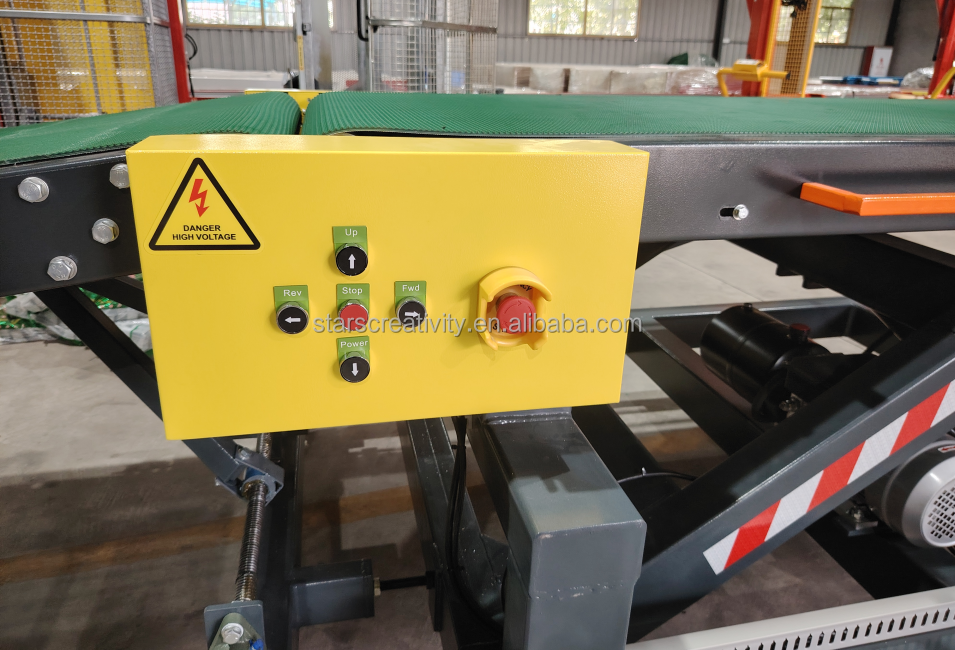

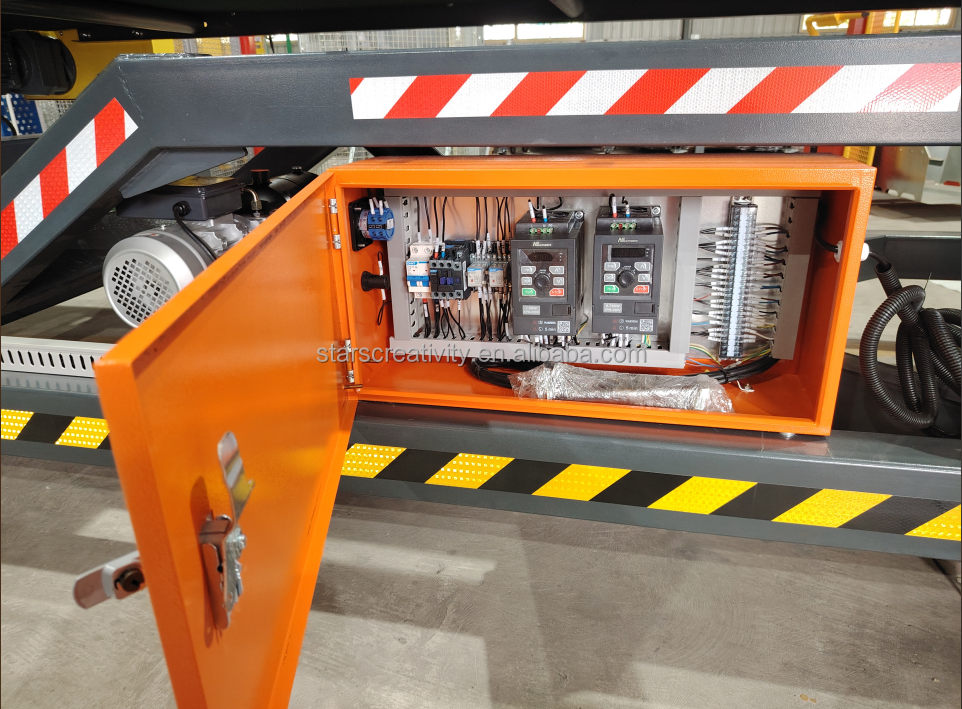

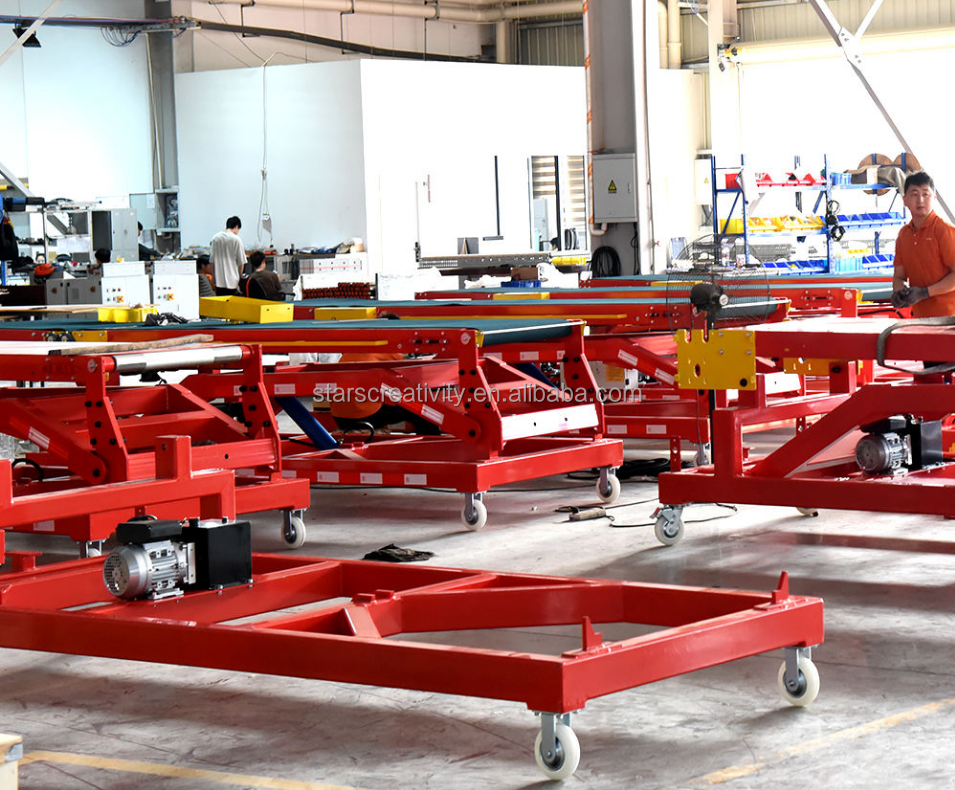

Details Images
4

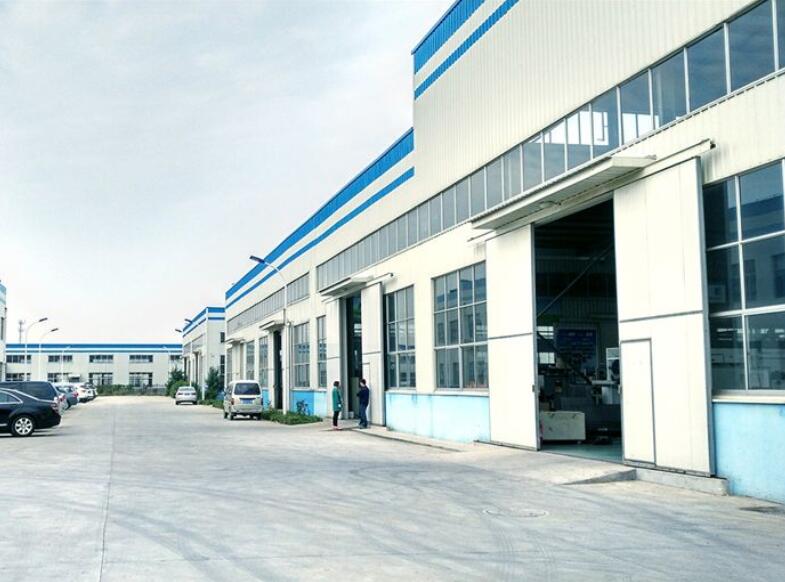

Professional Solutions
We specialize in the sales of packaging equipment and are one of the professional equipment and solution providers in the field of automatic packaging. Through continuous development of new products and expansion into new fields, we have accumulated rich experience in the design and development of case erectors, case sealers, stretch wrappers, and more. Our dedicated team provides strong technical support and timely after-sales service.
?
FAQ
What's the MOQ if we place an order?
MOQ is 1 set.
Is custom made service available?
Yes, we can customize equipment according to your specific requirements.
What's the lead time for 1 unit conveyor?
Approximately 10-15 workdays after receiving payment.
How long is the warranty period?
12 months from the date of receiving the conveyor.
Do you also provide other types of conveyors?
Yes, we offer skate wheel conveyors, flexible roller conveyors, belt conveyors, top chain conveyors, and pallet conveyors.
Do you have CE certification for this conveyor?
Yes, it has approved CE certification.
