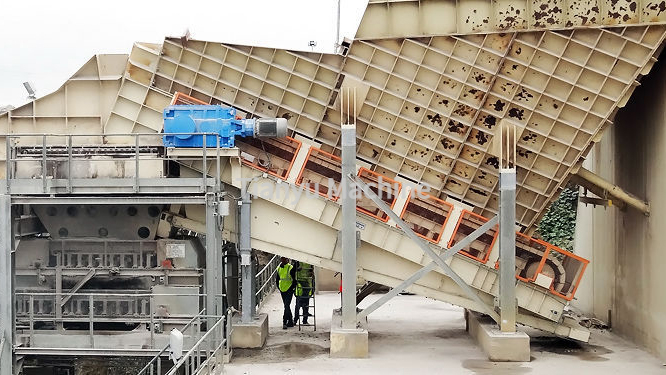

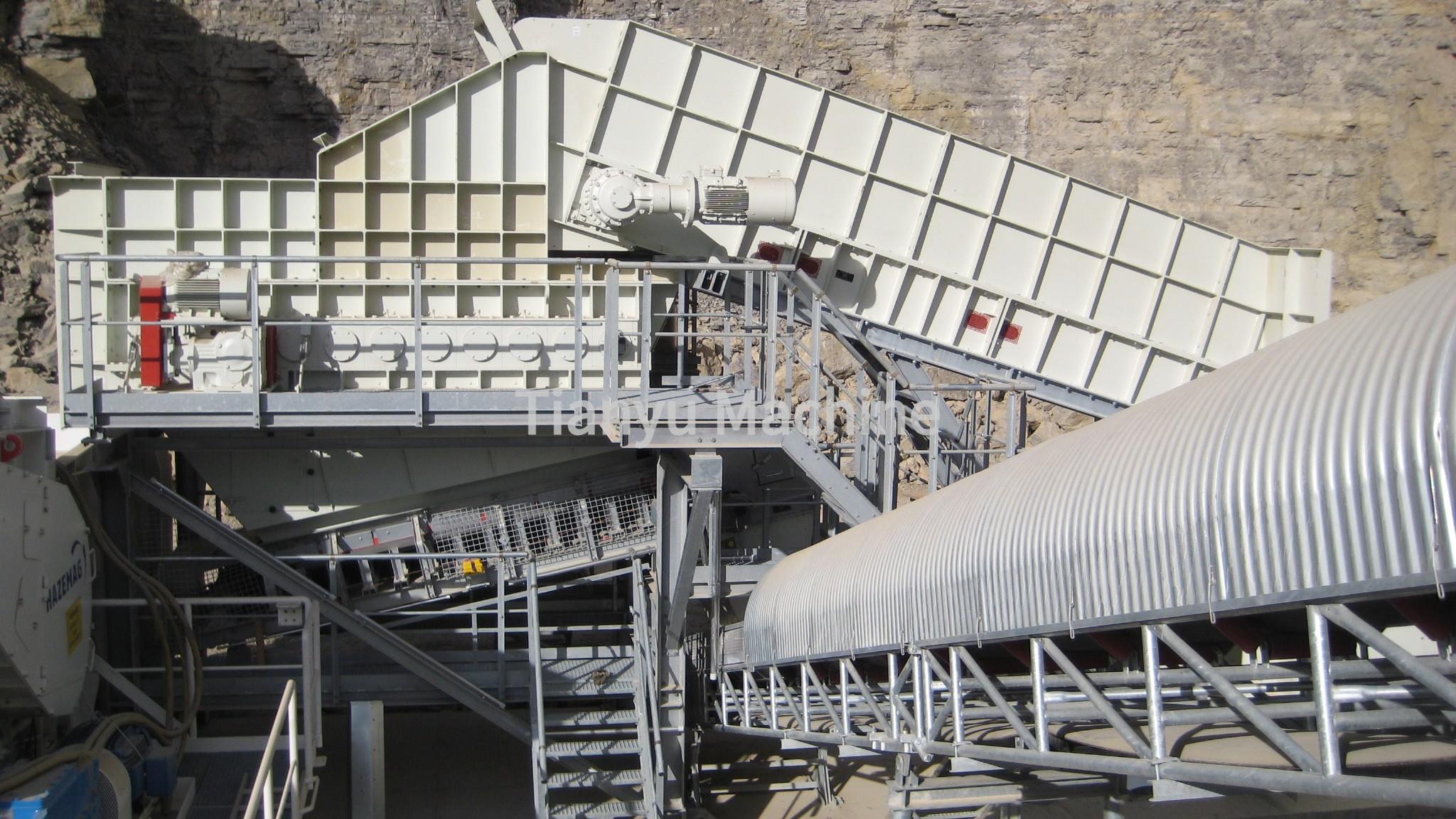

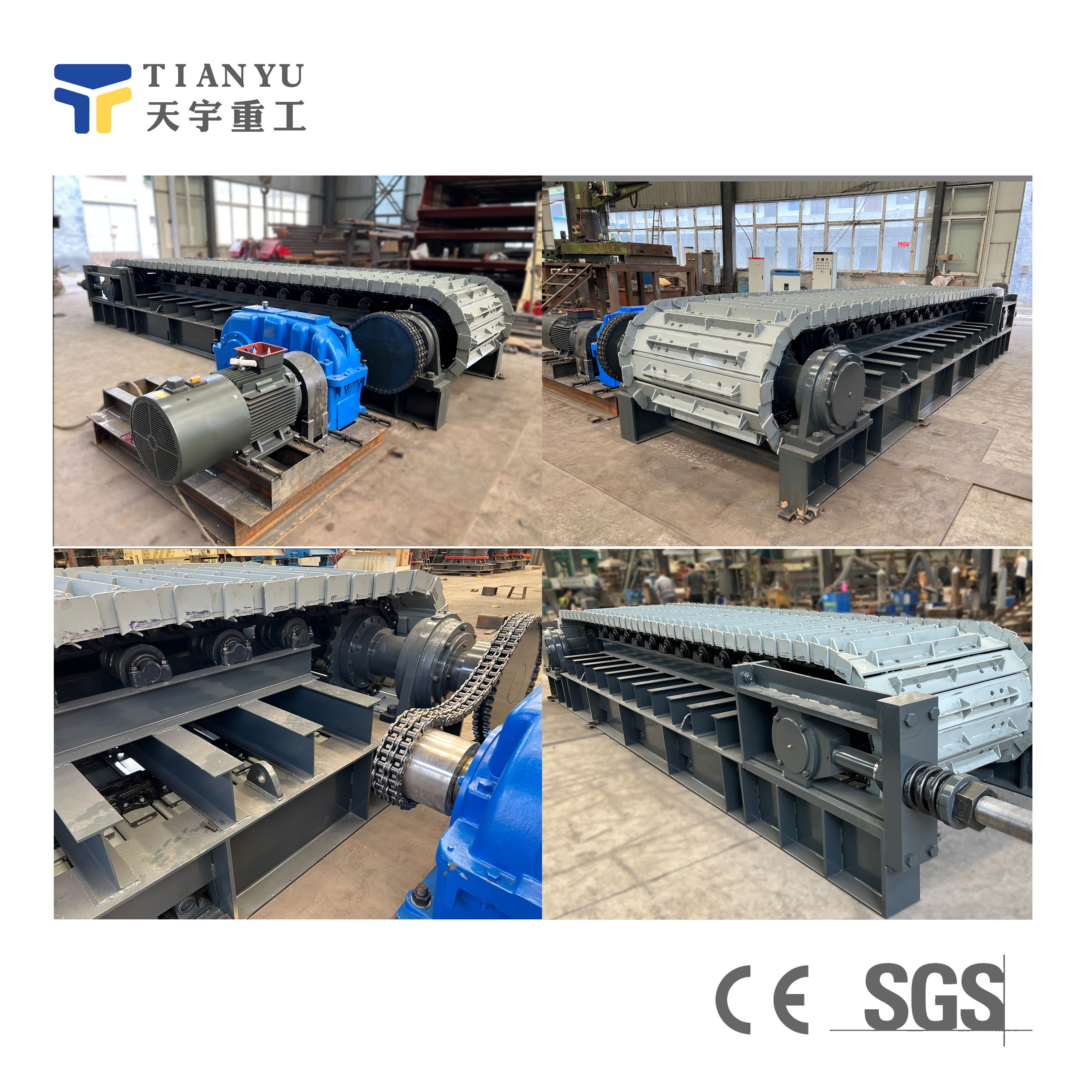

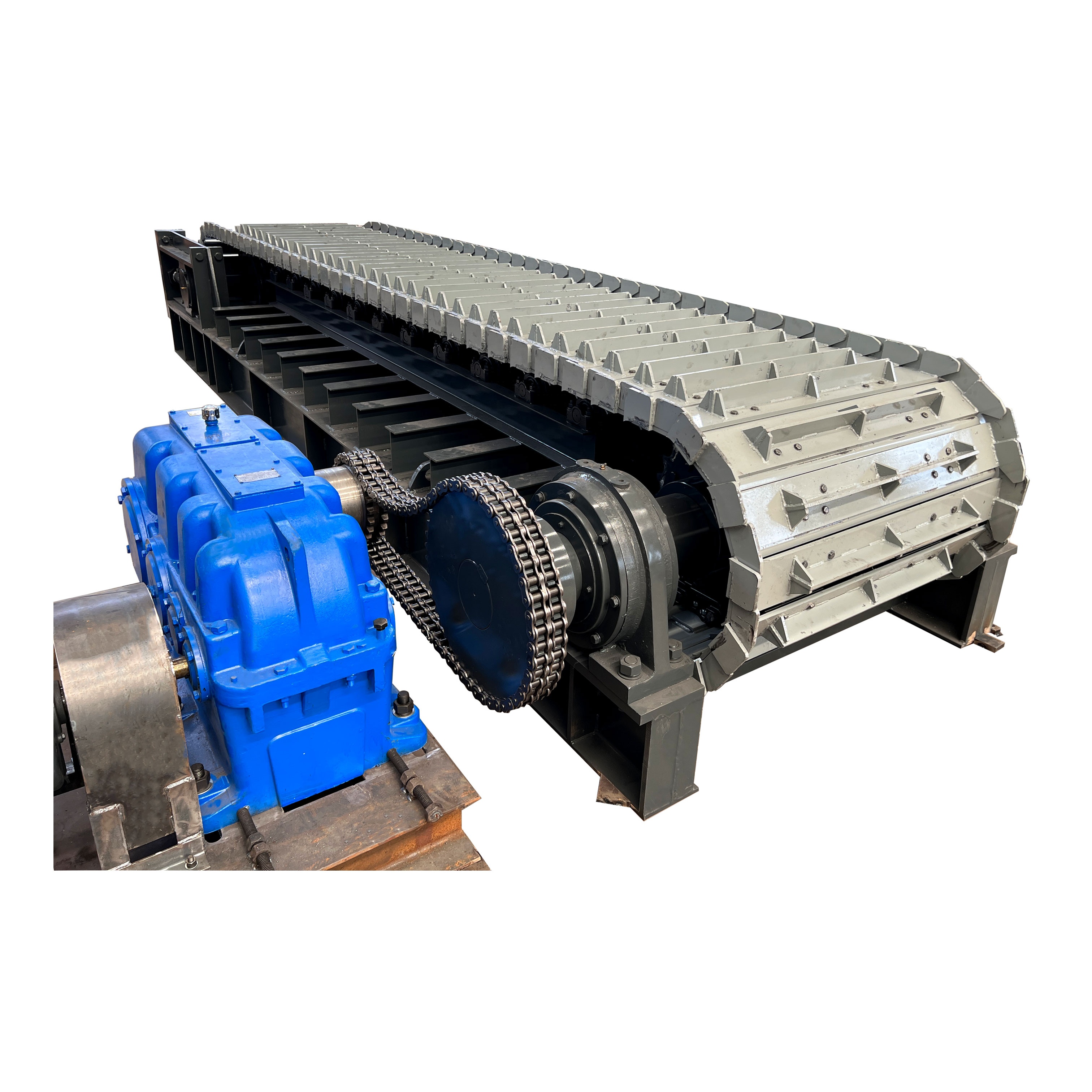

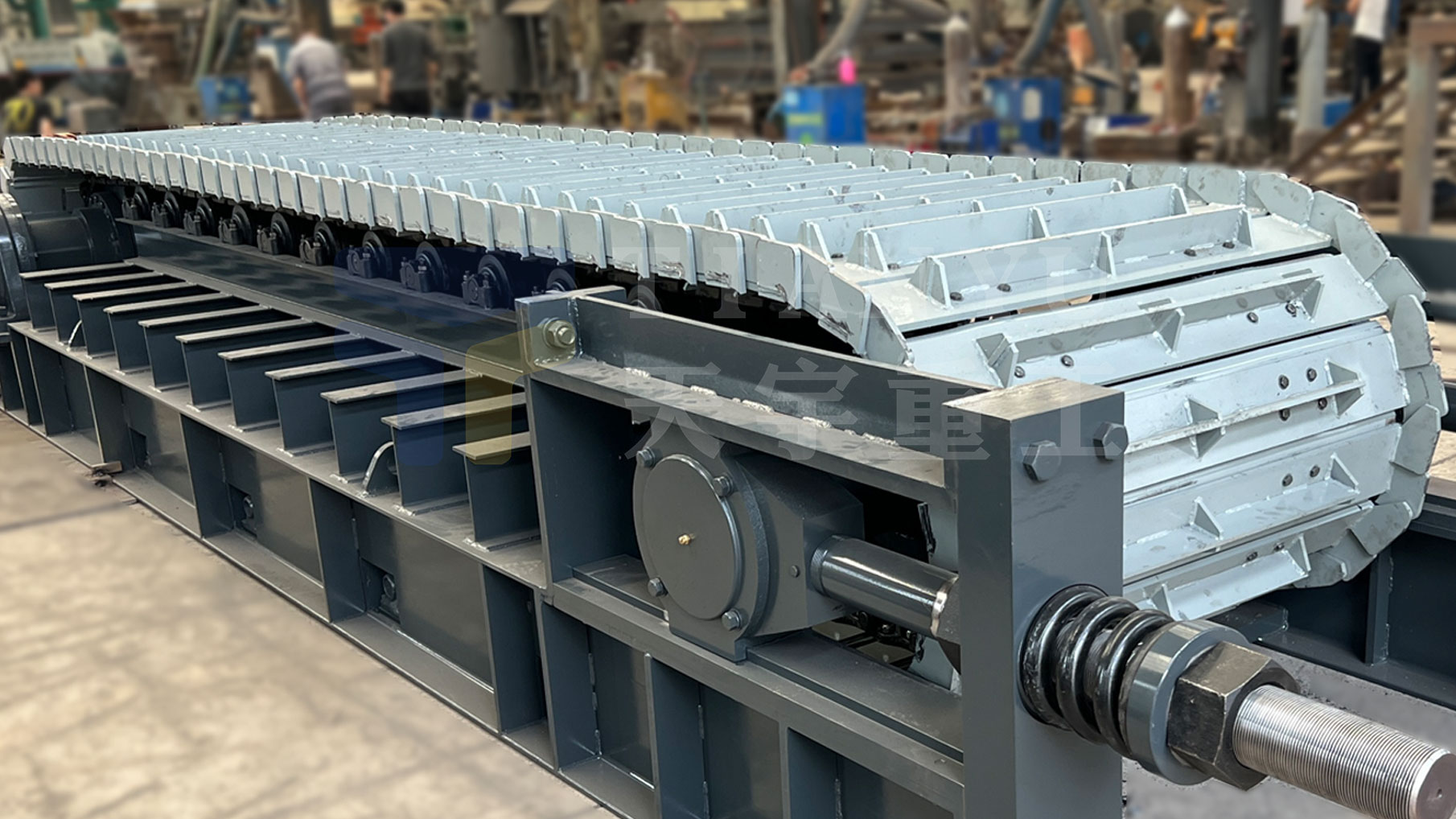

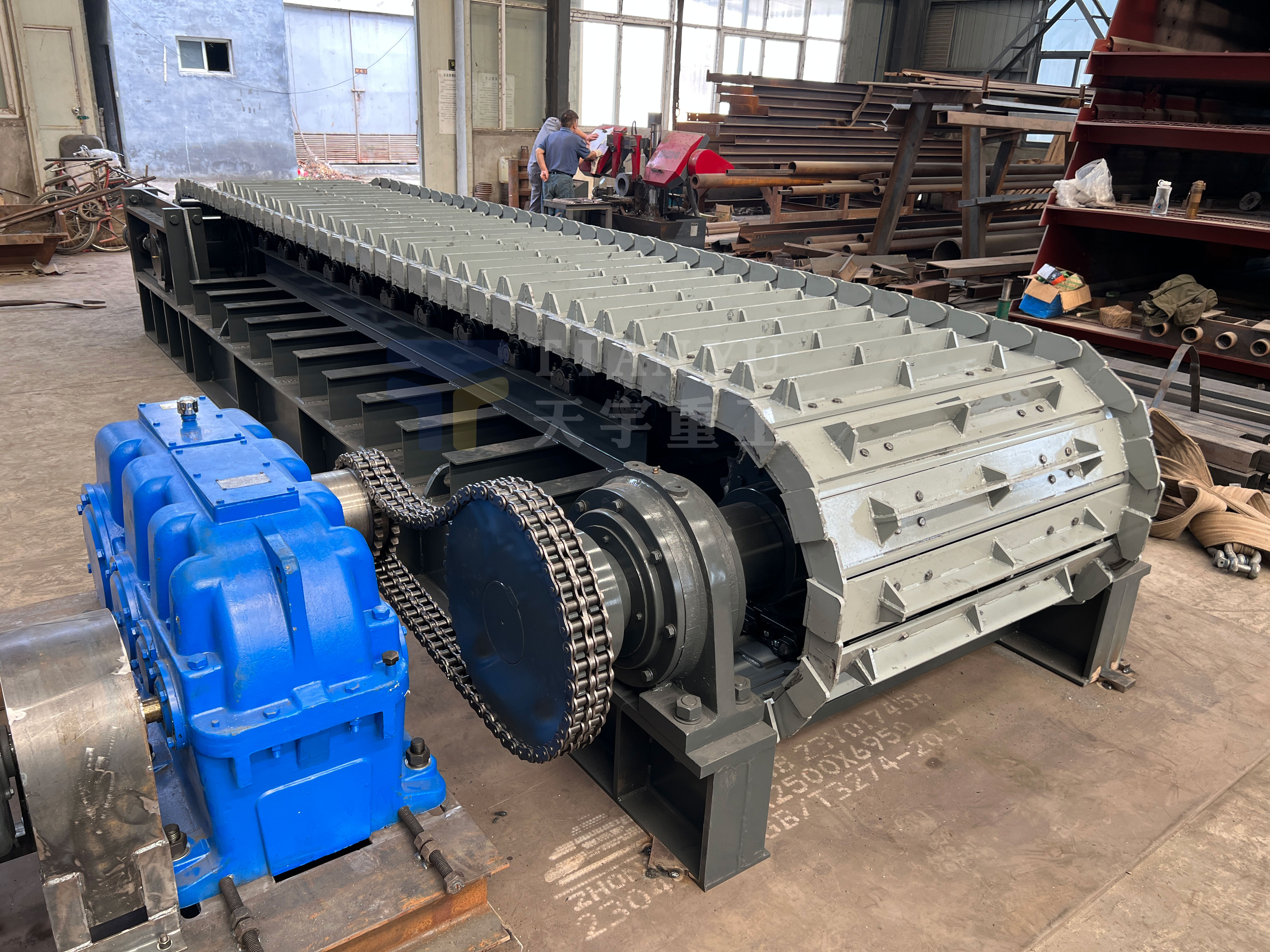

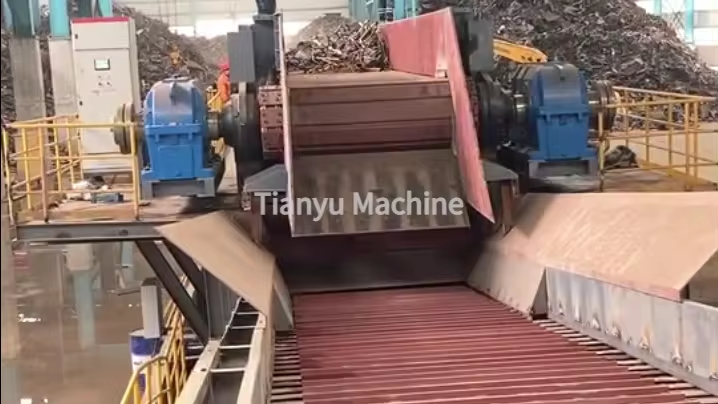

The newly redesigned Apron Feeders easily handle high-impact feeds of heavy, coarse and sharp materials from trucks, surge piles, bins, and hoppers – providing a controlled flow of the material to the next stage in the process.
Developed to cope with the most difficult minerals and materials in the mining industry.
A reliable feeding method for raw minerals such as construction aggregates.
Covers full range of materials such as cement, iron ore, coal, limestone and more.
Efficient handling of industrial minerals including iron ore, coal, and limestone.
High bearing capacity, high transmission efficiency.
Super durable, high impact resistance.
High strength, low consumption.

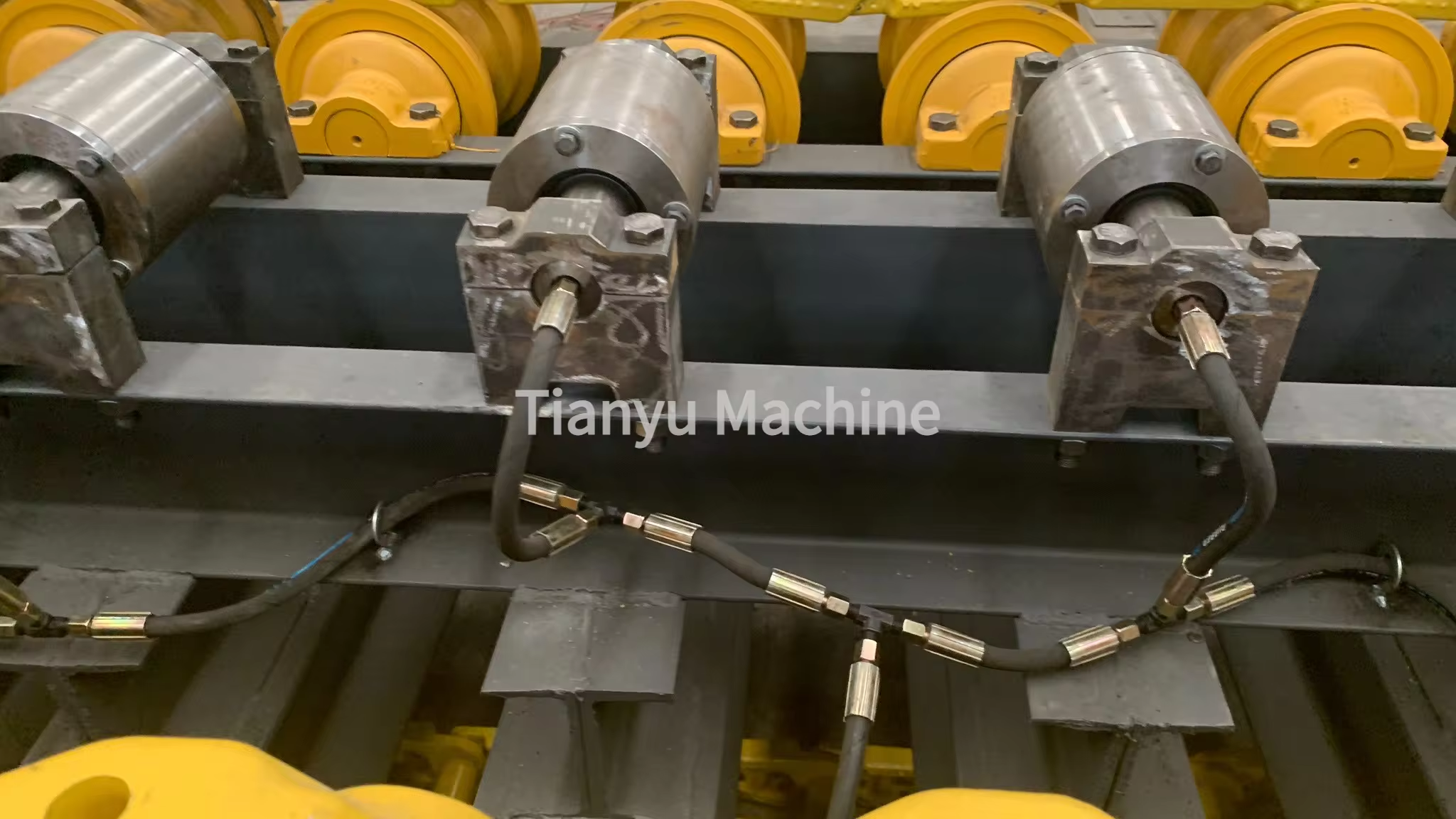

Centralized oil supply, save time and effort.
Easy to disassemble, high strength.
More than 50,000 hour's service life.

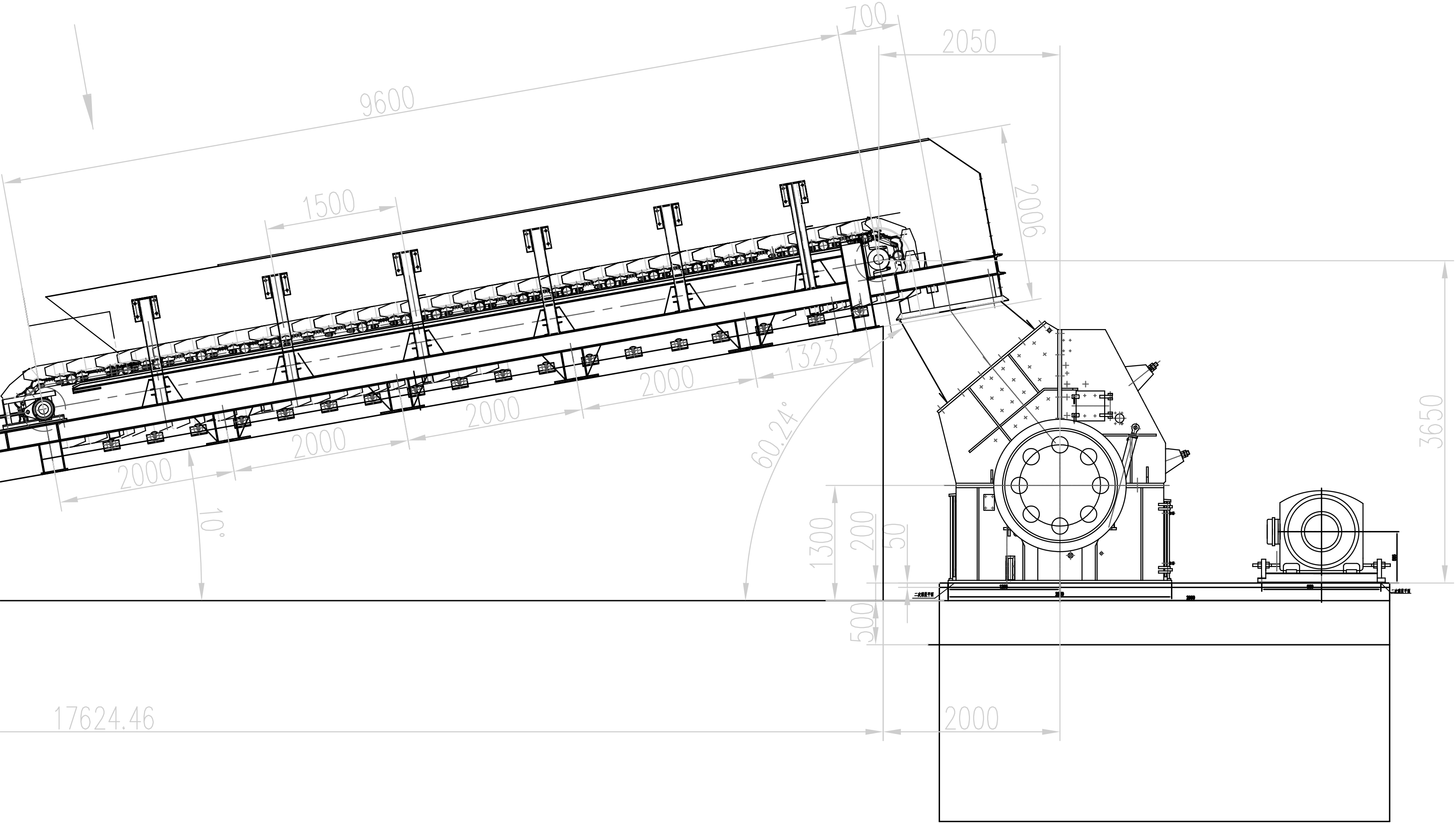

We supply customized designs for heavy duty apron feeders to meet special requirements resulting from conditions given by material, capacity and geometry.
| Model | Pan Width (mm) | Speed (m/s) | Max Feeding Size (mm) | Capacity (m³/h) | Length (m) |
|---|---|---|---|---|---|
| BWZ800 | 800 | 0.01~0.25 | 350 | 50~350 | 4.5~15 |
| BWZ1000 | 1000 | 0.01~0.25 | 470 | 100~510 | 4.5~20 |
| BWZ1200 | 1200 | 0.01~0.2 | 650 | 120~595 | 4.5~20 |
| BWZ1400 | 1400 | 0.01~0.2 | 680 | 140~850 | 6~20 |
| BWZ1600 | 1600 | 0.01~0.2 | 700 | 320~1300 | 6~20 |
| BWZ1800 | 1800 | 0.01~0.15 | 800 | 500~1560 | 8~20 |
| BWZ2000 | 2000 | 0.01~0.15 | 1000 | 500~1850 | 8~20 |
| BWZ2400 | 2400 | 0.01~0.15 | 1500 | 500~2700 | 8~20 |
| BWZ2800 | 2800 | 0.01~0.15 | 1800 | 1000~4000 | 10~20 |

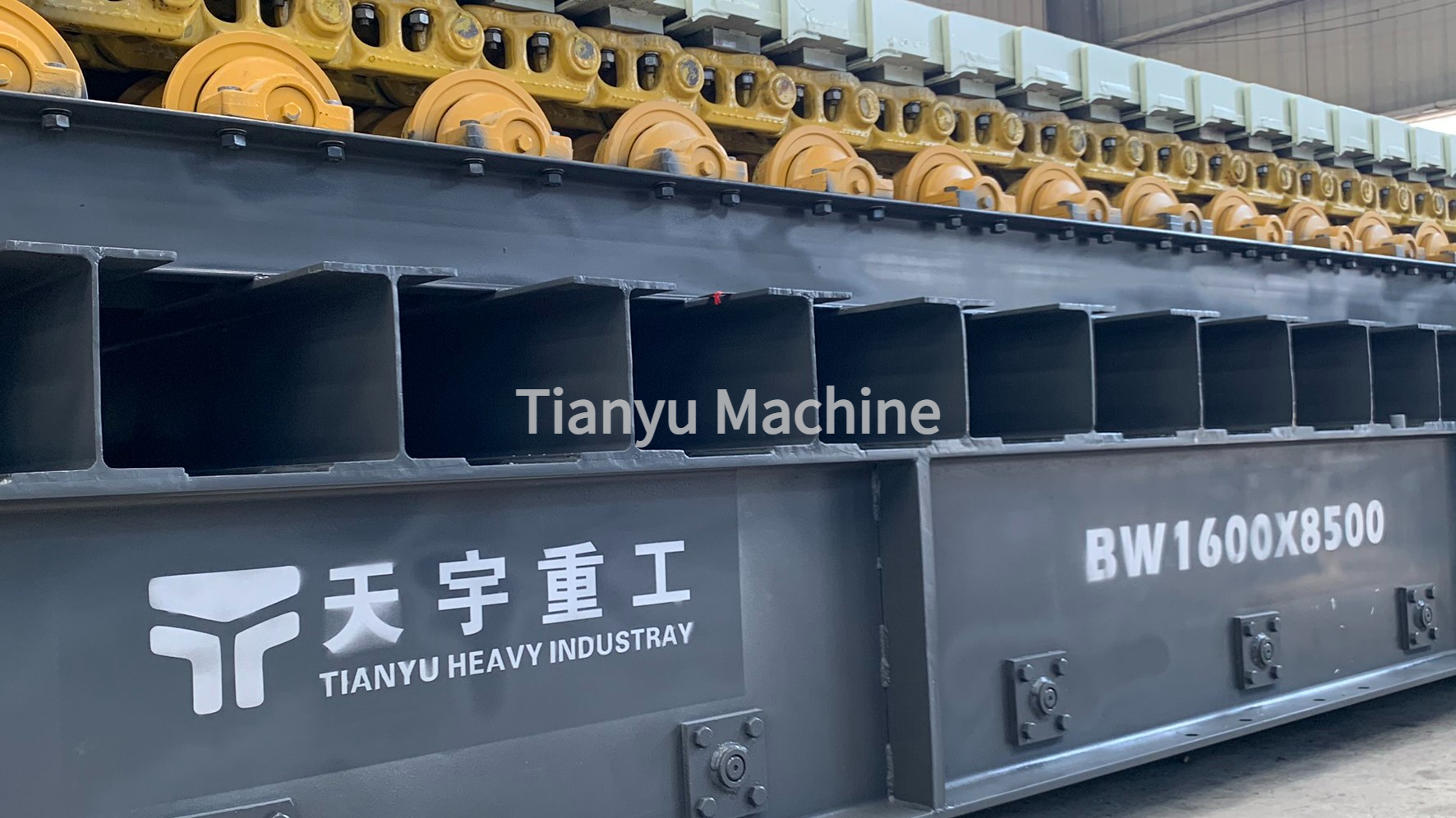

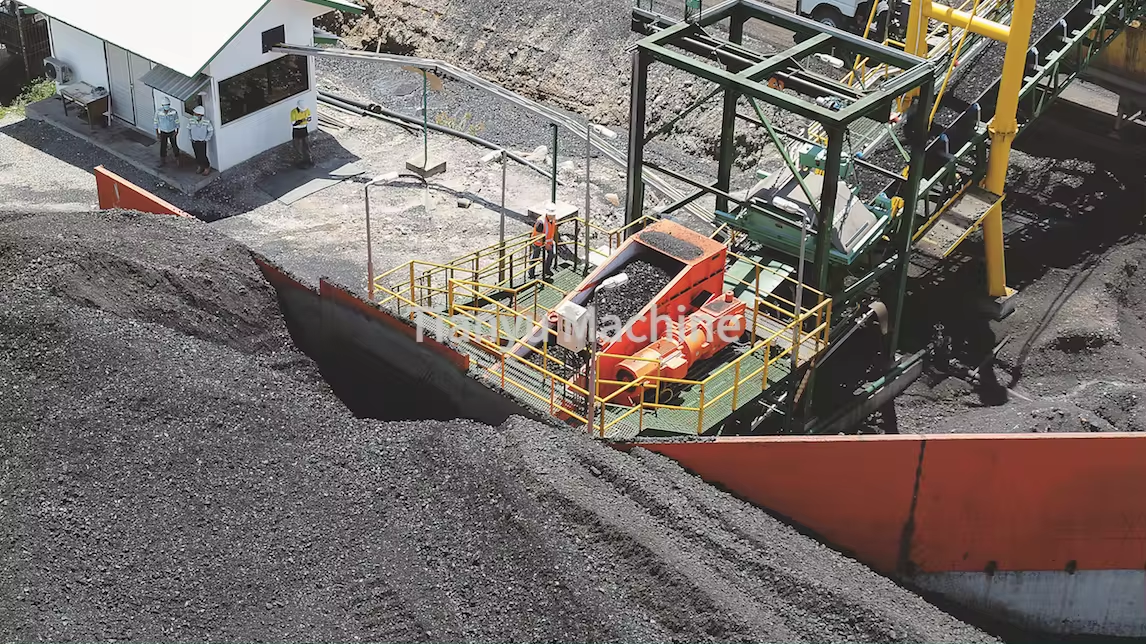

Model: BWZ1600-8.5 | Pan Width: 1,600mm
C-C Distance: 8,500mm | Handling Material: Coal
Capacity: 1800T/H
Model: BWZ2000-10 | Pan Width: 2,000mm
C-C Distance: 10,000mm | Handling Material: Aggregates
Capacity: 2500T/H
Model: BWZ1800-10 | Pan Width: 1,800mm
C-C Distance: 10,000mm | Handling Material: Limestone
Capacity: 2,000T/H
Heavy duty and robust, engineered and built with an intense commitment to quality and attention to detail, providing maximum uptime and many years of service life.
