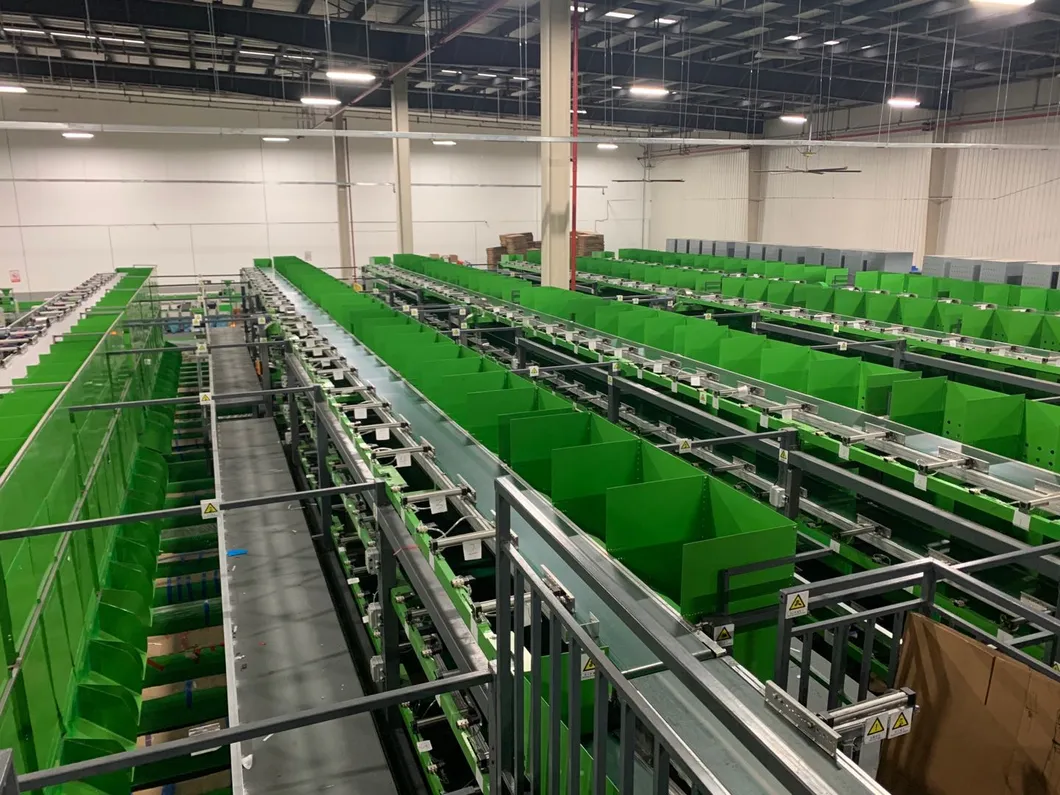

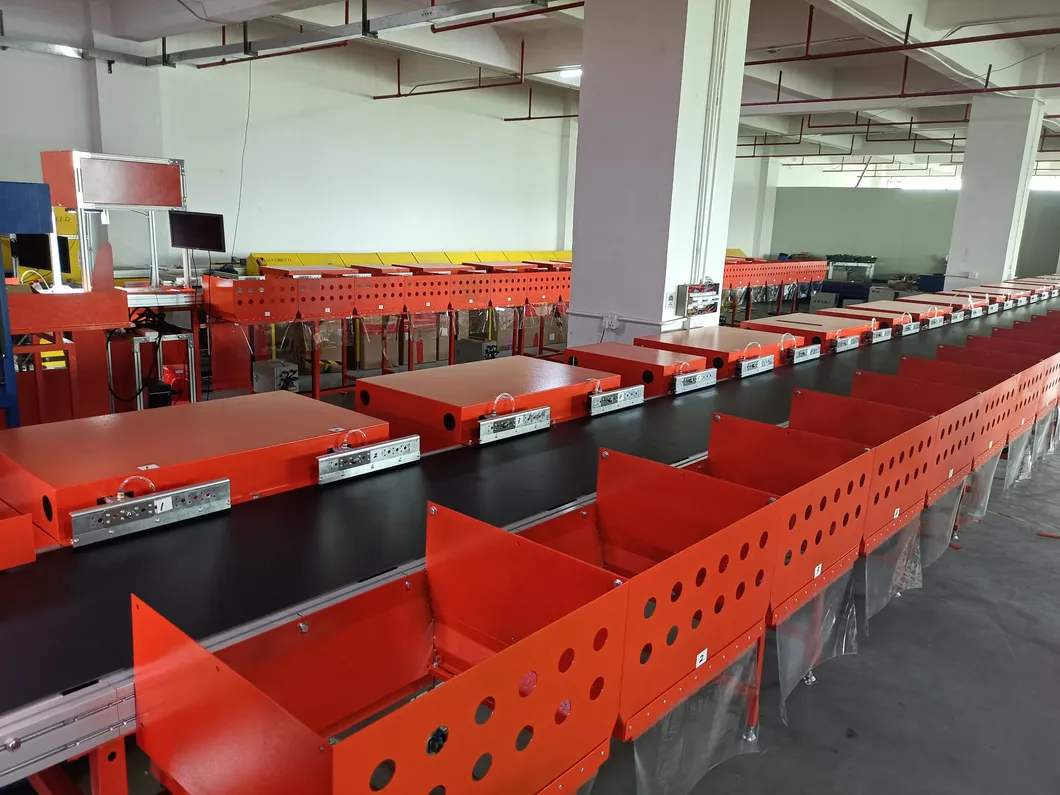

The intelligent push-board sorting machine is an advanced sorting system designed for handling and sorting various items, such as parcels, packages, and small goods. It is a crucial piece of equipment in logistics and e-commerce operations due to its efficiency and accuracy.

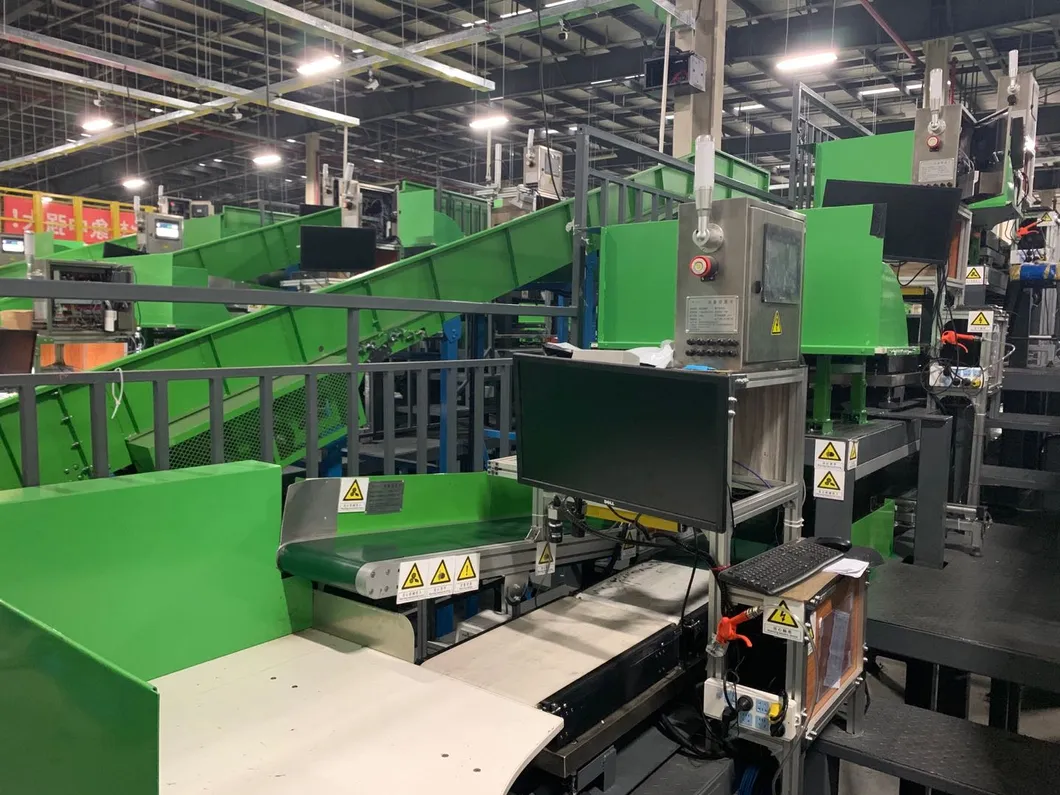

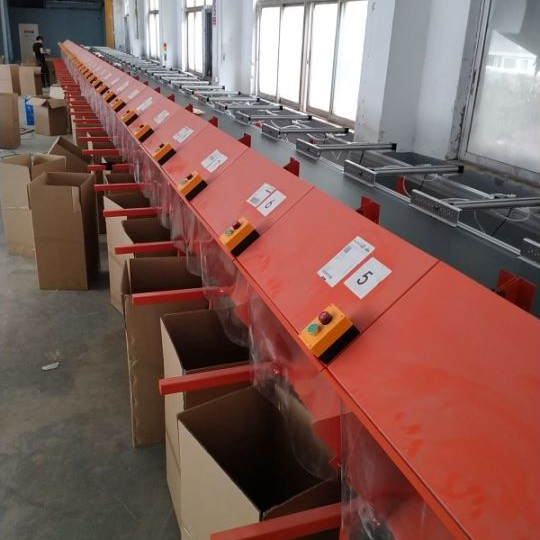

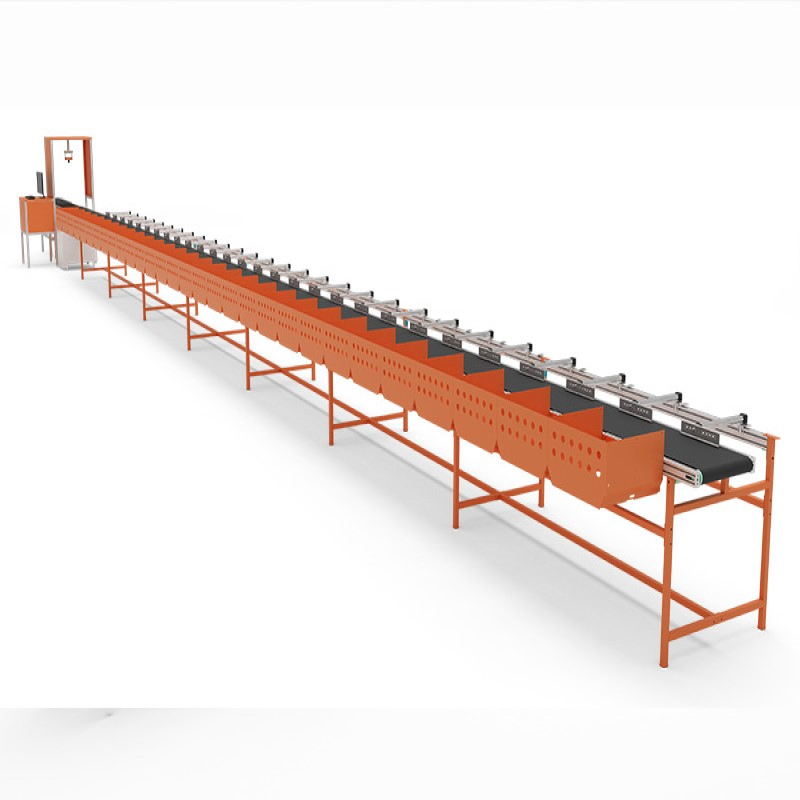

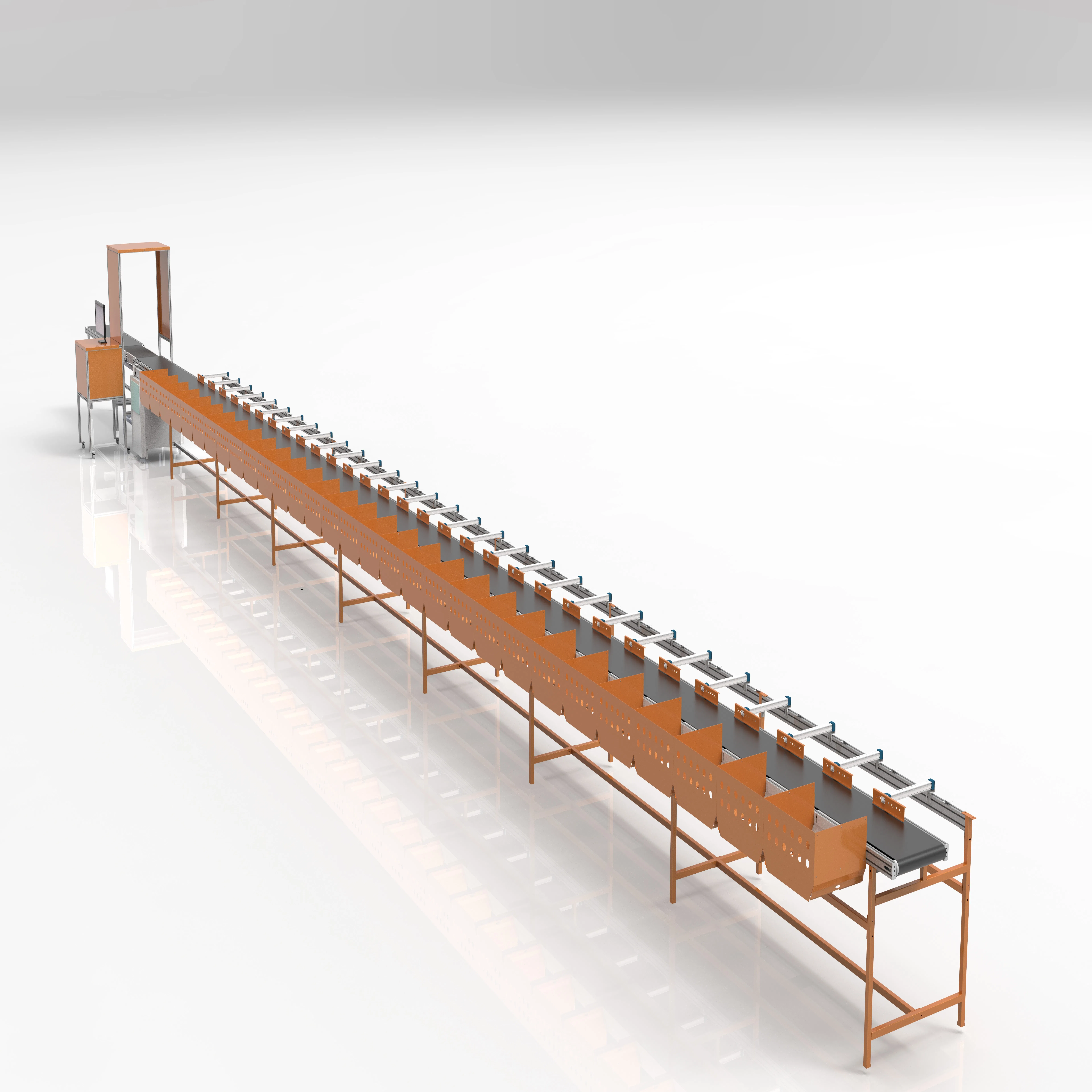

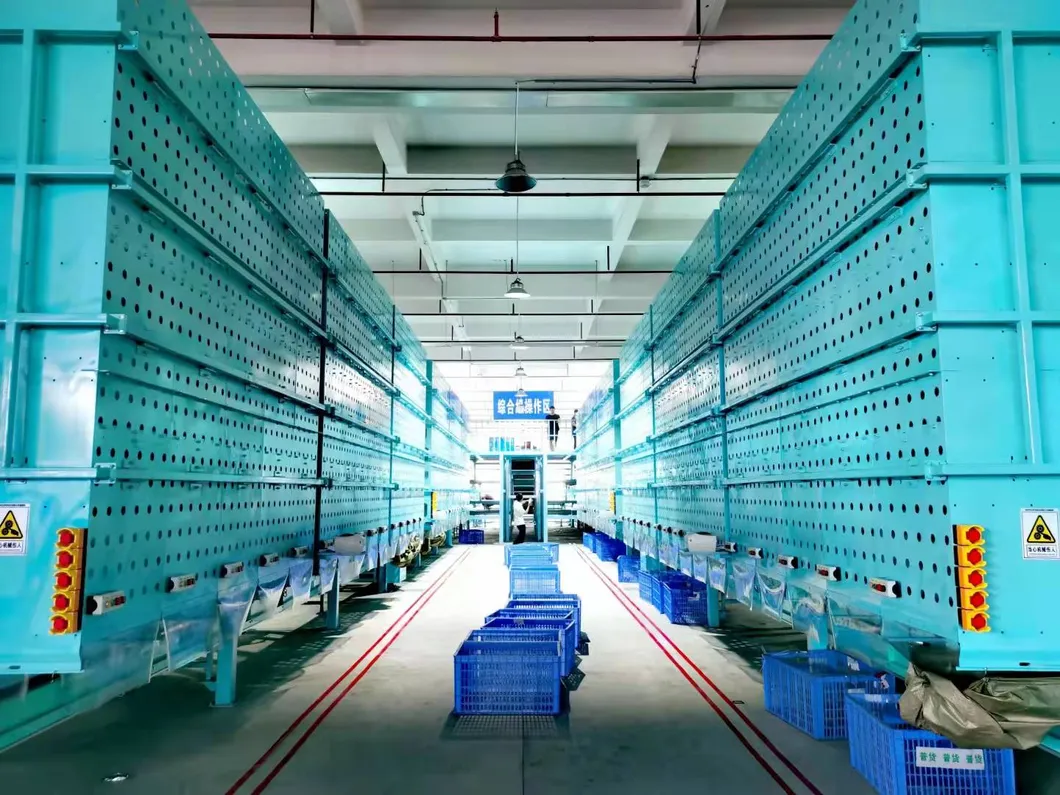

The sorting system is composed of several parts: a feeding device, a main unit, a barcode scanning device, sorting bins, a steel frame, a sorting conveyor device, and a pushing device. The system is controlled by an electronic control system. Items are automatically scanned and the barcode information is read, then the machine conveys and sorts the items to the corresponding destination bin based on the system instructions.
| Model | SP-SORTER |
| Type | Single-Column, Single-Arm |
| Maximum Dimensions | 400L x 400W x 400H mm |
| Minimum Dimensions | 50L x 50W x 10H mm |
| Item Weight | 0.02 - 6 kg |
| Operating Speed | 0.5 m/s - 1.2 m/s (adjustable) |
| Mechanical Efficiency | 3600 pcs/h (at 0.6 m/s) |
| Operating Noise | ≤72 dB |
| Drive Type | Asynchronous gear motor (standard) |

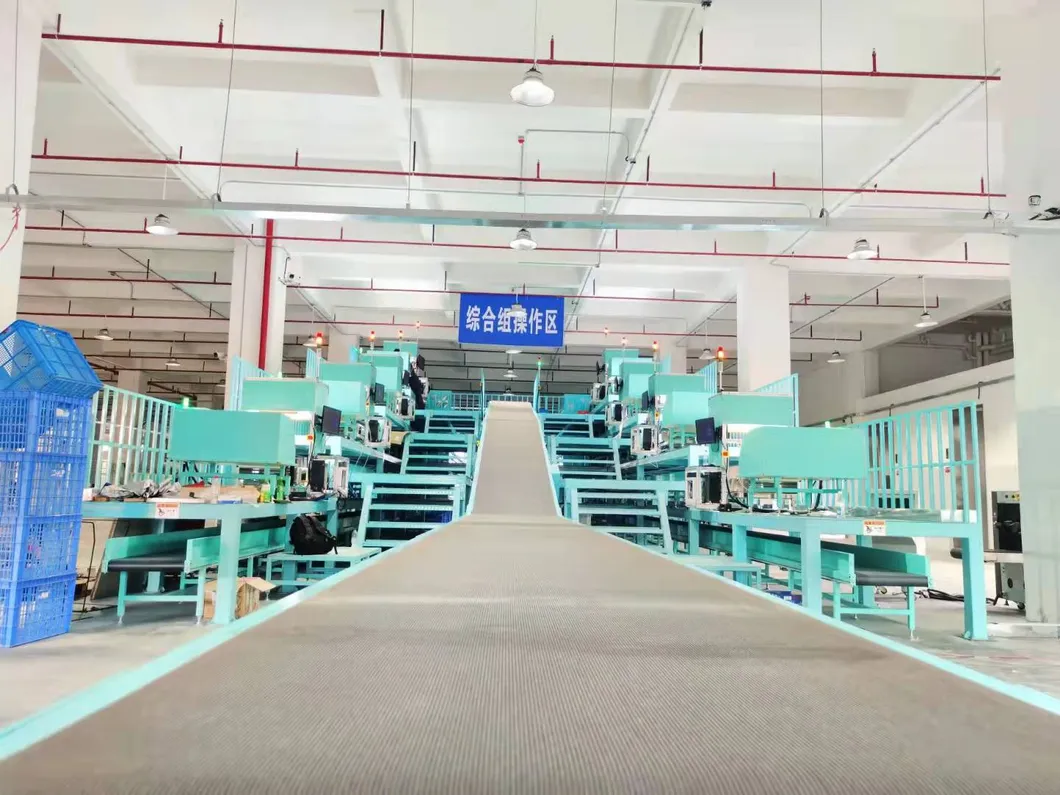

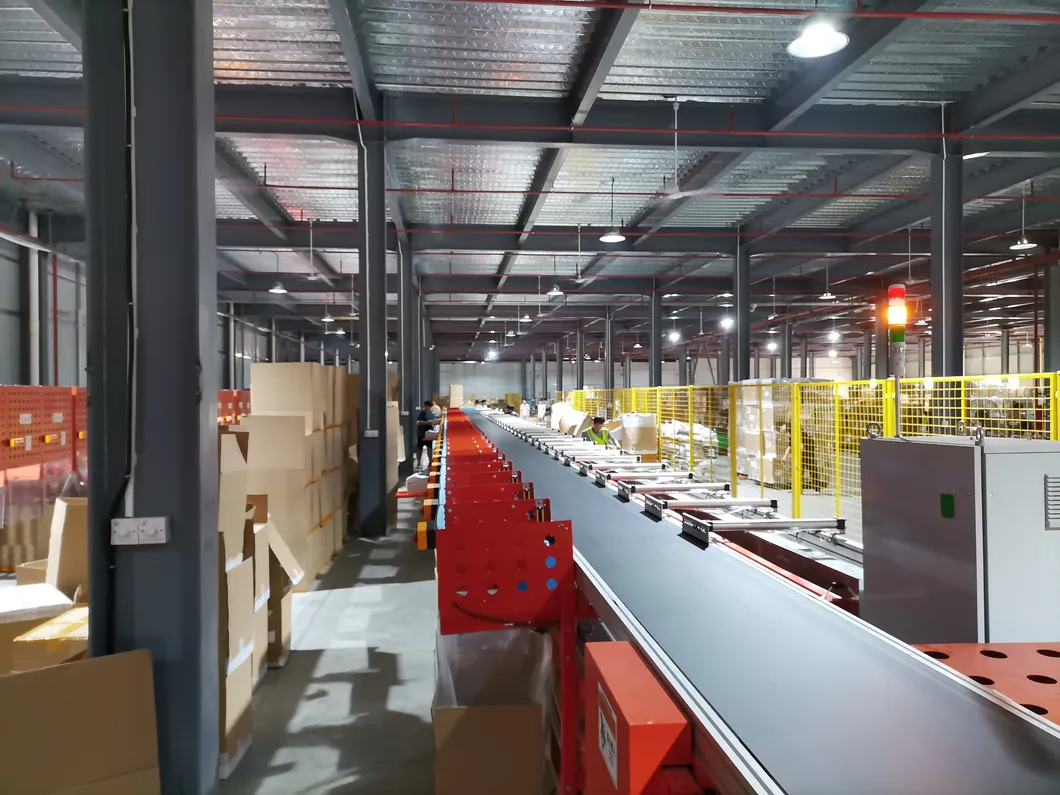

Mainly used in e-commerce and CEP courier express postal industries to optimize warehouse management and speed up delivery processes.
