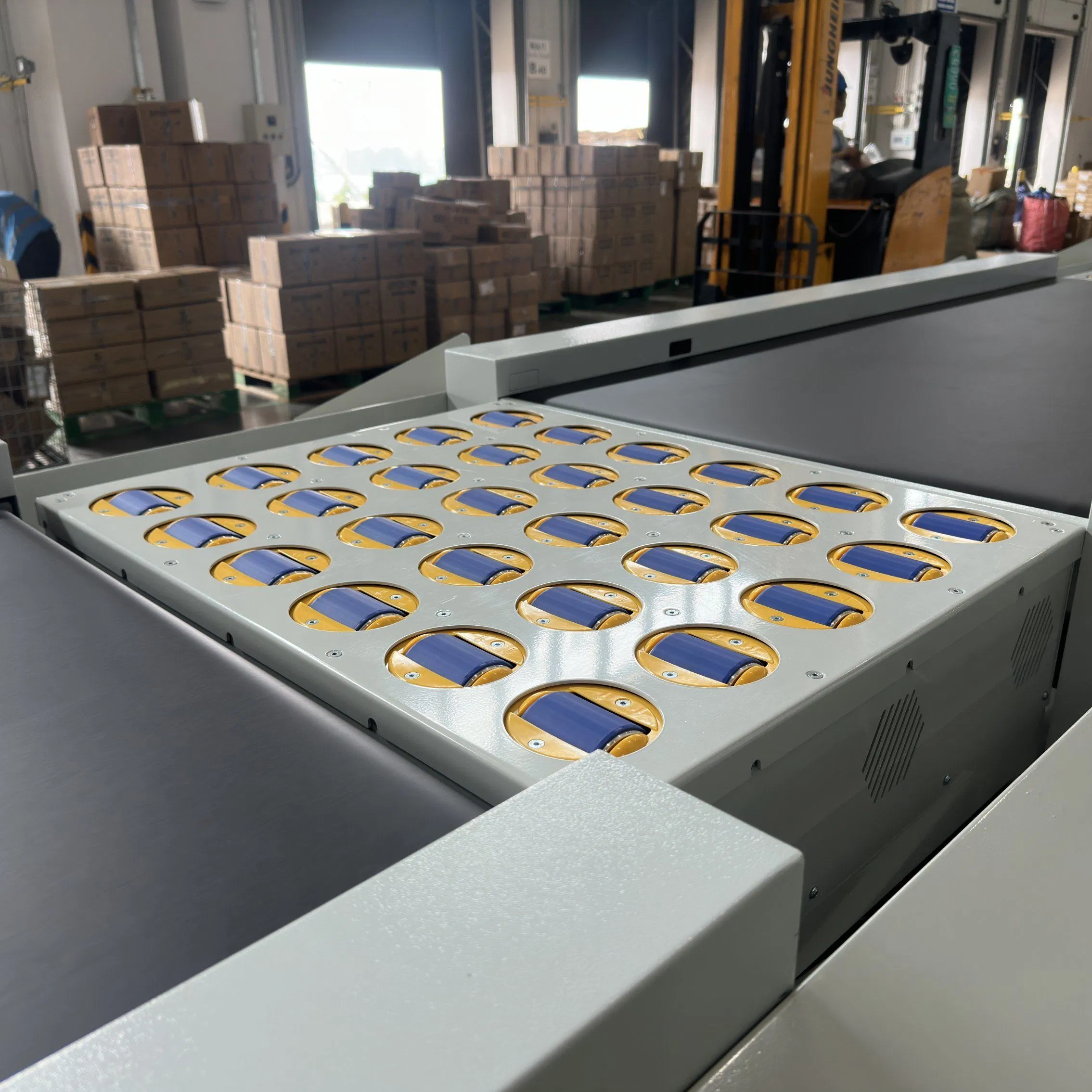

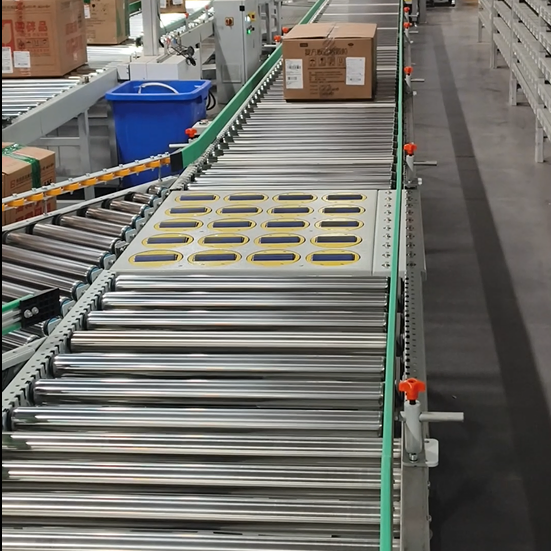

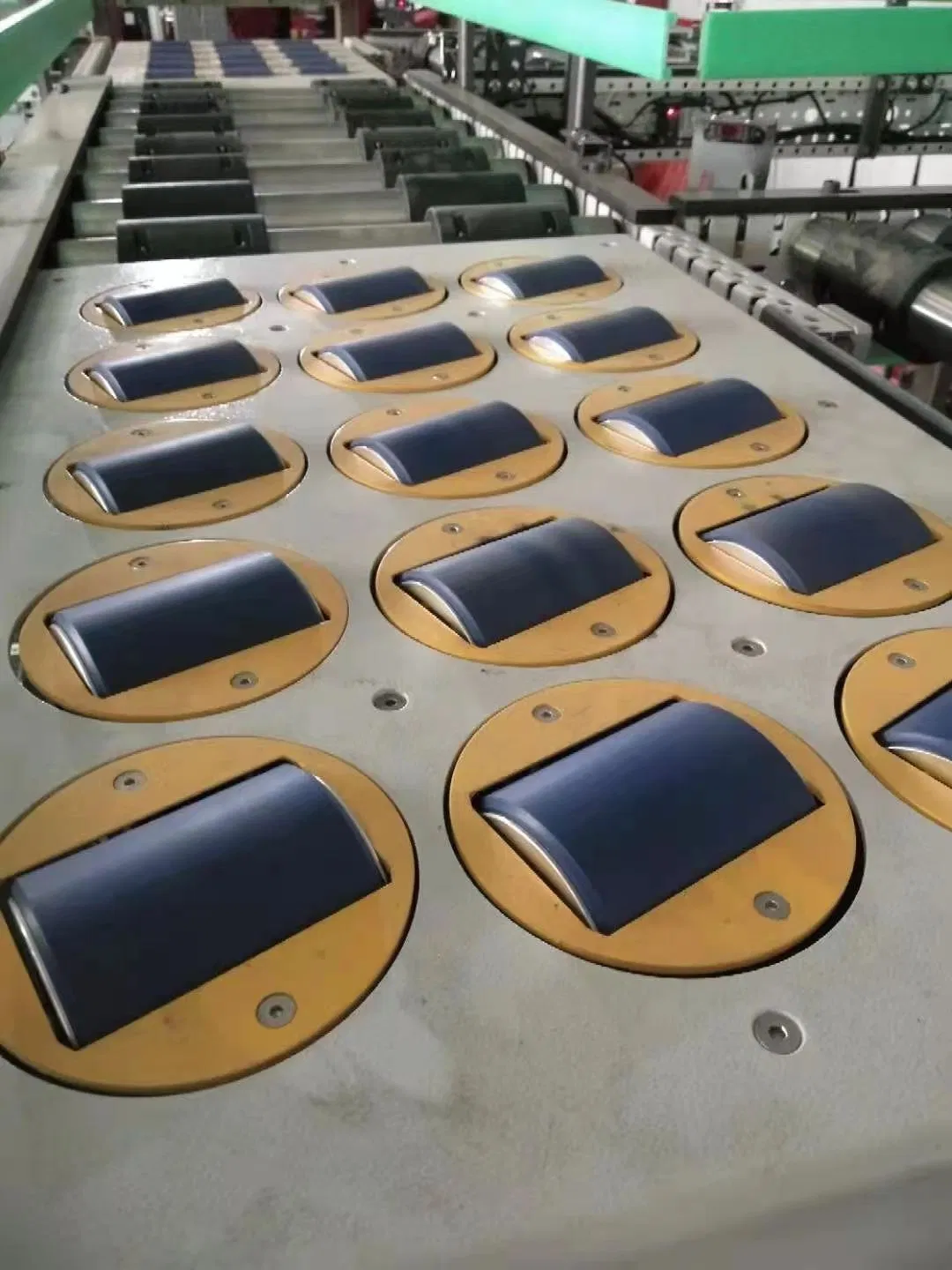

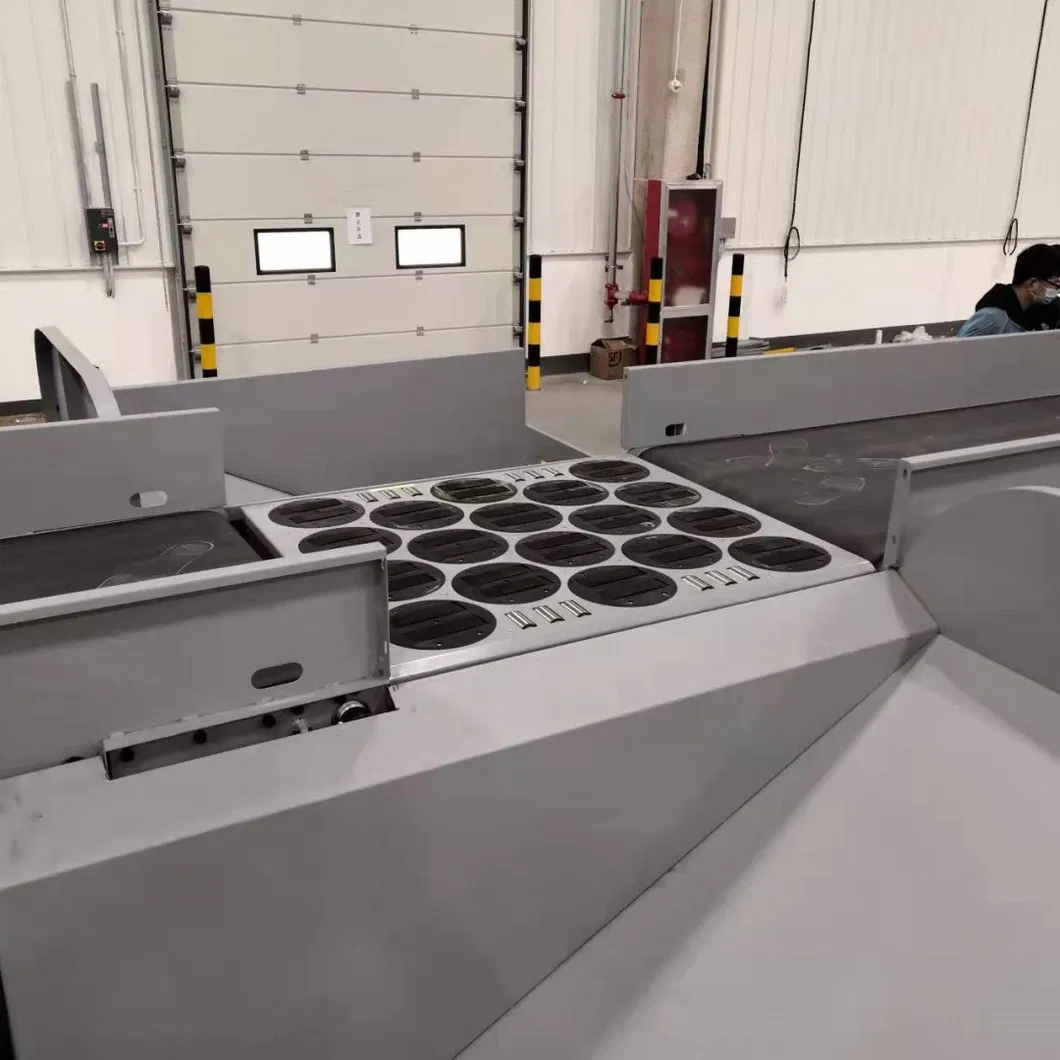

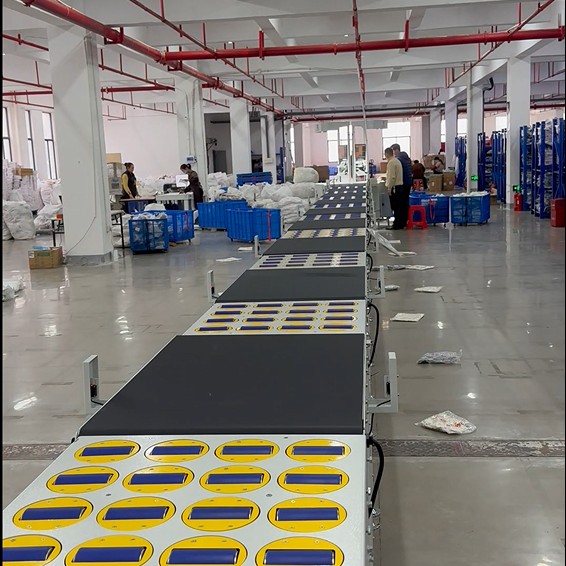

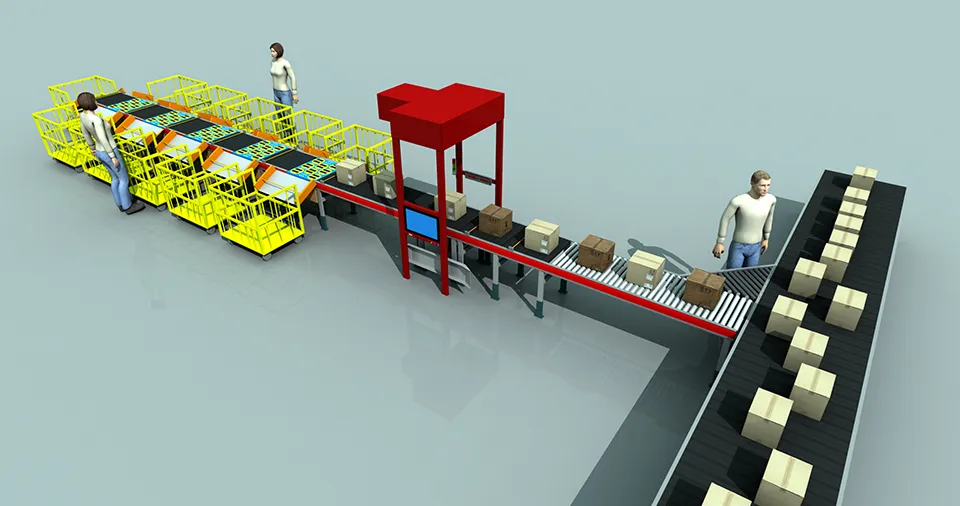

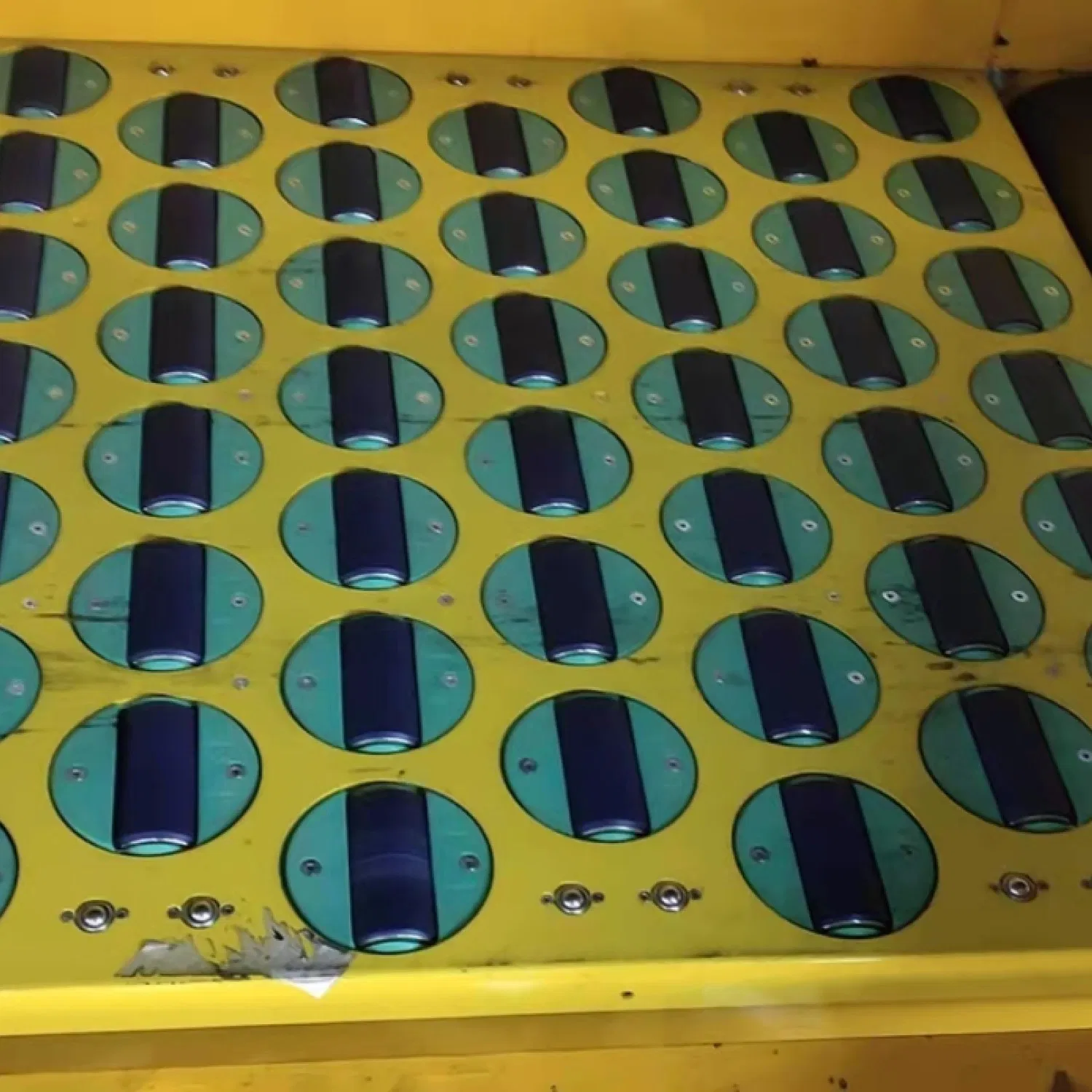

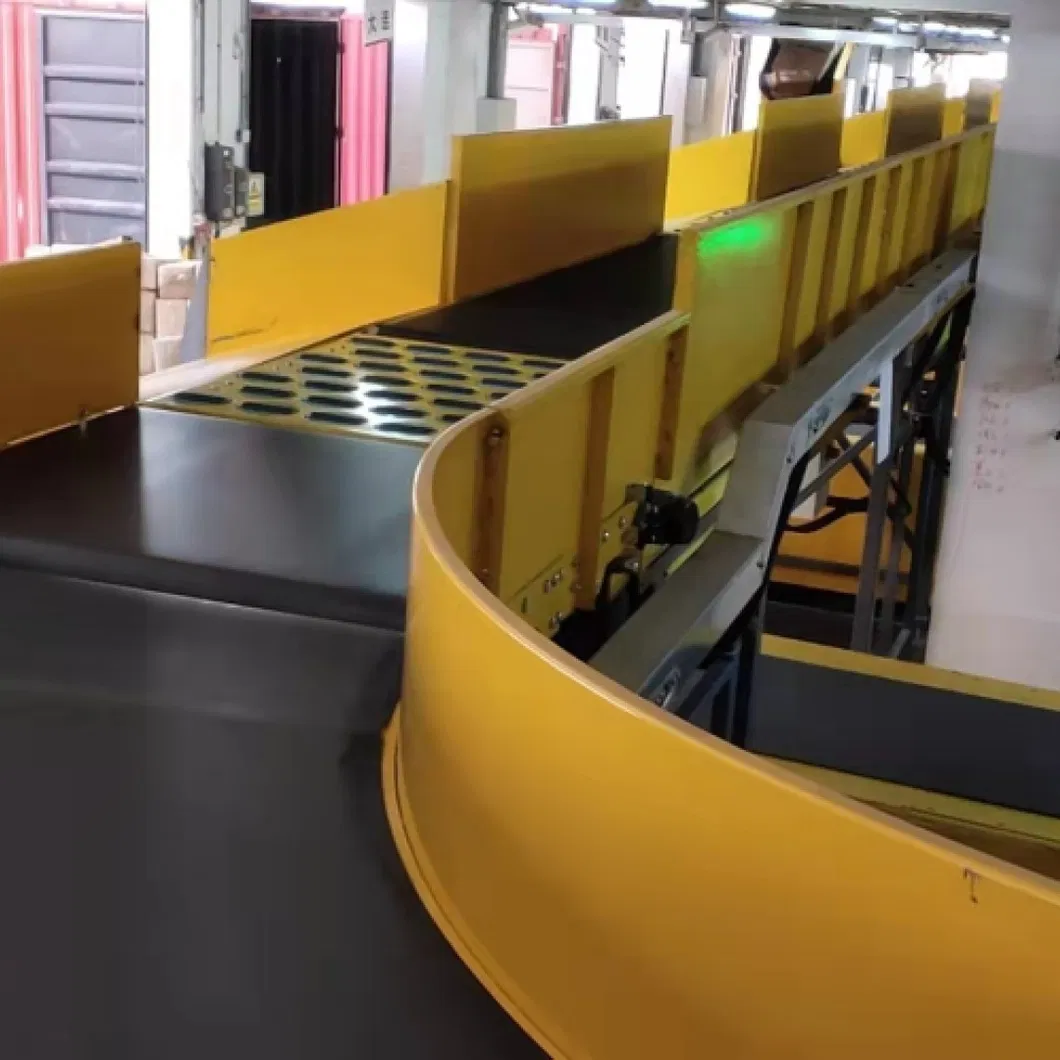

Our high-speed balance wheel sorter is a state-of-the-art system engineered with cutting-edge conveying equipment, precision driving wheels, robust conveying motors, advanced rotating motors, and high-performance servo controllers. The main line features either a belt conveyor or a roller conveyor, skillfully sorting items to their designated branch lines with impeccable accuracy. This automated marvel, capable of handling up to 80kg per item, boasts an impressive sorting capacity of 6,000 items per hour. It is the quintessential solution for logistics distribution centers that demand peak efficiency and cost-effectiveness.
Our balance wheel sorting system is meticulously designed for retail, logistics, postal express delivery, and e-commerce warehousing, including sectors like clothing, pharmaceuticals, and books. It's perfectly suited for express distribution centers, factory warehouse sorting, and handling inbound and outbound warehouse logistics. Capable of sorting a myriad of items such as cartons, soft bags, woven bags, express bags, books, envelopes, turnover baskets, and heavy loads, it excels in diverse package and express sorting scenarios.
| Functional characteristics | Parameter |
| Number of Destination chutes | On Demand |
| Destination chutes width | 800mm(customizable) |
| Destination chutes type | Chutes, roll cages, conveyor buffer station, Other type on request |
| Standard unit size | L650mm*w650mm; L800mm*W800mm; L900mm*w900mm; L1000mm*W1000mm; L1200mm*W1200mm, customizable |
| Conveying speed | 1.0-2.5m/s |
| Line height | On Demand |
| Weight range of the item | 0.05 -80kg |
| Item size(min) | L100*W90*H20mm |
| Item size(max) | L1200*W1000*H800mm |
| Sorting capacity | 3000 to 6000 item/hr |
| Noise | <70dB |
| Accuracy | ≥99.99% |
| Operating temp | -10ºC~45ºC |
| Working humidity | 30%~90%(no condensation) |
