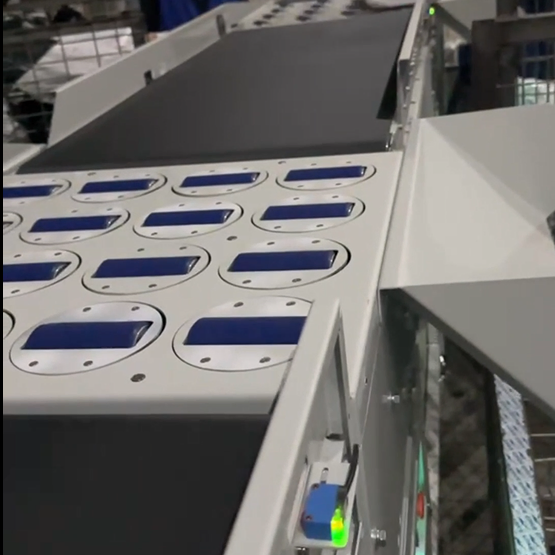

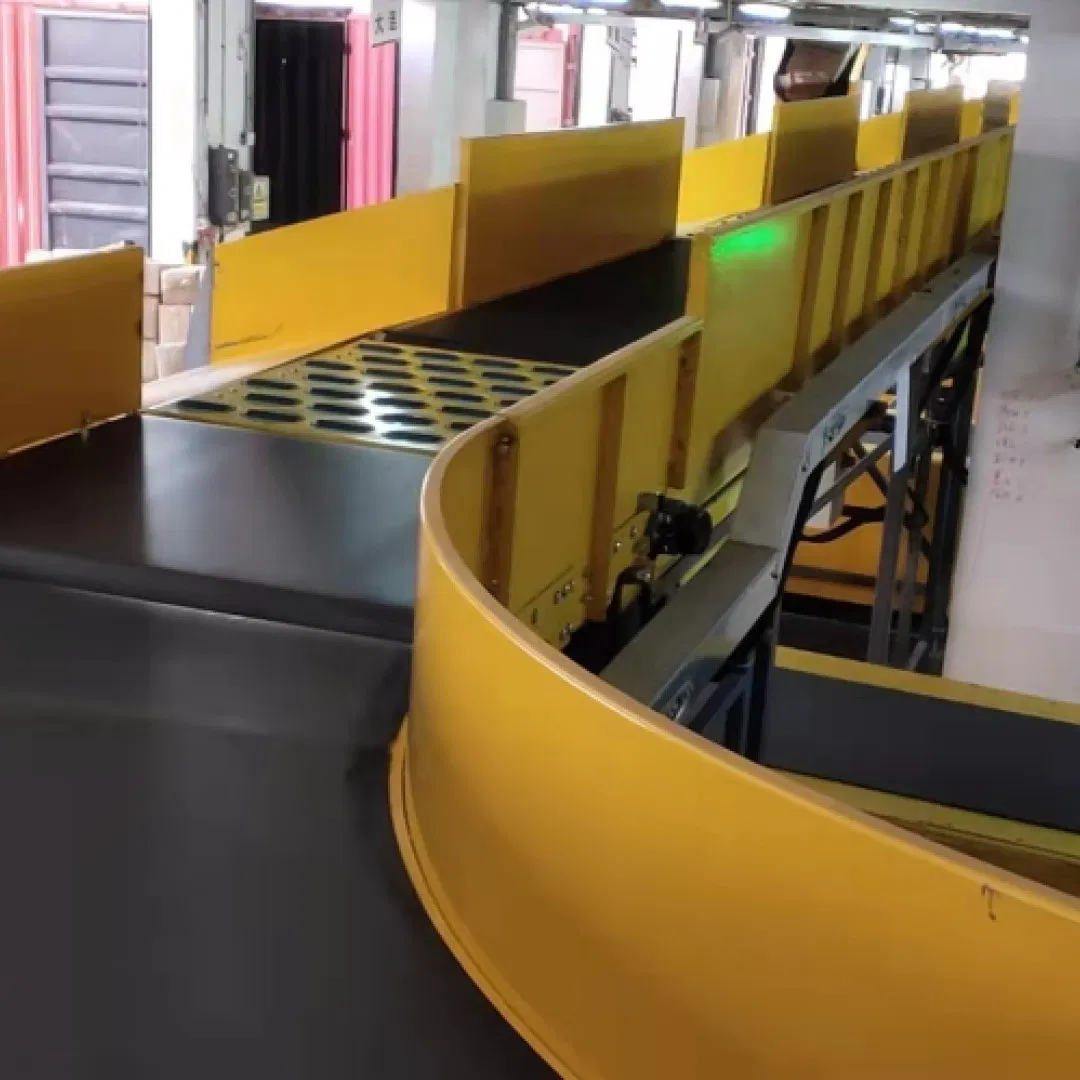

Smart Parcel Sorting System for Logistics Conveyance Automation Machine

Customization: Available
After-sales Service: on-Site Assistant and Remote Assistance
Warranty: 12 Months

Product Description

Basic Specifications
Model NO.Balance wheel sorter
StructureConveyor System
MaterialCarbon Steel
Material FeatureOil, Heat & Fire Resistant
ApplicationE-Commerce, Logistics, Warehouse
Volts & Hz220V/380V, 50/60Hz
Speed1-2.5 M/S
Sorting Accuracy99.99%
Capacity3000-6000 Item/Hr
Noise Level<70 dB
Product Description

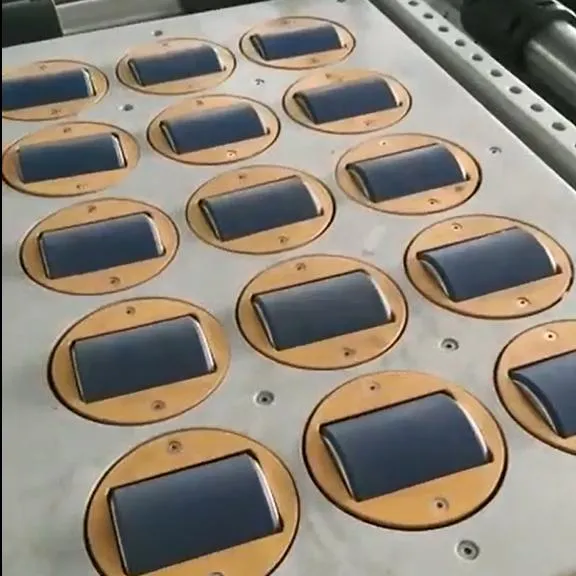

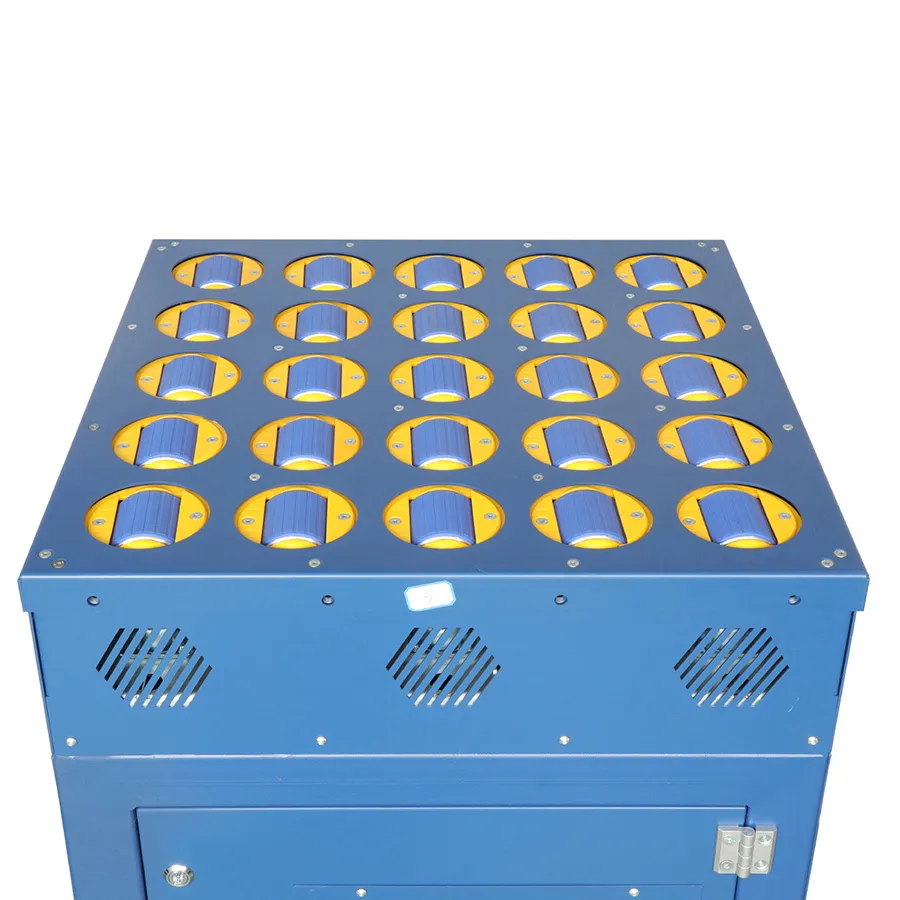

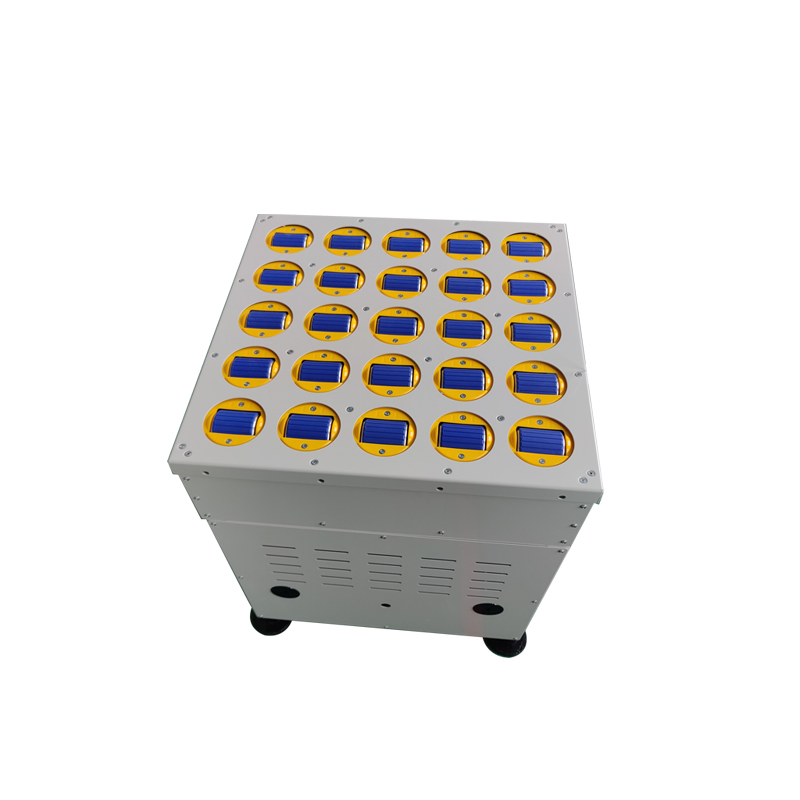

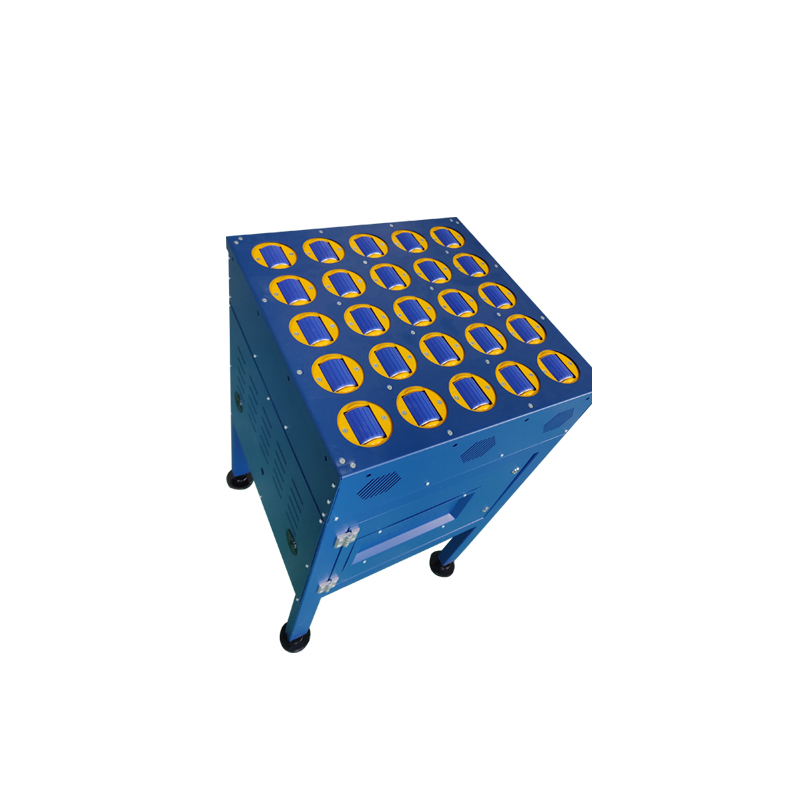

The Swivel Wheel Sorter design is simple and stable, requiring minimal maintenance. Powered by a servo motor, it offers fast response, stability, and reliability. Its compact structure ensures smooth sorting, and independent control allows for immediate action upon receiving signals, significantly reducing on-site commissioning time.

This high-speed balance wheel sorter is a state-of-the-art system engineered with cutting-edge conveying equipment, precision driving wheels, and robust servo controllers. Capable of handling up to 80kg per item, it boasts an impressive sorting capacity of up to 6,000 items per hour, making it the quintessential solution for logistics distribution centers demanding peak efficiency.

Functional Characteristics Parameter
Number of Destination ChutesOn Demand
Destination Chutes Width800mm (Customizable)
Standard Unit SizeL650-1200mm * W650-1200mm
Conveying Speed1.0-2.5m/s
Weight Range of Item0.05 - 80kg
Sorting Capacity3000 to 6000 item/hr
Key Features & Applications

High Flexibility

Sorting angles can be fine-tuned to make on-site commissioning more flexible and adaptive to site situations.

Heavy-Duty Capability

Robust design capable of handling items from 50g up to 80kg with impeccable accuracy.

Smart Control

Advanced rotating motors and servo controllers ensure stable movement and sensor interlocking.

Wide Application

Ideal for E-commerce fulfillment, parcel sorting hubs, and retail distribution warehouses.

Company Profile

We are an innovative technology company focusing on smart logistics and smart manufacturing. Established with a commitment to applying advanced technologies including AI vision, Internet of Things, Big Data, Cloud Computing, and 5G, we help enterprises improve their core competitiveness through smart warehouse platforms.

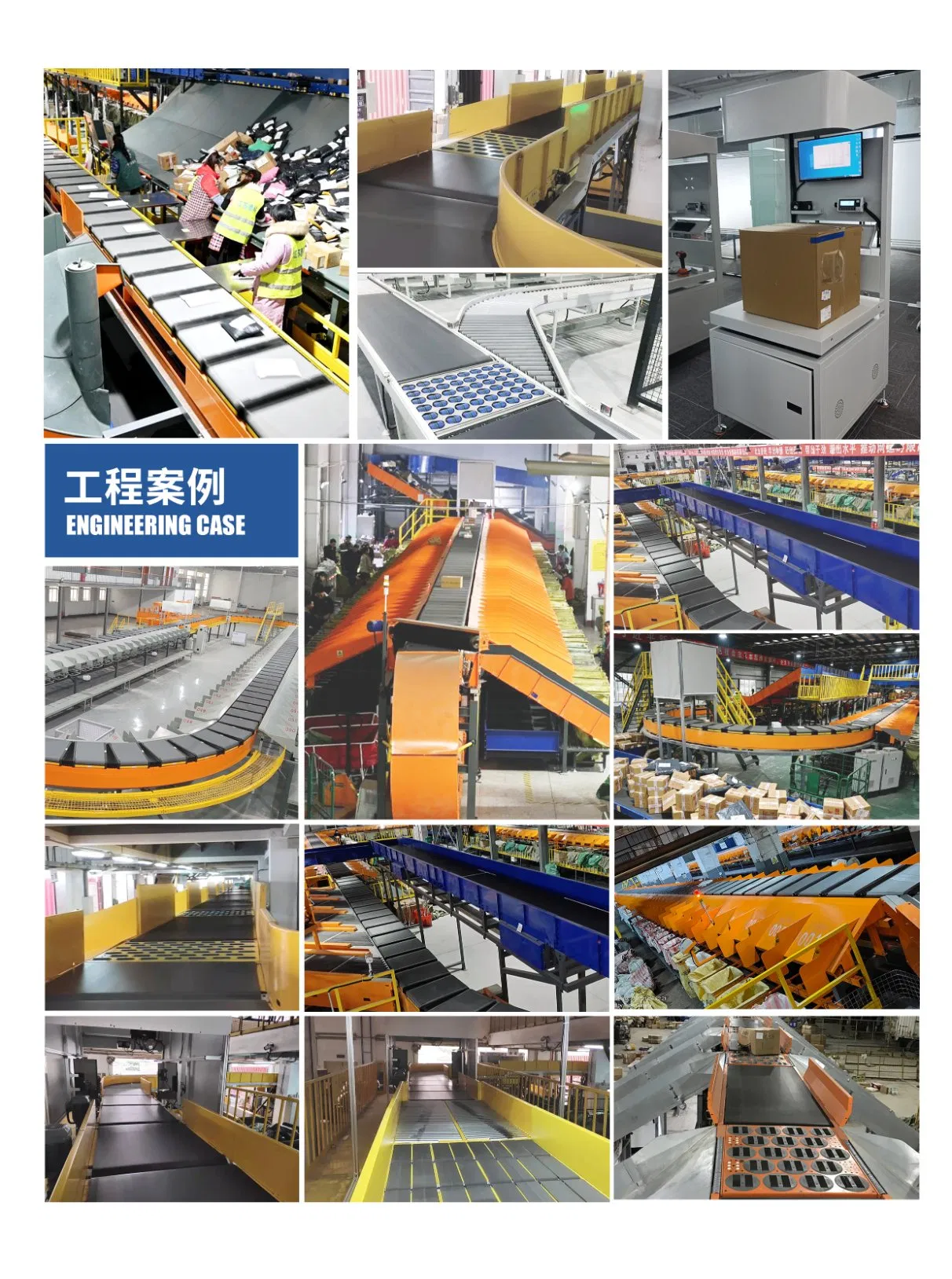

Our R&D team has developed solutions covering CEP express logistics, e-commerce, automobiles, pharmaceutical, and airports. Our product range includes loop cross-belt sorters, linear narrow-belt sorters, balance wheel sorters, dynamic DWS, and integrated warehousing automation management solutions.

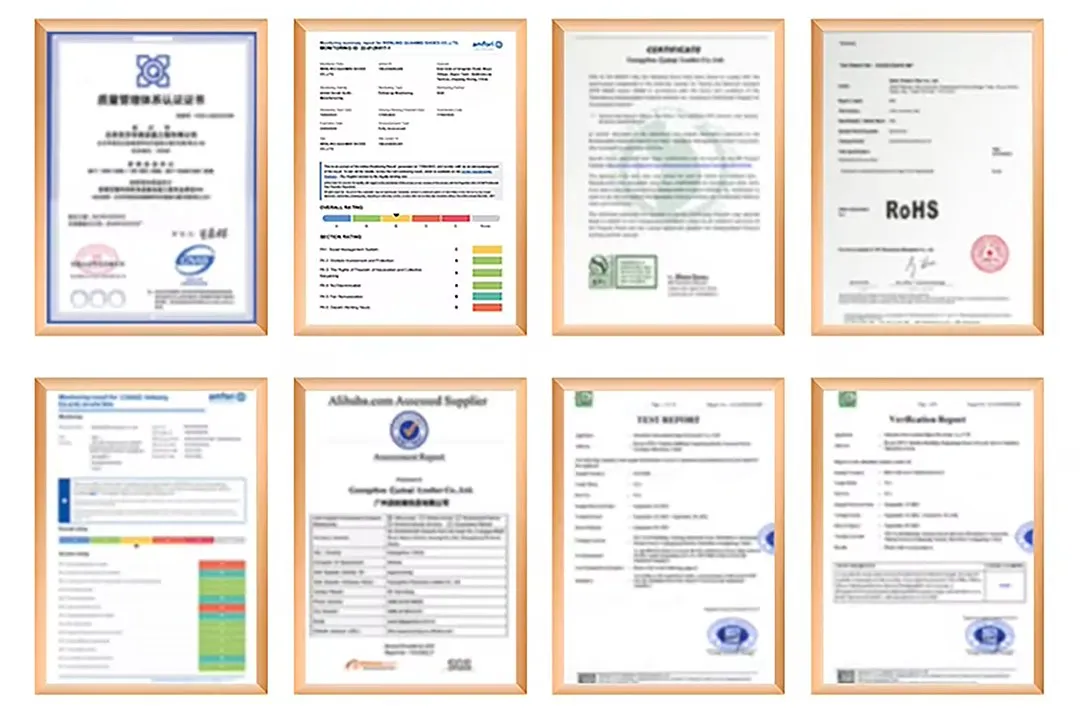

Engineering Excellence & Certifications
Packaging & Shipping
Frequently Asked Questions
What is the maximum sorting capacity of the Swivel Wheel Sorter?
The system can handle between 3,000 to 6,000 items per hour depending on the configuration and item size.
What weight range can the equipment handle?
Our sorter is designed to handle items ranging from a minimum of 0.05 kg up to a maximum of 80 kg.
Is the sorting angle adjustable for different site requirements?
Yes, the sorting steering mechanism is connected by joint bearings, allowing the sorting angle to be fine-tuned for flexible on-site commissioning.
What types of items are suitable for this sorter?
It is ideal for parcels, cartons, and flat-bottomed items used in E-commerce, CEP logistics, and retail distribution.
What are the power and voltage requirements?
The system supports 220V or 380V at both 50Hz and 60Hz to accommodate different regional power standards.
What is the typical lead time for an order?
The lead time generally ranges from 30 to 90 days, depending on the customization and scale of the project.
