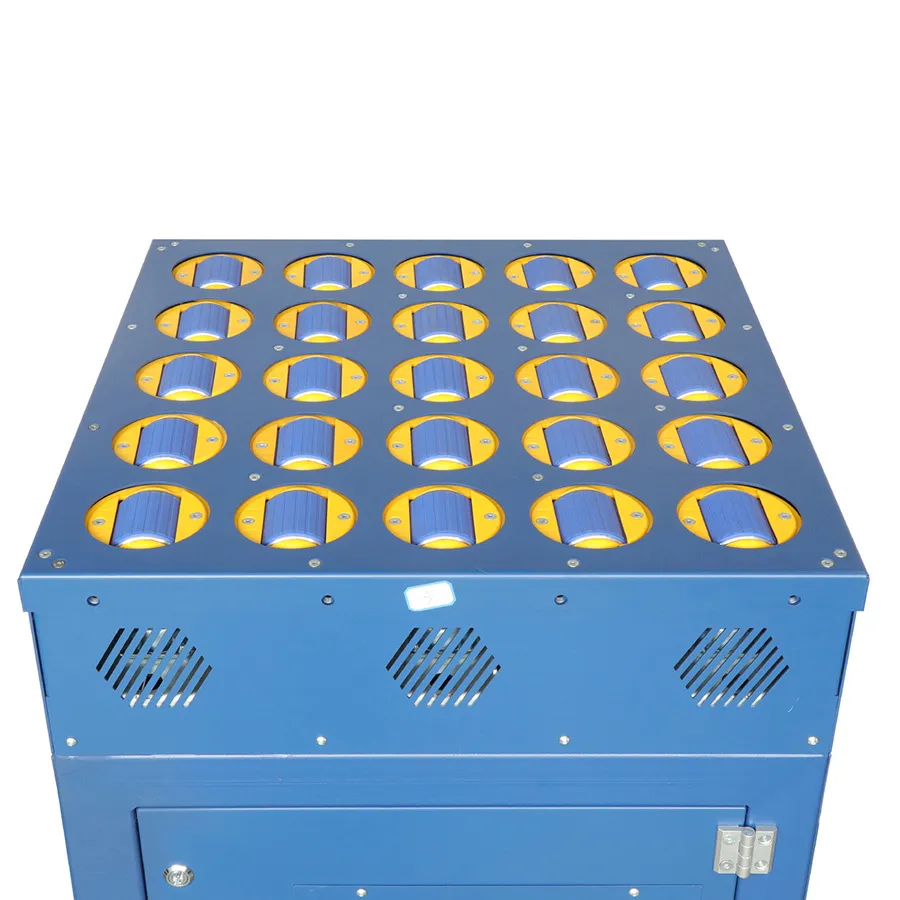

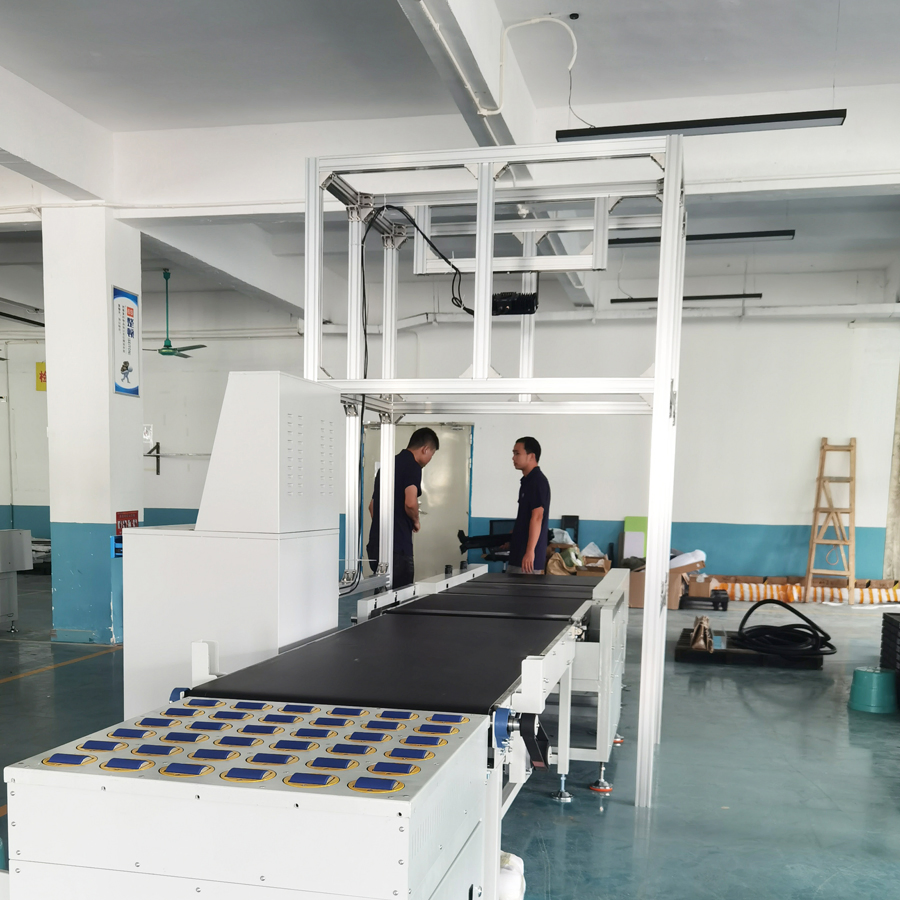

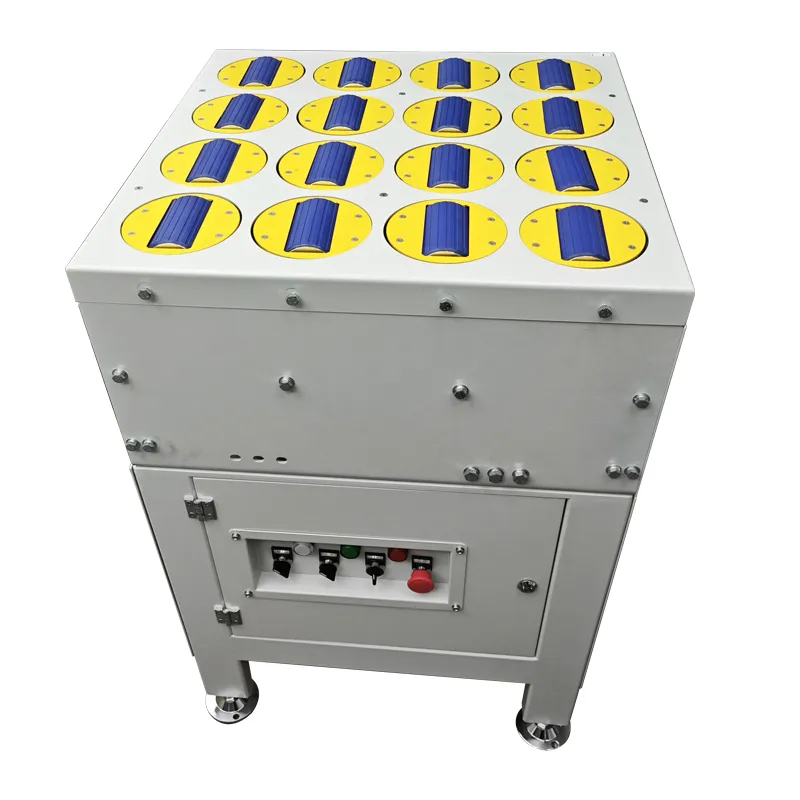

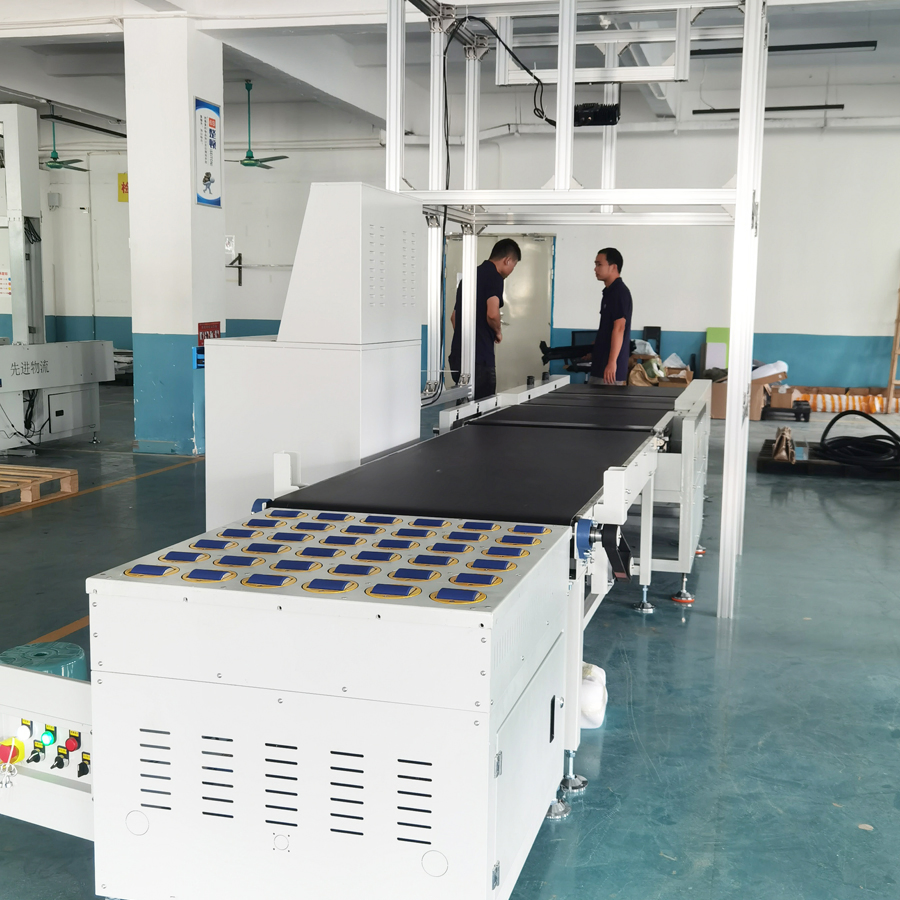

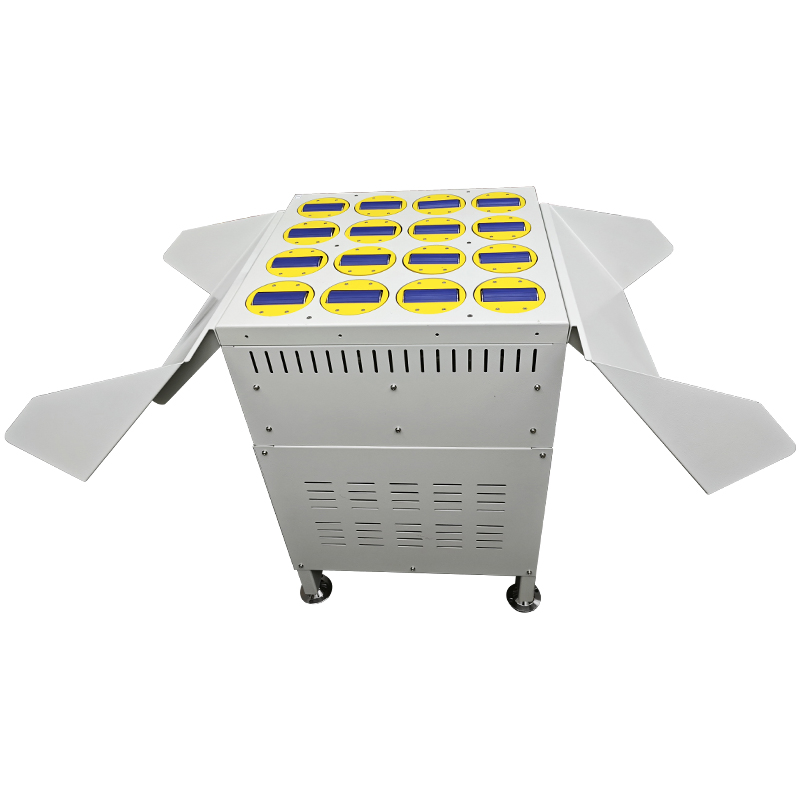

Swivel Wheel Sorter design is simple and stable, there no need for maintaining frequently. Turning power from the servo motor, which has fast response, stable and reliable. Compact structure to make sure the smooth and stable sorting. Independent controlled and can realize the sorting action only need to accept the sorting signal, greatly reducing the on-site commissioning time.

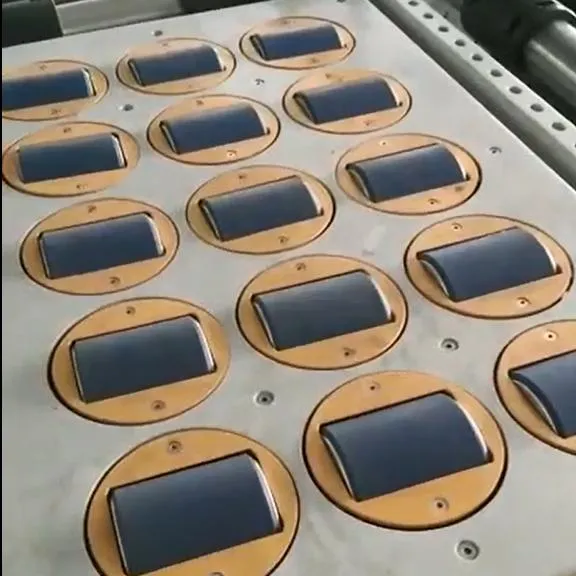

The Swivel Wheel Sorter uses a servo motor and uses a sensor to detect the movement of the balance wheel and interlocks with the sensor signal to ensure the stability and reliability of the sorting. The Sorting steering mechanism is connected by joint bearings. Sorting angle can be fine-tuned to make on-site commissioning more flexible. The foot can be adjusted according to the actual site situations.

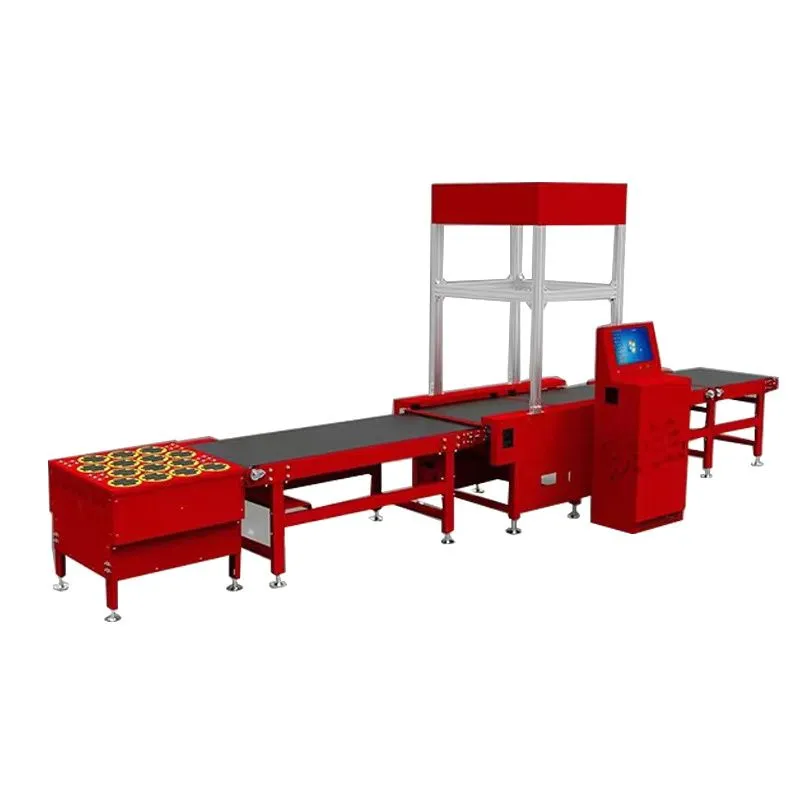

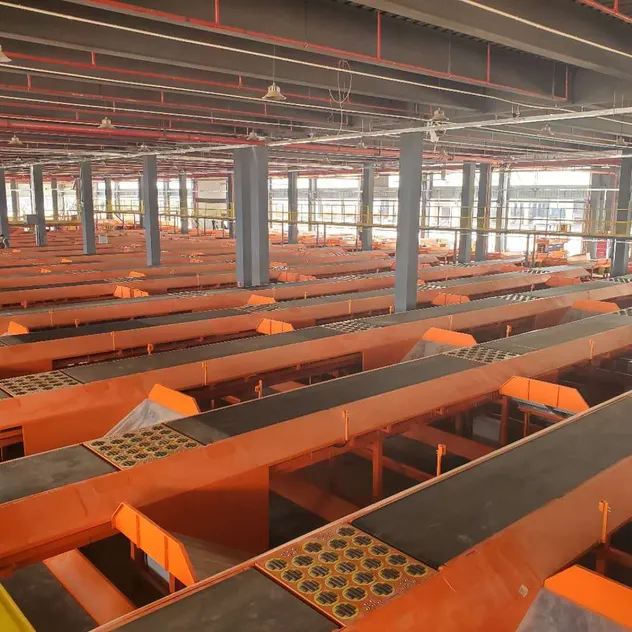

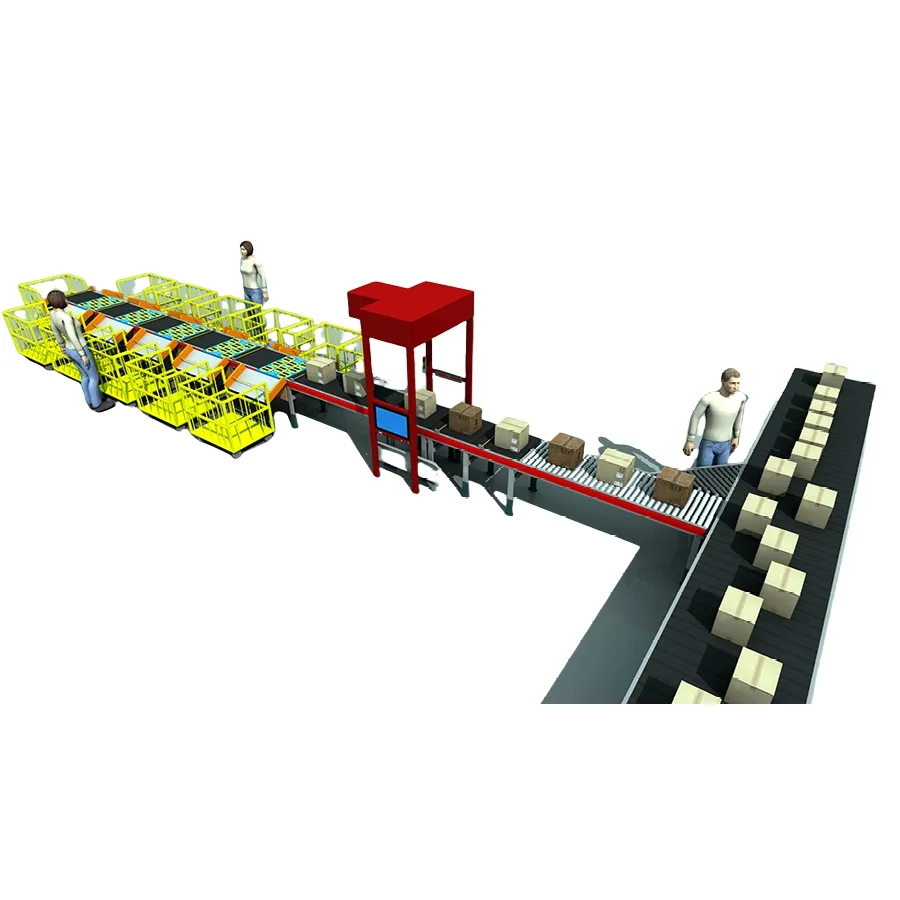

Our high-speed balance wheel sorter is a state-of-the-art system engineered with cutting-edge conveying equipment, precision driving wheels, robust conveying motors, advanced rotating motors, and high-performance servo controllers. The main line features either a belt conveyor or a roller conveyor, skillfully sorting items to their designated branch lines with impeccable accuracy. This automated marvel, capable of handling up to 80kg per item, boasts an impressive sorting capacity of 6,000 items per hour. It is the quintessential solution for logistics distribution centers that demand peak efficiency and cost-effectiveness.
| Functional characteristics | Parameter |
| Number of Destination chutes | On Demand |
| Destination chutes width | 800mm (customizable) |
| Destination chutes type | Chutes, roll cages, conveyor buffer station, Other type on request |
| Standard unit size | L650*W650; L800*W800; L900*W900; L1000*W1000; L1200*W1200, customizable |
| Conveying speed | 1.0-2.5m/s |
| Line height | On Demand |
| Weight range of the item | 0.05 - 80kg |
| Item size (min) | L100*W90*H20mm |
| Item size (max) | L1200*W1000*H800mm |
| Sorting capacity | 3000 to 6000 item/hr |
Our innovative technology team focuses on smart logistics and smart manufacturing. We are committed to applying advanced technologies including AI vision, Internet of Things, Big Data, Cloud Computing, 5G, and Neural Networks to smart logistics, and using smart warehouse to platformize closed-loop processes, to help enterprises improve their core competitiveness and creativity.

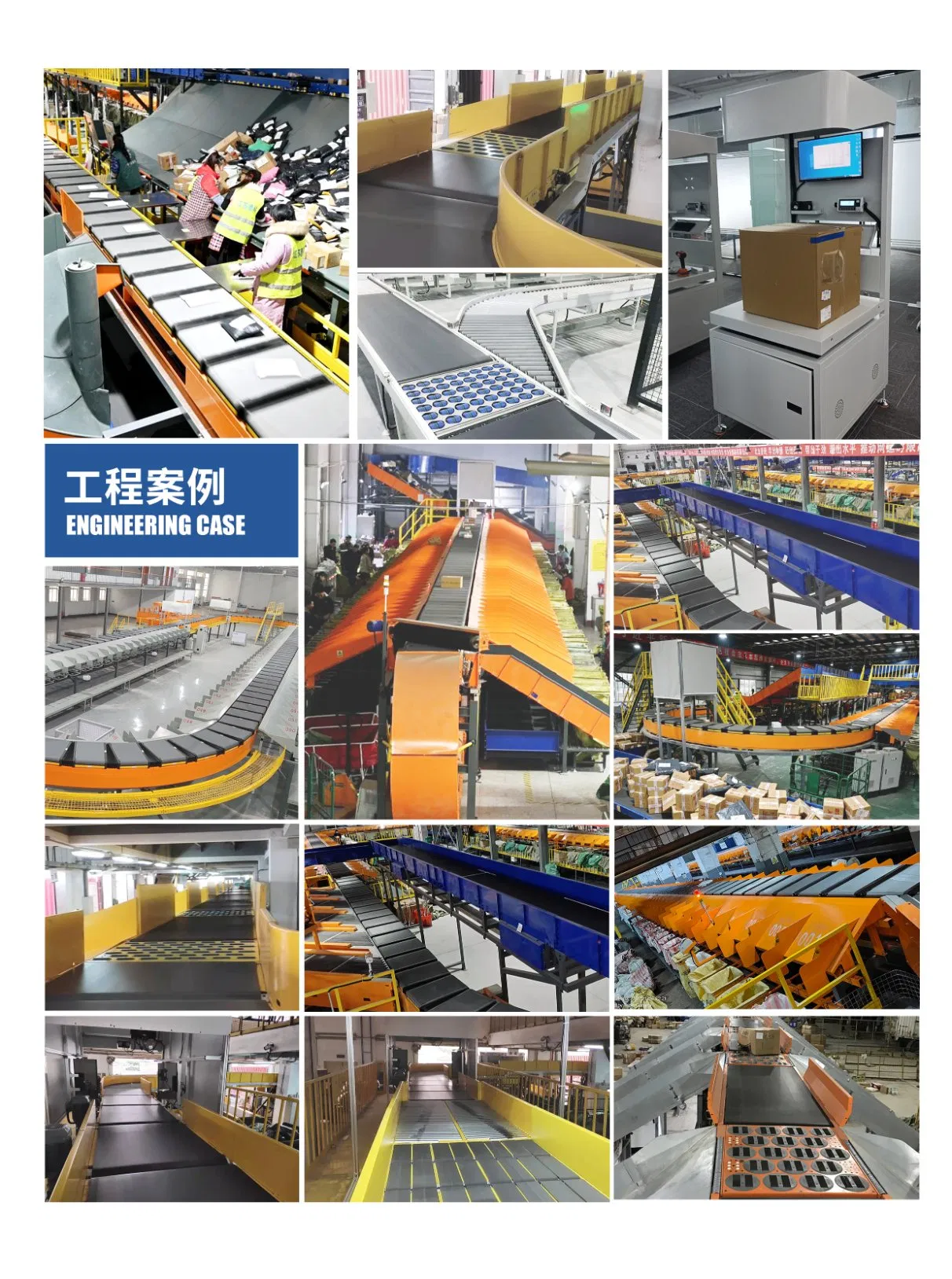

The R&D team has worked hard and after long-term accumulation and development, our products have covered CEP express logistics, e-commerce, automobiles, pharmaceutical, airports and other fields, expanding successfully to Southeast Asia, the Middle East, Australia and other global markets.
