Basic Specifications
Lifting Height
3m to 30m (Customizable)
Lifting Speed
0.5 M/S to 2.5 M/S (Adjustable)
Throughput Rate
50 to 300 Units Per Hour
Conveyor Width
400mm to 1,500mm
Control System
PLC with HMI Touch Screen
Safety Features
Emergency Stop, Overload Protection
Package Size
1000cm * 30cm * 250cm
Brief Introduction
Our Fork Type Continuous Vertical Conveyor represents a revolutionary advancement in Multi-Floor Material Handling technology, engineered for demanding Industrial Automation Equipment applications. This innovative Fork Arm Lifter System integrates cutting-edge CVC Technology with precision mechanical design to deliver unparalleled Cross-Floor Transportation capabilities.
The sophisticated Fork Arm Mechanism enables seamless Inter-Floor Cargo Transport while maintaining exceptional reliability and safety. Unlike traditional conveyors limited to horizontal movement, our Warehouse Automation Equipment excels in Multi-Level Transport applications, effectively bridging different floor levels in multi-story industrial facilities and distribution centers.

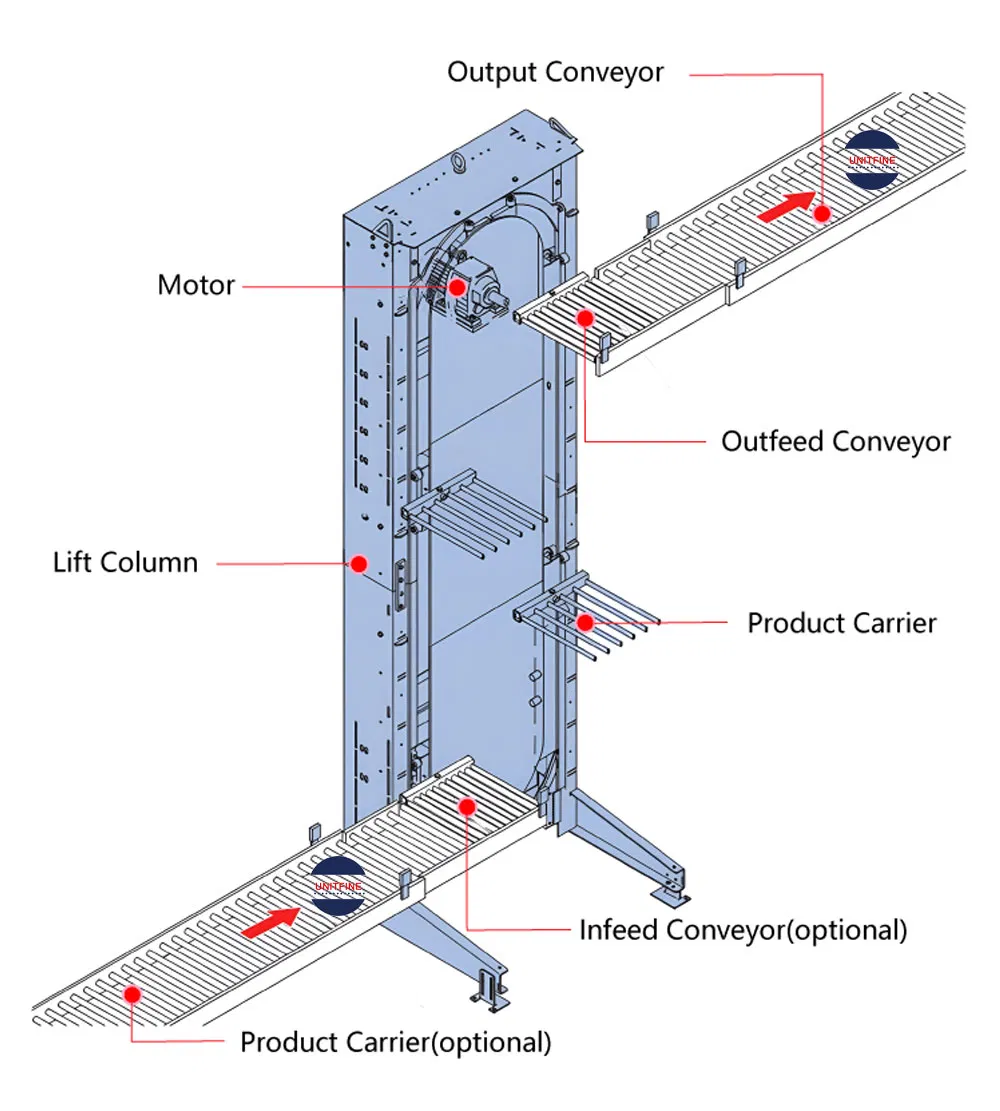

Structure Breakdown
The diagram illustrates the Fork Type Continuous Vertical Conveyor's key components including the lift column, motor, product carriers, and integrated input/output conveyors.
Application Scenarios & Solutions
1
Automotive Assembly Lines: Streamlines component transport between production levels with precision positioning.
2
Electronics Manufacturing: Fork Arm Lifter System provides gentle handling for delicate components.
3
Food Processing: Incorporates food-grade materials and hygienic design meeting sanitation requirements.
4

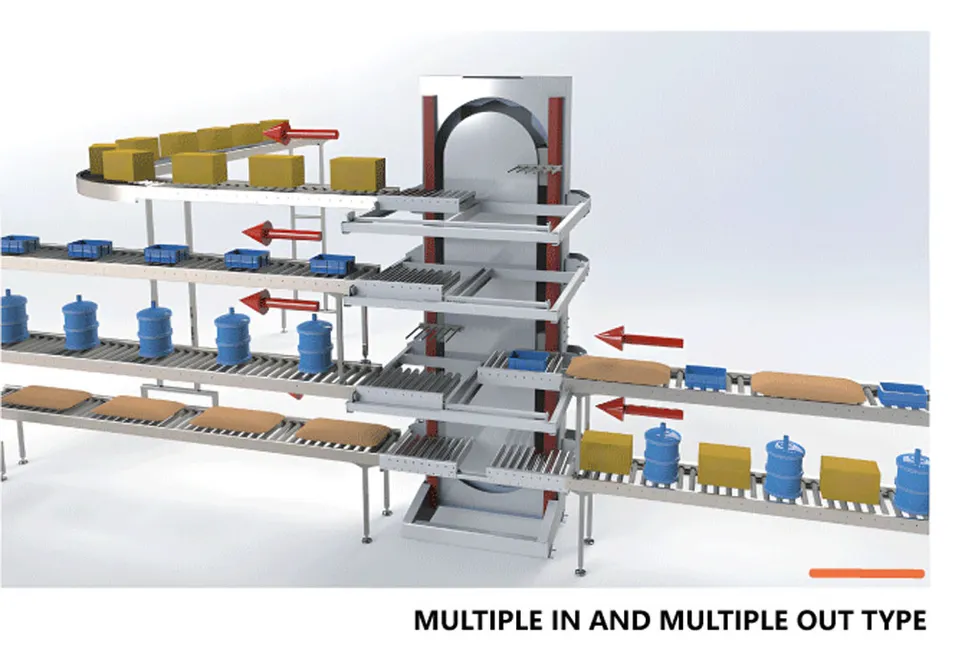

Warehousing: Optimizes space and streamlines Multi-Level Transport between storage and picking areas.
5
Pharmaceutical: Cleanroom-compatible configuration meets strict manufacturing standards.
Technology Features & Advantages
CVC Technology & Fork Arm Mechanism: Our innovative Fork Arm Mechanism delivers smooth, continuous operation under heavy-duty conditions. The dual-fork structure ensures balanced load distribution.
Vertical Material Flow Control: Proprietary control system with advanced sensors continuously monitors load position, weight distribution, and performance.
Variable Speed Control: Precision speed control allows operators to fine-tune conveyor speed based on material characteristics and throughput requirements.
Competitive Advantages
Versatile Heavy Duty Capacity: Handles loads up to 80kg with precise positioning accuracy, suitable for delicate electronics to heavy automotive parts.
Superior Energy Efficiency: CVC Technology with optimized power consumption and regenerative braking outperforms traditional lifts.
Space Optimization: Compact footprint maximizes floor space in congested facilities, enabling higher storage density.
After Sales Service
Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.
Frequently Asked Questions
Q: Can the conveyor system be customized?
A: Yes, we can customize dimensions, lifting height, and capacity according to your specific facility demands.
Q: What is the typical lead time for production?
A: For mass production, delivery is usually 25-28 days, while specialized OEM products take approximately 30-35 work days after deposit.
Q: What types of conveyor systems do you manufacture?
A: We specialize in roller conveyors, modular belt conveyors, flexible chain conveyors, spiral conveyors, and stainless steel belt conveyors.
Q: What is the warranty period for your equipment?
A: We provide a standard 1-year warranty on all our vertical conveyor systems.
Q: Is the system compatible with existing warehouse management software?
A: Yes, the PLC control system is designed to be compatible with most WMS, ERP platforms, and industrial automation controllers.
Q: Do you provide on-site installation support?
A: Yes, we provide installation supervision, operator training, and 24/7 technical support to ensure optimal performance.
