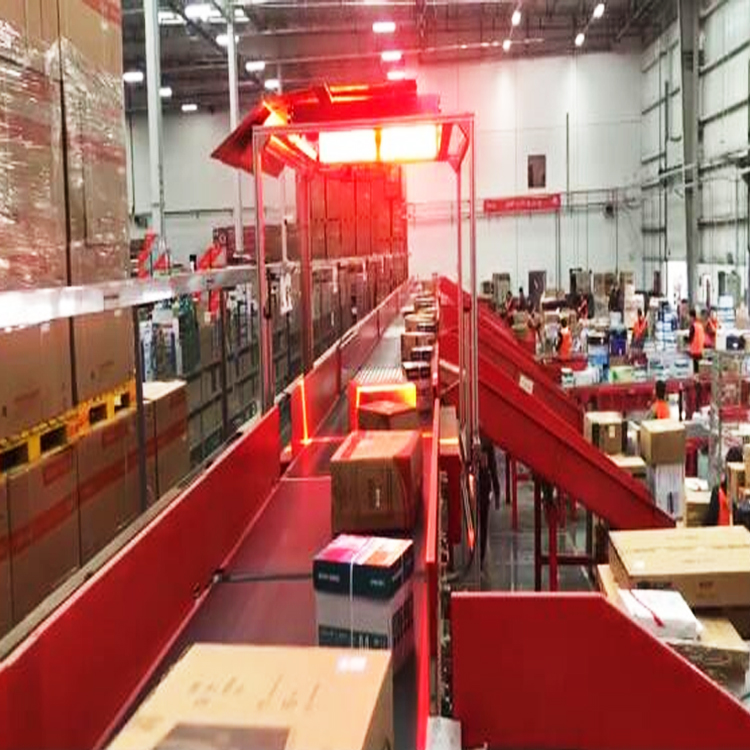

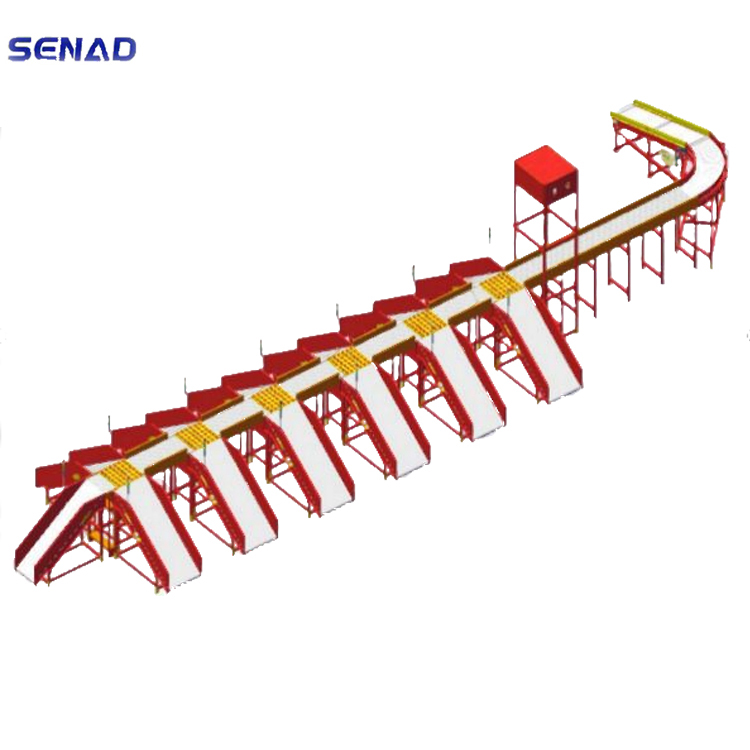

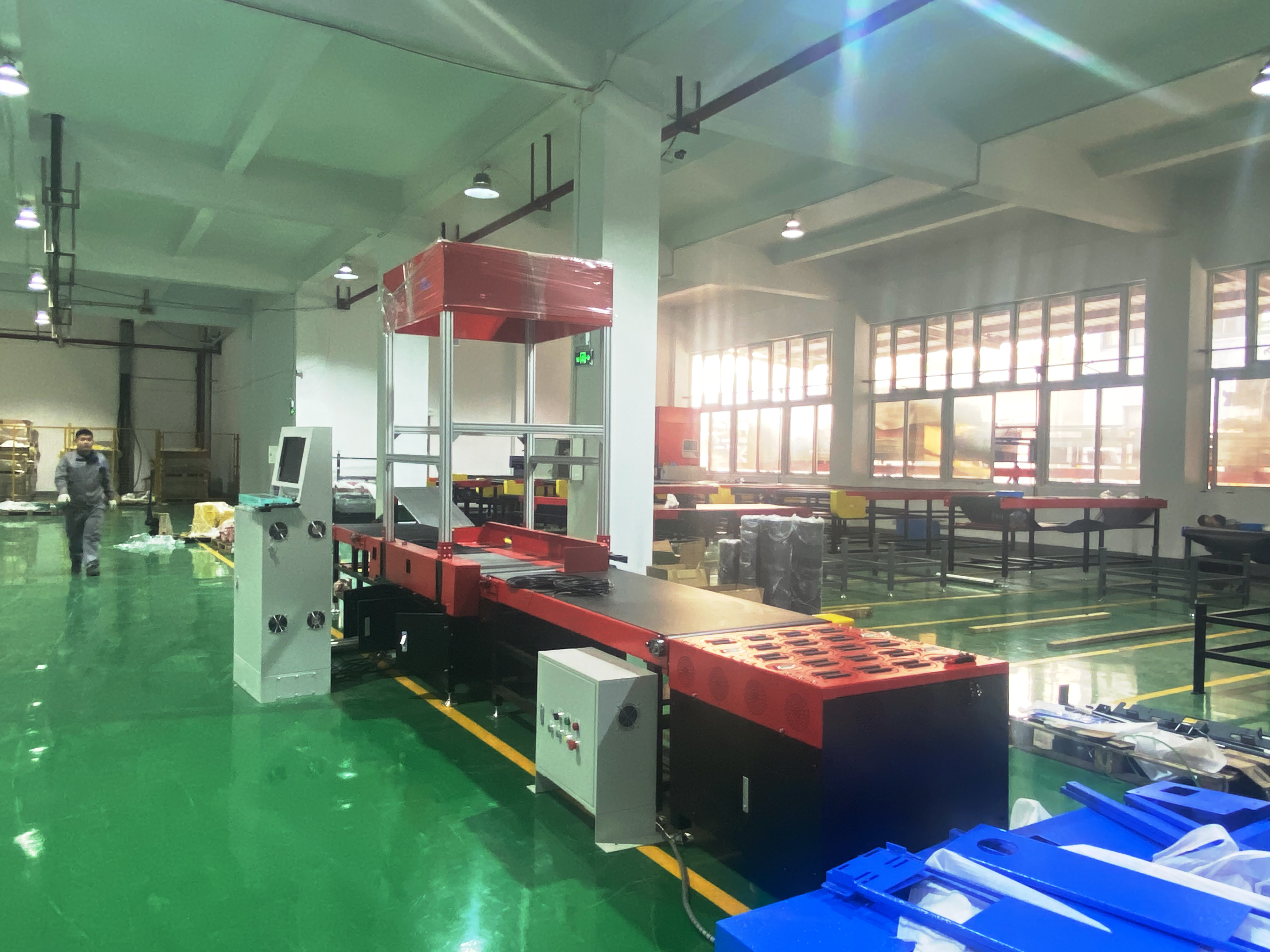

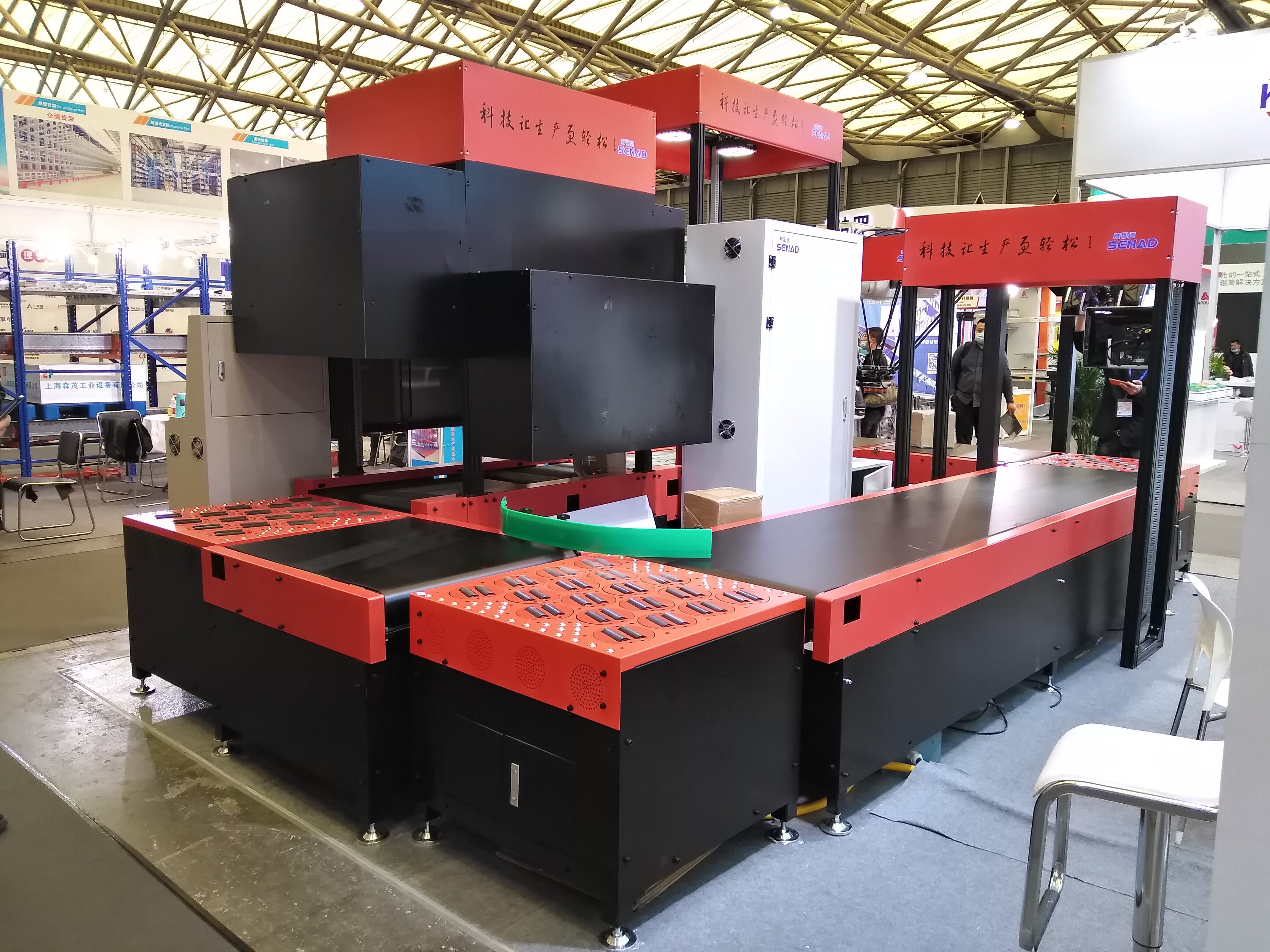

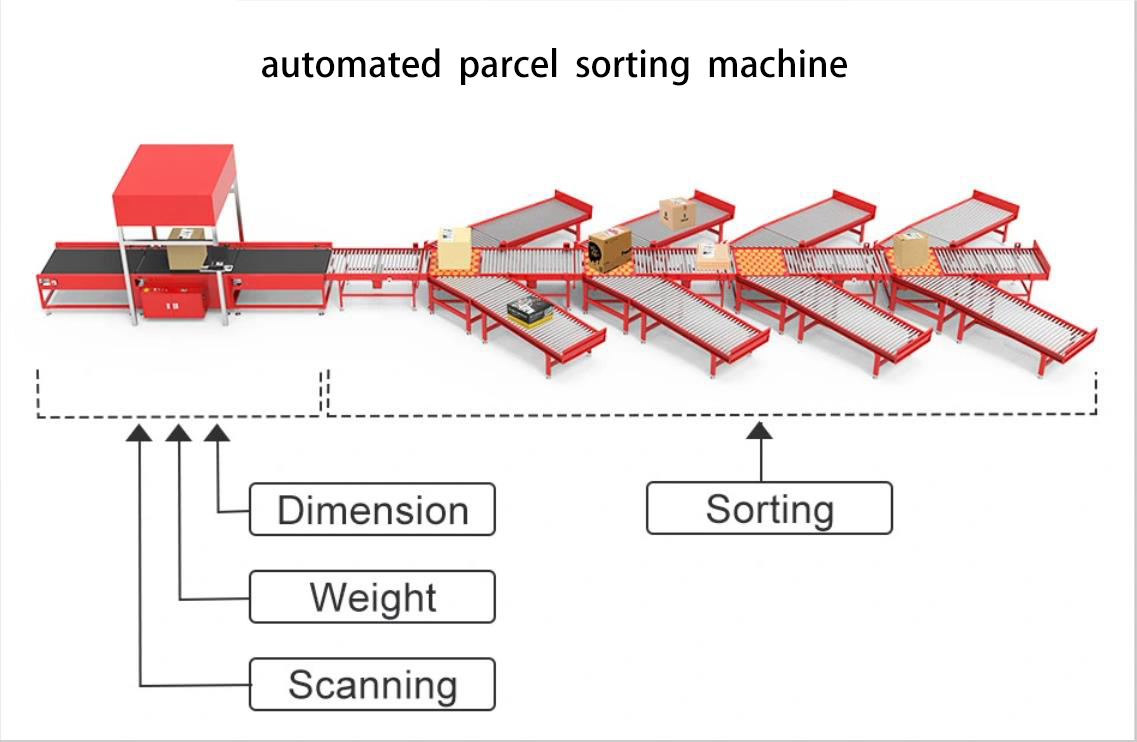

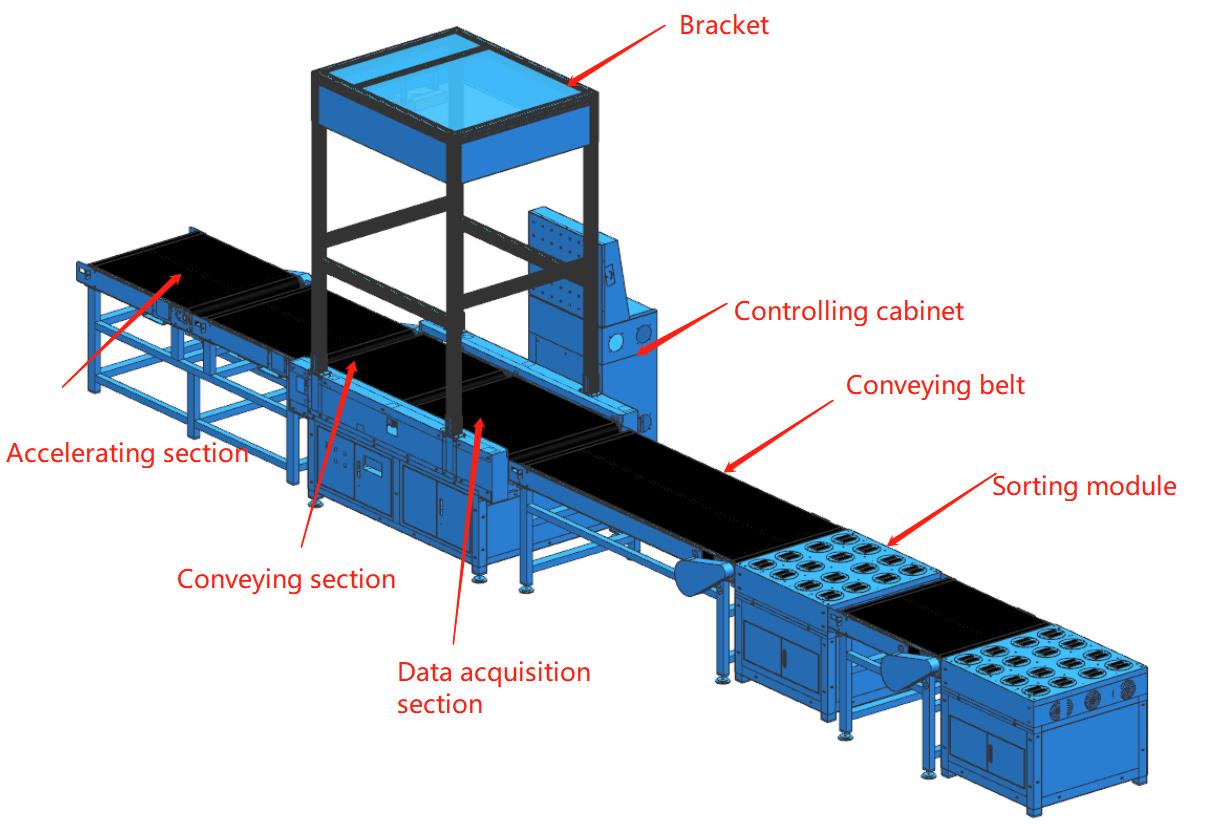

This equipment consists of DWS (Dimensioning, Weighing, and Scanning) units and two-wheel sorters. It integrates the functions of code scanning, dimensioning, weighing, and sorting. Parcels can be sorted in up to five directions. Sorting modules can be added or reduced according to individual needs. Parcel data can be saved locally and uploaded to system databases in real time.
| Parts | Configuration |
|---|---|
| Industrial Computer | Intel I5 |
| Display | 19.5 inches LCD |
| Camera | 20 million pixel Industrial camera |
| Keyboard/Mouse | Logitech |
| Load Cell | 100kg |
| Bracket | Customized |
| Performance Index | Parameter |
|---|---|
| Weighing Range | 30g ~ 60kg |
| Dimensioning Range | 50*50*50 ~ 1200*1000*800mm |
| Capacity | 2500 ~ 3600 pcs/hour |
| Recognition Rate | 99% |
| Dimensioning Accuracy | ±5 ~ 15mm |
| Weighing Accuracy | ±20 ~ 40g |

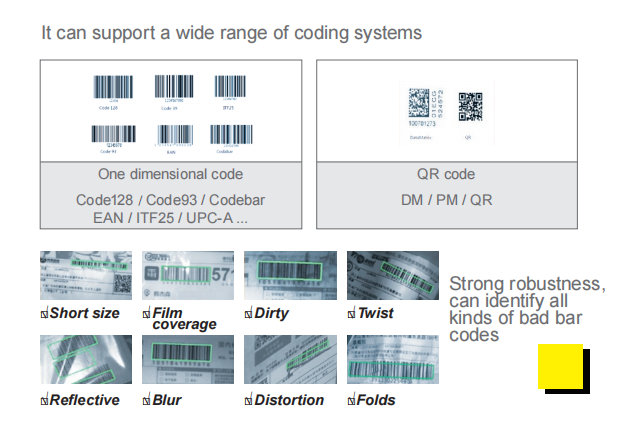

| Scanning Accuracy | 99% |
| Software Interface | HTTP, TCP, 485 |
| Weighing Mode | Dynamic weighing |
| Remote Diagnosis | Supported |

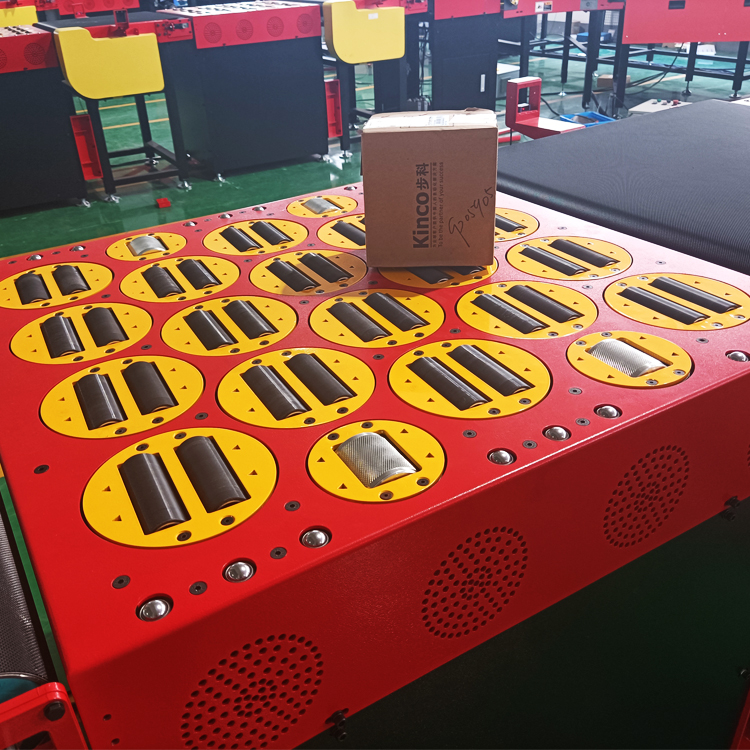

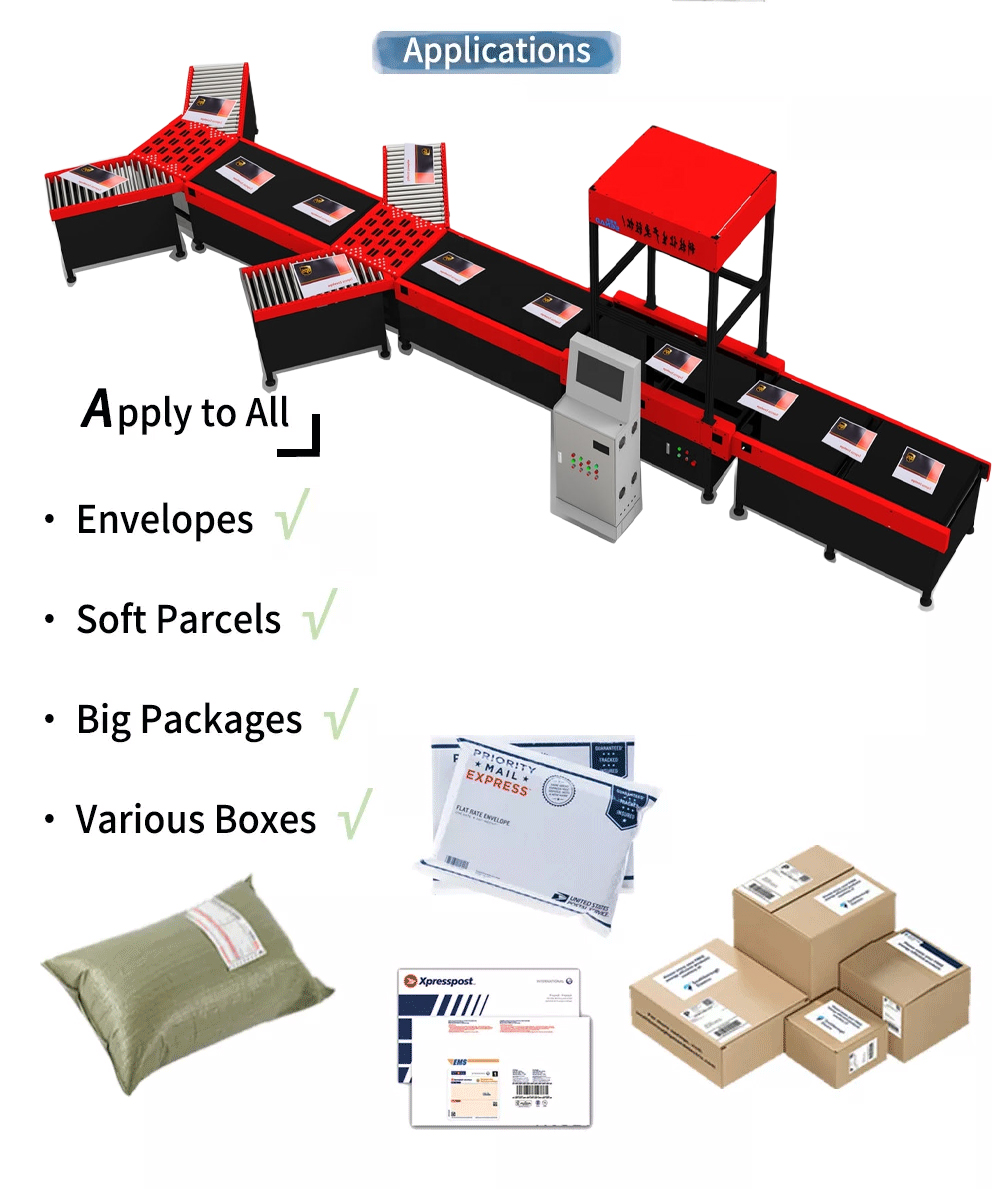

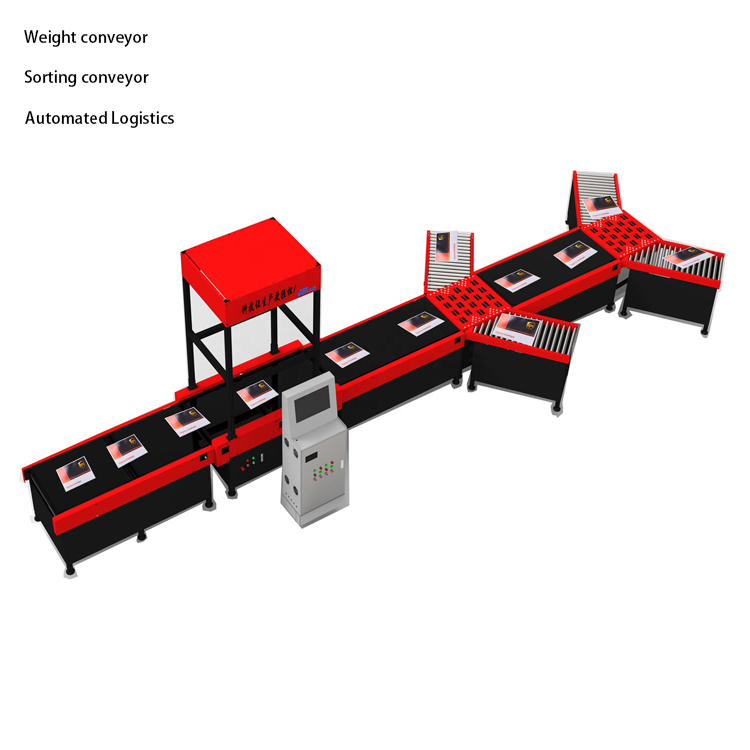

The rolling wheel sorter can automatically direct parcels into 3 directions to realize efficient automatic sorting.
Length and width can be fully customized according to actual site requirements and space constraints.

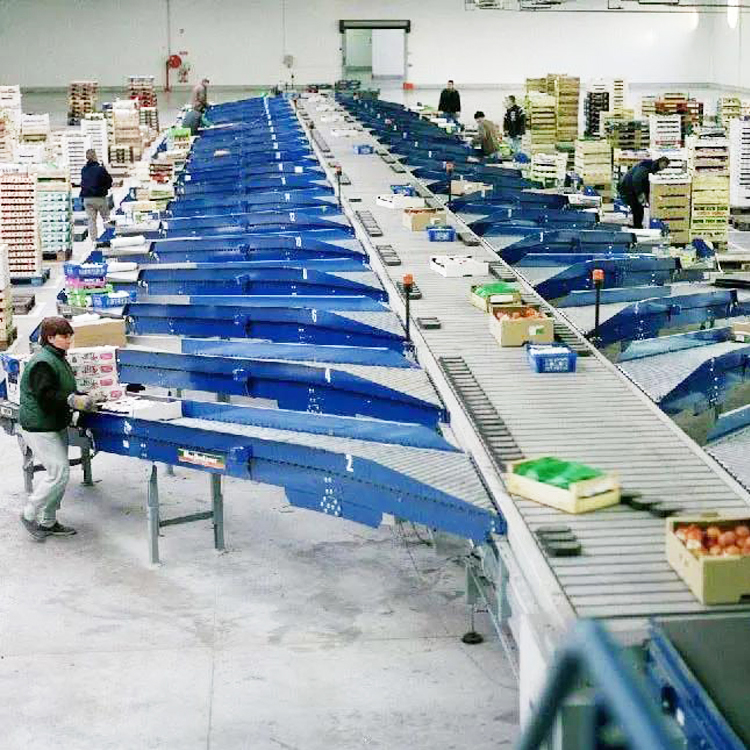

Reduce labor reliance by implementing machine-based sorting, significantly improving overall work efficiency.

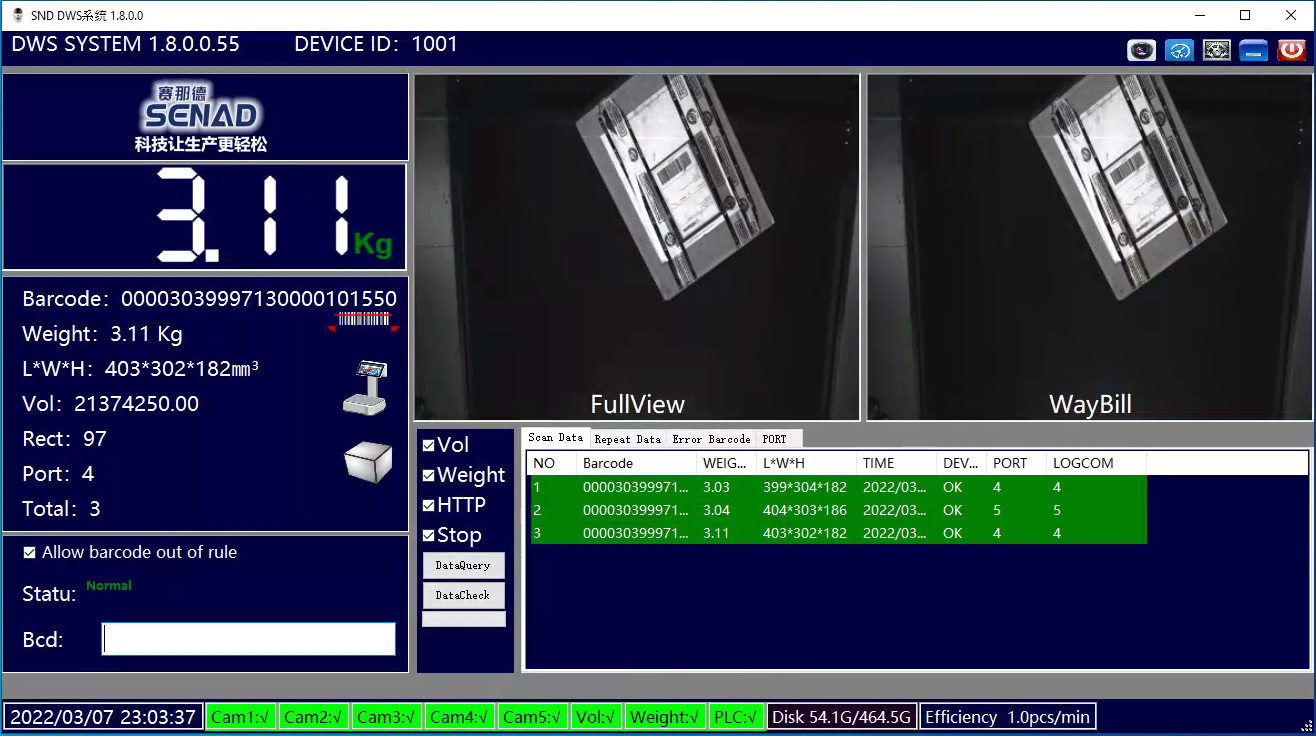

Displays size, weight, and barcode information. Language customization available. Seamlessly docks with customer systems for automatic form output.
Founded in 2012, this national high-tech enterprise specializes in machine vision technology. By utilizing deep learning algorithms, image processing, and multi-sensor information fusion, we provide "machine generation" solutions that reduce costs and increase efficiency for the smart logistics industry. We continue to innovate in smart factory and smart storage sectors, empowering manufacturing globally.
